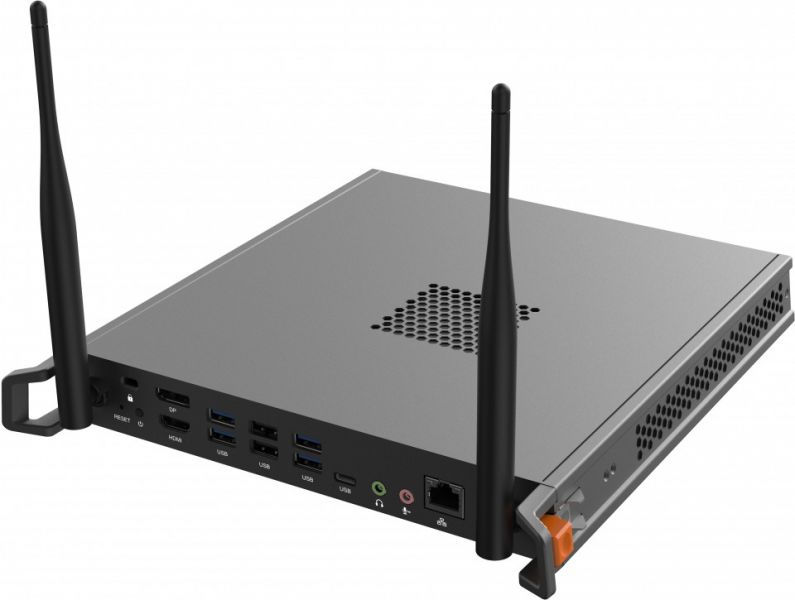

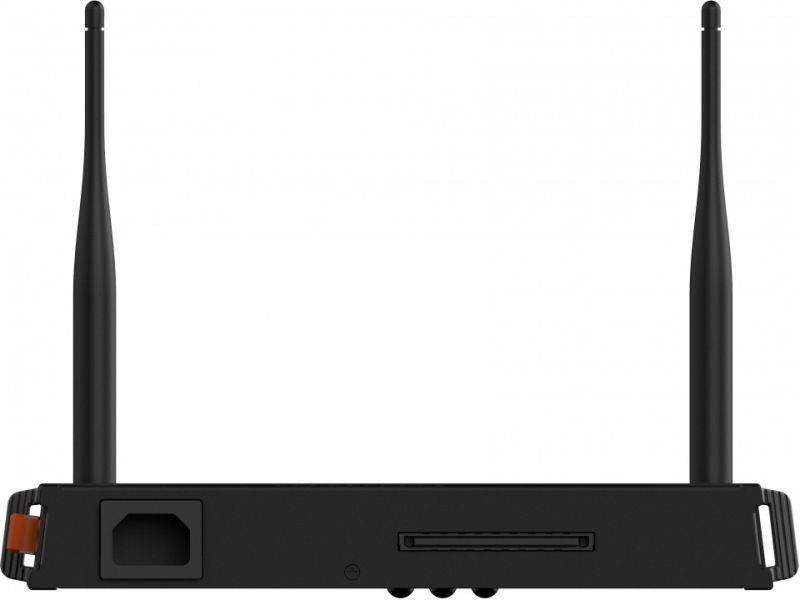

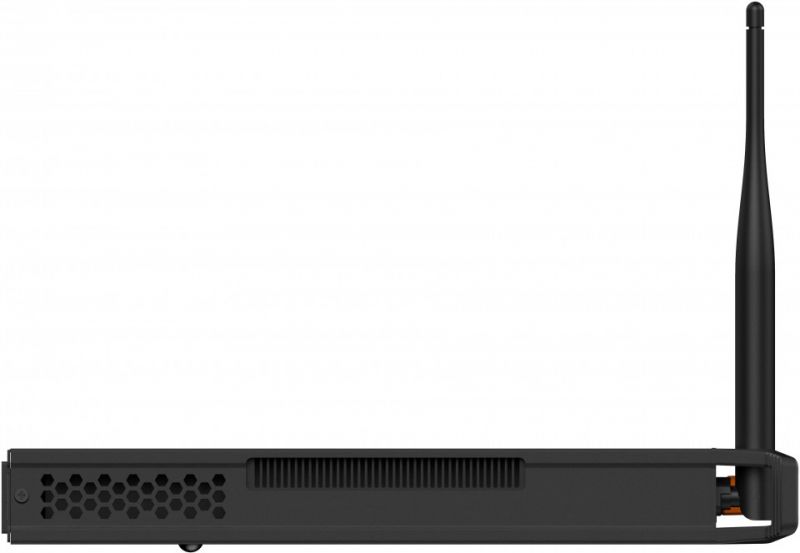

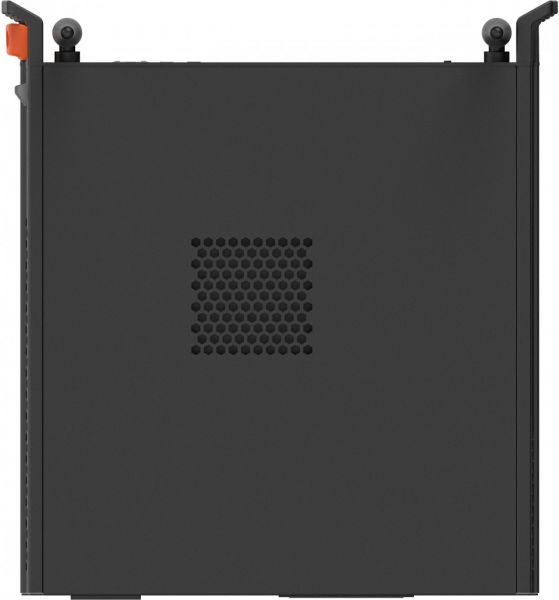

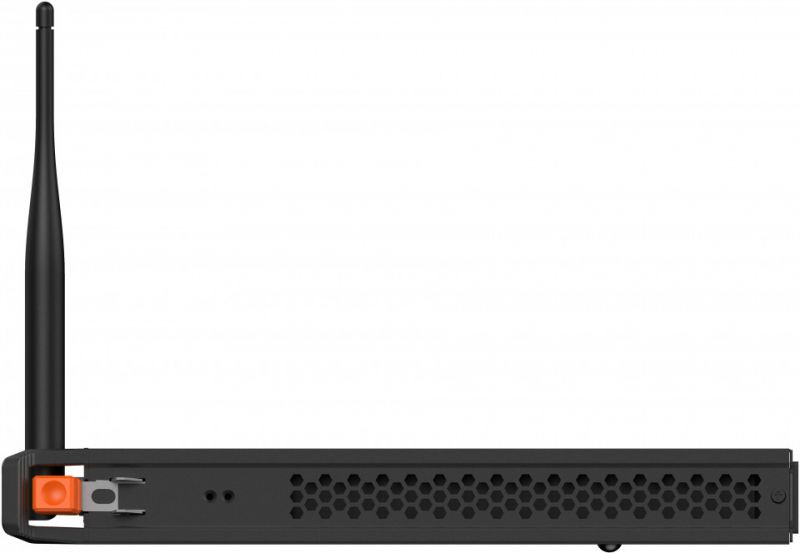

ViewSonic Slot in PCs VPC27-W55-P2

VPC27-W55-P2

Slot-in PC for ViewBoard®

Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business)*
Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays
Powerful Intel® 10th Core Processors
Improved System Stability, Security, & Thermal Control

GALLERY

SPECIFICATIONS

Software
Operating System: Windows 10 Pro 64 bit (ViewSonic recommends Windows 11 Pro for business)*
Core
CPU: Intel Core i7-10700T (vPro) 2.0GHz Turbo boost 4.5GHz
Graphics: Integrated Intel® UHD Graphics 630 Intel Q470 chipset
Memory
Capacity: 16GB DDR4

Storage
Dimension: M.2 2280 (22 x 80 mm)
Capacity: 512GB SSD
Interface: PCIE and SATA 3
INPUT
MIC(Microphone): x1
OUTPUT
DisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
HDMI: x 1 (2.0, resolution 3840x2160@60Hz)
Audio: x 1 Line out
LAN
RJ45: GbE LAN Port
Wireless / Bluetooth
Intel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
USB
Type A: USB x 6 (USB 3.0 x 4, USB 2.0 x 2)
Type C: USB 3.2 x 1 (data only)
Bundle Software
Adobe Reader / myViewBoard WhiteBoard for Windows / BIOS Winflash tool / FinchGuard (Watch Dog) / Intel Unite
Power
Voltage: AC 110-240V 50/60Hz
Consumption: 110 W
OPERATING CONDITIONS
Temperature (º C): -5°C to 40°C
Humidity: 10% ~ 90% @ 40°C Non-condensing.
DIMENSIONS (W x H x D)
Physical (inch / mm): 9.69 x 10.45 x 1.27 inch / 246.2 x 265.4 x 32.2 mm
Packaging (inch / mm): 13.78 x 12.2 x 3.54 inch / 350 x 310 x 90 mm
WEIGHT
Net (lb / kg): 4.3 lb / 1.95 kg
Gross (lb / kg): 4.63 lb / 2.1 kg
PACKAGE CONTENTS
1. VPC OPS
2. QSG
Disclaimer
*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware(see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1).
