ViewBoard IFP7550-3

ViewBoard® 75" 4K Interactive Display

Intuitive Interactive Interface and Eye-care Certified Display
Synchronous Writing Performance with Dual Pens
Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
Native Whiteboarding Tool with built-in myViewBoard® App
Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

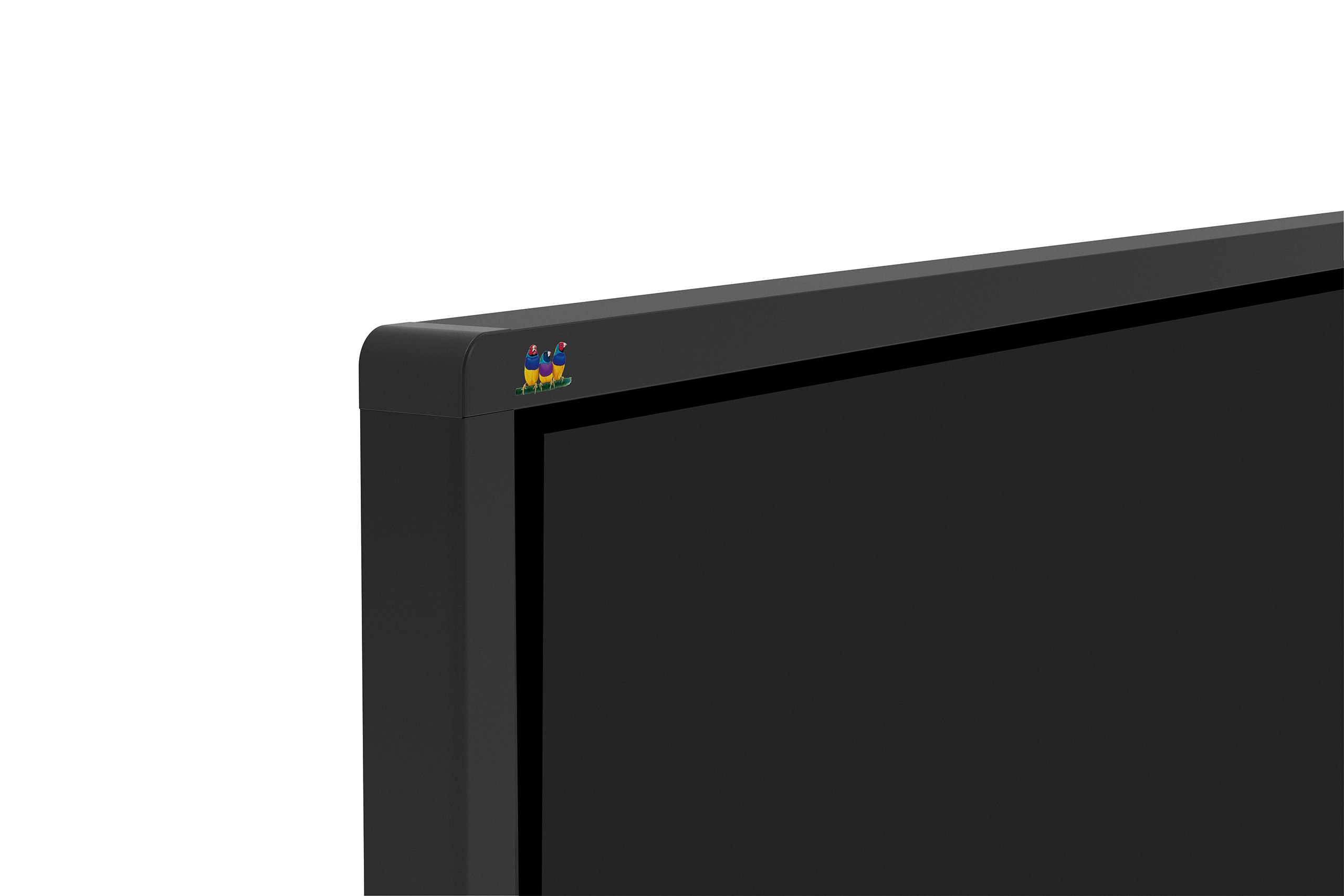

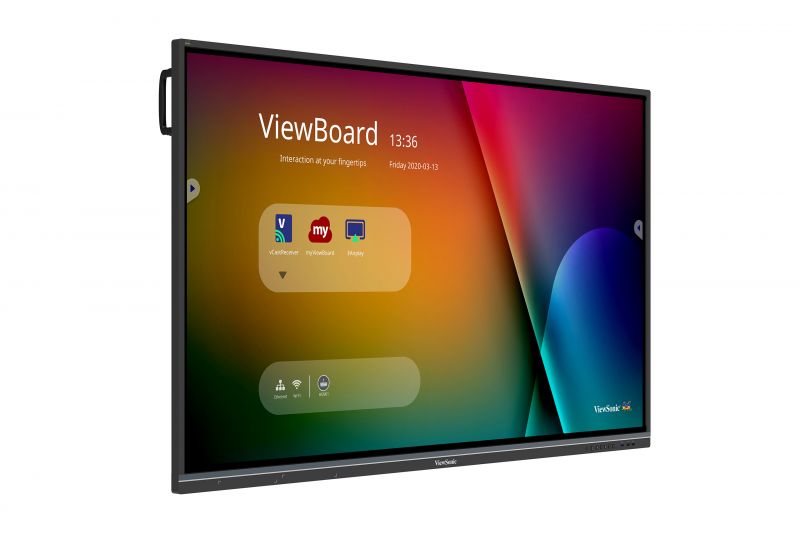

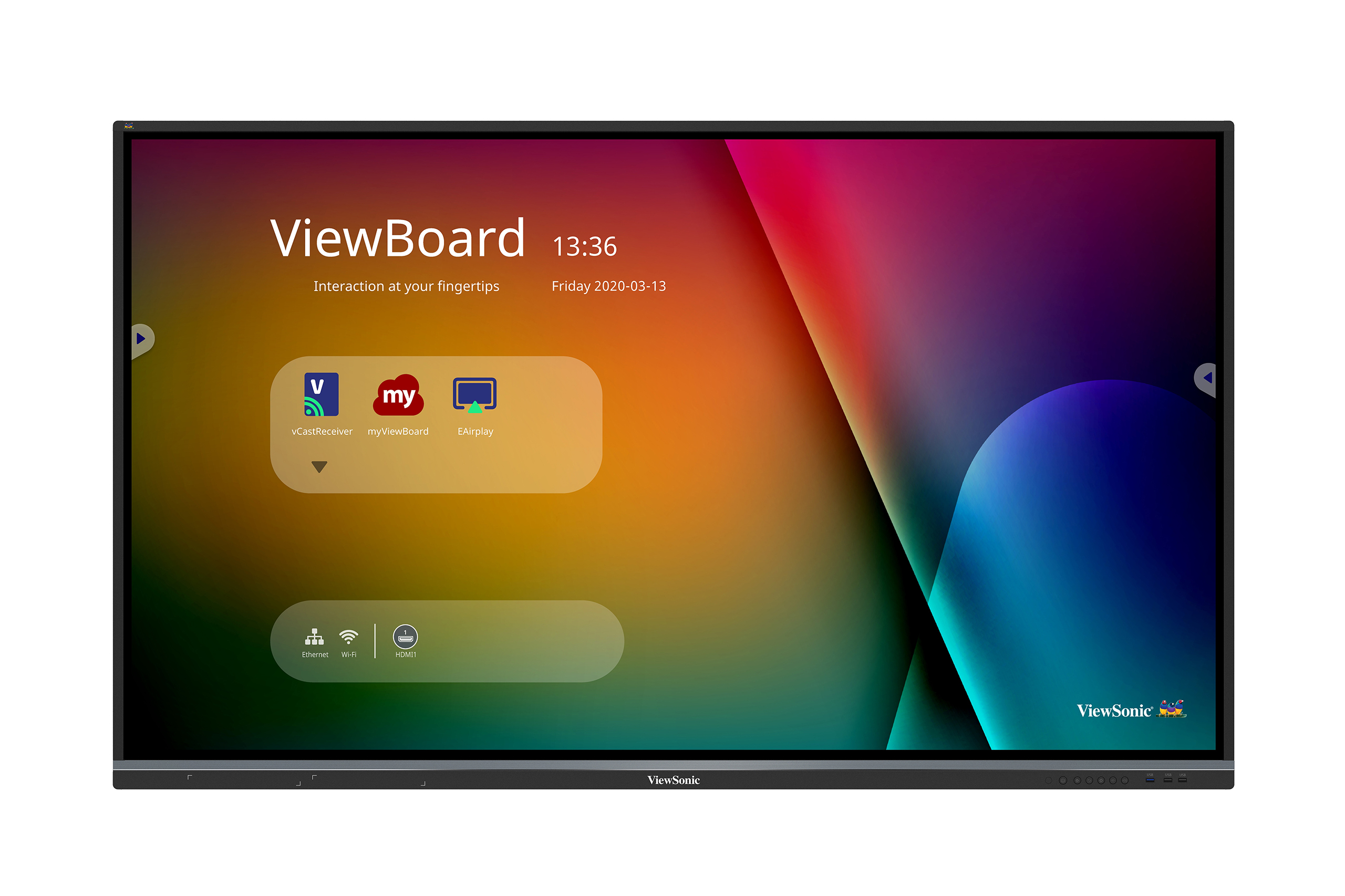

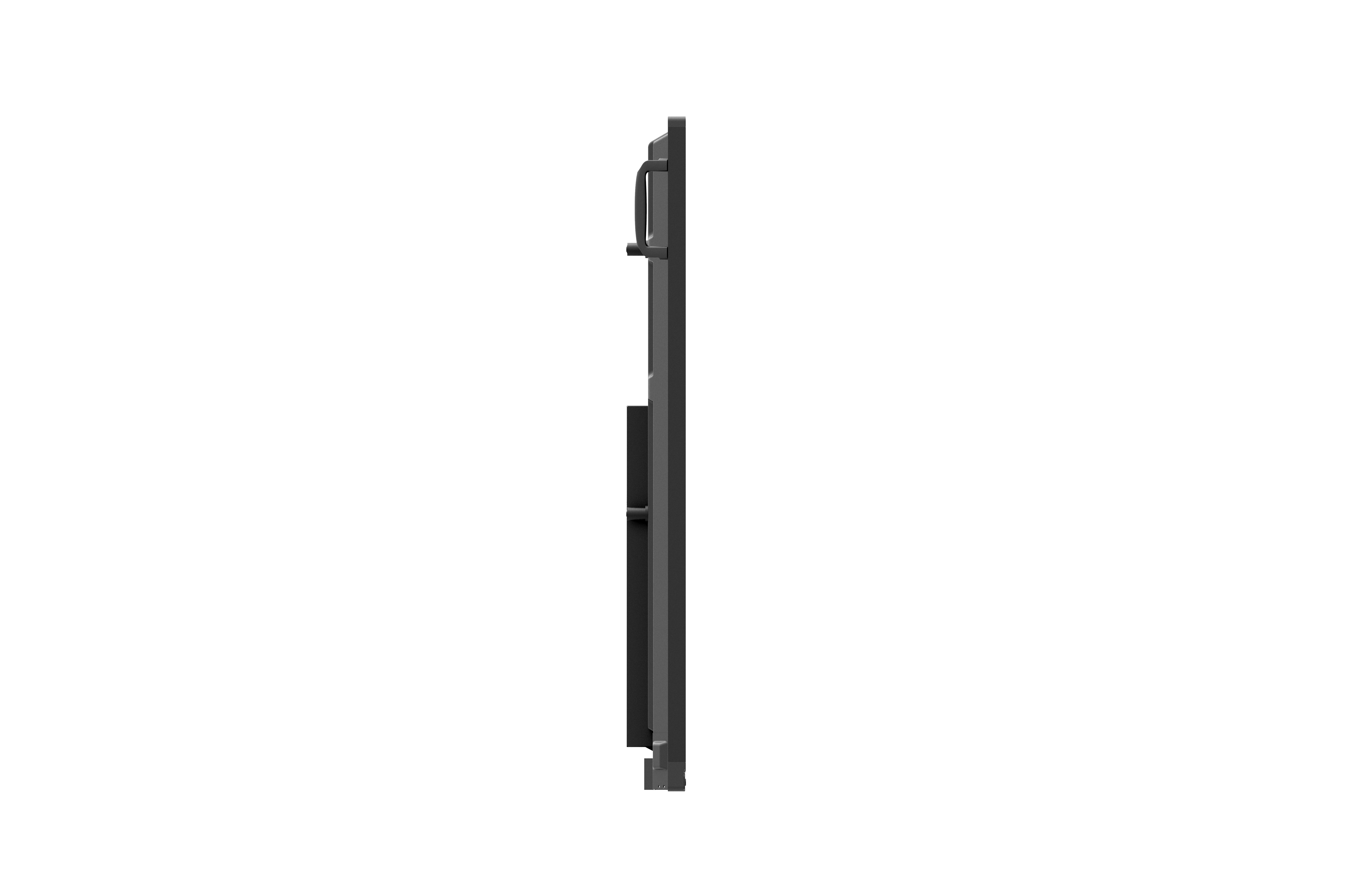

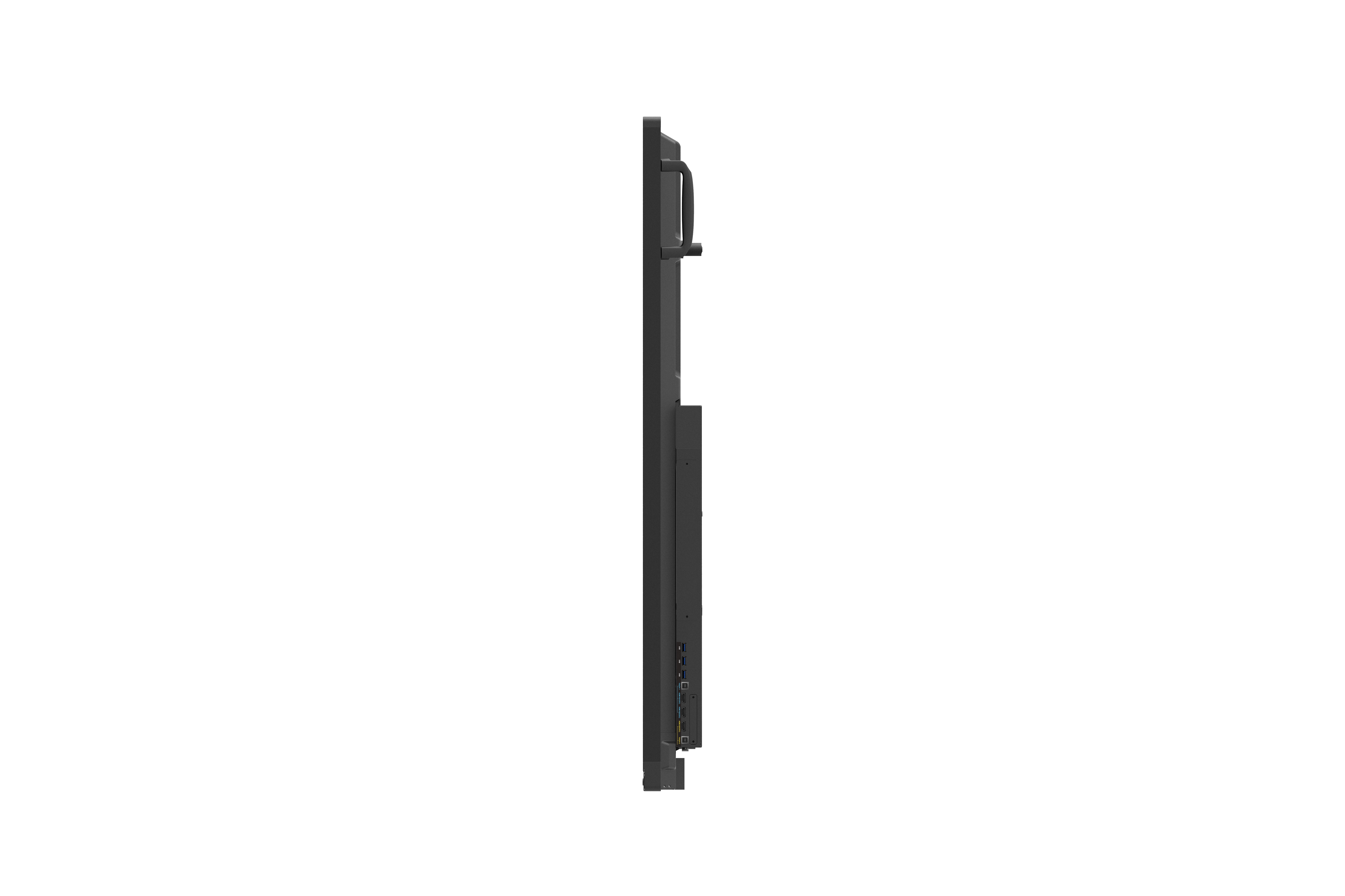

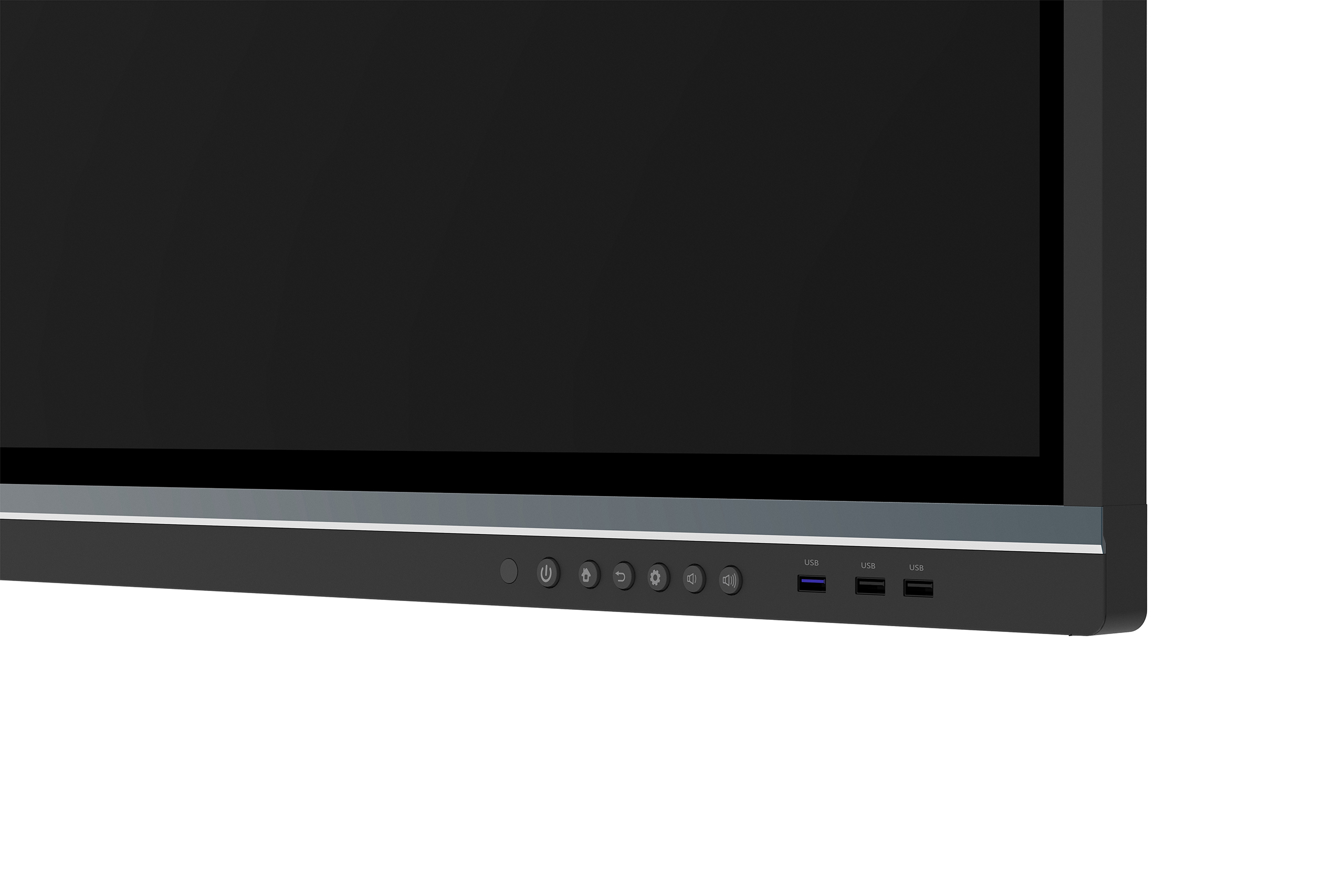

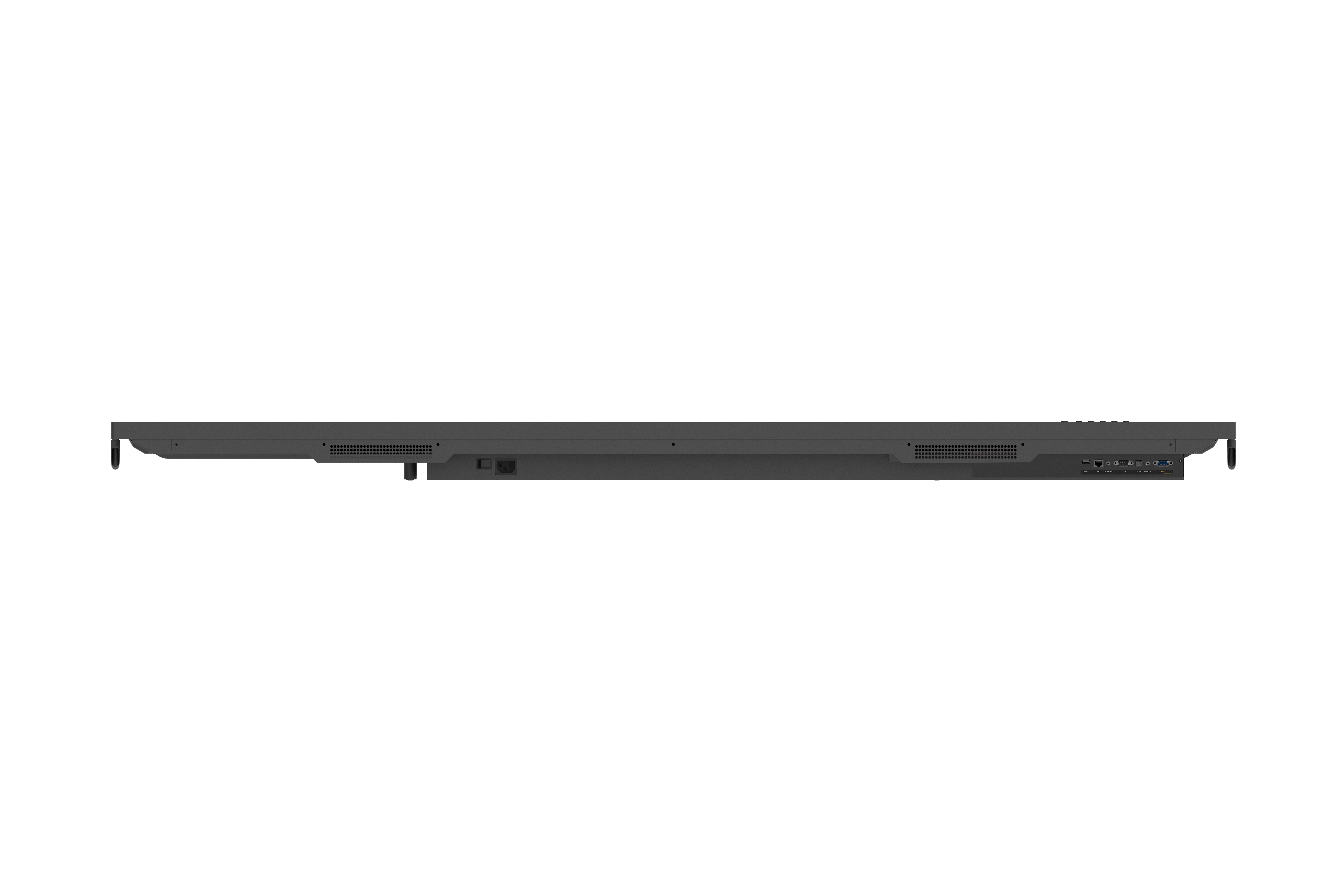

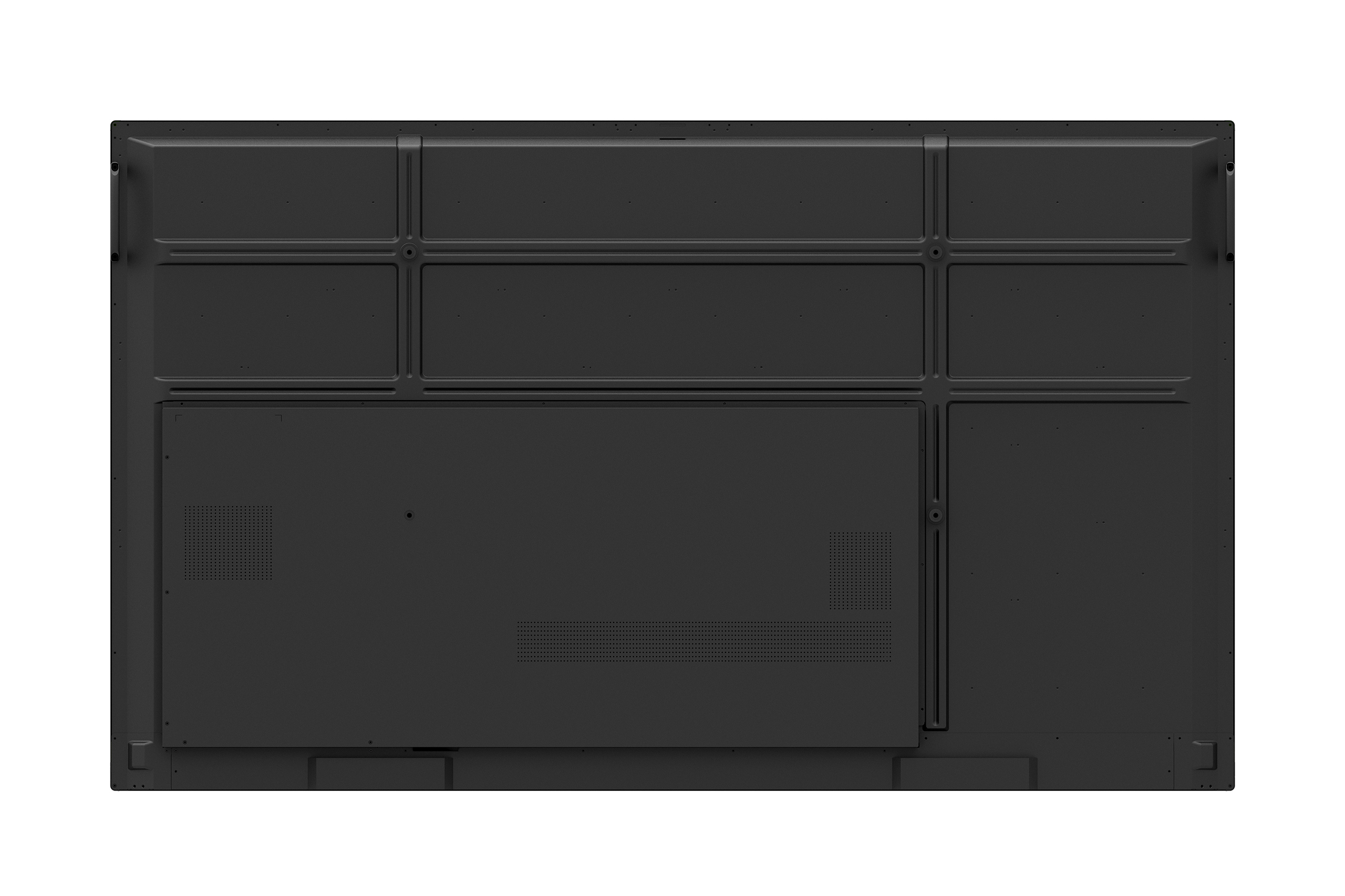

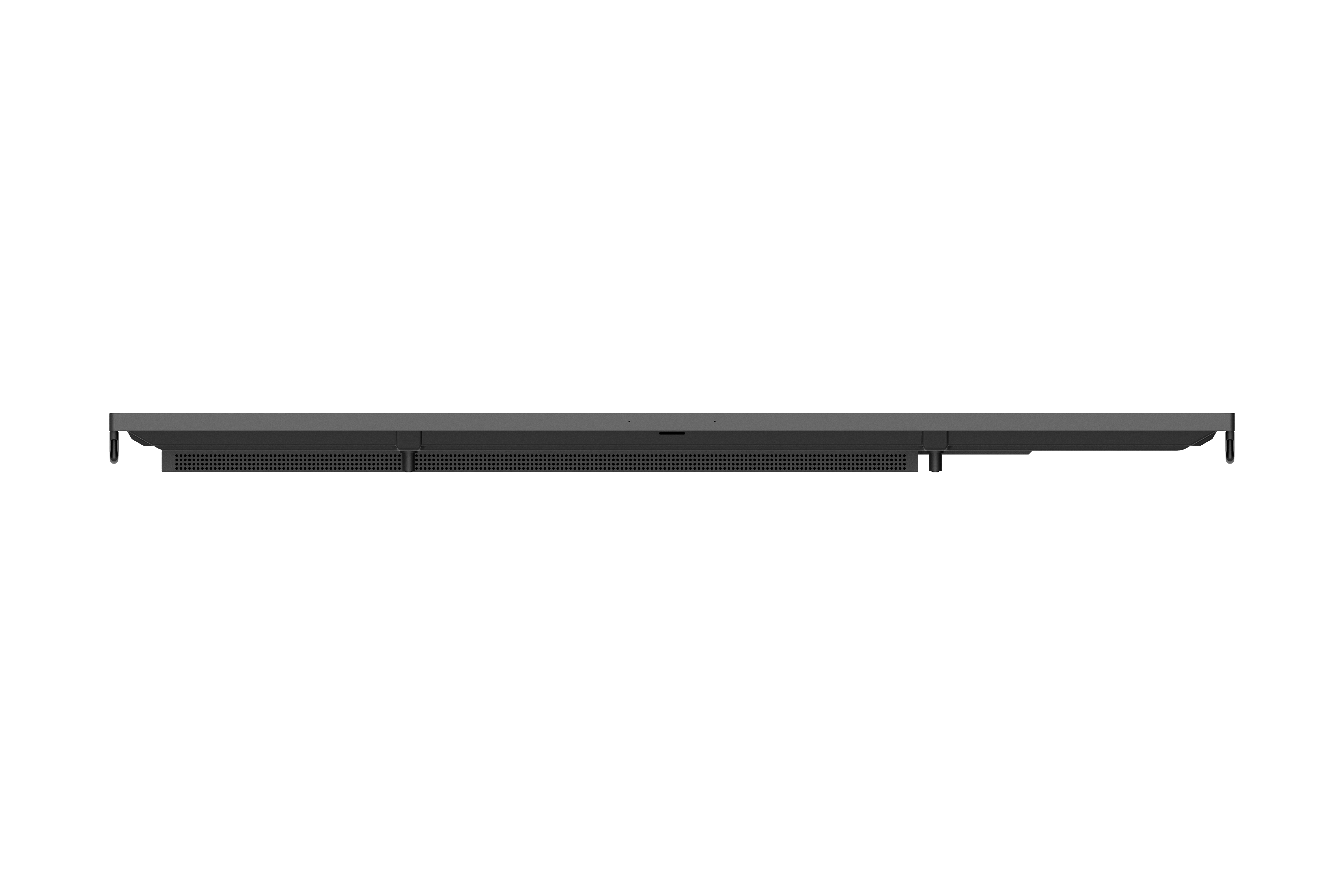

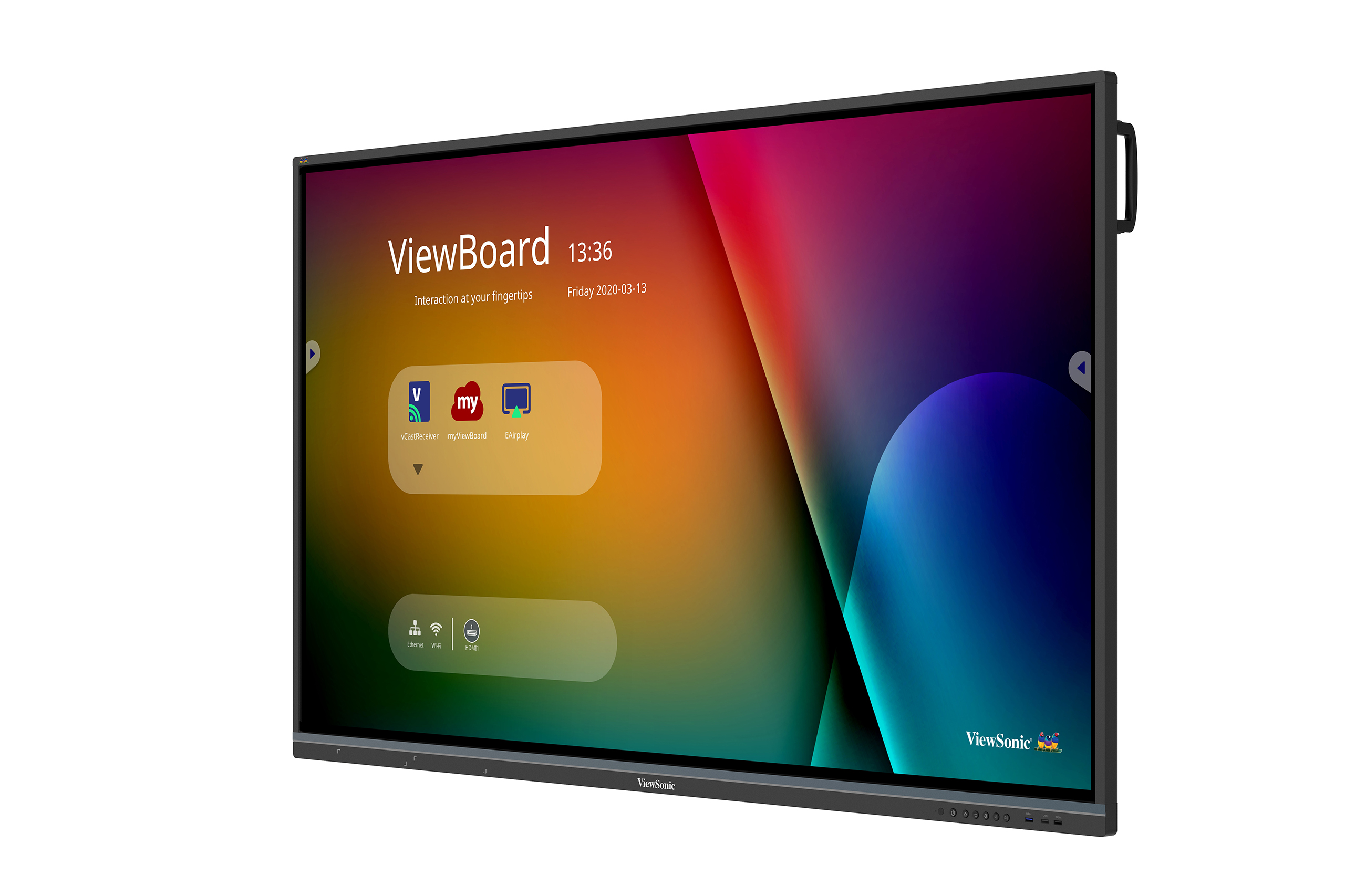

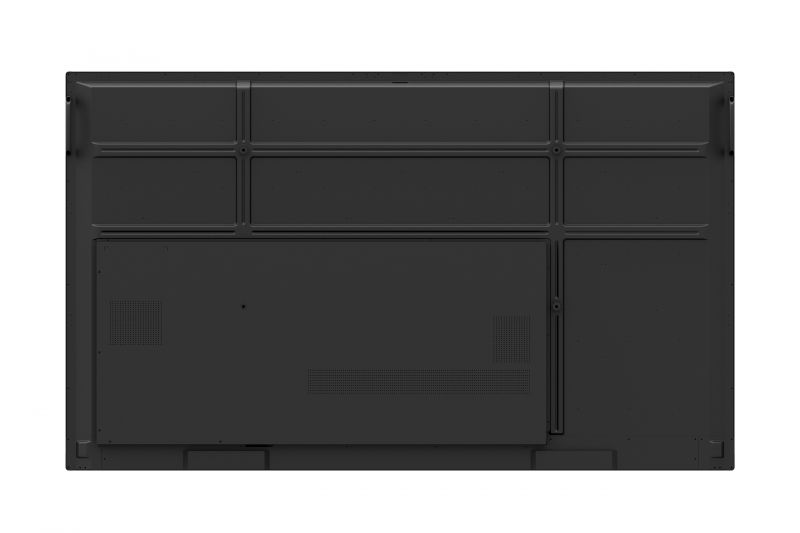

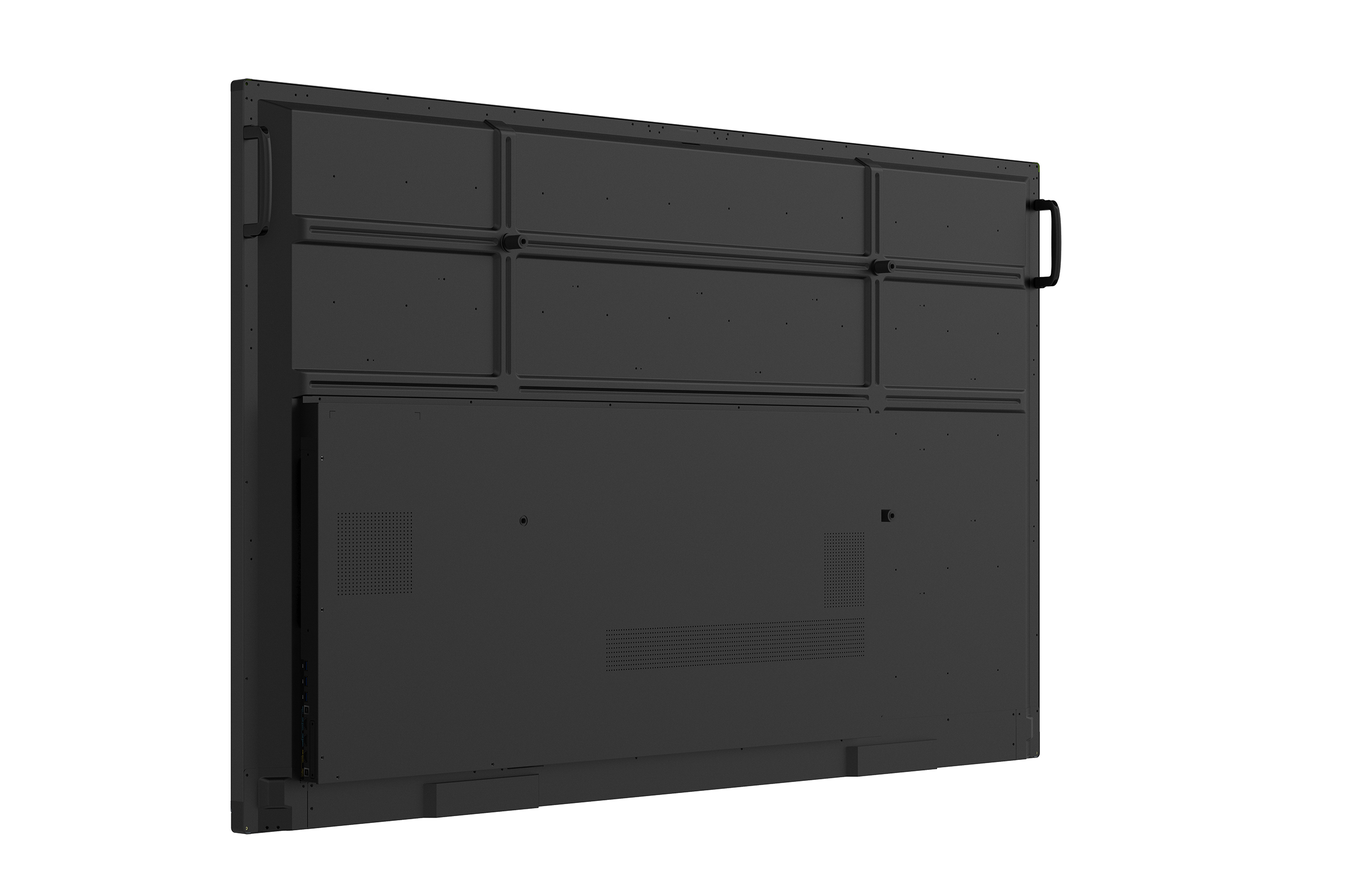

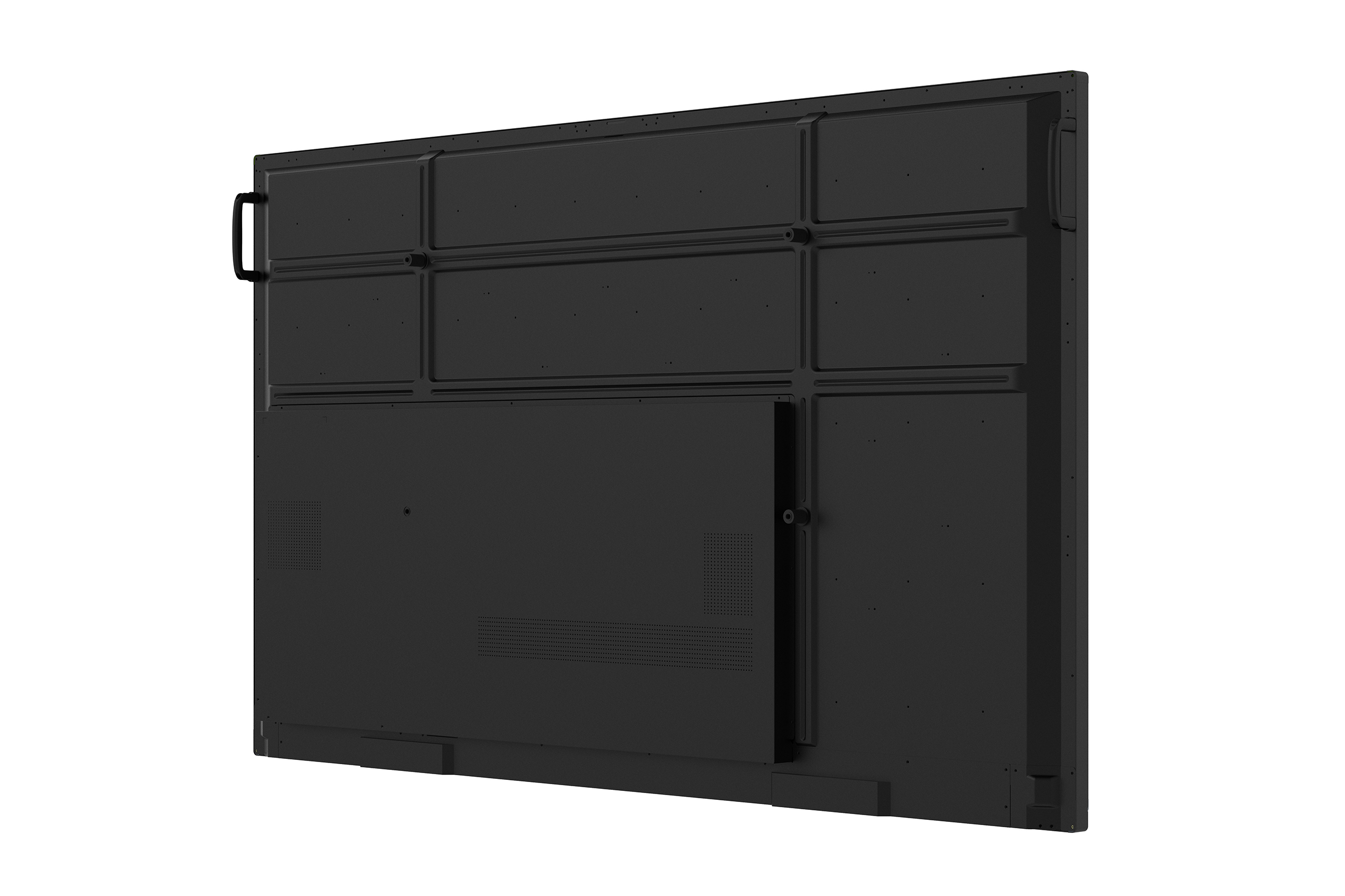

GALLERY

SPECIFICATIONS

Display
Panel Size: 75"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1665.66 (H) x 944.73 (V) (74.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hrs
Surface Treatment: Hardness: 9H, Anti-flare coating
Bezel: Slim
Orientation: Landscape
Platform
Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
RAM: 3GB DDR4
Storage: 32GB
Touch
Type/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing

INPUT
HDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 PC Slot (proprietary)
OUTPUT
Audio: x1 (Earphone out)
SPDIF: 1 (optical)
LAN
RJ45: x1
USB
Type A: USB2.0: Front x2, Rear x1 (SmartPort™ for all), USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
Type B: x2, for touch
SPEAKERS
10W x 2 + 15W x 1
Top Camera Plate
Yes
COMPATIBILITY
HDMI: 3840x2160
Embedded OS
Android 8
Bundle Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Special Features
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10M/100M/ for Android, 10M/100M/1000M for slot-in PC
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 138W(typ.) / Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 800 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 67.3 x 40.2 x 3.5 in / 1710 x 1020 x 90 mm
Packaging (inch / mm): 76.0 x 44.9 x 11.0 in / 1930 x 1140 x 280 mm
WEIGHT
Net (lb / kg): 118.8 lb / 53.9 kg
Gross (lb / kg): 158.5 lb / 71.9 kg
PACKAGE CONTENTS
1. Power cable (3 meters). x2
2. Remote control
3. USB cable (3 meters)

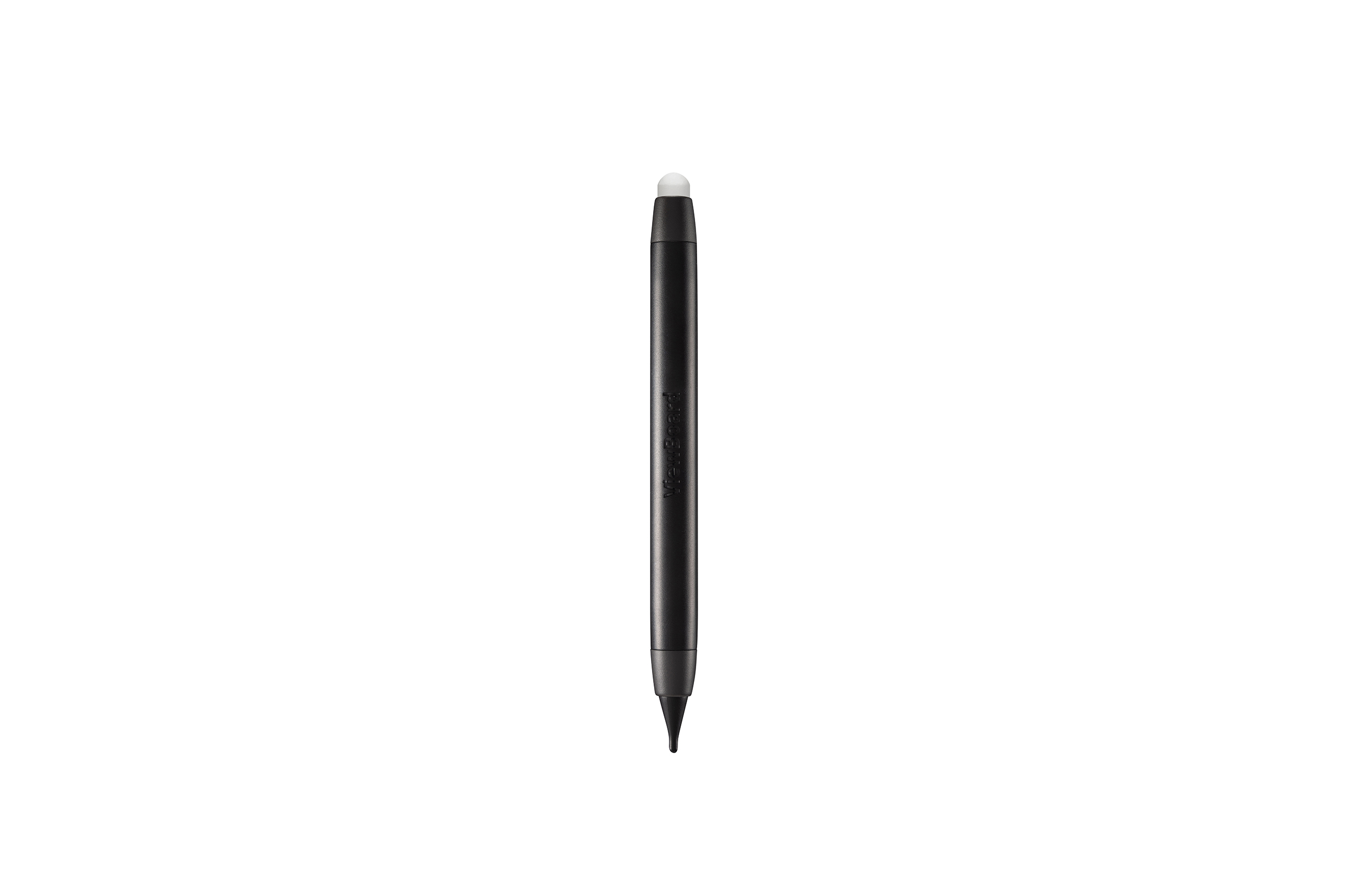

4. Touching pen x2
5. Quick Start Guide
6. RS232 adapter
7. Clamp x5
8. Plate
9. Screw x8
10. HDMI cable 3M
Compatible Slot-in PC
VPC14-WP series, VPC10-WP series, VPC15-WP series, VPC16-WP series, VPC17-WP series
