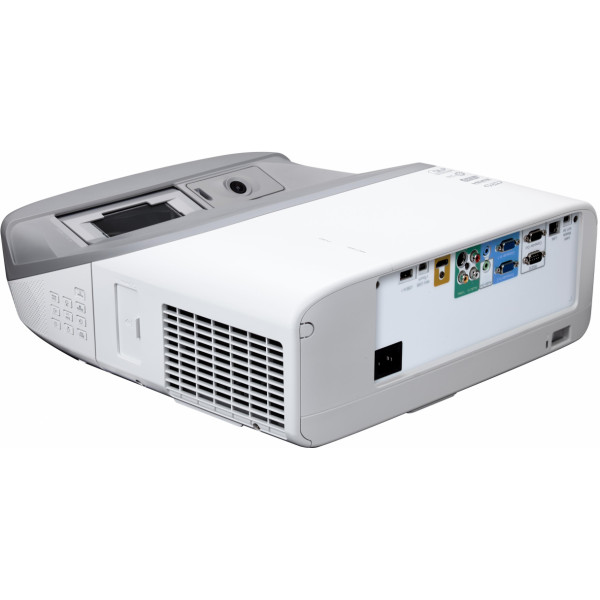

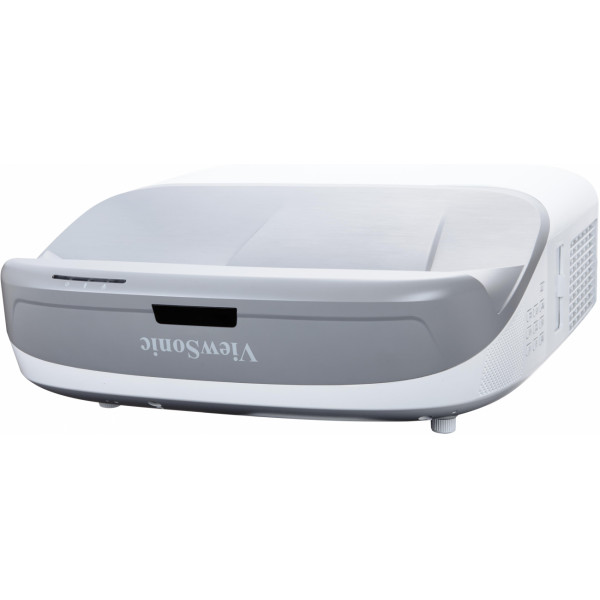

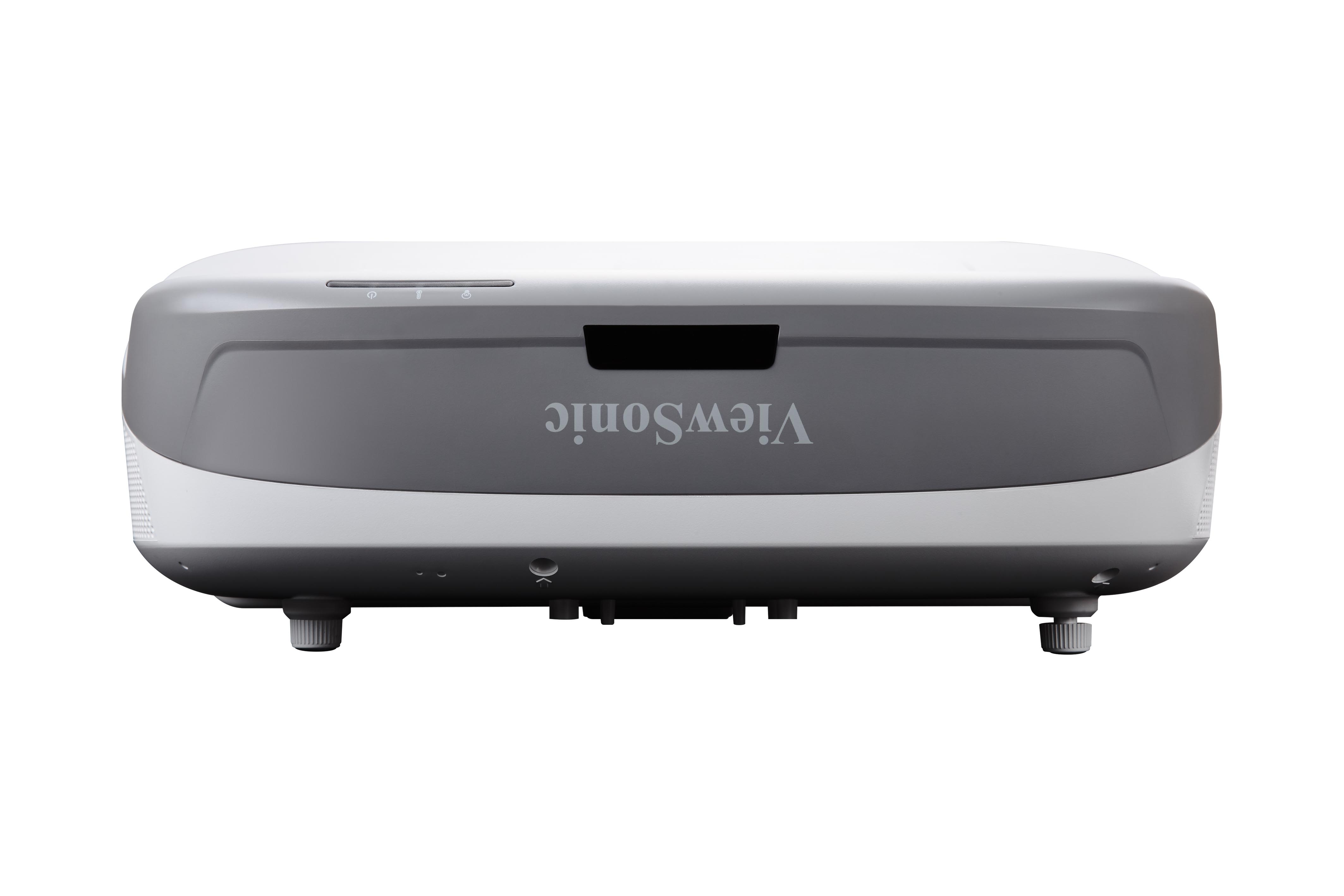

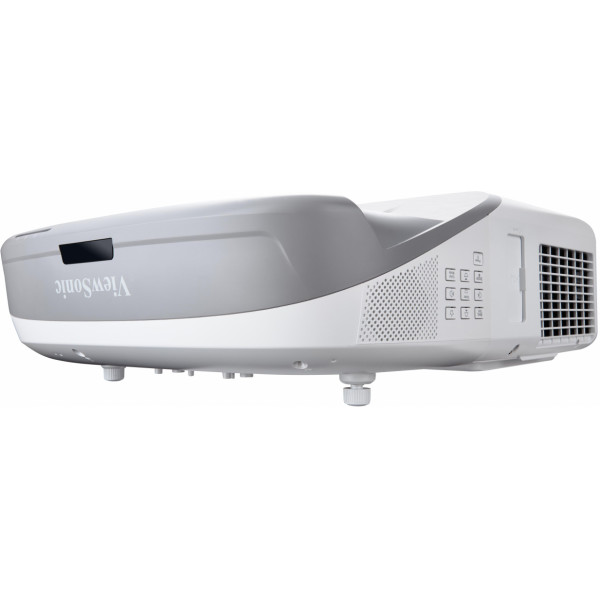

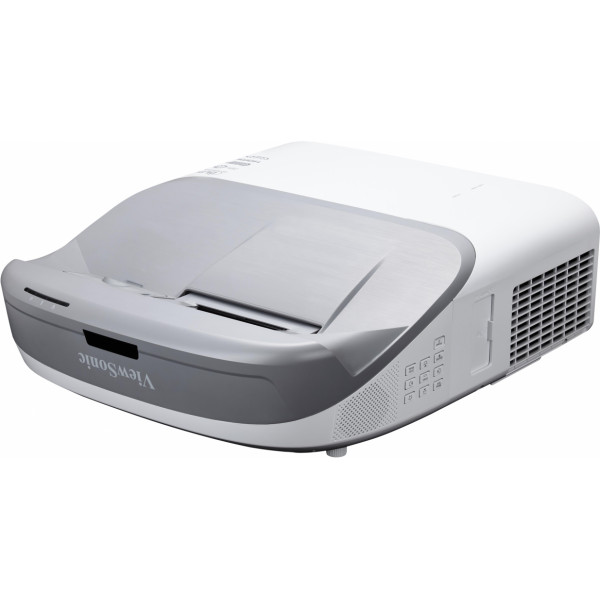

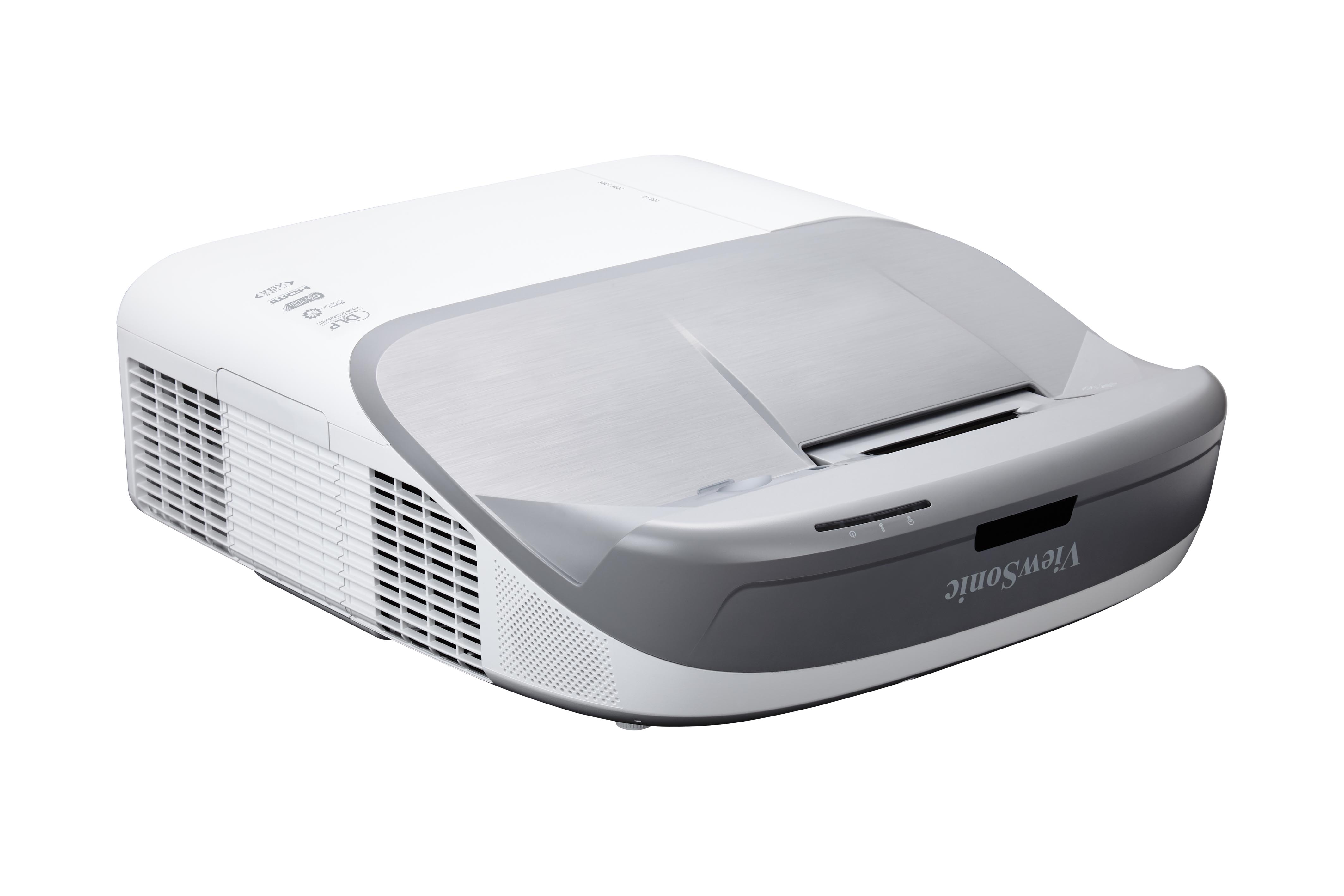

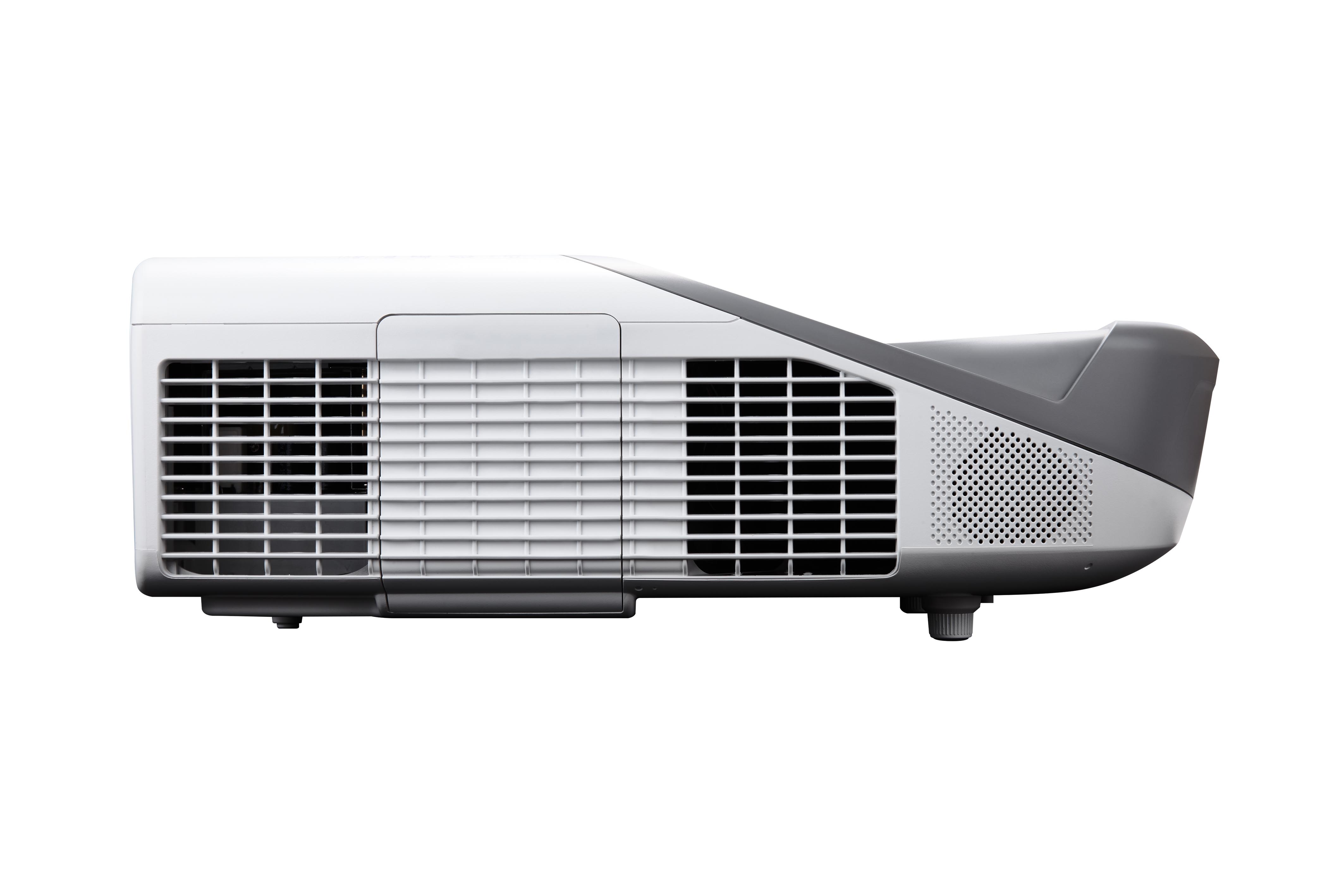

PS750W

3,500 Lumens WXGA Education Projector

  • 0.23 ultra-short throw ratio
  • A total solution for interactive projection
  • 10-point touch collaboration and dual pen touch simultaneously.
  • myViewBoard™ digital whiteboard software

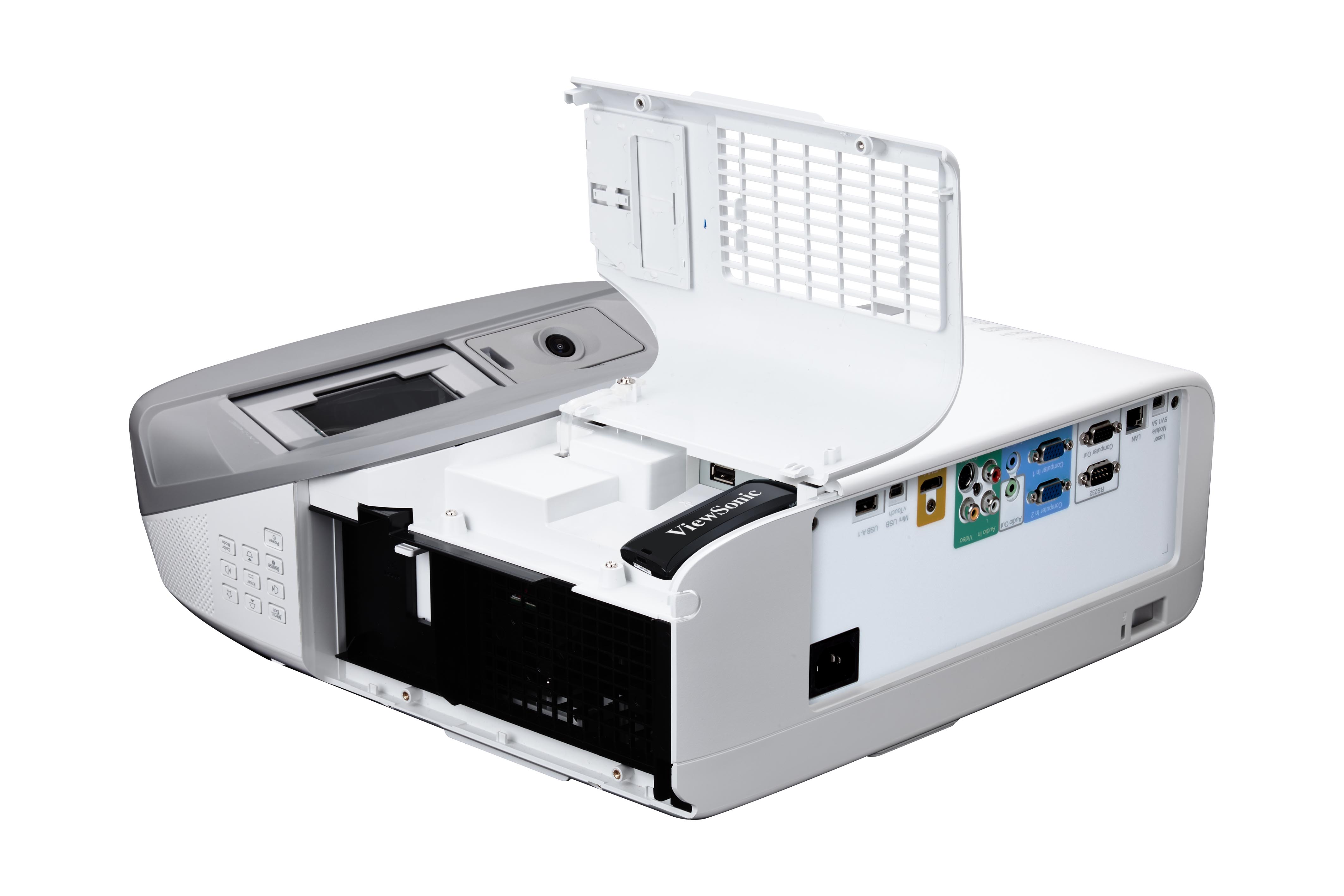

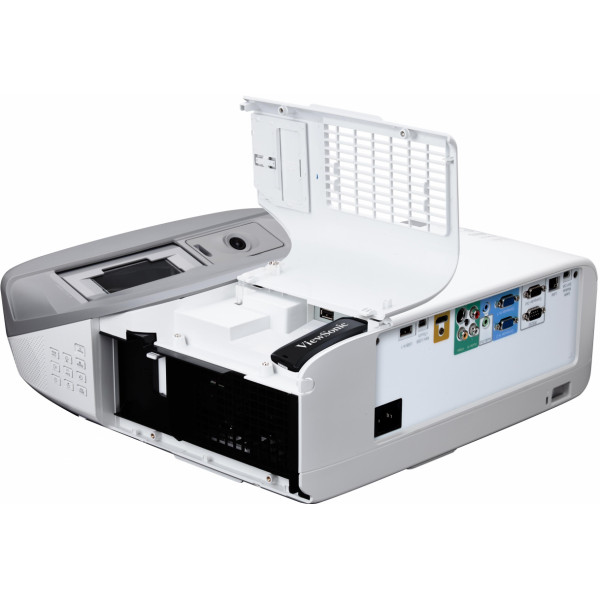

  • PortAll® compartment for wireless dongle
Projector Warranty Extension

SPECIFICATIONS


  • SPECIFICATION
    Projection system: 0.65" WXGA
    Native Resolution: 1280x800
    DC type: DC3
    Brightness: 3500lm
    Contrast Ratio with SuperEco mode: 10000:1
    Display Colour: 1.07 Billion Colours
    Light Source: Lamp
    Light source life (Nor/SuperEco): 3000/7500
    Lamp Watt: 240W
    Lens: F=2.4, f=3.35 mm
    Projection Offset: 130%+/-5%
    Throw Ratio: 0.23
    Image size: 87" - 112"
    Throw Distance: 0.09m - 0.25m (100" @ 0.16m)
    Keystone: H:+/-30° , V:+/-30°
    Optical Zoom: Fixed
    Audible Noise (Normal/Eco): 35dB / 29dB
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
    Interactive Camera: Yes

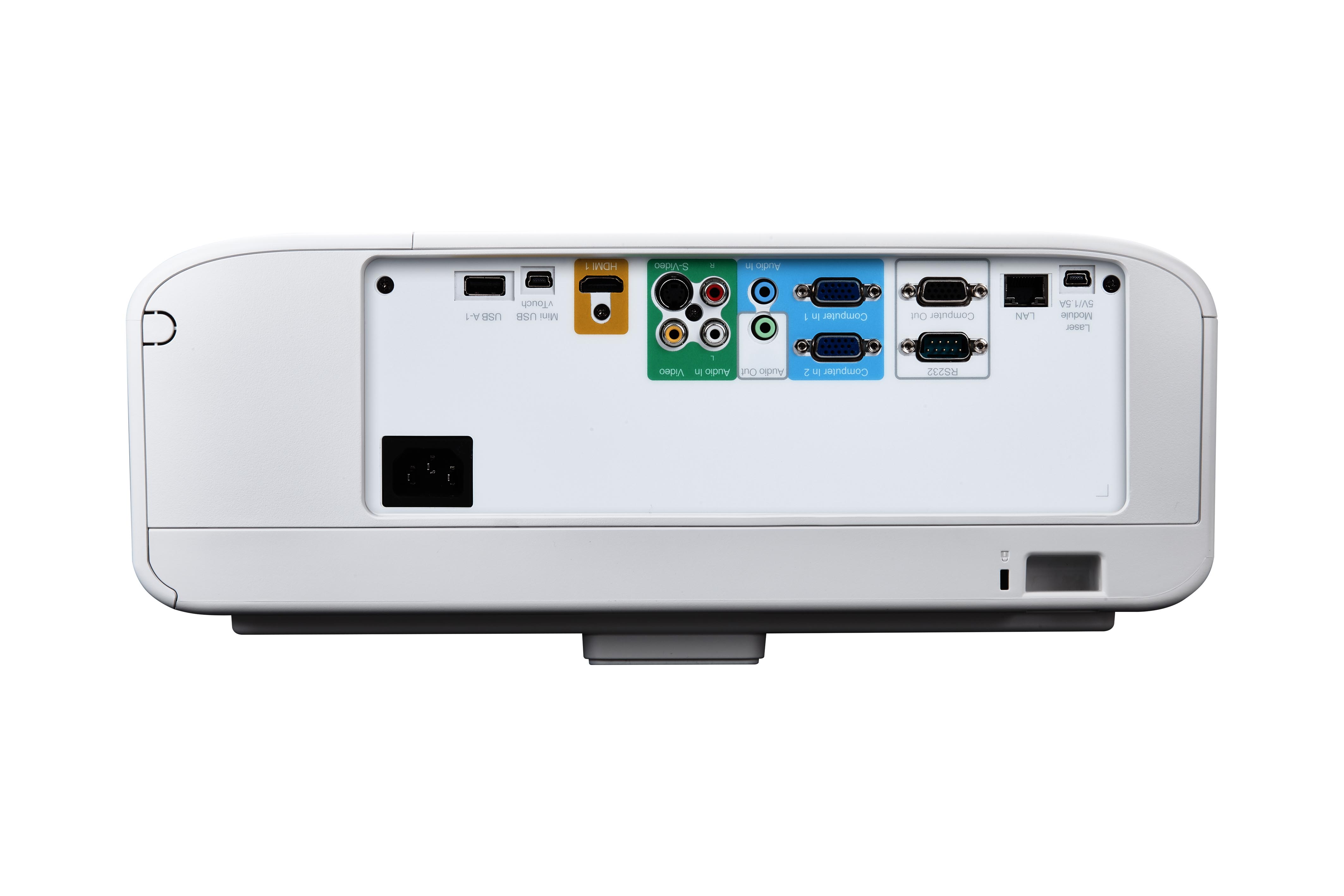

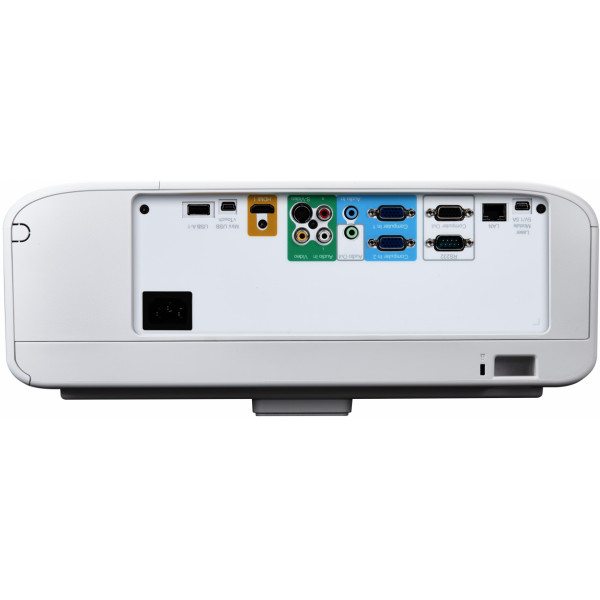

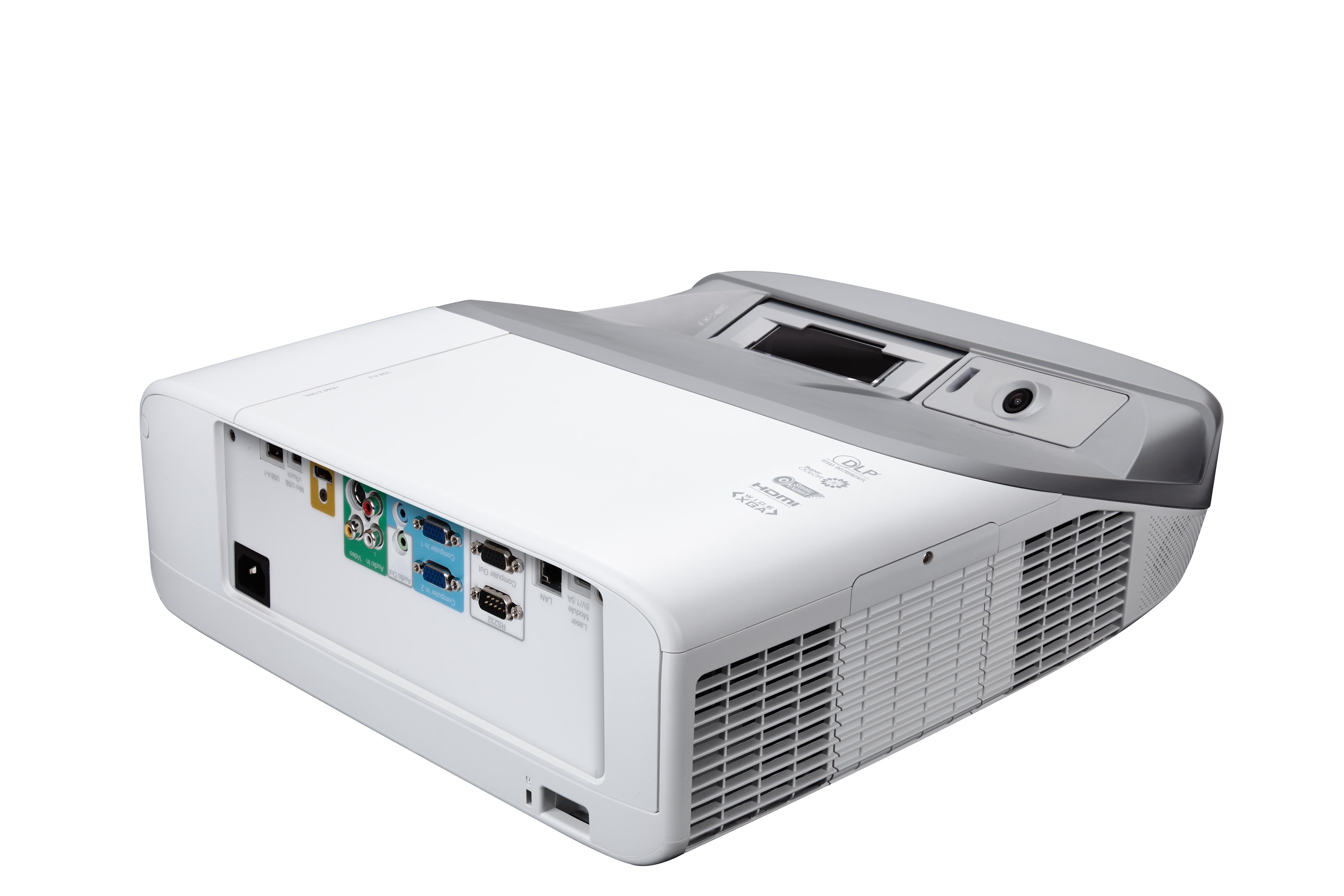

  • Input
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    HDMI: 1 (Back)
    HDMI/MHL: 1 (PortALL)
  • Output
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W Cube x 2
    USB type A (Power): 2 (5V2.4A) 1x Back, 1x PortAll
