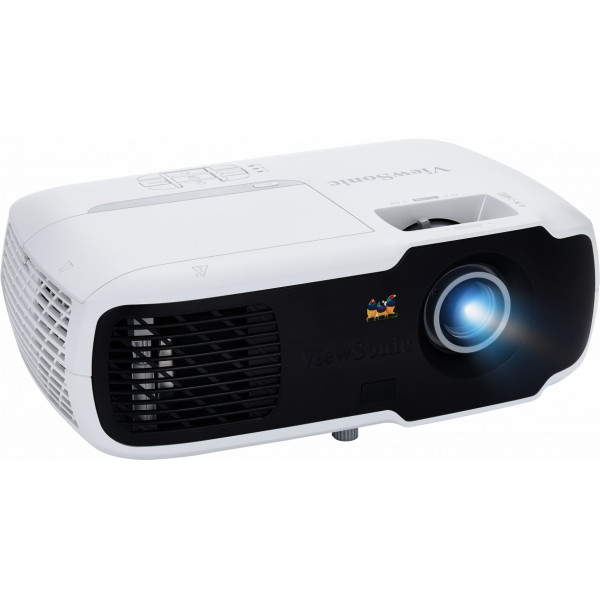

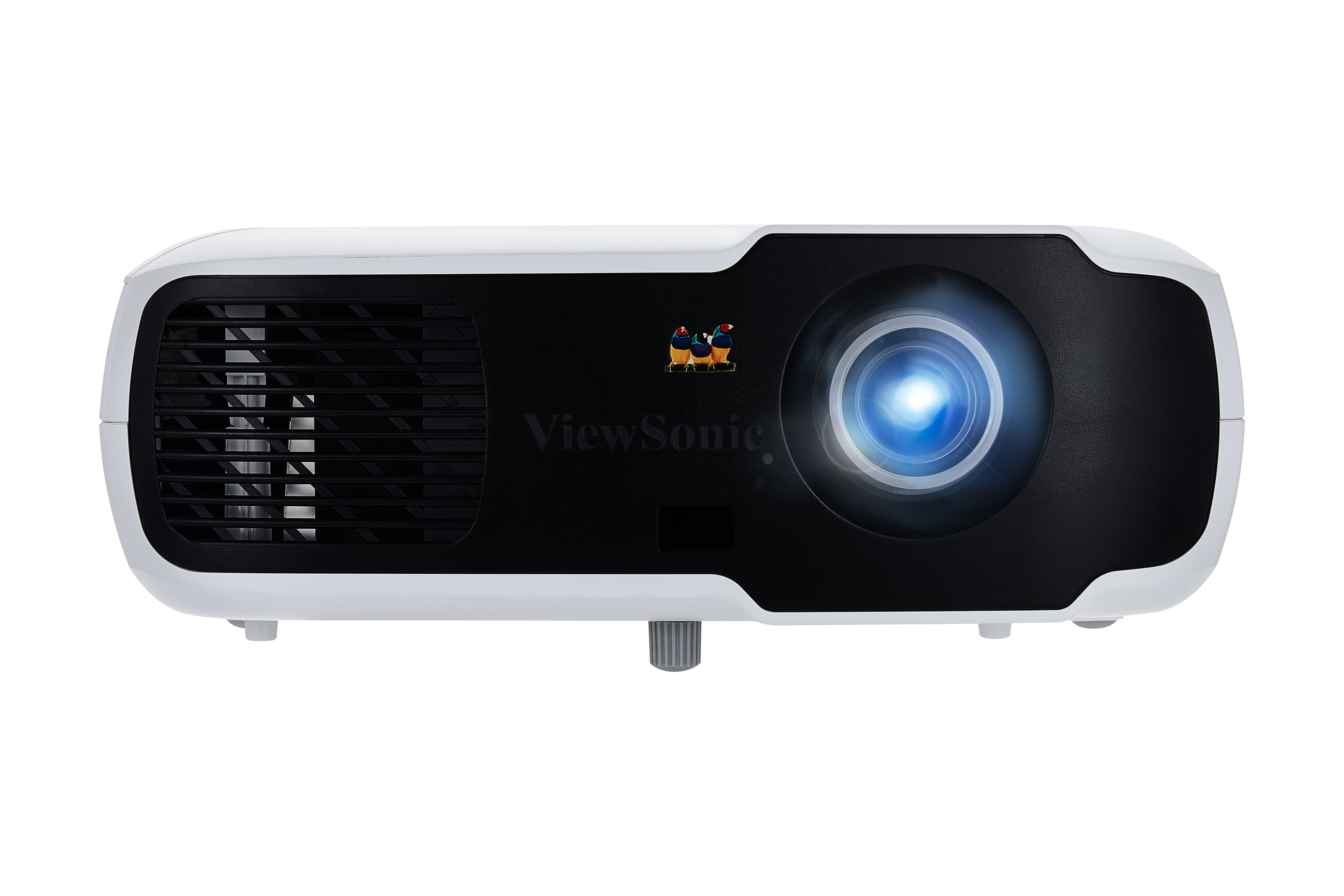

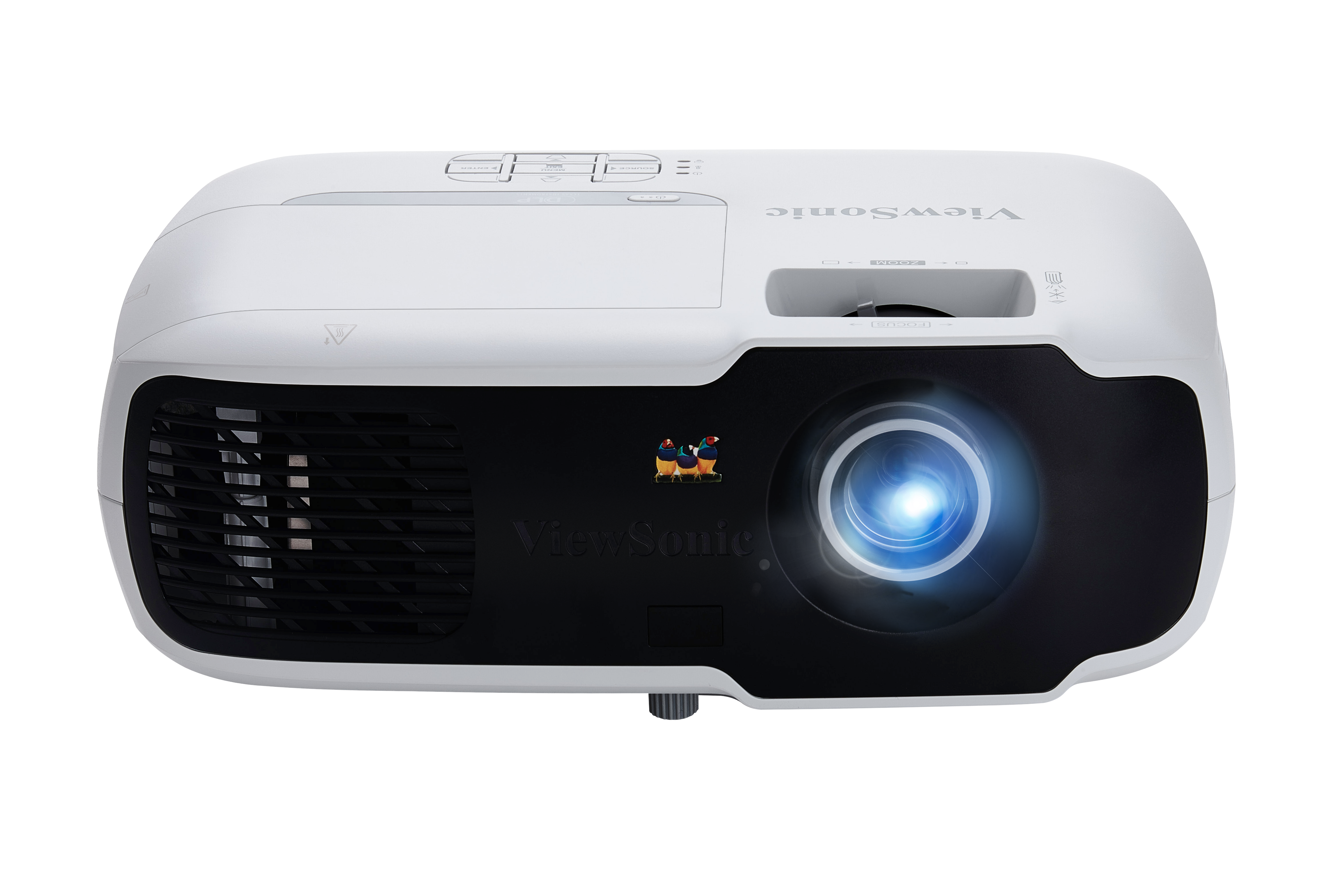

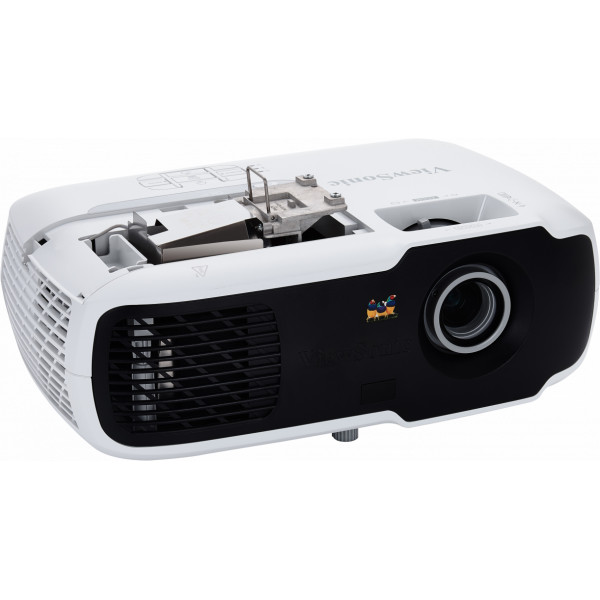

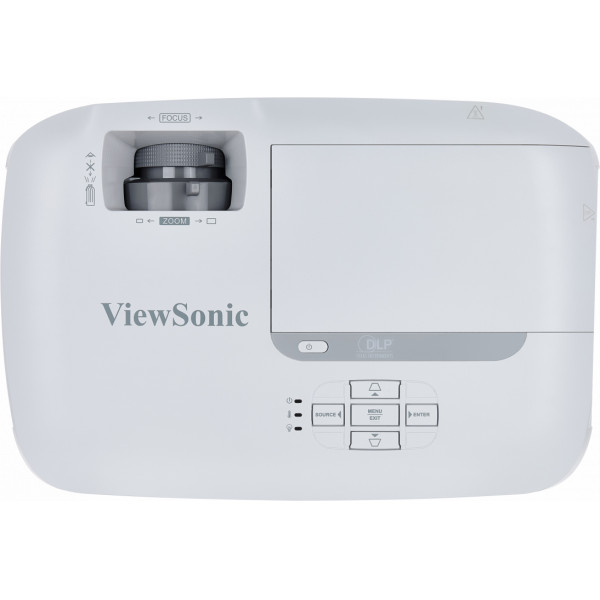

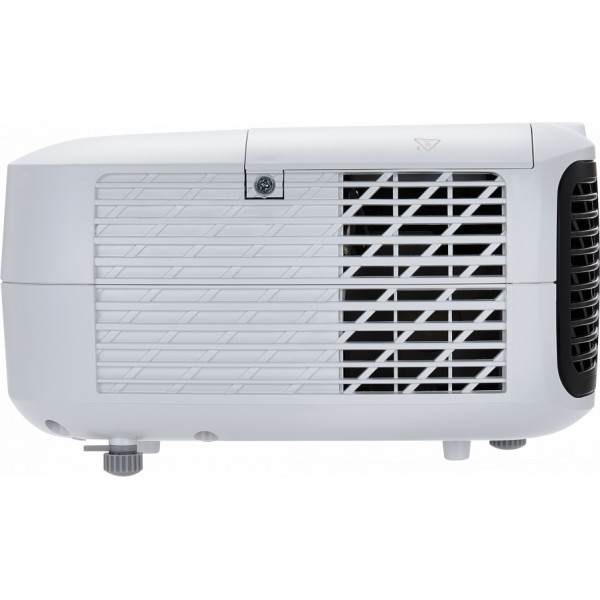

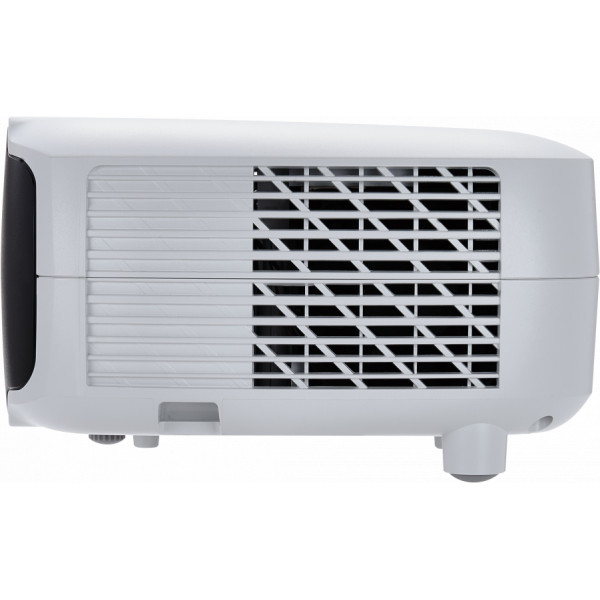

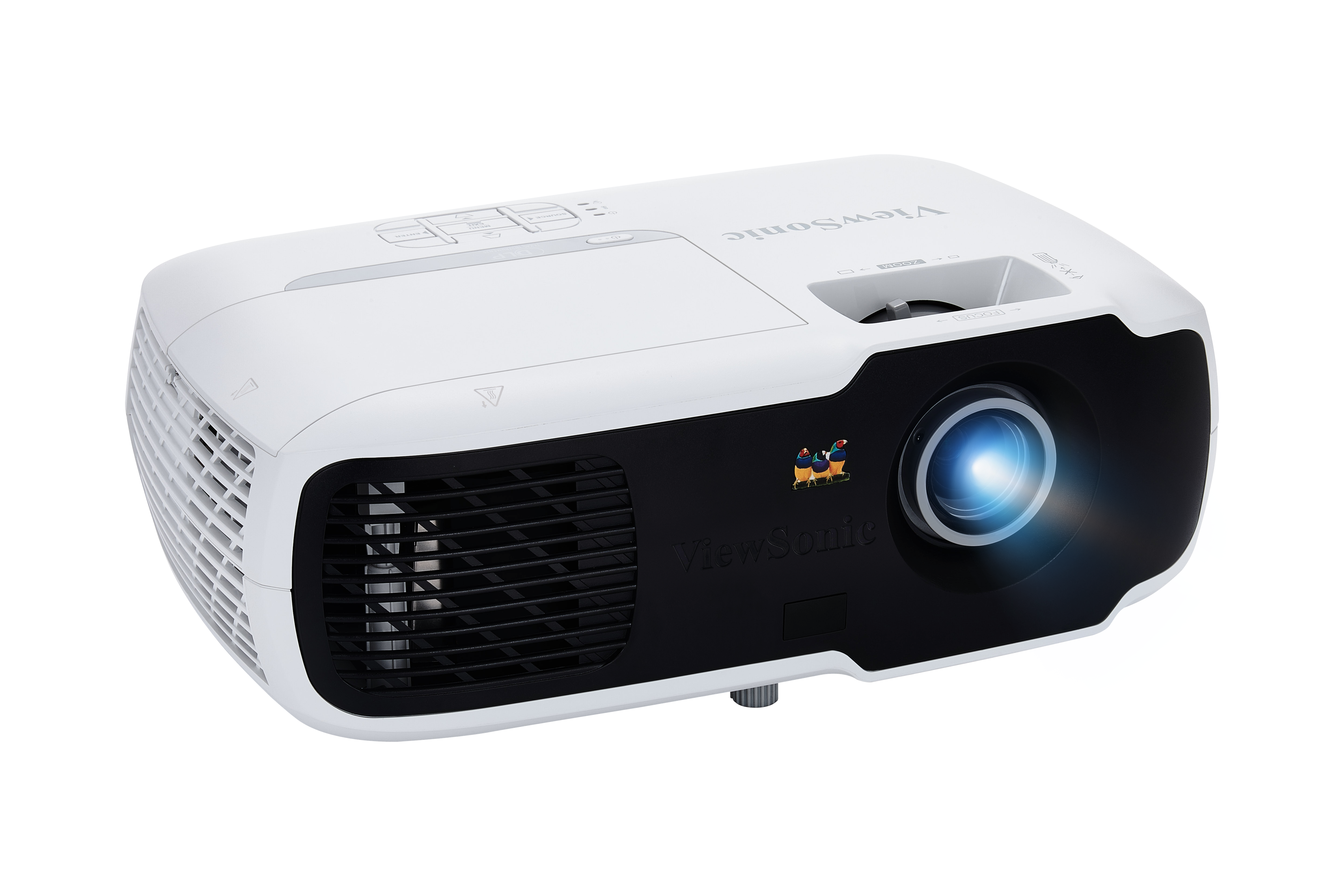

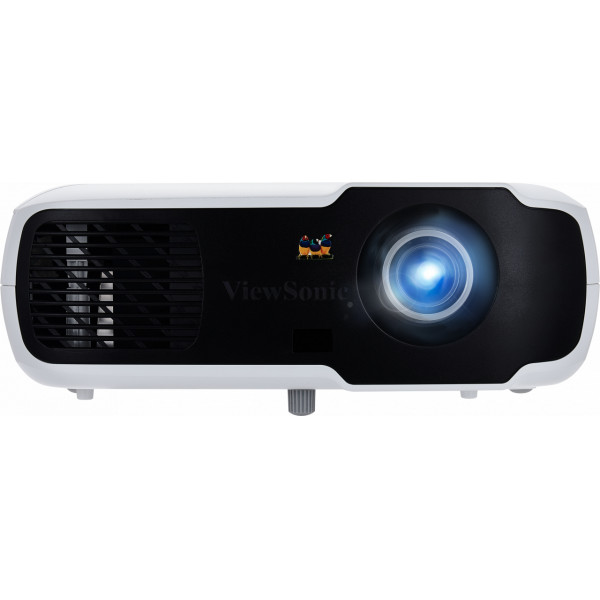

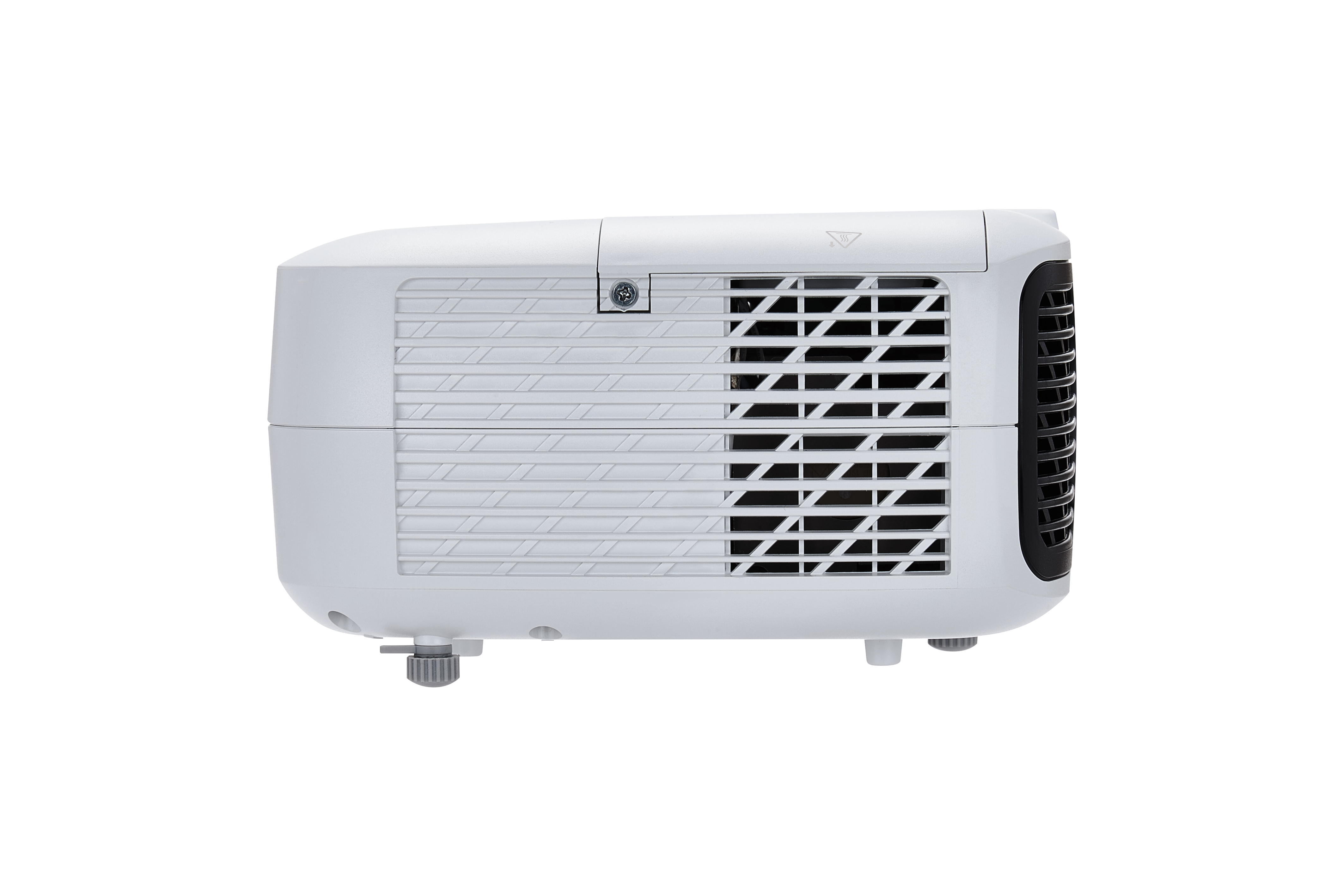

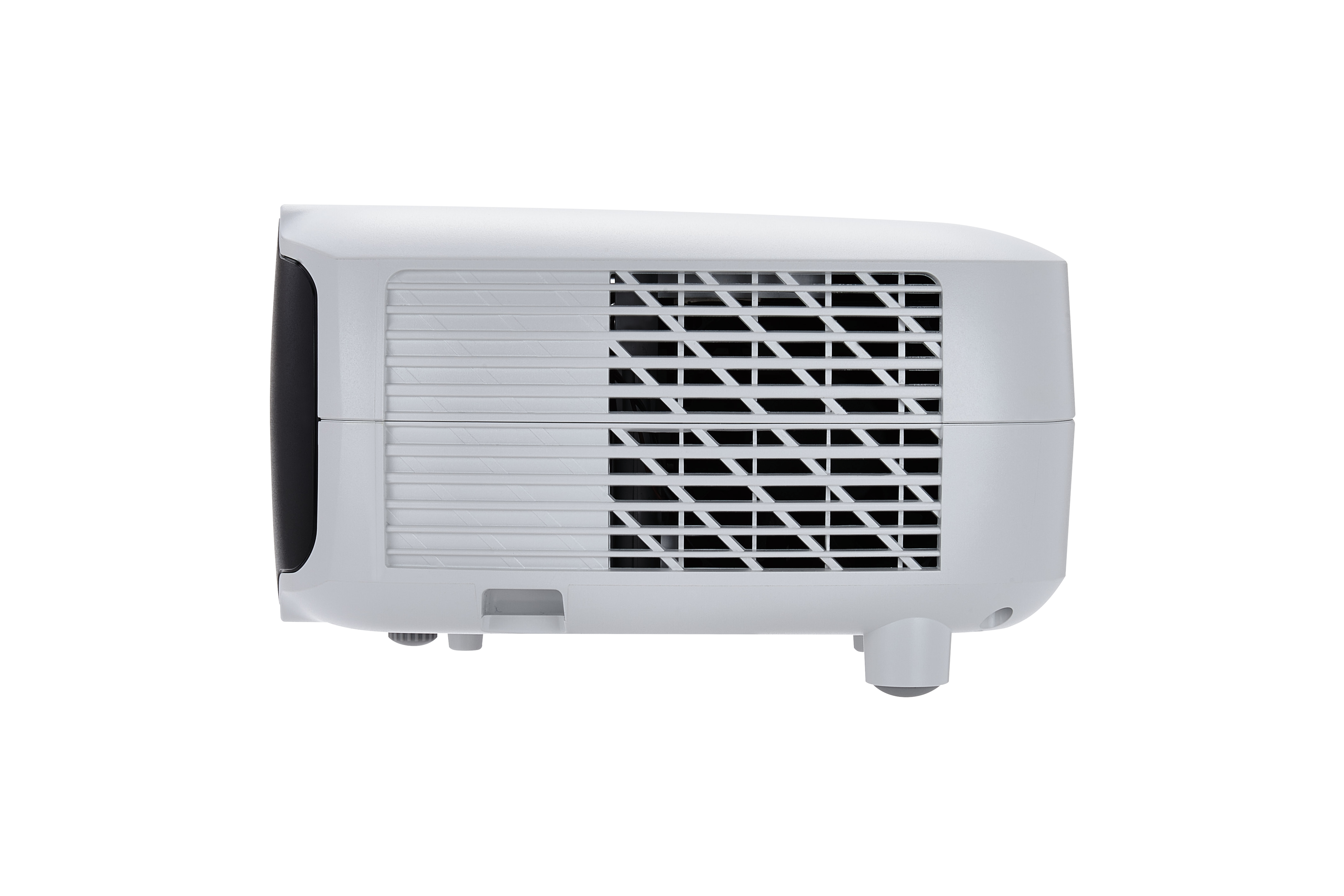

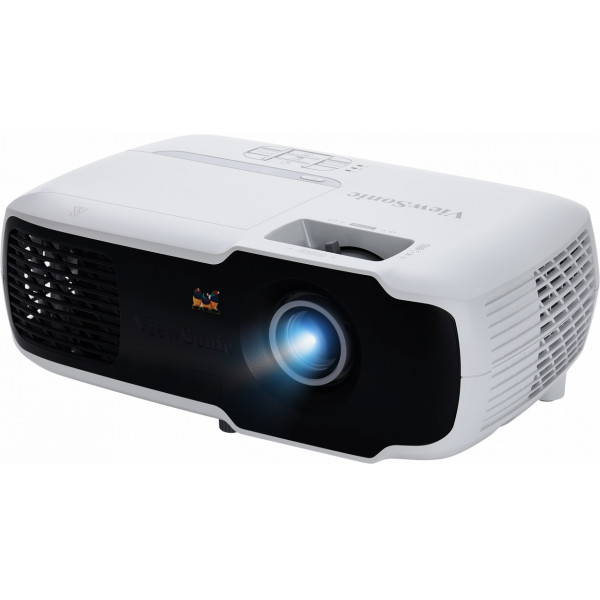

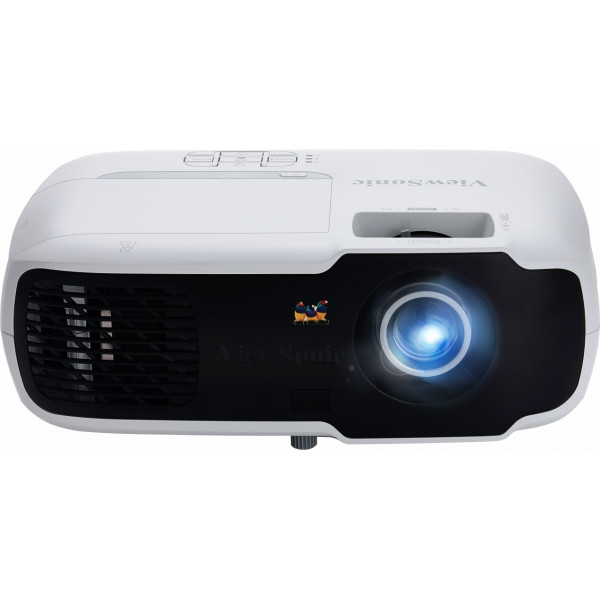

PA502XP

3,500 Lumens XGA Business Projector

  • Built in USB type A for charging
  • SuperColor™ technology
  • 2W cube speaker
  • Immersive 3D viewing
  • VGA, Composite and HDMI inputs
Projector Warranty Extension

SPECIFICATIONS


  • Specification
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    DC Type: DC3
    Brightness: 3500
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light Source Life: 5000/15000
    Lamp Watt: 190W
    Lens: F=2.5-2.7, f=22.08-24.28mm
    Projection Offset: 125%+/-5%
    Throw Ratio: 1.97-2.17
    Image Size: 30" - 300"
    Throw Distance: 1.16m-13.42m(100" @ 3.97m)
    Keystone: +/- 40° (Vertical)
    Optical Zoom: 1.1x
    Audible Noise (Normal/Eco): 30dB
    Response Time: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz

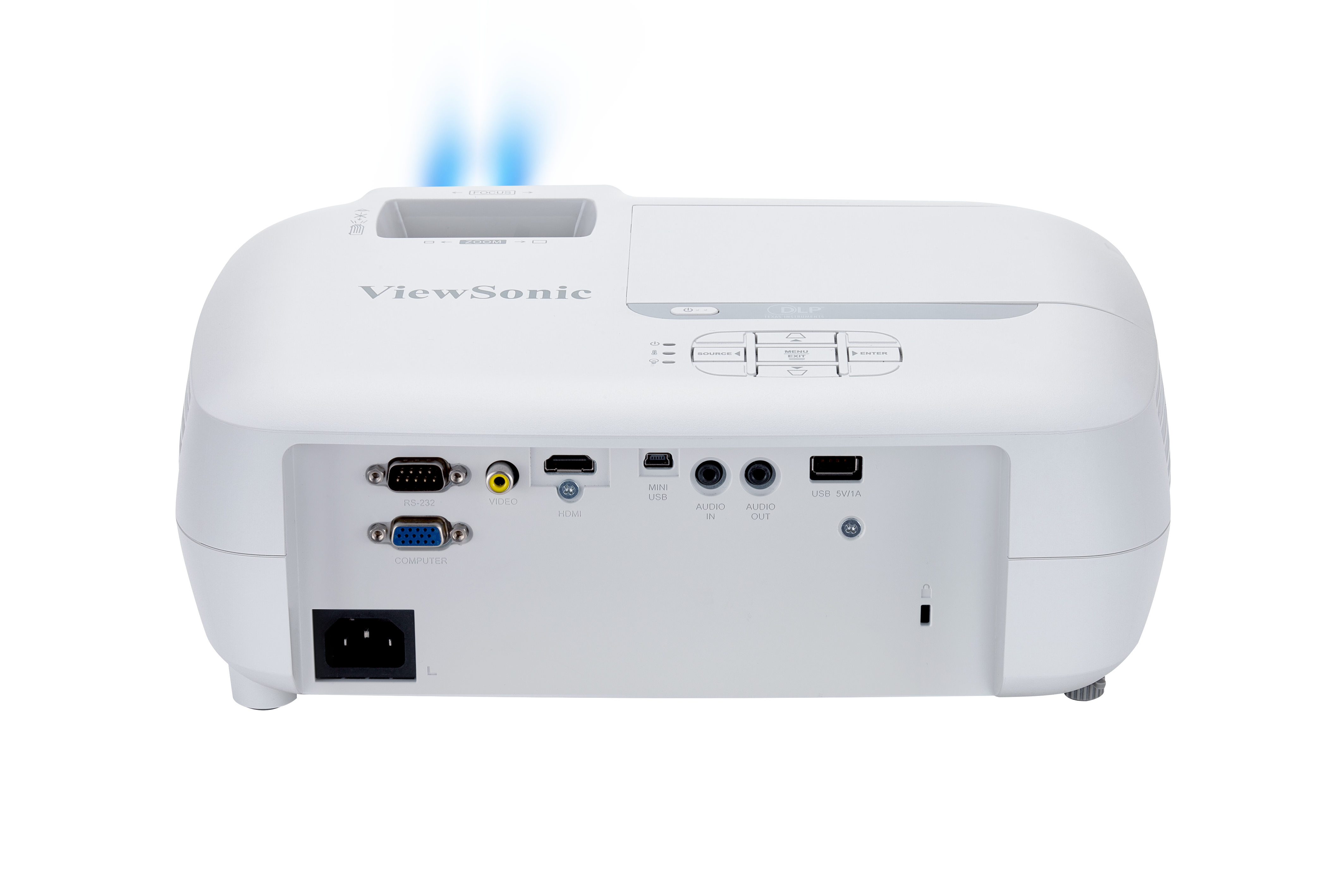

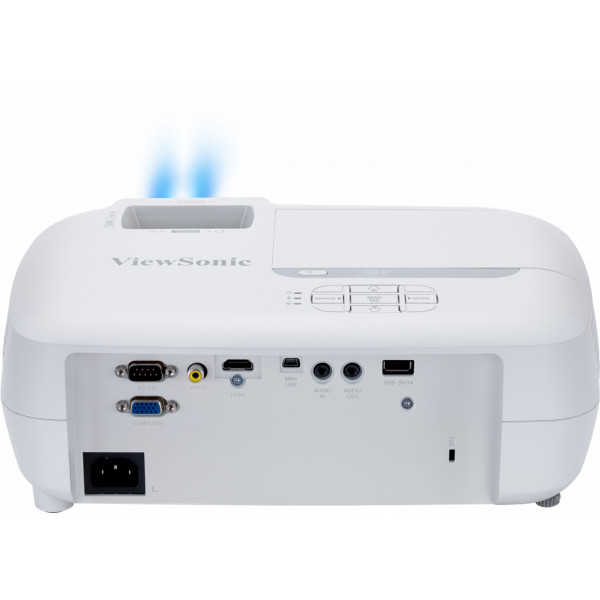

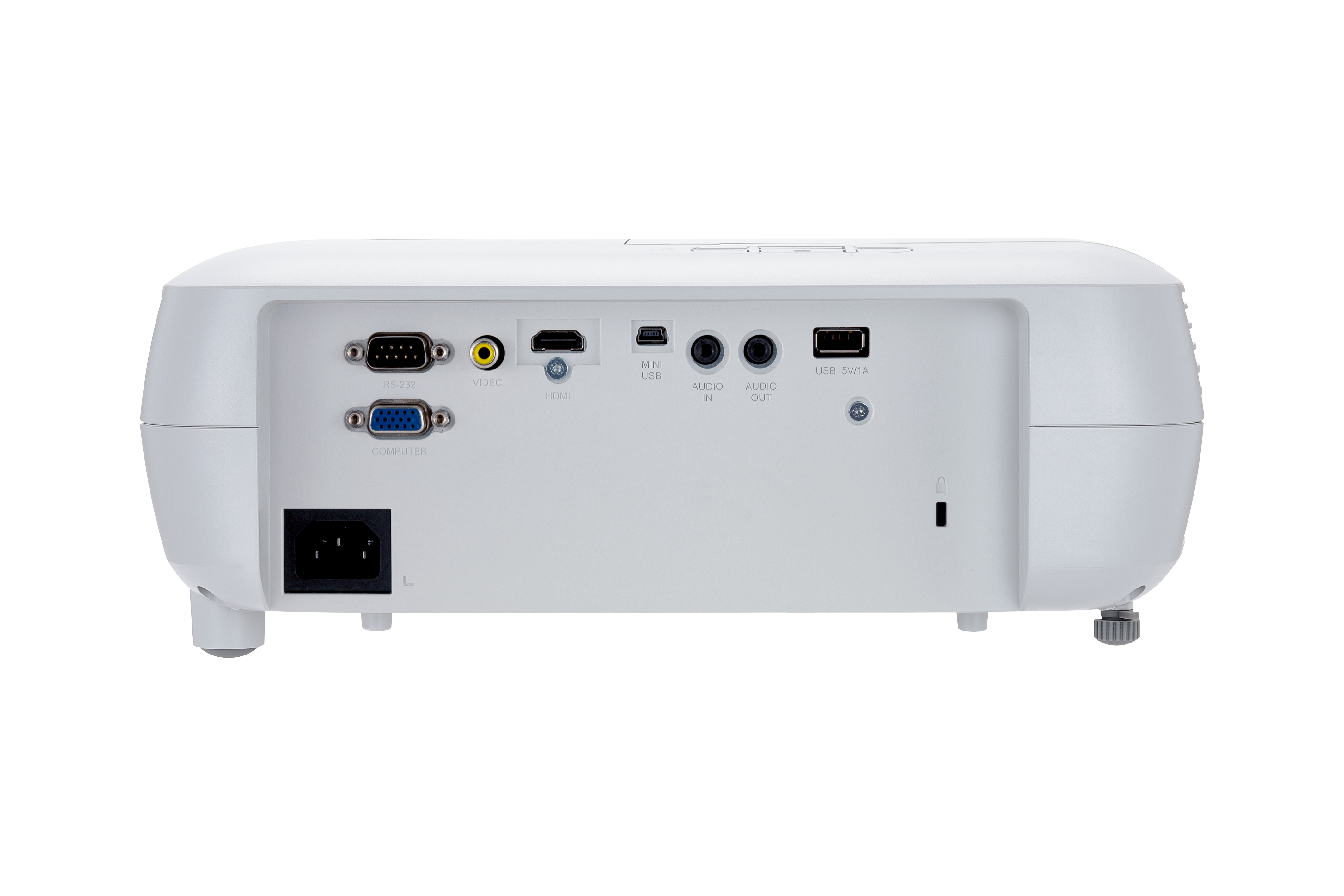

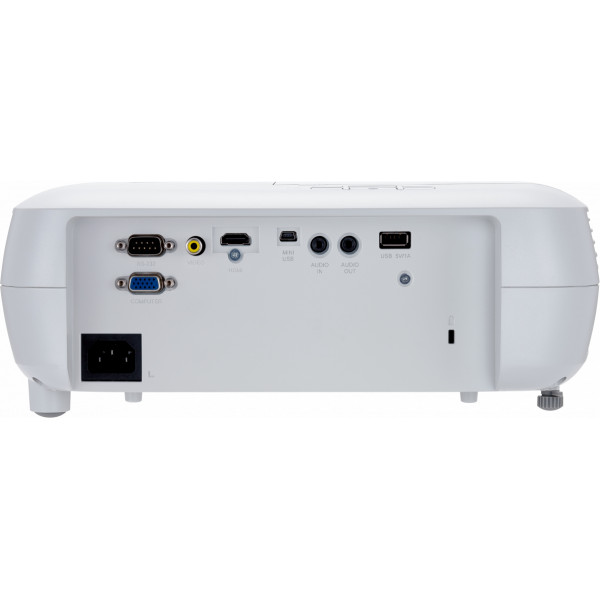

  • Input
    Computer in (share with component): 1
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI (HDCP): 1 (HDMI 1.4/ HDCP 1.4)
  • Output
    Audio out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/ 1A)
