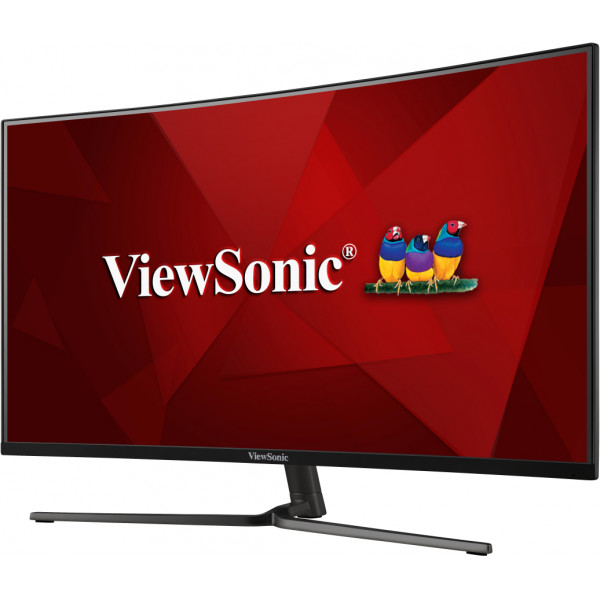

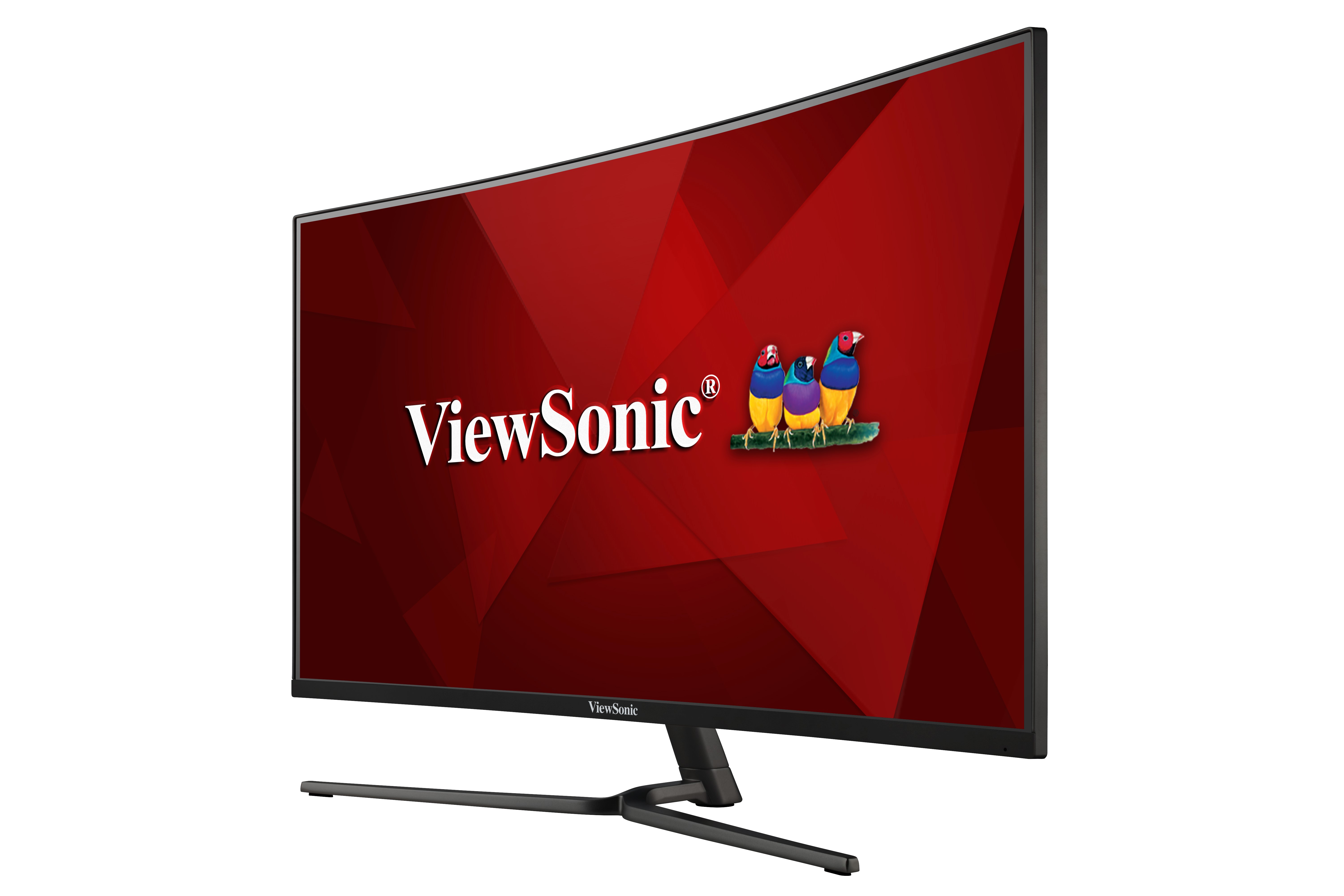

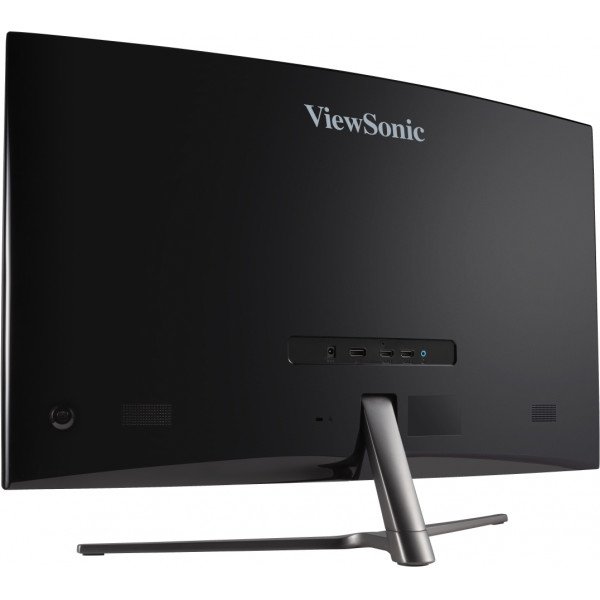

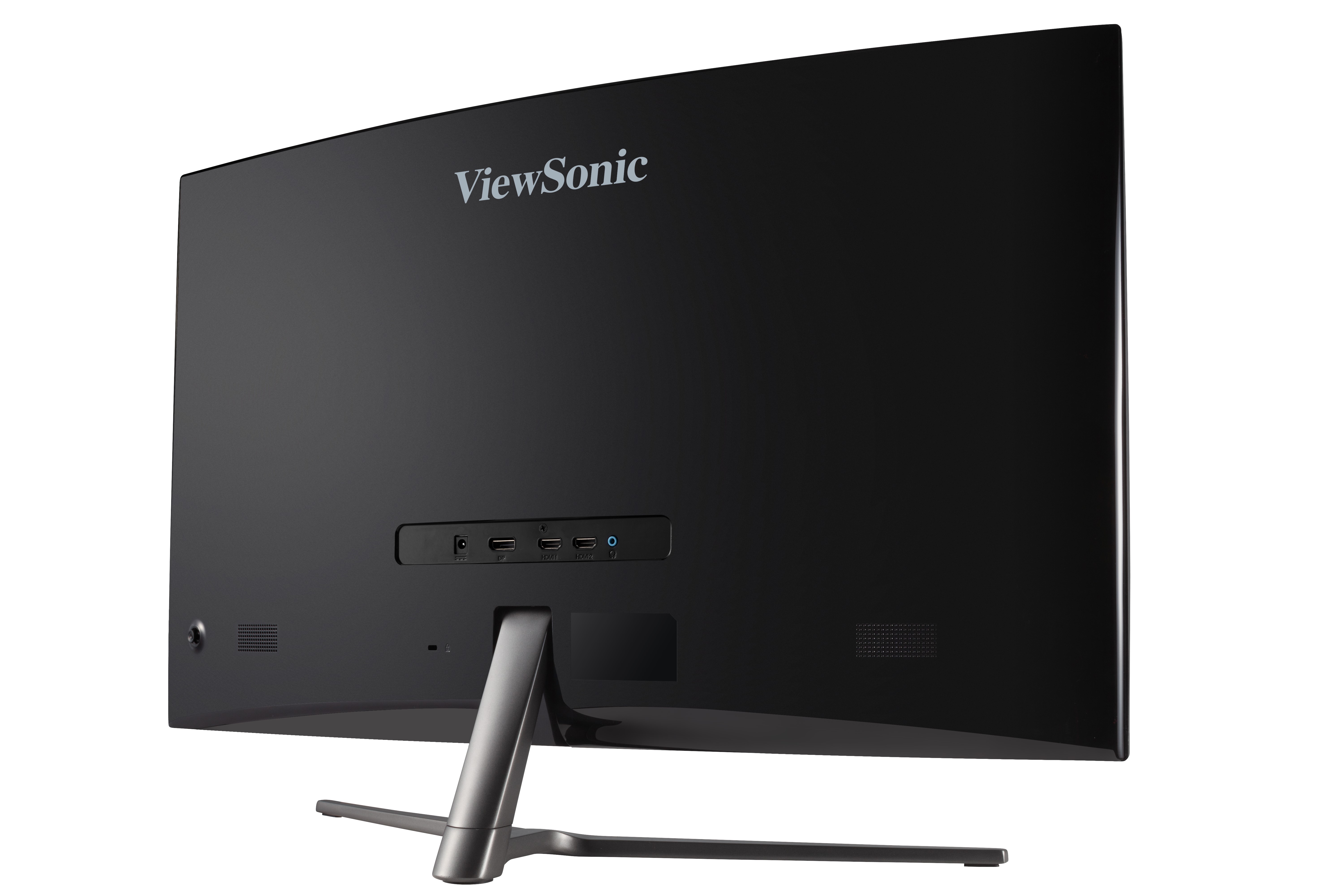

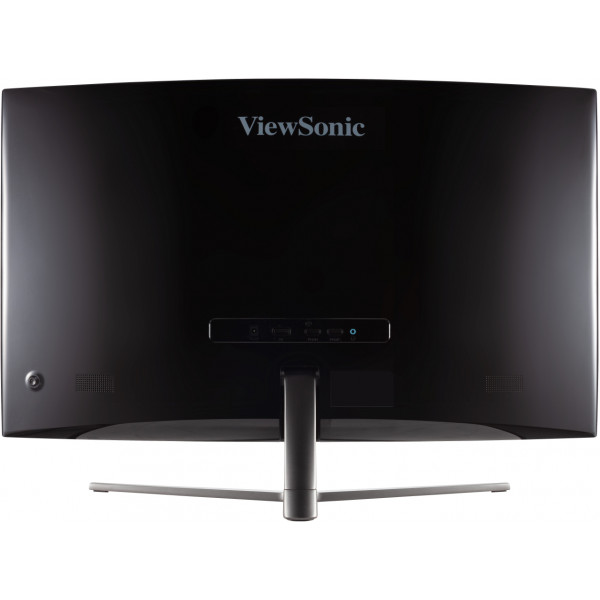

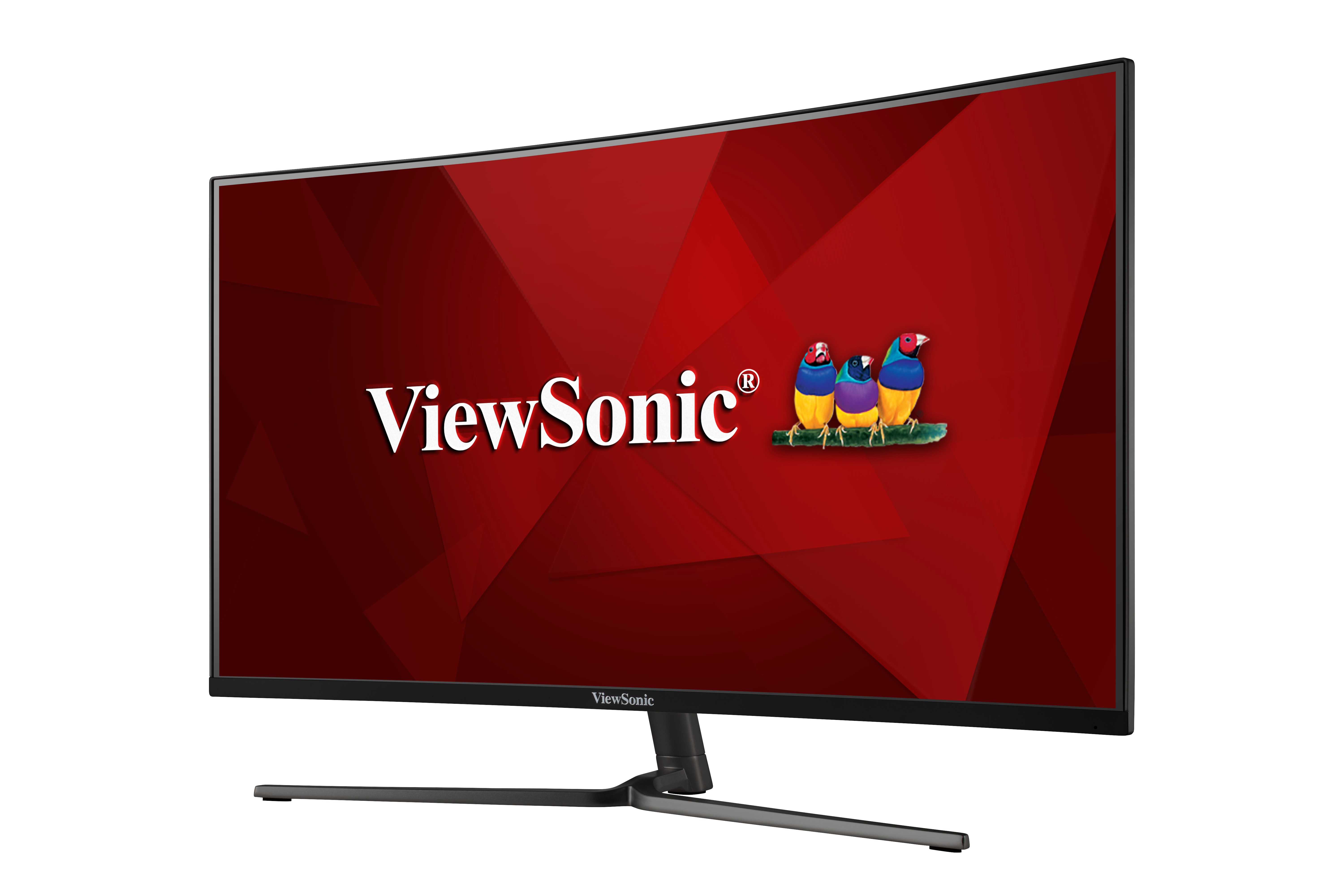

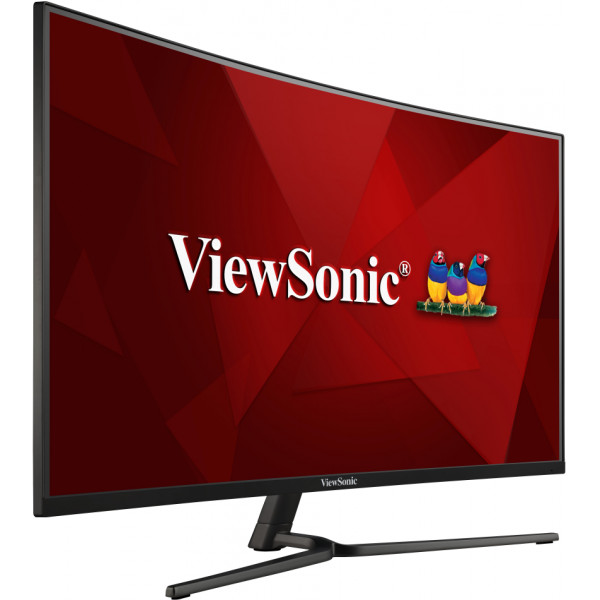

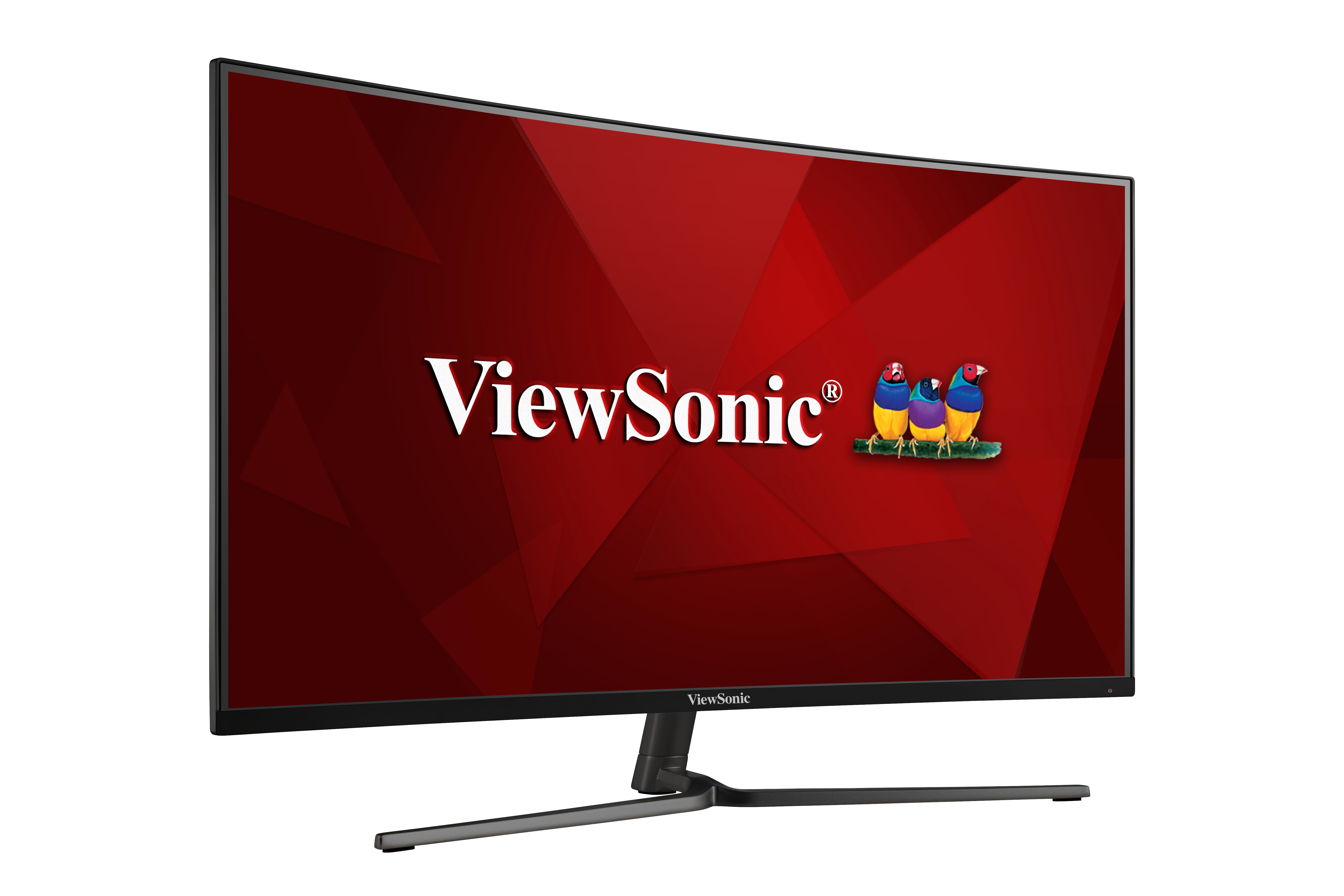

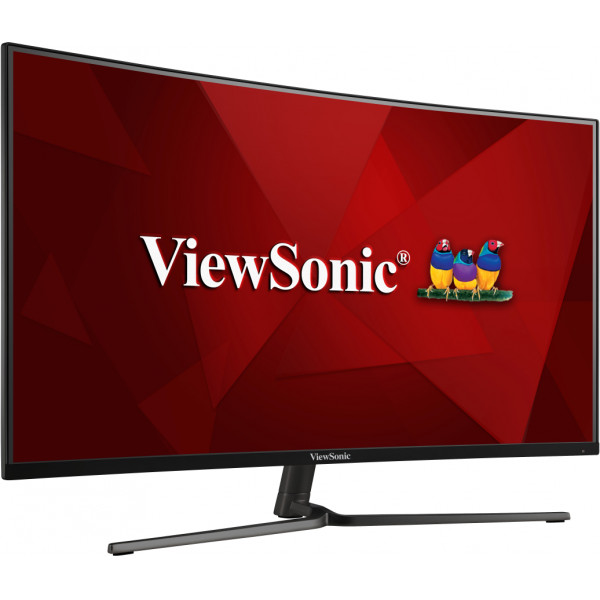

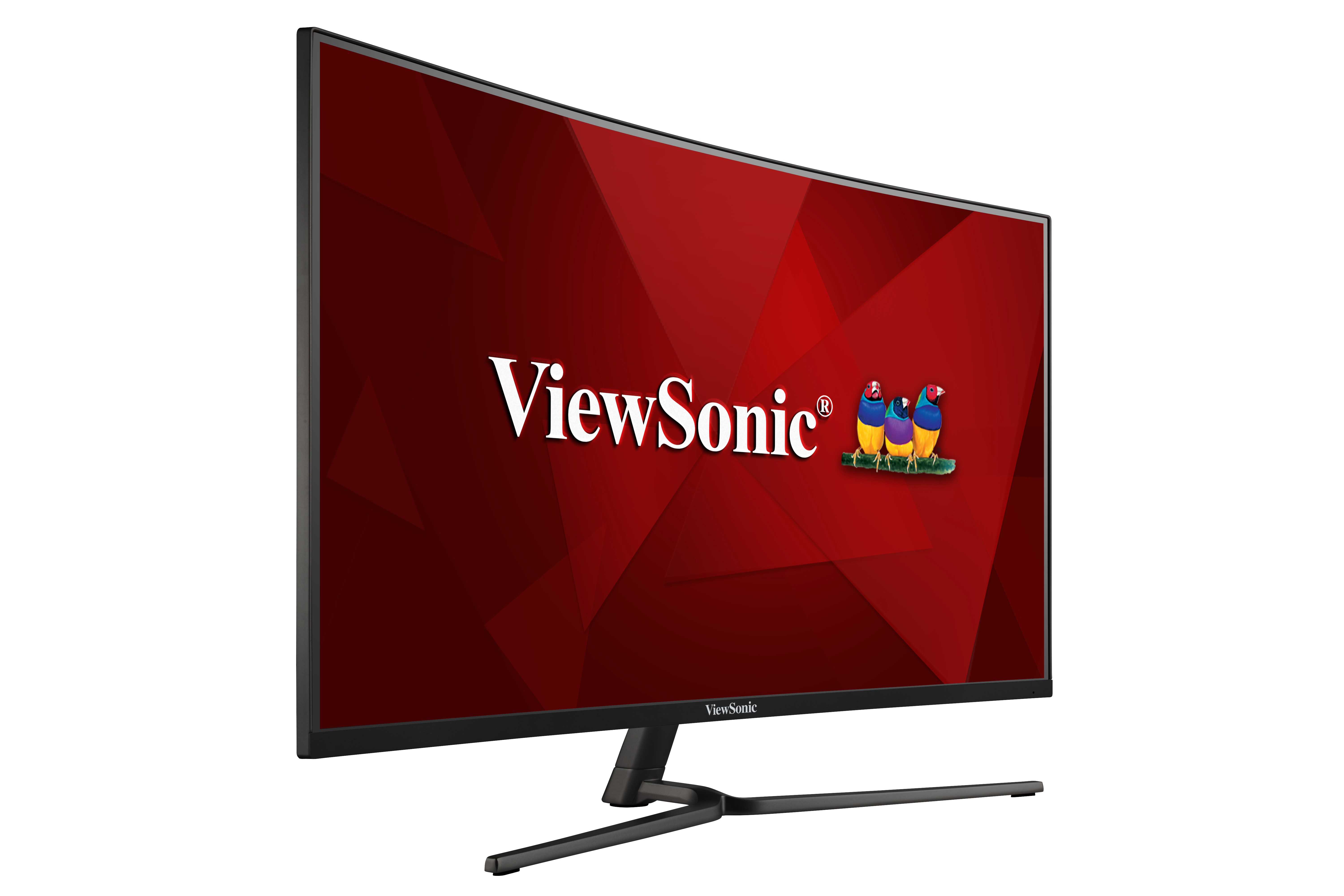

VX3258-PC-MHD

32" Curved Gaming Monitor

165Hz refresh rate
AMD FreeSync™ Premium technology
1ms MPRT response time
88% NTSC wide colour gamut coverage
Dual HDMI and DisplayPort inputs

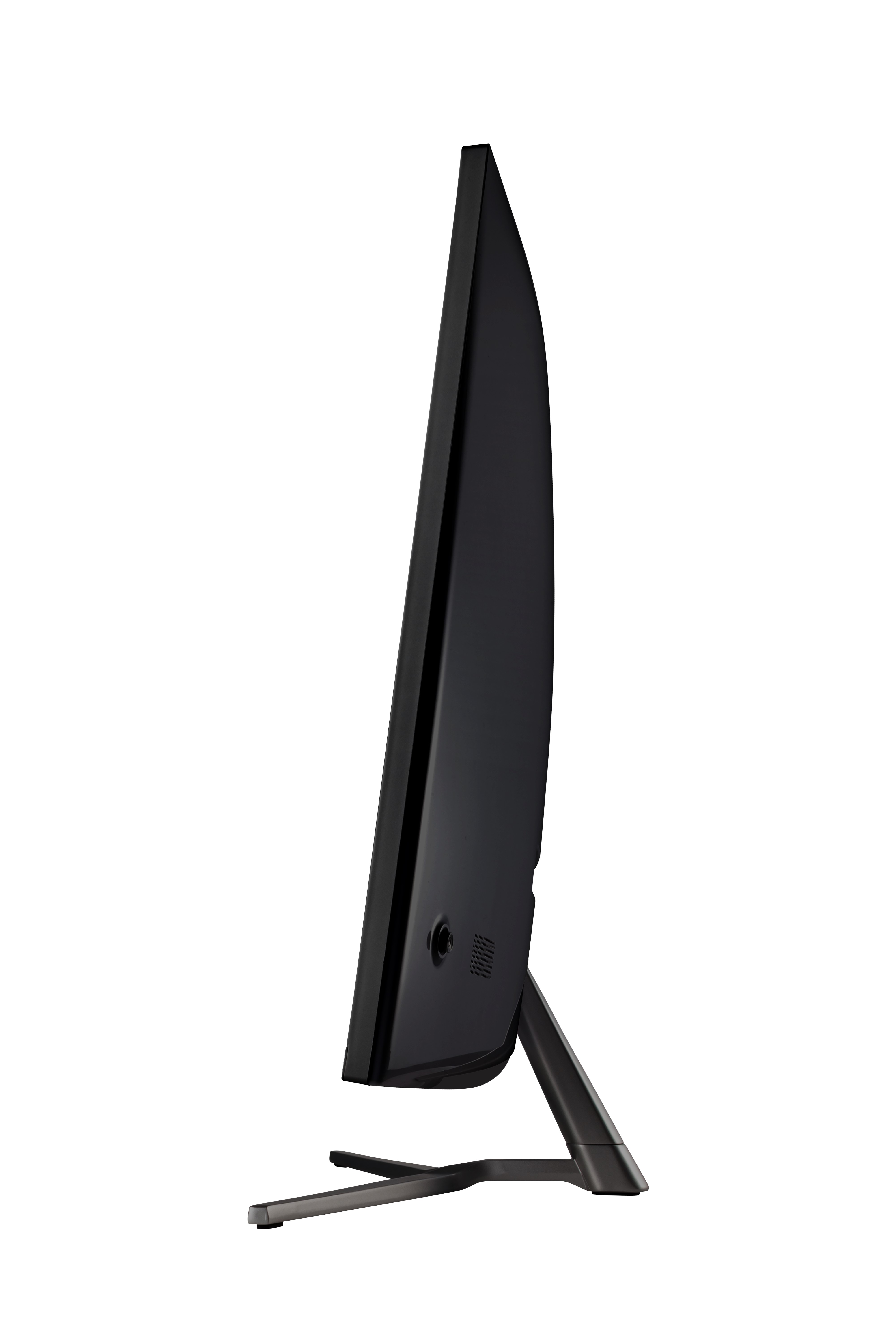

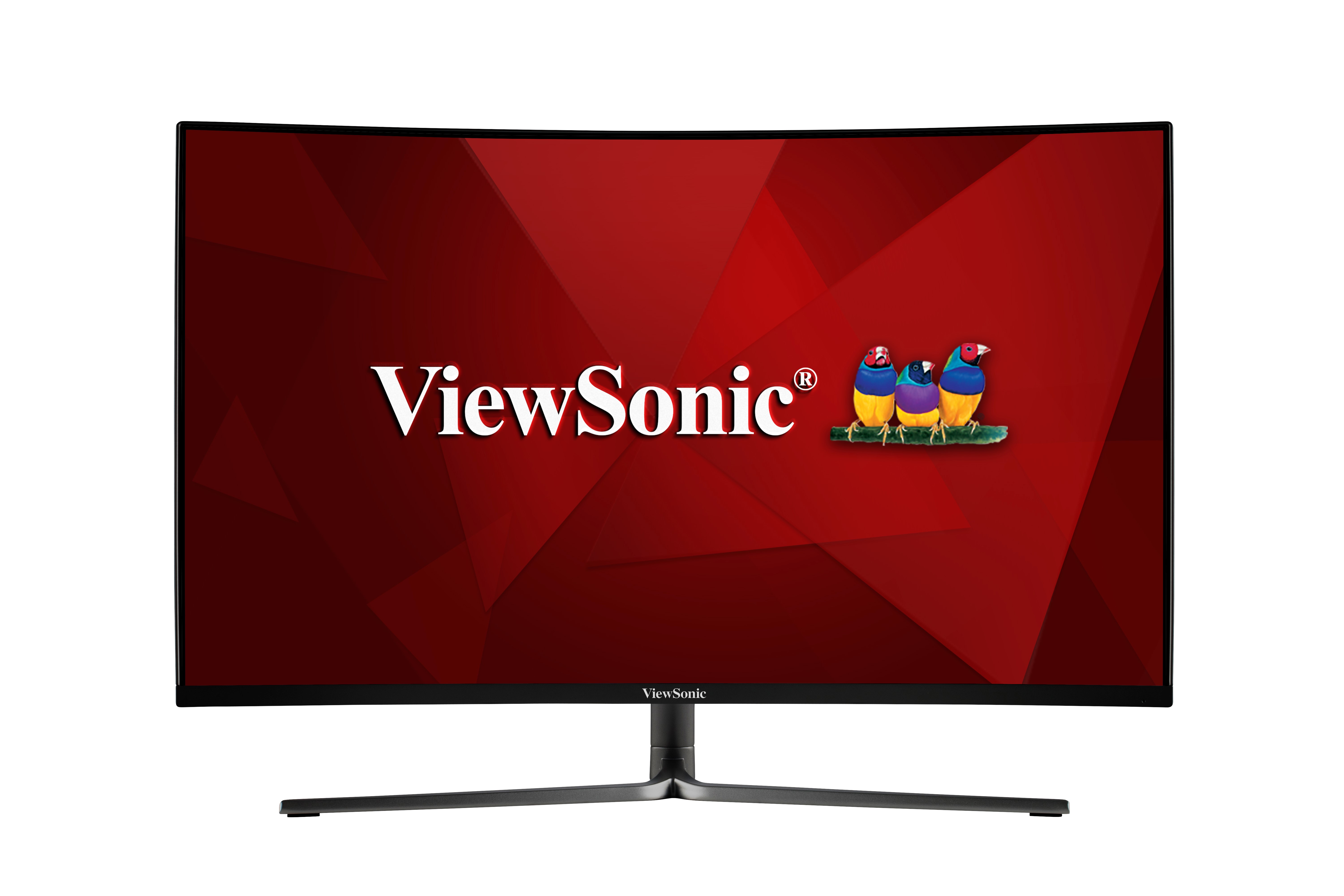

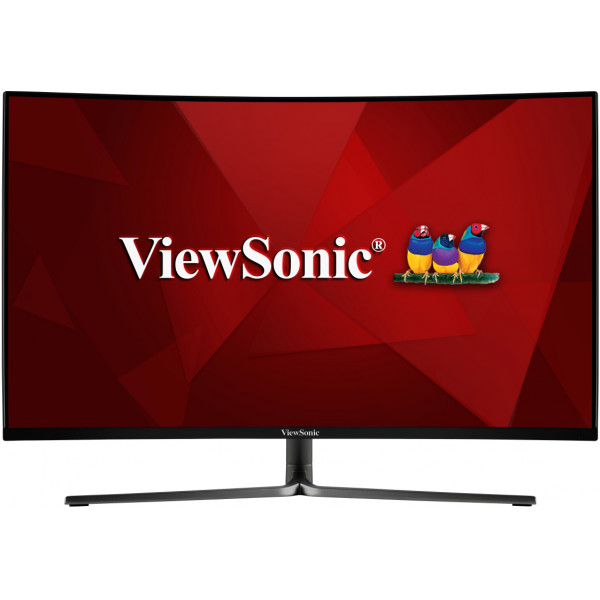

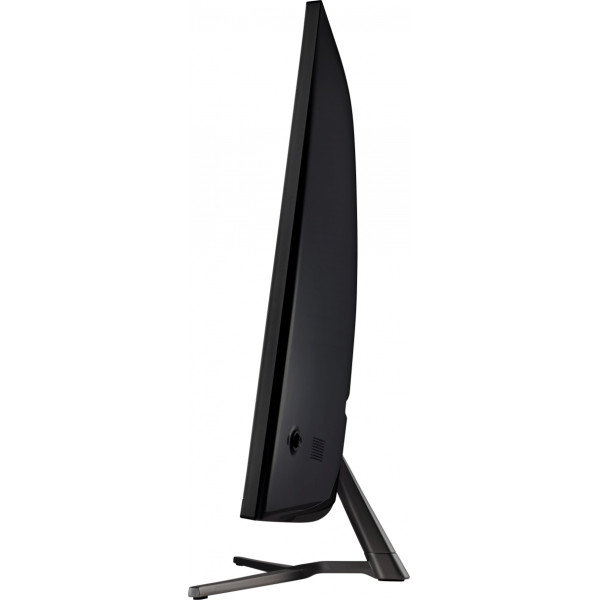

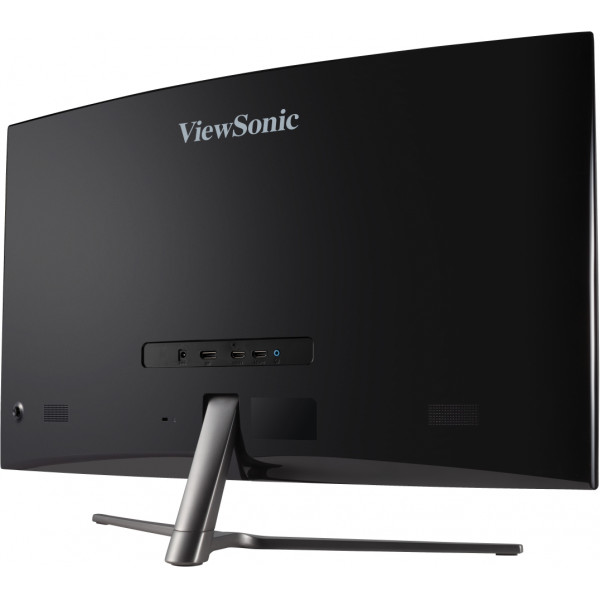

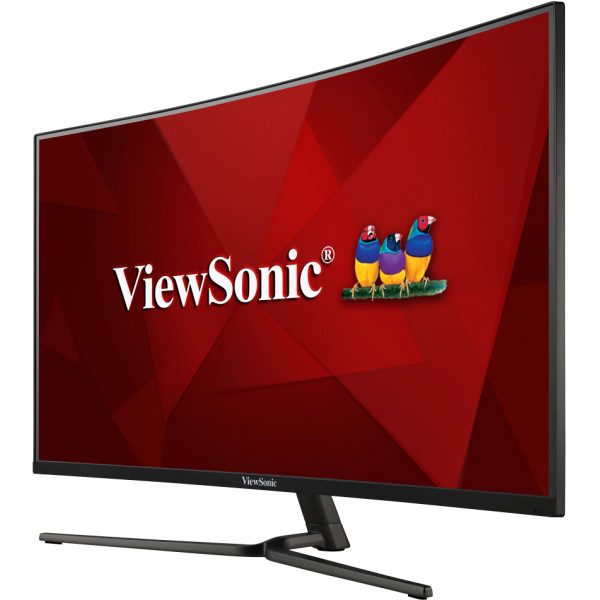

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 32
Viewable Area (in.): 31.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)

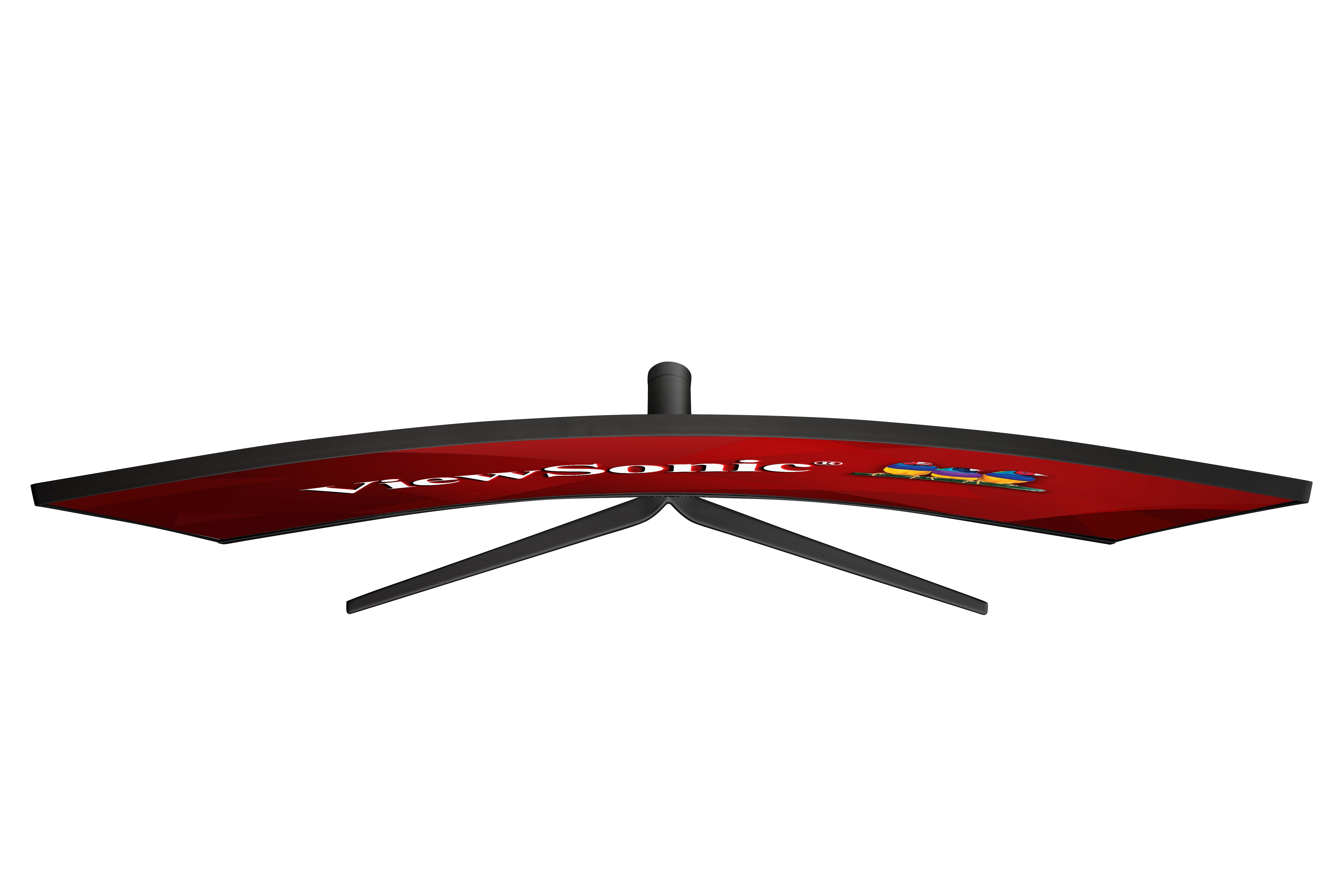

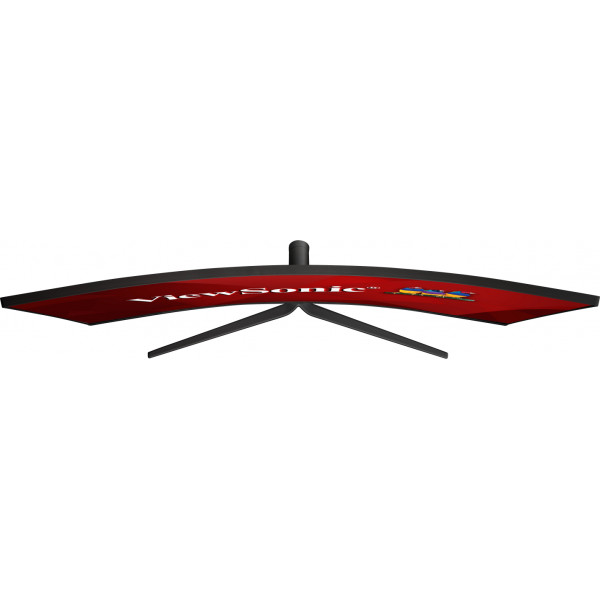

Curvature: 1800R
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 88% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.364 mm (H) x 0.364 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

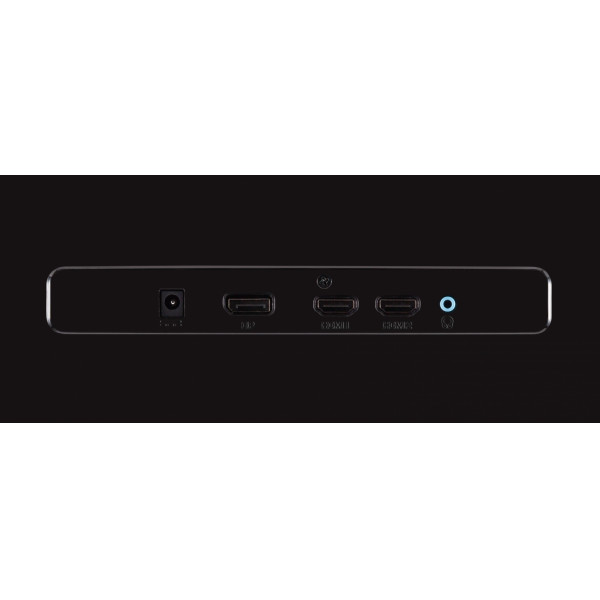

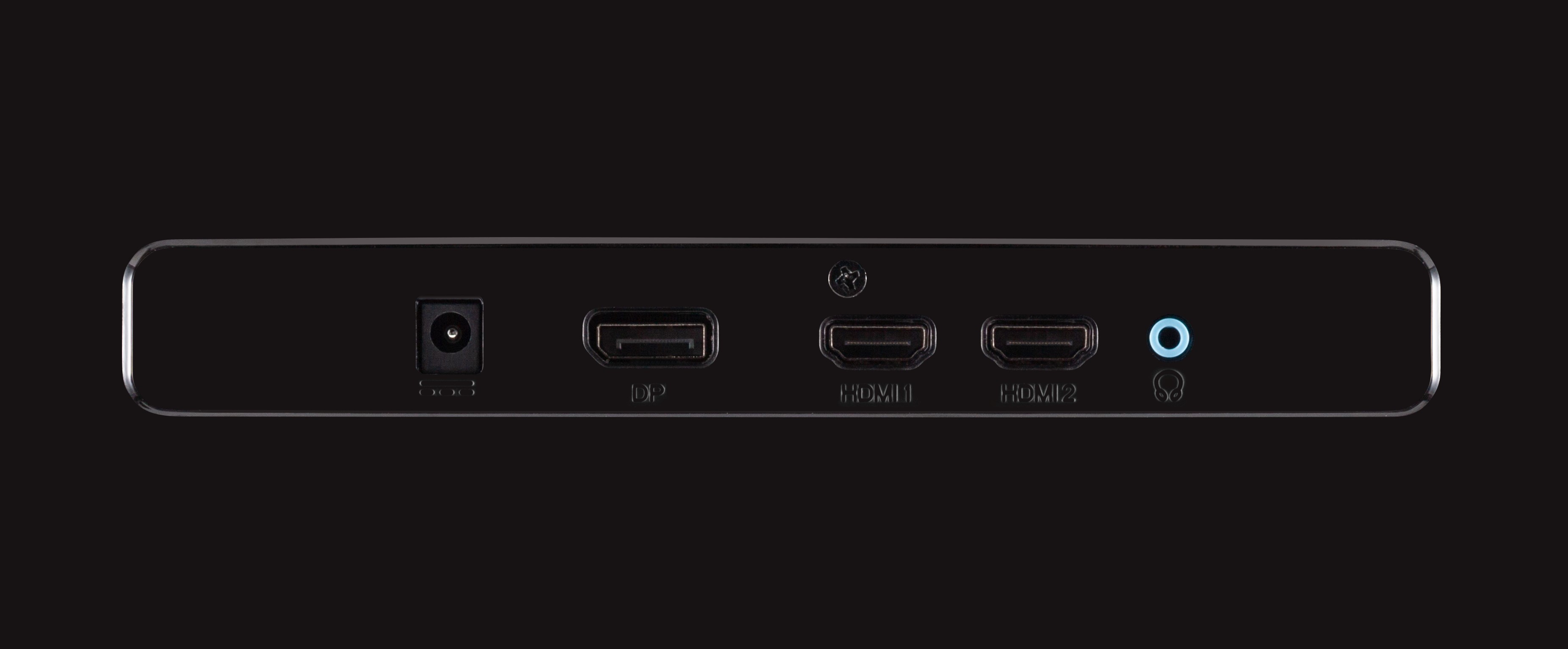

Connector
3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 31W
Eco Mode (optimized): 35.5W
Consumption (typical): 38.5W
Consumption (max): 45W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: 15 ~ 160KHz
Frequency Vertical: 48 ~ 144Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Ergonomics
Tilt (Forward/Back): -5º / 10º
Weight (imperial)
Net (lbs): 13
Net Without Stand (lbs): 11
Gross (lbs): 19.6
Weight (metric)
Net (kg): 5.9
Net Without Stand (kg): 5
Gross (kg): 8.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 30.6 x 22.4 x 6.6
Physical (in.): 28.1 x 19.3 x 8.6
Physical Without Stand (in.): 28.1 x 16.5 x 3.1
Dimensions (metric) (wxhxd)
Packaging (mm): 776 x 569 x 167
Physical (mm): 713 x 489 x 218
Physical Without Stand (mm): 713 x 419 x 79
General
PACKAGE CONTENTS: B07N17QS8D xVX3258-PC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
