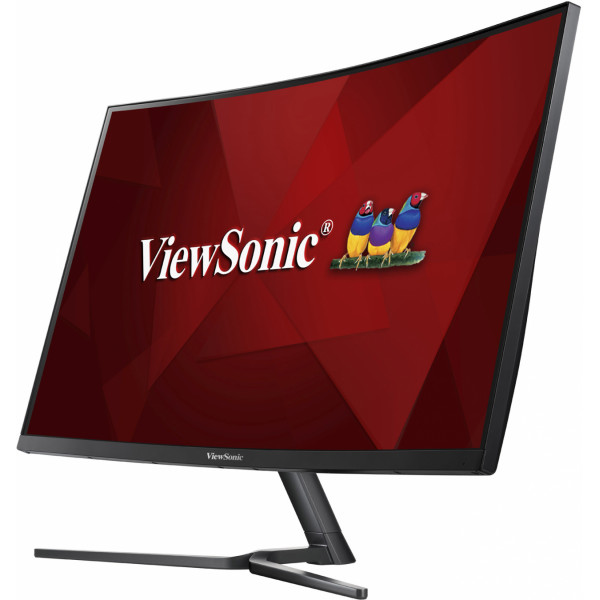

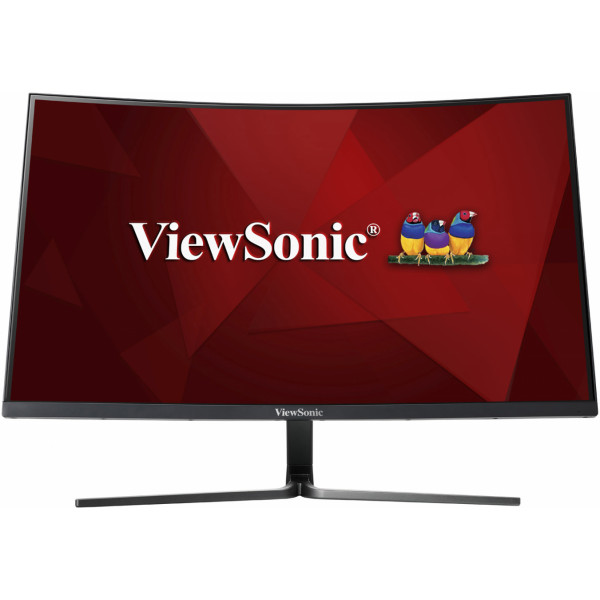

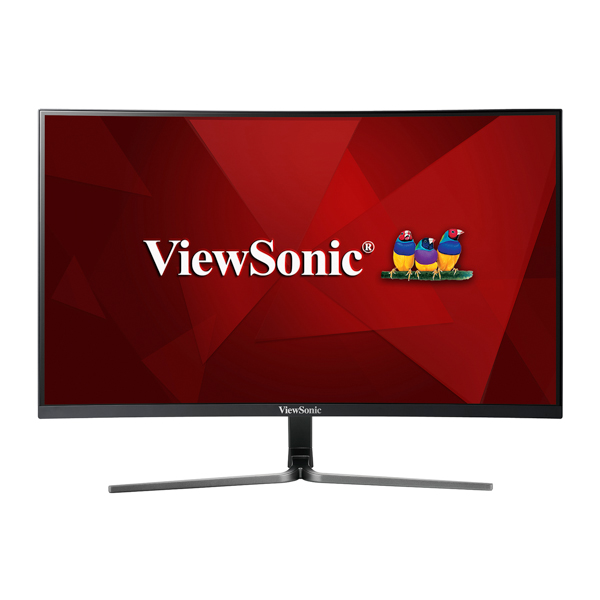

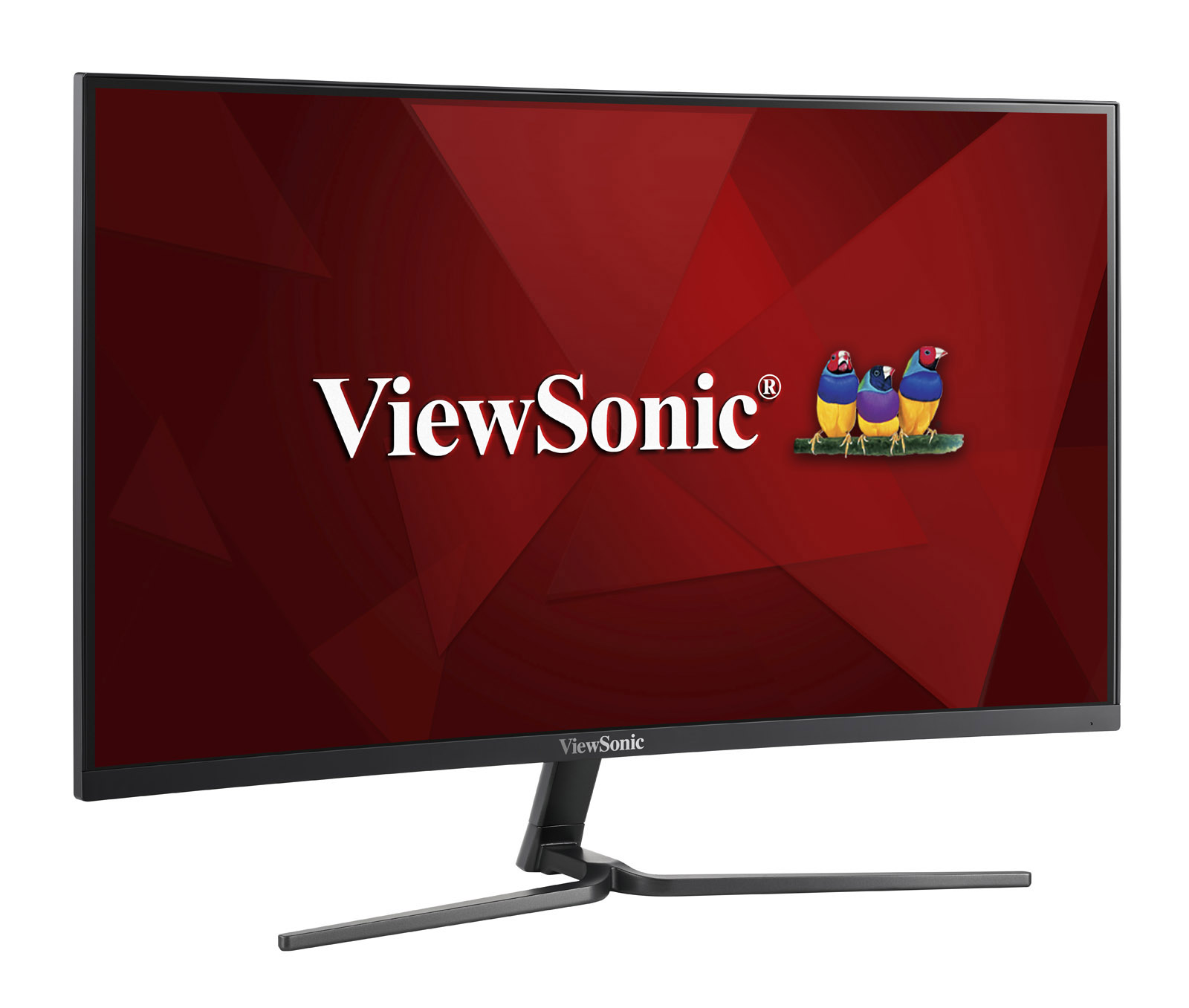

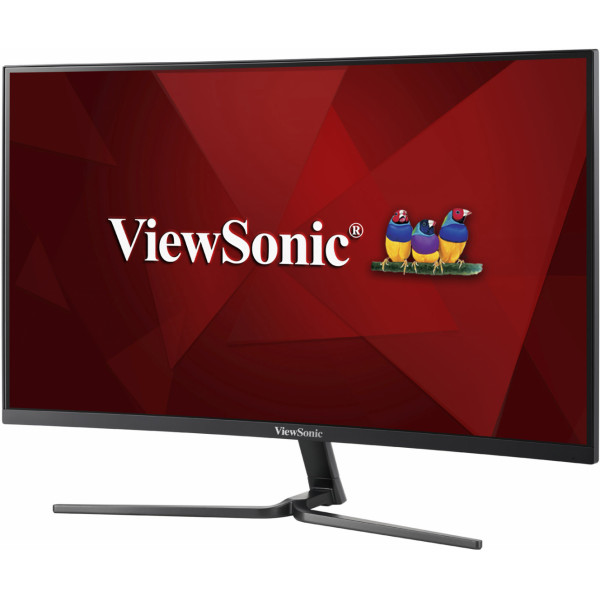

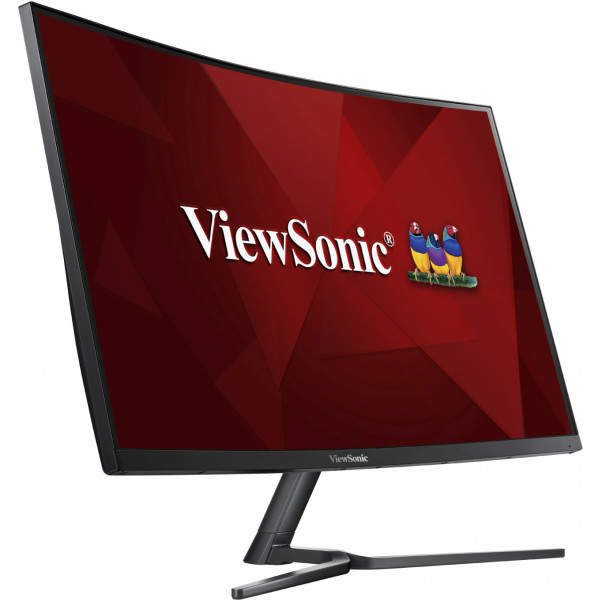

VX2758-C-mh

27" Curved Gaming Monitor

144Hz refresh rate
AMD FreeSync™ technology
88% NTSC wide colour gamut coverage
Dual HDMI and VGA inputs
Full HD 1080p resolution

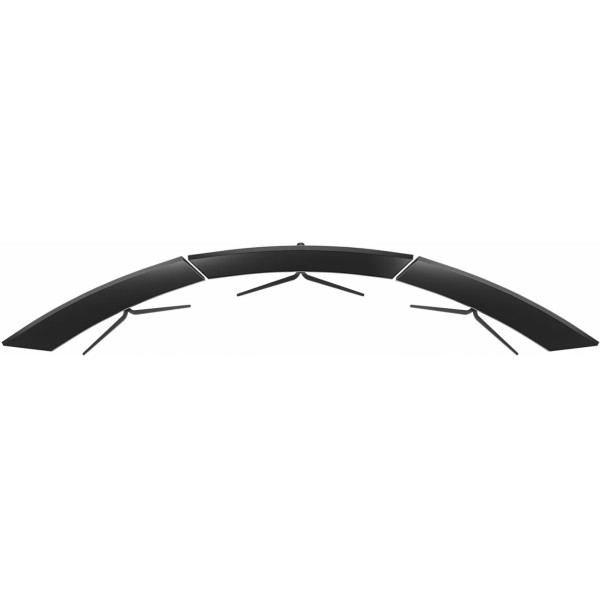

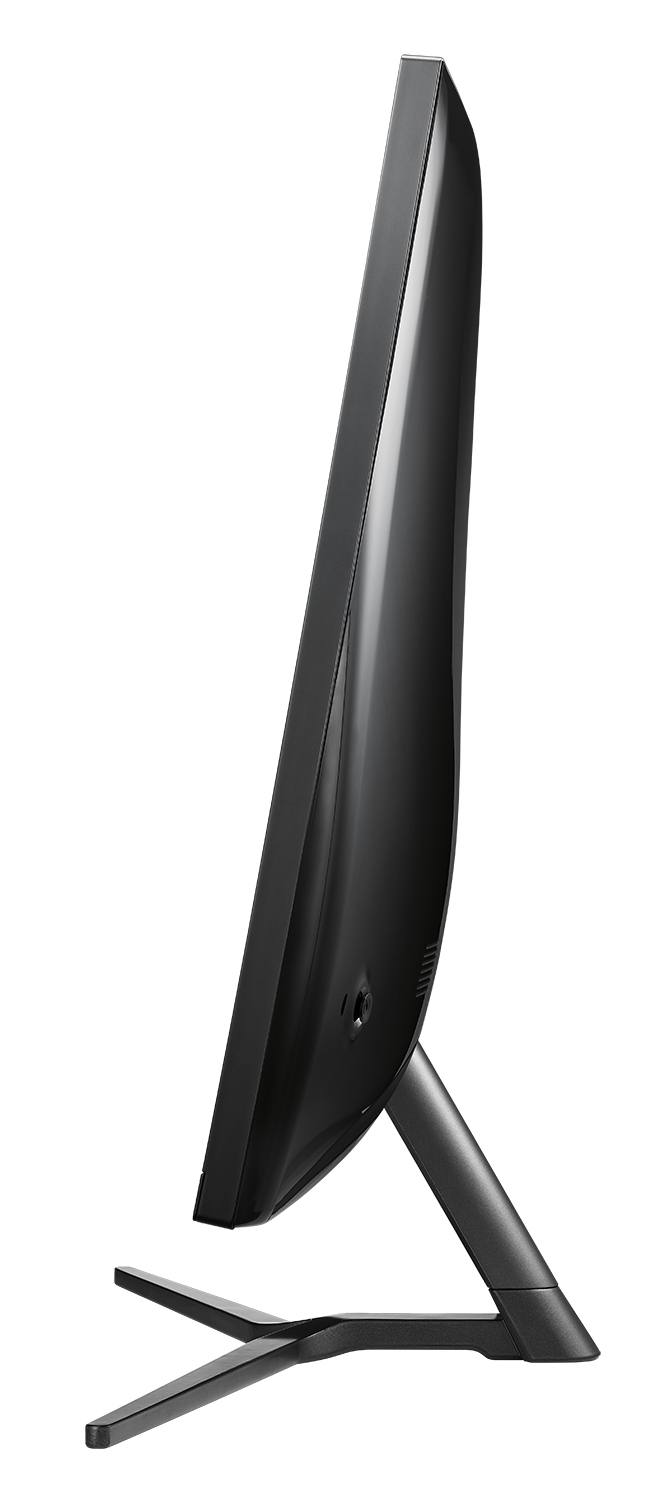

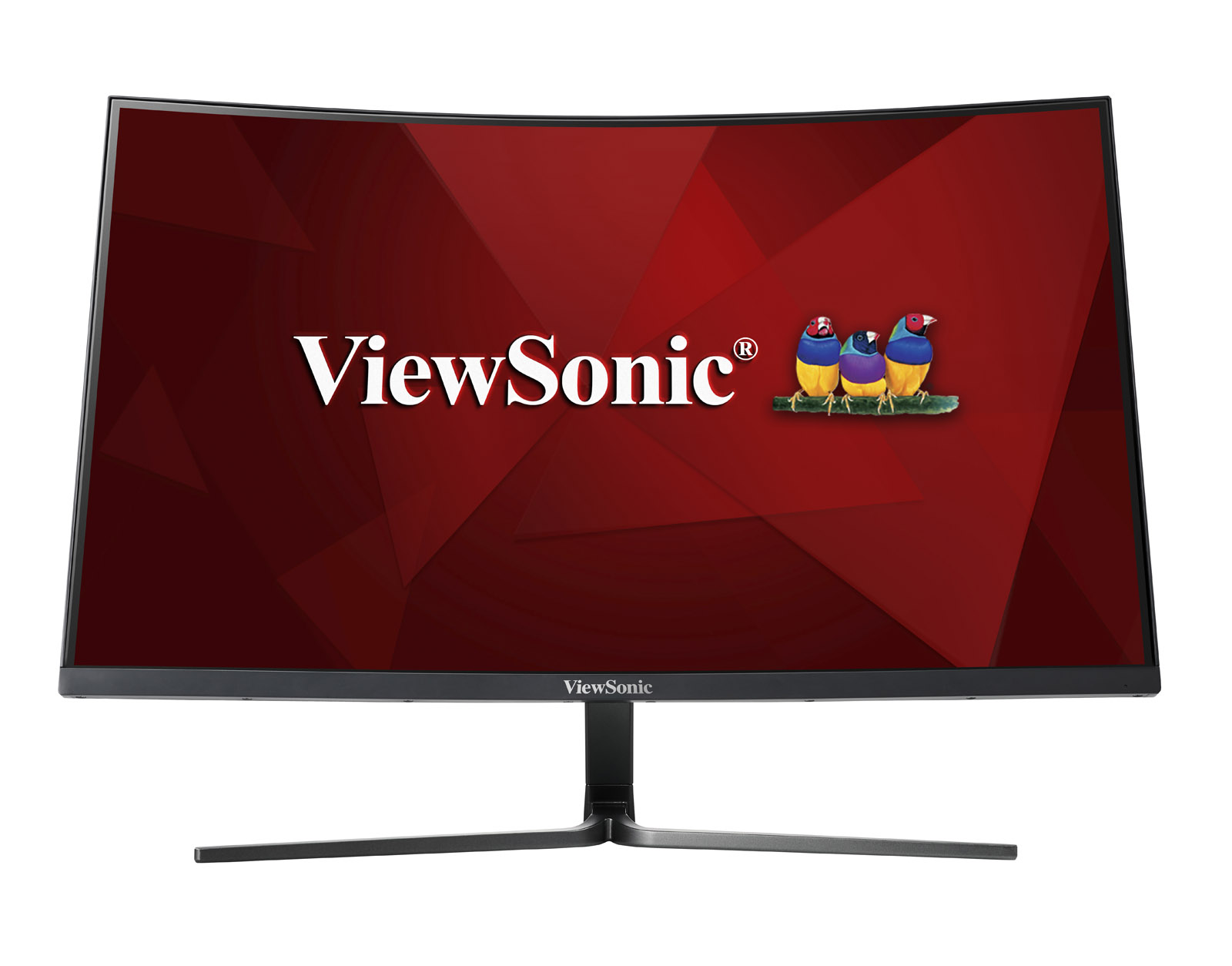

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 280 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: 1800R
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 88% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080

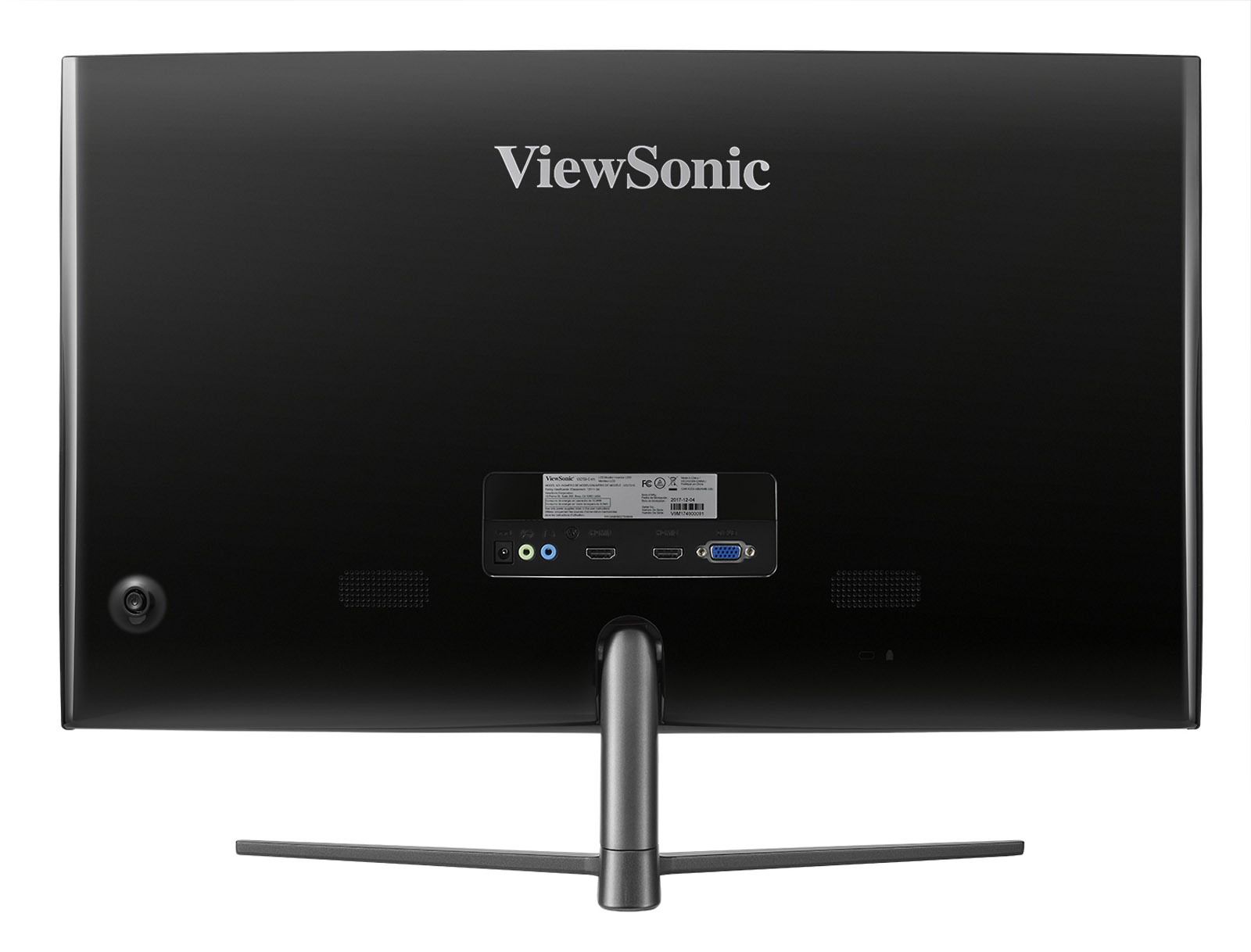

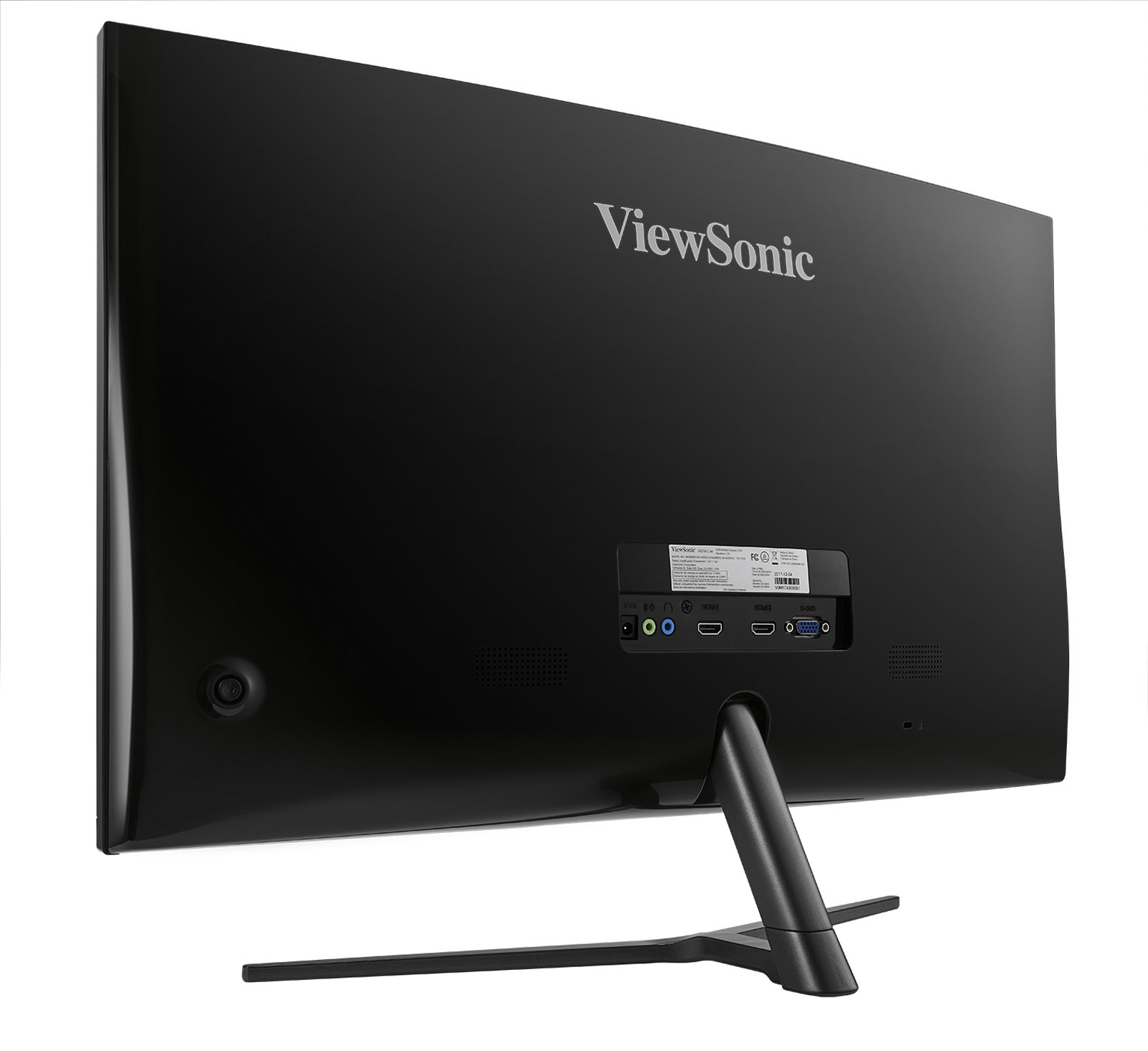

Connector
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 2.0: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 18W
Eco Mode (optimized): 21W
Consumption (typical): 24.5W
Consumption (max): 26W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 160KHz, HDMI (v2.0): 15 ~ 160KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 48 ~ 144Hz, HDMI (v2.0): 48 ~ 144Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), TMDS - HDMI (v2.0)
Analog Sync: Separate/Composite/SOG - RGB Analog

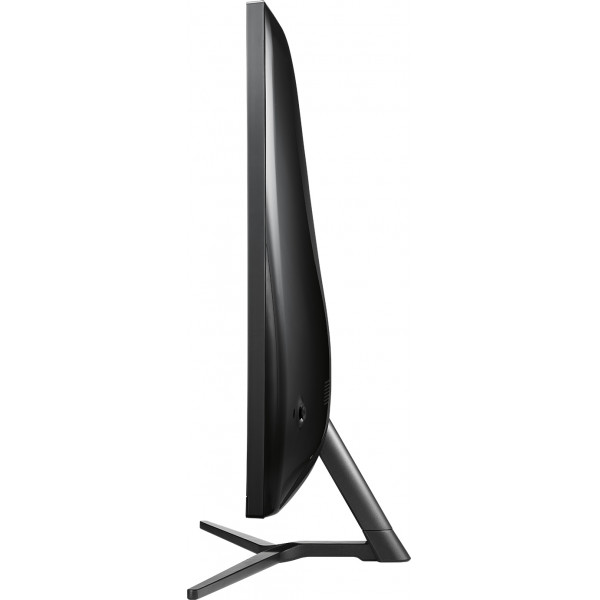

Ergonomics
Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 9.4
Net Without Stand (lbs): 8.8
Gross (lbs): 13.9
Weight (metric)
Net (kg): 4.3
Net Without Stand (kg): 4
Gross (kg): 6.3
Dimensions (imperial) (wxhxd)
Packaging (in.): 26.8 x 20.1 x 5.7
Physical (in.): 24 x 17.2 x 7.5
Physical Without Stand (in.): 24 x 14.2 x 2.9
Dimensions (metric) (wxhxd)
Packaging (mm): 680 x 510 x 144
Physical (mm): 611 x 437 x 192
Physical Without Stand (mm): 611 x 361 x 73
General
PACKAGE CONTENTS: B078ZJHD25 xVX2758-C-MH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
