Archived

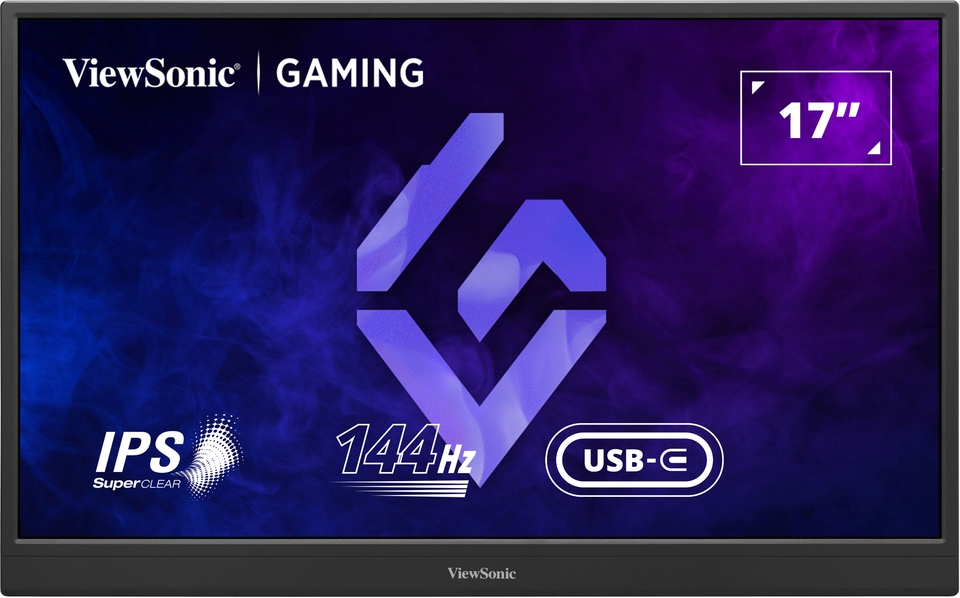

VX1754

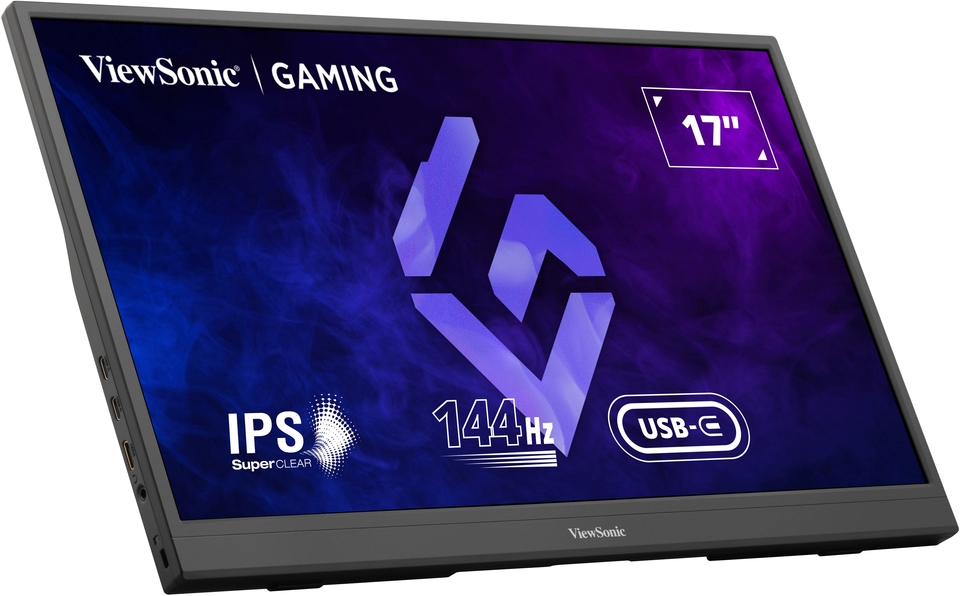

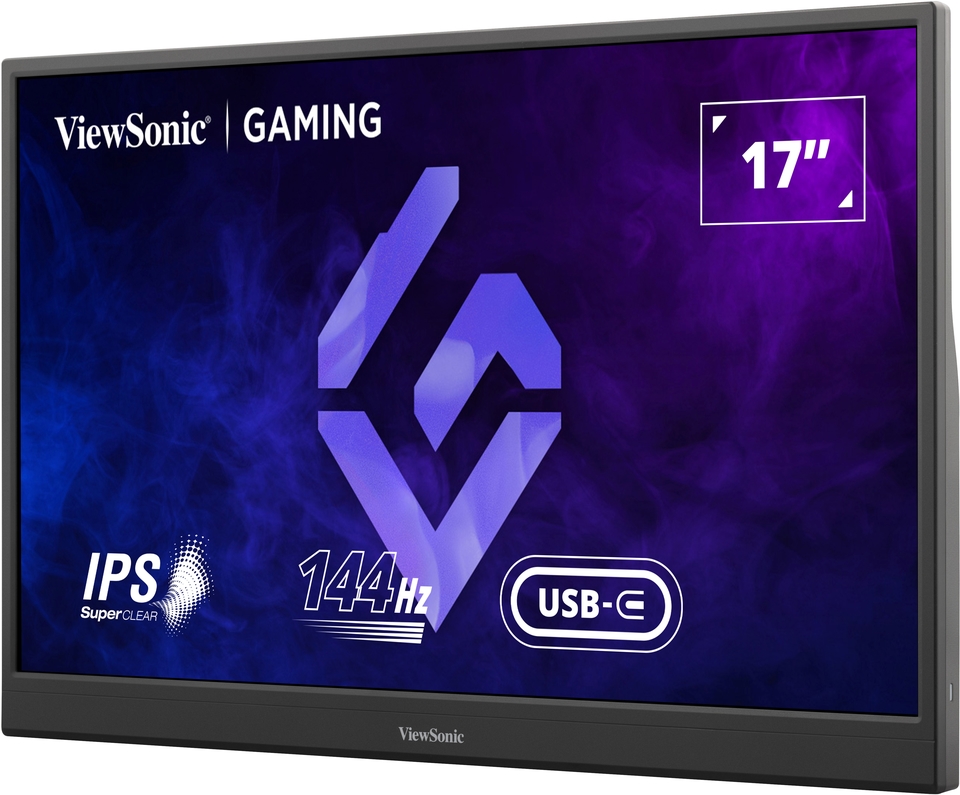

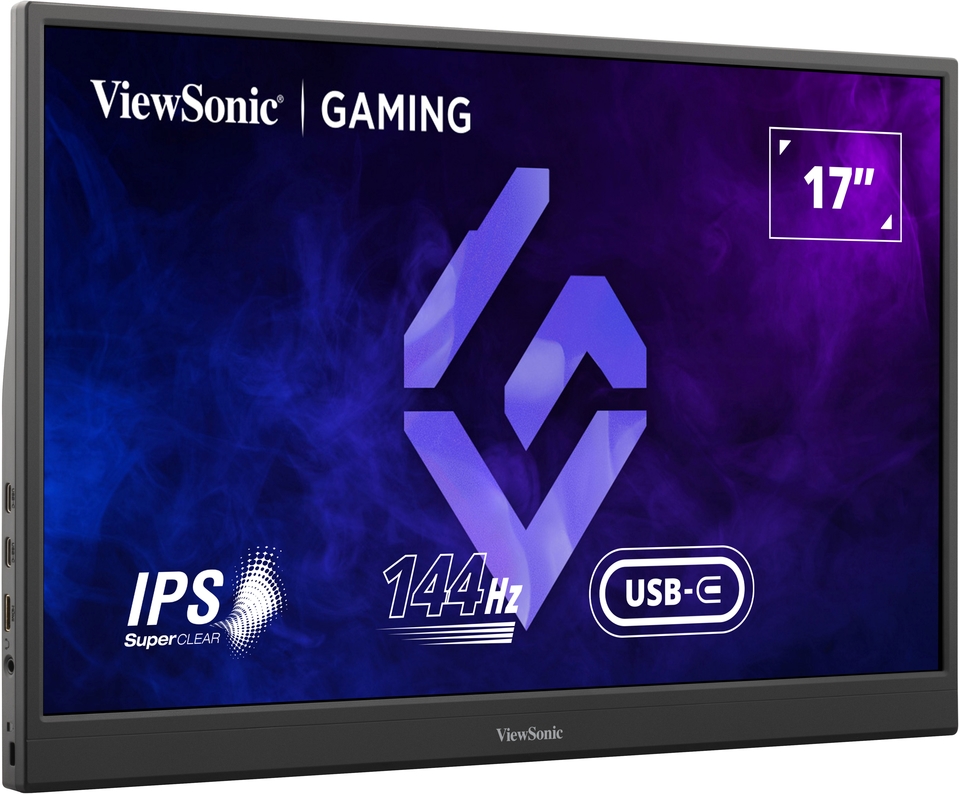

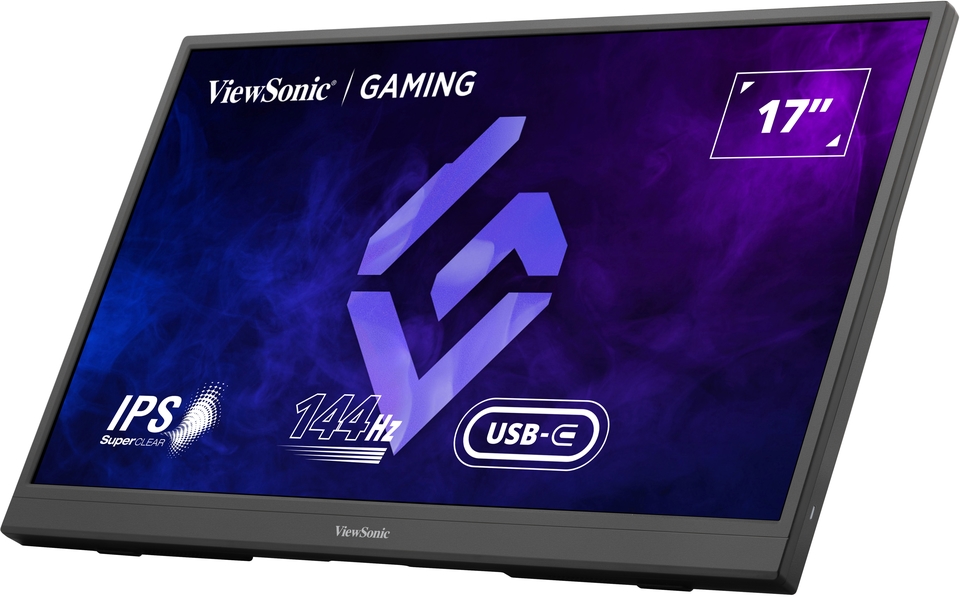

17" 144Hz IPS Portable Gaming Monitor

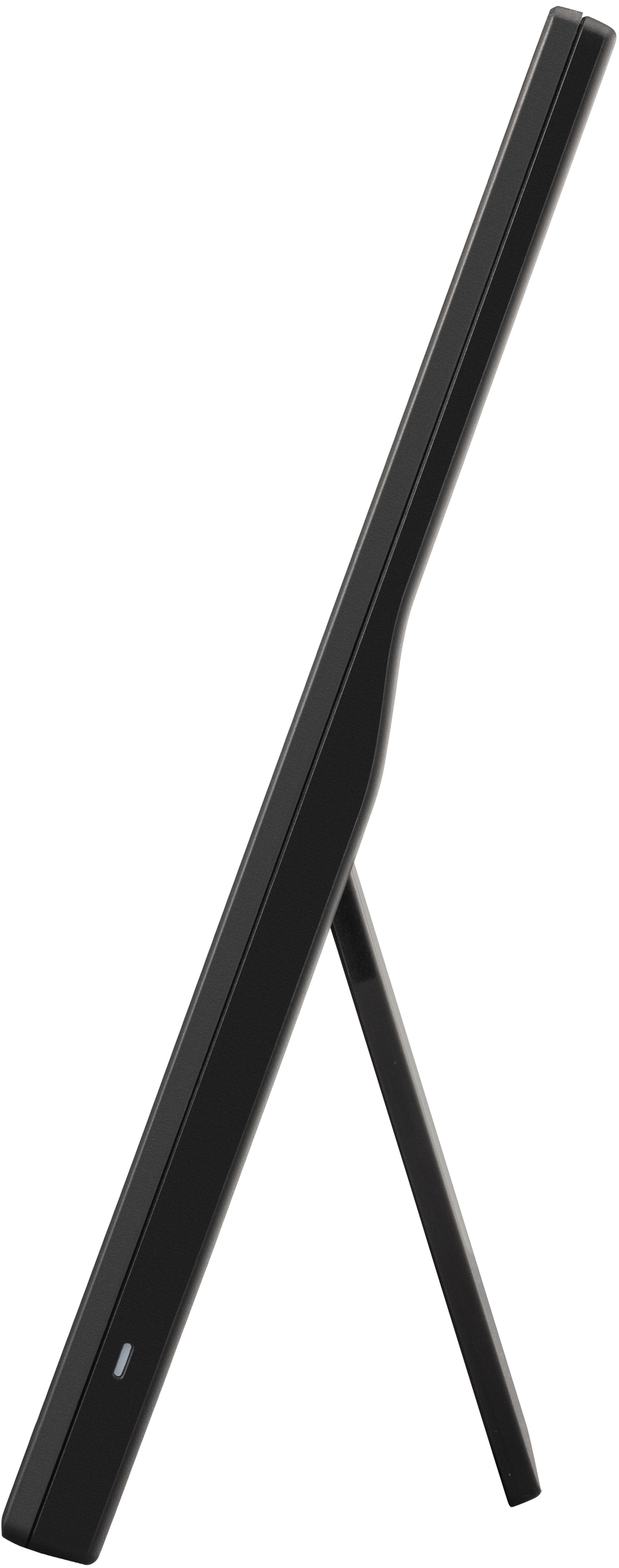

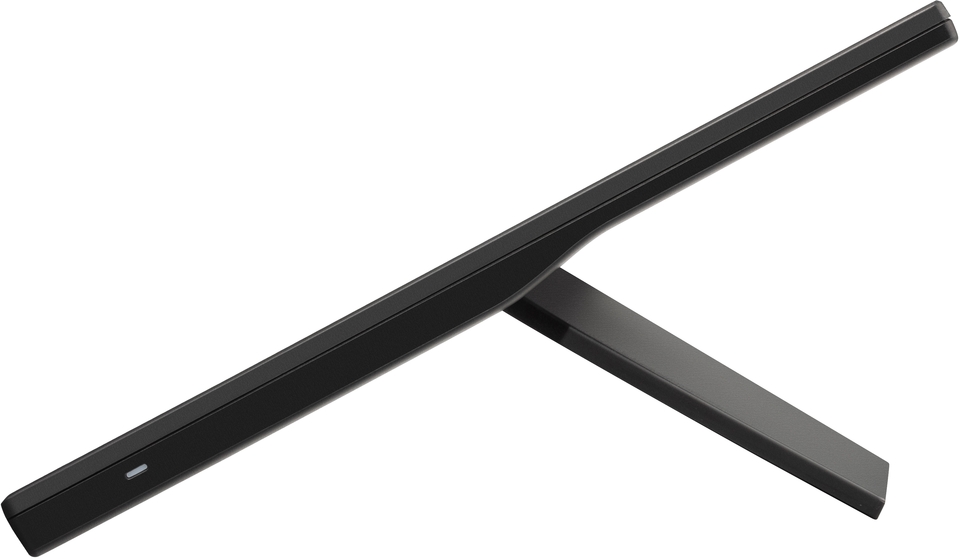

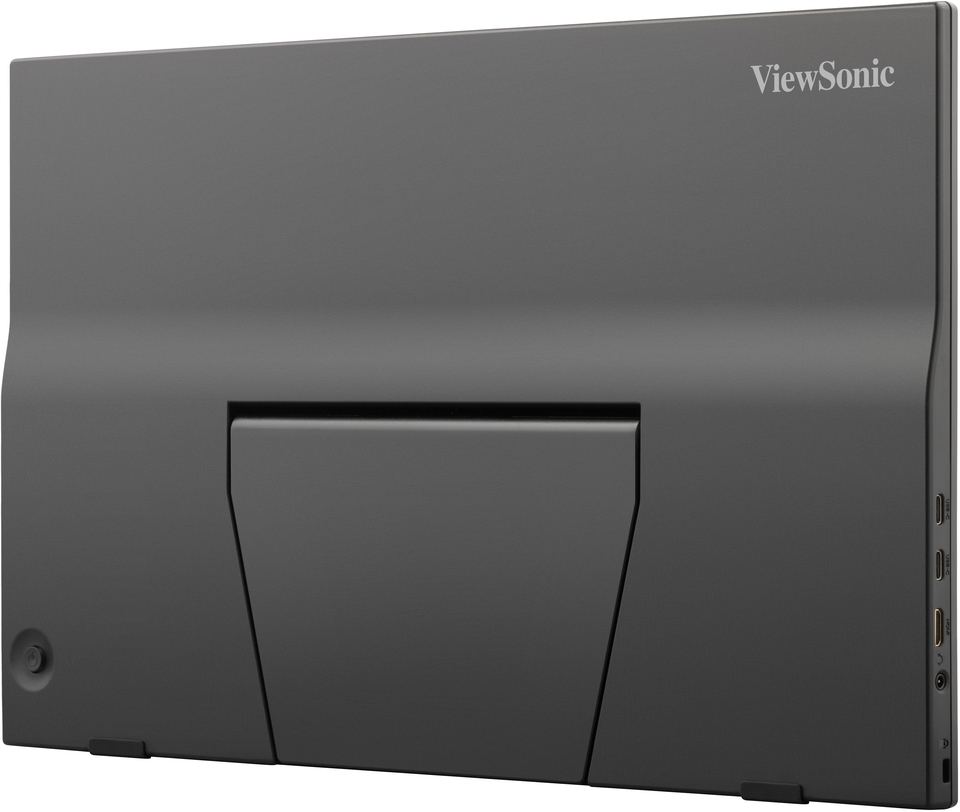

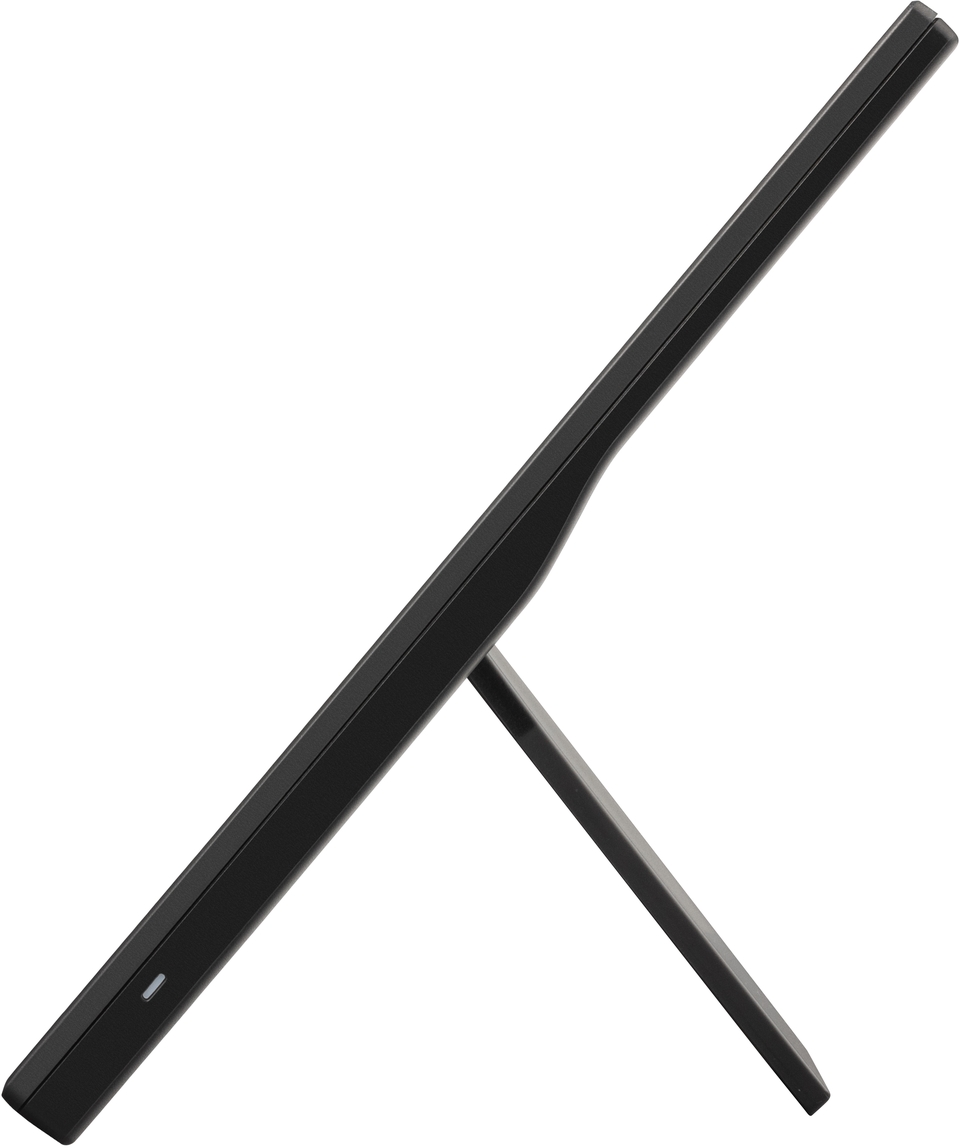

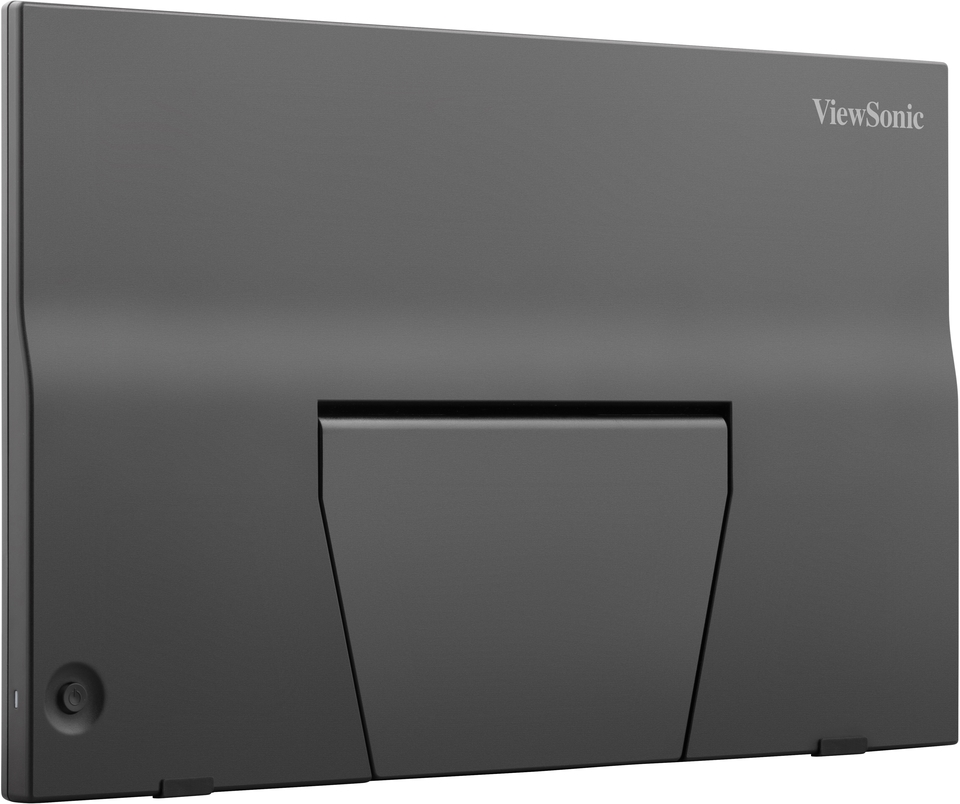

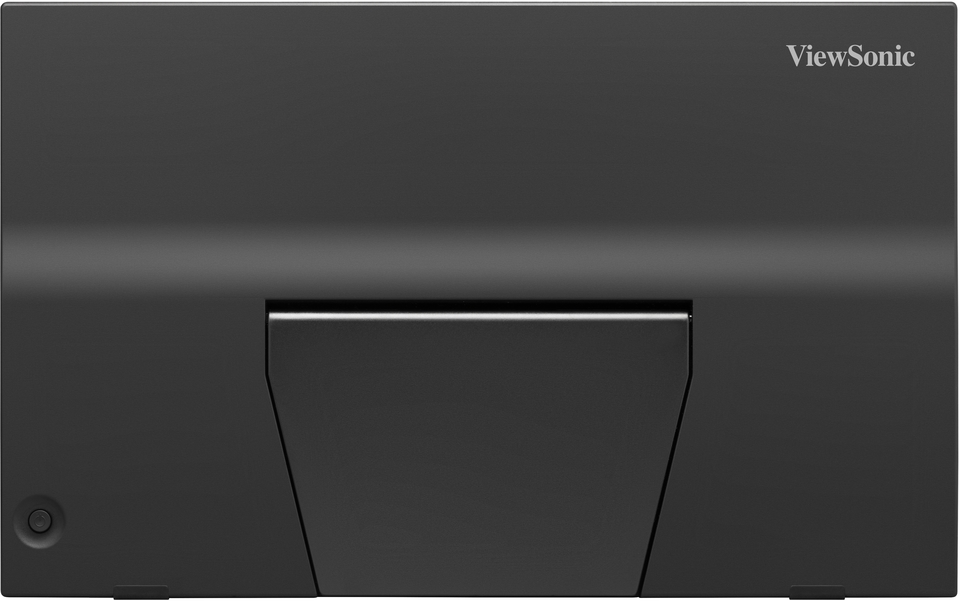

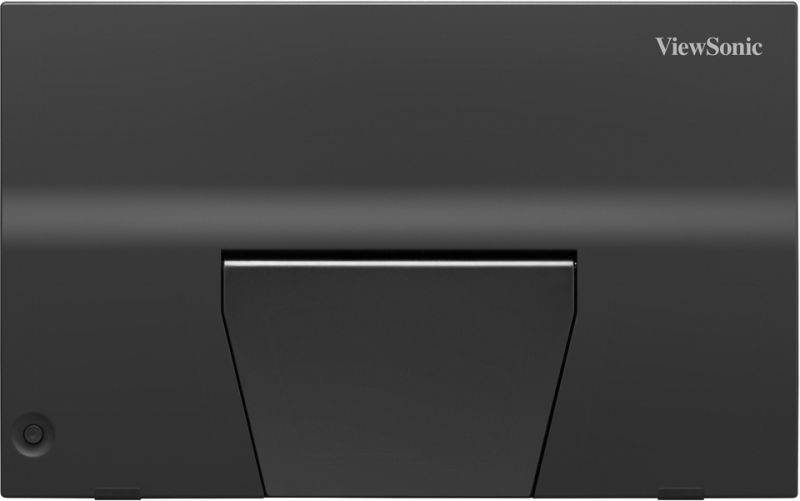

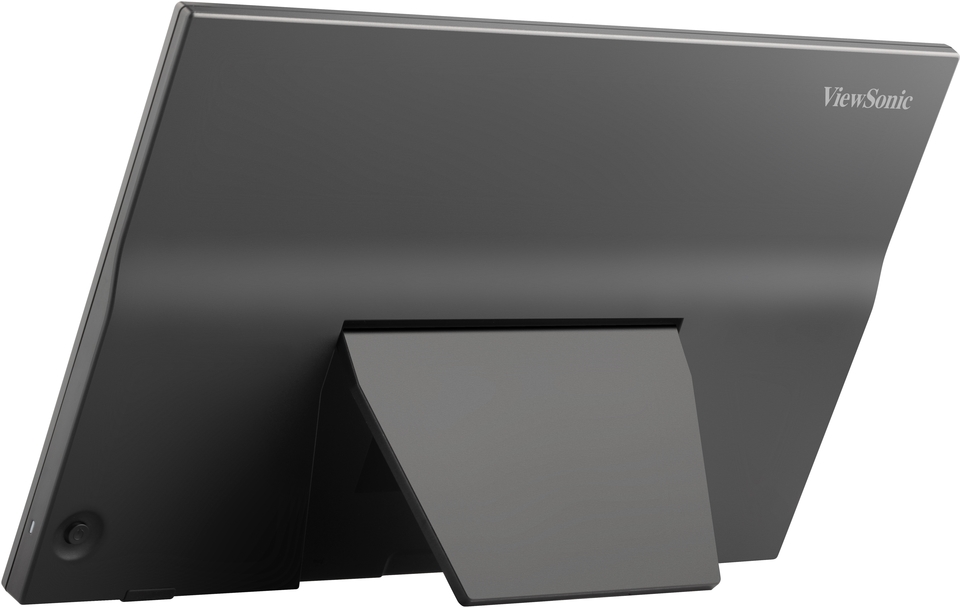

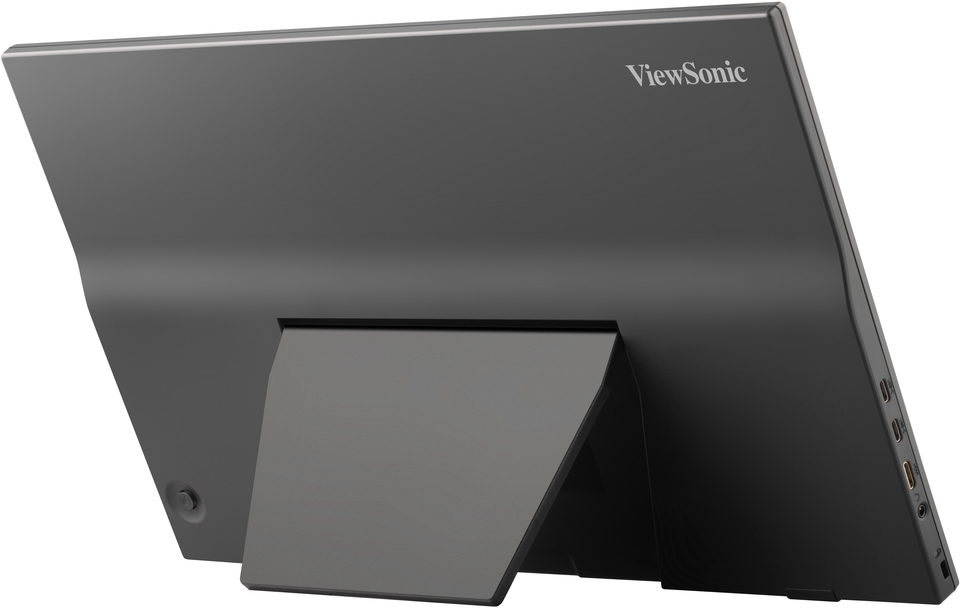

- Find your perfect view every time with the adjustable kickstand.
- Crush lag with a lightning-fast 144Hz refresh rate.
- Enjoy smooth, tear-free gameplay with AMD FreeSync.

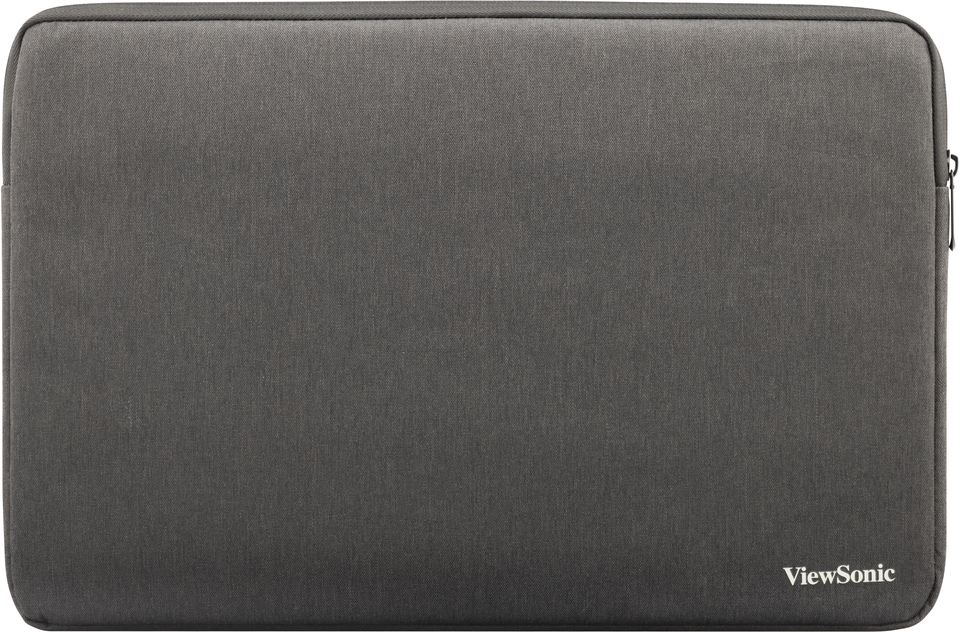

- Keep your gear safe on the go with the durable monitor sleeve.
- Plug and play with a single USB-C or mini-HDMI cable.
SPECIFICATIONS
- DisplayDisplay Size (in.): 17
Viewable Area (in.): 17.3
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 170º horizontal, 170º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.199 mm (H) x 0.199 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector
- AudioInternal Speakers: 0.8Watts x2
- PowerEco Mode (Conserve): 10W
Eco Mode (optimized): 11W
Consumption (typical): 12W
Consumption (max): 13W
Voltage: DC 5V/9V/12V/15V/20V
Stand-by: 0.5W
Power Supply: External (Optional) - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Input SignalFrequency Horizontal: mini HDMI (v2.0): 24 ~ 165KHz, Type C: 165 ~ 165KHz
Frequency Vertical: mini HDMI (v2.0): 48 ~ 144Hz, Type C: 48 ~ 144Hz - Video InputDigital Sync: TMDS - mini HDMI (v2.0), Micro-Packet - Type C
- ErgonomicsTilt (Forward/Back): 20º / 62º
- Weight (imperial)Net (lbs): 2
Net Without Stand (lbs): 2
Gross (lbs): 4.6 - Weight (metric)Net (kg): 0.9
Net Without Stand (kg): 0.9
Gross (kg): 2.1 - Dimensions (imperial) (wxhxd)Packaging (in.): 18.7 x 14.5 x 4.8
Physical (in.): 15.69 x 9.76 x 0.66
Physical Without Stand (in.): 15.69 x 9.76 x 0.66 - Dimensions (metric) (wxhxd)Packaging (mm): 476 x 368 x 121
Physical (mm): 398.5 x 248 x 16.8
Physical Without Stand (mm): 398.5 x 248 x 16.8 - GeneralPACKAGE CONTENTS: VX1754 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
