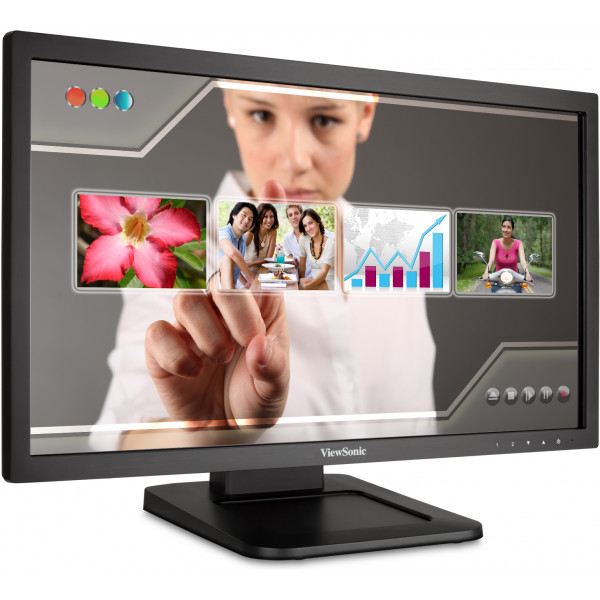

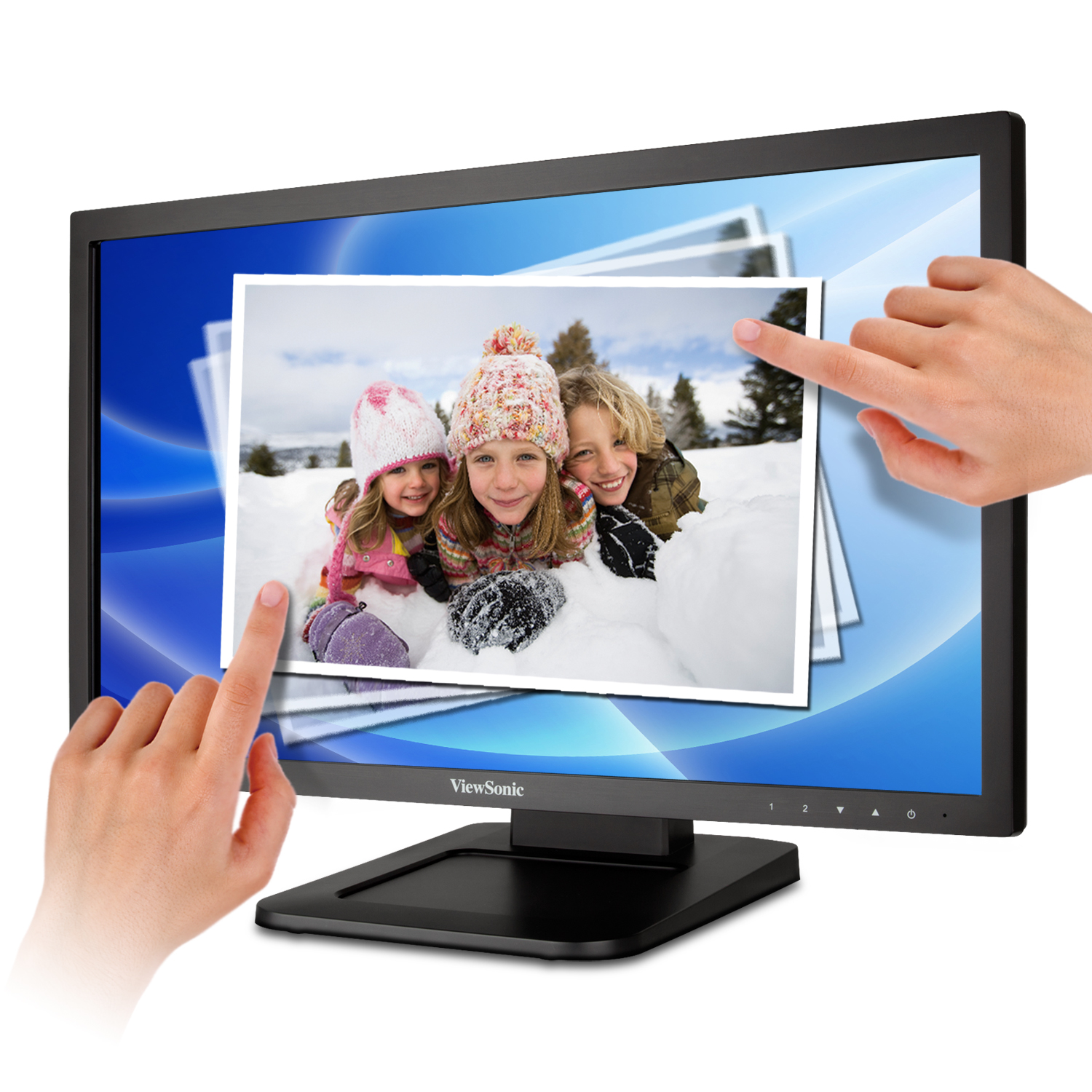

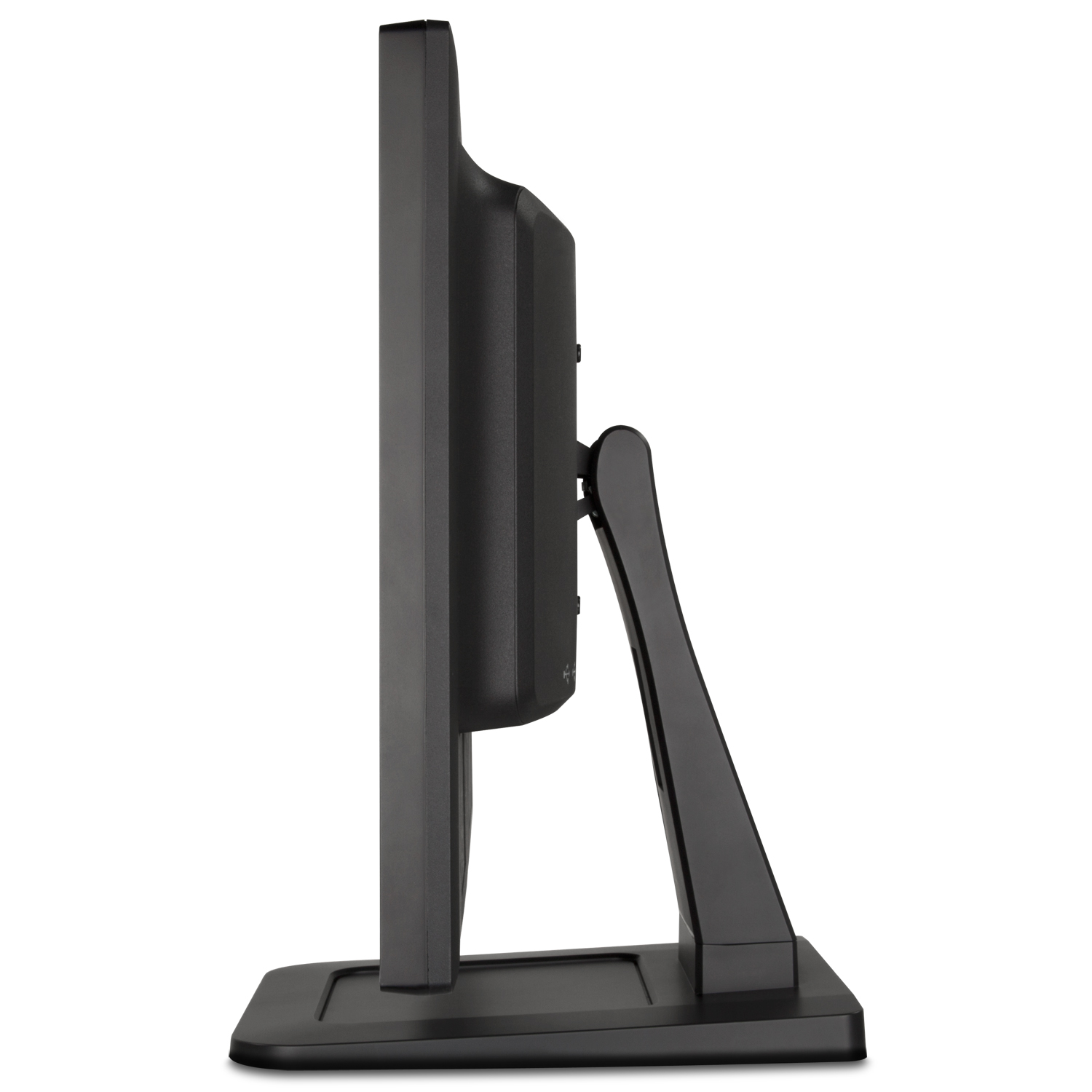

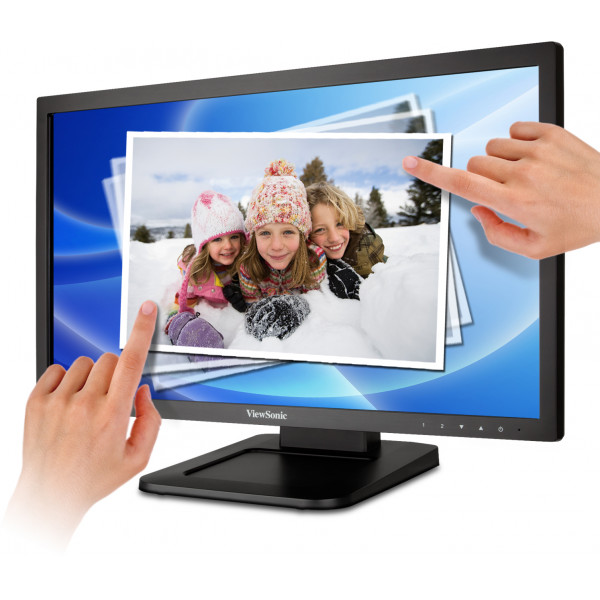

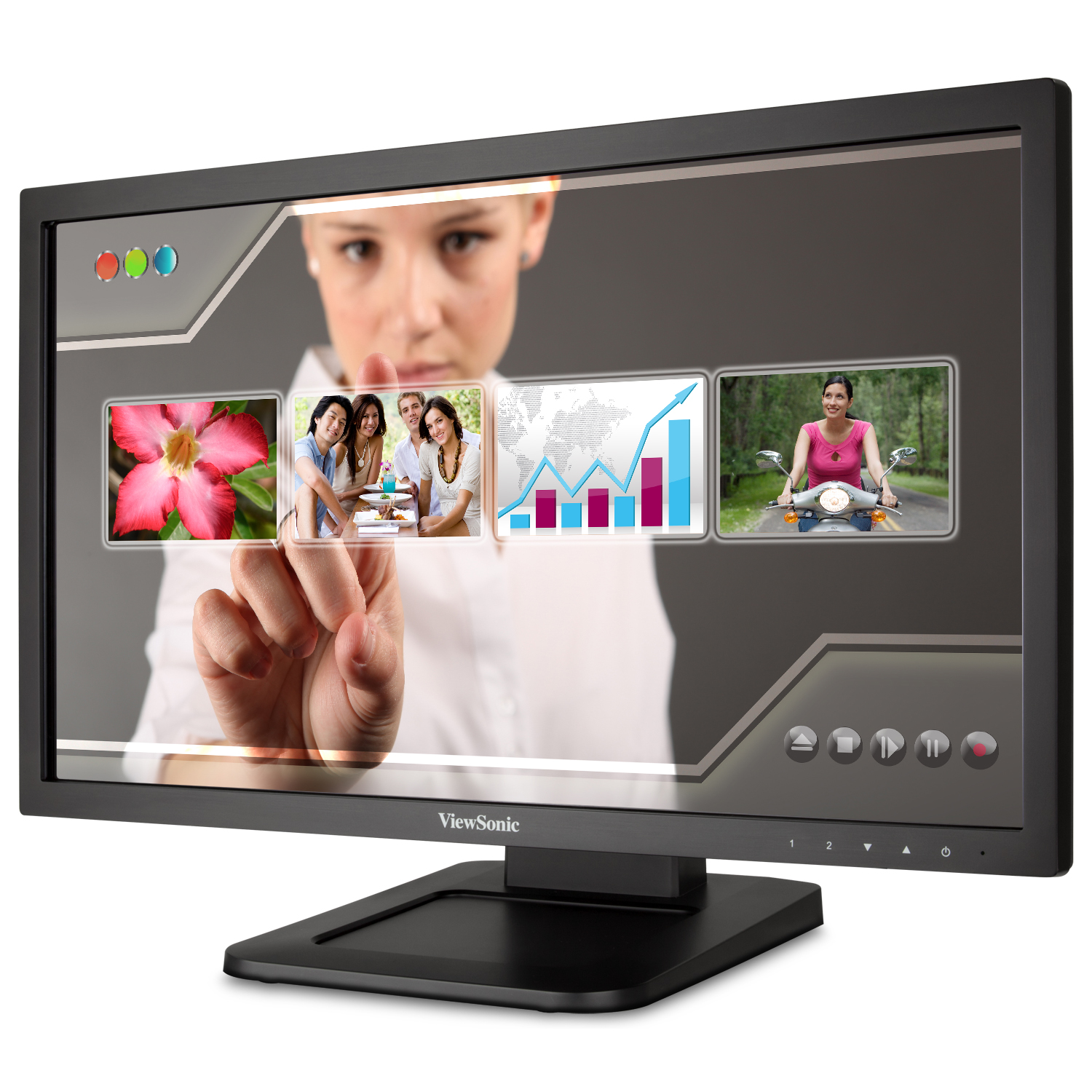

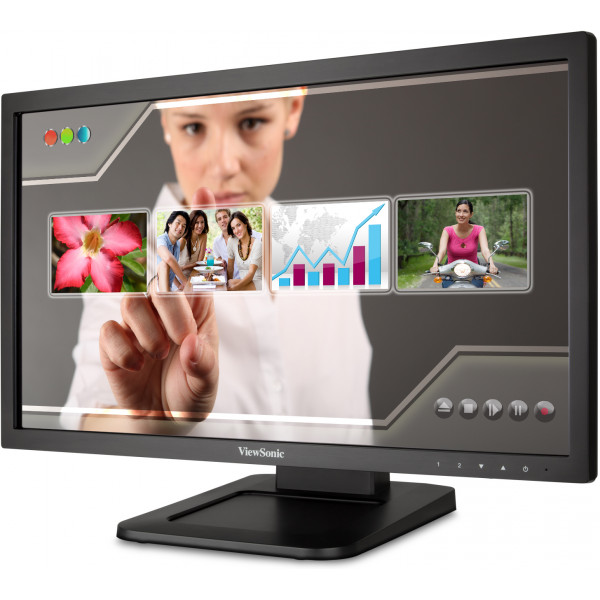

TD2220

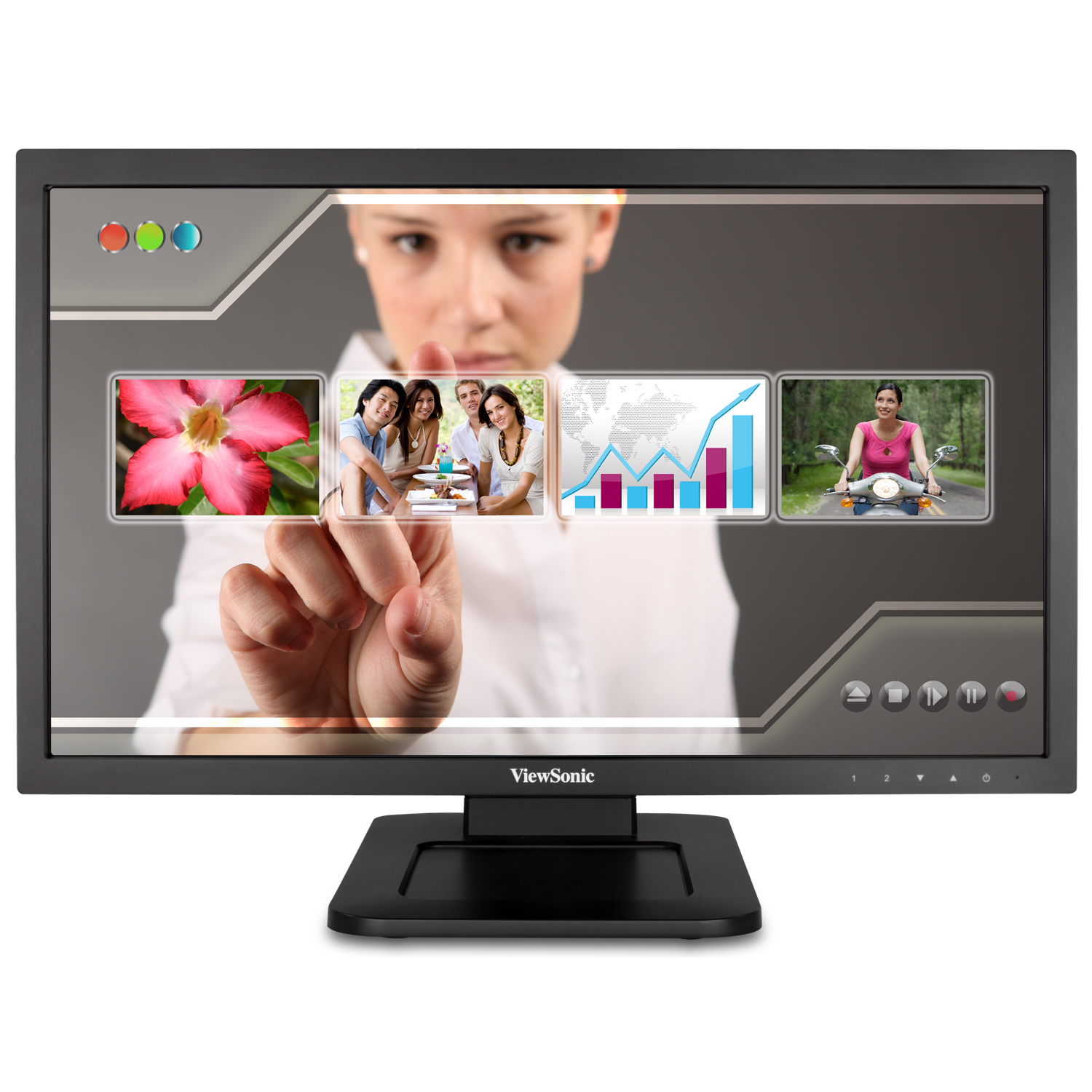

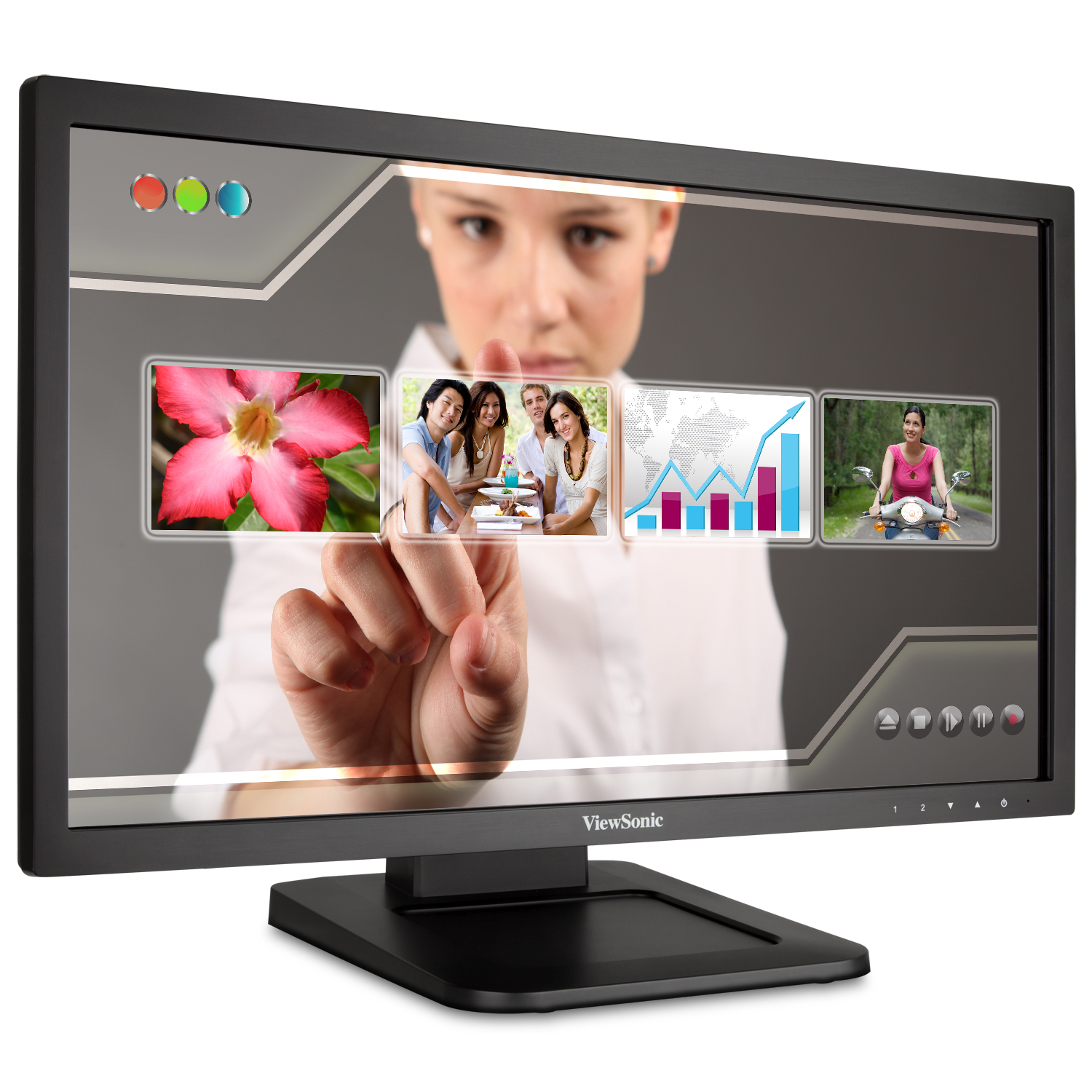

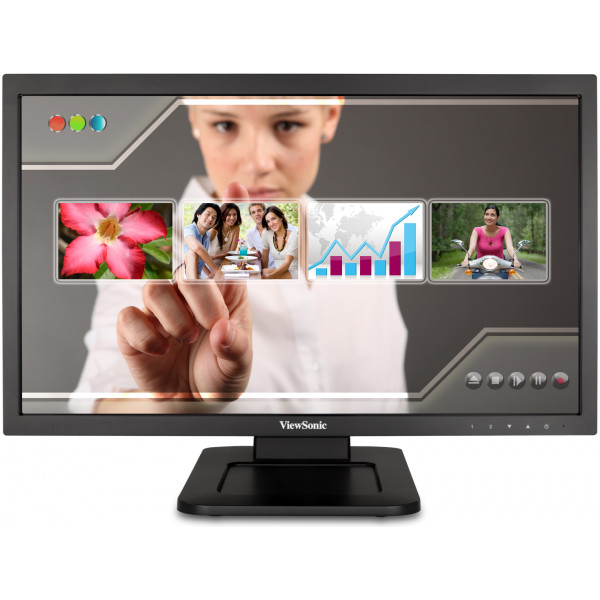

22" 2-point Touch Screen Monitor

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows XP/Vista/7 certified; macOS tested
Mac® Resolution (min): 1920x1080

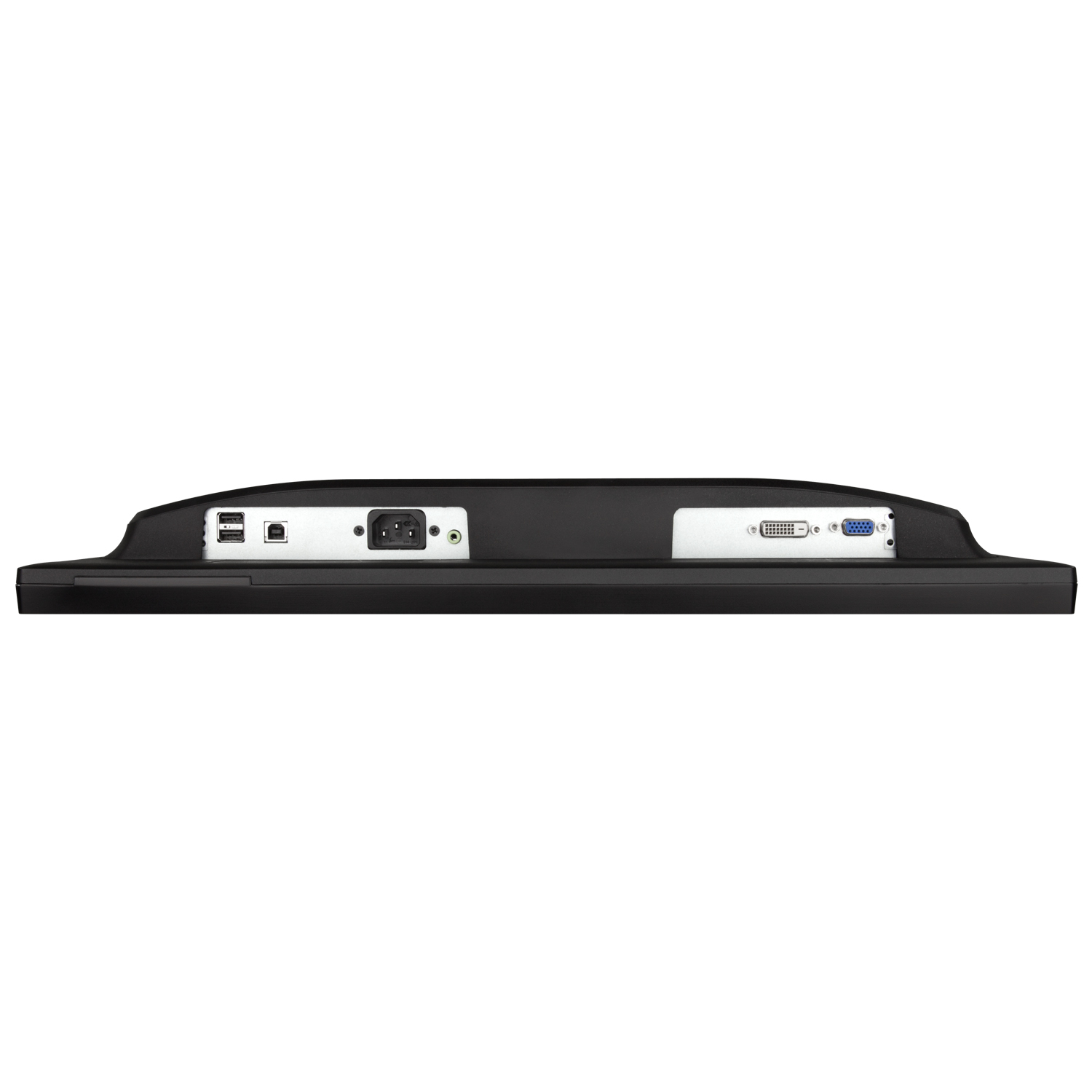

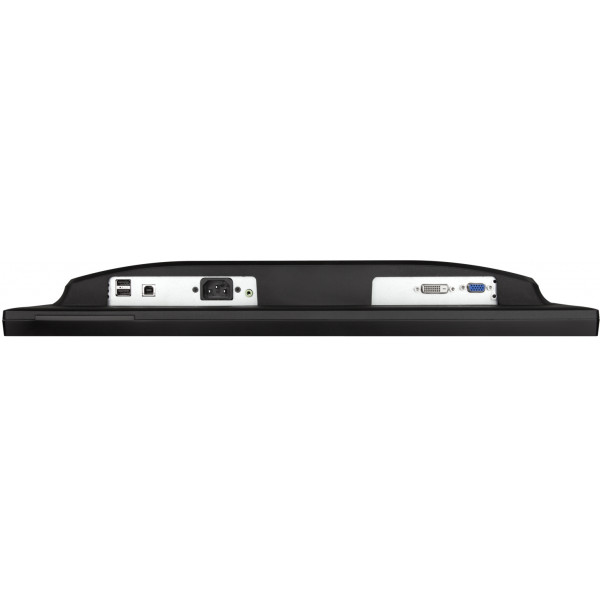

Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 16W
Eco Mode (optimized): 18W
Consumption (typical): 23.5W
Consumption (max): 26.5W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

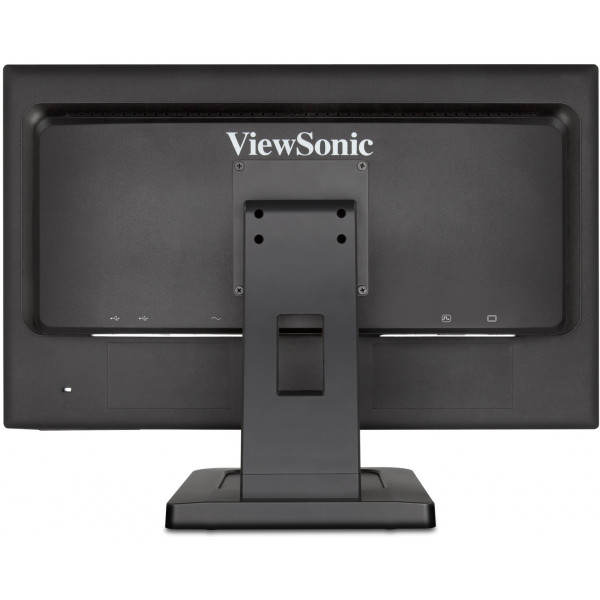

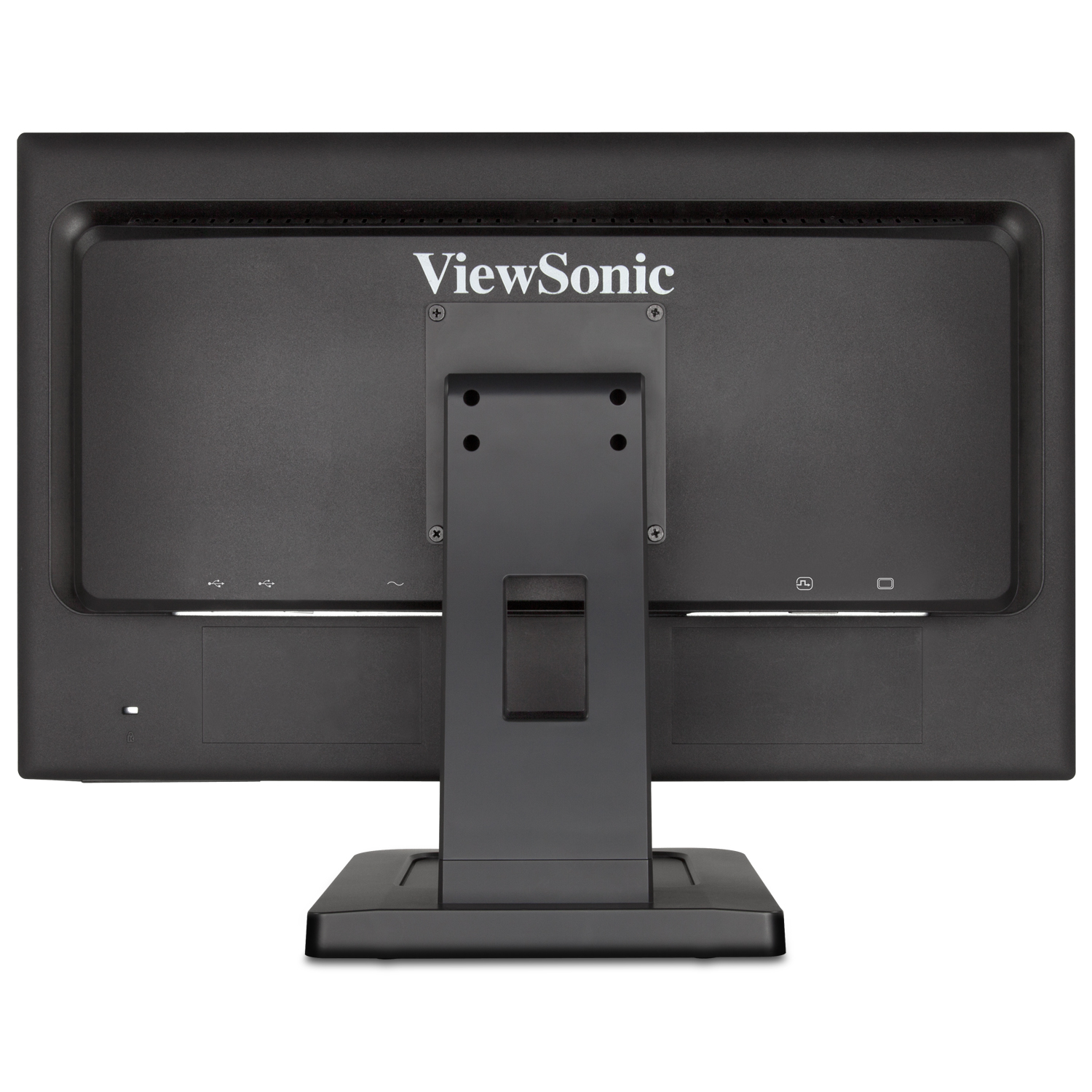

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 83KHz
Frequency Vertical: 50 ~ 76Hz
Video Input
Digital Sync: TMDS - DVI-D
Analog Sync: Separate/Composite/SOG - RGB Analog

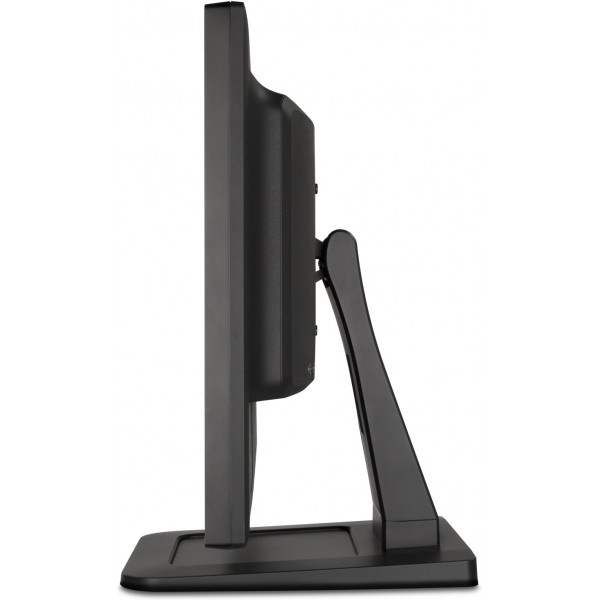

Ergonomics
Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 10.8
Net Without Stand (lbs): 8.7
Gross (lbs): 14.2
Weight (metric)
Net (kg): 4.9
Net Without Stand (kg): 4
Gross (kg): 6.5
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.4 x 16.8 x 8.4
Physical (in.): 20.1 x 14.4 x 9.4
Physical Without Stand (in.): 20.1 x 12.2 x 2.6
Dimensions (metric) (wxhxd)
Packaging (mm): 570 x 427 x 214
Physical (mm): 511 x 365 x 240
Physical Without Stand (mm): 511 x 310 x 66
General
PACKAGE CONTENTS: TD2220 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
