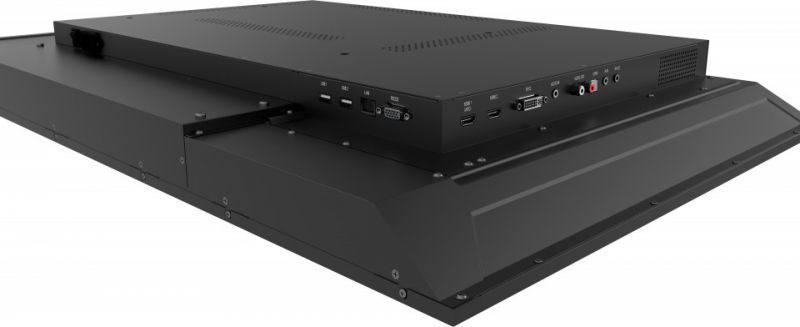

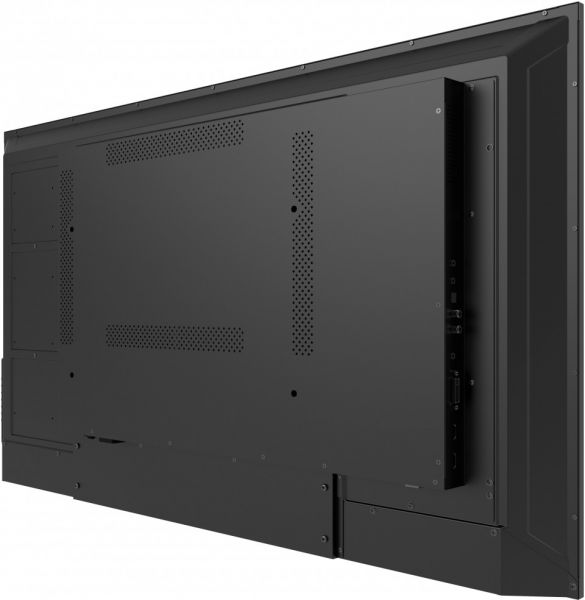

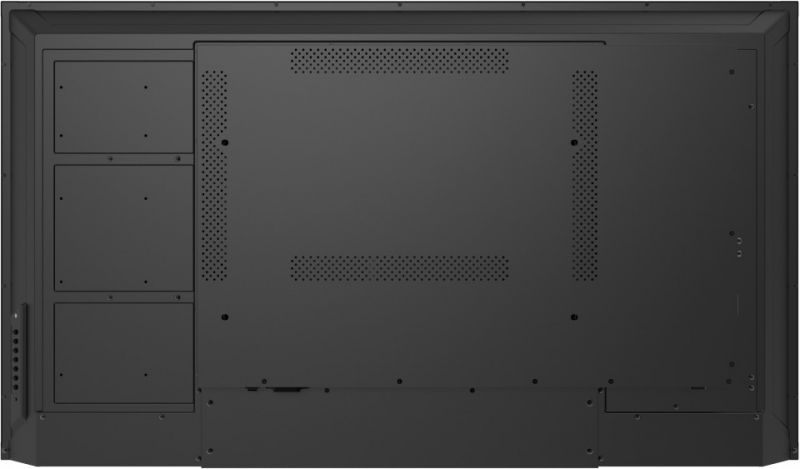

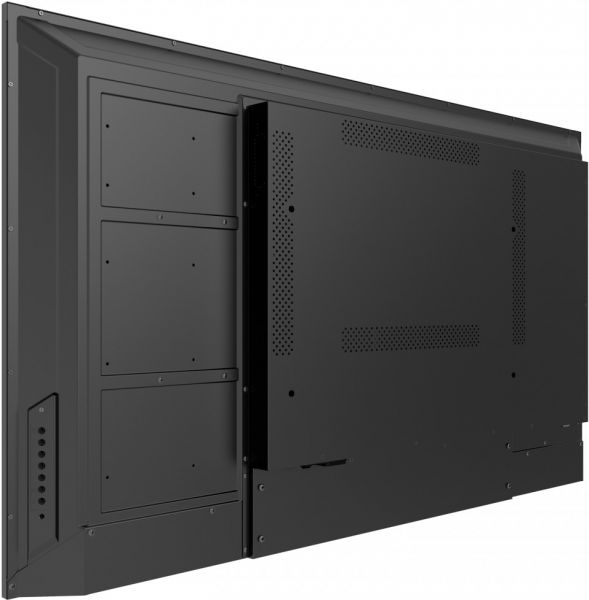

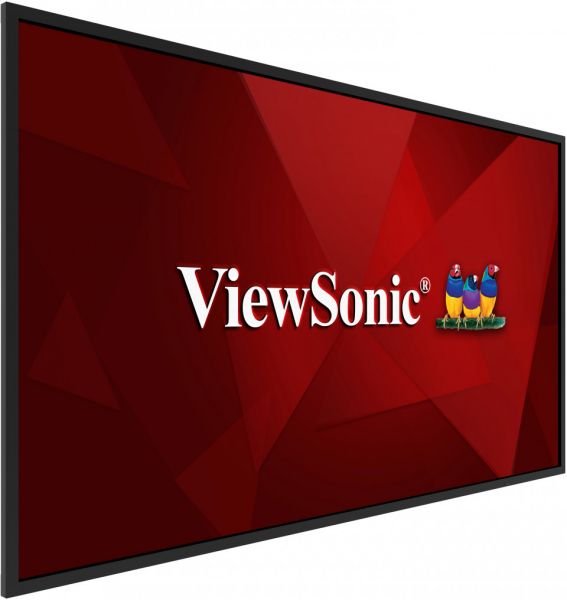

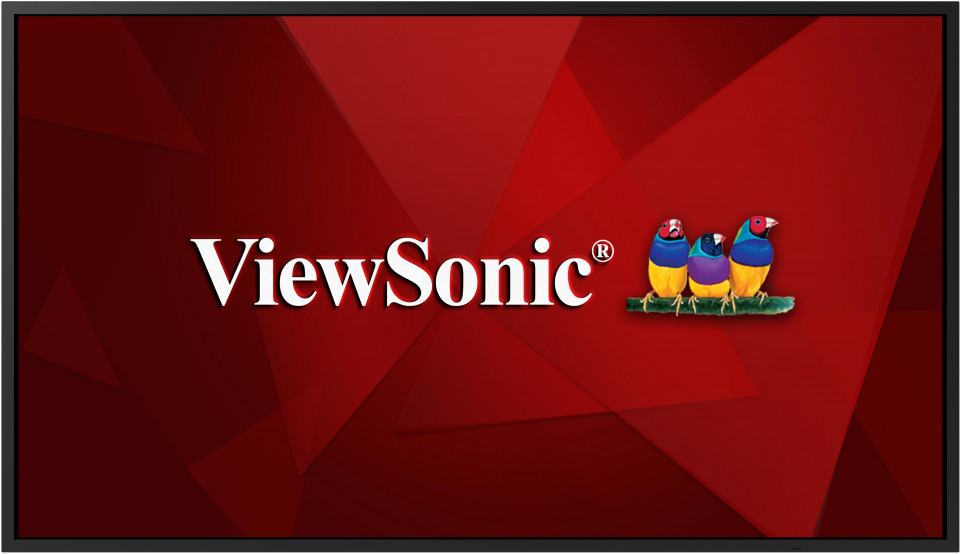

CDE5520
55" 4K Presenation Display
- Wireless content sharing across devices
- Easy multi-screen setups
- Remote configuration and content management
- USB playback photos, music & video
- Multiple HDMI devices control
SPECIFICATIONS
- DisplayPanel Size: 55"
Type/ Tech: "TFT LCD Module. IPS type, DLED backlight"
Display Area (mm): 1209.6 (H) x 680.4 (V) (55” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07B colors
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours Min
Surface Treatment: Anti-Glare, 2H, Haze 3%
Bezel: Slim
Orientation: Landscape - INPUTHDMI: x2
DVI: x1
Audio: x1 (3.5mm)
RS-232: x1
IR Pass Thru: x1 - OUTPUTAudio: x1 (RCA)
SPDIF: x1 (Fiber)
IR Pass Thru: x1
- LANRJ45: x1
- USBType A: 2.0 Type A : x2 (USB Playback)
- SPEAKERSSPEAKERS: 10Wx2
- COMPATIBILITYRGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DVI: 480i, 480p,720p,1080i,1080p
Android Version: Android 8.0 - POWERVoltage: 100-240 VAC +/- 10% Wide Range
Consumption: Normal 100 W, Max 114.5 W - ERGONOMICSWall Mount (VESA® ): 400x200 mm
- OPERATING CONDITIONSTemperature (º C): 0 to 40°C
Humidity: 20% ~ 80% non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 48.94 x 28.11 x 2.94 in/1243.2 x 714 x 74.8 mm
Packaging (inch / mm): 55.90 x 35.83 x 9.65 in/1420 x 910 x 245 mm - WEIGHTNet (lb / kg): 16.8 kg / 37.04 lbs
Gross (lb / kg): 23.95 kg / 52.8 lbs - PACKAGE CONTENTSPACKAGE CONTENTS: 1. CDE5520 presenation display, 2. Remote Control with batteries, 4. Quick Start Guide, 5. Power Cables (1.8M), 6. HDMI cable (1.8M), 7. RS232 cable (1.8M)
