LDM163-181

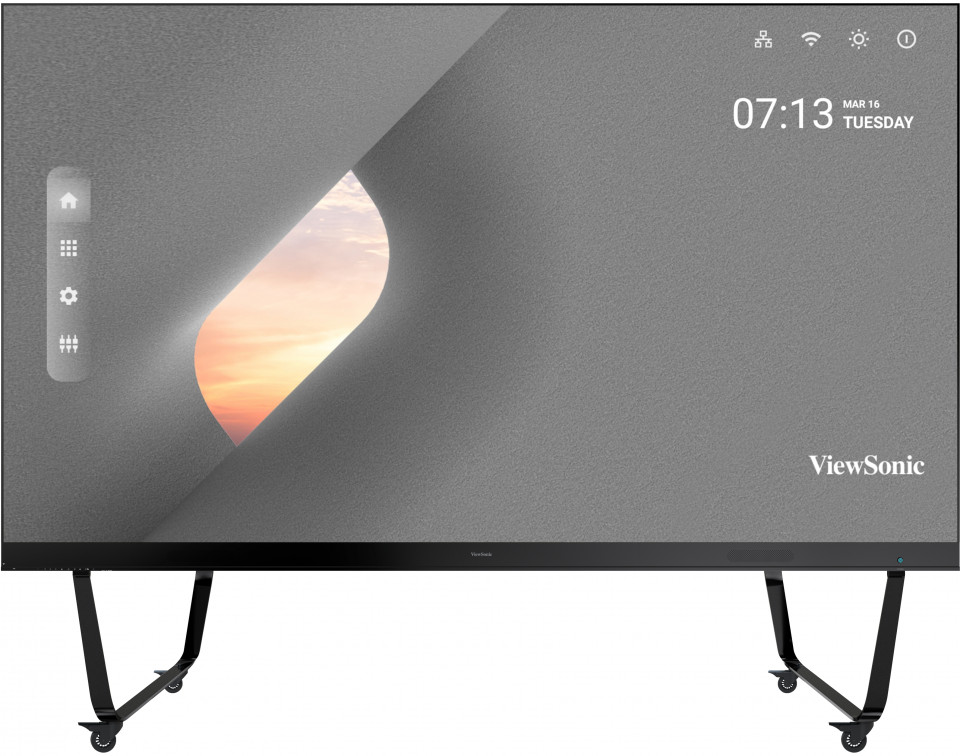

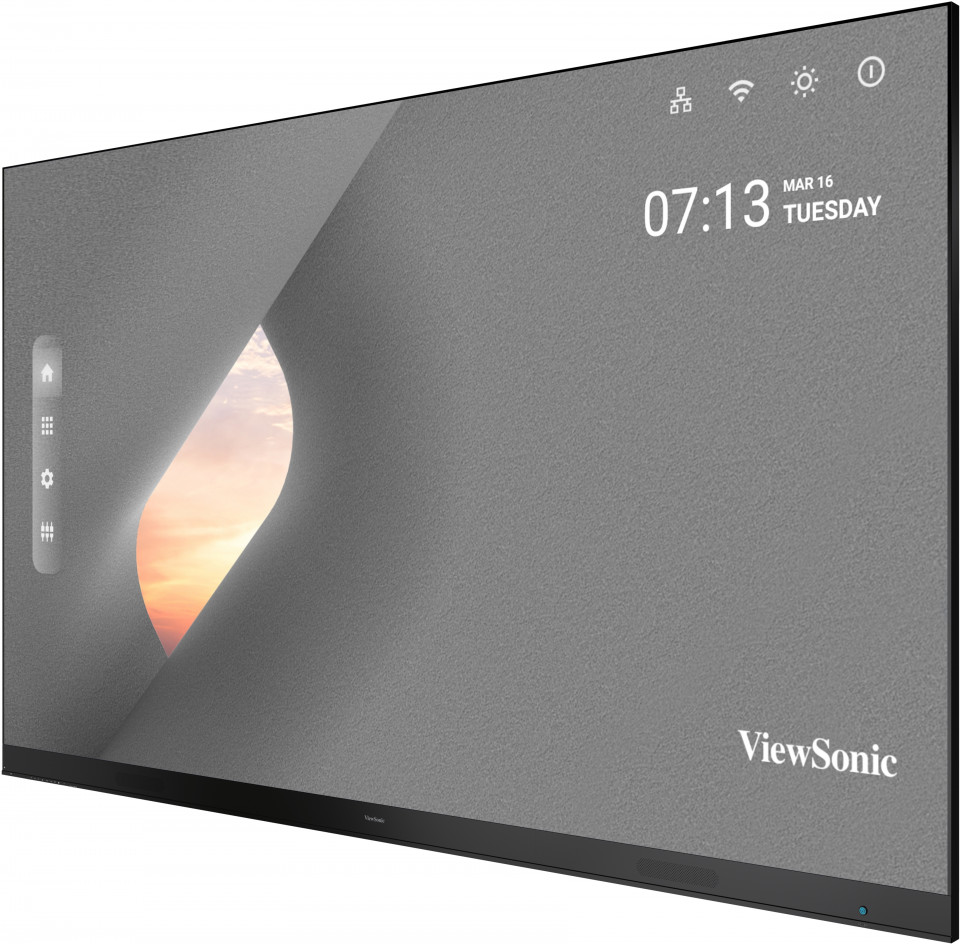

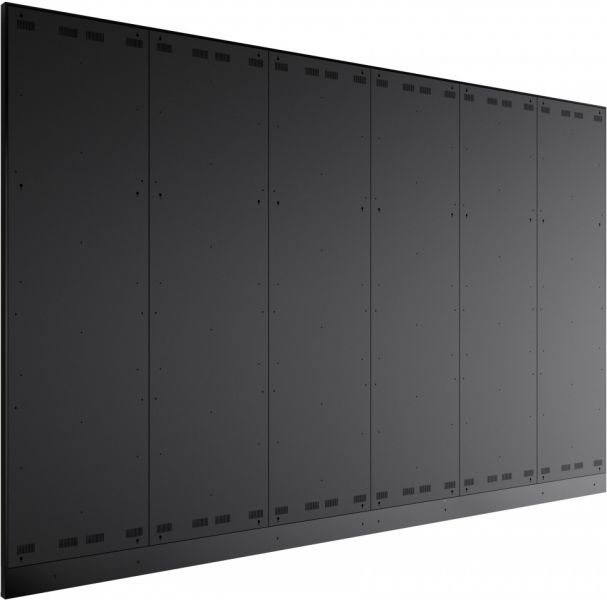

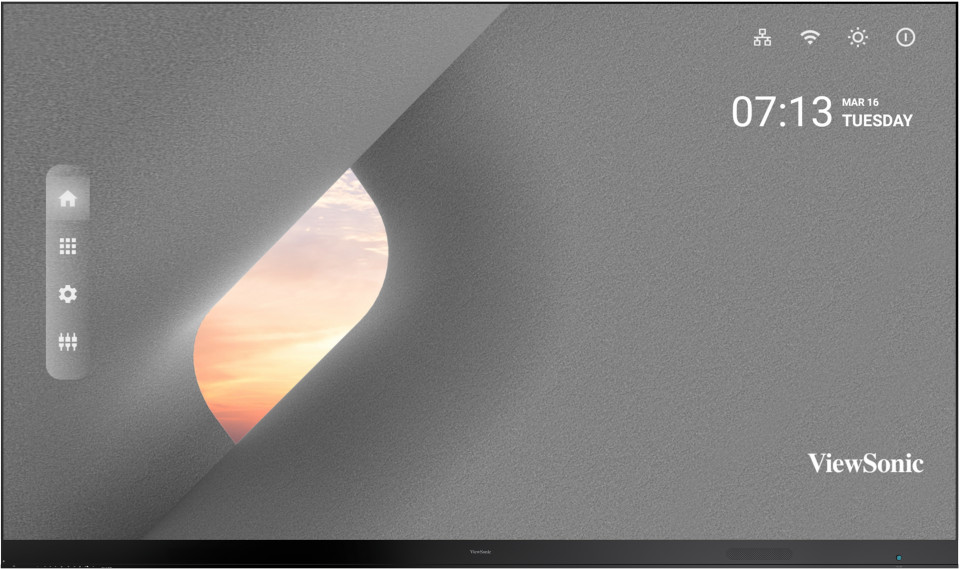

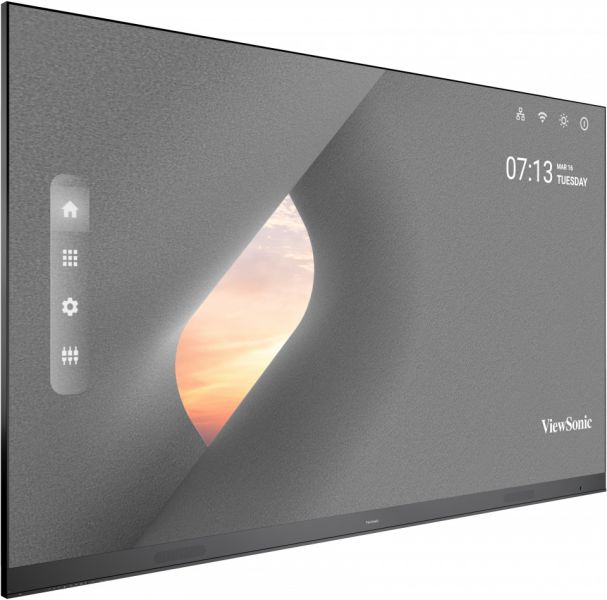

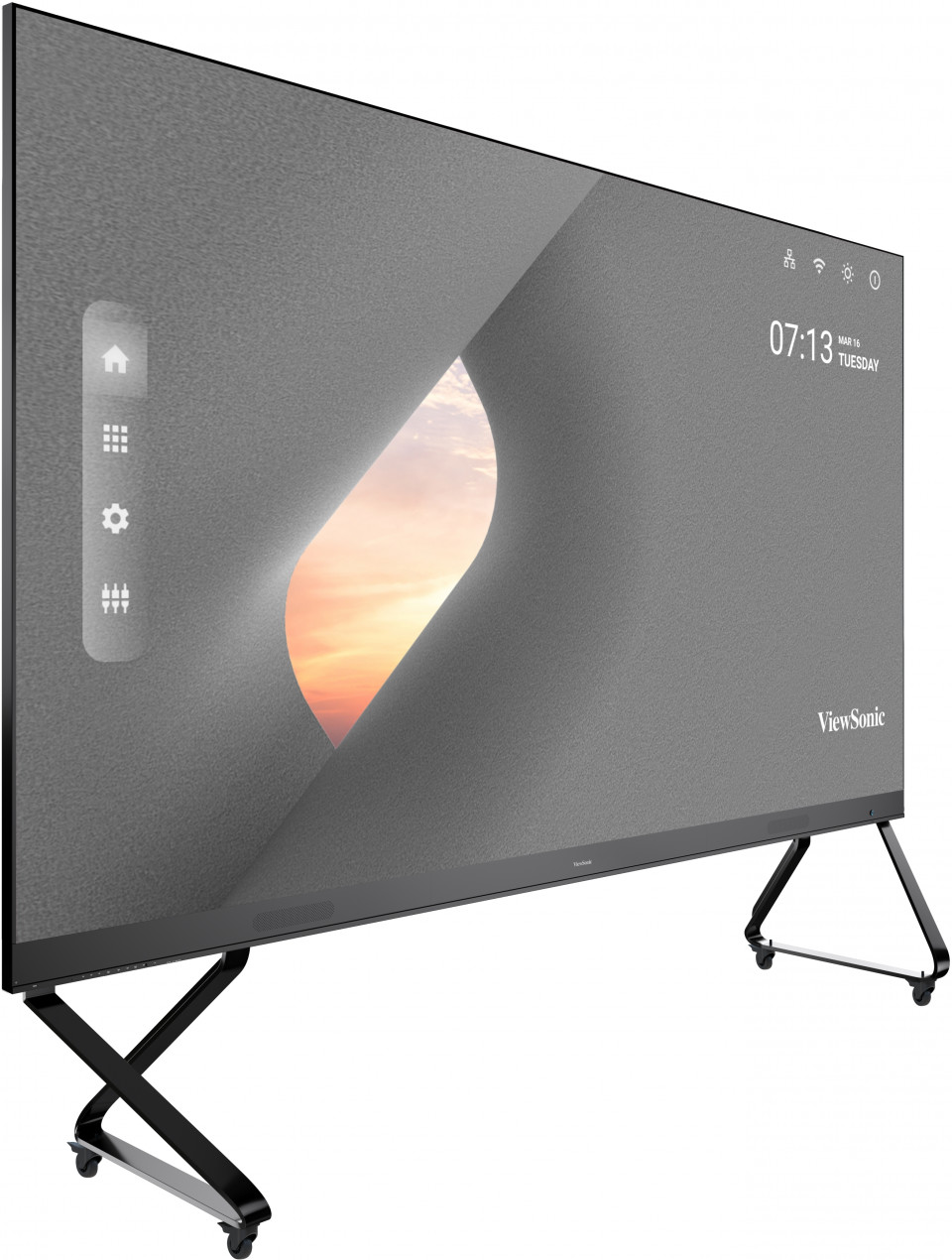

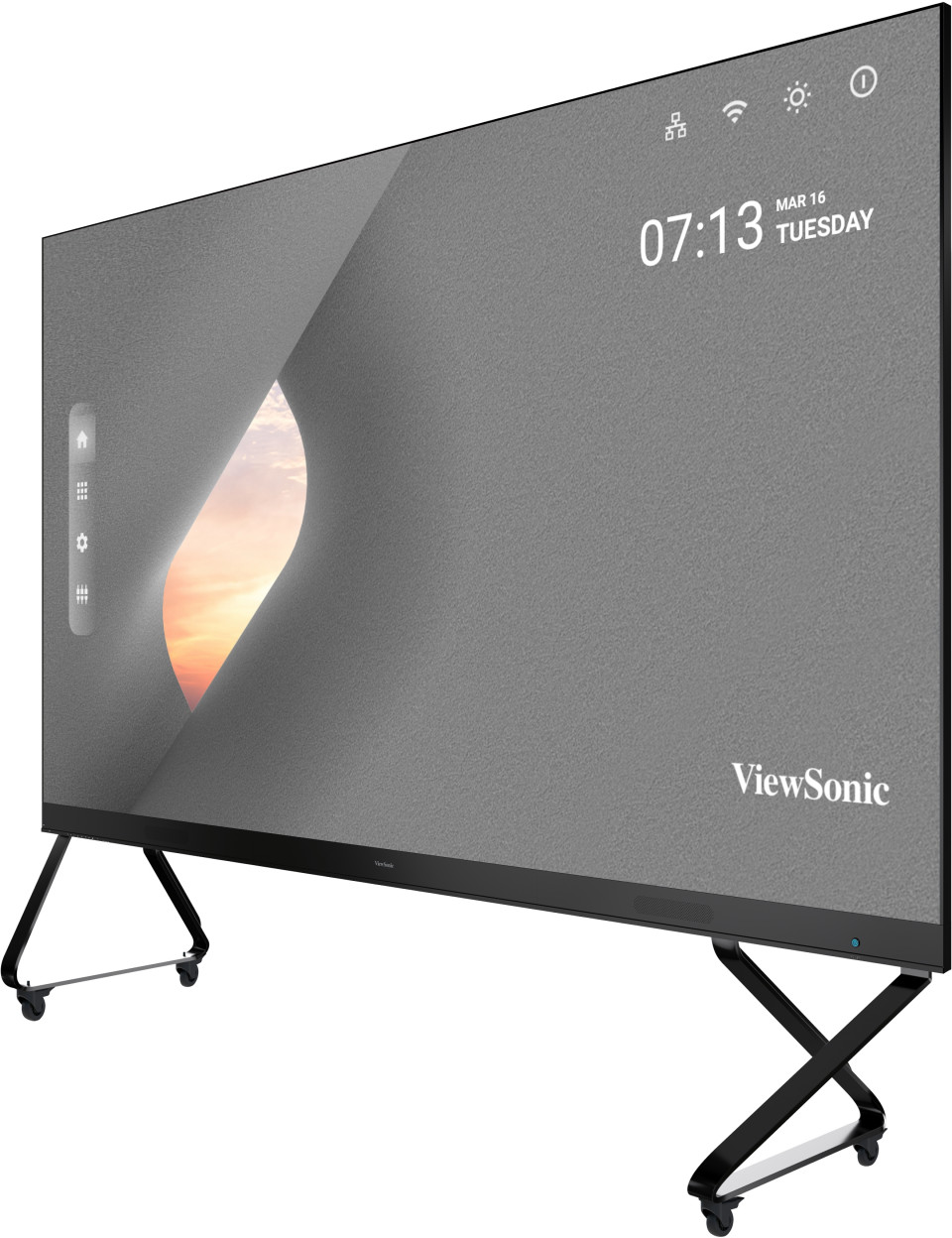

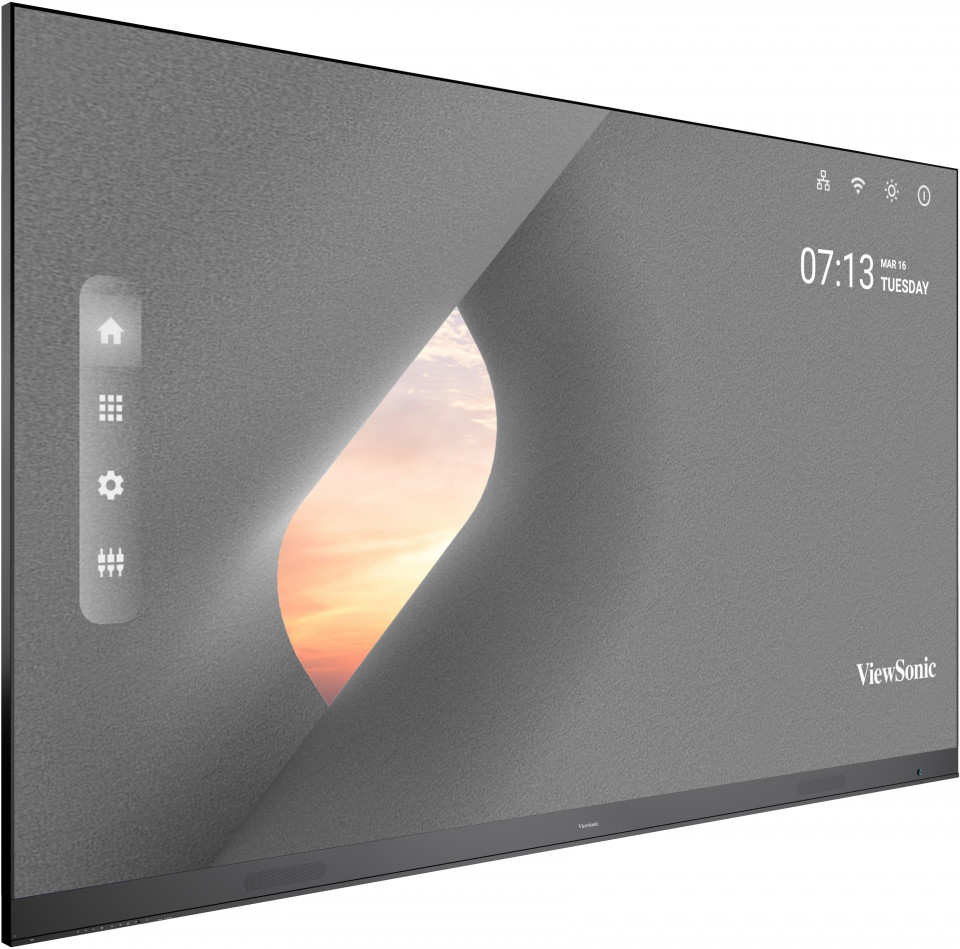

Pantalla LED Todo en Uno Direct View de 163"
- Impressively large, yet seamless view
- All-in-One design without complicated setup
- Easy delivery, installation, and maintenance
- Engaging front-facing presentation solution
- Flexible wireless content sharing solution
ESPECIFICACIONES
- EspecificacionesScreen Size: 163"
Área de visualización (mm): 3600 (H) x 2025(V)
Resolucion nativa: 1920x1080
Panel Technology: Direct view LED
Bonding Wire: Copper
Pixel Pitch (mm): 1.88
Refresh Rate: 3840Hz
Brightness (max.): 600 nits (8 levels adjustable)
Contrast Ratio (typ.): 6000:1
Orientación: Landscape
Viewing Angles (typ.): H = 160, V = 160
LED Lifetime (typ.): 100,000 Hours
Almacenamiento local: Total 32GB (26GB available storage)
Resoluciones soportadas: HDMI(640 x 480) to 1080p(1920 x 1080)
Compatibilidad con HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Frecuencia horizontal: 31K-94kHz

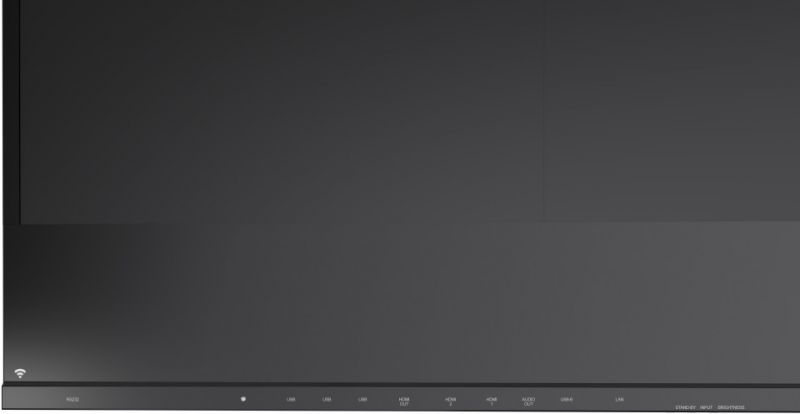

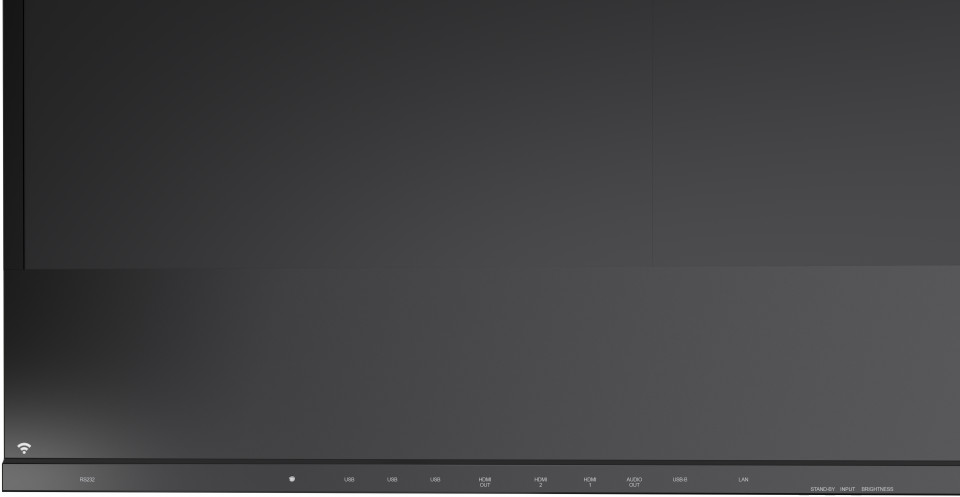

Velocidad de exploración vertical: 56-85Hz - EntradasHDMI: x2(HDMI 1.4, HDCP 1.4)
USB Tipo A: x3(USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet): x1
Wi-Fi Input: 2.4G/5G Hz - SalidasHDMI out: x1(HDMI 1.4, HDCP 1.4)
Altavoz: 5W*2
Salida Audio (3.5 mm): x1
USB Tipo A (alimentación): Shared with USB input(5V/1A*1, 5V/0.5A*2)
- ControlRJ45 (LAN control): x1(shared with internet)
USB Type A (Services): x1(shared with USB A input)
USB Type B (Debug): x1
RS232 (DB 9-pin female): x1
IR Receiver: x1 - OtrosVoltaje de la fuente de alimentación: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz(vary by country)
Consumo de energía: 1860W (typ), 2660W (max)< 0.5W (Sleep), < 0W (Off)
Temperatura de funcionamiento: 0~40℃

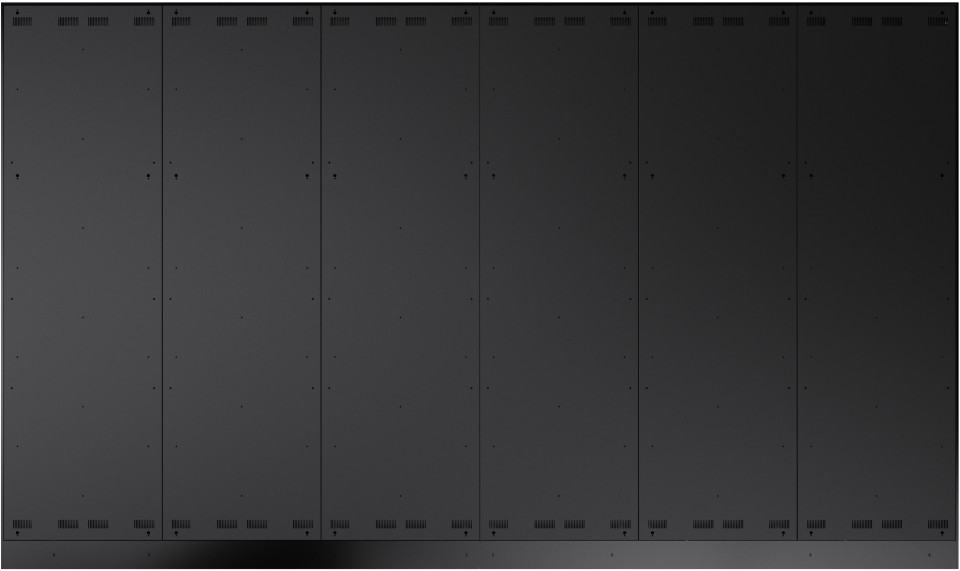

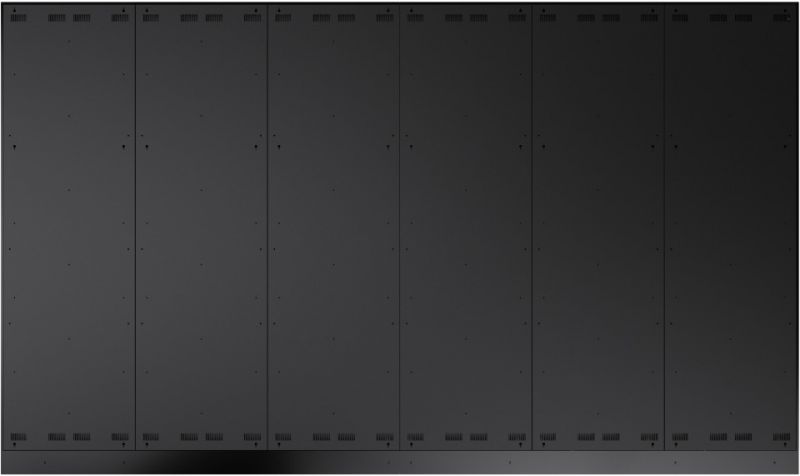

LED Module Quantity: 144
Ingress Protection Rating: IP30
Peso neto: 423 lbs(192kg)
Gross Weight: 661 lbs(300kg)
Screen Dimensions (WxHxD): 142.5x84.4x1.4 inches(3620.95 x 2143.45 x 35mm)
Screen Dimensions (WxHxD) with wall mount: 142.5x84.4x2.2 inches(3620.95 x 2143.45 x 56mm)
Packing Dimensions: 82.7x33.5x32.1 inches(2100x850x815mm) - Standard AccessoriesCable de alimentación: x1
USB Cable (A-B): x1
Mando a distancia: x1
QSG: x1
Montaje en pared: x1
Spare Parts: LED PCB Unit x2
Maintenance Tool: LD-MK-001 x1 - Optional AccessoriesMaintenance Tool: LD-MK-001

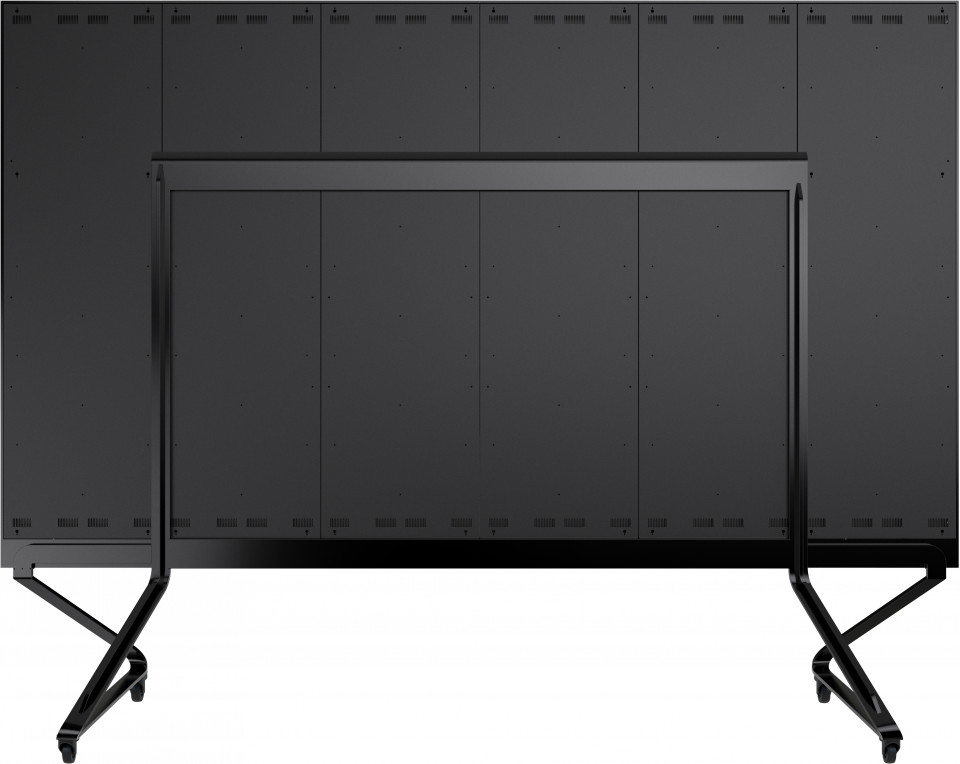

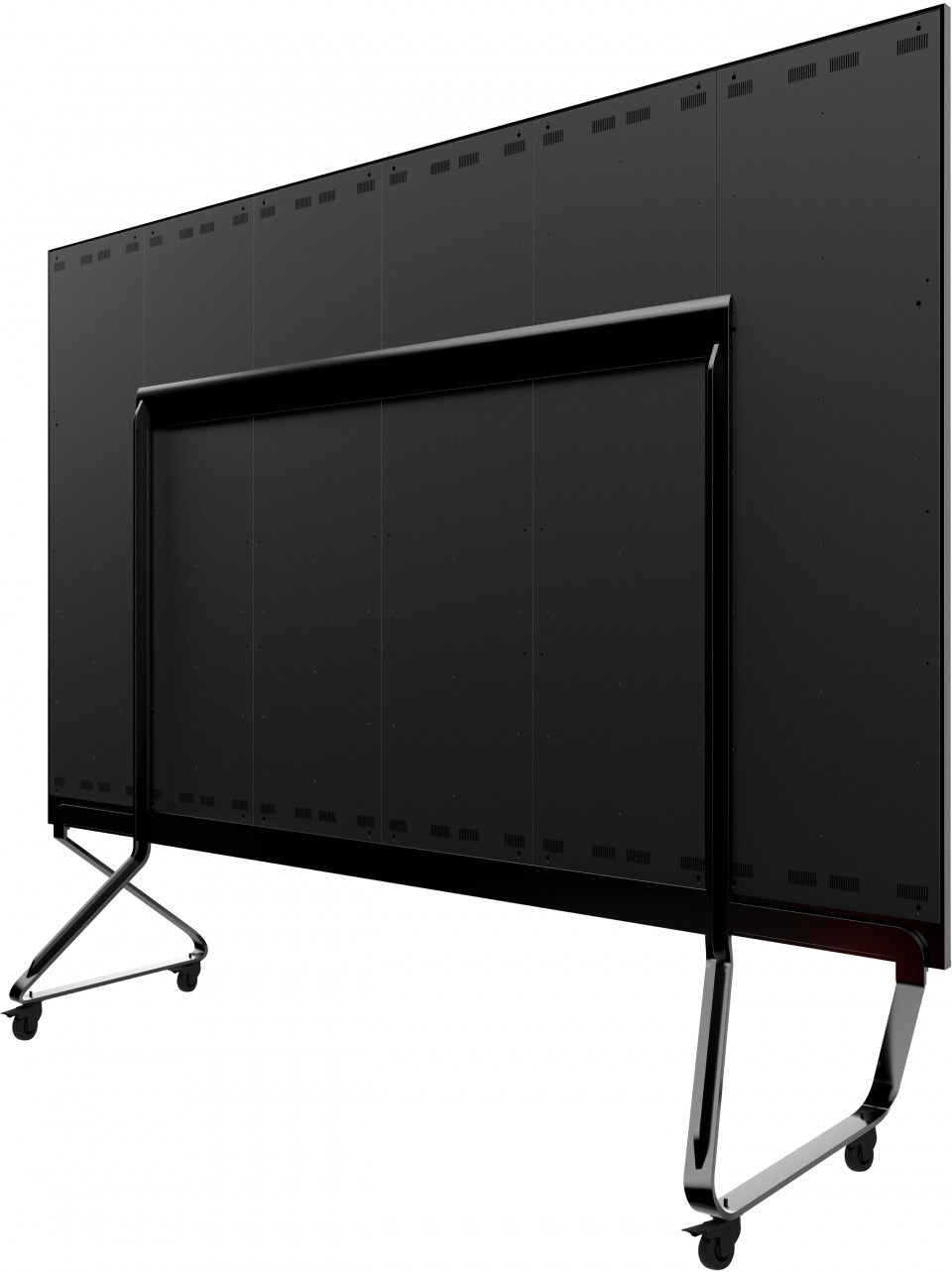

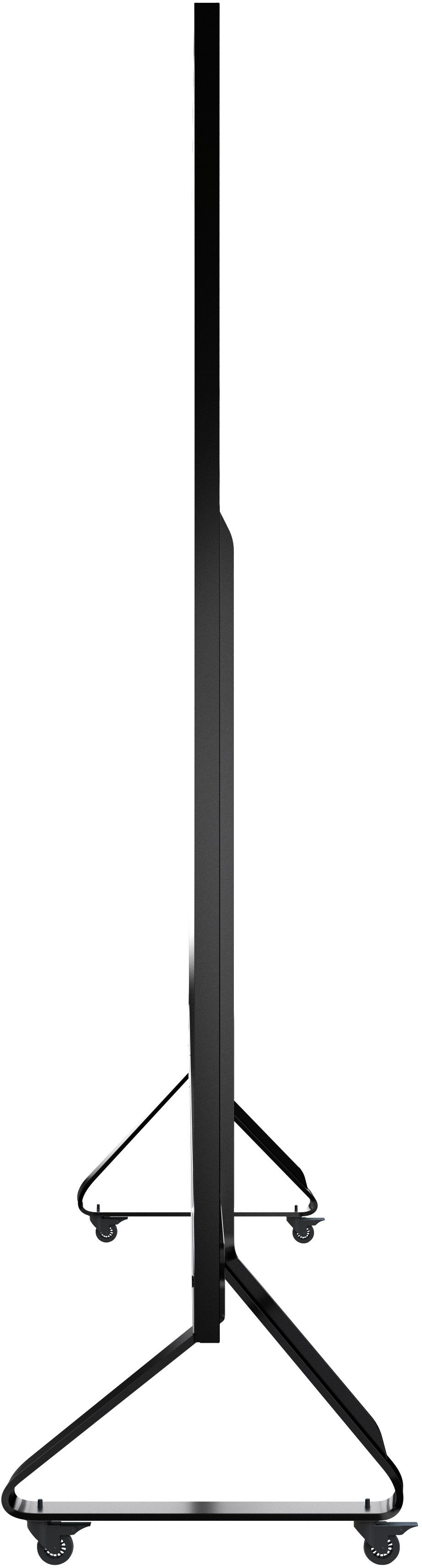

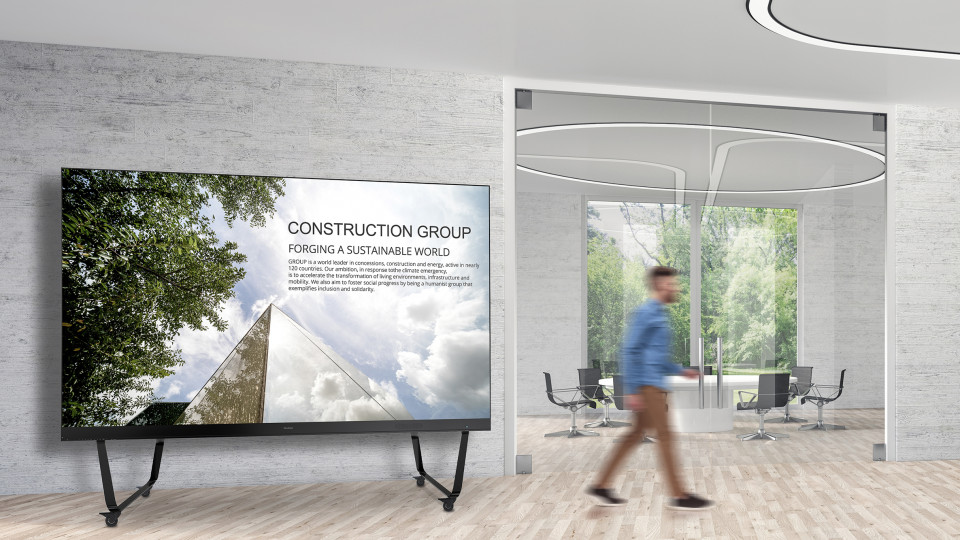

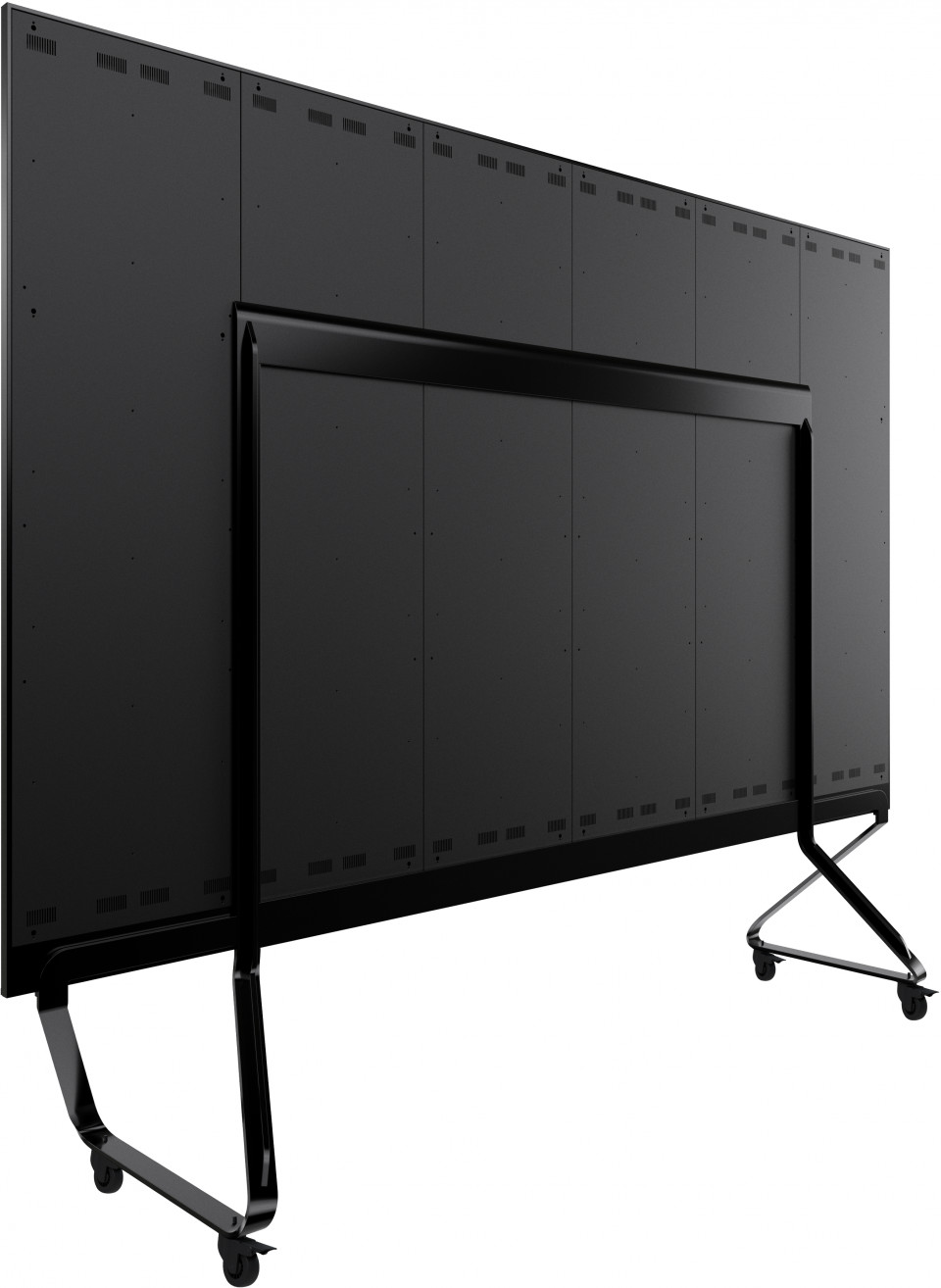

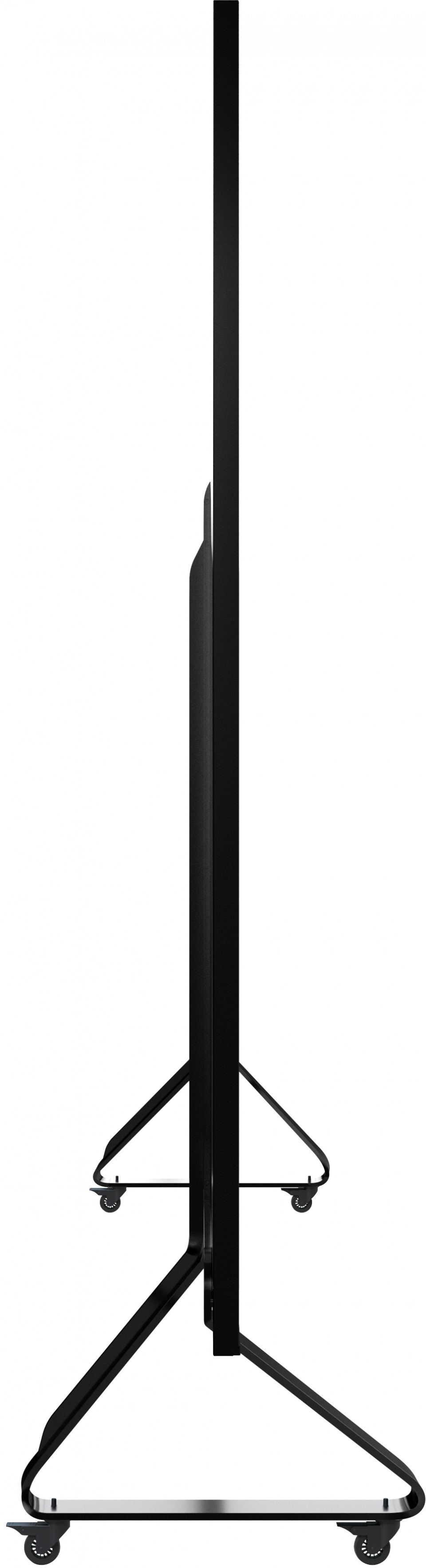

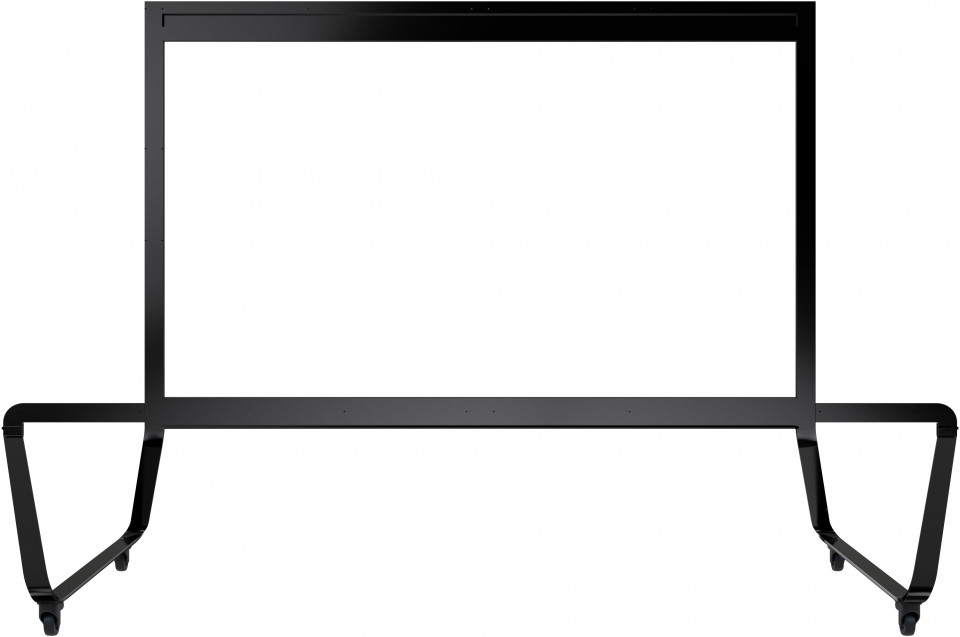

Floor Stand: LD-STND-002
ViewBoard Cast Button(USB-C): VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
