LSC600W-ST

6,000 ANSI Lumens WXGA Short Throw Laser Installation Projector

  • 6,000 ANSI Lumens offering bright images in any environment
  • Up to a 180" ultra-large screen with a lower cost-per-inch
  • 0.44 short throw for seamless viewing experience without shadows
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: H/V keystone correction, 360° projection, and warping
  • 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management
Poptávka po prodeji  Sdílet

POPIS

The LSC600W-ST is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can display an ultra-large screen up to 180”. With a 0.44 short throw ratio, it can project a 100” image from just 0.95 m away, enabling a seamless viewing experience without shadows. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V keystone correction, 360° projection, and warping capabilities, the LSC600W-ST offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
6,000 ANSI Lumens
Bright Images for Large Venues 1

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 180”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 180”
Ultra-large Screen with Lower Cost-per-inch 1

No Shadows, No Blinding Lights

The 0.44 short throw offers a 100” visuals from only 0.95m away. When projecting onto a wall, there are no distracting shadows, providing seamless viewing experience.
Short Throw Ratio
No Shadows, No Blinding Lights 1

Next-Gen Meeting Experience with 21:9 Aspect Ratio

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
21:9 for MTR
Next-Gen Meeting Experience with 21:9 Aspect Ratio 1

2nd Generation Laser Phosphor Technology

The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan
2nd Generation Laser Phosphor Technology 1

Centralized Control for Management Efficiency

The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

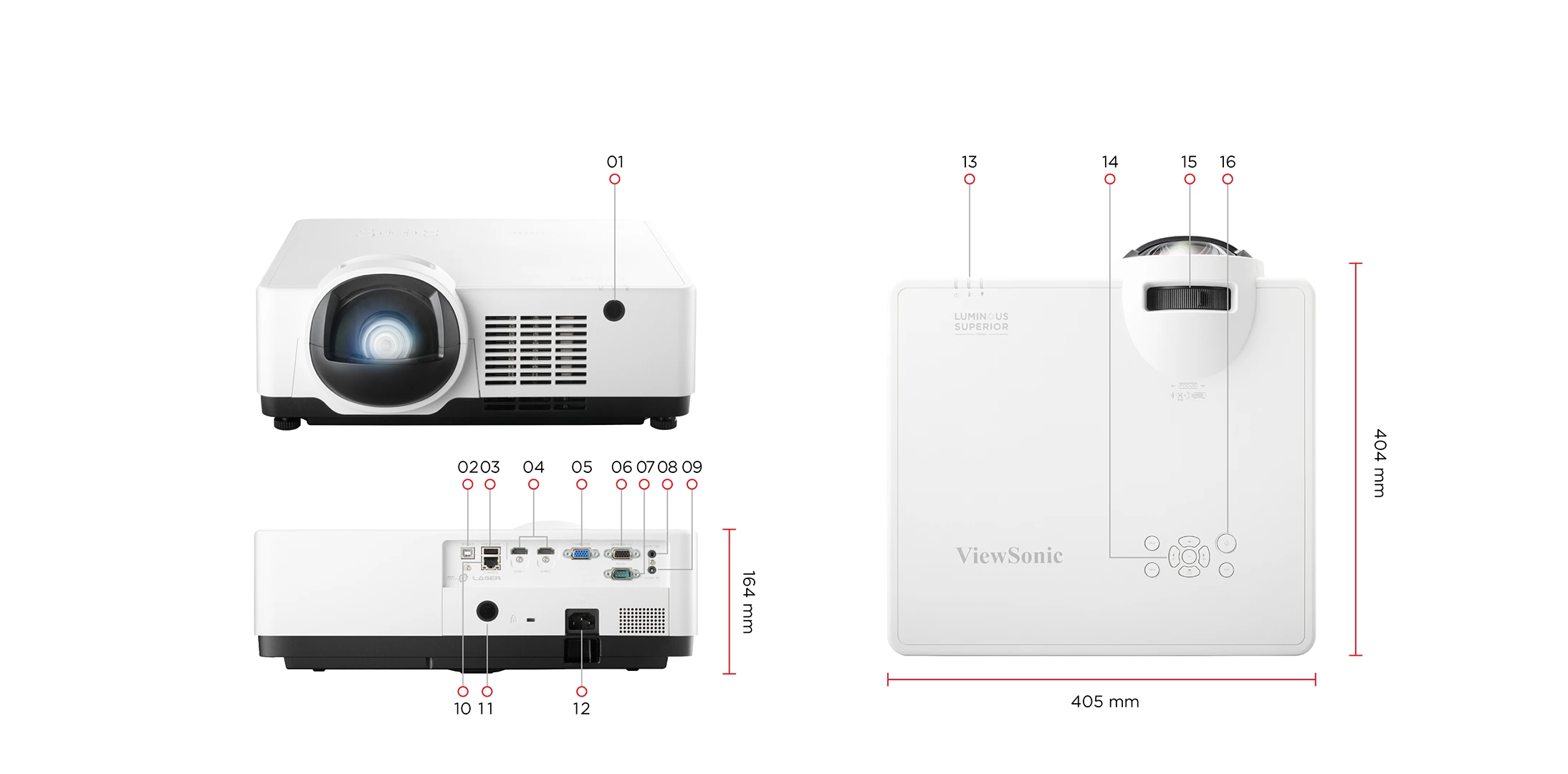

Dimensions & I/O Ports

Dimensions & I/O Ports 1
  1. Front IR
  2. Service
  3. USB-A (5V/2A)
  4. HDMI x2
  5. Computer
  6. Monitor Out
  7. RS232
  8. Audio Out
  9. Audio In
  10. RJ45
  11. Rear IR
  12. AC In
  13. LED Indicator
  14. Keypad
  15. Focus Ring
  16. Power Button

SPECIFIKACE


  • Specifikace
    Projekční systém: 3LCD (3x0.64" with MLA)
    Nativní rozlišení: 1280x800
    Jas: 6000 (ANSI Lumens)
    Brightness (Center Lumens): 6500
    Kontrastní poměr: 3000000:1
    Display Color: 1.07 Billion Colors
    Typ světelného zdroje: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (ECO)
    Objektiv: F=1.6, f=6.39mm
    Posun projekce: 98%+/-5%
    Projekční poměr: 0.44
    Optický zoom: Fixed
    Digital Zoom: 1.0x-4.0x
    Velikost obrázku: 55”-180”
    Projekční vzdálenost: 0.521-1.71m
    (100"@0.948m)
    Keystone: H:+/-15° , V:+/-15°
    Hlučnost (Normal): 35dB
    Audible Noise (Eco): 25dB
    Vstupní zpoždění: 60ms
    Podpora rozlišení: VGA(640 x 480) to 4K(3840 x 2160@30Hz)
    Kompatibilita s HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
    Horizontální frekvence: 15K-100KHz
    Vertikální rychlost snímání: 23-85Hz
  • Vstup
    Počítač v (sdílet s komponentem): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio vstup (3,5 mm): 1
    USB Typu A: 1 (5V/2A)
  • Výstup
    Monitor out: 1
    Audio-out (3.5mm): 1
    Reproduktor: 16W
    USB typu A (napájení): 1
    (USB2.0 - 5V/2A,
    share with USB A Input)

PODPORA A SOUBORY KE STAŽENÍ


Katalogové listy

LSC600W-ST Katalogový list

Uživatelské příručky

LSC600W-ST User Guide (English)

Stručný návod k použití

LSC600W-ST Quick Start Guide

Technická dokumentace

LSC600W-ST_2D_drawing(pdf)LSC600W-ST_3D_drawing(stp)

Informace o environmentálním kódu FR

LSC600W-ST Informace (Français)
