“ViewSonic ViewBoard® IFP7550 won AV Technology “Best of Show” award at InfoComm2017 – the largest trade fair in North America for audiovisual communications.”
Archivováno

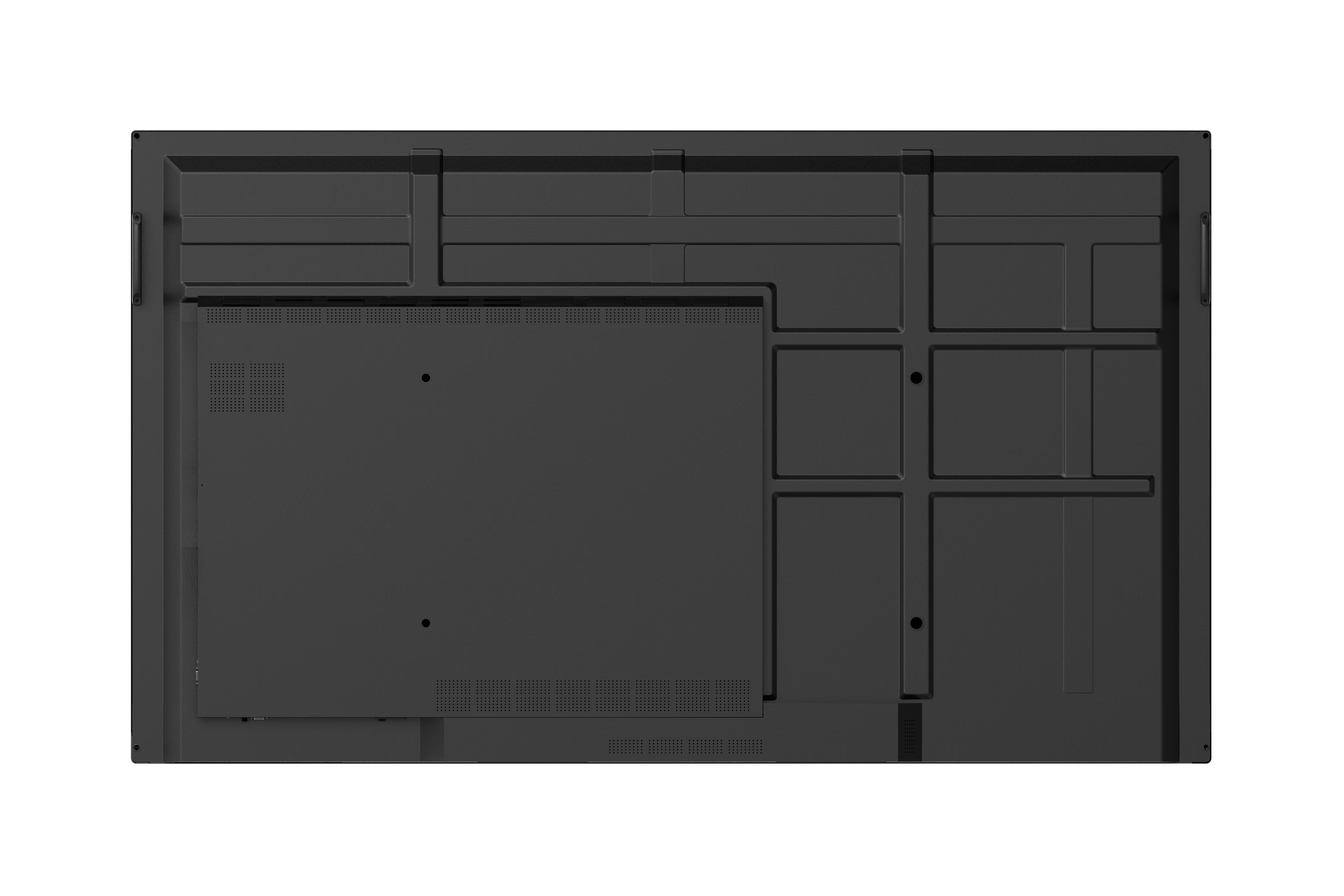

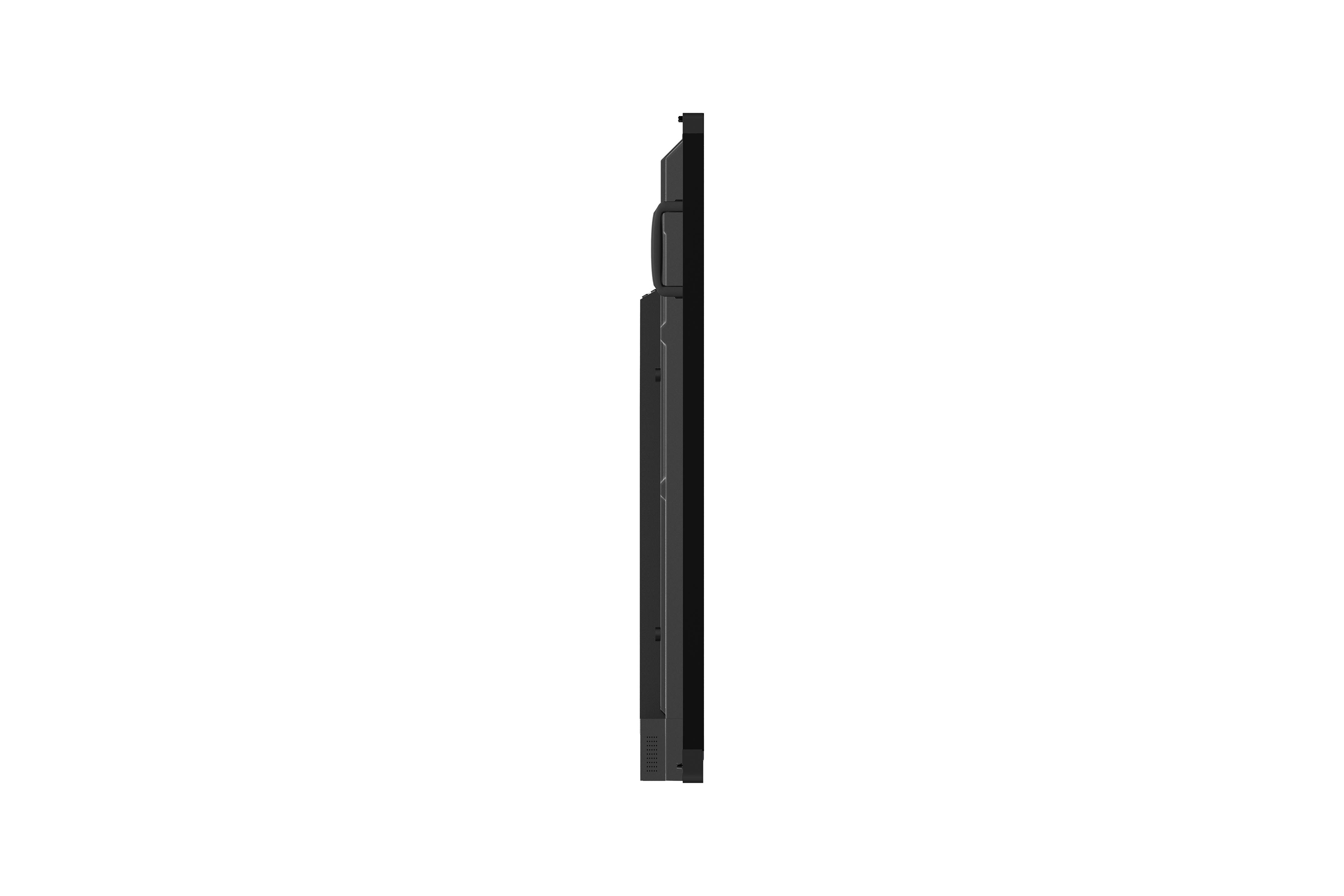

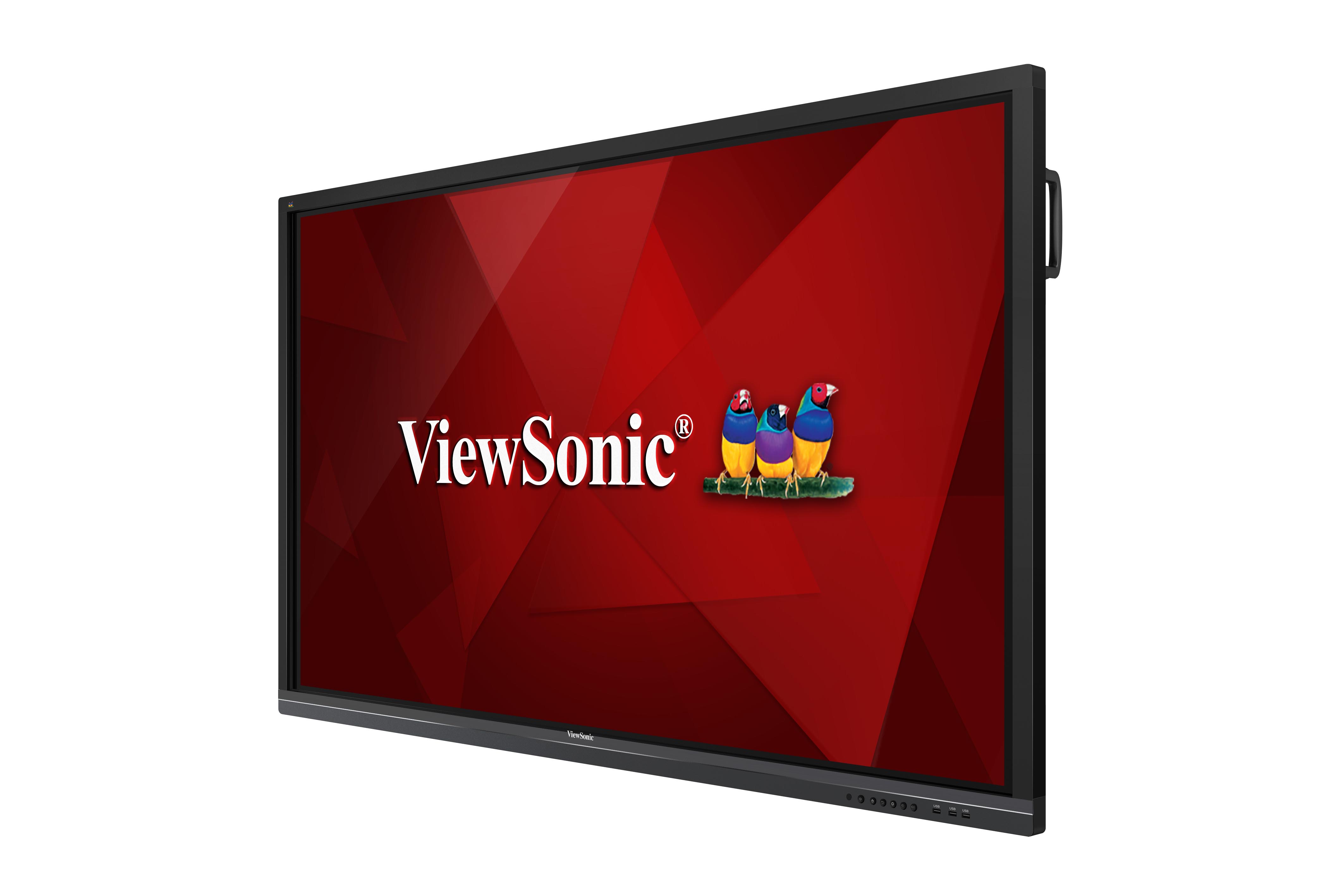

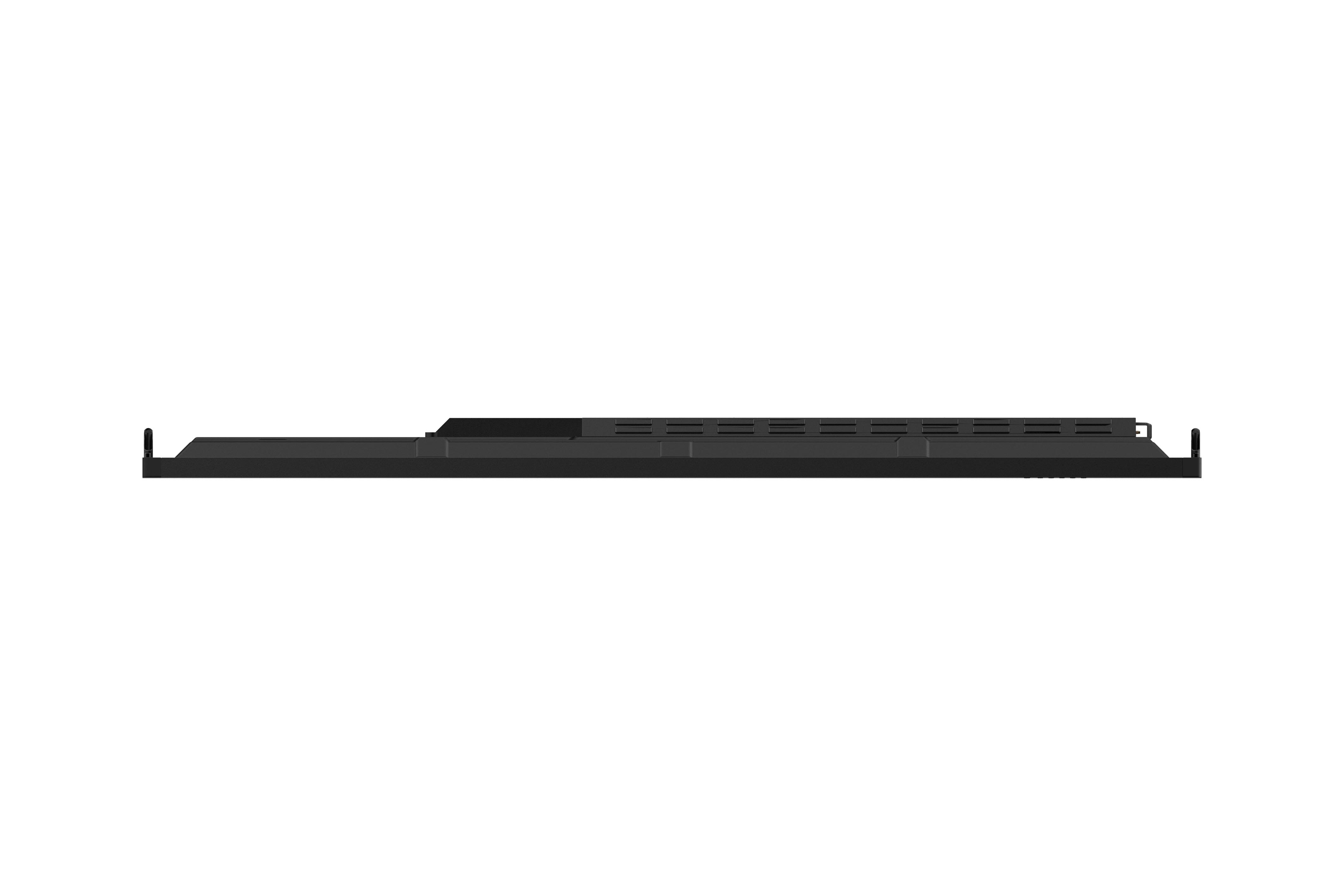

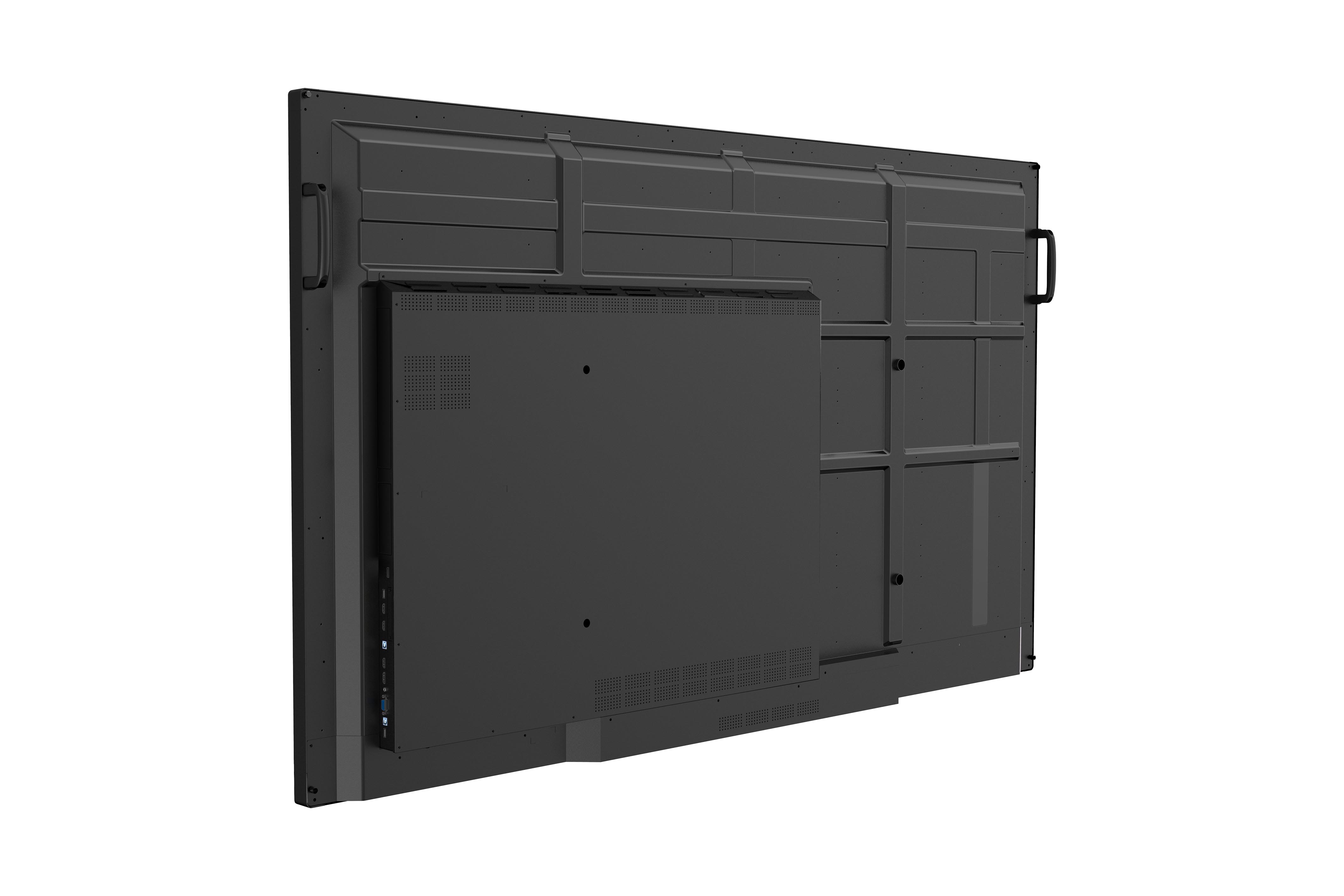

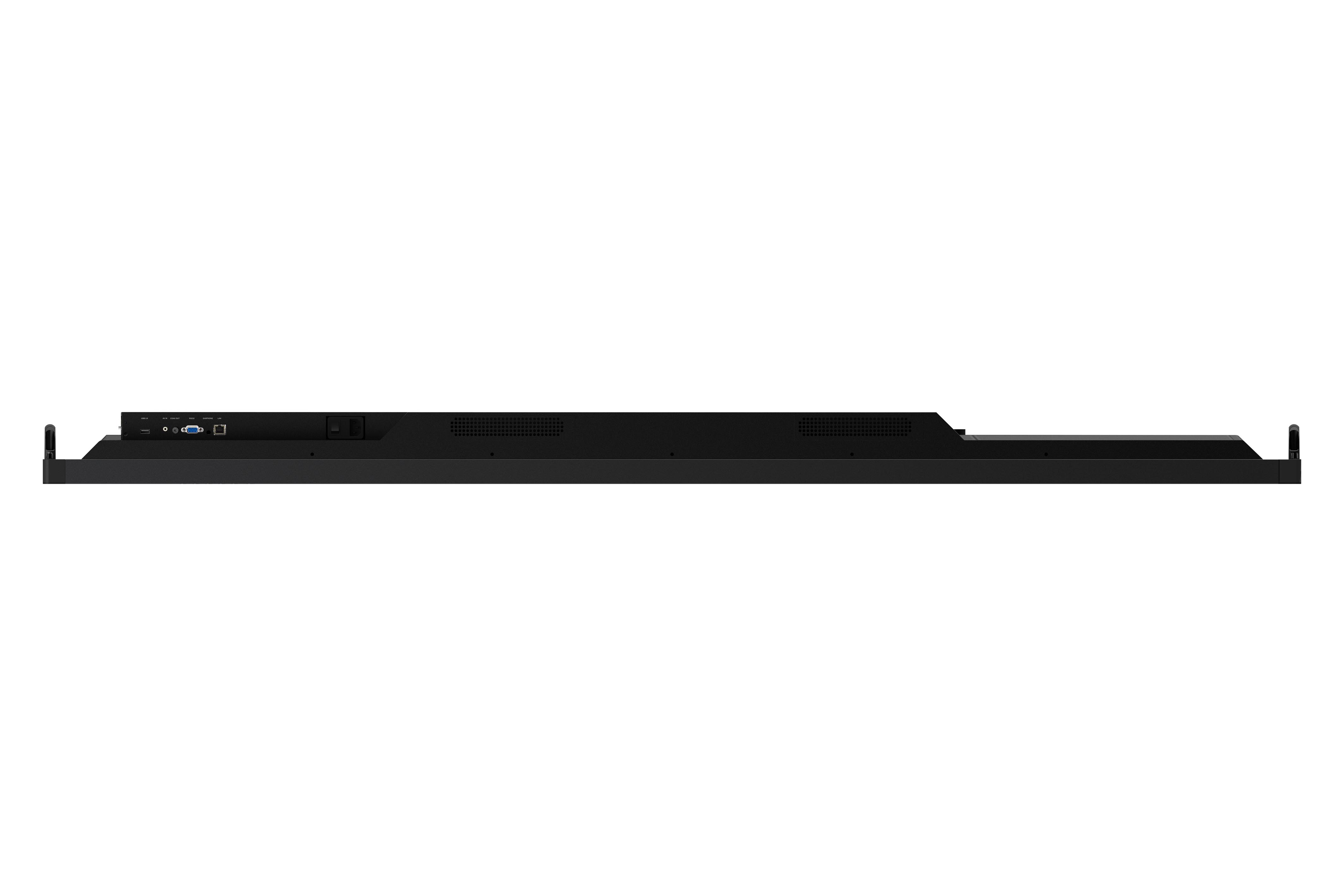

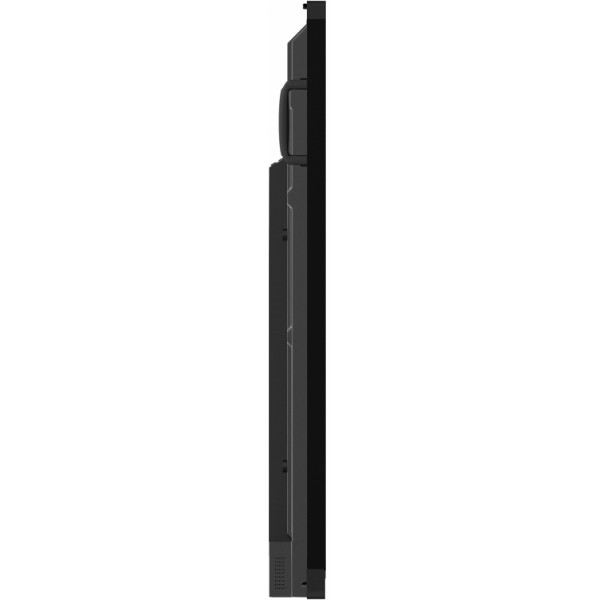

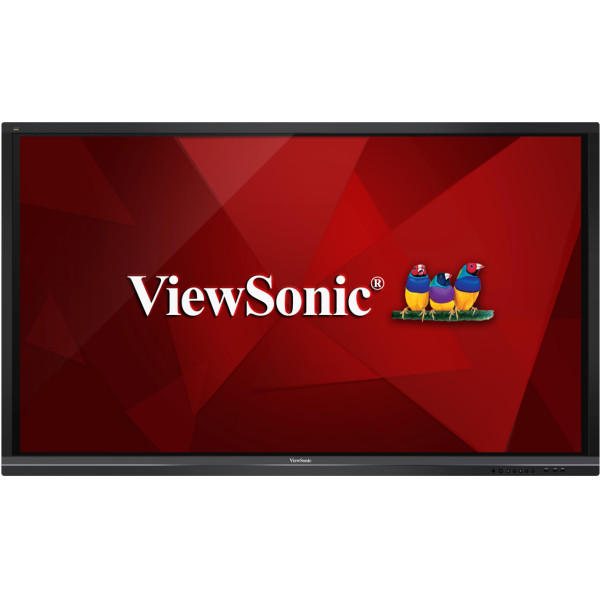

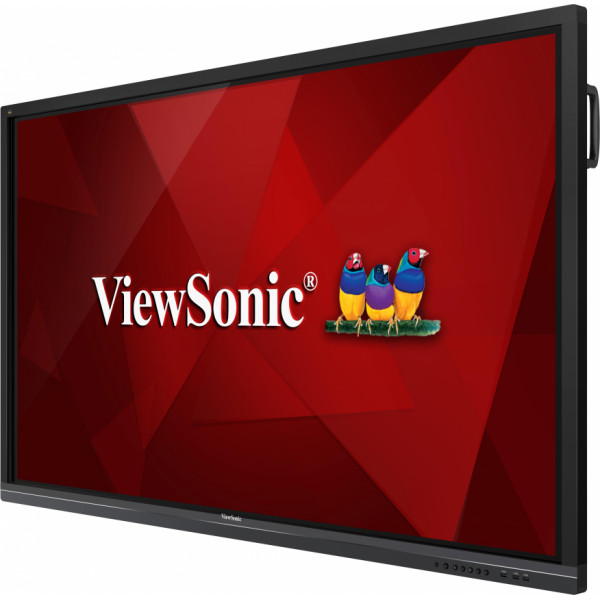

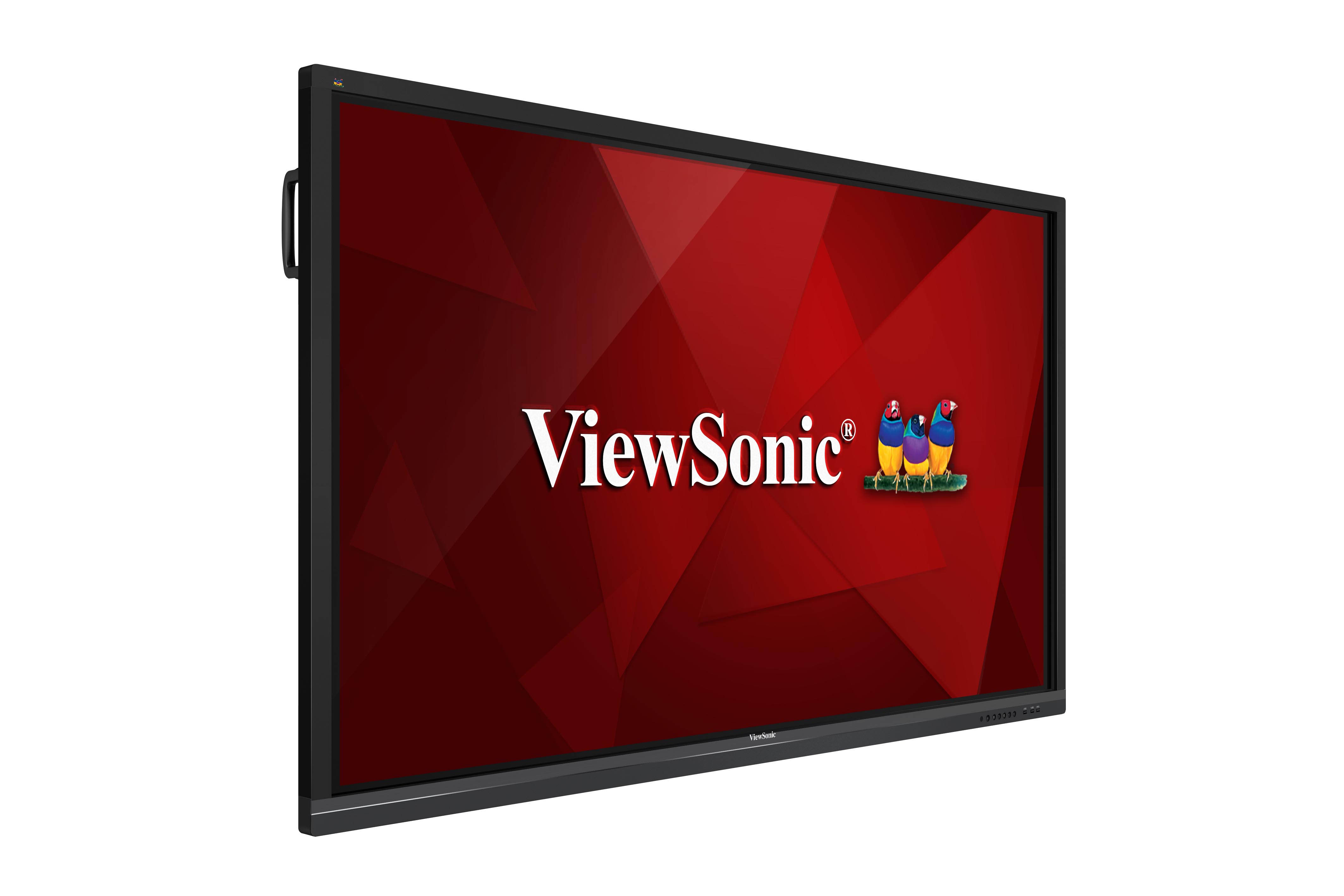

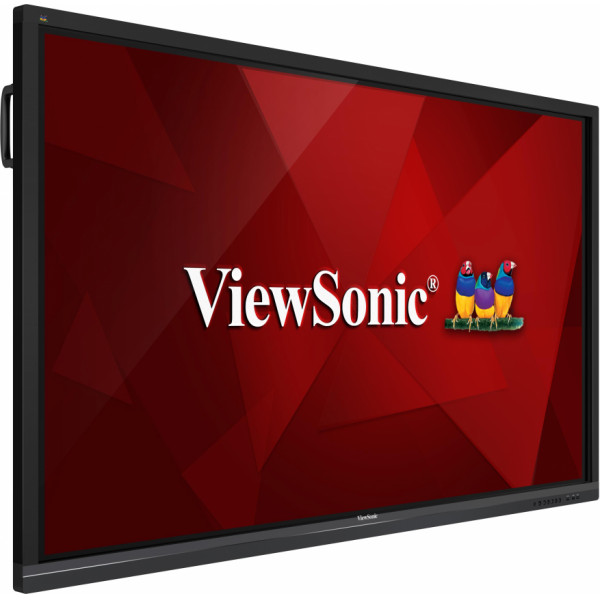

IFP7550
75" 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
RECENZE
“Smartboards are beginning to infiltrate businesses and organizations everywhere, so we’ve got the ViewSonic ViewBoard IFP7550 here to show you how you could make use of one in your organization.”
![[Video] Đức Pháp Technology](https://www.viewsonic.com/cz/imgHandler/?country=cz&file=DucPhap-IFP50.jpg)
“Màn hình tương tác thông minh ViewSonic Series IFP50 thiết bị giảng dạy đáng đầu tư”
SPECIFIKACE
- LCD PANELVelikost panelu: 75"
Typ/Tech: TFT LCD Module with DLED Backlight
Plocha displeje (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
Poměr stran: 16:09
Rozlišení: 3840 x 2160
Colors: 1.07B colors (10bit)
Jas: 350 nits (typ.) 300 nits (min.)
Kontrastní poměr: 1200:1 (typ.)
Doba odezvy: 8 ms
Zobrazovací úhly: H = 178, V = 178 (typ.)
Backlight: DLED
Životnost podsvícení: 30,000 Hours Min.
Hardness: 7H - TOUCHTyp/Tech: IR Recognition
Dotykové rozlišení: 32767 x 32767
Dotykový bod: 20 points touch, 10 points writing
Doba odezvy: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome

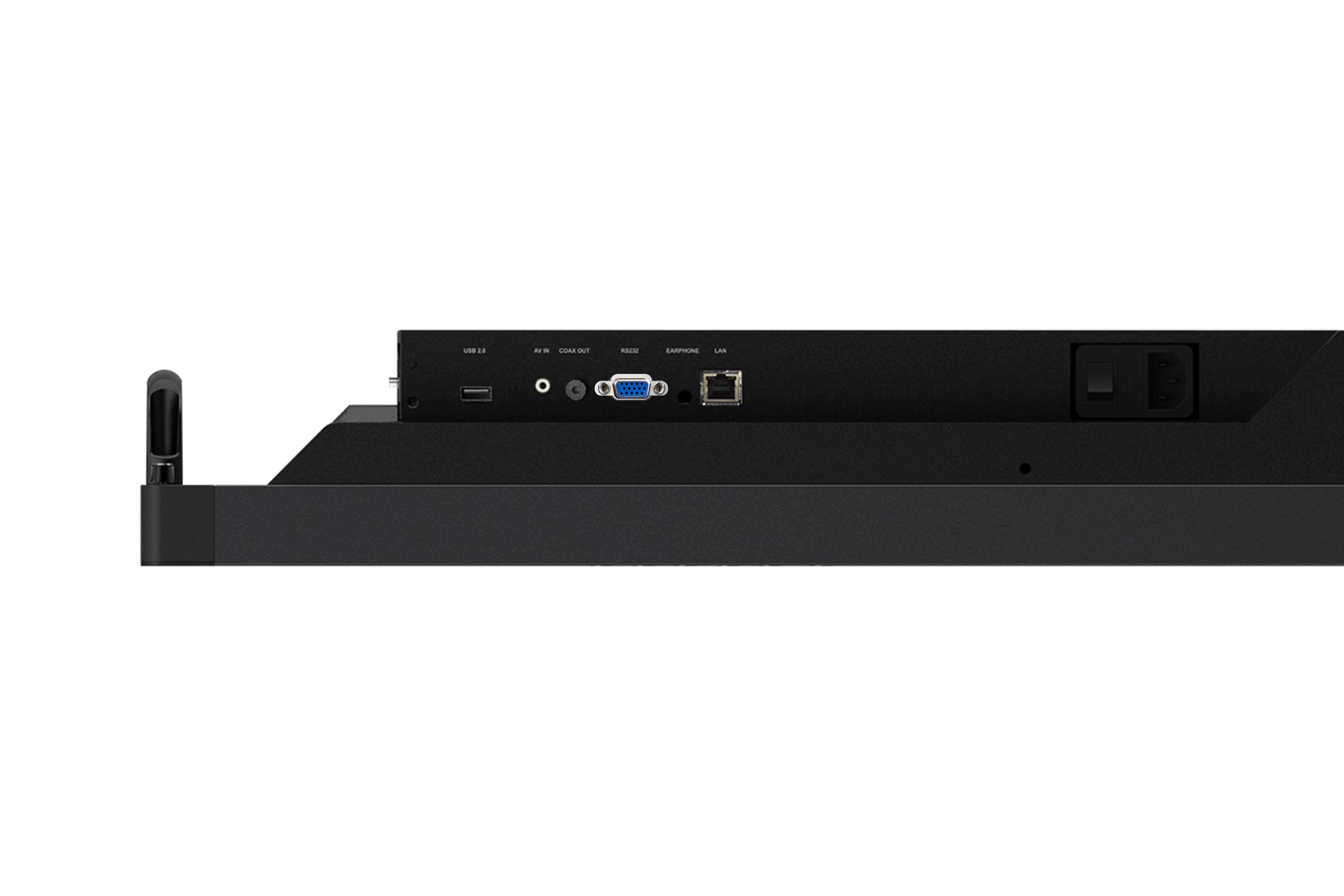

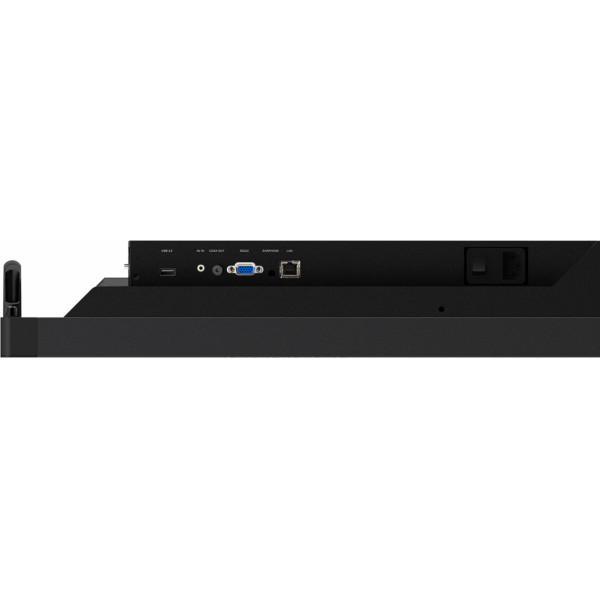

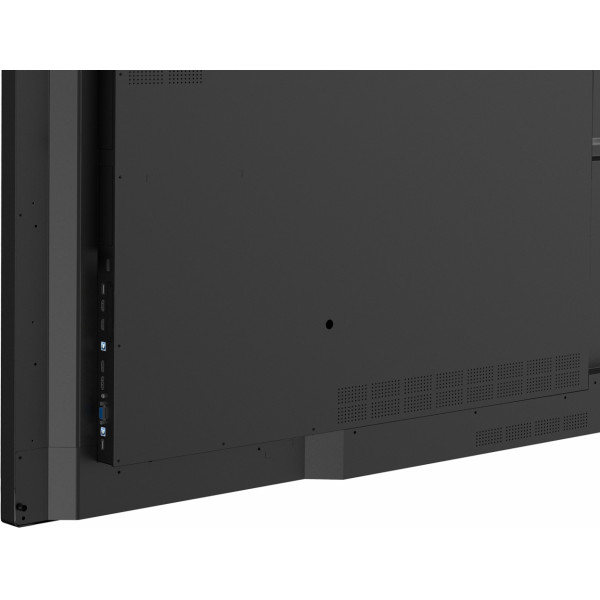

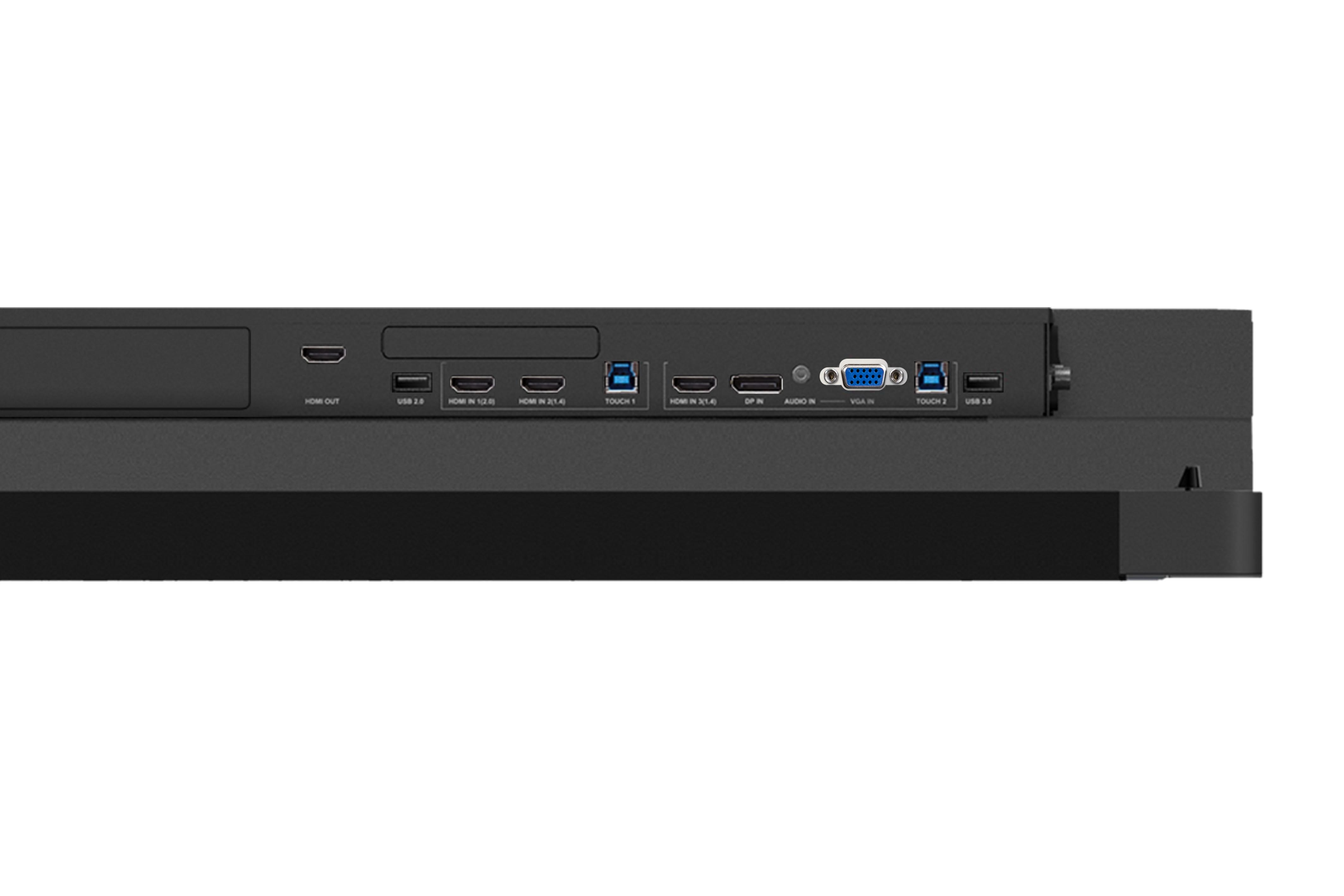

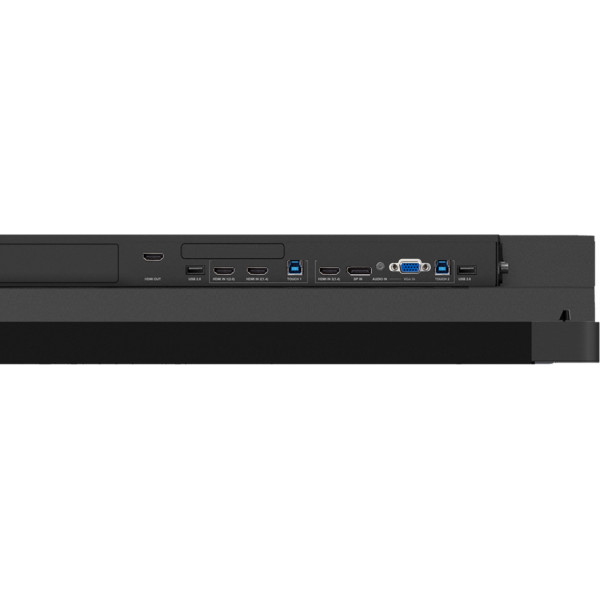

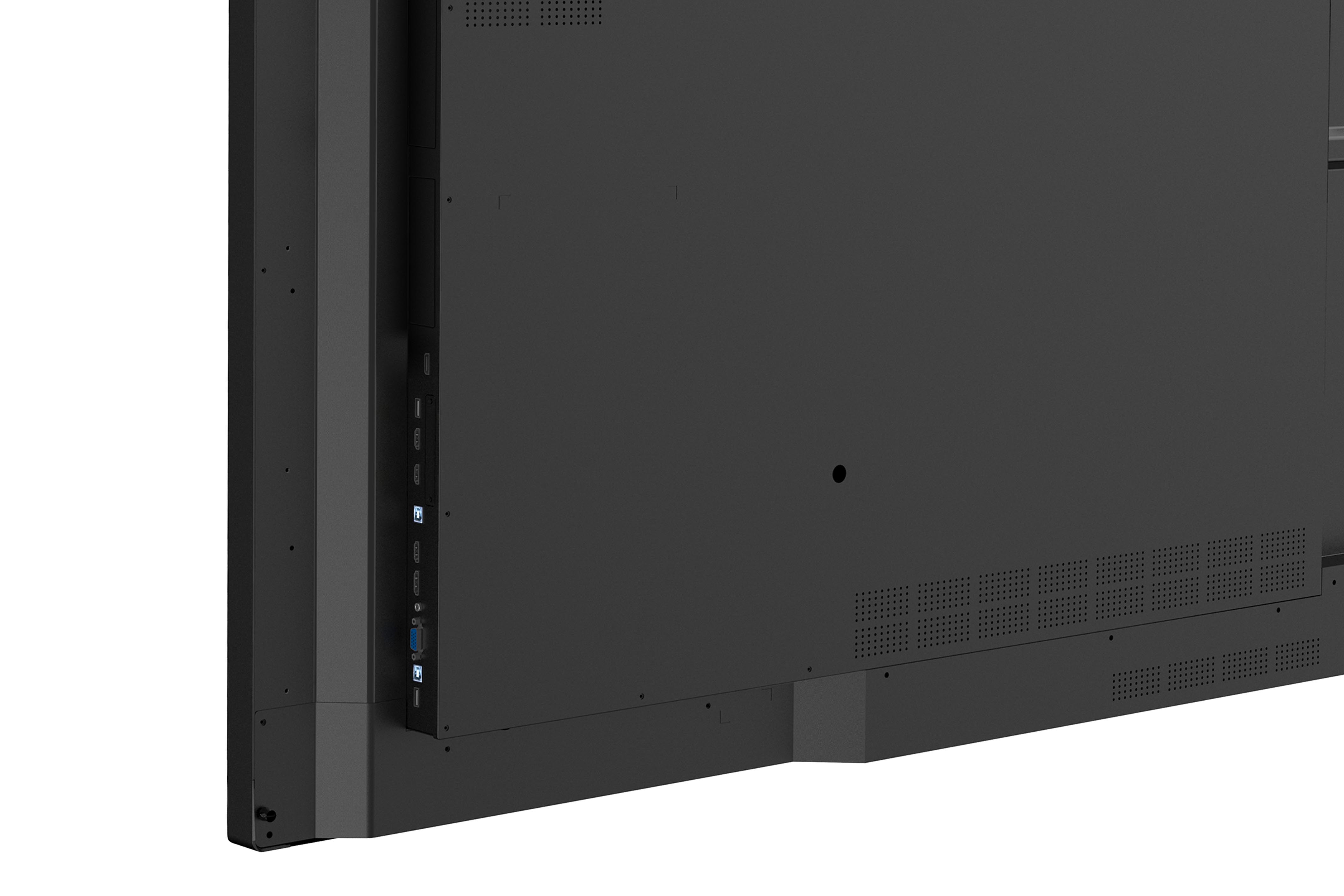

Life Time: 80,000hrs - INPUTHDMI: x 3
RGB / VGA: x 1
DisplayPort: x 1
Audio: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2
- OUTPUTHDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC)
3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2 - REPRODUKTORY16W x 2
- BUILT-IN PCProcesor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Paměť: 2GB DDR3
Úložný prostor: 16GB eMMC
Networking: 10/100M auto-identification and DHCP - COMPATIBILITYVGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i - POWERNapětí: 100-240VAC +/- 10% Wide Range

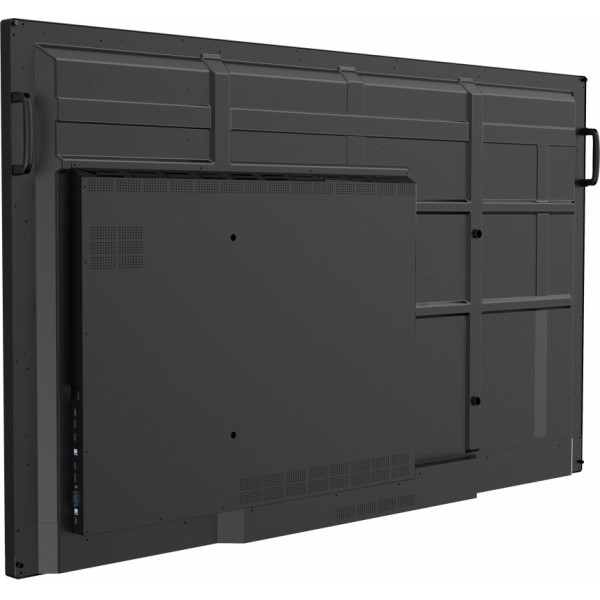

Spotřeba: 292W(Typ, without Slot-In PC); 387W(Typ, Including Slot-In PC) - ERGONOMICSNástěnný držák (VESA®): 800 x 400mm; Screw: M8 x 25mm
- OPERATING CONDITIONSTeplota (º C): 32°F to 104°F (0°C to 40°C)

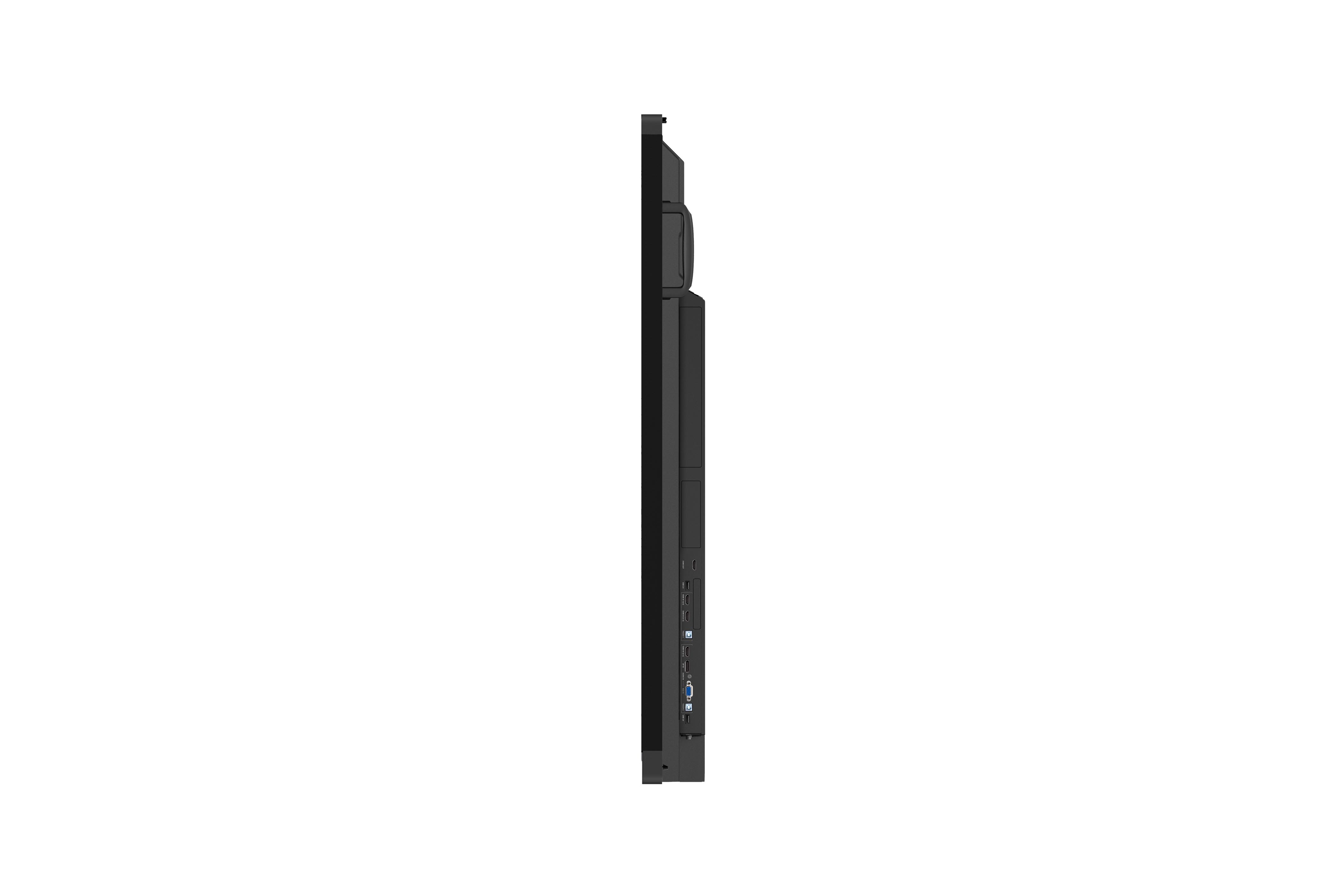

Vlhkost: 10% ~ 90% non-condensing - DIMENSIONS Physical w/o Stand (mm / inch): 1763 x 1042 x 99 mm / 69.4 x 41.0 x 3.9 inch
Packaging (mm / inch): 1913 x 1225 x 280 mm / 75.3 x 48.2 x 11.0 inch - WEIGHTNet (kg / lb): 58.5kg / 128.97lbs
Gross (kg / lb): 76kg / 167.55lbs - What's in the box?1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
