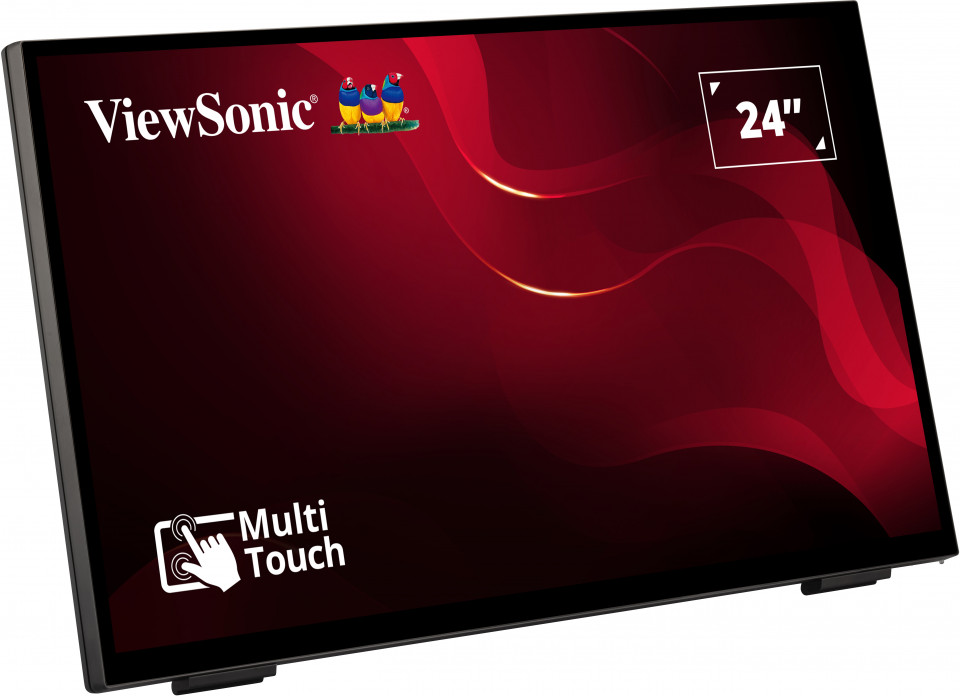

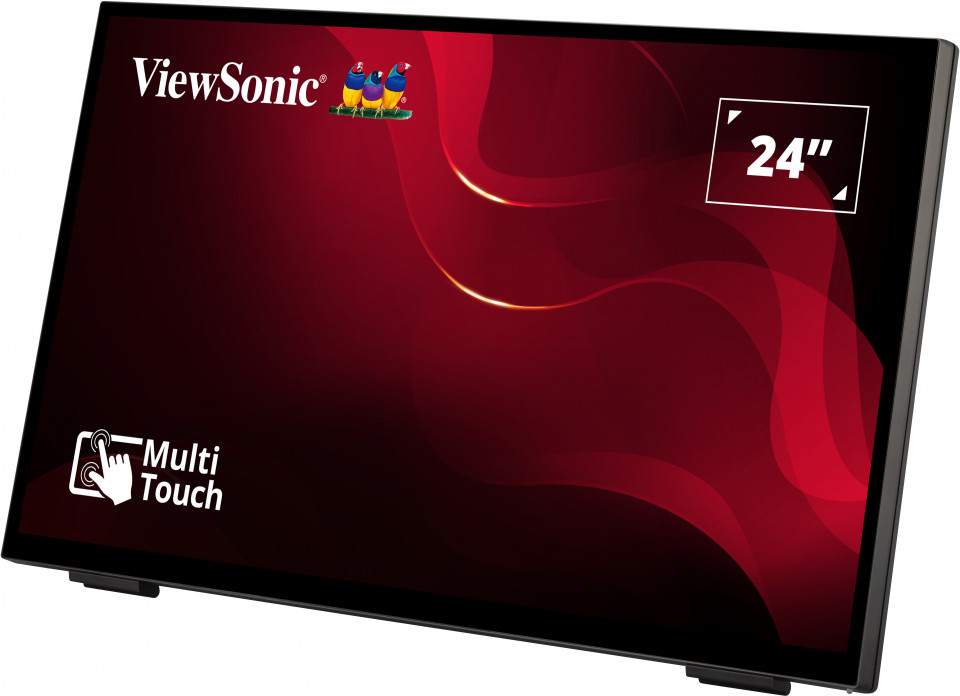

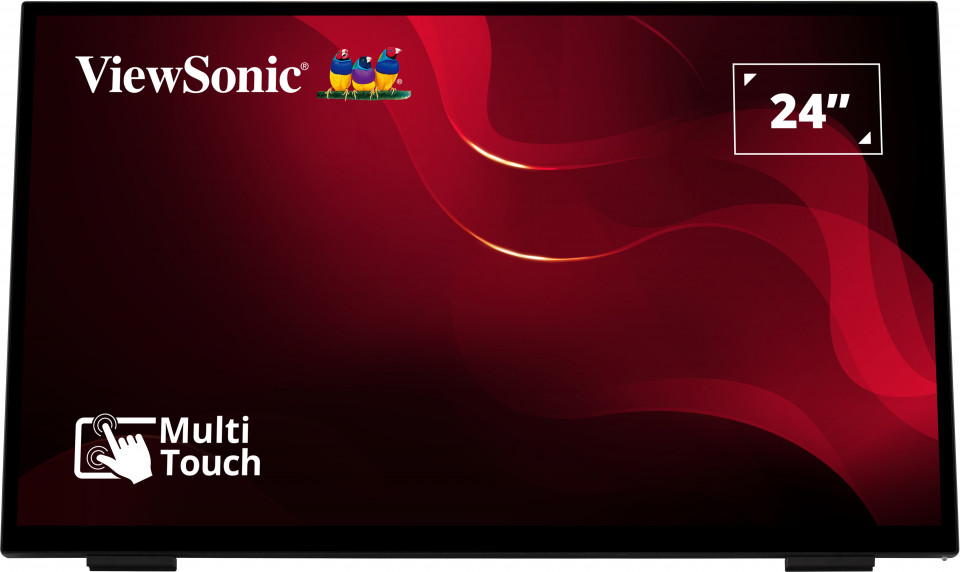

TD2465

24” Frameless Touch Monitor with 10 Points PCAP

  • Touch function for wet hands and multiple types of glove
  • Pen clicks & Palm rejection technology
  • 4-sides frameless design and optional stand for flexibility
  • Friendly touch mode setting
  • Intuitive touch OSD with ViewSonic Touch Controller
KOUPIT Poptávka po prodeji  Sdílet

POPIS

The ViewSonic's TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.

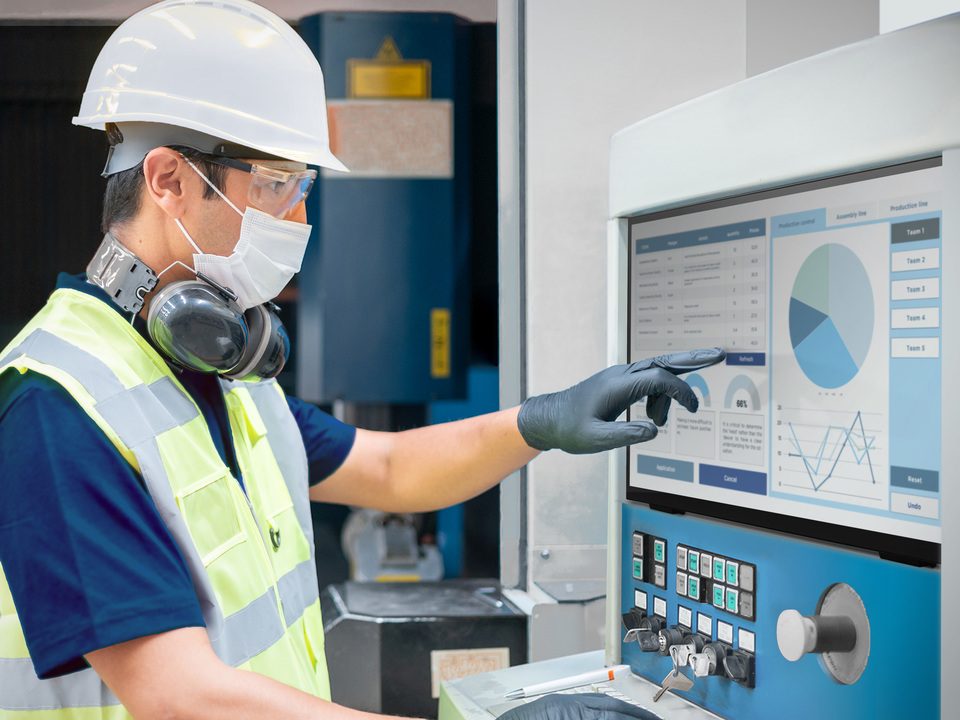

Designed For Versatile Installation Options

The 24" touch monitor is your one-stop solution for industrial, retail, and commercial applications. Whether a self-ordering kiosk or industrial automation control unit, the TD2465 delivers versatile installation options and an intuitive 10-point touch response technology.

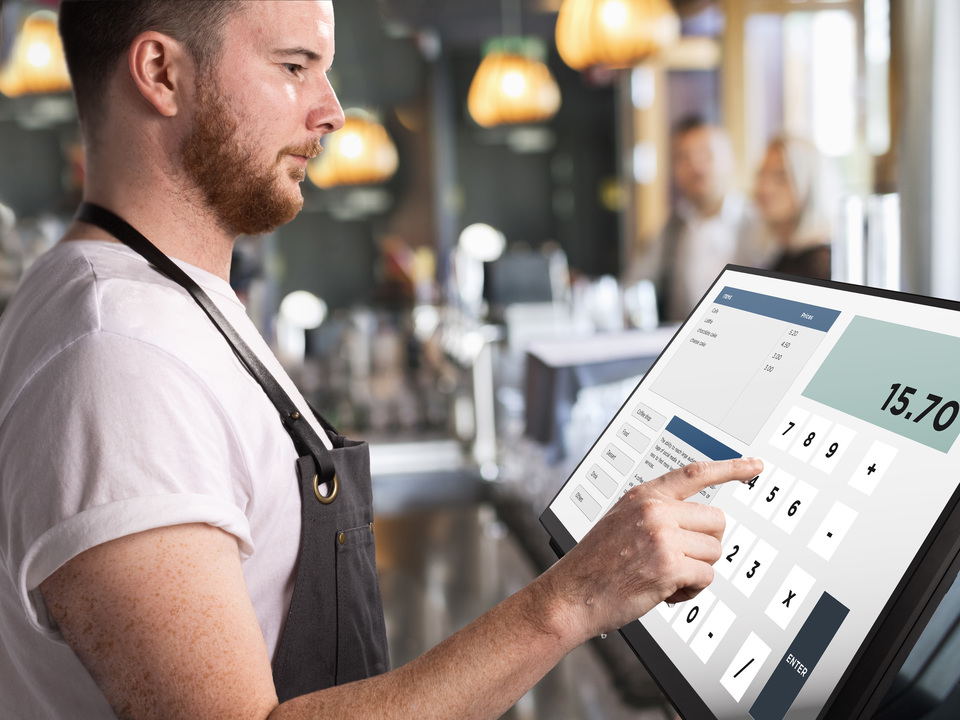

Designed For Versatile Installation Options 1
Designed For Versatile Installation Options 2
Designed For Versatile Installation Options 3

Intuitive and Responsive Touch

Experience a smooth, and responsive touchscreen with the high-sensitive Projective Capacitive (PCAP) Touch Technology. With up to 10 touch point simultaneous input, each touch response is read with accuracy and precision.
*Single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
10-Point PCAP Touch
Intuitive and Responsive Touch 1

Made for tough conditions

The TD2465 is able to register fingerprints even when your hands are wet. Ideal for those situations where you often get your hands wet, and you need your equipment to keep up.
Wet Hand Touch
Made for tough conditions 1

Glove Touch Mode

Different tasks require different accessories, and gloves are no exception. Glove touch successfully eliminates the hassle of removing your gloves every time you need to perform an action onscreen.
*If gloves do not meet material design specifications this may not apply.
*Water-Resistant Touch and Pen Touch modes cannot be used at the same time as Glove Touch.
*Glove Touch Mode does not support palm rejection.
*With up to 5 points touch points. Even single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
Functional with Multiple Glove Types
Glove Touch Mode 1

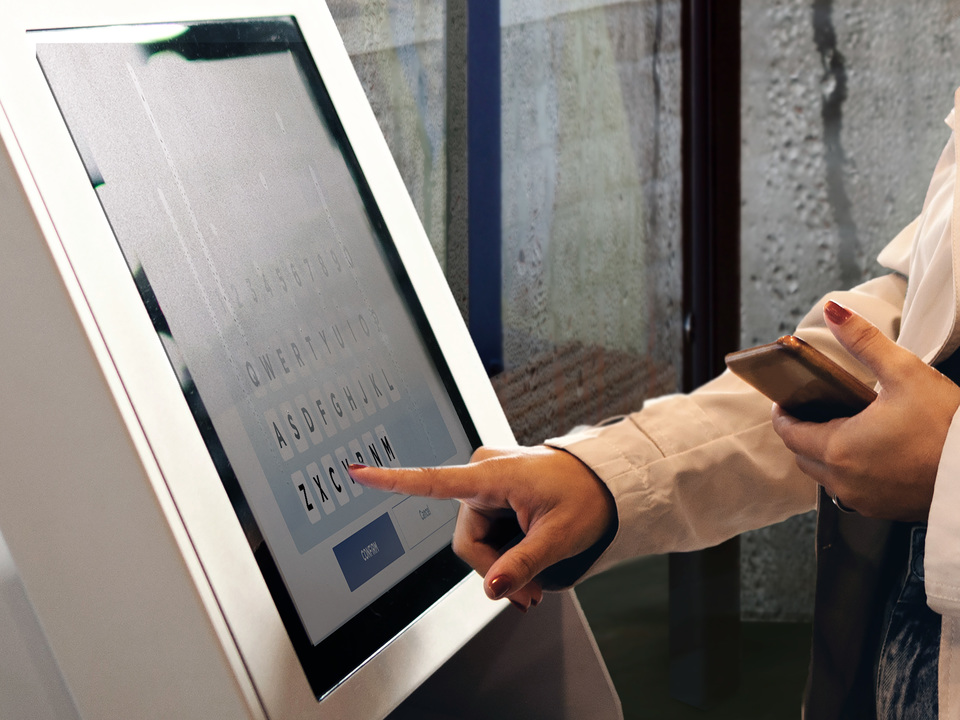

Water Tolerant Surface

Designed to work when you need it. Work in humid conditions without an issue with the TD2465’s Water-Resistant Touch mode.
*Panels are not designed for environments exposed to full sun or rain.
*Glove Touch and Pen Touch Modes cannot be used at the same time as Water-Resistant Touch.
*Water-resistant touch mode does not support Palm Rejection.*With up to 5 points touch points. Even single point touch option is also available, as well as Pen Touch Mode, Glove Touch Mode, and Water-Resistant Touch Mode.
Water-Resistant Touch
Water Tolerant Surface 1

Stylus Compatibility

The TD2465 is equipped with palm rejection and full support for multiple types of pen. Passive, active pen can be used without the hassle of installing drivers. Click functions are even enabled for pencils.
*TD2465 does not support pressure sensitivity and tilt functions for pen writing.
*When hand and pen are in contact with the screen simultaneously, only the pen's signal will register.
*Water-Resistant Touch and Glove Touch Modes cannot be used at the same time as Pen Touch.
Pen Compatibility & Palm Rejection
Stylus Compatibility 1

Advanced Ergonomics

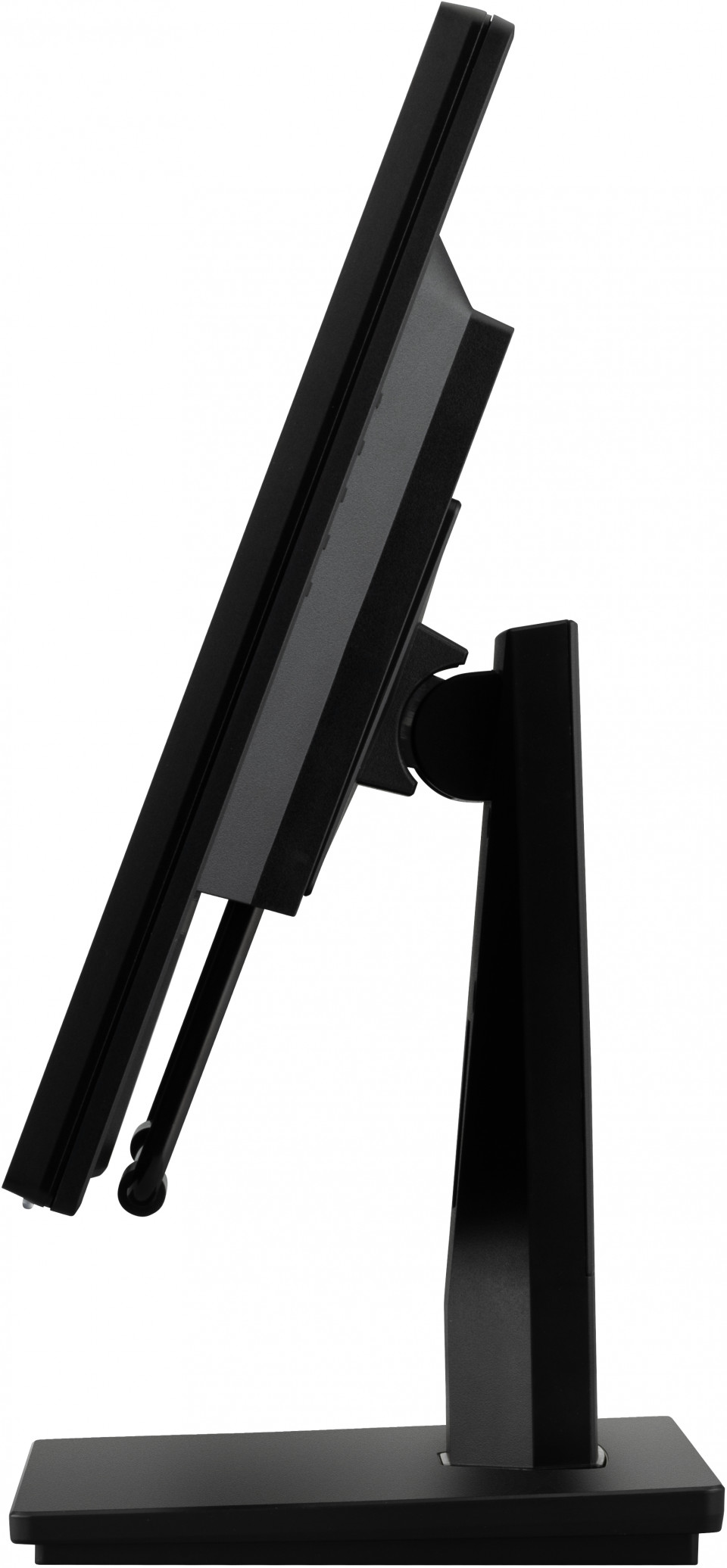

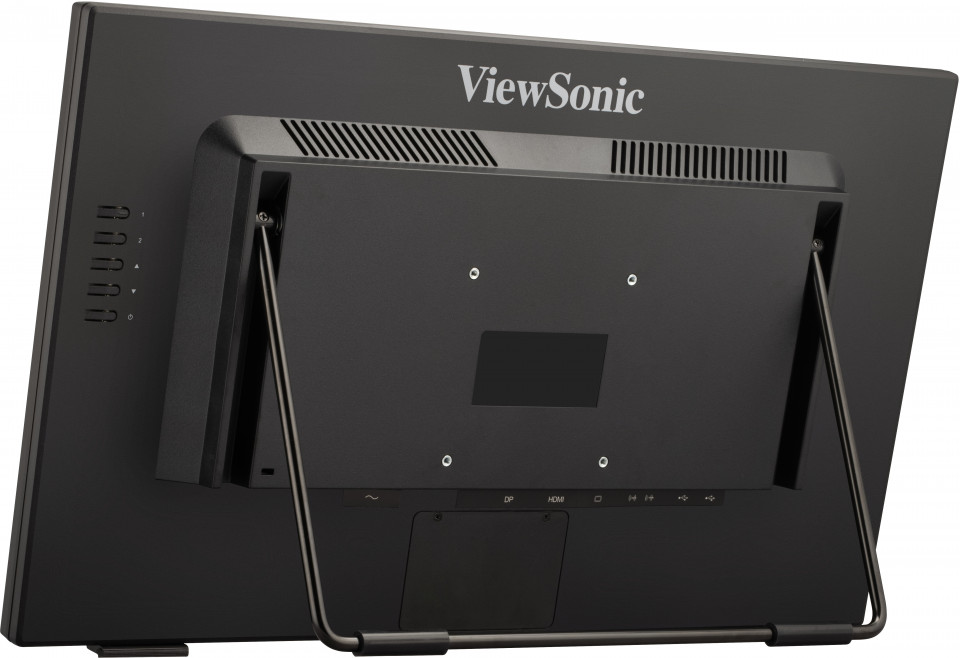

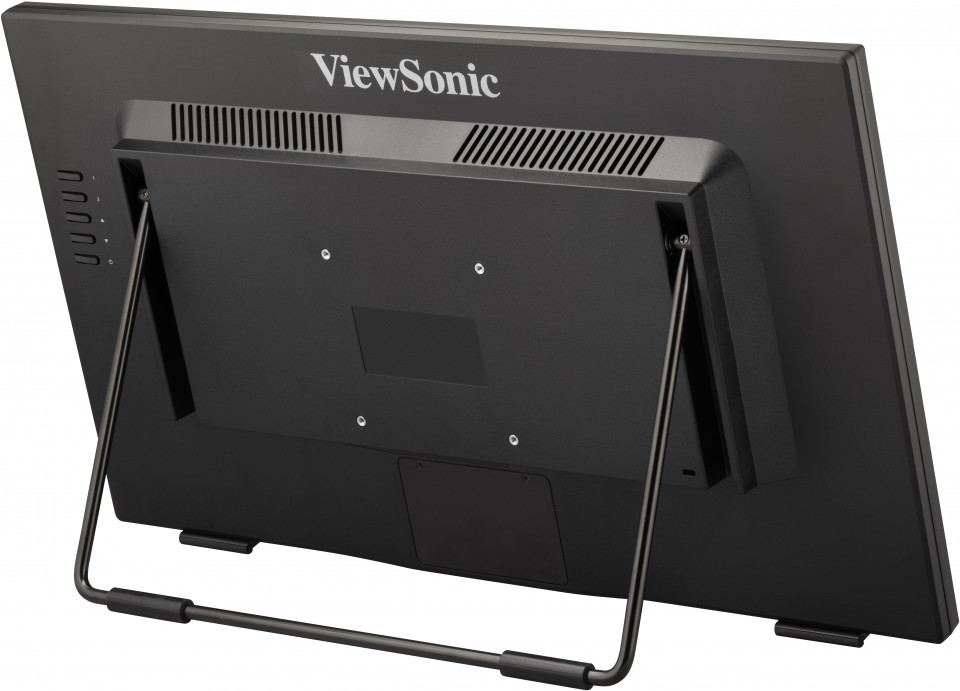

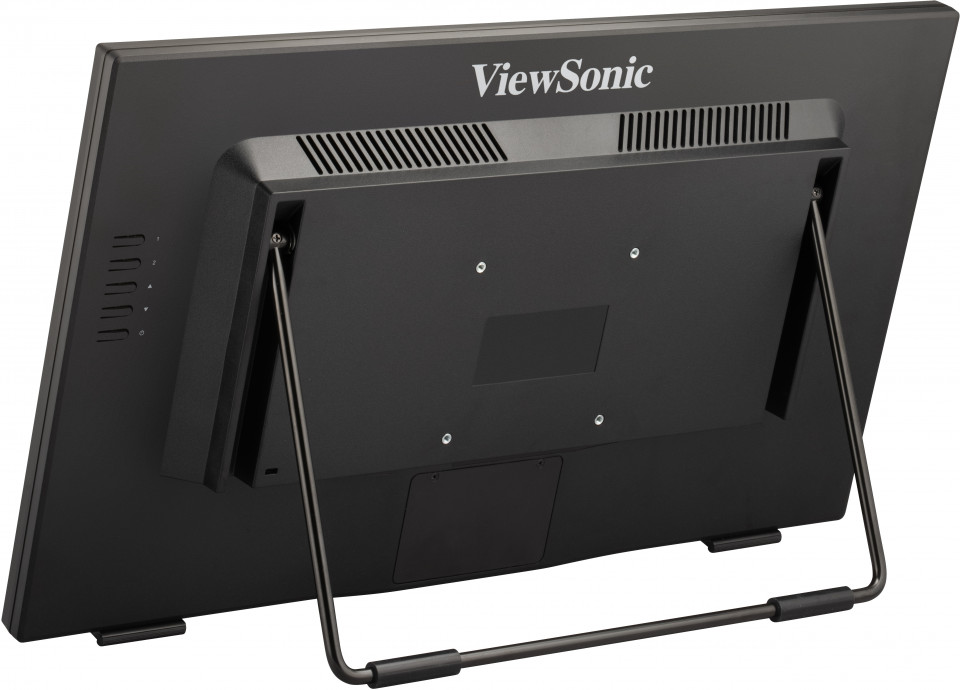

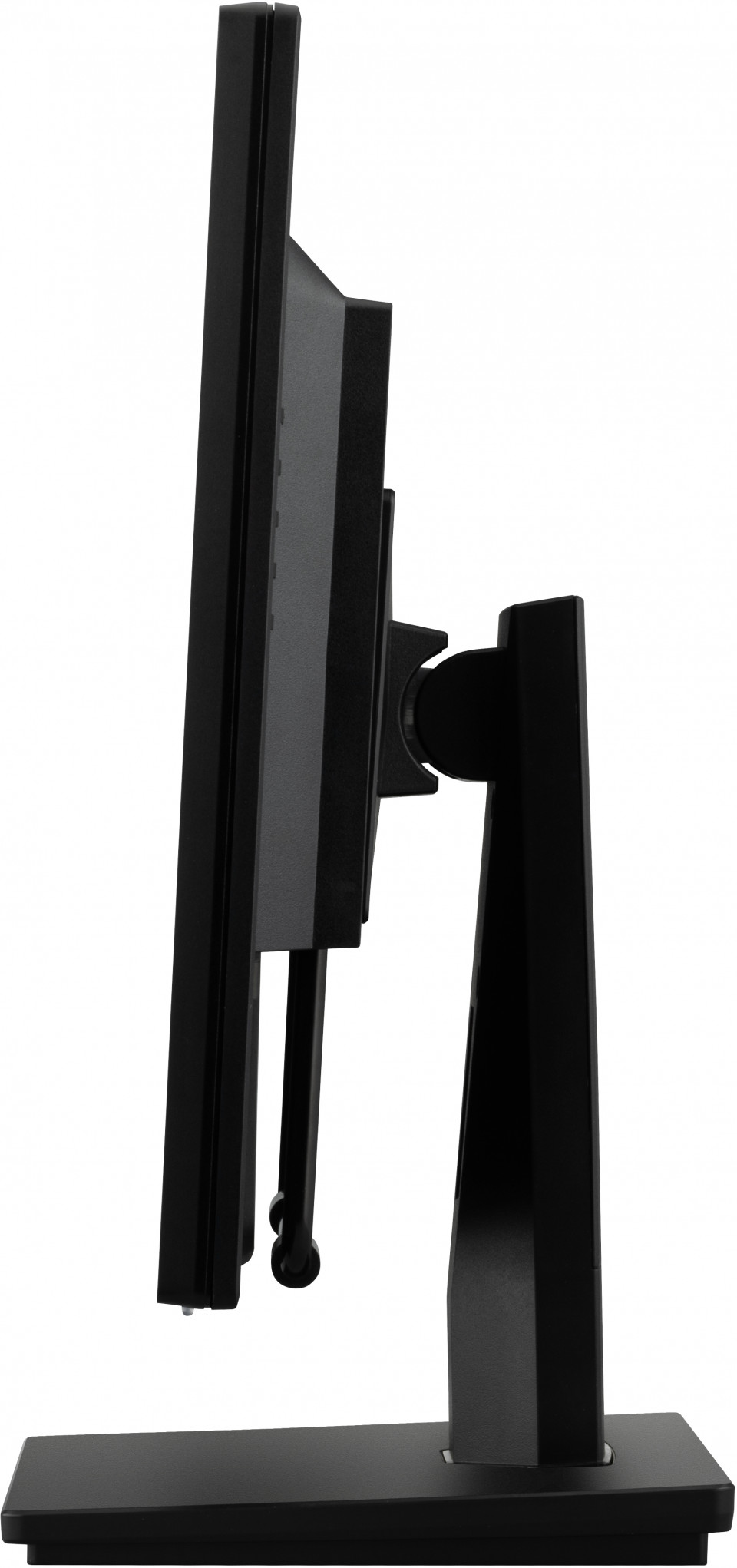

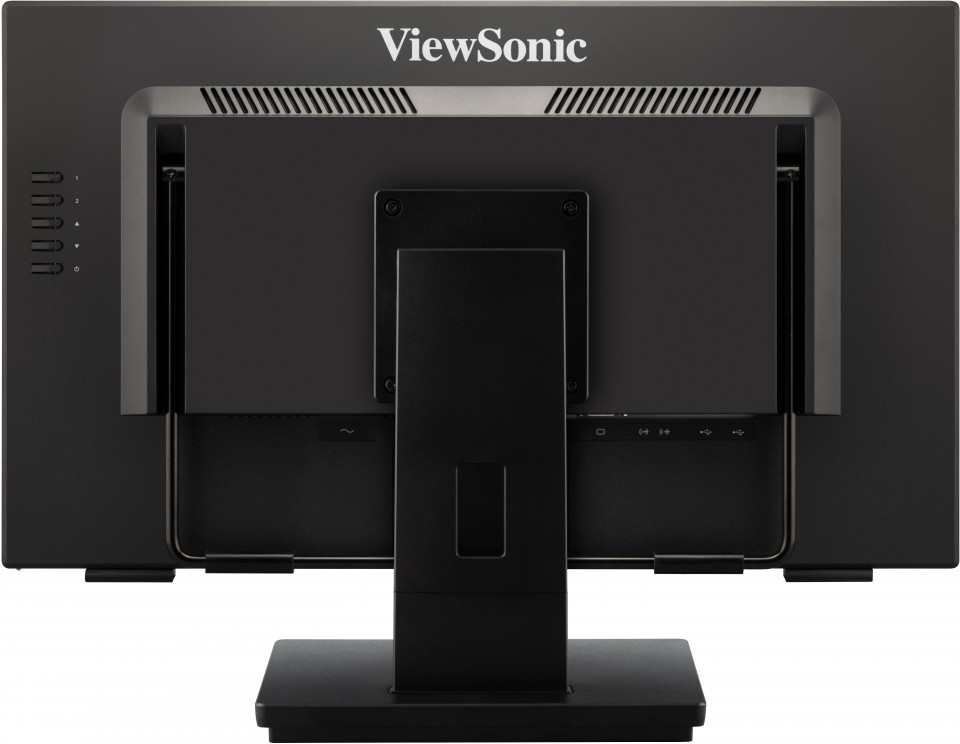

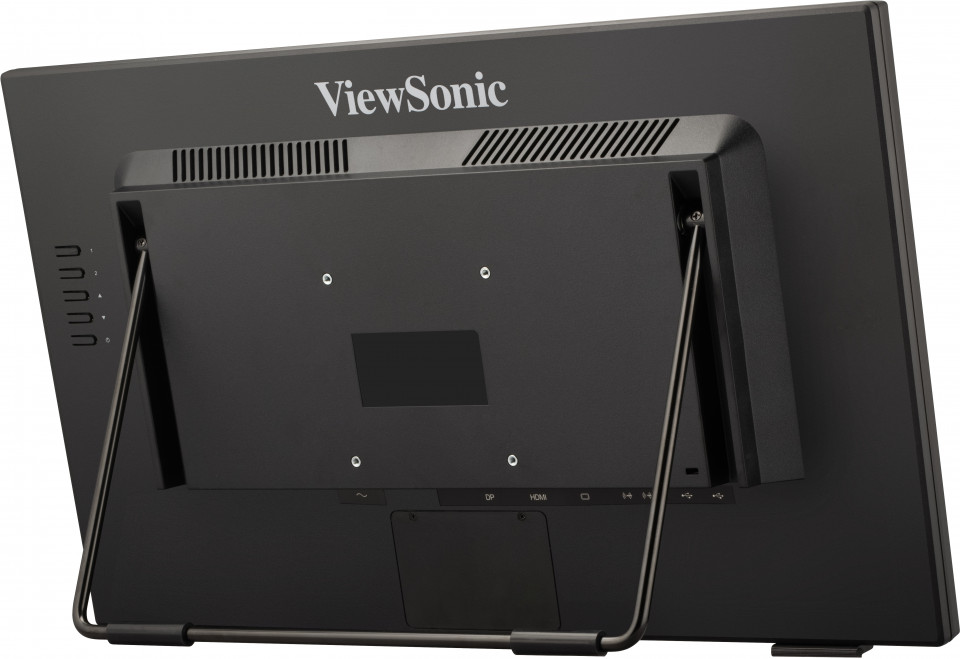

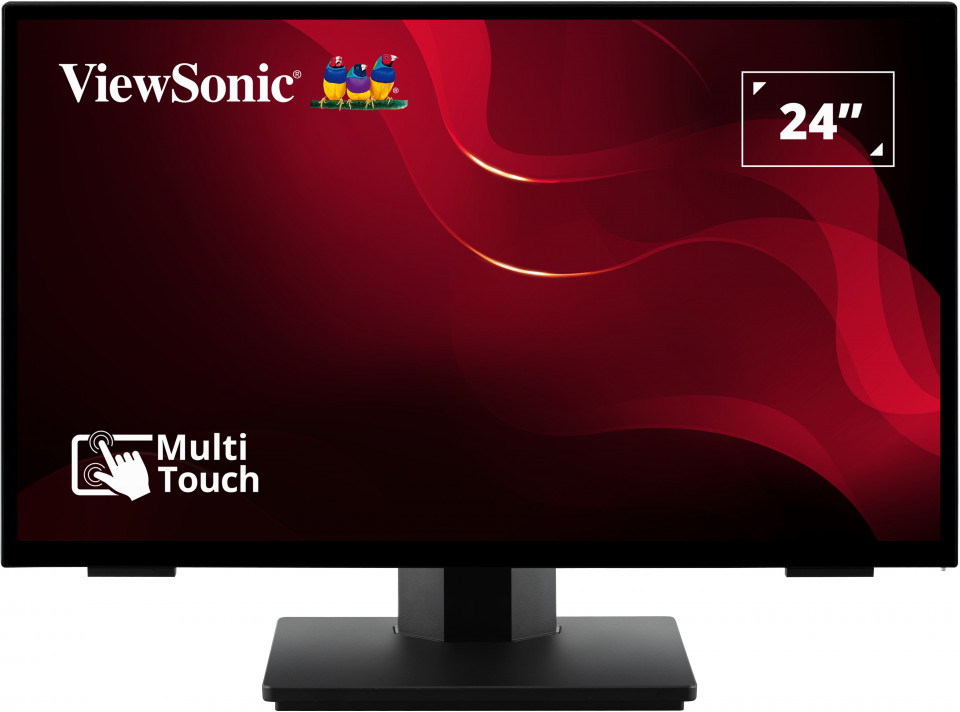

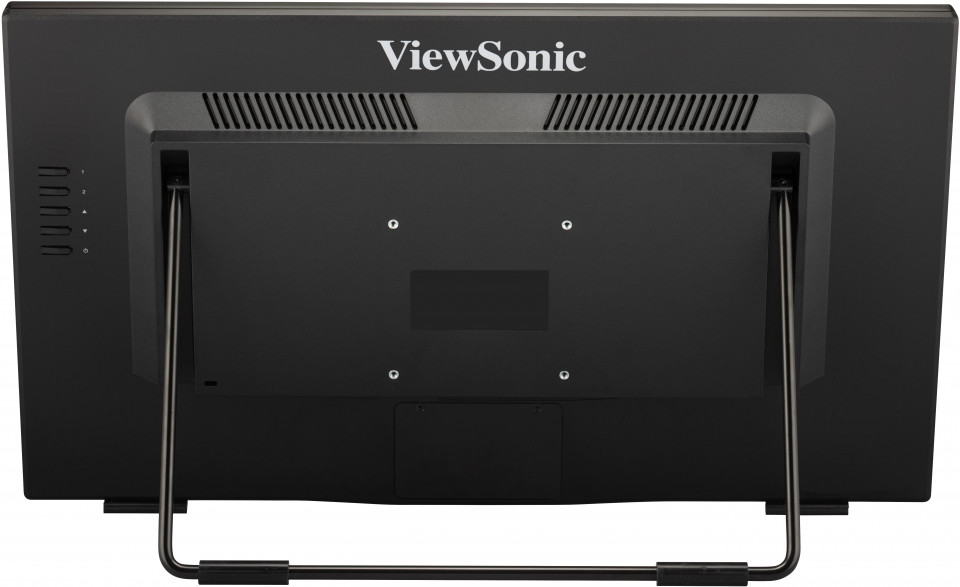

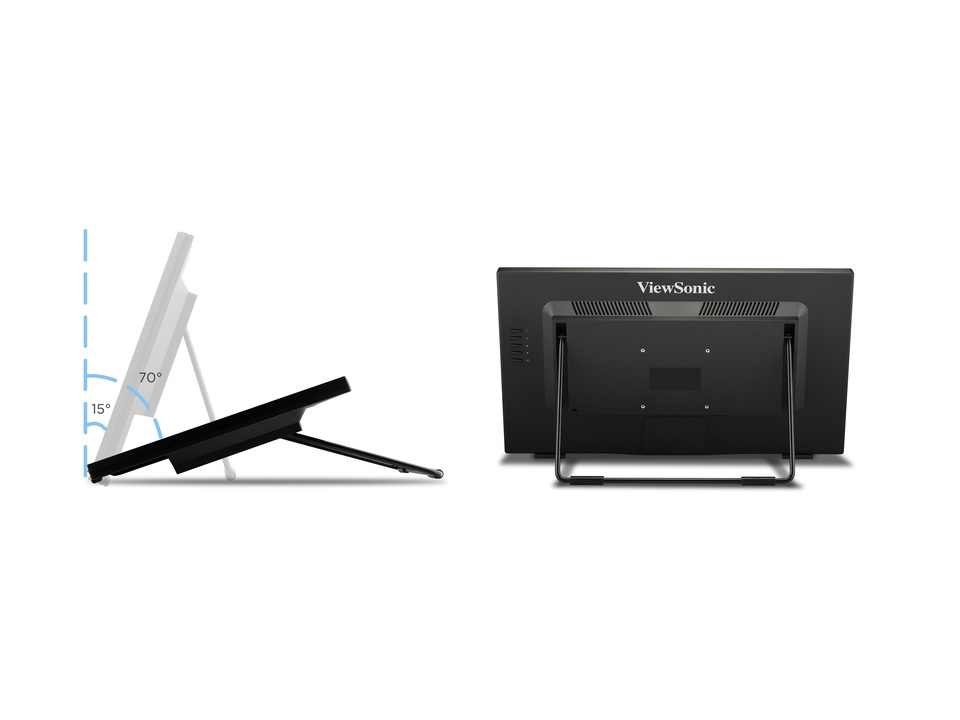

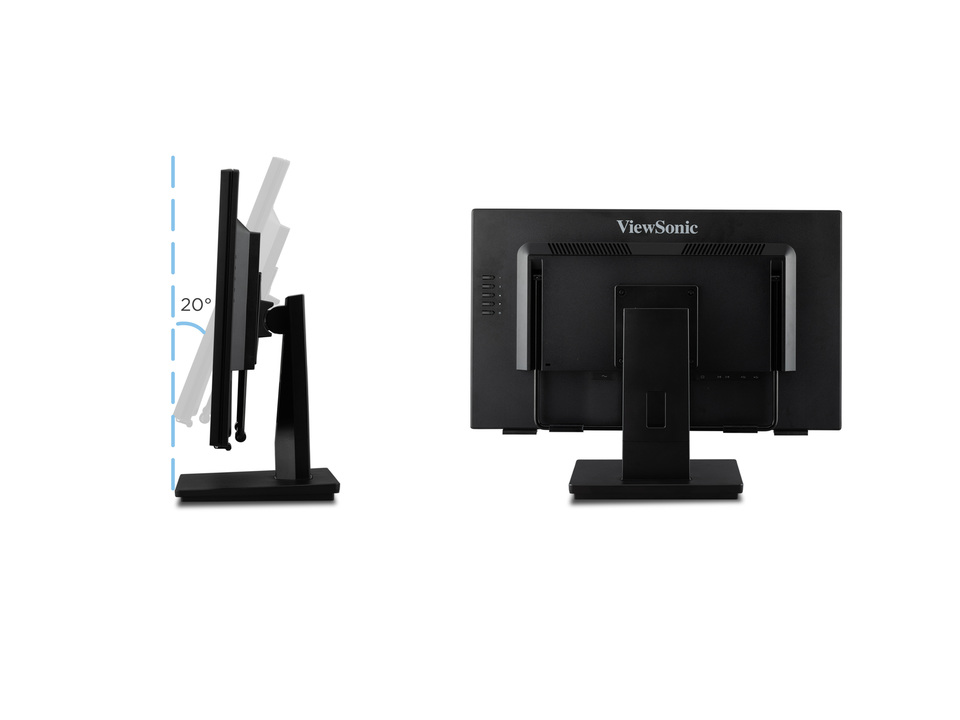

The TD2465 comes complete with two types of monitor stands to ensure you have the setup you need no matter the situation. The book stand is designed with an advanced hinge, allowing the display to be tilted and adjusted between 15 ° ~70°, making it great for diverse applications. The classic stand is perfect for more conventional uses, with a tilt angle of up to 20°.
Book Stand & Standard Stand
Advanced Ergonomics 1
Advanced Ergonomics 2

Easy Kiosk Integration

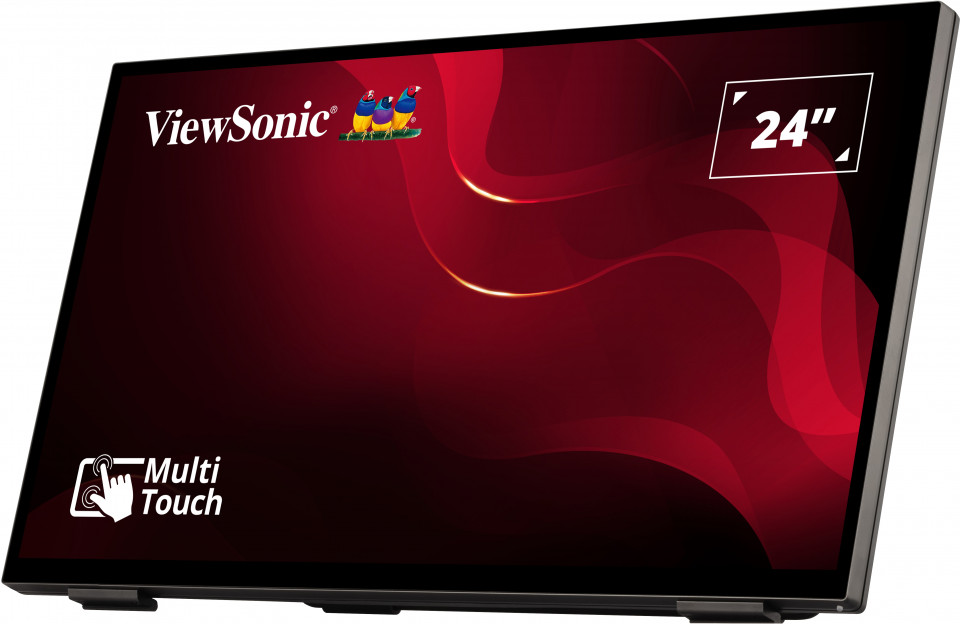

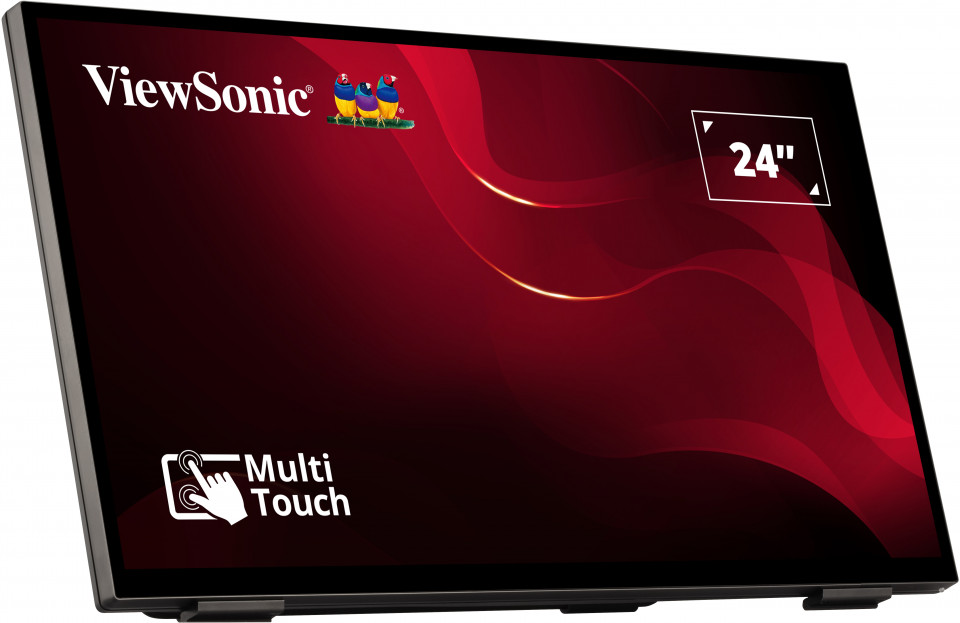

The 4-sides frameless design of the TD2465 display allows for seamless and secure attachment to your preferred kiosk design, allowing it to be installed and integrated to best suit any application you require.
4-Sides Frameless
Easy Kiosk Integration 1

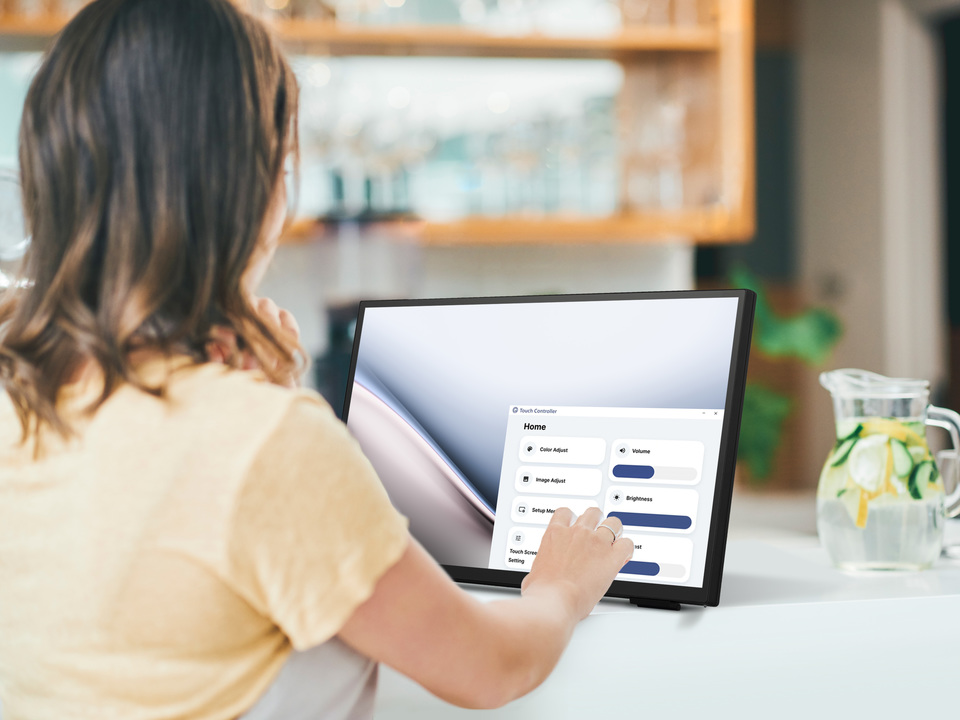

Touch Controller Software

Intuitive interface design offers shortcuts for an easy way to adjust volume, brightness, contrast, and touch modes.
*The software is compatible with Windows, Linux Fedora 37 and Ubuntu 20.04 platform. Download the software in the download section.
*Please keep screen surface clean from water droplets and oil stains when switching between different touch modes or touch disable.
*During the Touch Controller SW update process, if the network disconnects the Touch Controller SW will not be able to launch. Users will need to uninstall, then reinstall the software.
Intuitive Onscreen Display
Touch Controller Software 1

Certified Environmental Sustainability

The TD2465 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

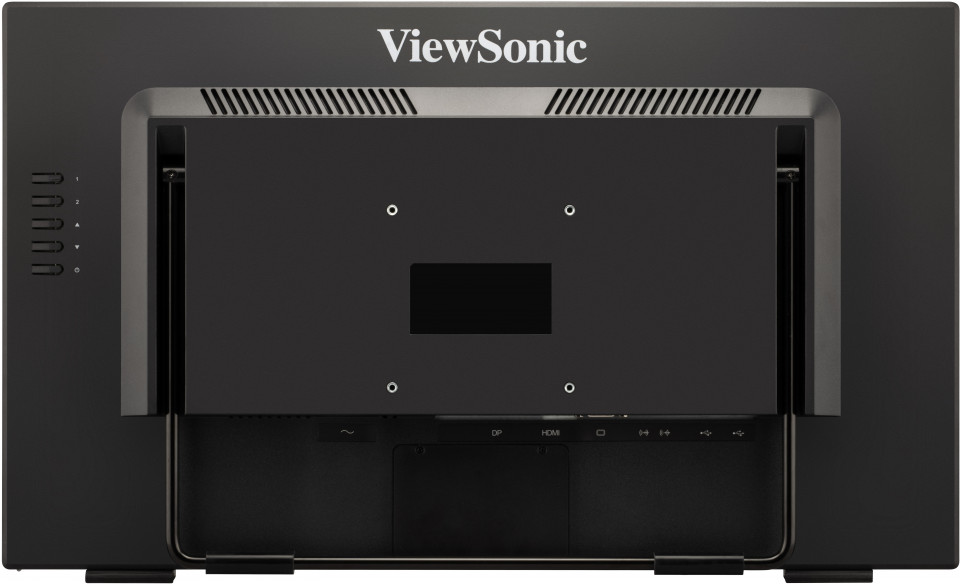

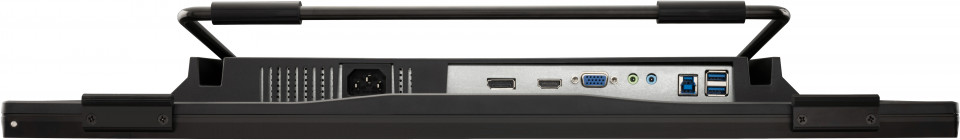

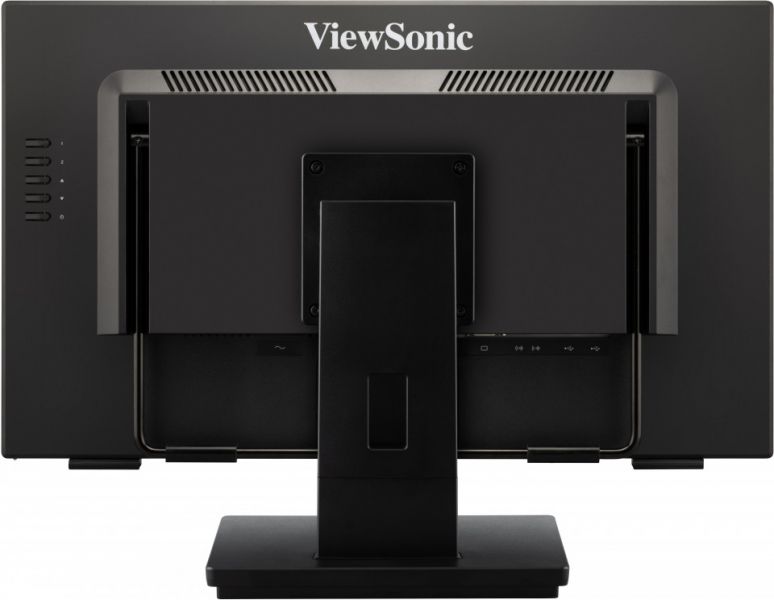

Dimension & I/O Ports

  1. Menu Control
  2. Speakers
  3. VESA Compatible(Wall Mount 100 x 100 mm)
  4. USB-A *2 (Downstream)
  5. USB-B (Upstream)
  6. Earphone
  7. Audio in
  8. VGA
  9. HDMI
  10. DP in
  11. AC in

SPECIFIKACE


  • Displej
    Velikost displeje (palce): 24
    Viditelná plocha (palce): 23.8
    Typ panelu: VA Technology
    Rozlišení: 1920 x 1080
    Typ rozlišení: FHD (Full HD)
    Statický kontrastní poměr: 4,000:1 (typ)
    Poměr dynamického kontrastu: 20M:1
    Světelný zdroj: LED
    Jas: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Poměr stran: 16:9
    Doba odezvy (obvyklá GTG): 7ms
    Doba odezvy (GTG w/OD): 6.969ms
    Zobrazovací úhly: 178º horizontal, 178º vertical
    Životnost podsvícení (v hodinách): 30000 Hrs (Min)
    Zakřivení: Flat
    Obnovovací frekvence (Hz): 100
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 86% size (Typ)
    sRGB: 122% size (Typ)
    Velikost pixelu: 0.275 mm (H) x 0.275 mm (V)
    Dotyková obrazovka: Projected Capacitive, 10-point multi-touch
    Povrchová úprava: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.2mm
  • Kompatibilita
    Rozlišení PC (max): 1920x1080
    Mac® Rozlišení (max): 1920x1080
    Operační systém PC: Windows 10/11 certified; macOS tested
    Mac® Rozlišení (min): 1920x1080
  • Konektor
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3,5mm audio výstup: 1
    HDMI 1.4: 1
    DisplayPort: 1
    Výkon v: 3-pin Socket (IEC C14 / CEE22)
