TD2223

22” IR Touch Monitor

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

Poptávka po prodeji Sdílet

GALERIE

POPIS

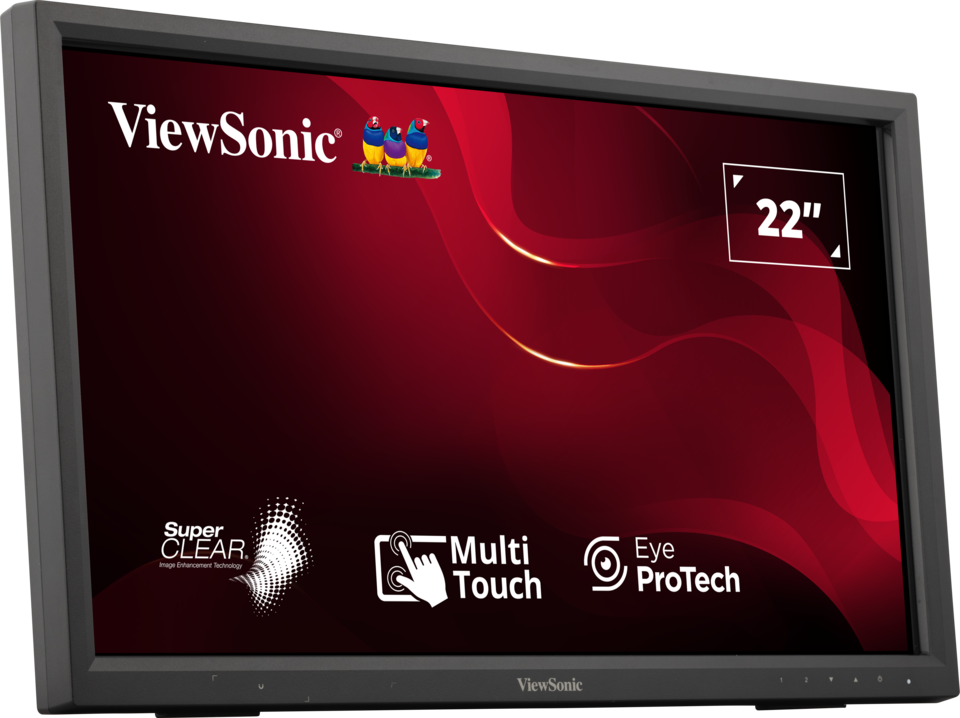

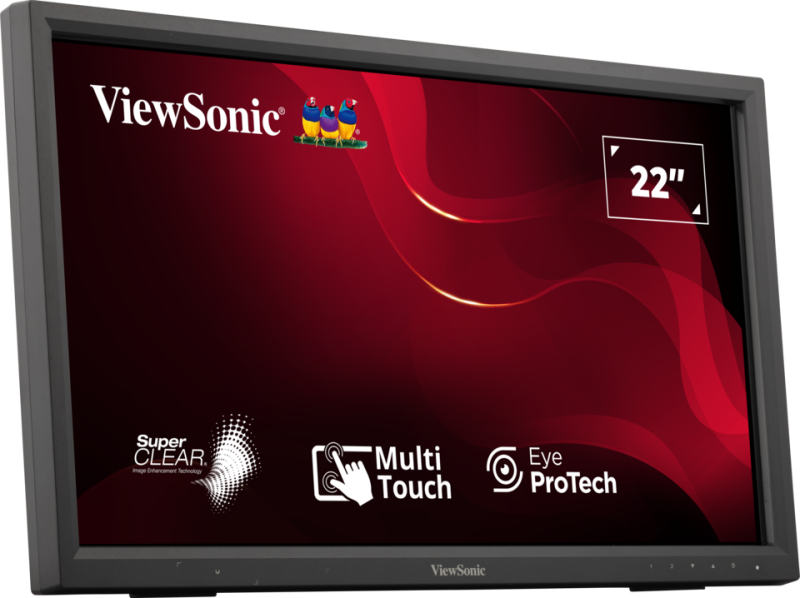

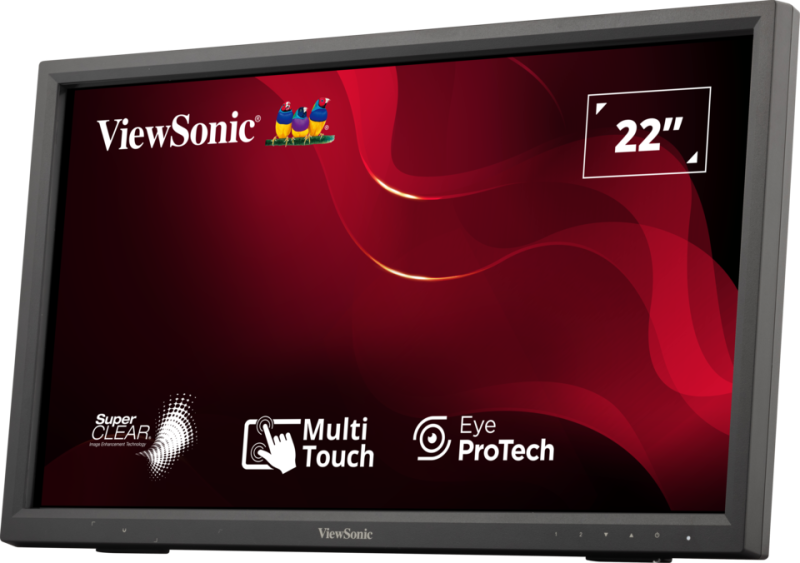

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

IR Touch Technology

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

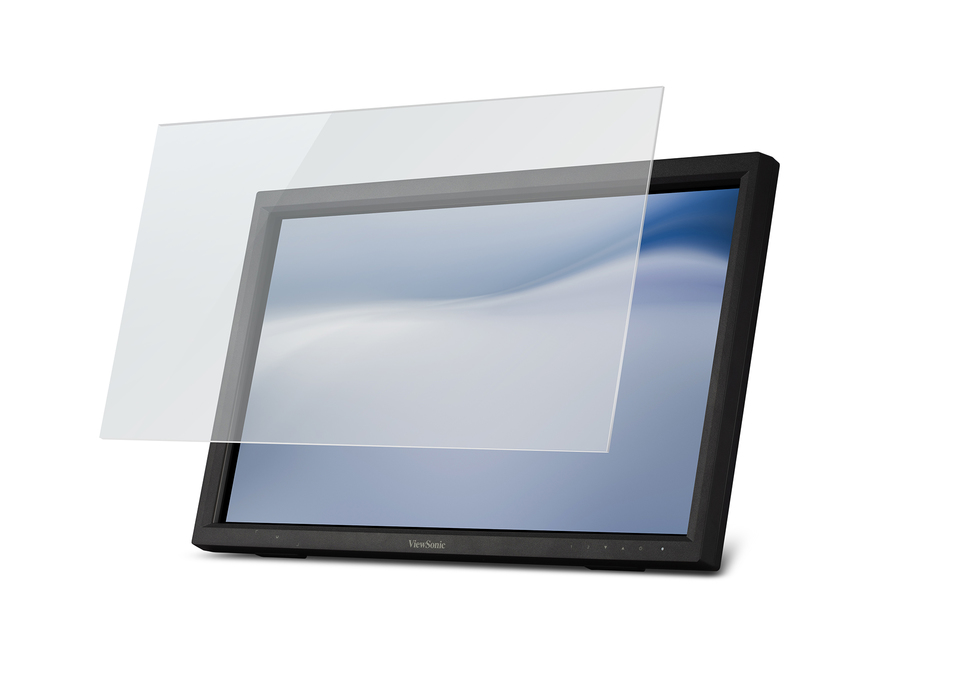

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

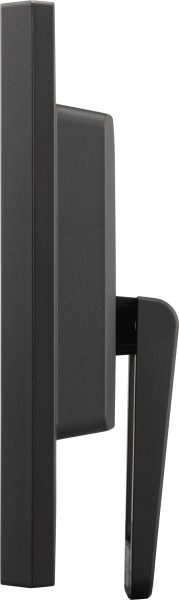

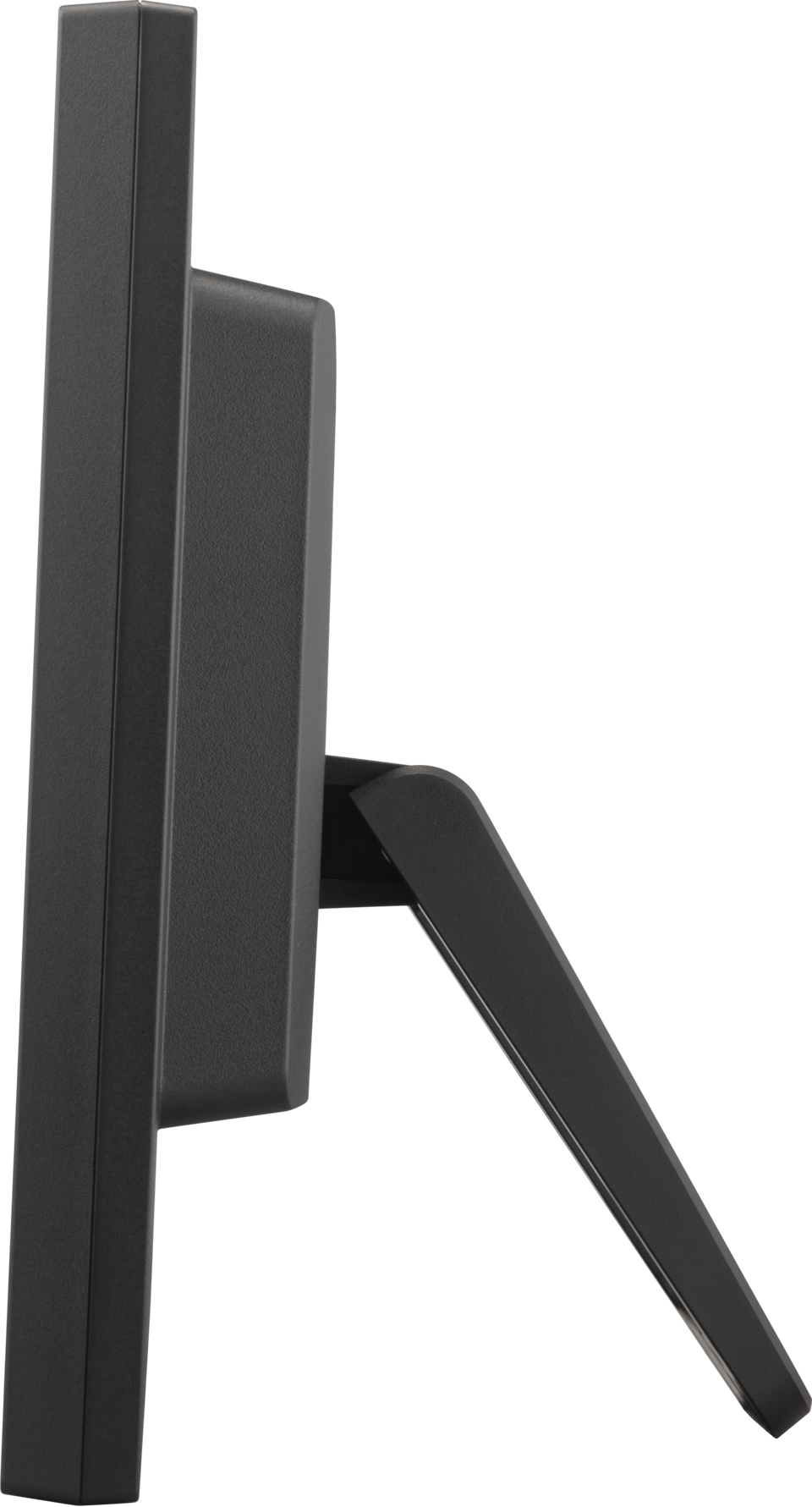

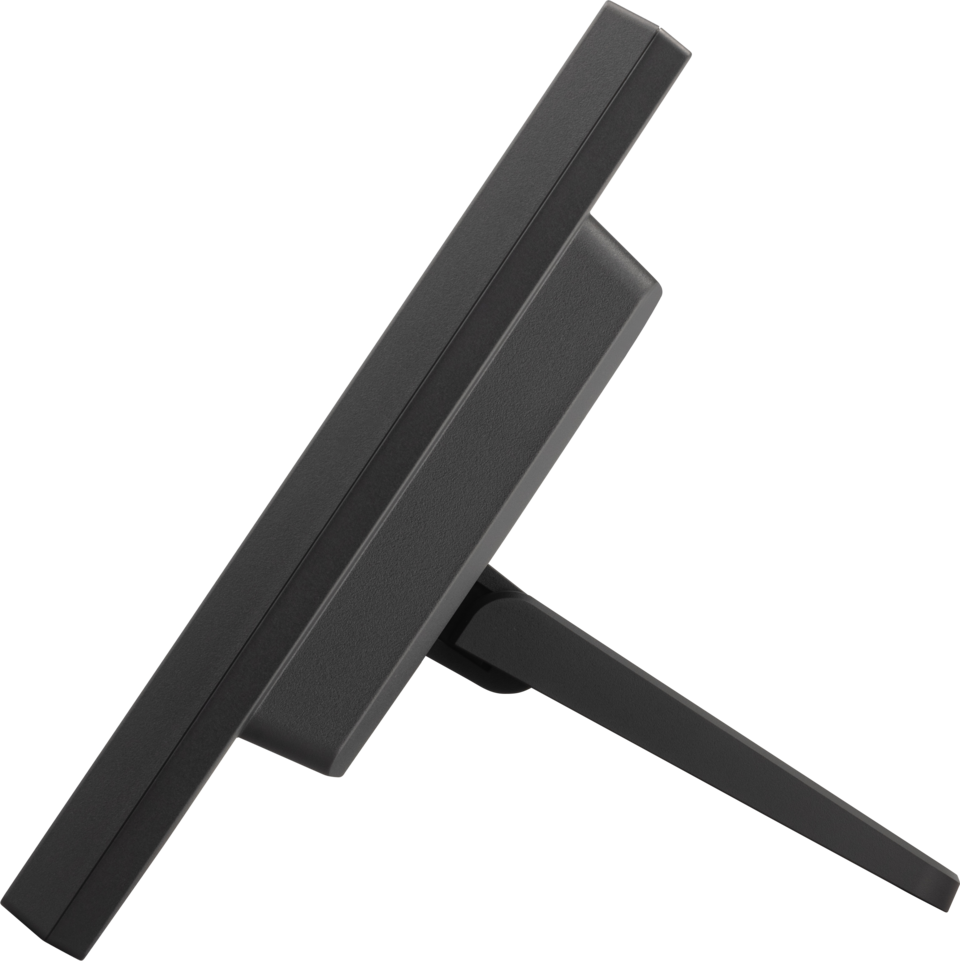

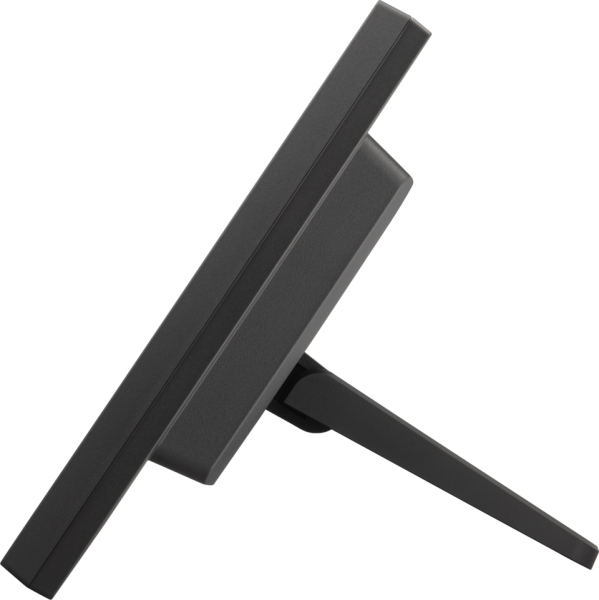

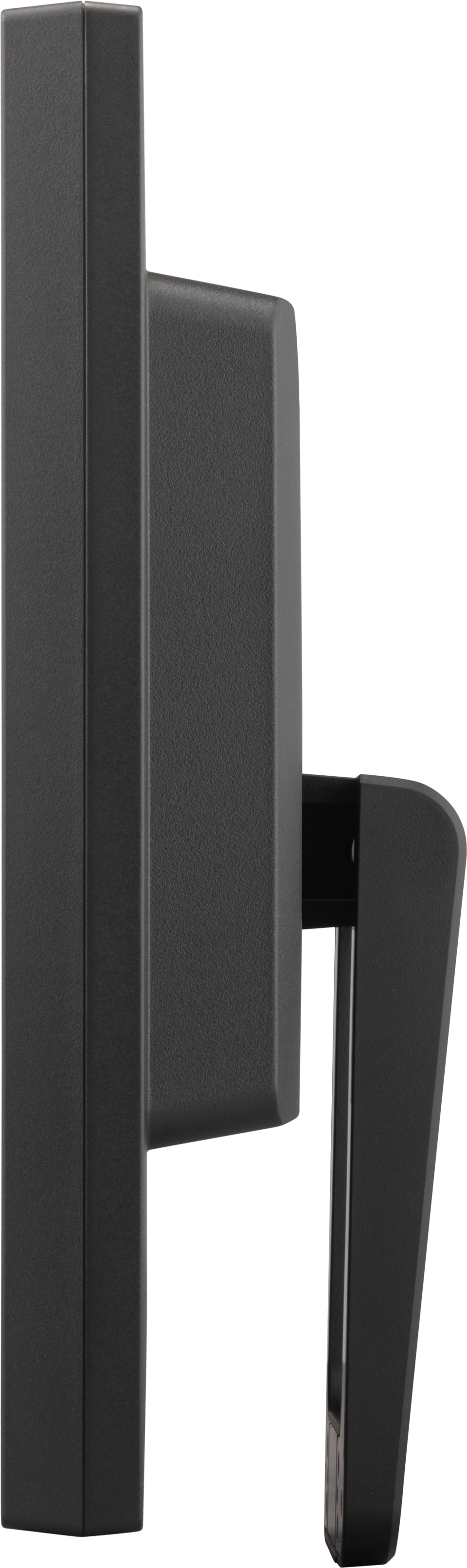

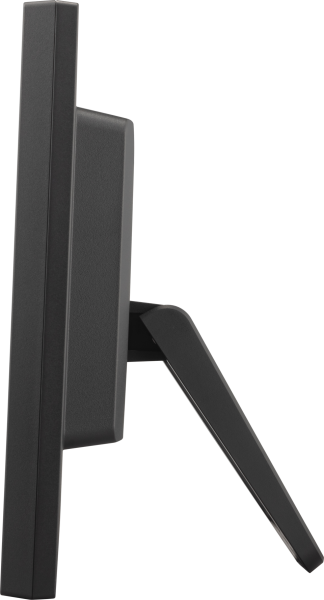

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Full HD 1080P

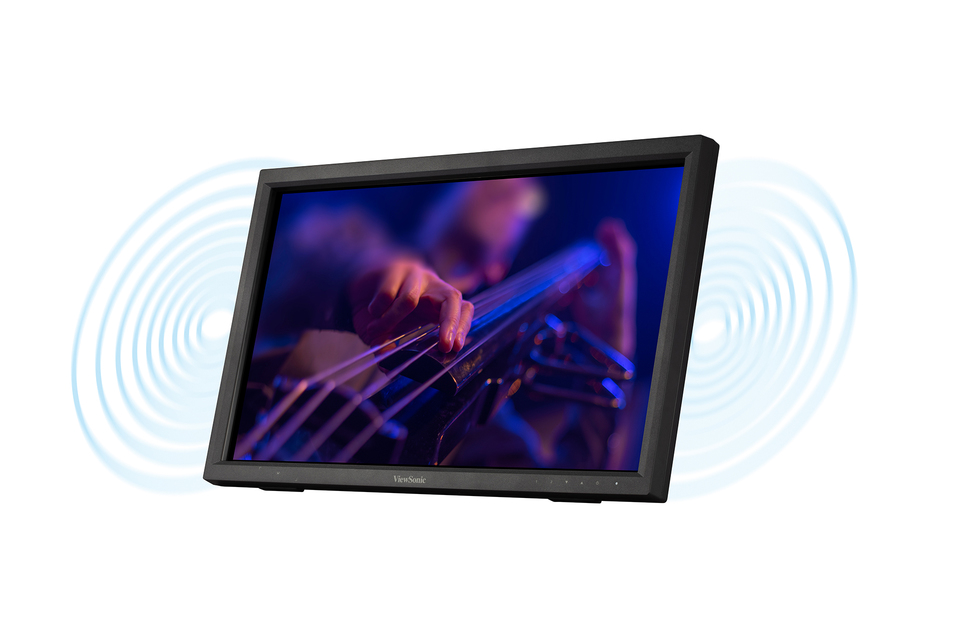

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain

Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

Flicker-Free & Blue Light Filter

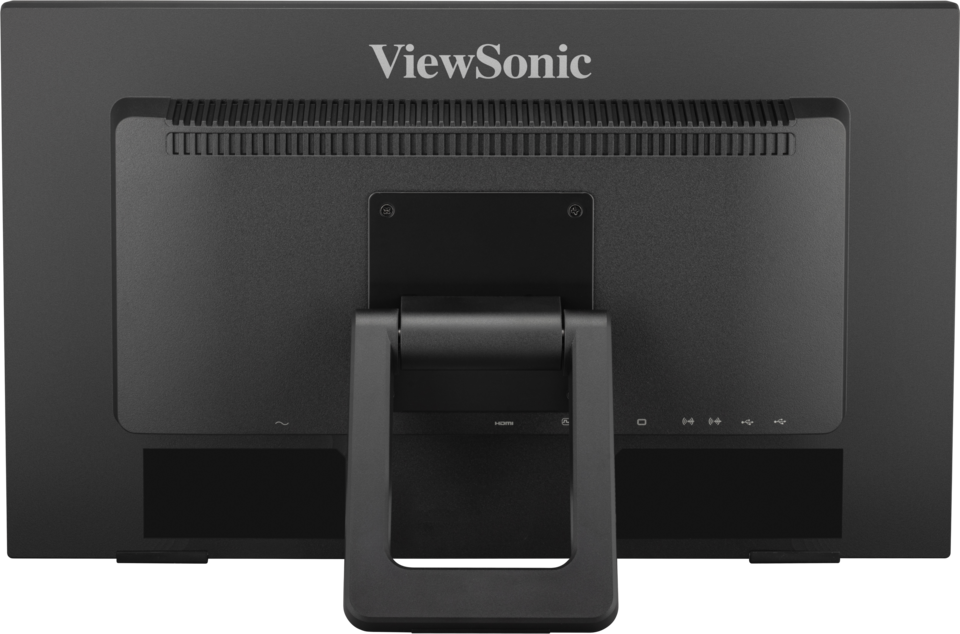

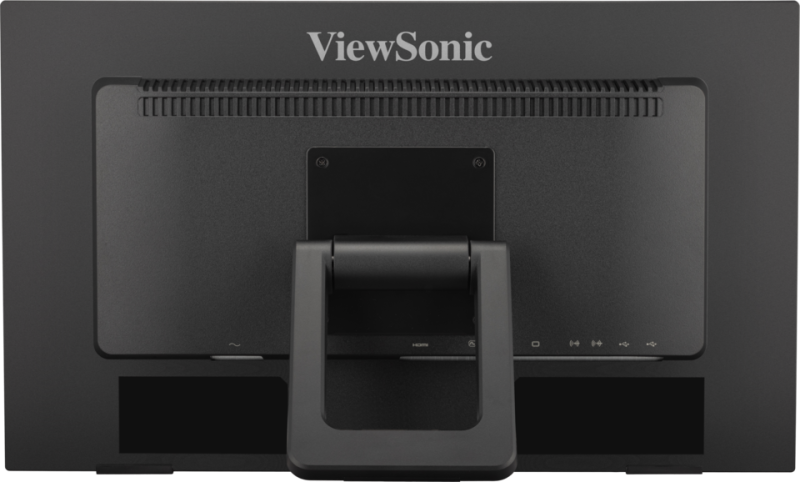

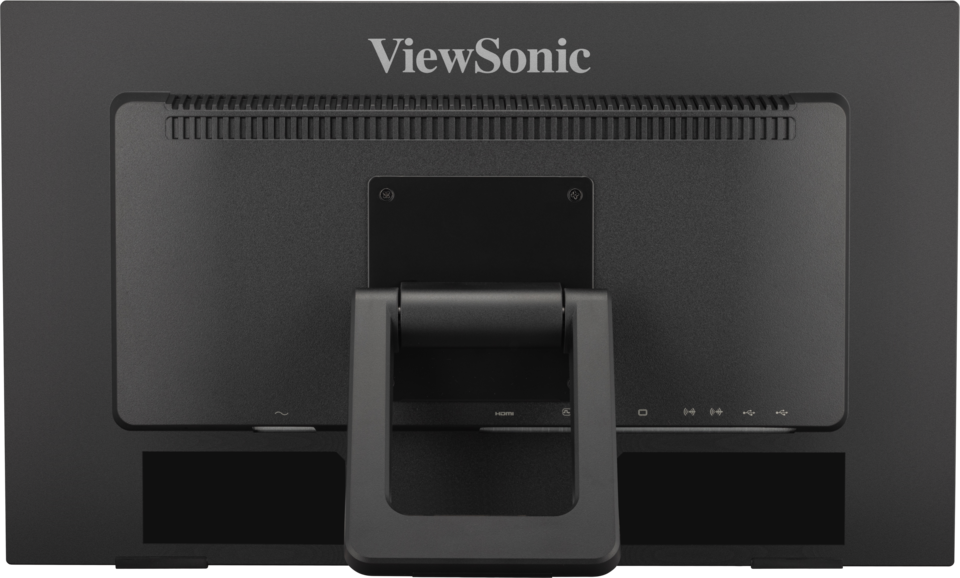

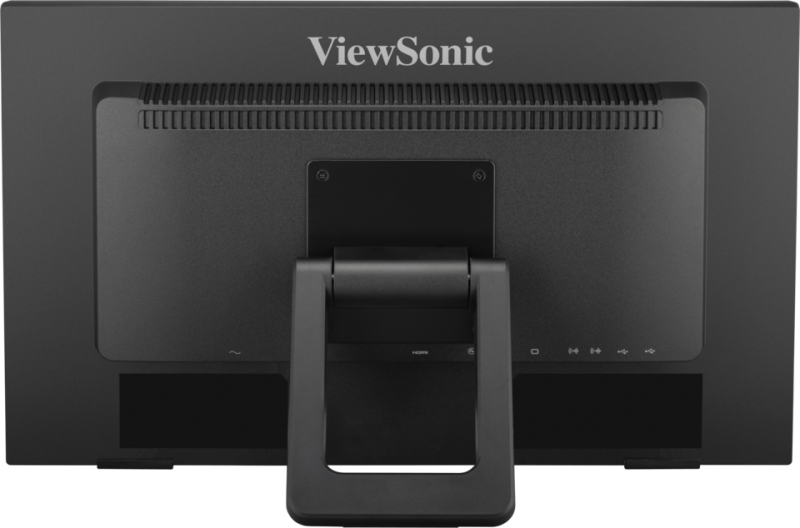

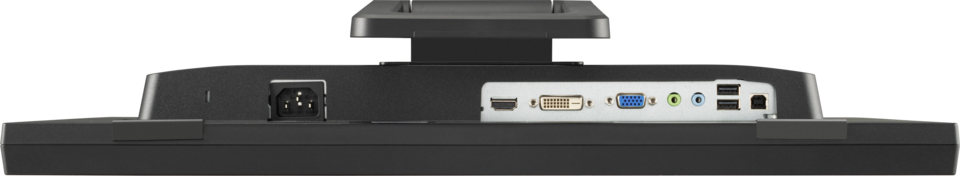

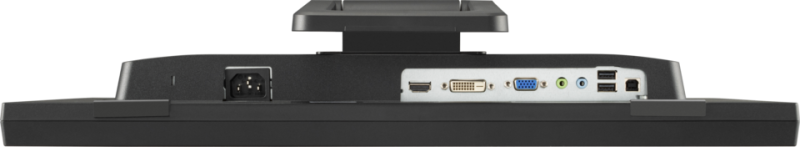

Dimension & I/O Ports

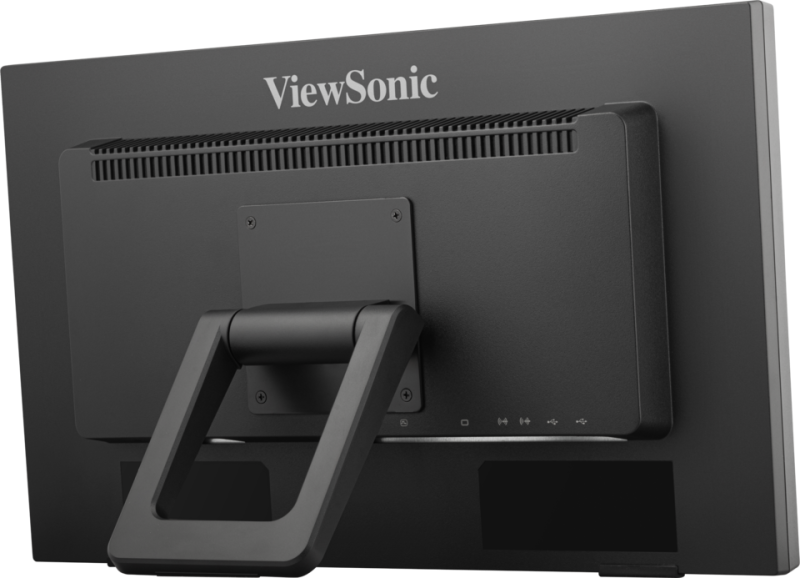

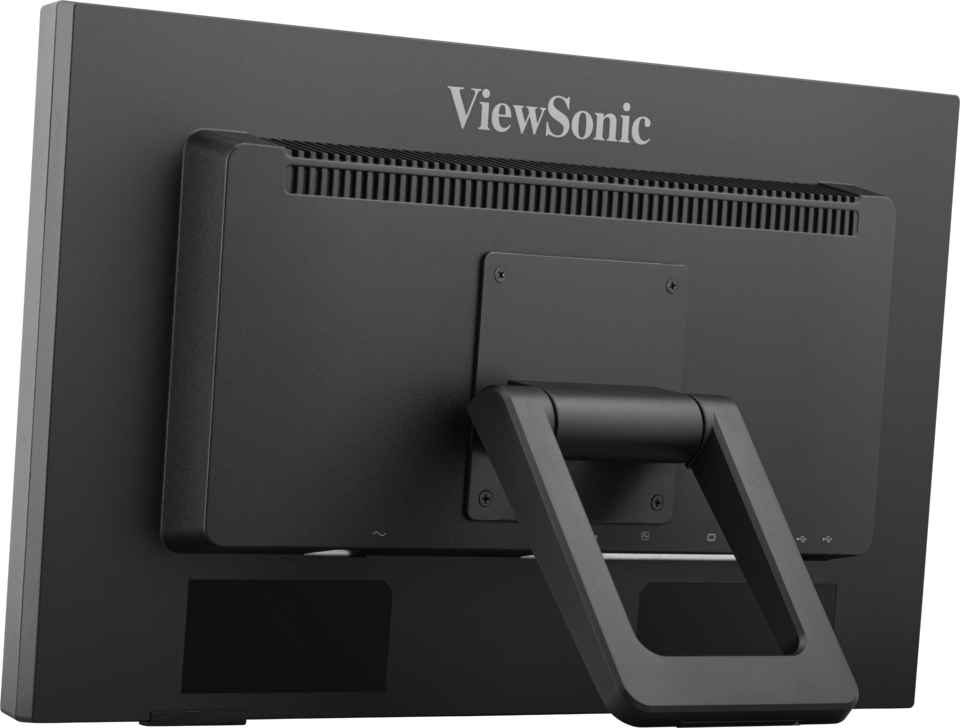

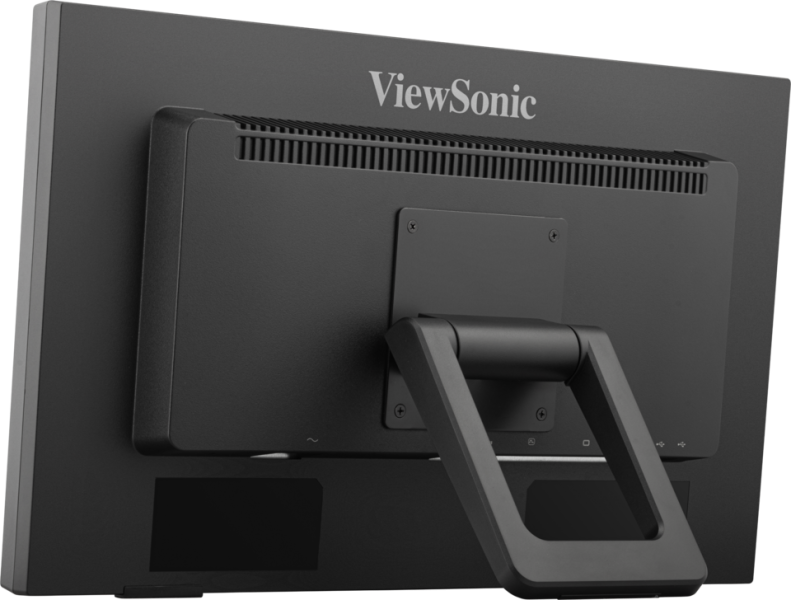

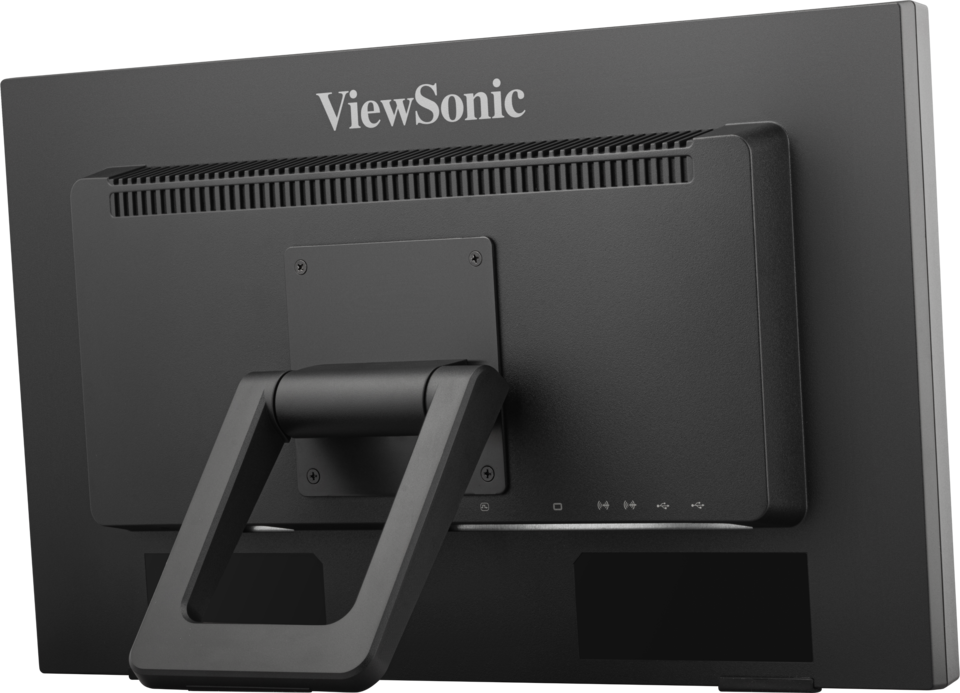

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

Menu Control Panel
Power In
VESA Compatible
(Wall Mount 100 x 100mm)
HDMI
DVI
VGA
Audio In
Audio Out
USB Downstream
USB Upstream

SPECIFIKACE

Displej
Velikost displeje (palce): 22
Viditelná plocha (palce): 21.5
Typ panelu: VA Technology
Rozlišení: 1920 x 1080
Typ rozlišení: FHD (Full HD)
Statický kontrastní poměr: 3,000:1 (typ)
Poměr dynamického kontrastu: 20M:1
Světelný zdroj: LED
Jas: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Poměr stran: 16:9
Doba odezvy (obvyklá GTG): 6.5ms
Doba odezvy (GTG w/OD): 6.5ms
Zobrazovací úhly: 178º horizontal, 178º vertical
Životnost podsvícení (v hodinách): 30000 Hrs (Min)
Zakřivení: Flat
Obnovovací frekvence (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Velikost pixelu: 0.249 mm (H) x 0.241 mm (V)
Dotyková obrazovka: IR, 10-point multi-touch
Povrchová úprava: Glossy, Hard Coating (7H)
Cover Glass Thickness: 2mm
Kompatibilita
Rozlišení PC (max): 1920x1080
Mac® Rozlišení (max): 1920x1080
Operační systém PC: Windows 10/11 certified; macOS tested
Mac® Rozlišení (min): 1920x1080
Konektor
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3,5mm audio výstup: 1
HDMI 1.4: 1
DVI-D: 1
Výkon v: 3-pin Socket (IEC C14 / CEE22)

Audio
Interní reproduktory: 2Watts x2
Výkon
Režim Eco (Úspora): 13W
Eco Mode (optimized): 16W
Spotřeba (běžná): 18.5W
Spotřeba (max): 21.8W
Napětí: AC 100-240V
Pohotovostní režim: 0.5W
Napájecí zdroj: Internal Power Supply
Doplňkový hardware
Slot zámku Kensington: 1
Cable Organization: Yes
Ovládací prvky
Fyzické ovládací prvky: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Provozní podmínky
Teplota: 32°F to 104°F (0°C to 40°C)
Vlhkost (nekondenzující): 20% to 90%
Wall Mount
Kompatibilní s VESA: 100 x 100 mm
Vstupní signál
Frekvence Horizontální: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frekvence Vertikální: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
Video vstup
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomie
Náklon (dopředu/dozadu): 20º / 40º
Hmotnost (imperiální)
Čistá hmotnost (lbs): 9.3
Čistá hmotnost bez stojanu (lbs): 8
Hrubá hmotnost (lbs): 12.6
Weight (metric)
Čistá hmotnost (kg): 4.2
Čistá hmotnost bez stojanu (kg): 3.7
Hrubá hmotnost (kg): 5.7
Rozměry (imperiální) (šxhxv)
Balení (palce): 22.8 x 15.9 x 6.4
Fyzicky (palce): 20.4 x 12.9 x 4
Fyzická velikost bez stojanu (palce): 20.4 x 12.1 x 2.4
Rozměry (metrické) (šxhxv)
Balení (mm): 580 x 405 x 162
Fyzicky (mm): 519 x 329 x 101
Fyzická velikost bez stojanu (mm): 519 x 308 x 61
Obecné
Nařízení: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
OBSAH BALENÍ: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recyklace/likvidace: Please dispose of in accordance with local, state or federal laws.
Záruka: *Warranty offered may differ from market to market
Správa napájení: Energy Star standards, EPEAT
