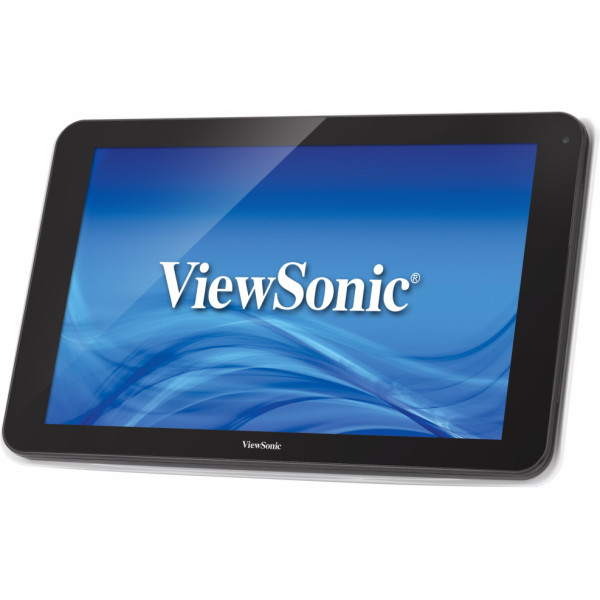

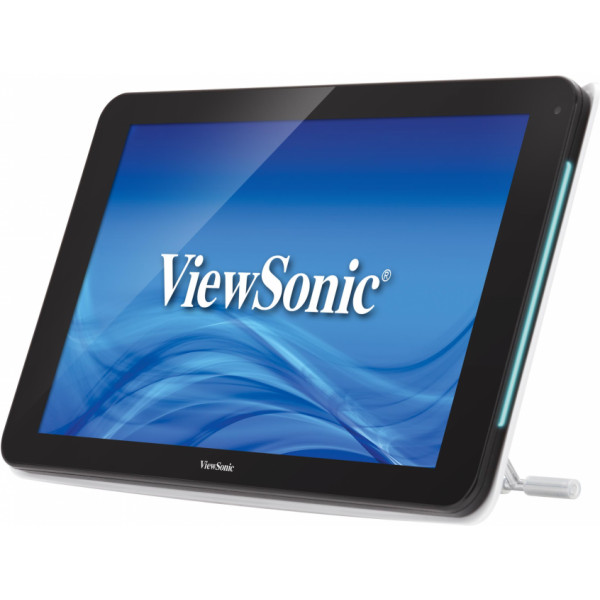

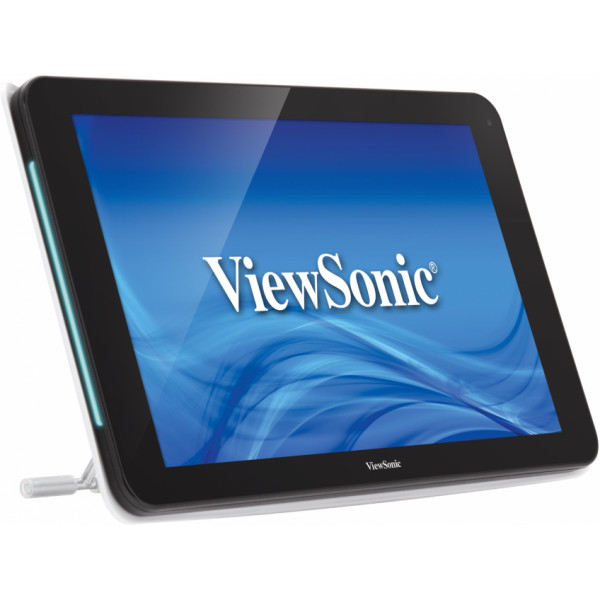

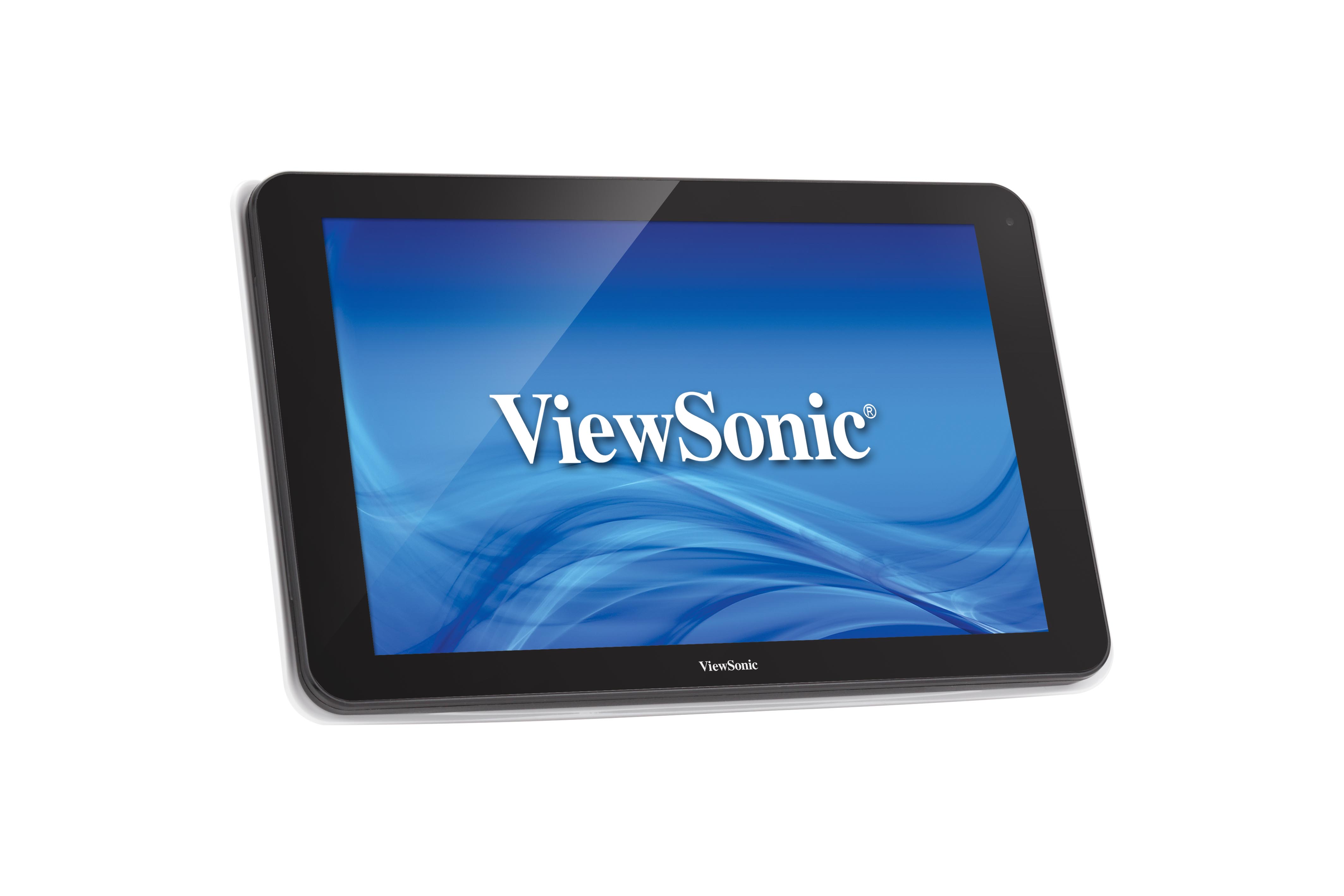

EP1042T
10” (10.1” viewable) All-in-one touch digital ePoster
- HD 800p resolution
- 10-point Multi-touch
- Integrated media player for video, photo and music playback
- Embedded 8GB internal memory and integrated speakers
- Dual Integrated Speakers
SPECIFIKACE
- SPECIFICATIONVelikost panelu: 10" (10.1'' diagonal)
Typ/Tech: TFT LCD Module with LED Backlight
Plocha displeje (mm): 216.96(W) x 135.6(H)
Poměr stran: 16:10
Rozlišení: 1280 x 800
Colors: 262K Color
Jas: 300 nits (typ.)
Kontrastní poměr: 800:1 (typ.)
Doba odezvy: 25 ms
Zobrazovací úhly: Top = 85, Bottom = 85, Left = 85, Right = 85 (typ.)
Backlight: LED
Životnost podsvícení: 10,000 Hours (typ.) - TOUCHTyp/Tech: Capacitive
Dotykové rozlišení: 1280x800
Dotykový bod: 10 point for gesture - INPUTAudio: x1 (3.5mm jack)
SD/SDHC: Micro SD (Up to 32GB)
- LANRJ45: x1 (10M/100M BASE-T, PoE 13W)
- USBTyp A: x2 (USB2.0)
Micro USB: x1 - CAMERA2M Pixel
- REPRODUKTORY2W x2
- BUILT IN PLAYEROS: Android 4.4
Procesor: Rockchip RK3188
Úložný prostor: 1GB DDR3-1600 SDRAM
Graphic: ARM Mali400 MP4
Úložný prostor: 8GB
HDMI (1080p): Up to 1080p @ 50/60Hz - POWERNapětí: 100-240VAC +/- 10% Wide Range
Spotřeba: 13.5W (Max) - ERGONOMICSNástěnný držák (VESA®): 75 x 75mm
- OPERATING CONDITIONSTeplota (º C): 32°F to 104°F (0°C to 40°C)
Vlhkost: 30% ~ 80% non-condensing - ROZMĚRY (Š x V x H)Fyzicky (palce / mm): 269.88 x 170 x 28.5 mm / 10.62 x 6.69 x 1.12 in.
Balení (palce / mm): 336 x 100 x 227 mm / 13.2 x 3.93 x 8.93 in. - WEIGHTČistá hmotnost (lb / kg): 0.727 kgs / 1.6 lbs
Hrubá hmotnost (lb / kg): 2.245 kgs / 4.95 lbs - What's in the box?1. AC Adapter
2. Power plug x 1 (US/EU/AU/UK)
3. Power and Micro SD card brackets
4. Display stand
5. Hardware Quick Start Guide
6. Software Quick Start Guide
7. Documentation CD (UG, QSG, Signage Manager software)
*Actual content may differ from market to market
