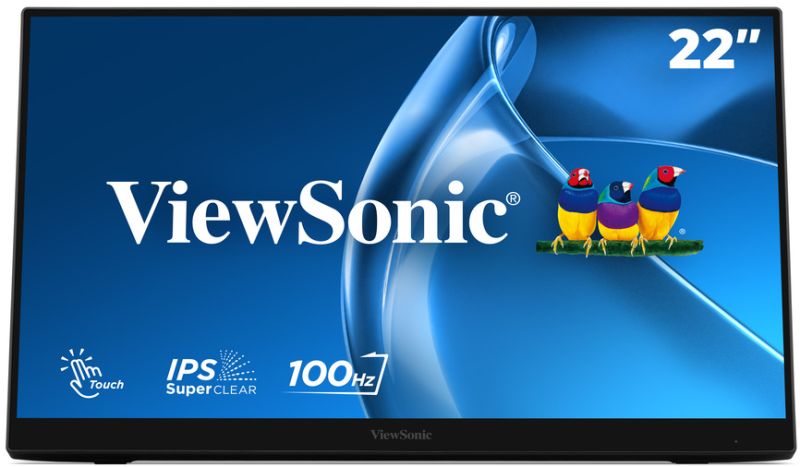

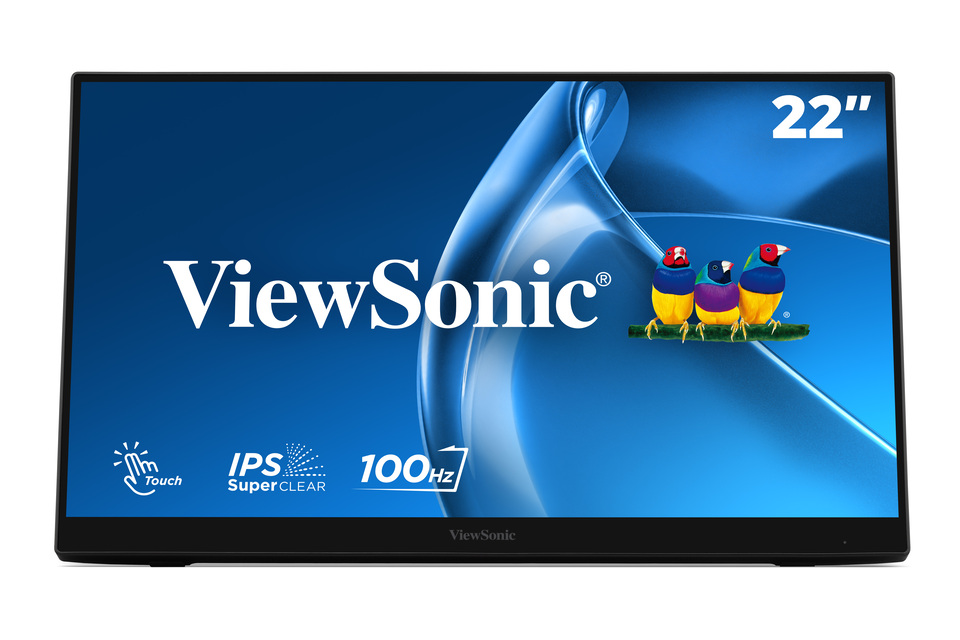

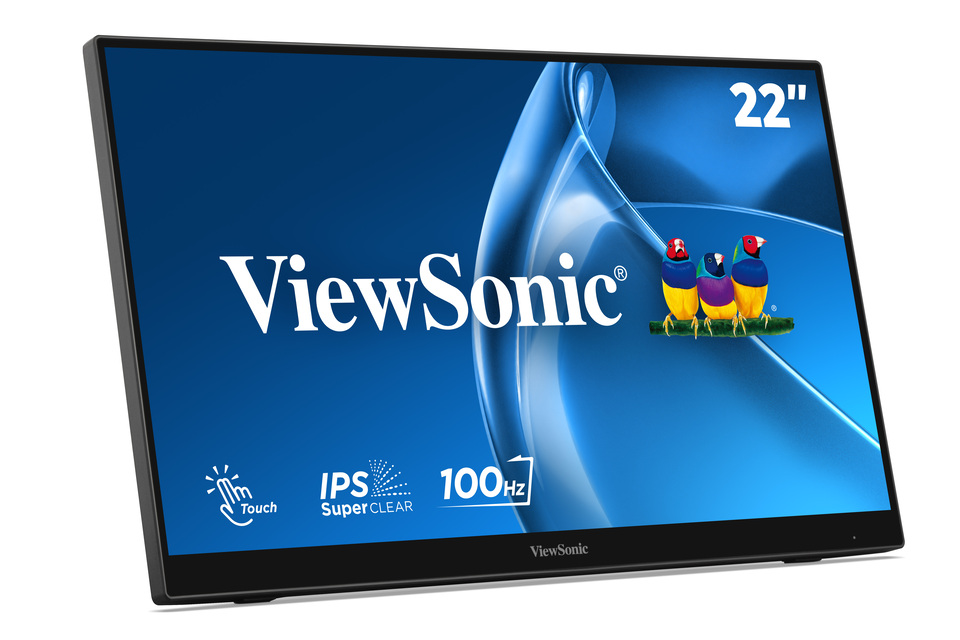

TD2231

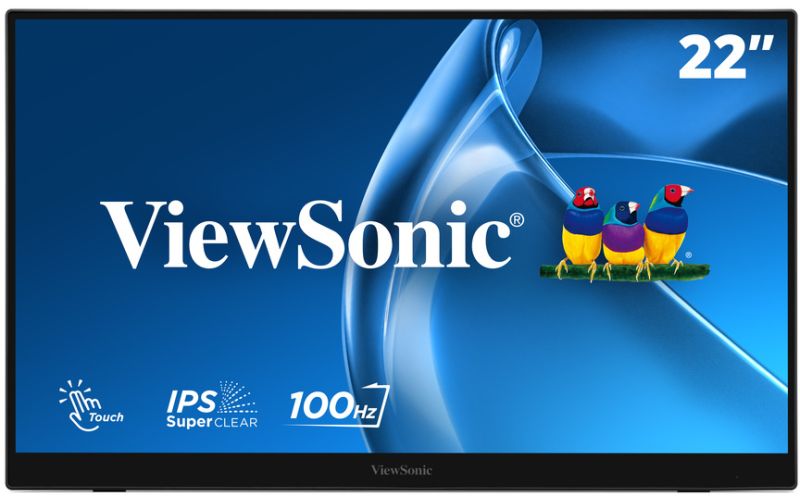

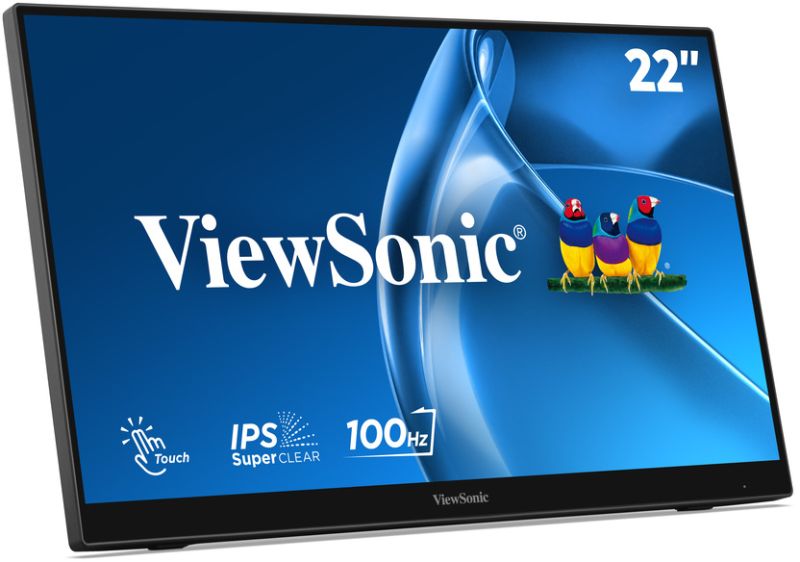

22’’ 100Hz Multi-Touch Portable Monitor

  • 10-point multitouch technology provides intuitive screen control
  • Capacitive touch with 6H hardness & anti-glare glass surface​
  • Passive stylus support for easy writing and navigation
  • HDMI, DisplayPort, VGA, two USB-A downstream ports, and a USB-B upstream port for flexible connectivity
  • 100Hz Refresh rate delivers fluid visuals
Sales Enquiry

OVERVIEW

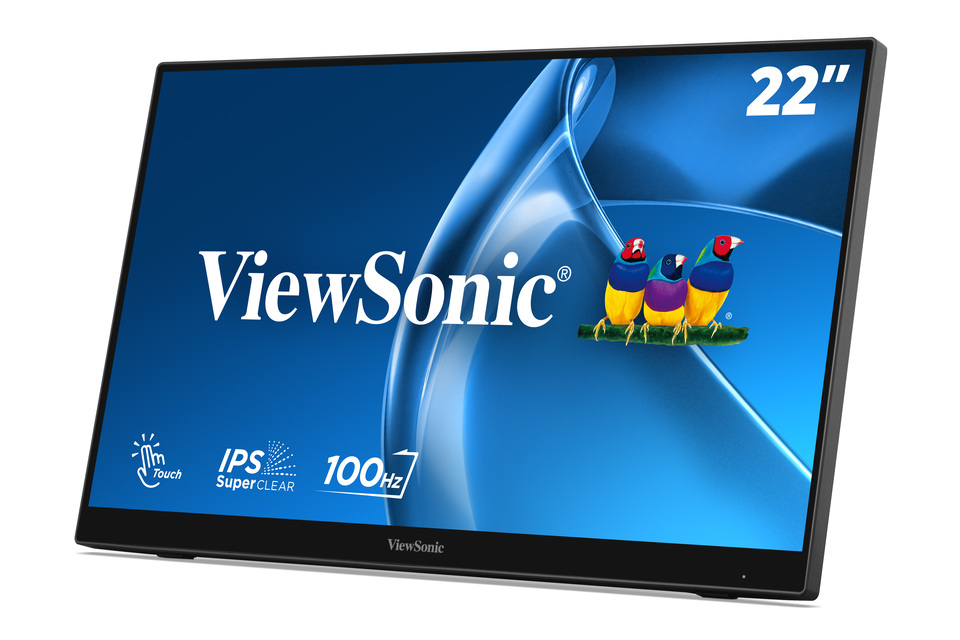

TD2231 is a 22” (21.5” viewable) Full HD touch monitor built for interactive use. Its IPS panel with a100Hz refresh rate delivers sharp, vivid visuals, while the 6H-hardness anti-glare glass surface withstands dailymulti-touch use. With 10-point touch and passive stylus support, tapping, writing, and navigating feel natural.HDMI, DisplayPort, and VGA inputs, along with two USB-A downstream ports and a USB-B upstream port, enable easyconnectivity for everyday use.

Designed For Versatile Installation Options

The 22" touch monitor is your one-stop solutionfor industrial, retail, and commercialapplications. Whether a self-ordering kiosk or industrial automation control unit, the TD2231 delivers versatileinstallation options and an intuitive10-point touch response technology.​

Designed For Versatile Installation Options

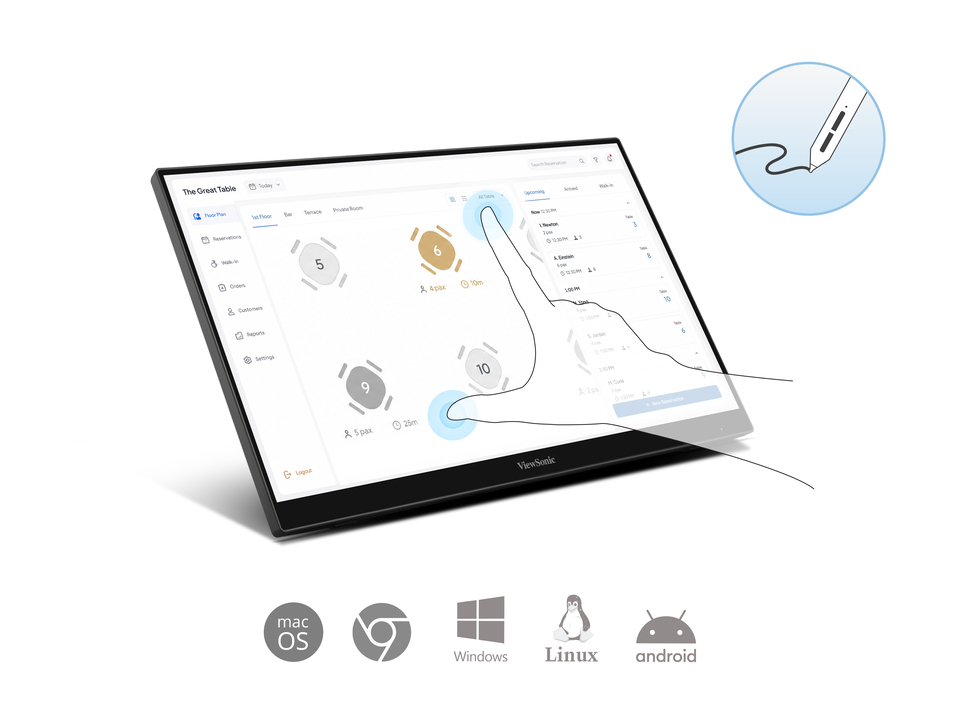

Advanced Touch Capabilities and Screen Performance

Experience intuitive screen control with an advanced capacitive touchscreen. Easily tap, pinch, andswipe on a responsive display that delivers exceptional performance and stunning images.

Note:
1. Touch feedback control not applicable to iOS & iPadOS devices.
2. Download vTouchsoftware to enable touch feedback on MacOS.
3. Ensure your mobile device's connectivity supports USBtouch signal transmission for the monitor's touch feedbackcontrol.
4. Compatible with standard capacitive styluses (notincluded).​
5. The stylus tip diameter must be greater than 4mm.

Touch Control with Fingers or Stylus
Advanced Touch Capabilities and Screen Performance

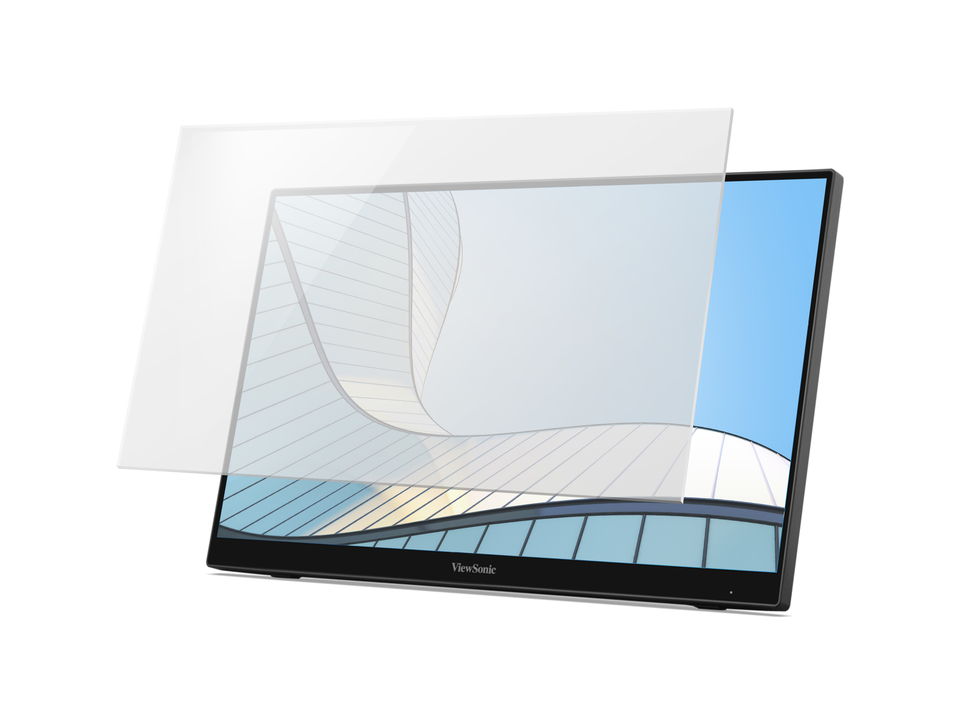

6H Scratch-Resistant Surface Hardness

The TD2231 touch display is constructed with a 6Hhardness protective glass which providesincreased scratch-protection to deliver thesafest and most durable touch experience. It prevents any heavy damage caused by fingers, nails, orstyluses during touch operations, making itideal for use in kiosks and other public environments

6H Hardness Screen
6H Scratch-Resistant Surface Hardness

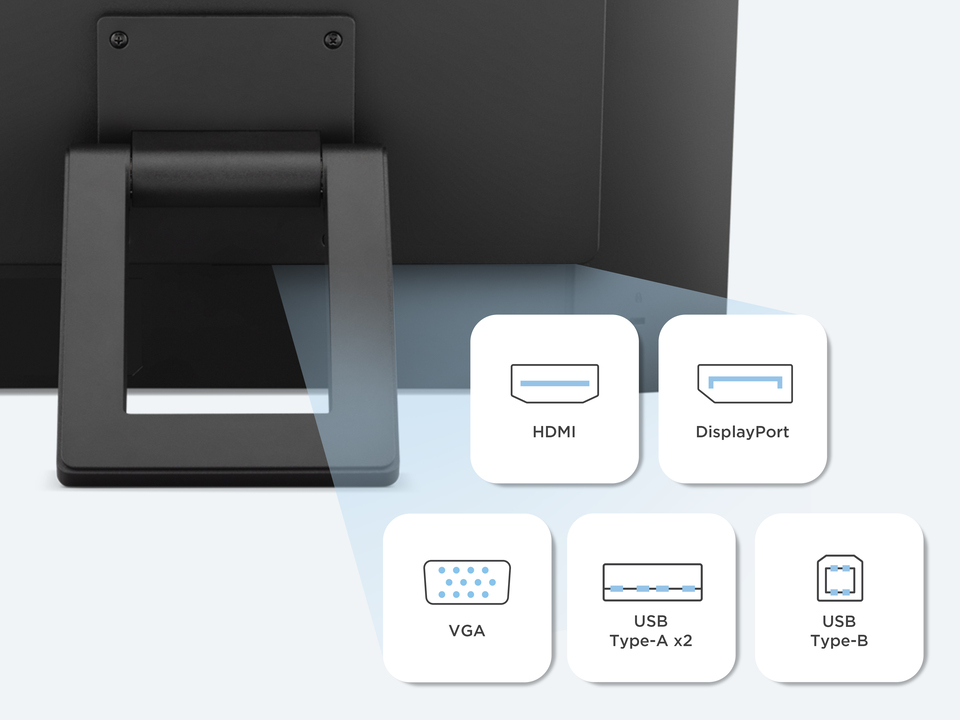

Connection Flexibility

HDMI, DisplayPort, and VGA inputs, along with twoUSB-A downstream ports and a USB-Bupstream port, provide flexible connectivity for a wide range of devices and peripherals.

HDMI / DisplayPort / VGA / USB 3.2 Type-A Downstream ×2 / USB3.2 Type-B Upstream ×1
Connection Flexibility

Smooth Visuals with 100Hz Refresh Rate​

With a fast 100Hz screen refresh rate, you canexperience a truly fluid visual display.This results in improved viewing clarity, reduced screen stutter during fast-moving actionscenes, and benefits work-related tasks,reducing eye strain and increasing productivity.

100Hz Refresh Rate
Smooth Visuals with 100Hz Refresh Rate​

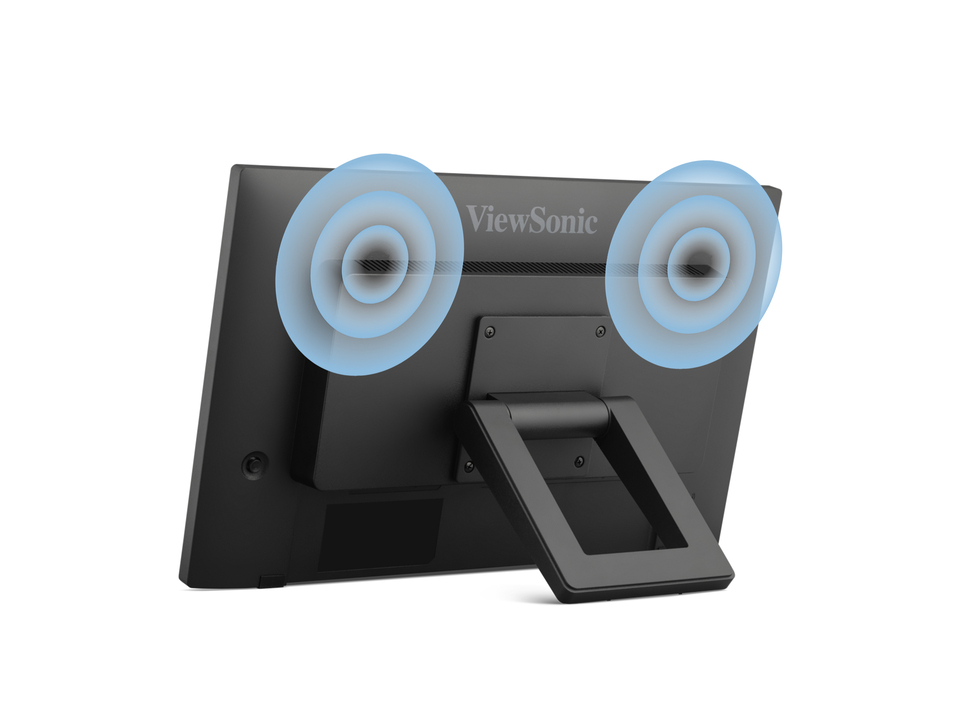

Dual Integrated Stereo Speakers

Designed with dual integrated speakers, this monitorcombines incredible screen performance withstereo sound for an immersive multimediaexperience.

Dual 2W speakers​
Dual Integrated Stereo Speakers

Relieve your Eyes from Strain

Reduce your eye strain and keep your eyes feelingfresh. Flicker-Free technology and a BlueLight Filter eliminate screen flickeringfrom extended viewing periods.

Flicker-Free & Blue Light Filter
Relieve your Eyes from Strain
Relieve your Eyes from Strain

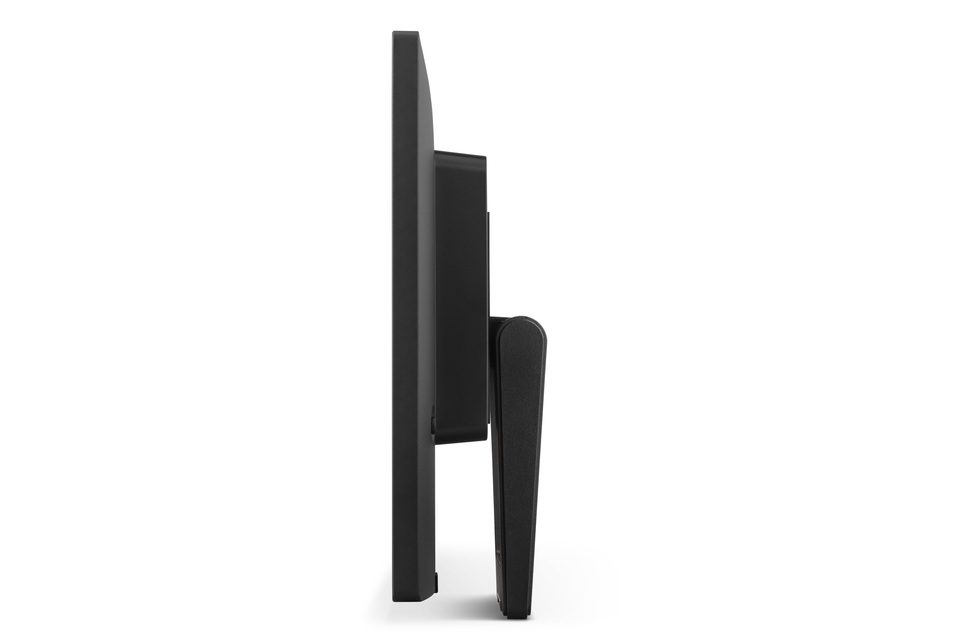

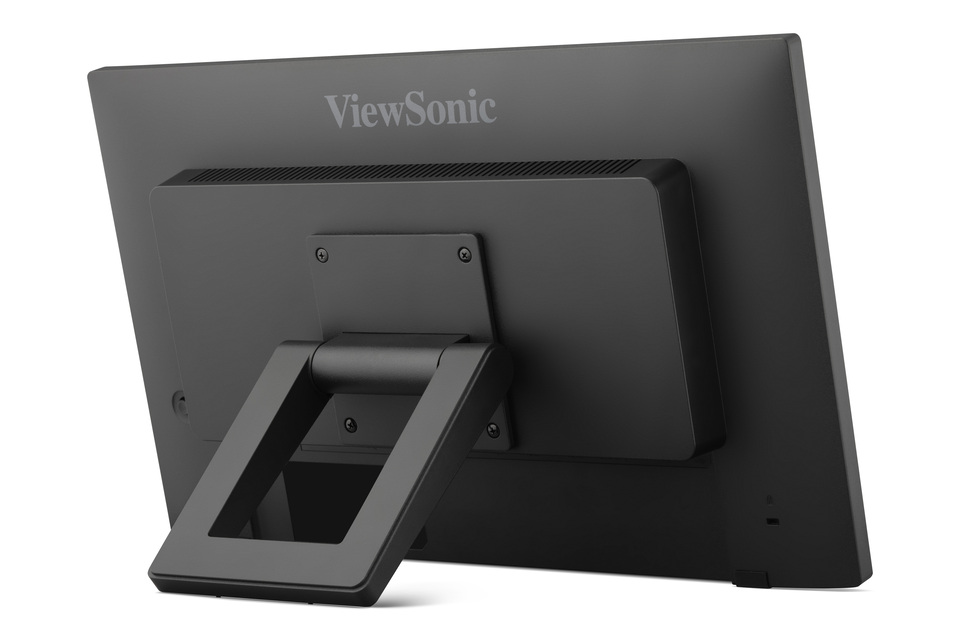

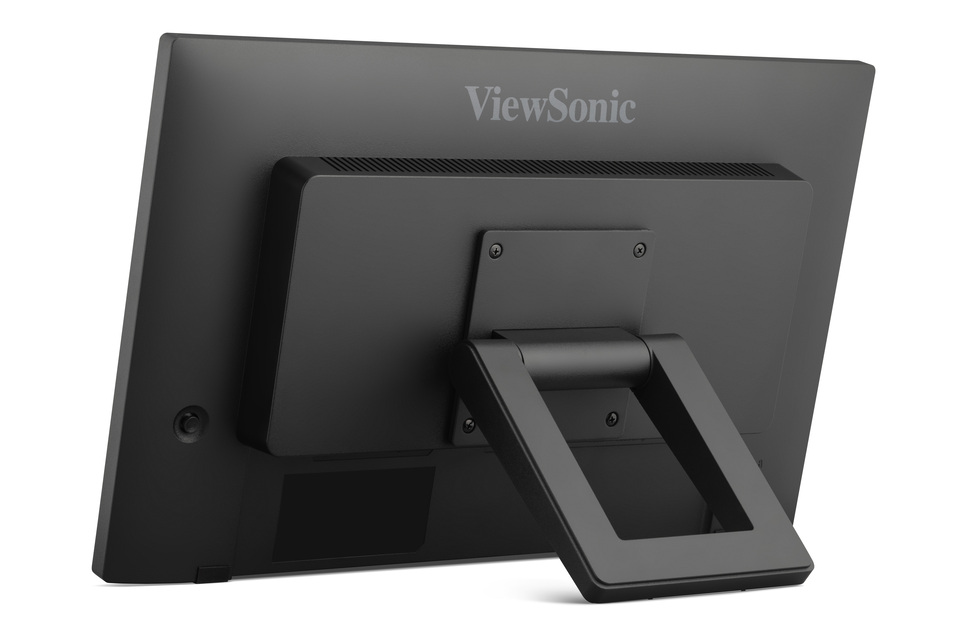

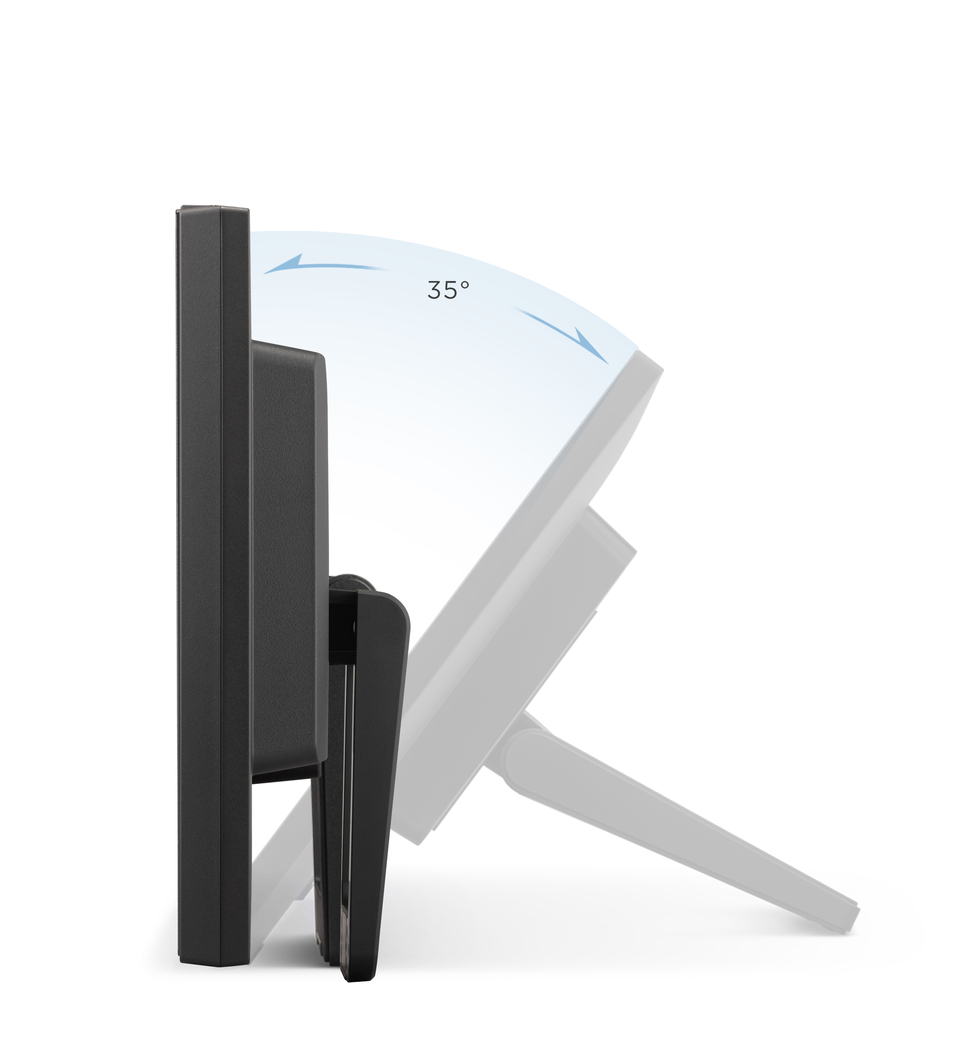

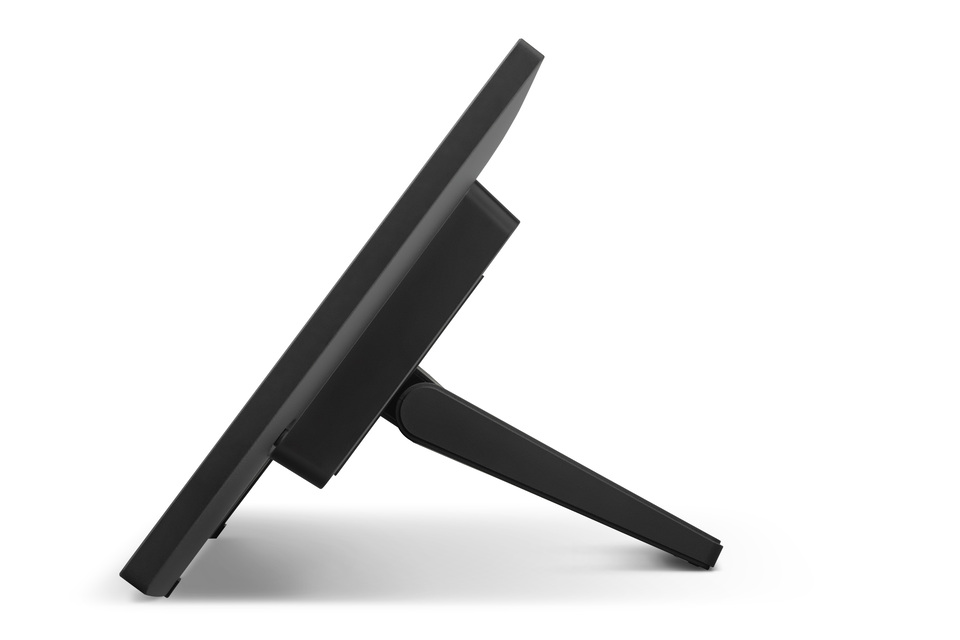

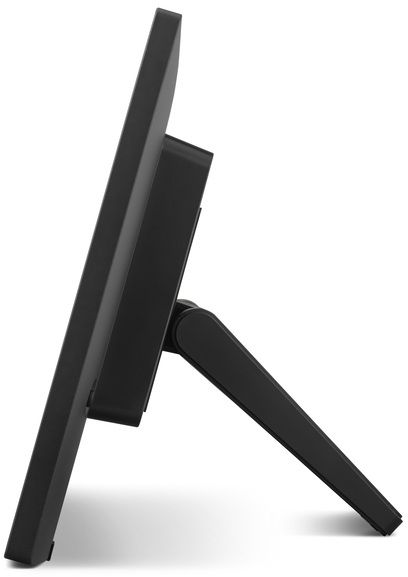

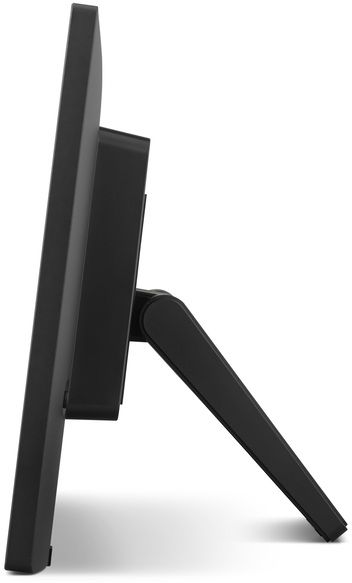

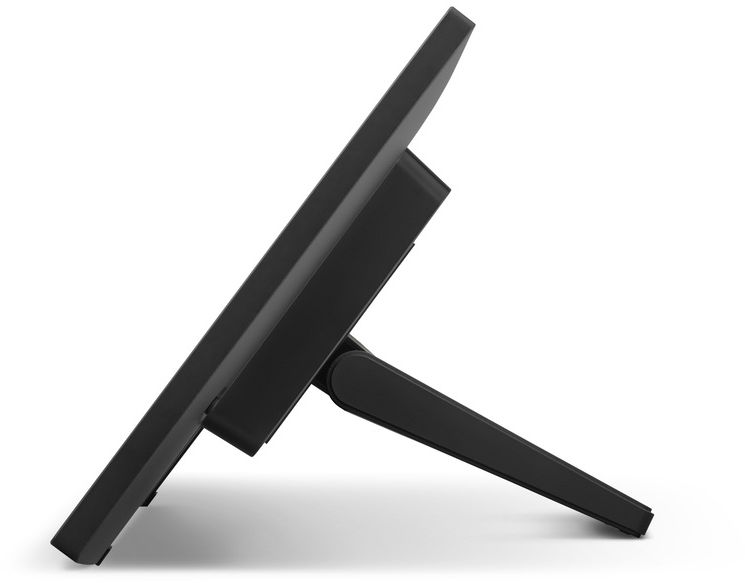

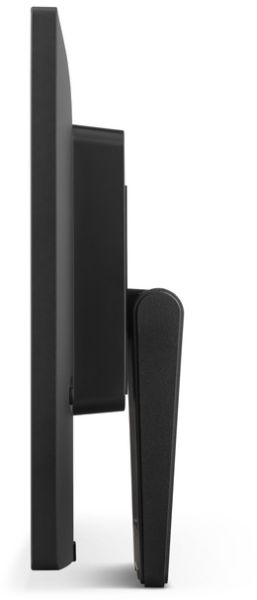

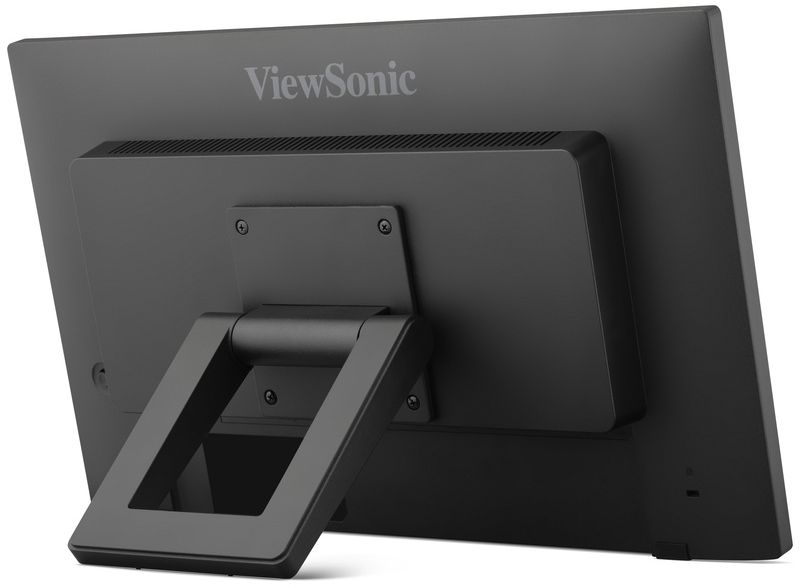

Bookstand Design with Flexible Angle Adjustment

This monitor includes an adjustable tilt, which allowsyou to easily tilt back up to 35 degrees,making it a good fit for anyone

Bookstand Design with Flexible Angle Adjustment

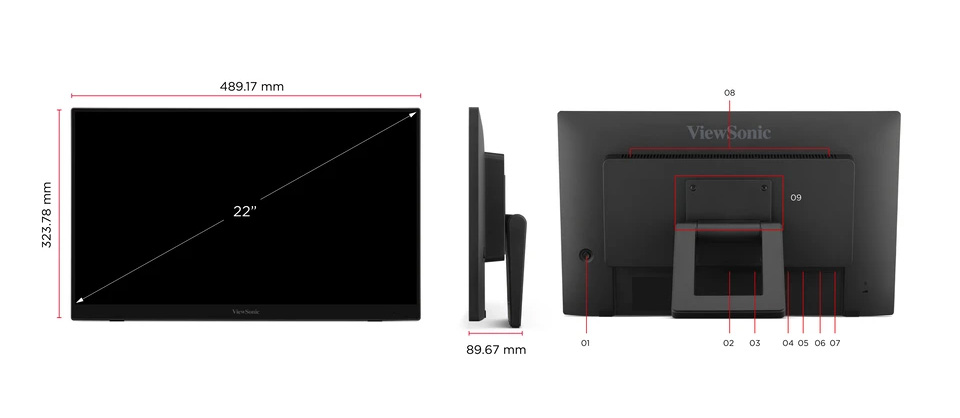

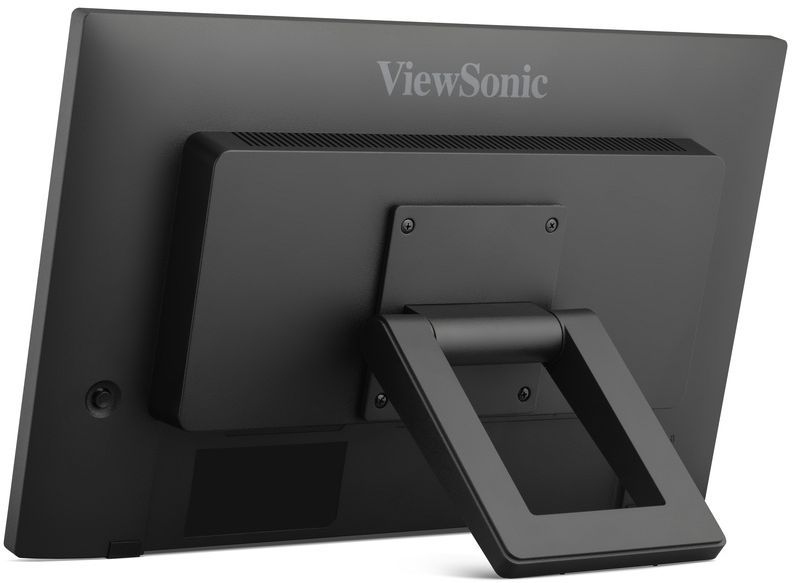

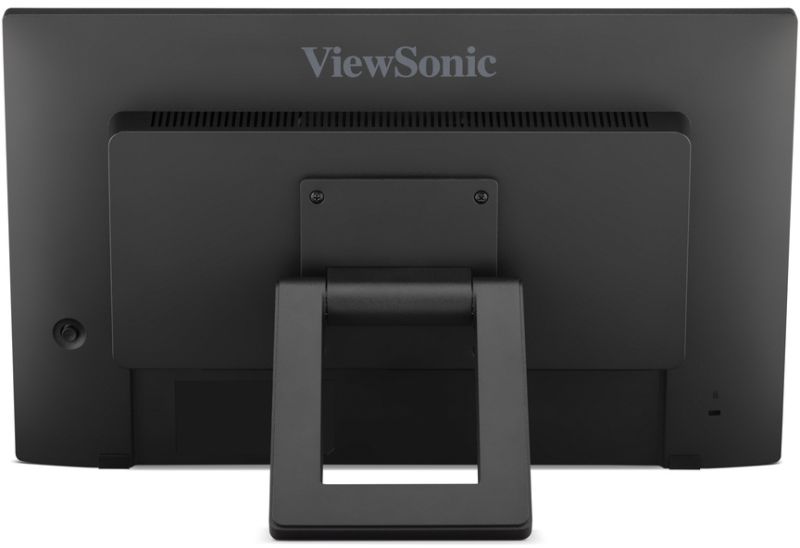

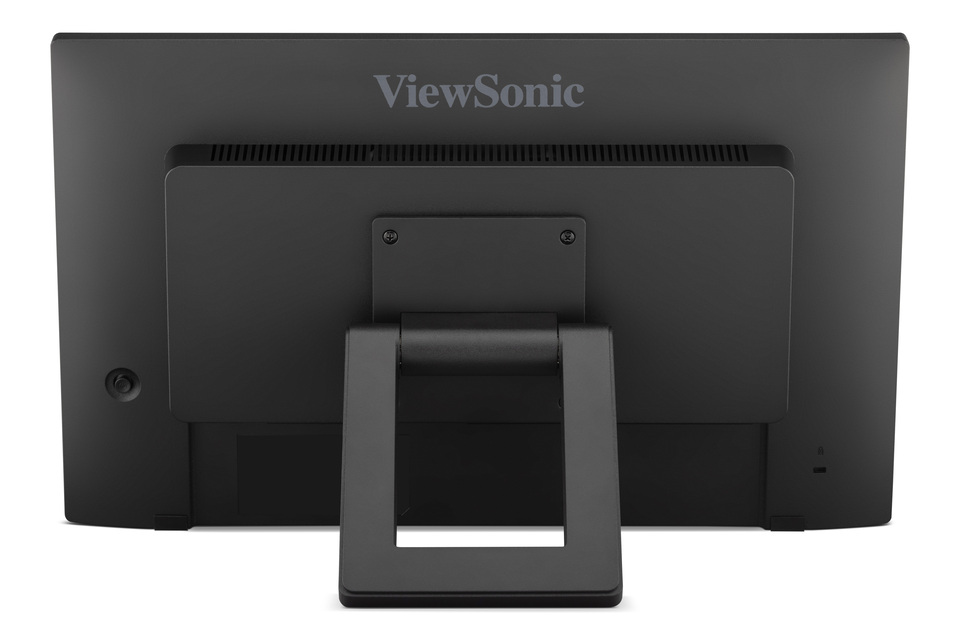

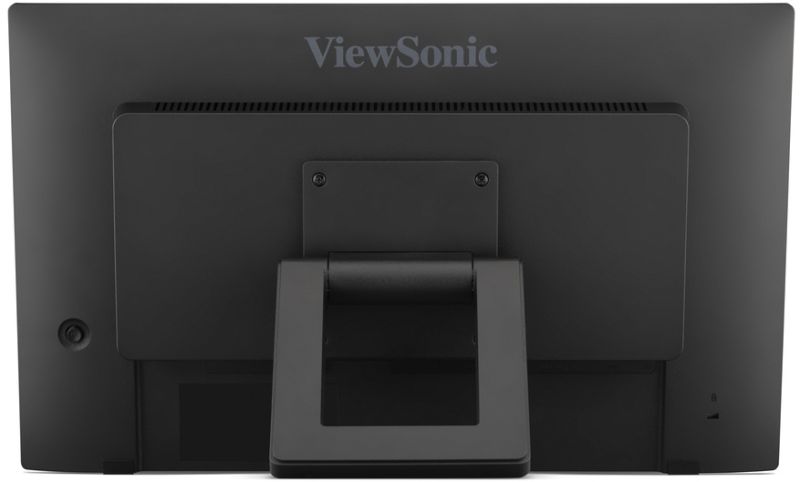

Dimensions & I/O Ports

100mm x 100mm VESA mount​
Dimensions & I/O Ports​
  1. Menu Control
  2. DP
  3. HDMI
  4. VGA
  5. Audio out x 2
  6. USB 3.2 Up Stream (Type B)
  7. USB 3.2 Downstream (Type A) x 2
  8. Speakers
  9. VESA Compatible : 100 x 100 mm

SPECIFICATIONS


  • Display
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,300:1 (typ)
    Dynamic Contrast Ratio: 80M:1
    High Dynamic Range: HDR10
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 4ms
    Response Time (GTG w/OD): 4ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 50000 Hrs (Min)
    Glass thickness: 1.1mm
    Glass Hardness: 6H
    Curvature: Flat
    Refresh Rate (Hz): 100
    Variable Refresh Rate Technology: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Cover Glass Thickness: 1.1mm
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • Connector
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 2.1: 1
    DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
