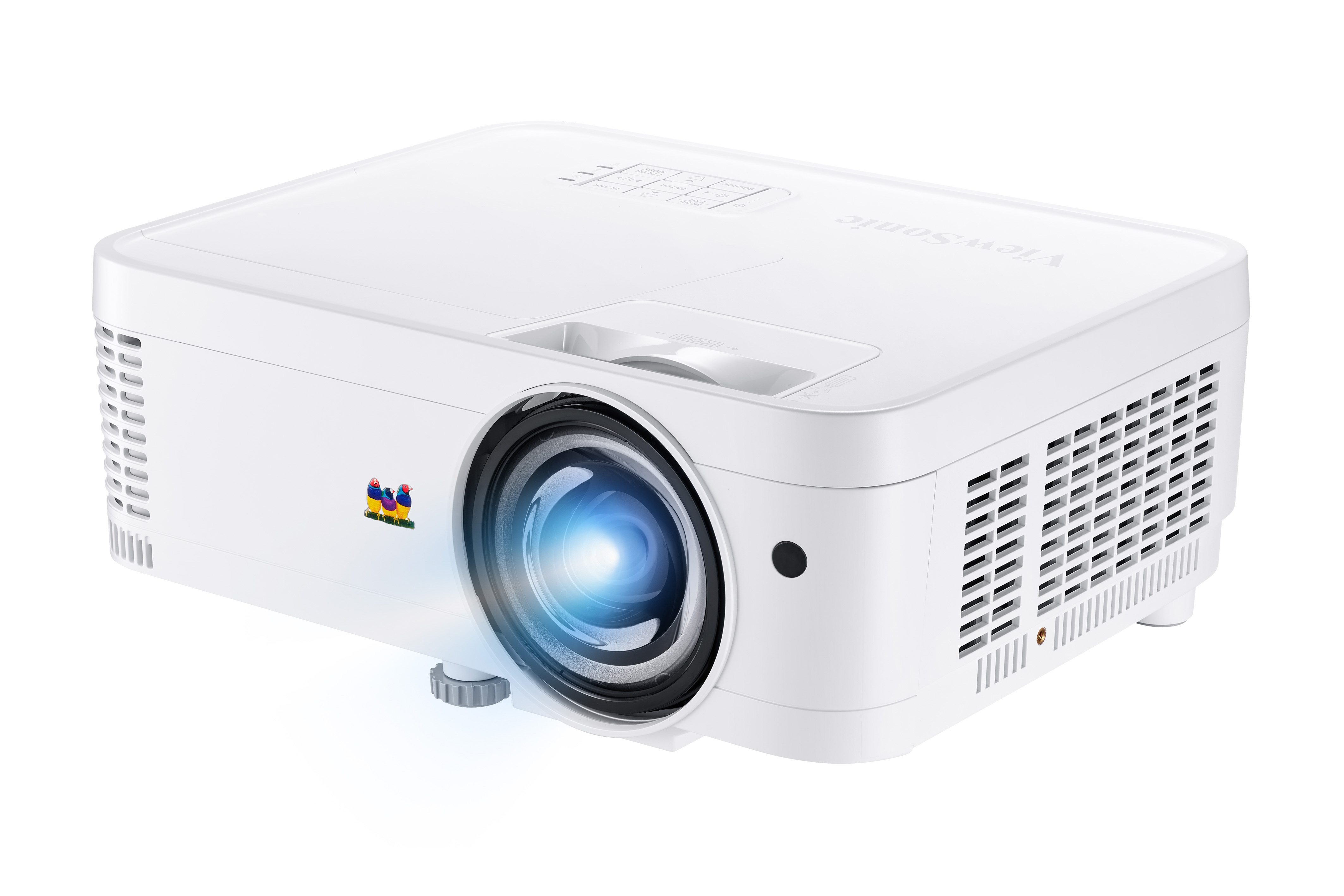

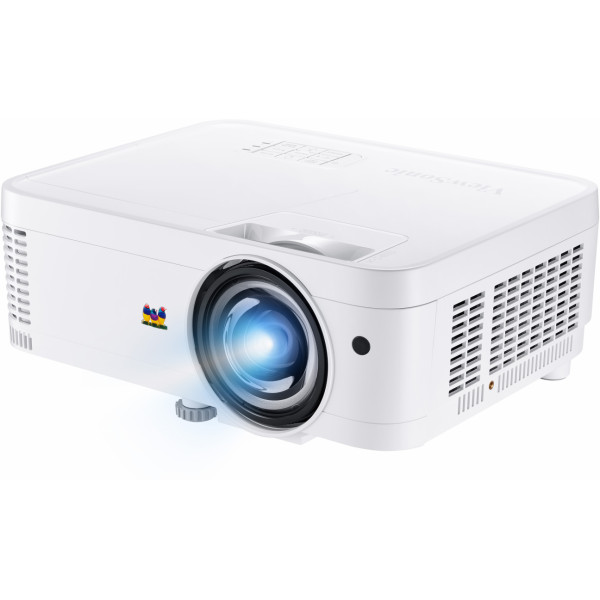

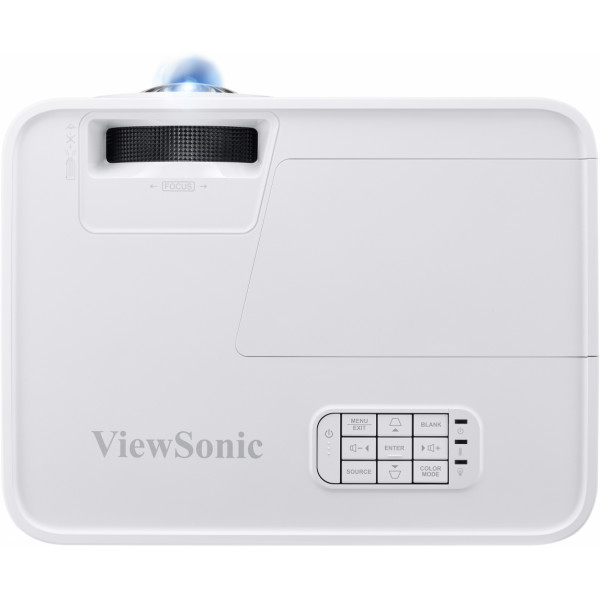

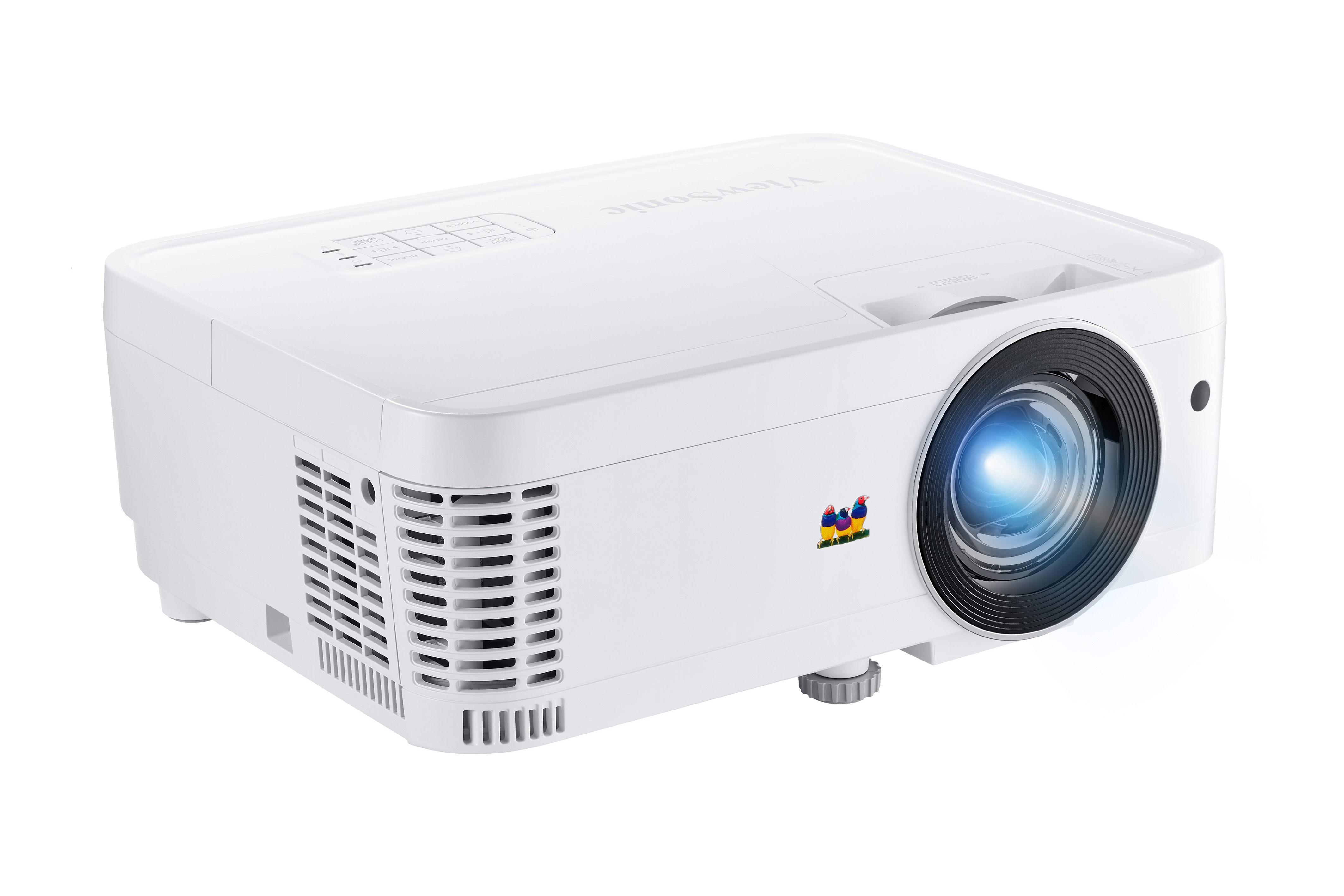

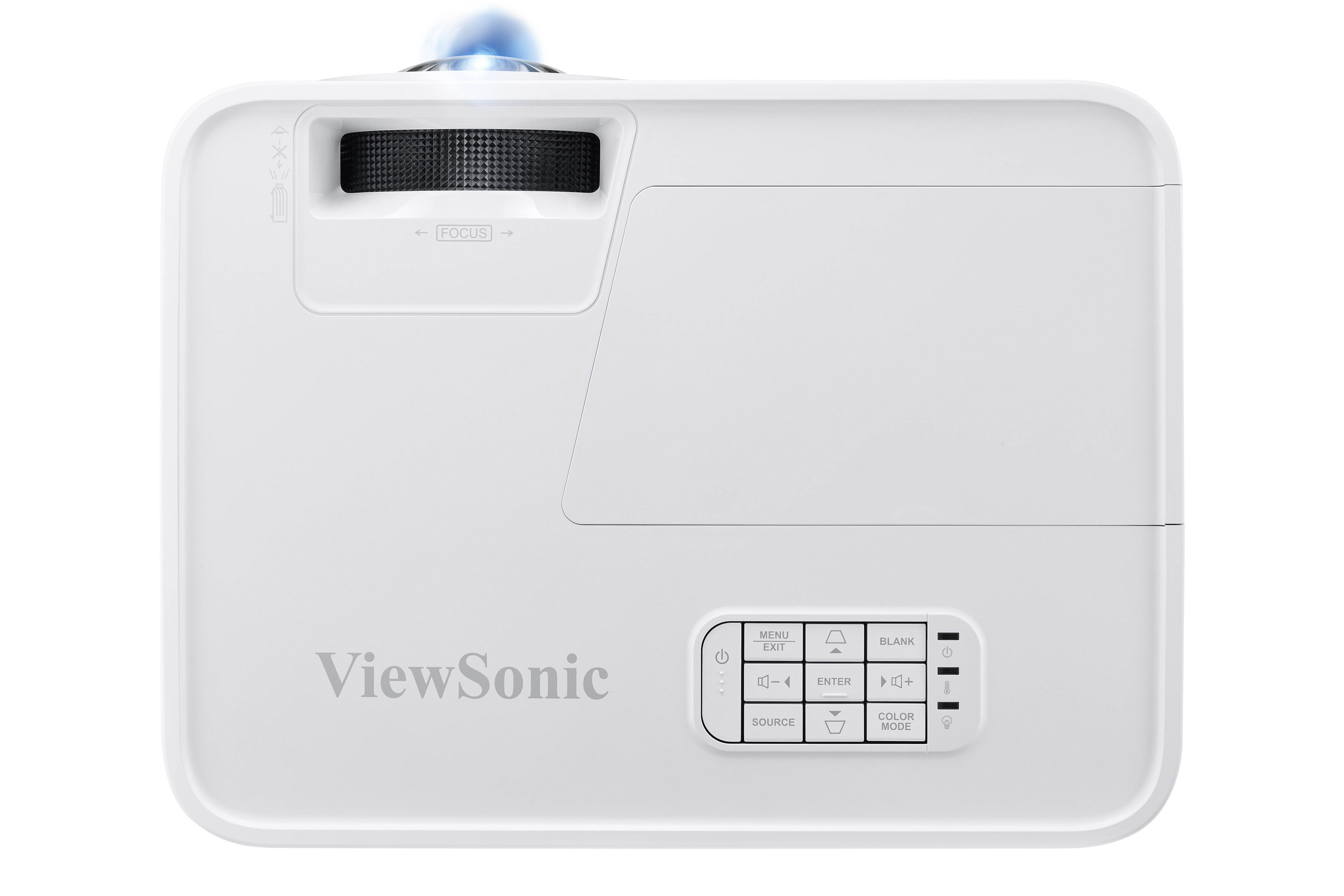

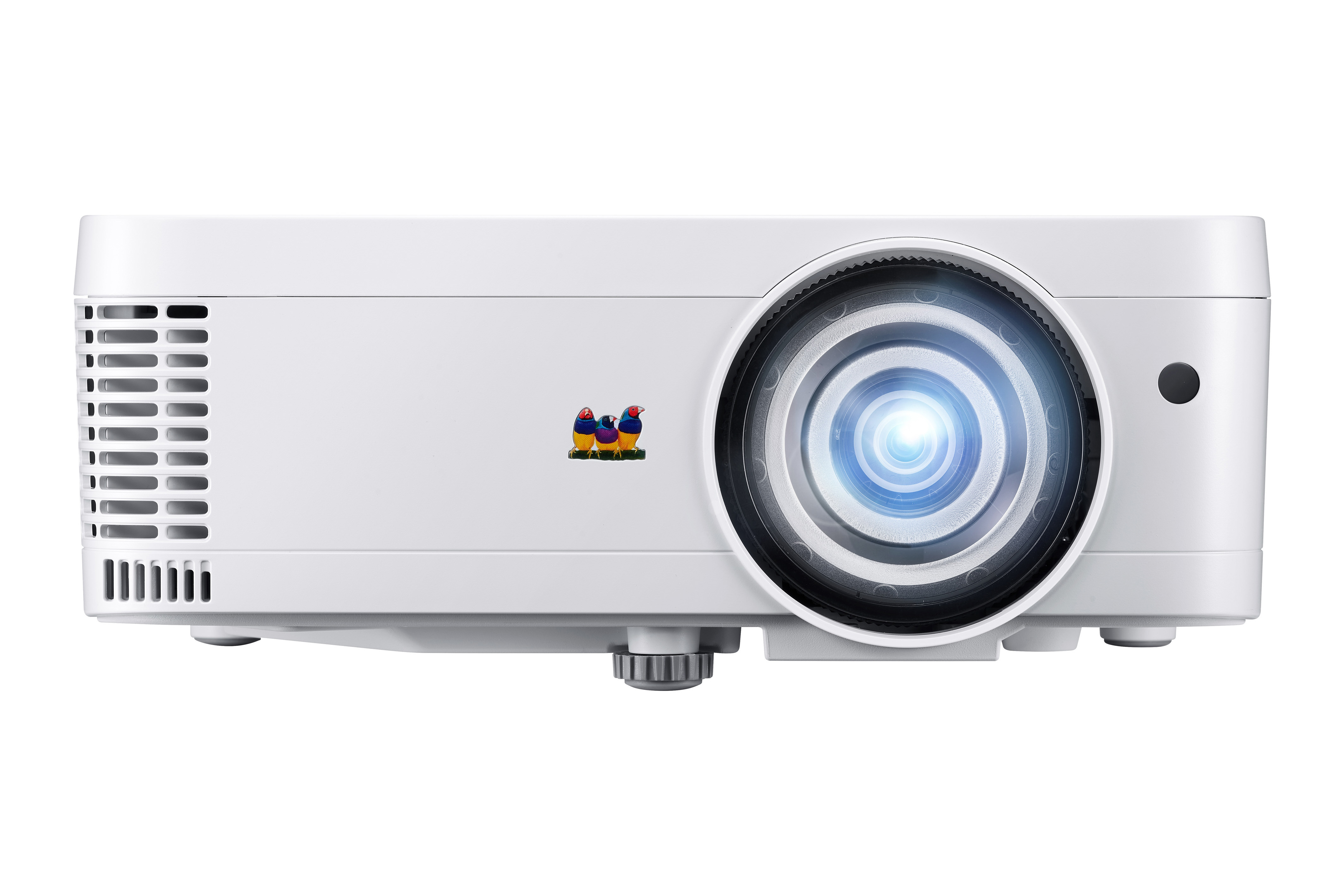

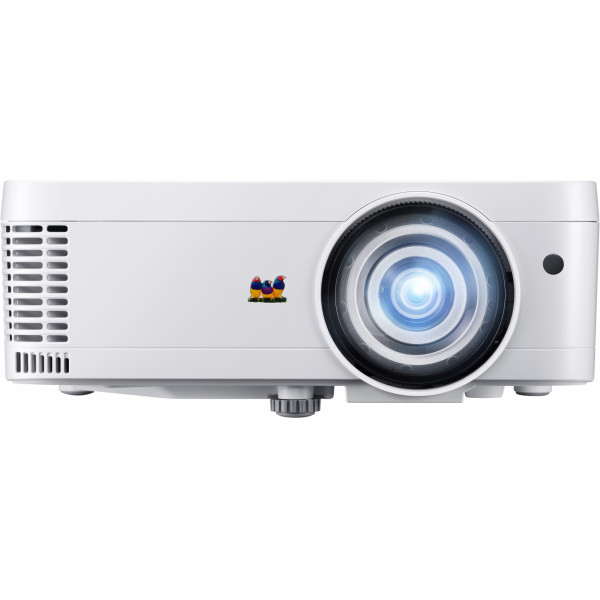

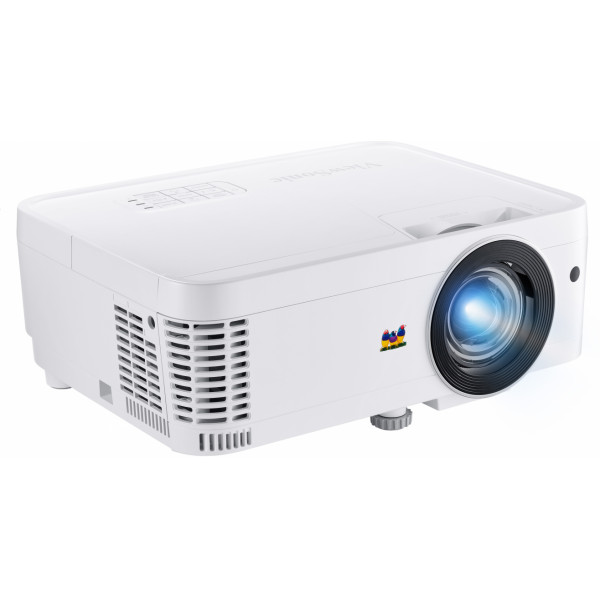

PS501W

3,600 Lumens WXGA Education Projector

  • 0.49 short throw ratio
  • SuperColor™ technology
  • 15,000 hours lamp life
  • Built in USB type A for charging
  • Optional PJ-vTouch-10S interactive module

SPECIFICATIONS


  • Specification
    Projection System: 0.65" WXGA
    Native Resolution: 1280x800
    Brightness: 3600 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 200W UHP Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lens: F=2.6, f=6.9mm
    Projection Offset: 110%+/-5%
    Throw Ratio: 0.49
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-300"
    Throw Distance: 0.63m-3.17m
    (87"@0.92m)
    Keystone: +/- 32° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco) : 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
    Interactive Camera: Optional (vTouch-10s)

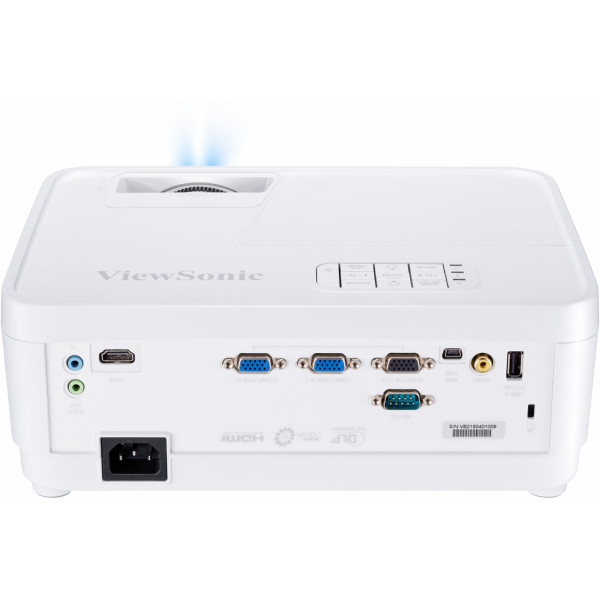

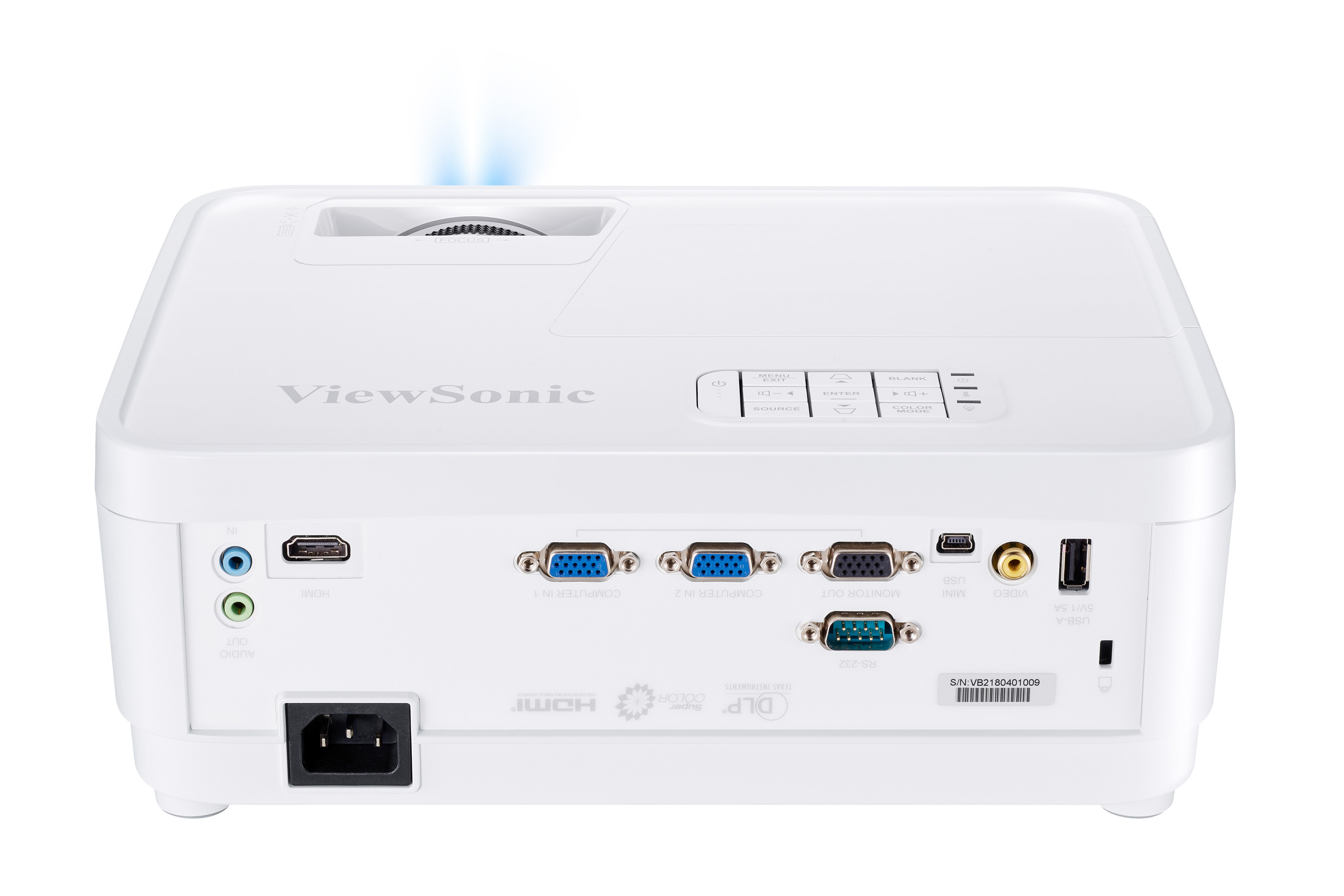

  • Input
    Computer in (share with component): 2
    Composite: 1
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1.5A)
