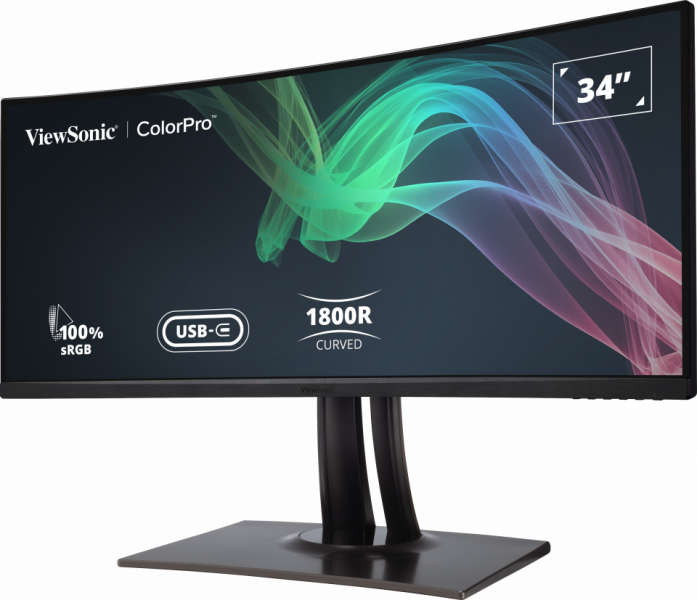

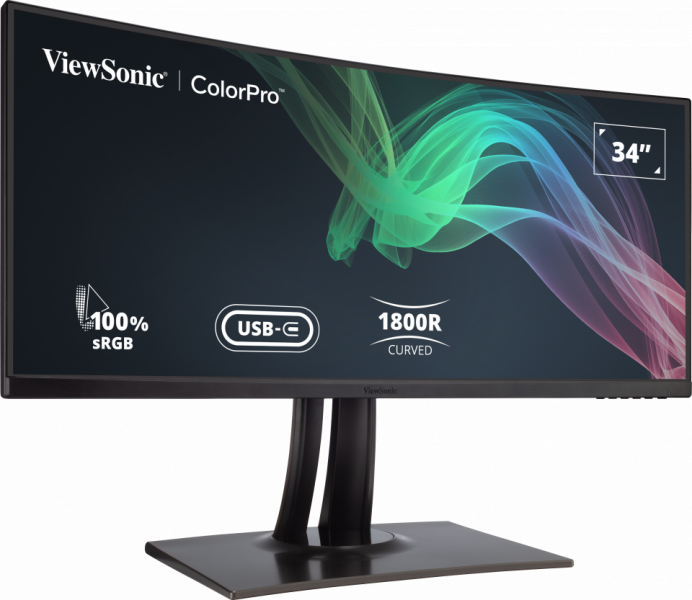

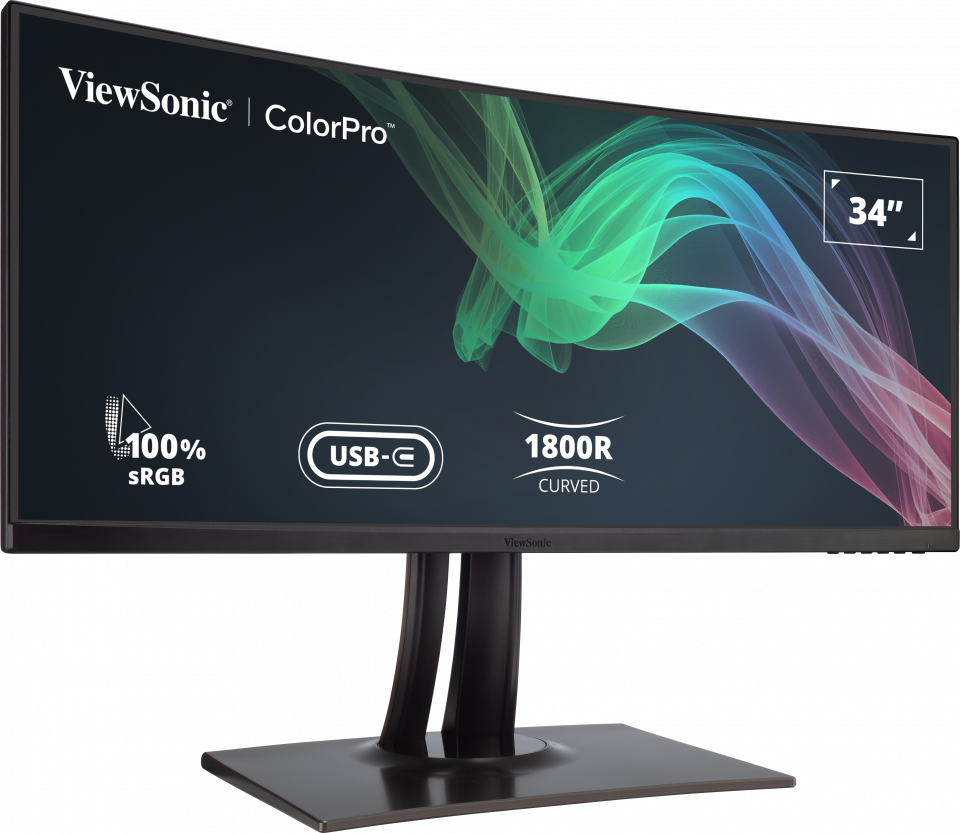

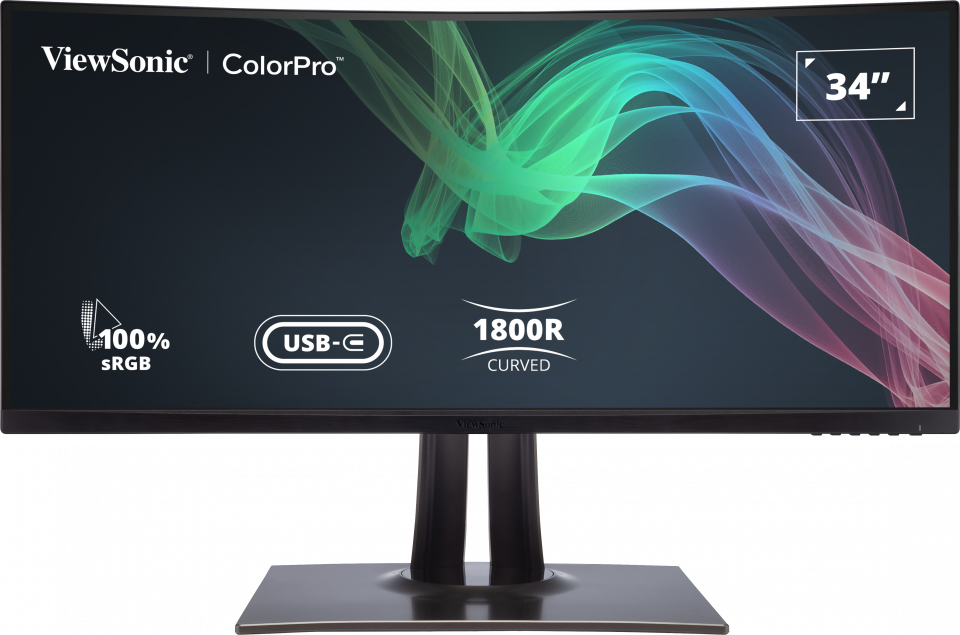

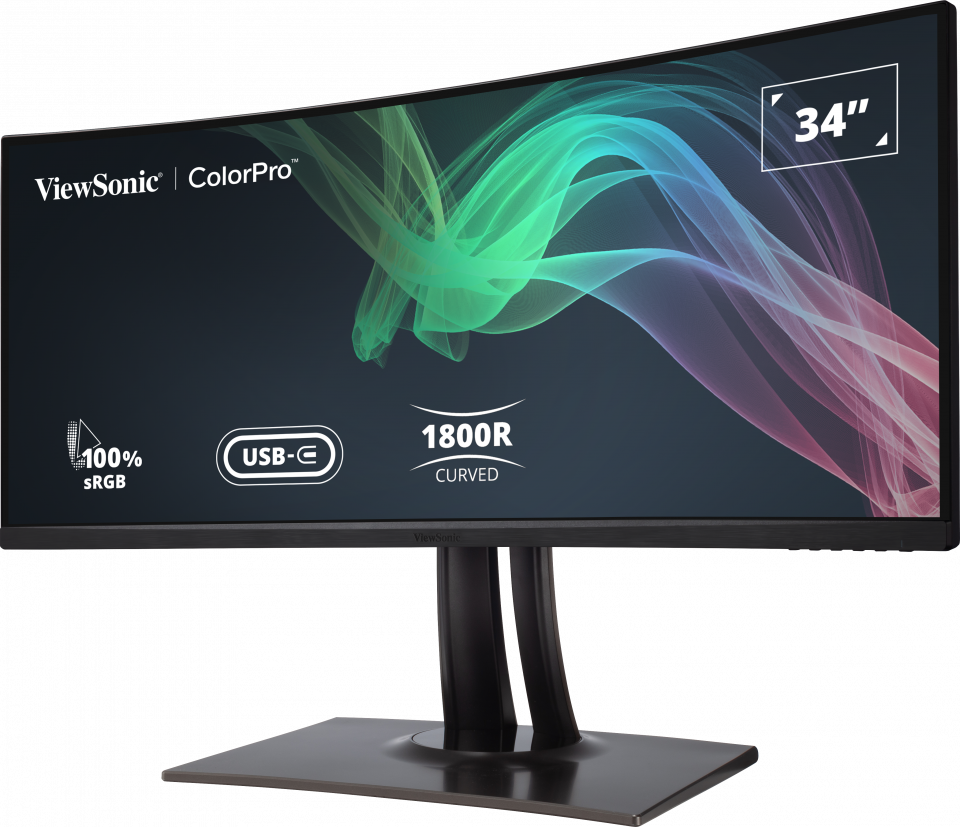

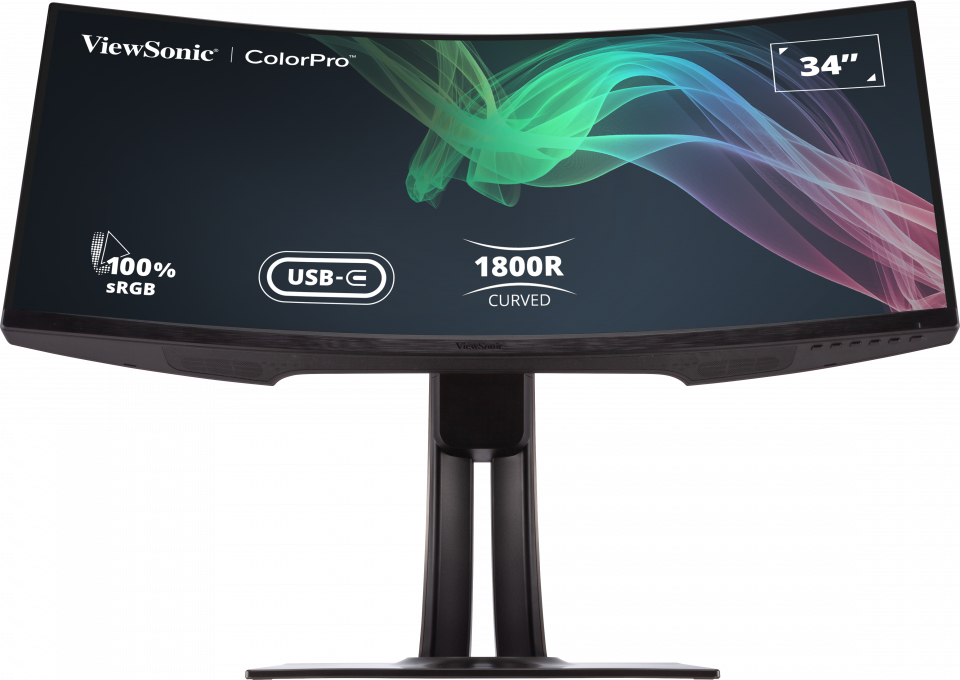

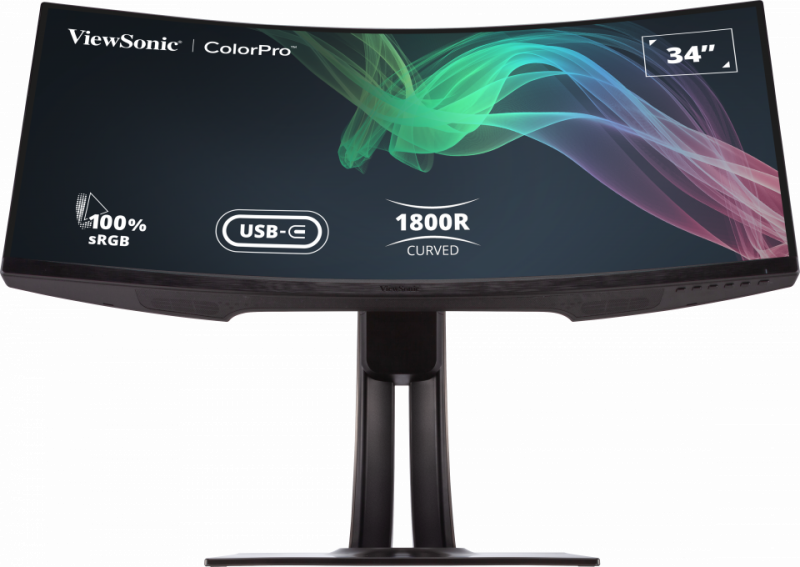

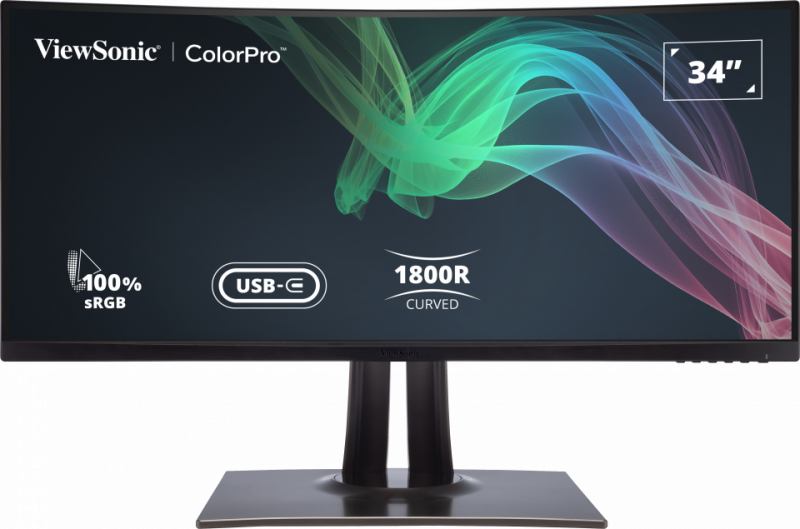

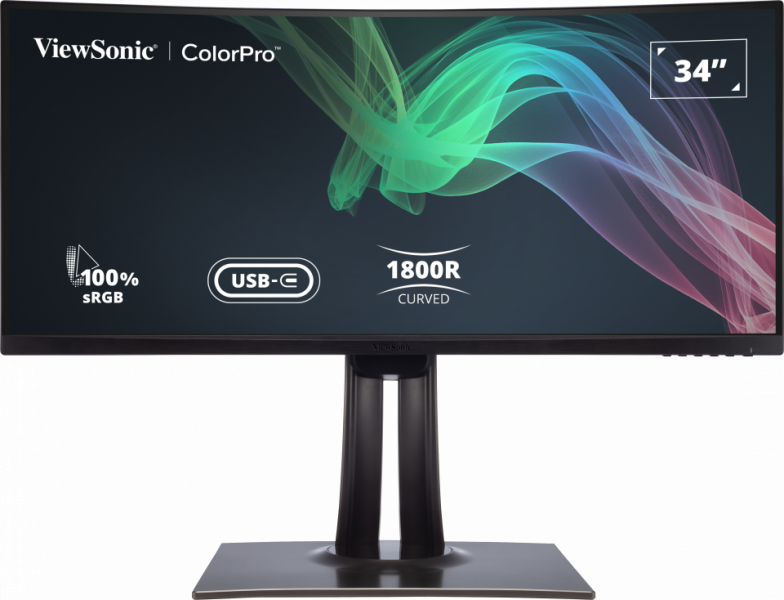

VP3481

34” 100% sRGB Ergonomic Professional Monitor

Hardware colour calibration
Delta E < 2 colour accuracy
Pre-calibrated uniformity correction
1800R curvature
21:9 aspect ratio

Where to Buy

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 34
Viewable Area (in.): 34
Panel Type: VA Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 400 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 21:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)

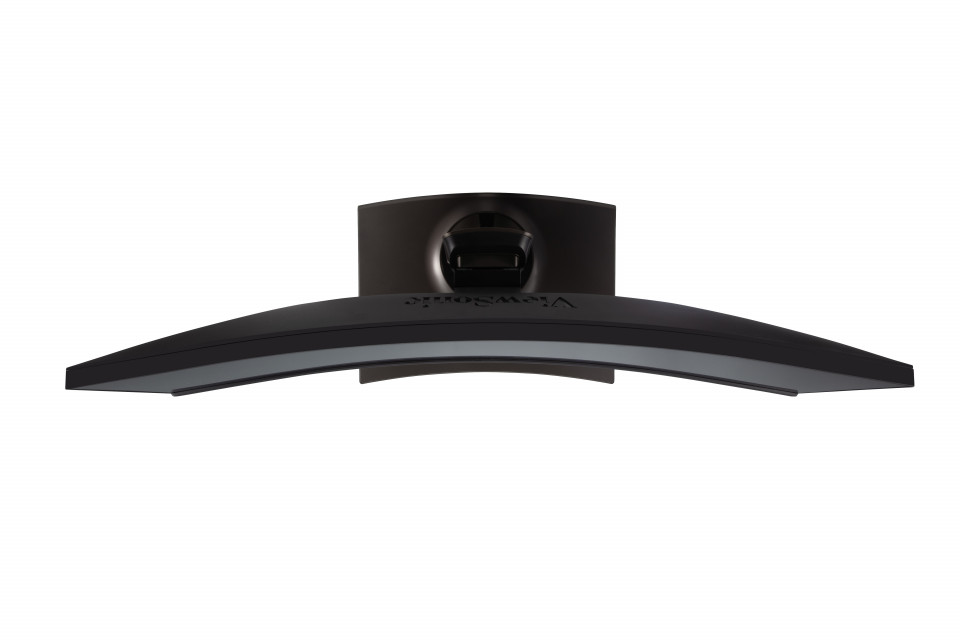

Curvature: 1800R
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Blue Light Filter: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Flicker-Free: HDR10
Color Gamut: Adobe RGB: 89% size / 83% coverage (Typ)
DCI-P3: 88% size / 88% coverage (Typ)
EBU: 119% size / 100% coverage (Typ)
REC709: 120% size / 100% coverage (Typ)
SMPTE-C: 130% size / 100% coverage (Typ)
NTSC: 85% size (Typ)
sRGB: 120% size / 100% coverage (Typ)
Pixel Size: 0.232 mm (H) x 0.232 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: 48~100Hz
Mac® Resolution (min): 3440x1440

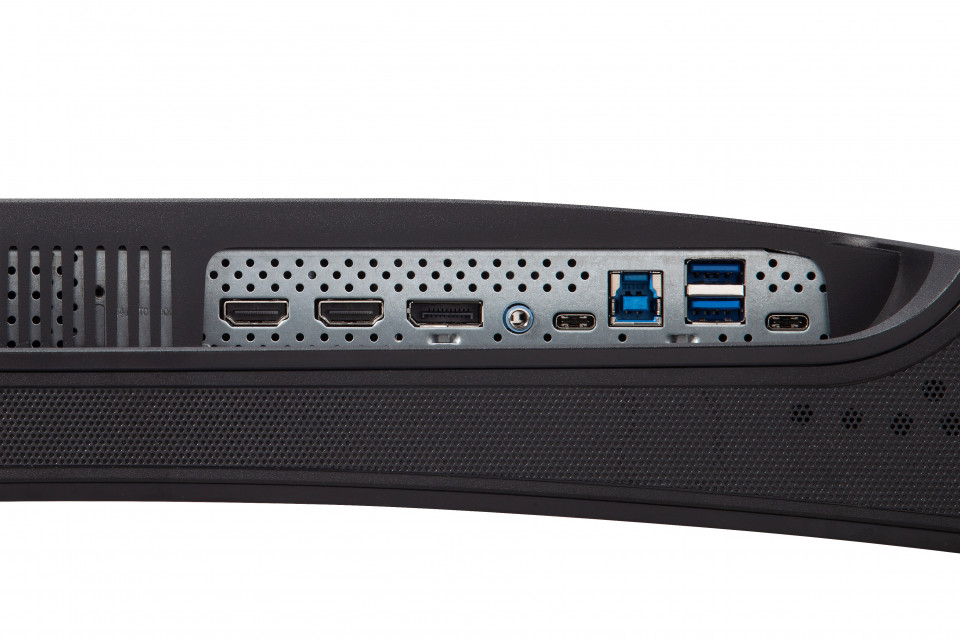

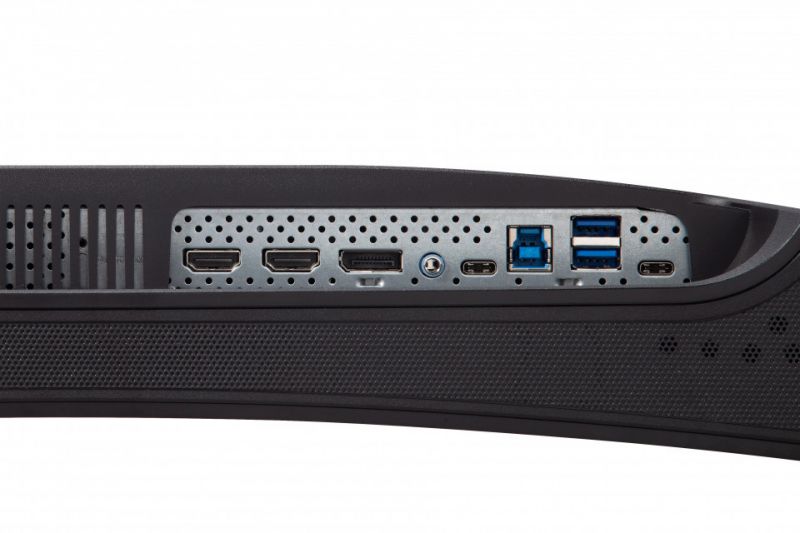

Connector
USB 3.1 Type C - Downstream: 1
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Power in: 50/60 Hz

Audio
Internal Speakers: 5Watts x2
Power
Eco Mode (Conserve): 62.6W
Eco Mode (optimized): 74.5W
Consumption (typical): 79.5W
Consumption (max): 139 full loadingW
Voltage: Internal Power Supply AC
Stand-by: 53.5W
Power Supply: 14
Controls
Physical Controls: 70000
On Screen Display: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 130, VESA Compatible mm
Input Signal
Frequency Horizontal: 15 ~ 135KHz
Frequency Vertical: 24 ~ 100Hz
Video Input
Digital Sync: PCI-E - DisplayPort (v1.4), TMDS - HDMI (v2.0), Micro-Packet - Type C
Ergonomics
Swivel: 21º
Tilt (Forward/Back): Mattº / -6º
Pivot (Right/Left): 0º / 60º
Weight (imperial)
Net (lbs): 26.7
Net Without Stand (lbs): 16.2
Gross (lbs): 37.9
Weight (metric)
Net (kg): 12.1
Net Without Stand (kg): 7.4
Gross (kg): 17.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 38 x 23.2 x 14.6
Physical (in.): 31.9 x 18.91~24.03 x 11.8
Physical Without Stand (in.): 31.9 x 14.4 x 4.1
Dimensions (metric) (wxhxd)
Packaging (mm): 965 x 590 x 370
Physical (mm): 809 x 480.46~610.46 x 299
Physical Without Stand (mm): 809 x 366 x 105
General
PACKAGE CONTENTS: VP3481 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
