“Solid and affordable office monitor with practical ergonomic functions”
Archived

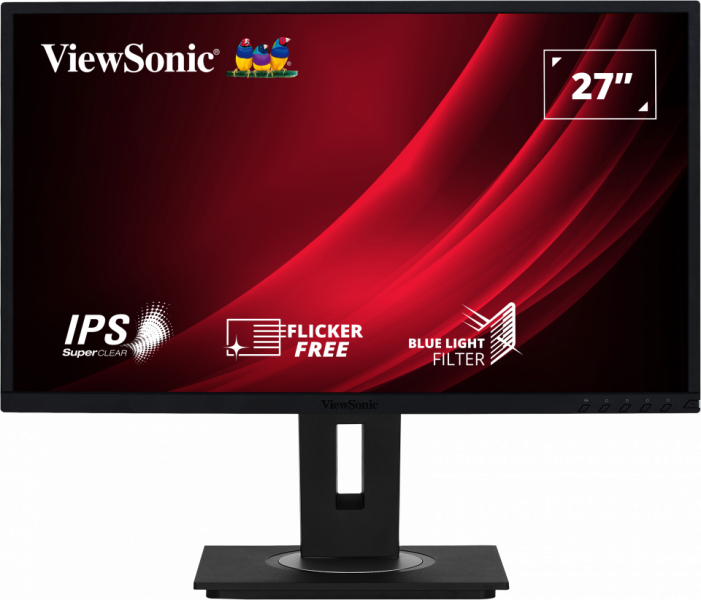

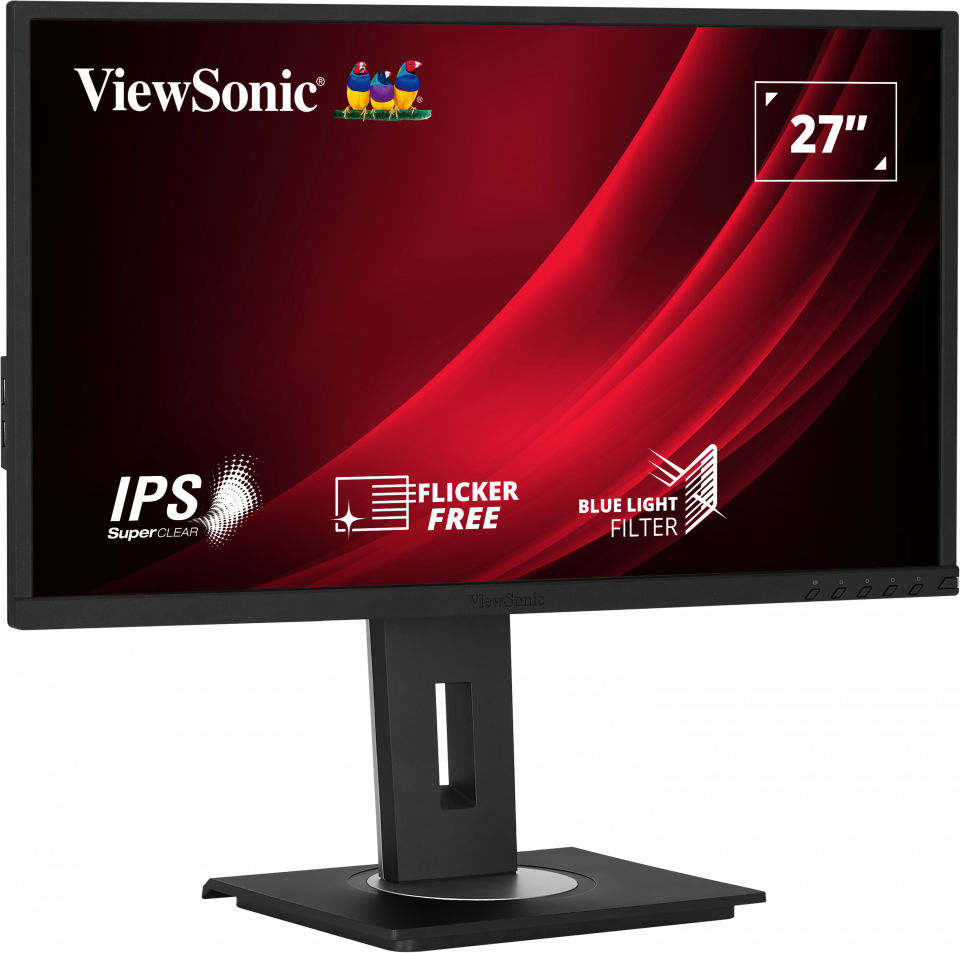

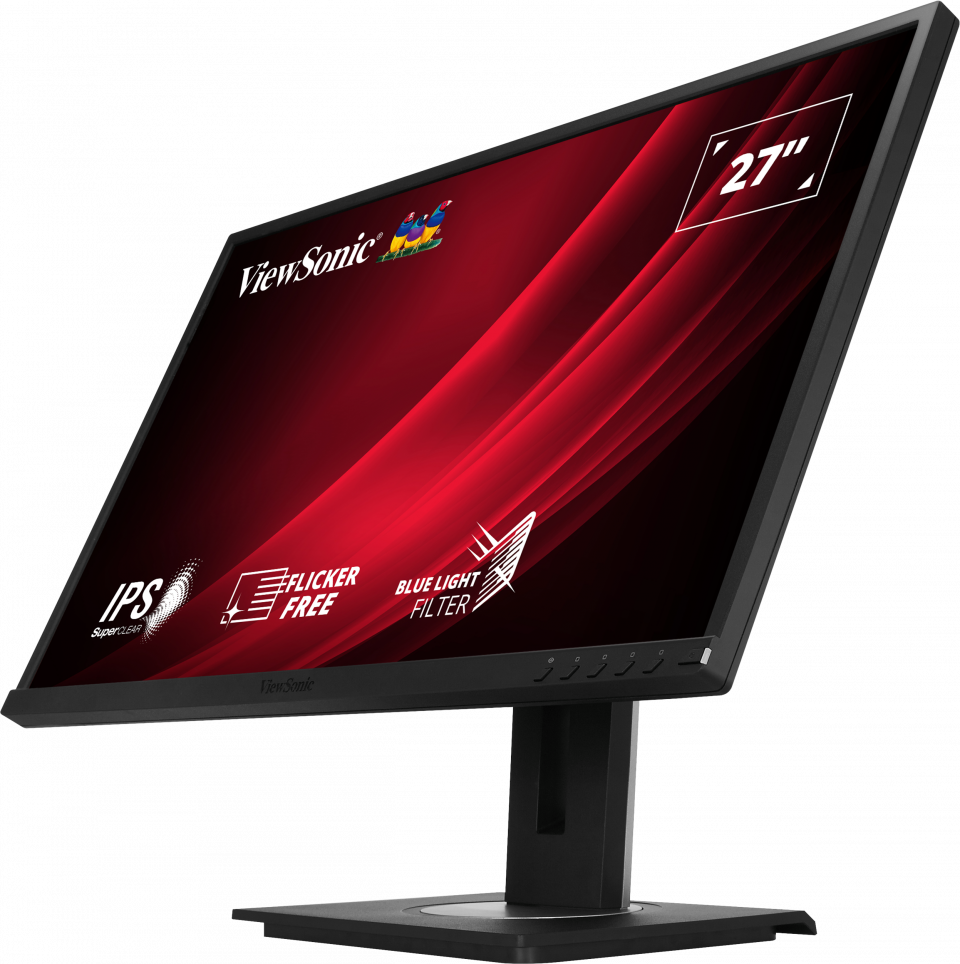

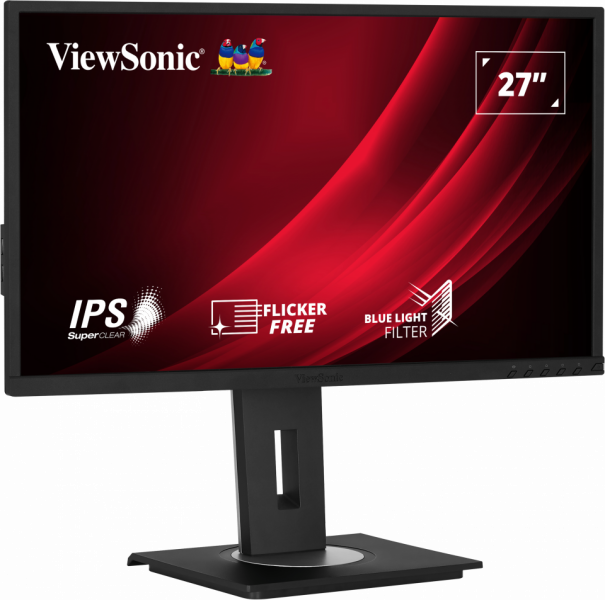

VG2748
27" Advanced Ergonomics Business Monitor
- vDisplay Manager (free download)
- Narrow bezel
- HDMI, DisplayPort and VGA inputs
- SuperClear® IPS technology

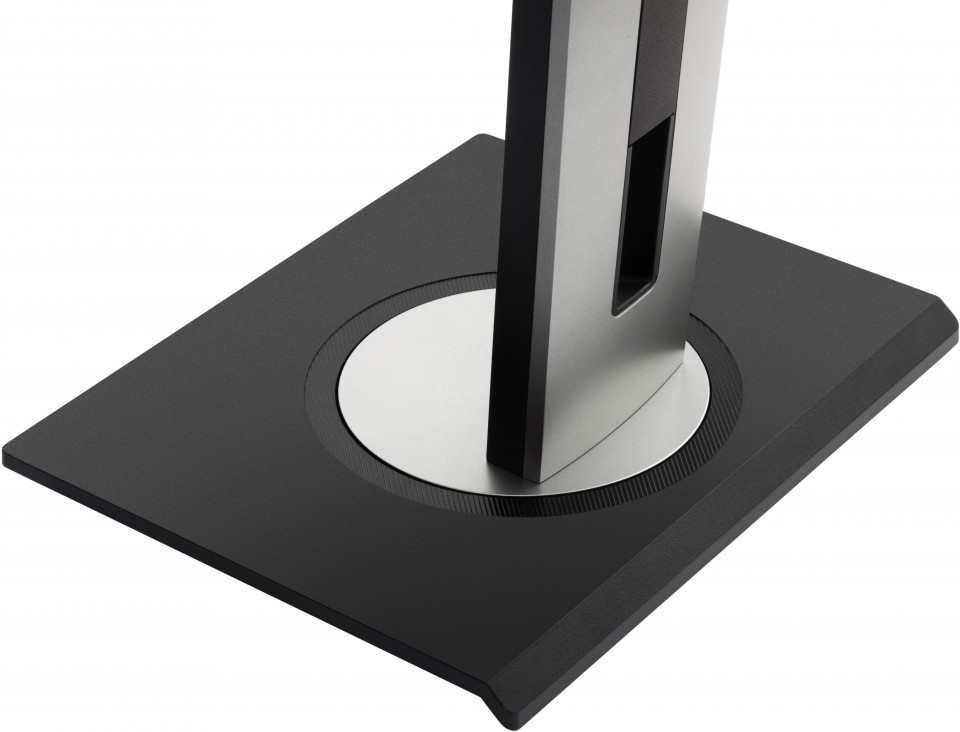

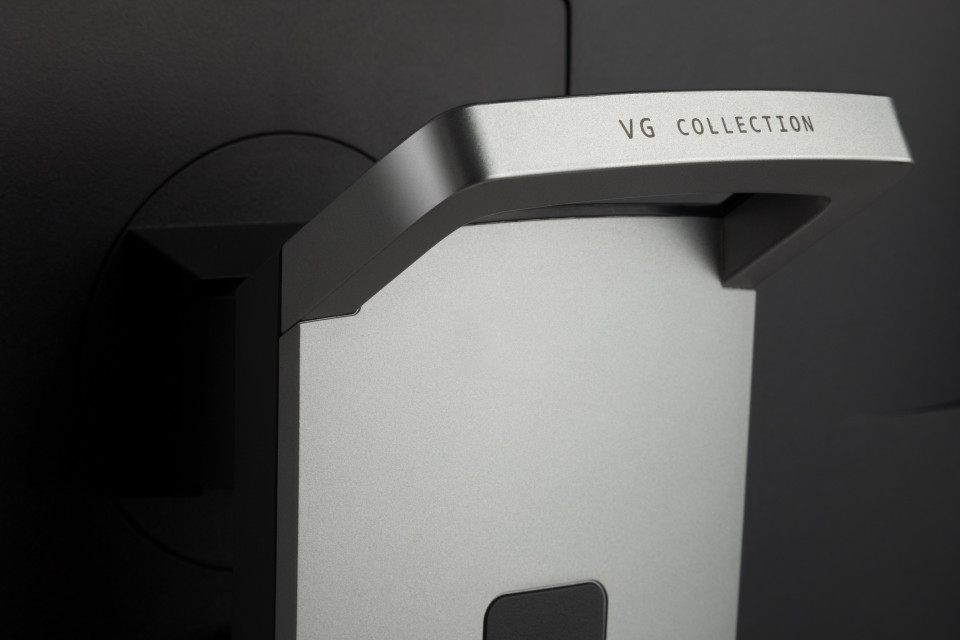

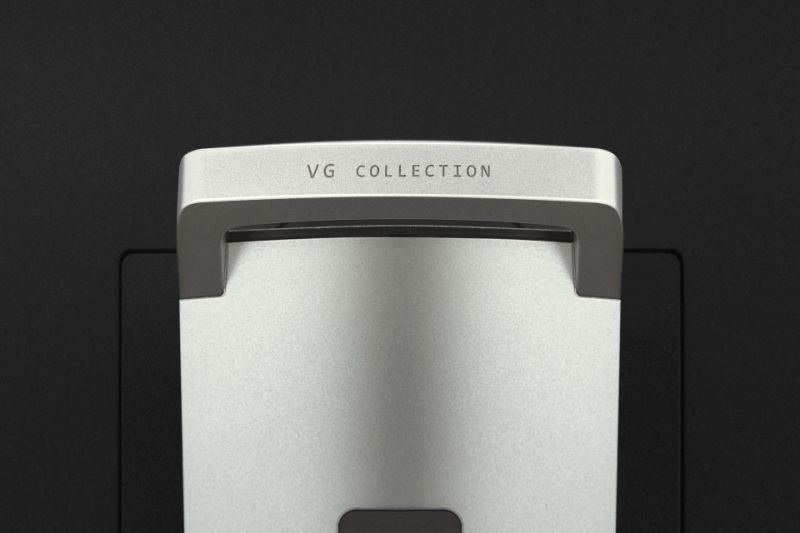

- Versatile stand design
SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 300 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 76% size / 74% coverage (Typ)
NTSC: 72% size (Typ)
sRGB: 102% size / 95% coverage (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1

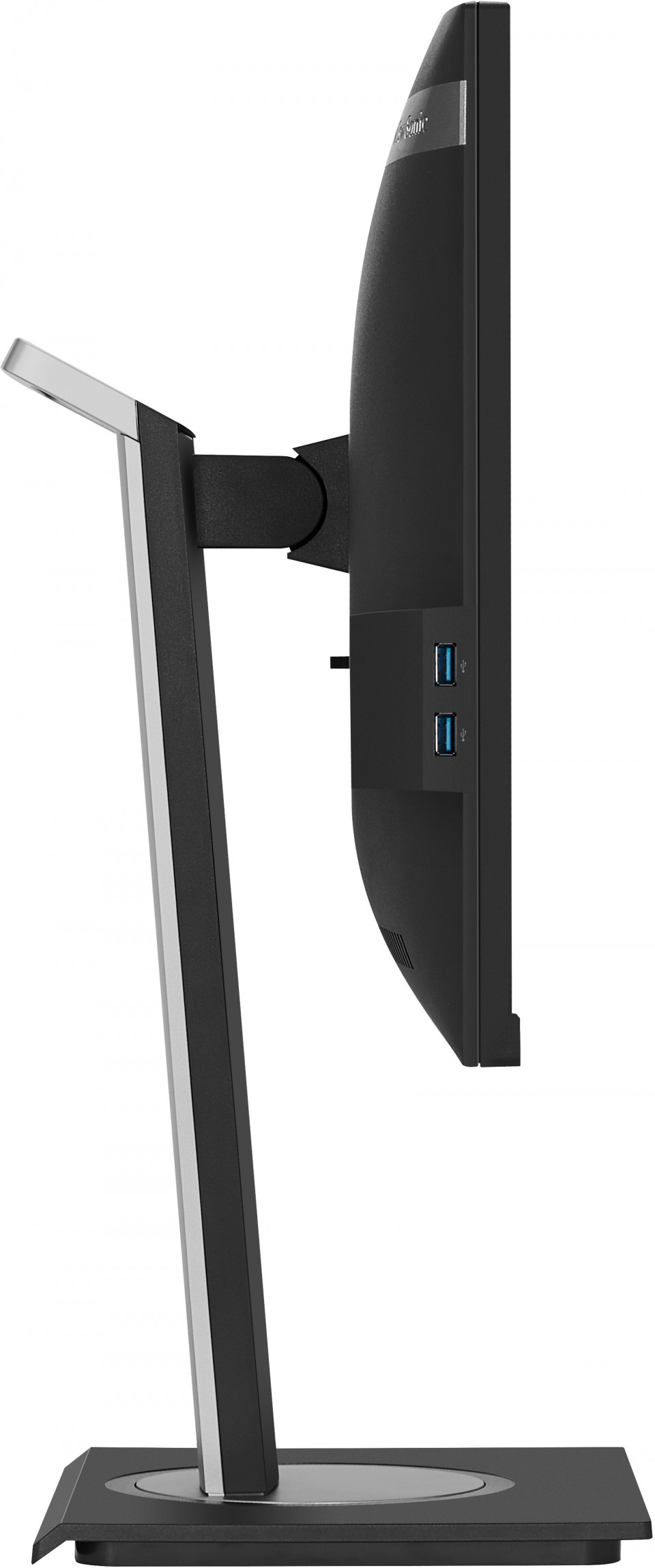

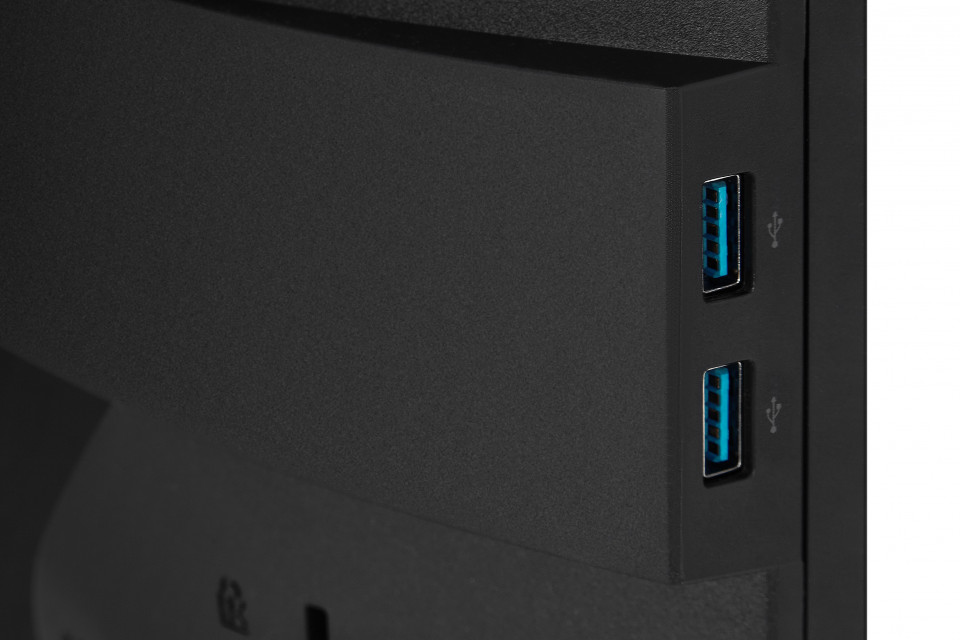

USB 3.2 Type A Down Stream: 4
USB 3.2 Type B Up Stream: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 18.5W
Eco Mode (optimized): 23.06W
Consumption (typical): 29.15W
Consumption (max): 34W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)

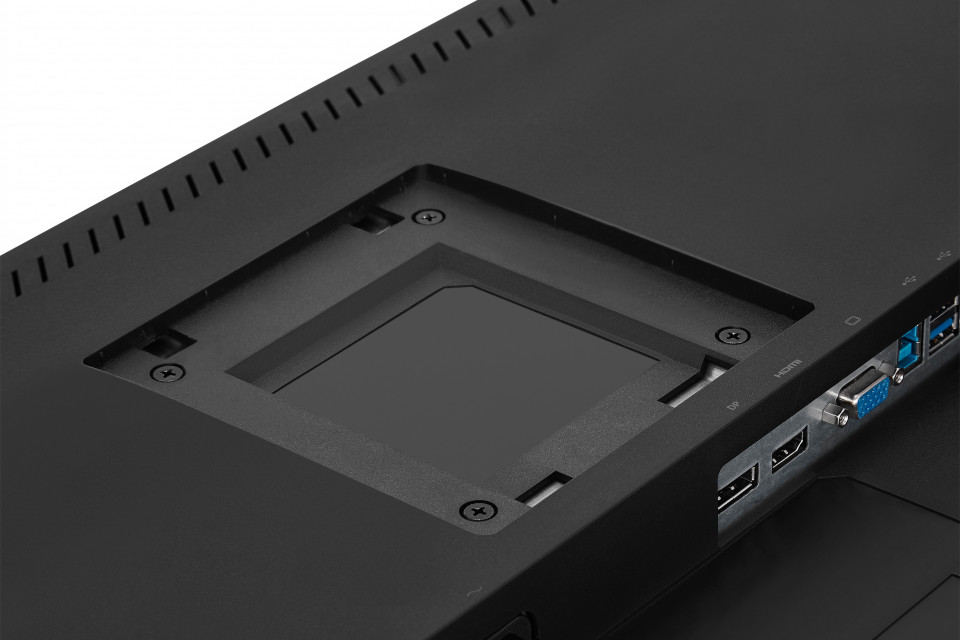

Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 24 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

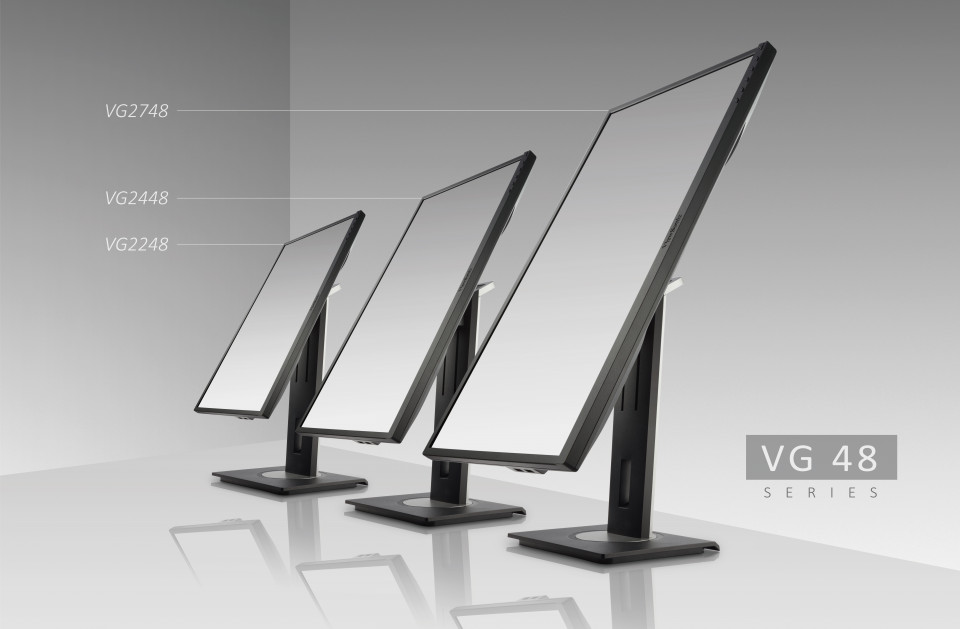

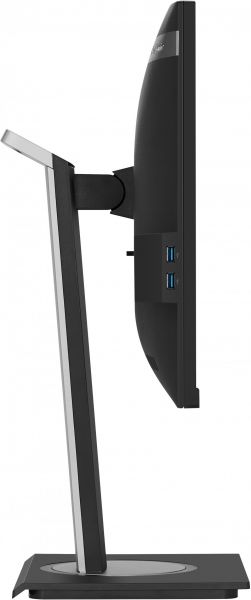

Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomicsHeight Adjust (mm): 130
Swivel: 120º

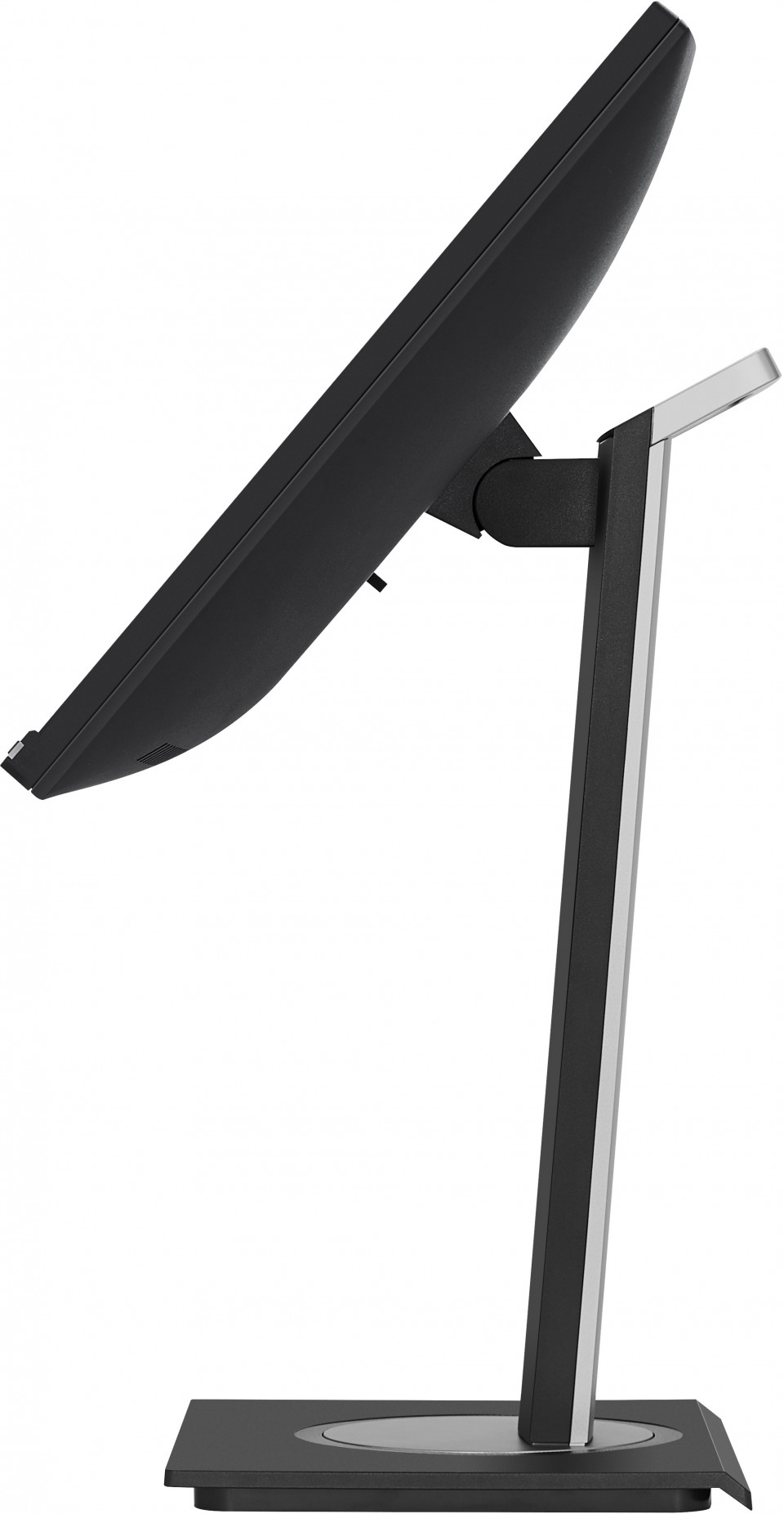

Tilt (Forward/Back): -5º / 40º
Pivot (Right/Left): 90º / 90º - Weight (imperial)Net (lbs): 16.1
Net Without Stand (lbs): 10.8
Gross (lbs): 22.3 - Weight (metric) Net (kg): 7.3
Net Without Stand (kg): 4.9
Gross (kg): 10.1 - Dimensions (imperial) (wxhxd)Packaging (in.): 27.2 x 16.9 x 8.6
Physical (in.): 24.4 x 16.03~21.15 x 8
Physical Without Stand (in.): 24.4 x 14.4 x 2 - Dimensions (metric) (wxhxd)Packaging (mm): 692 x 430 x 218
Physical (mm): 621 x 407.2~537.2 x 202
Physical Without Stand (mm): 621 x 366 x 51 - GeneralPACKAGE CONTENTS: VG2748 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
