IFP8630

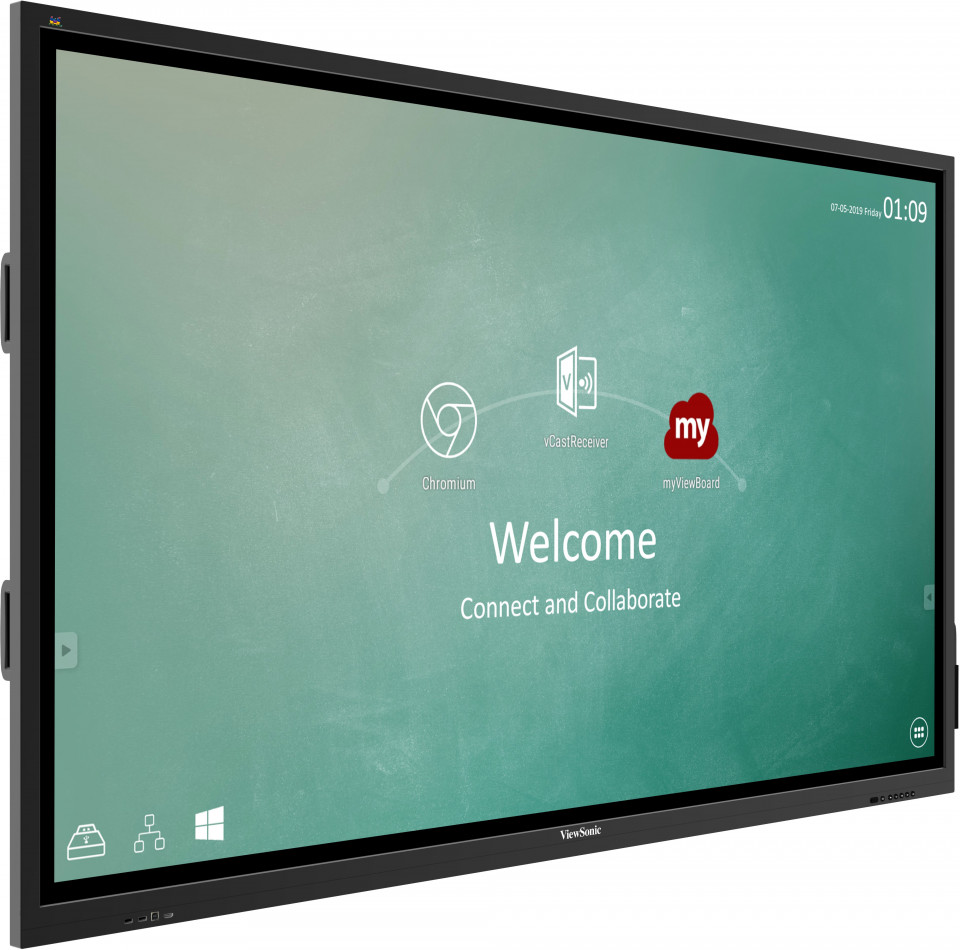

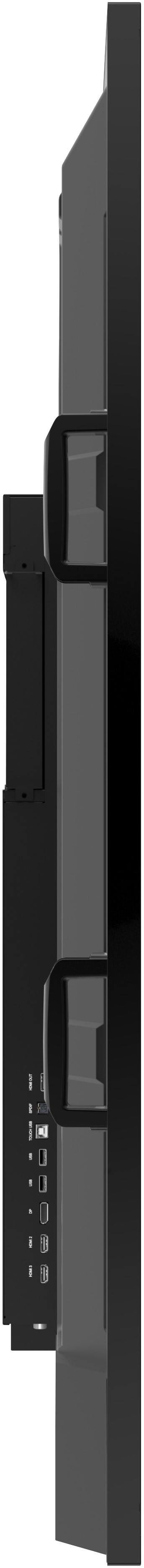

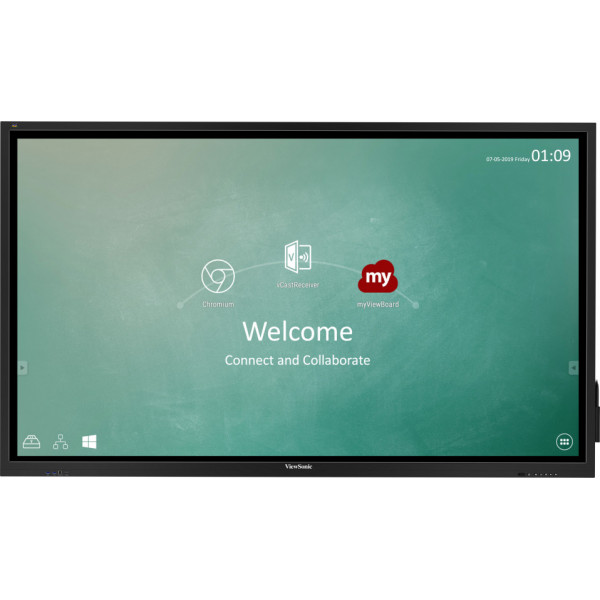

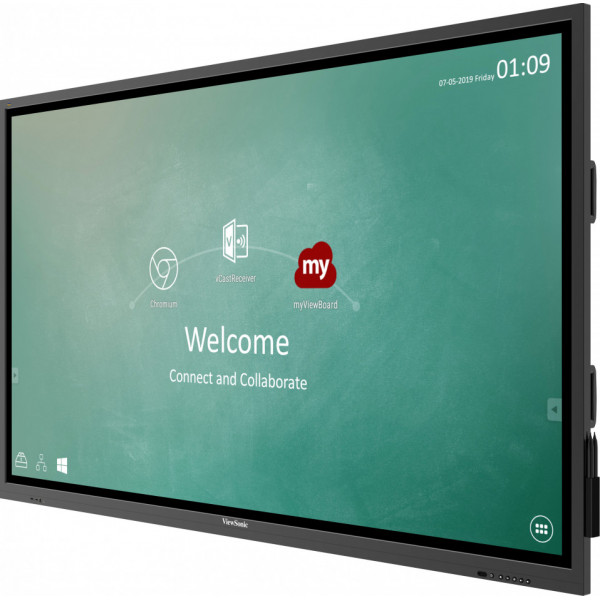

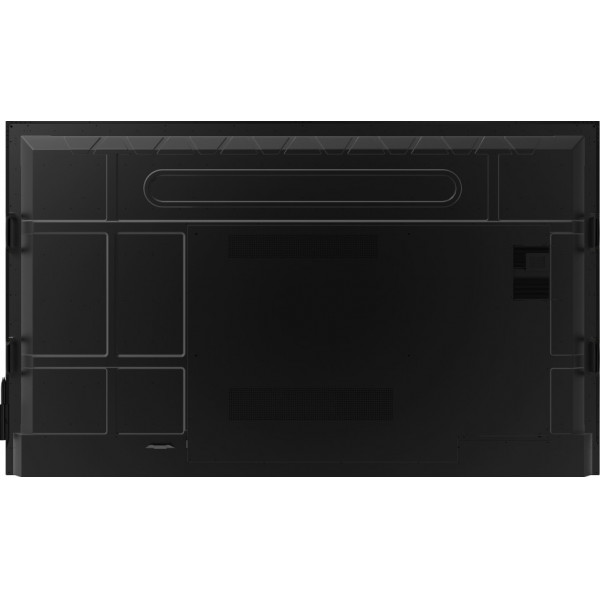

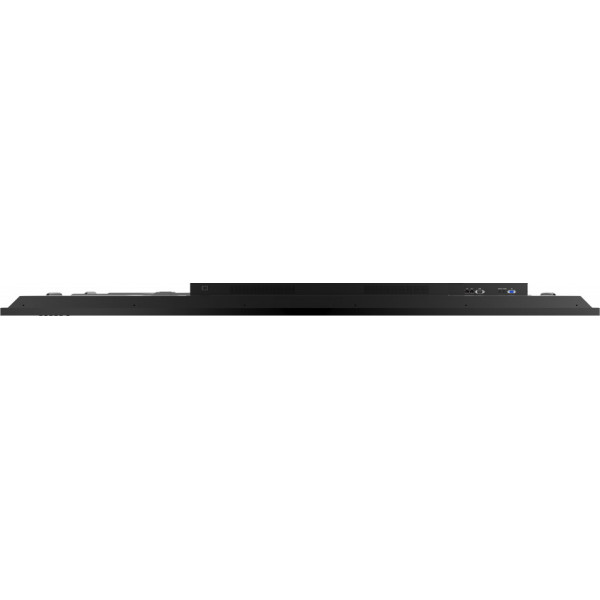

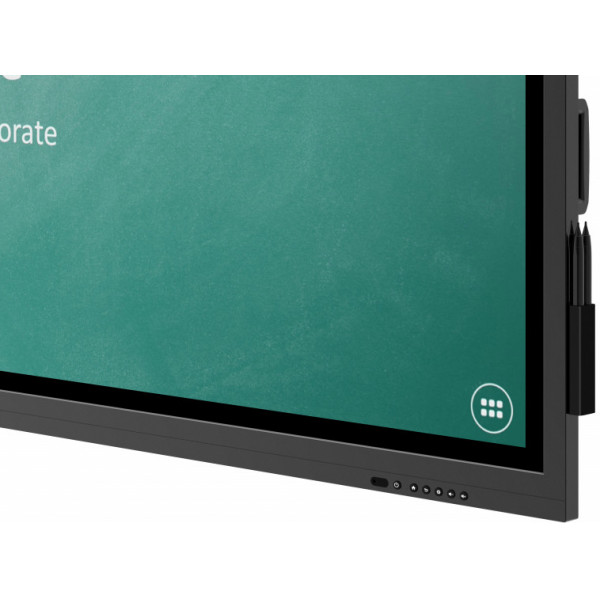

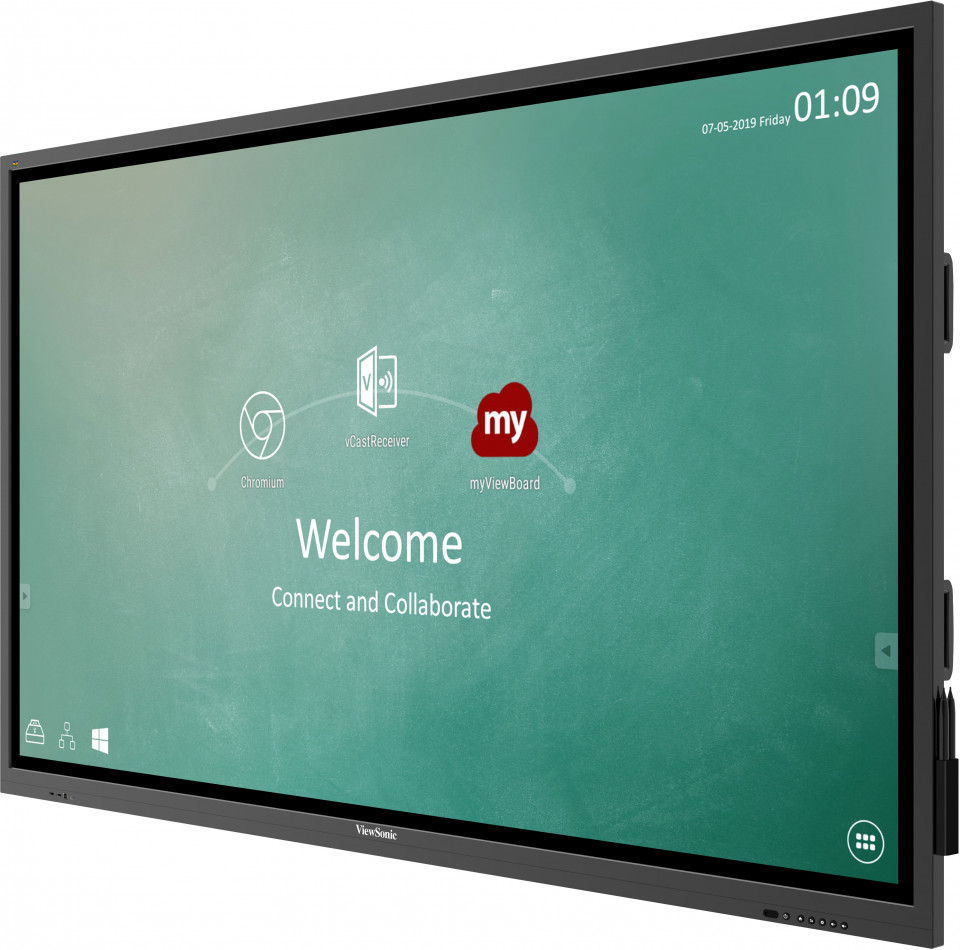

ViewBoard® 86" 4K Interactive Display

UFT (Ultra Fine Touch) Technology
myViewBoard® digital whiteboard software
Dual-pen writing with 3mm/8mm diameter pen tips
Ambient Light Sensor
Wireless presentation across devices

GALERIE

SPECIFICAȚII

Display
Dimensiune Panel: 86"
Type/Tech: TFT LCD module with DLED backlight
Suprafață Display (mm): 1895.04*1065.94mm
Aspect Ratio: 16:9
Rezoluție Nativă: 4K60hz
Colors: 10 bits
Luminozitate: 400(Typ.)
Rată de contrast: 1200:1
Timp de răspuns: 8ms(Tyoe)
Unghiuri de vizualizare: H = 178, V = 178 typ.
Durată de viață sursă de lumină fundal: 50,000 hrs
Tratament pentru protecția suprafeței: Hardness: 7H (9H pencil), Anti-flare coating
Ramă: Slim
Orientare: Landscape
Platformă
Procesor: Cortex-A73*2 + Cortex-A53*2 1.5Hz
Memorie RAM: 3GB DDR4
Stocare: 16GB
Touch
Tipul/ Tehnologia: IR Recognition
Rezoluție Touch: 32767W*32767D
Touch Point: 20 points , 5 writing

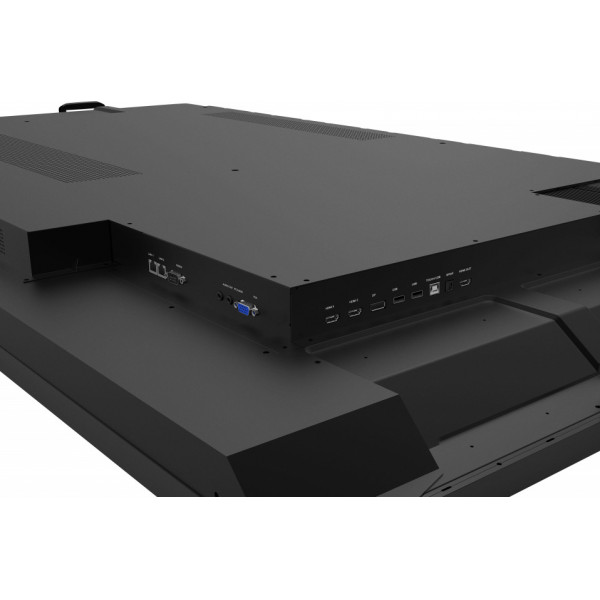

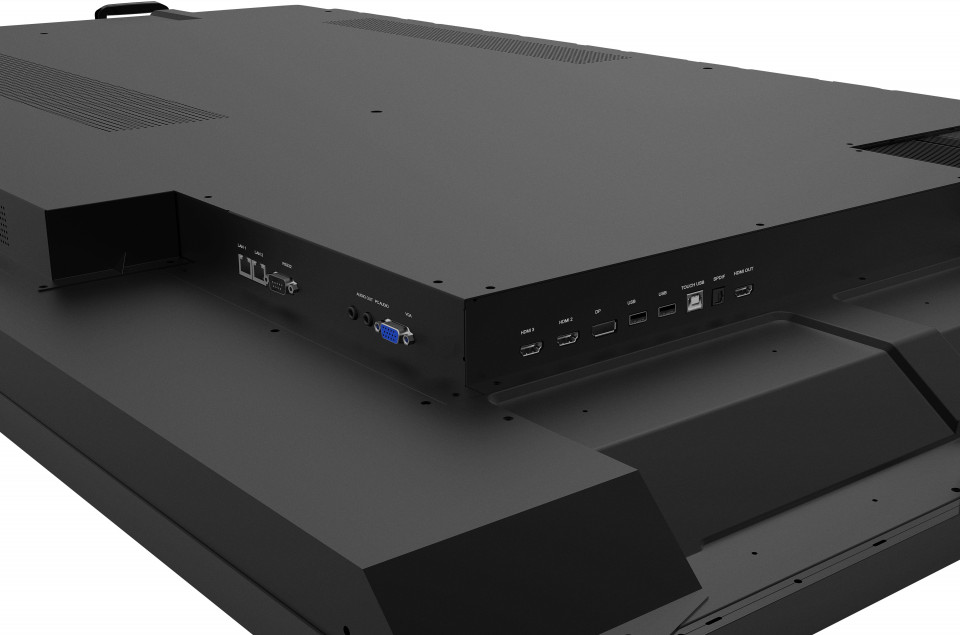

INPUT
HDMI: Front*1, Rear* 2, All ports HDMI2.0
RGB/ VGA: 1
Display Port: DP1.2*1
Audio: PC audio in (3.5 mm)*1
RS232: x1
OPS: 1
OUTPUT
HDMI: x1, up to 4K60hz
Audio: 3.5mm Earphone Out *1, SPDIF*1
SPDIF: 1(optical)
LAN
RJ45: *2, 10M/100M
USB
Tip A: USB2.0 *4 (Front:*2 Rear: *2 ), USB3.0:N/A
Tip B: For touch (Front*1, rear*1))
DIFUZOARE
DIFUZOARE: 15WX2
Top Camera Plate
yes
COMPATIBILITY
RGB PC/ HDMI PC: VGA: 1080p, HDMI: 4K
HDMI: 3840x2160
Display Port: 3840x2160
Sistem de operare incorporat
Sistem de operare incorporat: Android 8.0
Pachet Software
Software Basic Annotation: myViewBoard for Android
Software Pro Annotation: myViewBoard for Windows ( embedded in VPC12)
Prezentare wireless cu feedback la atingere: Viewboard Cast: Yes
Launcher ViewSonic: Embedded
Caracteristici speciale
Port USB all-in-one (combină portul USB Windows/Android; nu mai este necesară deosebirea): Front “SmartPort USB” to all channels.
Partajare simplă LAN între IFP și dispozitivul cu slot-in: 10M/100M share to OPS
Putere
Voltaj: PB model: , 100-240VAC +/- 10% Wide Range
ERGONOMICS
Montare pe perete (VESA® ): 400*700
OPERATING CONDITIONS
Temperatură (º C): 0°C to 40°C
Umiditate: 20% ~ 80% RH Non-Condensing(working)
DIMENSIUNU (D x Î x A)
Dimensiuni (inch/ mm): 2006.4*1189.1*118(mm), 79*46.8*4.7(inch)
Ambalare (inch/ mm): 2140*1340*280(mm), 84.3*52.8*11(inch)
WEIGHT
Masă (Ib/ kg): 176lb / 79.8kg
Greutate (Ib/ kg): 219.4lb / 99.5kg
Pregătirea certificatului ProAV
Crestron: On-going
Extron: On-going
AMX: Self-certificate
CONȚINUT PACHET
CONȚINUT PACHET:
1.US/EU/UK/AU power cord 3M, no PE bag
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Touch USB cable 3M *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws
Compatibil Slot intrare PC
Compatibil Slot intrare PC: VPC12 series
