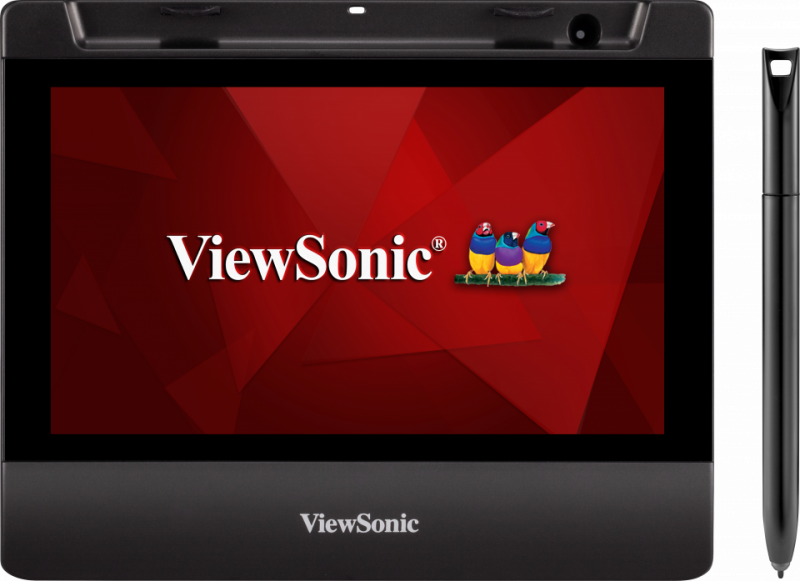

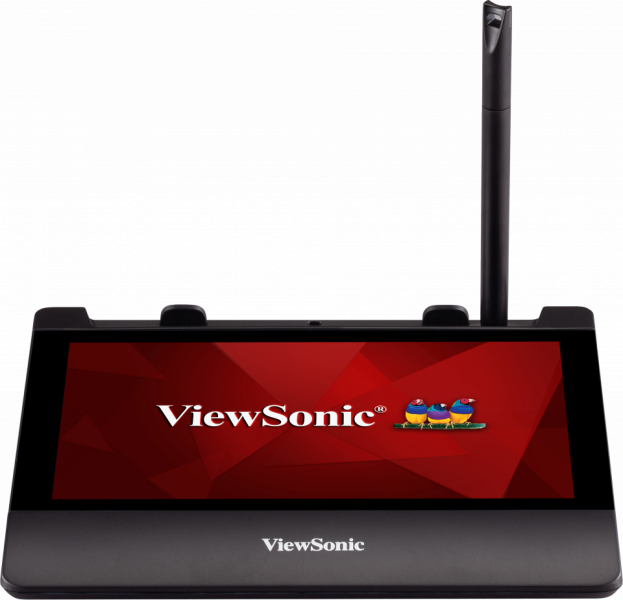

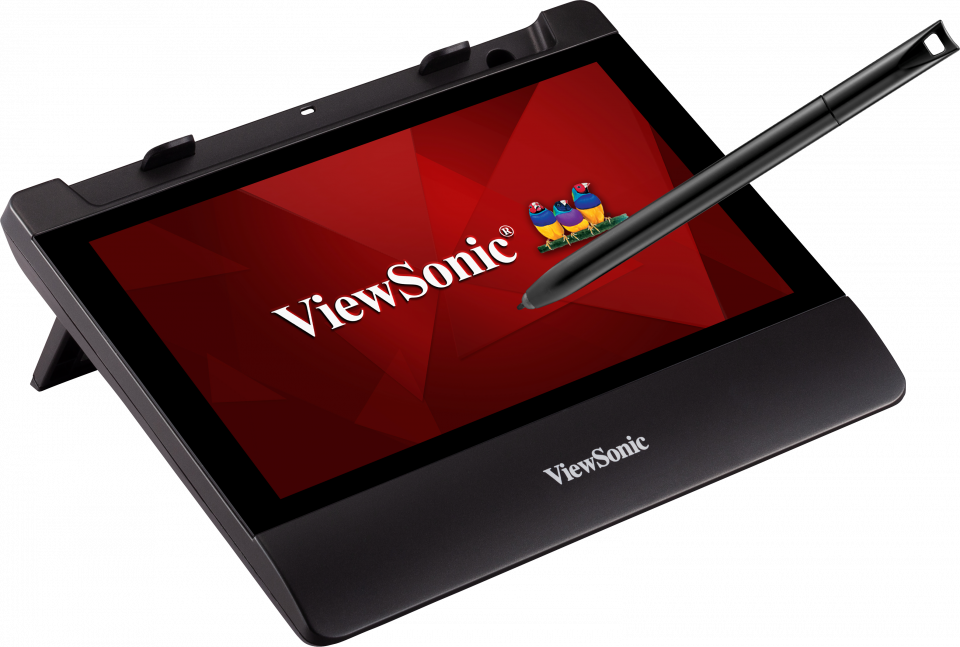

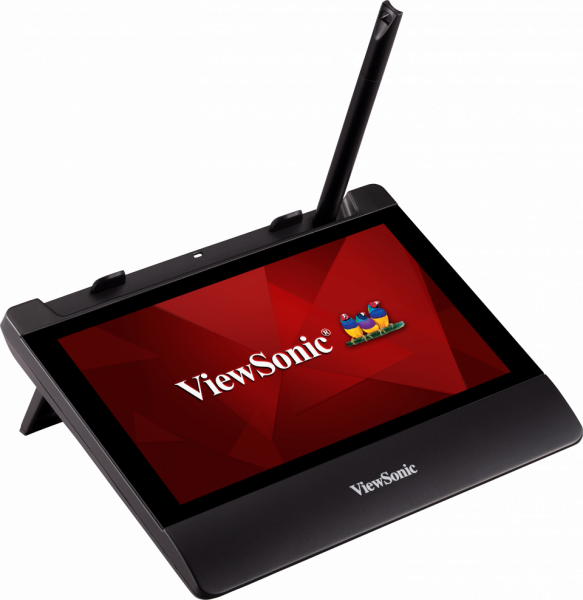

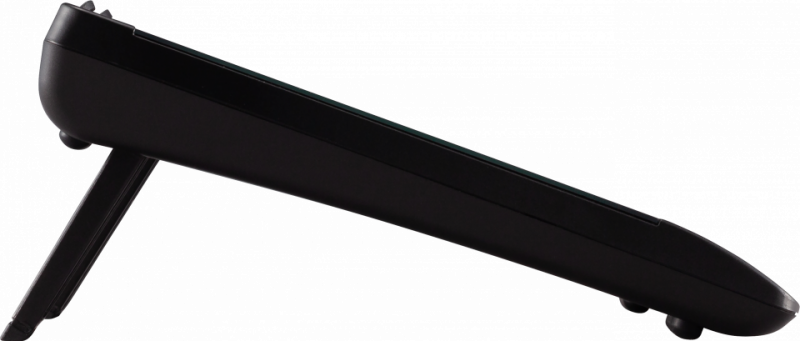

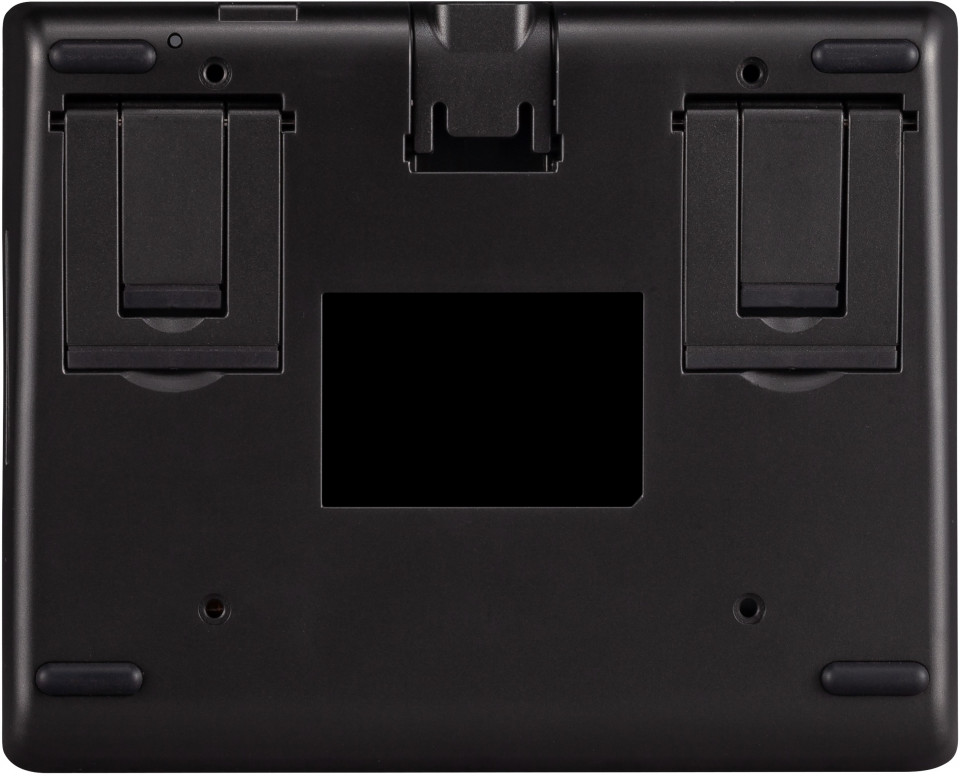

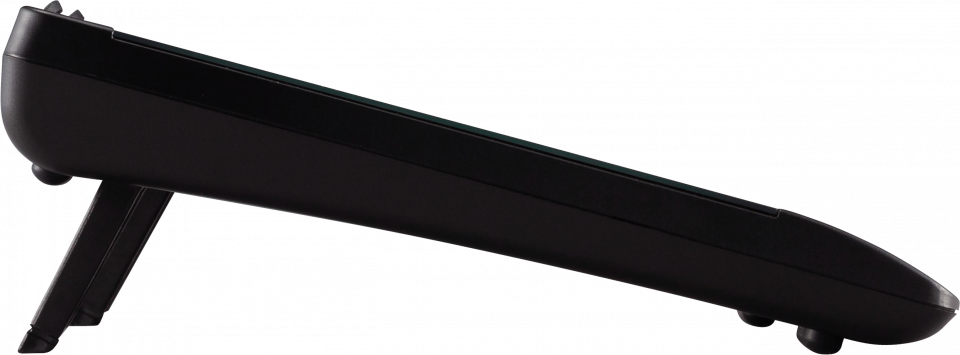

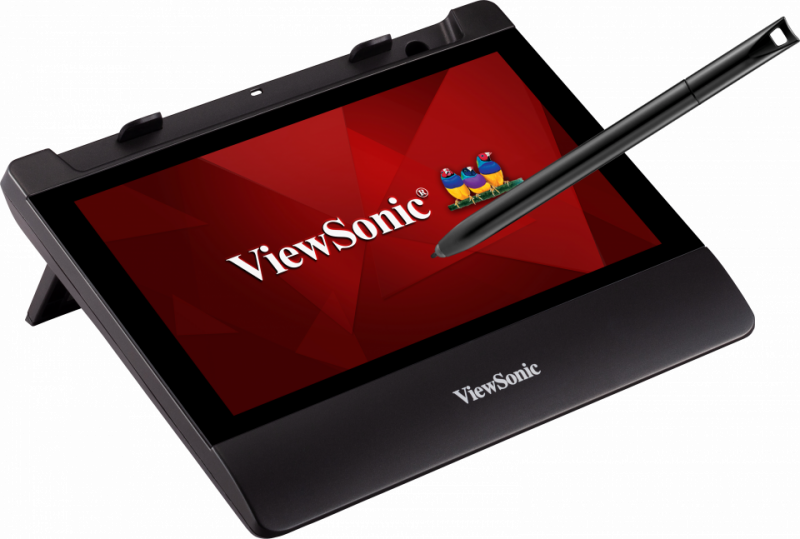

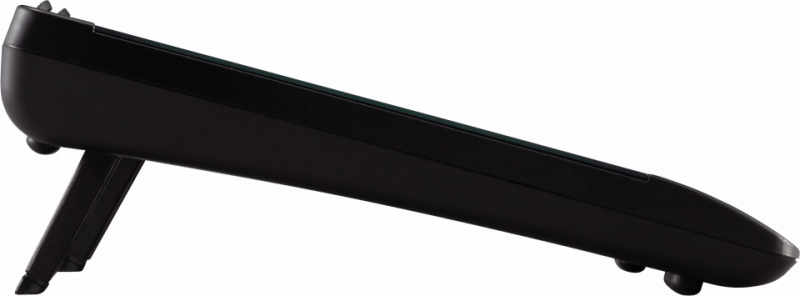

PD0711
SPECIFICAȚII
- LCD PanelDisplay Area: 152.2144(W) X85.92(H) mm
Optimum Resolution: 5080LPI
Luminozitate: 200 cd/m2 (Typ); (with glass)
Rată de contrast: 500:1(typ)
Unghiuri de vizualizare: 120 Deg H and 80 Deg V (Typ.) CR >=10
Backlight: LED light-bar
Tratament pentru protecția suprafeței: 8H tempered glass - CONNECTORUSB: USB 2.0 x 2, Micro USB x 1(Ethernet Network)
Putere: USB2.0: 5V/1A Max - TouchTechnology: Electromagnetic Resonance

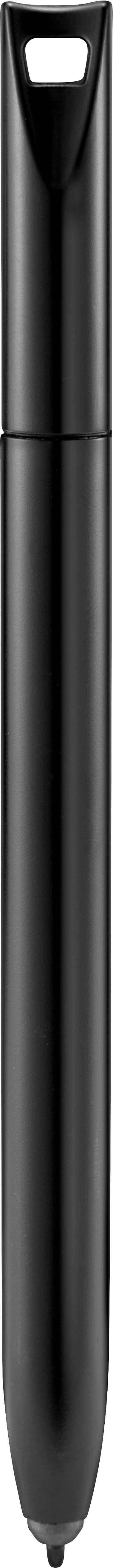

Touch Pen: Battery-Free
Digitizer Resolution: 5080 LPI
Writing Response: 200 PPS (point per second)
Pressure Level: 2048 Levels
Accuracy: ± 0.5mm (center), ± 1 mm (edge)
Detectable Height: 5-15mm above glass

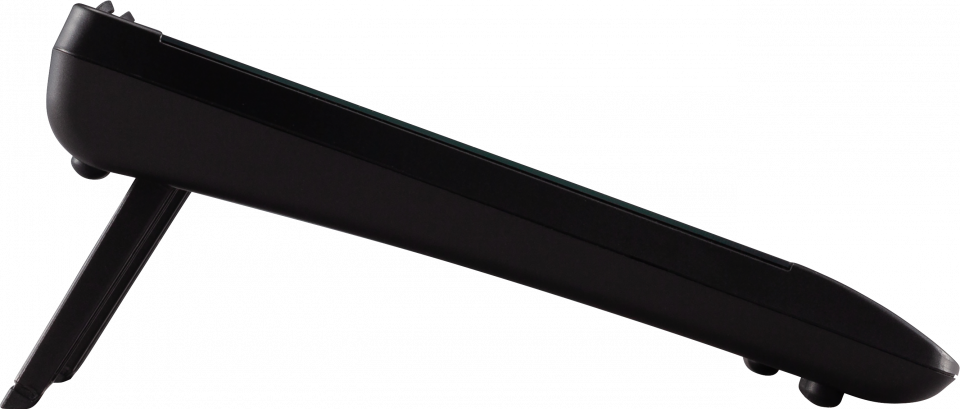

- ERGONOMICsÎnclinare: 5°/15°
- PutereVoltaj: USB2.0: 5V/1A Max
Consum: 4.0 W (max) - Condiții de funcționareTemperatură: 32°F to 104°F (0°C to 40°C)
Umiditate: 20% - 80%(Max), Non-Condensation - DimensiuniPhysical (in / mm): 7.09” (W) x 5.71” (H) x0.91” (D) inch / 180(W) x 145(H) x 23(D) mm
Box (in / mm): 15.63” (W) x 11.61” (H) x 14.57” (D) inch / 397 (W) x 295(H) x 370(D) mm - GreutateMasă (Ib/ kg): 0.751 lb / 0.34kg
Greutate (Ib/ kg): 1.435 lb / 0.65kg - WHAT'S IN THE BOXCCC 1st level, RoHs , Others: CEL base on bidding project request
