EP4203r
Dynamic Advertising Made Easy
SPECIFICATIONS

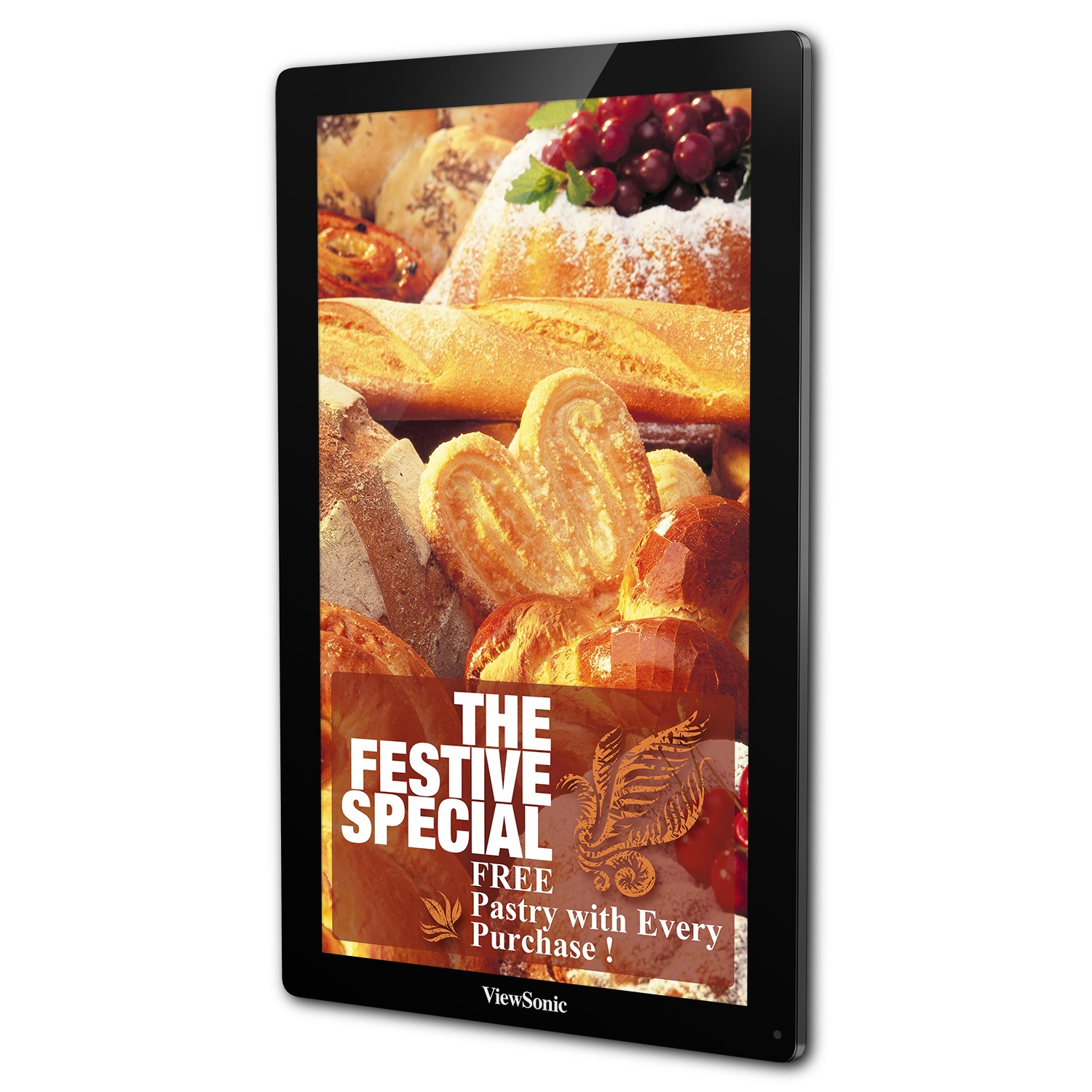

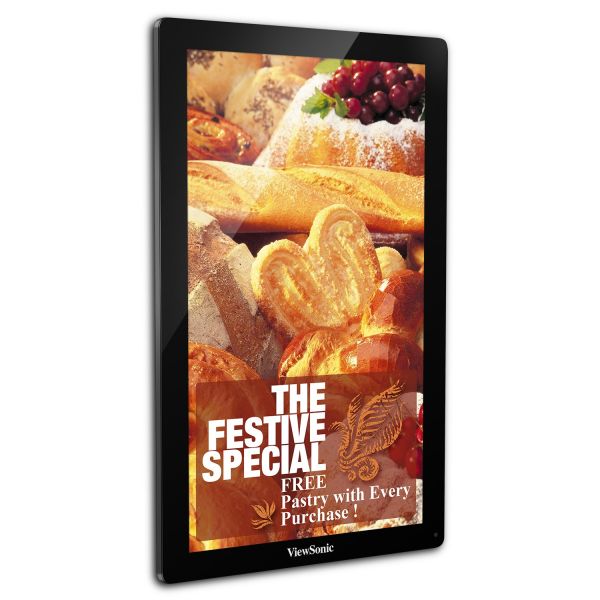

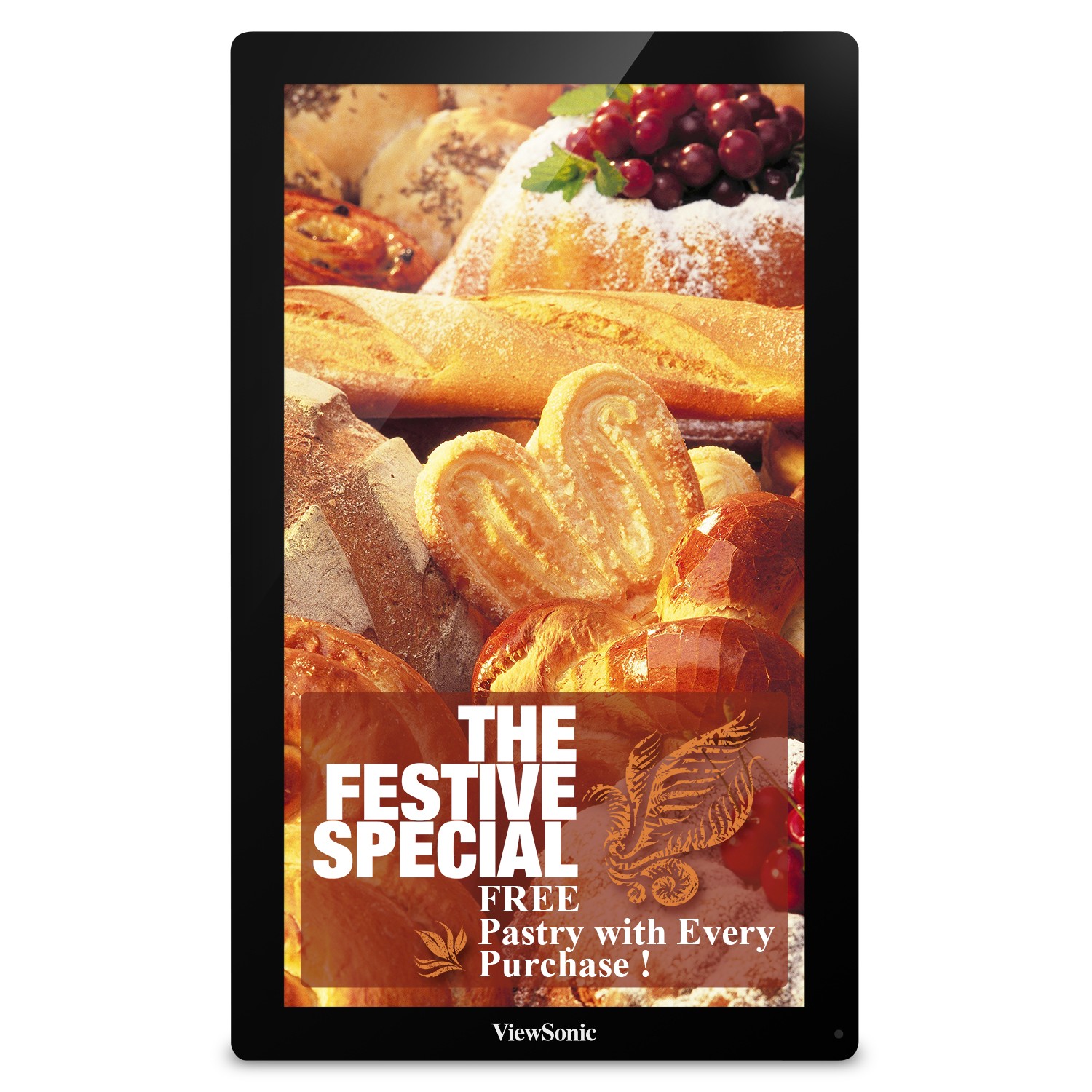

- DISPLAYType: 42" color TFT active matrix LCD w/ WLED backlight
Resolution: 1920x1080, 600mm dot pitch
Display Size: 36.6" horizontal x 20.6" vertical; 42" diagonal
Brightness: 350 cd/m2 (typ)
Contrast Ratio: 3000:1 (typ)
Response Time: 6.5ms
Viewing Angles: 178º horizontal, 178º vertical - AUDIOSpeakers: Internal 2-watt (x2)
- CONNECTORNetwork: RJ45
USB: Type B (x2)
- POWERConsumption: 164W (typ)
Supply: AC 100–240V (universal), 50–60Hz - OPERATING CONDITIONSTemperature: 32–122ºF (0–50ºC)

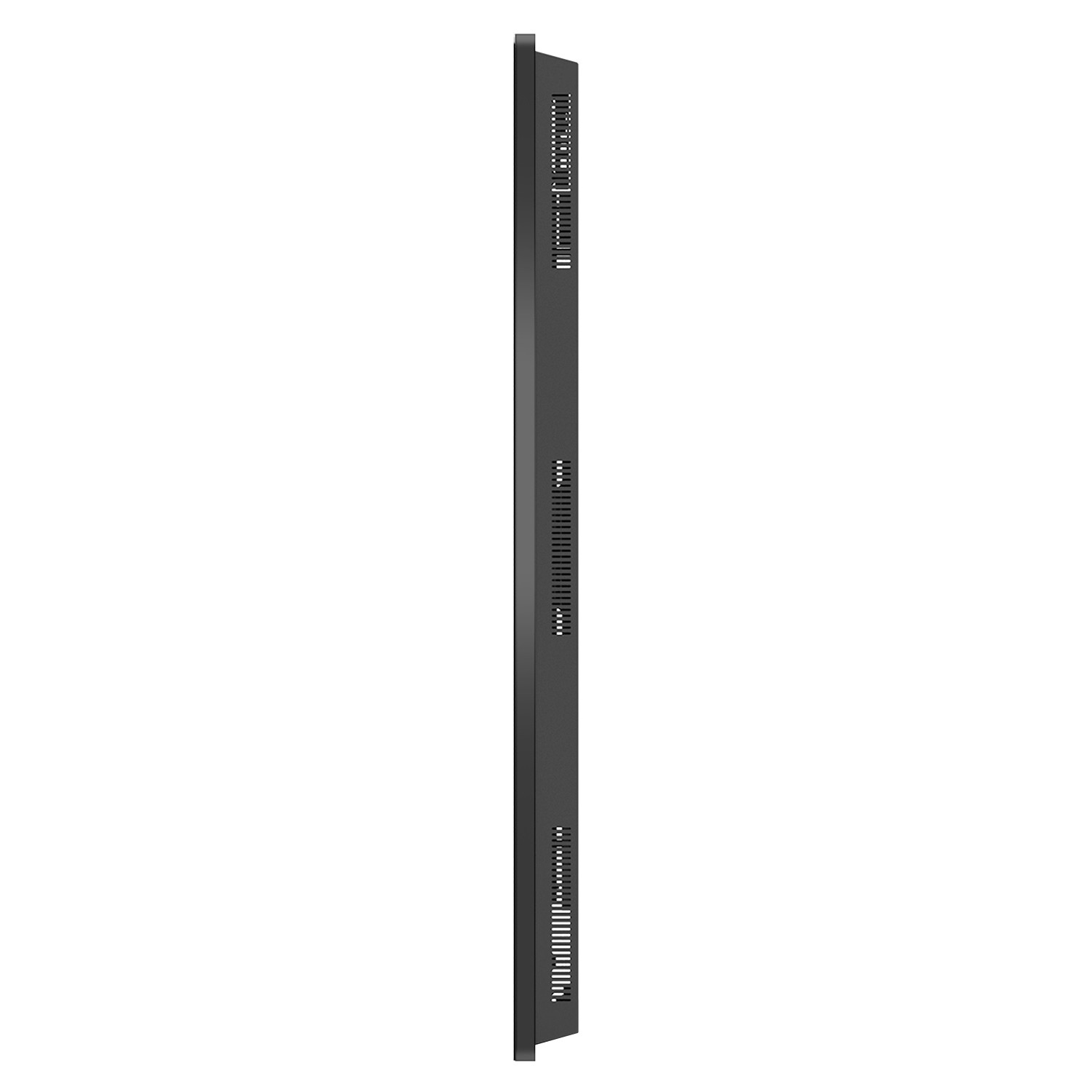

Humidity: 20–90% (non-condensing) - DIMENSIONS (WxHxD)Physical: 41.0 x 25.0 x 1.6 in. / 1040.6 x 634.6 x 40 mm
- WEIGHTNet: 50.7 lb. / 23.0 kg
Gross: 57.3 lb. / 26.0 kg - STORAGE ENVIRONNMENTTemperature: 32–122ºF (0–50ºC)

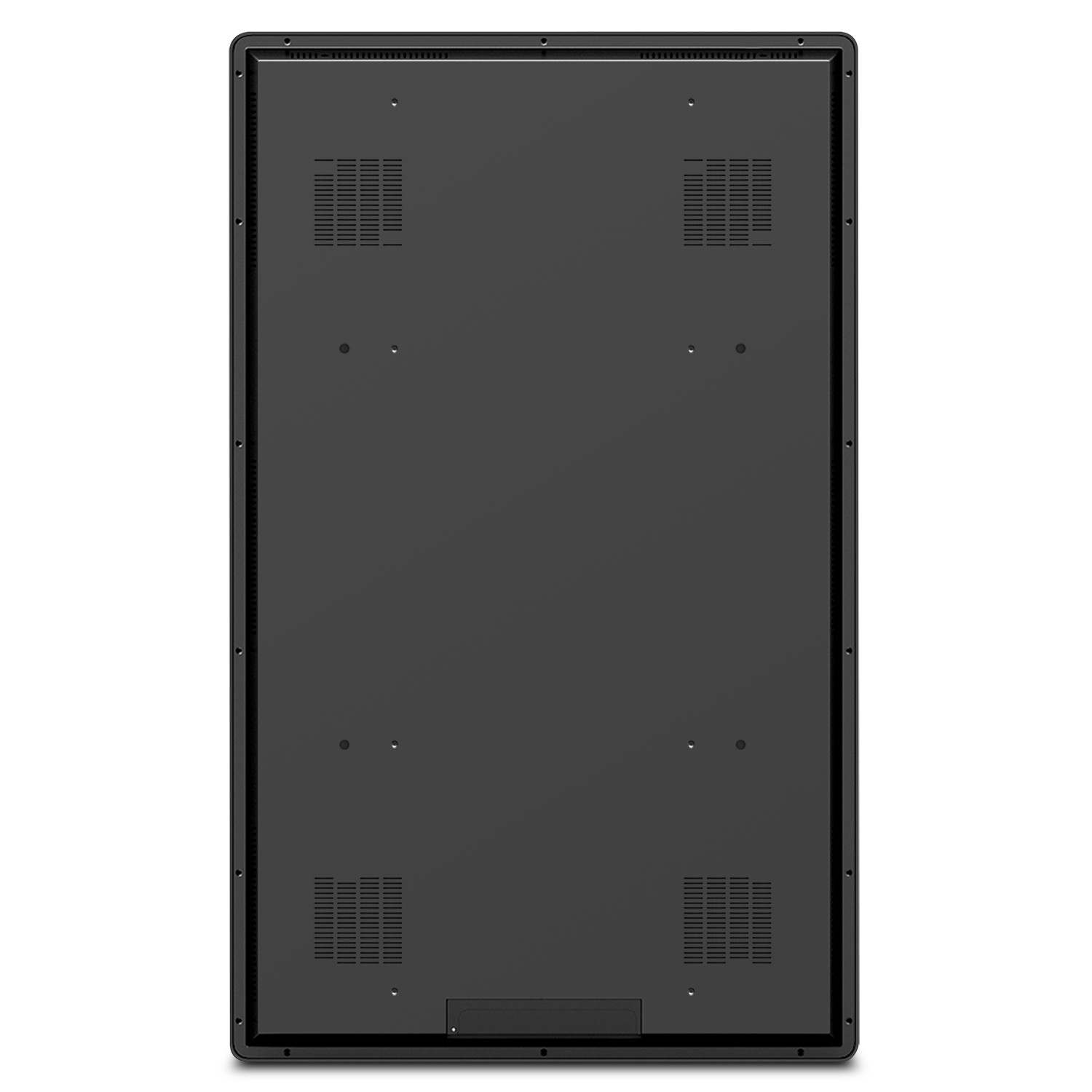

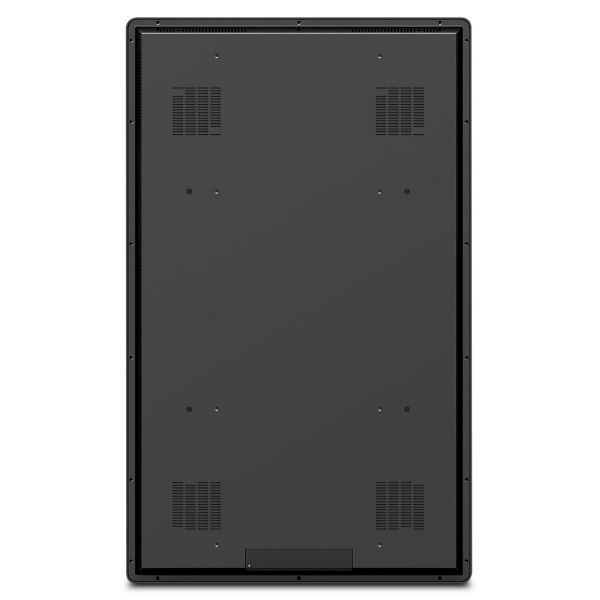

Humidity: 20–90% (non-condensing) - Wall MountVESA® 400mm x 400mm

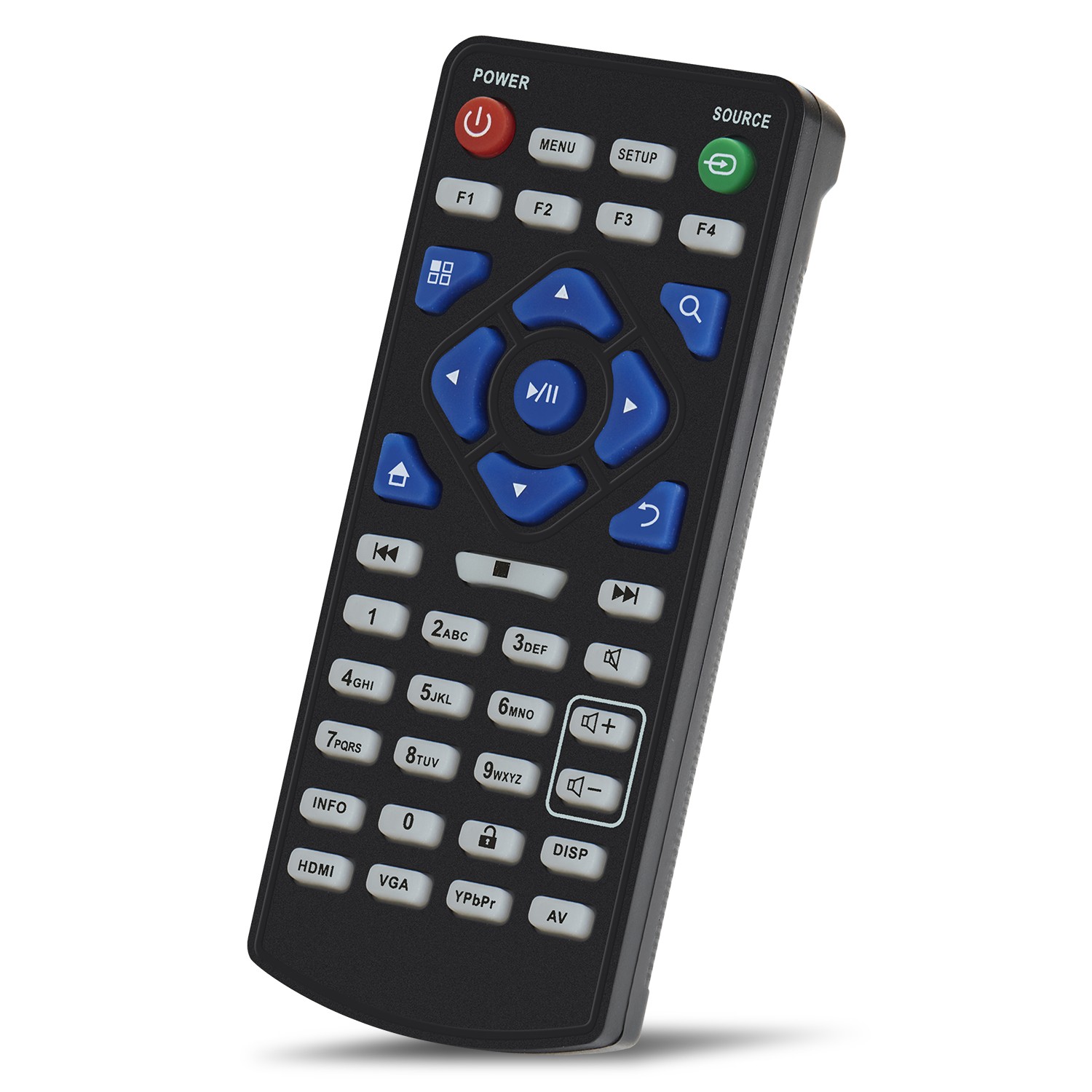

- PACKAGE CONTENTSEP4203r ePoster, power cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

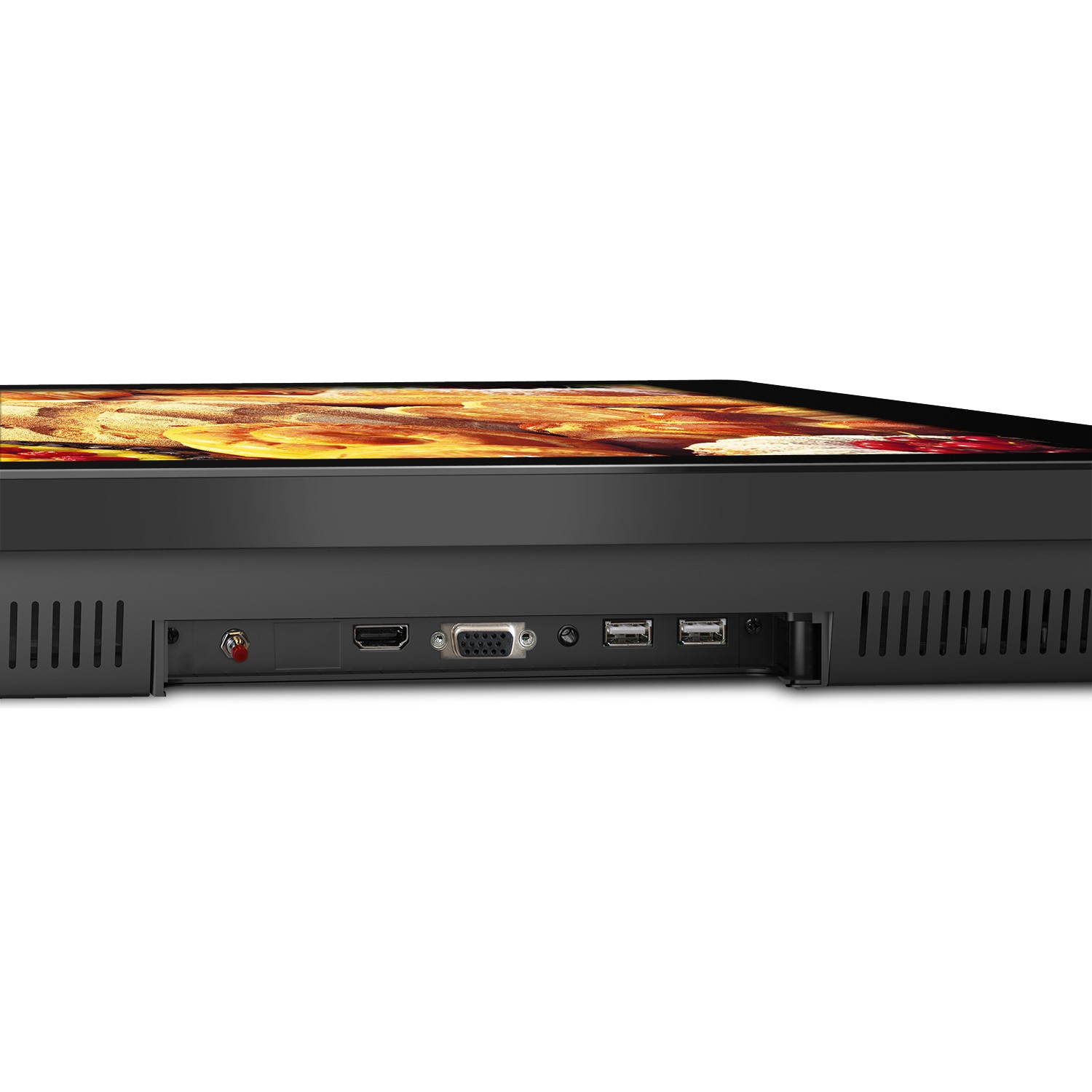

- CONNECTORSAnalog VGA 15-pin mini D-sub (x1)
Digital HDMI (x1)
Audio In 3.5mm mini jack (x1)
USB Type B (x2)
Power 3-pin plug
