SPECIFICATIONS
- DisplayDisplay Size (in.): 20
Viewable Area (in.): 19.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 20ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.227 mm (H) x 0.221 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/11 certified

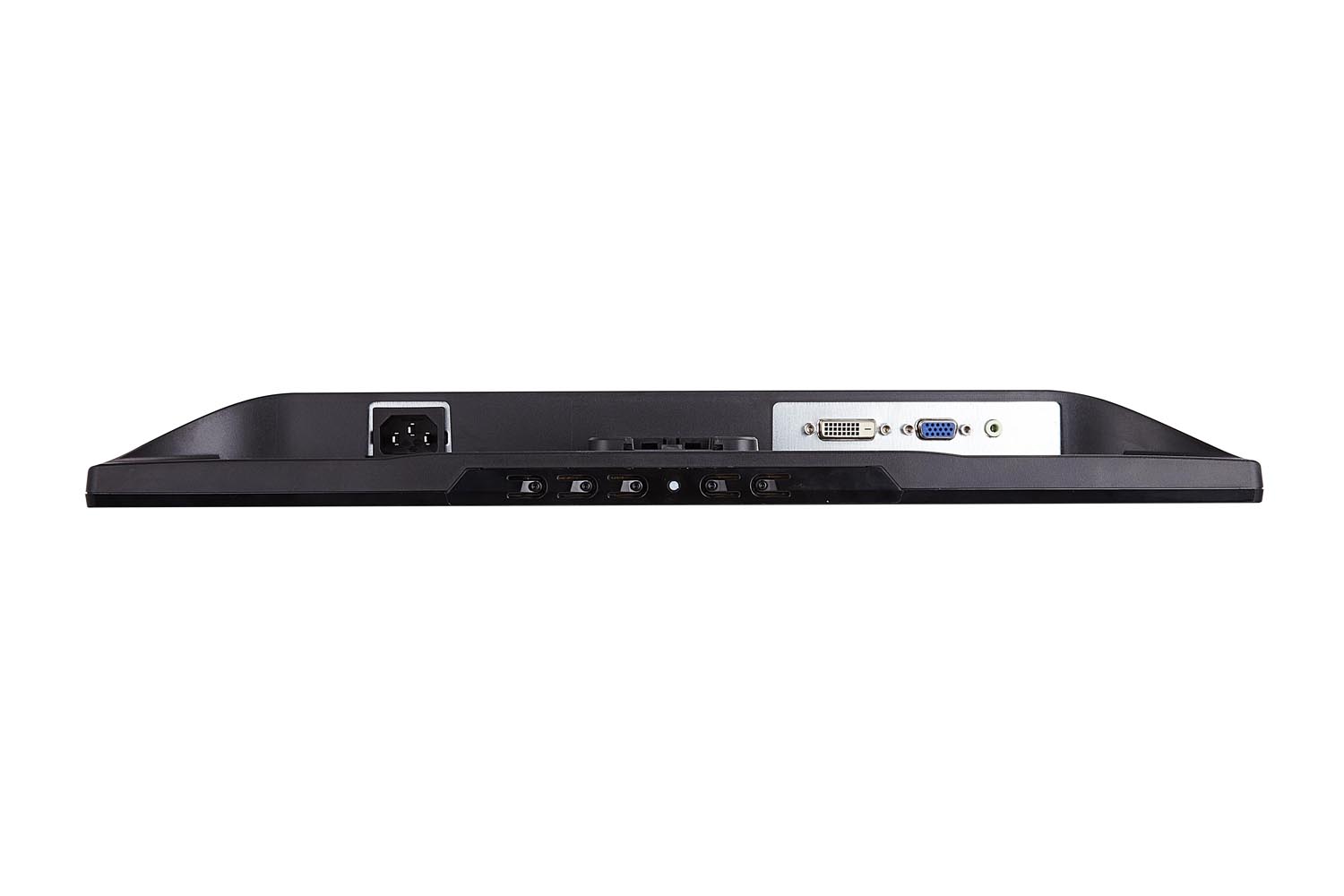

Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio In: 1
DVI-I: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 14W
Eco Mode (optimized): 18W
Consumption (typical): 22W
Consumption (max): 24W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz - Video InputDigital Sync: TMDS - DVI-D
Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -6º / 22º
- Weight (imperial)Net (lbs): 6.2
Net Without Stand (lbs): 5.4
Gross (lbs): 8.8 - Weight (metric) Net (kg): 2.8
Net Without Stand (kg): 2.5
Gross (kg): 4 - Dimensions (imperial) (wxhxd)Packaging (in.): 20.9 x 15.9 x 4.3
Physical (in.): 18.6 x 13.7 x 8.3
Physical Without Stand (in.): 18.6 x 11.3 x 1.9 - Dimensions (metric) (wxhxd)Packaging (mm): 531 x 405 x 110
Physical (mm): 472 x 349 x 212
Physical Without Stand (mm): 472 x 288 x 48 - GeneralPACKAGE CONTENTS: VA2055SM x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
