새제품
VPC25-W53-P1
Slot-in PC for ViewBoard®
- Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays
- Powerful Intel® 10th Core Processors
- Improved System Stability, Security, & Thermal Control
개요
Seize the power to get more done when you sync your ViewBoard® interactive displays and wireless presentation display with the ViewSonic VPC25-W53-P1 slot-in PC. Integrated with exceptional performance from Intel® 10th Gen Core™ processors, up to 16GB DDR4 memory, and 256GB of SSD storage, experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.
Stability in every lesson
Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC25-W53-P1 intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.
Stay cool and blaze through classes
Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.
Boot up with total security
Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.

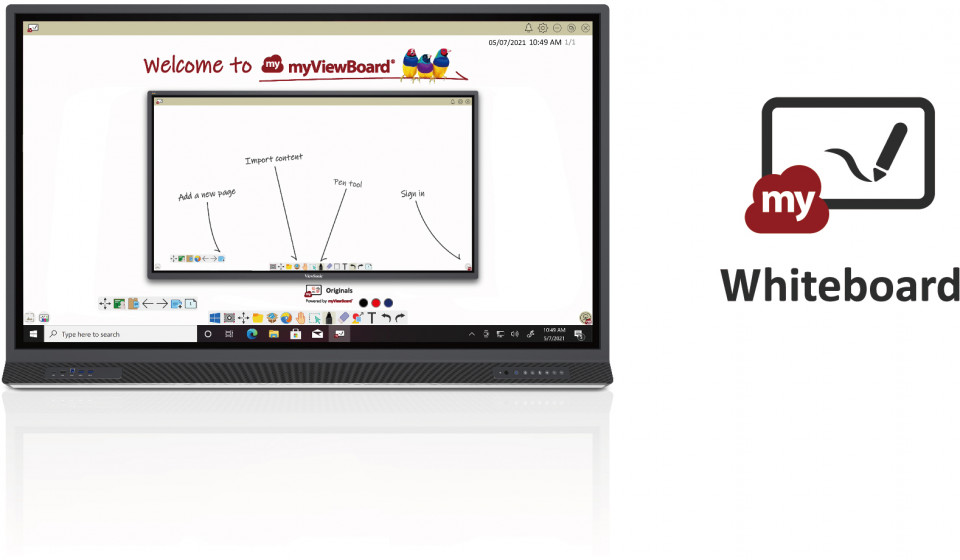

Efficient content management
Synced with myViewBoard, an intuitive suite of software applications, the VPC25-W53-P1 offers remote content sharing and engaging lesson delivery for enhanced interactivity and maximized productivity.

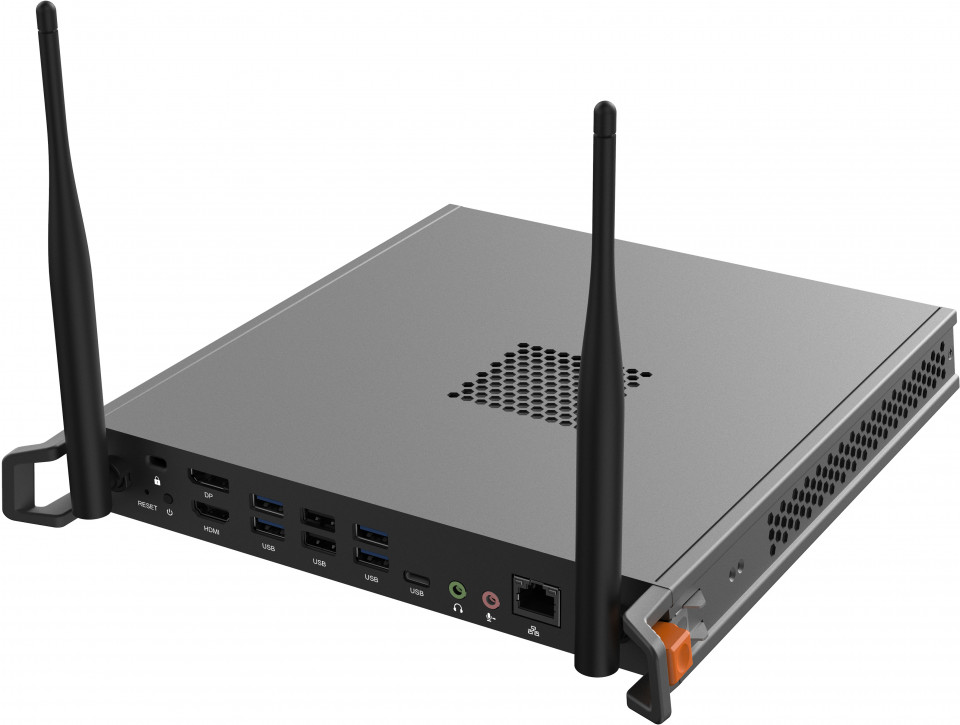

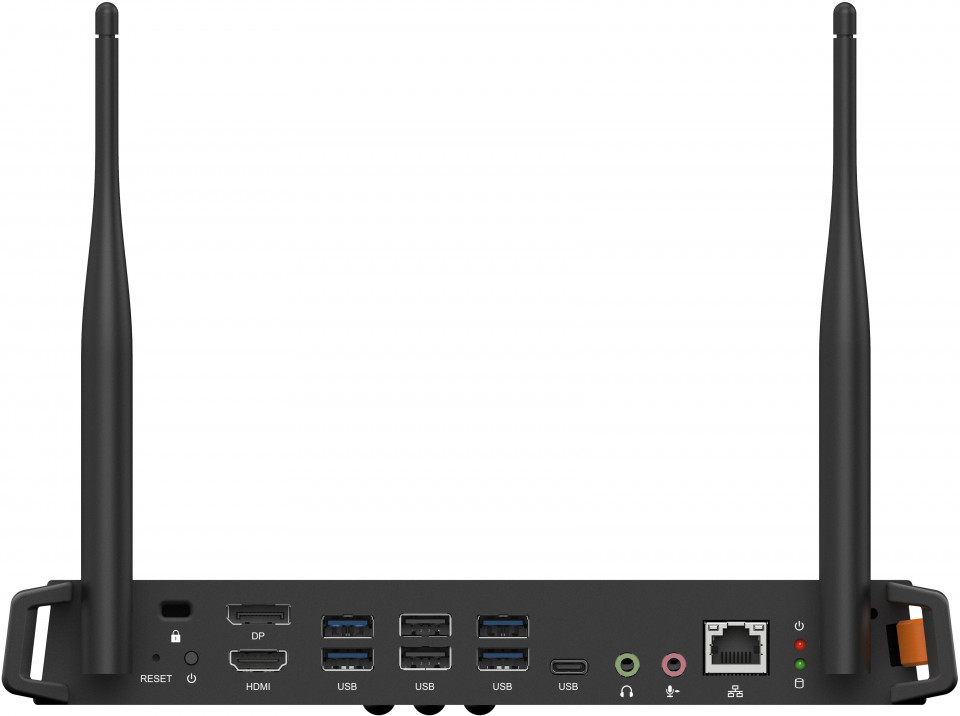

I/O Port
- USB 2.0
- DisplayPort
- Anti-theft lock
- Reset
- Power
- HDMI
- USB Type C
- Headphone
- Microphone
- RJ45
- USB 3.0
스펙
- 소프트웨어운영 체제: Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
- 코어CPU: Intel 10th Gen. Comet Lake series i5-10400T 3.6GHz
그래픽스: Integrated Intel® UHD Graphics 630 Intel H410 chipset - 기억용량.: 16GB DDR4
- 보관소치수: M.2 2280 (22 x 80 mm)
용량.: 256GB SSD
인터페이스: PCIE and SATA 3 - INPUTMIC(마이크): x1
- OUTPUT디스플레이 포트: x1 (1.4 resolution 3840x2160@60Hz)
HDMI: x1 (2.0 resolution 3840x2160@60Hz)
오디오: x1 Line Out - LANRJ45: GbE Lan Port
- 무선 / 블루투스Intel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
- USBA형: USB 2.0 x 2, USB 3.0 x 4
C형: USB 3.2 x 1 - 소프트웨어 번들myViewBoard for Window /
Adobe reader /
Winflash /
Watch Dog - 힘전압: AC 110-240V 50/60Hz
소비.: 110W - OPERATING CONDITIONS온도(θ C): -5°C to 45°C
습도: 10% ~ 90% @ 40°C Non-condensing. - 치수(가로 x 세로 x 세로)물리적(인치/mm): 246.2*263.4 x 32.2 mm / 9.69 x 10.37 x 1/27 inch
포장(inch/mm): 350*310*90 mm / 13.78 x x12.2 x x3.54 inch - WEIGHT순(lb/kg): 4.3lb / 1.95kg
총중량(파운드/kg): 4.63lb / 2.1kg - REGULATIONScTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE
EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM,
MIC, VCCI, VNTA, CCC, SRRC - 패키지 내용물1. VPC OPS
2. QSG

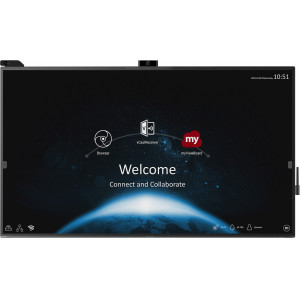

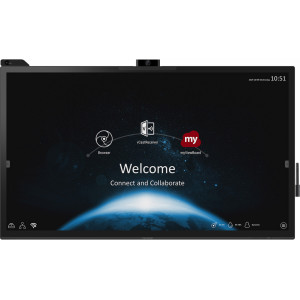

COMPATIBLE WITH VPC25-W53-P1
