IFP6550-3

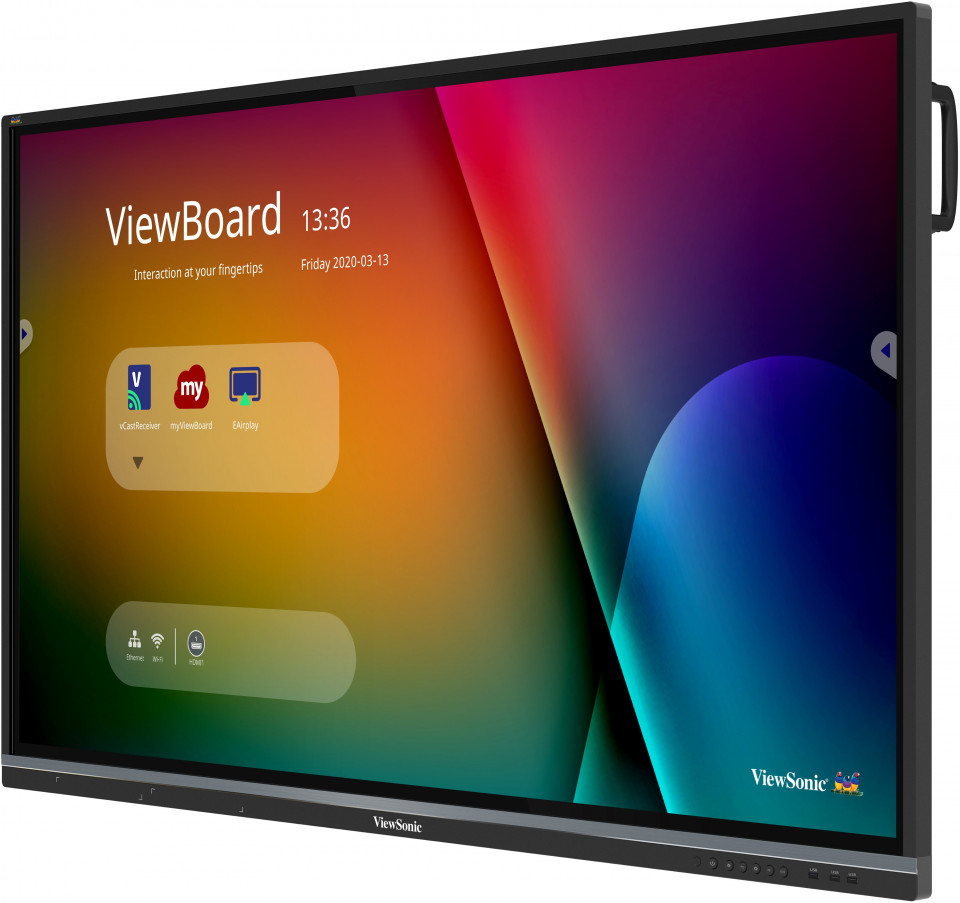

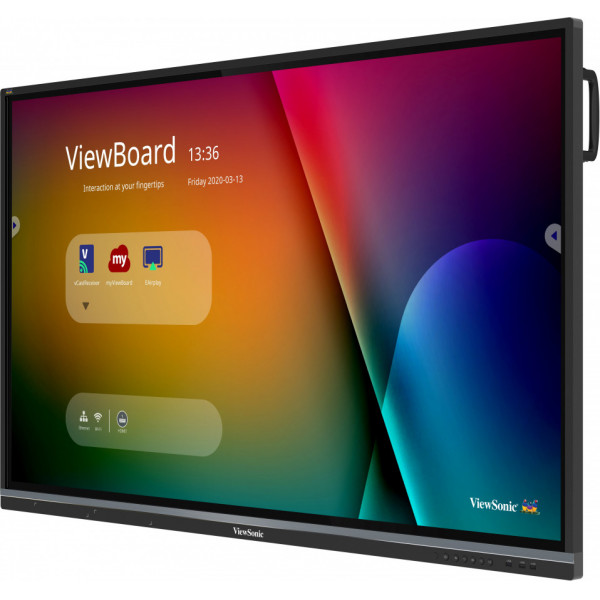

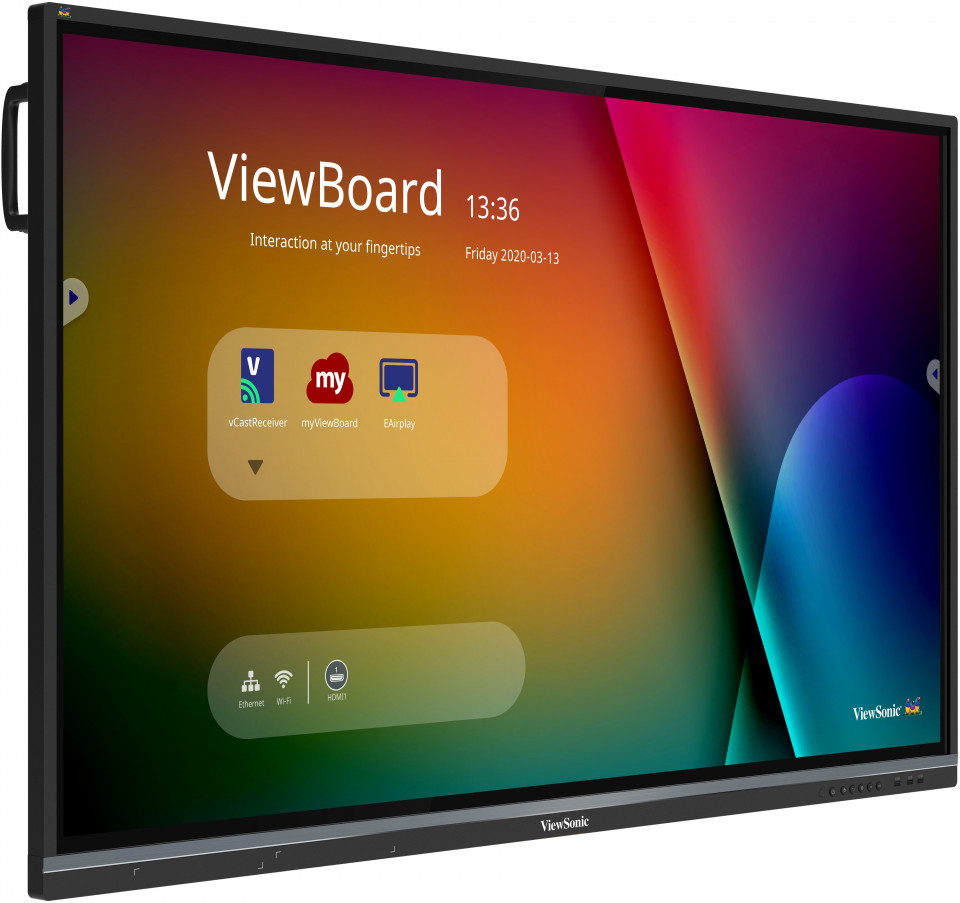

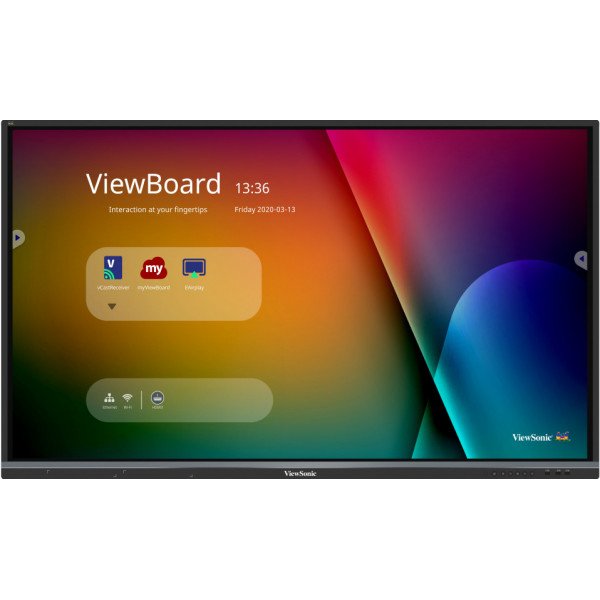

ViewBoard® 65" 4K Interactive Display

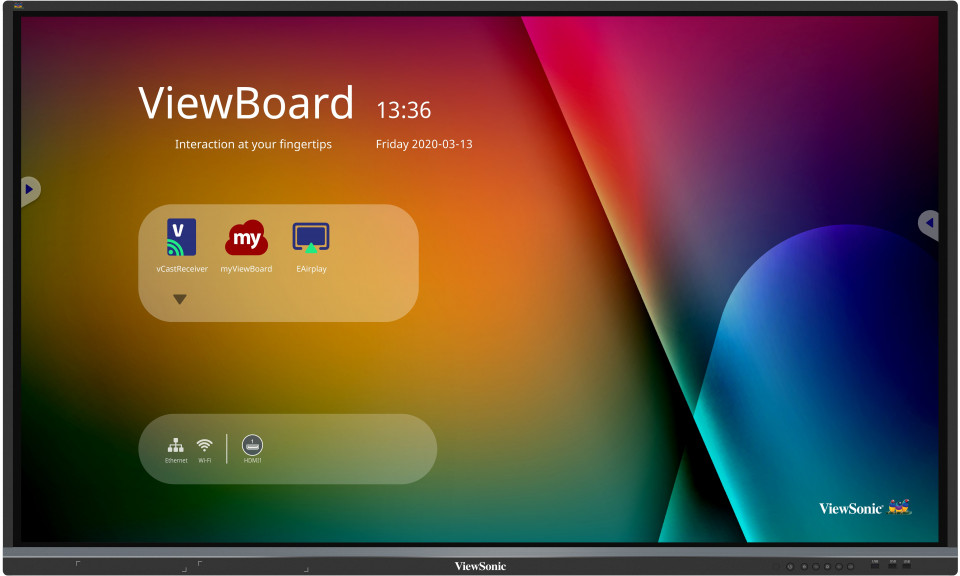

- Intuitive Interactive Interface and Eye-care Certified Display

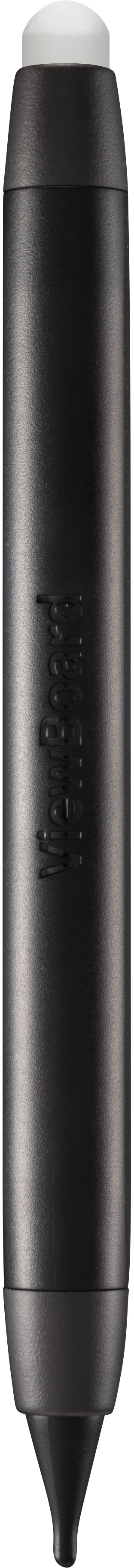

- Synchronous Writing Performance with Dual Pens
- Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
- Native Whiteboarding Tool with built-in myViewBoard® App
- Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
스펙
- 표시패널 크기: 65"
패널 유형: TFT LCD Module with DLED Backlight.
표시면적(mm): 1431 (H) x 807 (V) (64.5” diagonal)
가로 세로 비율: 16:9
결의안: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
밝기: 350 nits (typ.)
대비 비율: 5000:1 (DCR)
응답 시간: 8ms
보기 각도: H = 178, V = 178 typ.
백라이트 라이프: 30,000 Hours (Min)
표면 처리: Hardness: 9H
Anti-glare coating

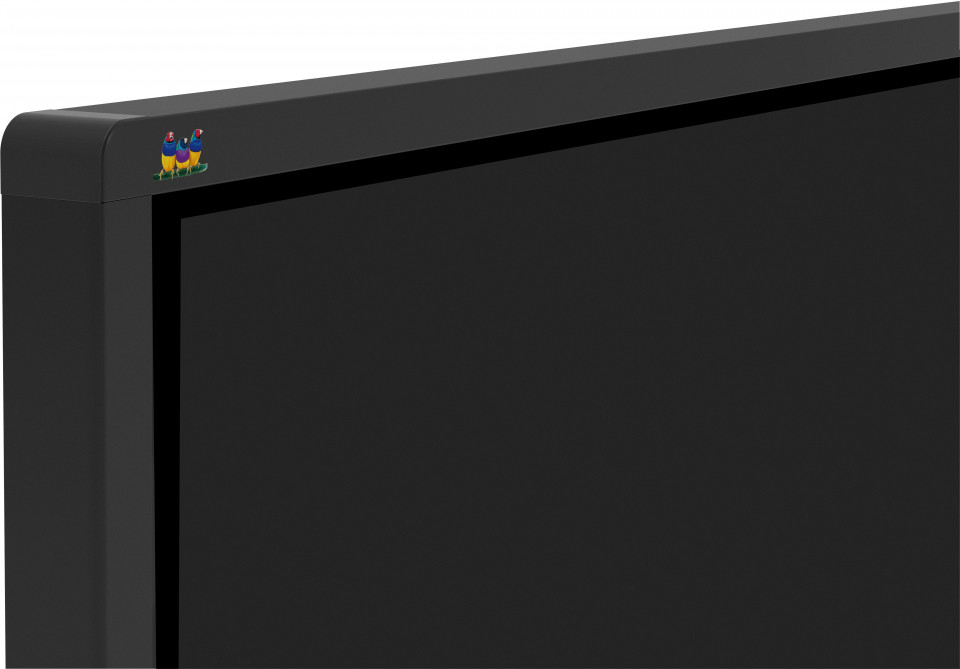

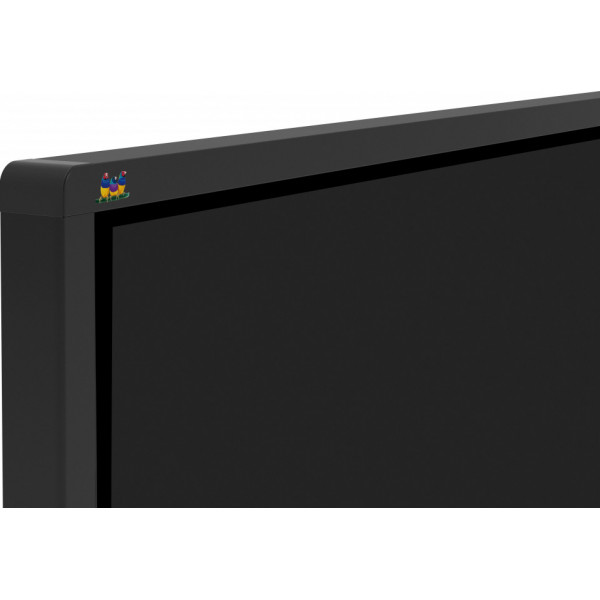

베젤: Slim
오리엔테이션: Landscape - 플랫폼프로세서: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
RAM: 3GB DDR4
보관소: 32GB - Touch유형/기술: IR Recognition
터치 해상도: 32767 x 32767
터치 포인트: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
오디오: x1 (PC audio in)
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUT오디오: x1 (Earphone out)
SPDIF: 1 (optical) - LANRJ45: x1

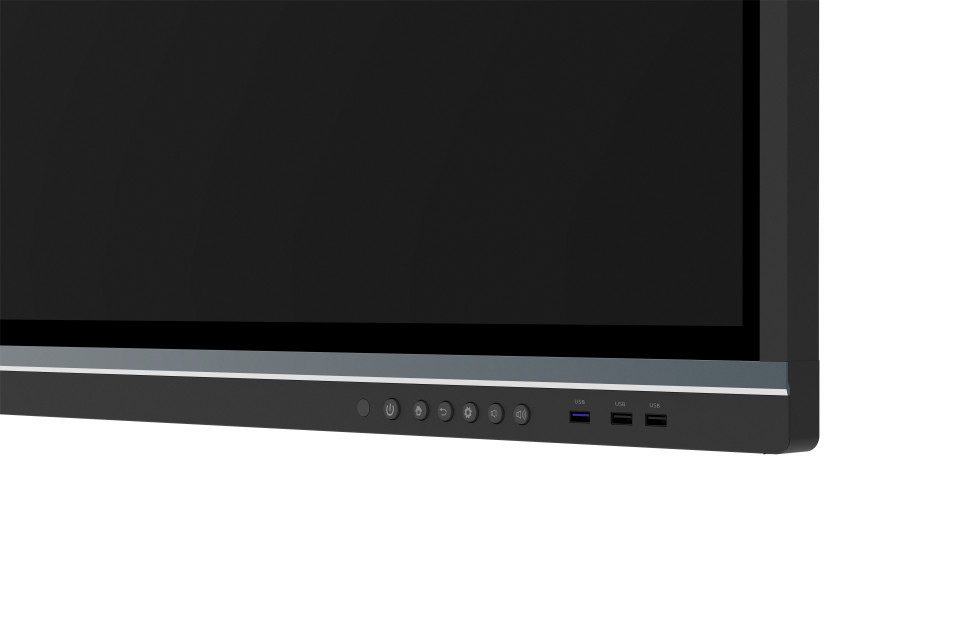

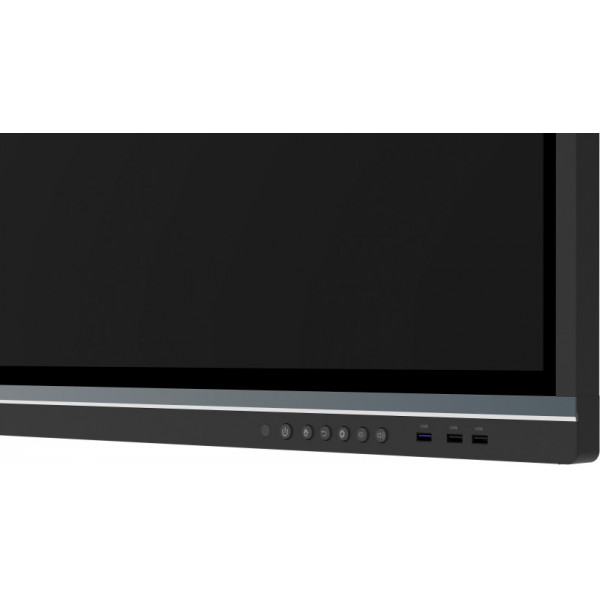

- USBA형: USB2.0: Front x2, Rear x1 (SmartPort™ for all)
USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
B형: x2, for touch - 스피커10W x 2 + 15W x 1 subwoofers
- Top Camera PlateYes
- COMPATIBILITYHDMI: 3840x2160
- 임베디드 OSAndroid 8
- 소프트웨어 번들기본 주석 소프트웨어: myViewBoard
프로 주석 소프트웨어: myViewBoard for Windows (Embedded in Windows Slot-in PC) - 특수 기능All-in-one USB port: Front “SmartPort™ USB” to all channels.
IFP와 슬롯 인 장치 간의 간단한 LAN 공유: 10M/100M/ for Android
10M/100M/1000M for slot-in PC - 힘전압: 100-240VAC +/- 10% Wide Range

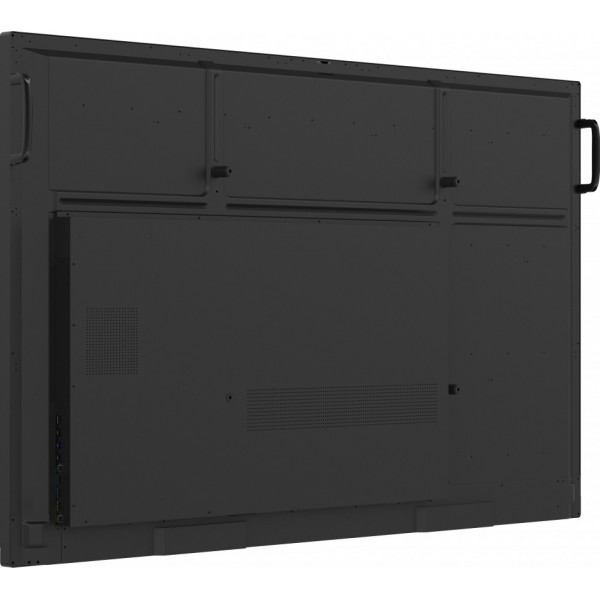

소비.: On: 108W(typ.) / Off: <0.5W - ERGONOMICS벽면 장착(VESA® ): 600 x 400
- OPERATING CONDITIONS온도(θ C): 0°C to 40°C
습도: 10% ~ 90% RH non-condensing - 치수(가로 x 세로 x 세로)물리적(인치/mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
포장(inch/mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm - WEIGHT순(lb/kg): 89.3 lb / 40.5 kg
총중량(파운드/kg): 109.6 lb / 49.7 kg - 패키지 내용물1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M
- 호환 슬롯 인 PCVPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
COMPATIBLE WITH IFP6550-3
