개요
With this interactive package (PJ-PEN-003), the PJD8353s or PJD8653ws becomes an interactive projector that transforms any surface into an interactive whiteboard. Along with the included ViewDraw 2 software, the dual interactive pens allow 2 users to simultaneously annotate, write, or draw on the projected image. This feature encourages collaboration and engages the audience.스펙

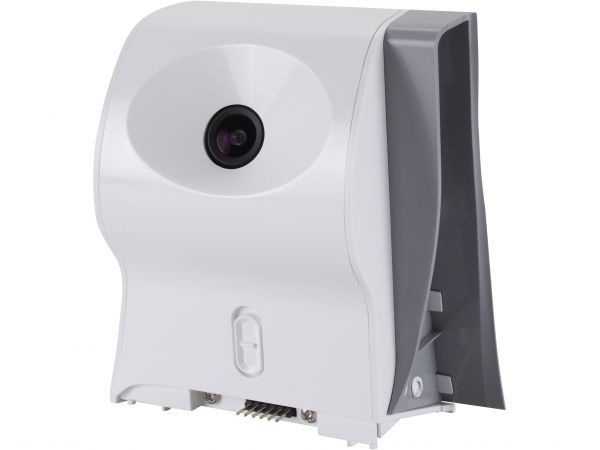

- IR CameraSensor Size: 1/4" CMOS
IR Band: 940nm
결의안: 2560 x 1920 (Interpolated); 640 x 480 (Native)
Detect frame rate: 60 fps (16.6ms)
Calibration: Auto calibration
Driver install: Auto calibration
던지기 비율: 0.35
Projected image distance and size: 60" to 100"
Multi touch: 2-touch points
Power consumption: 150mA

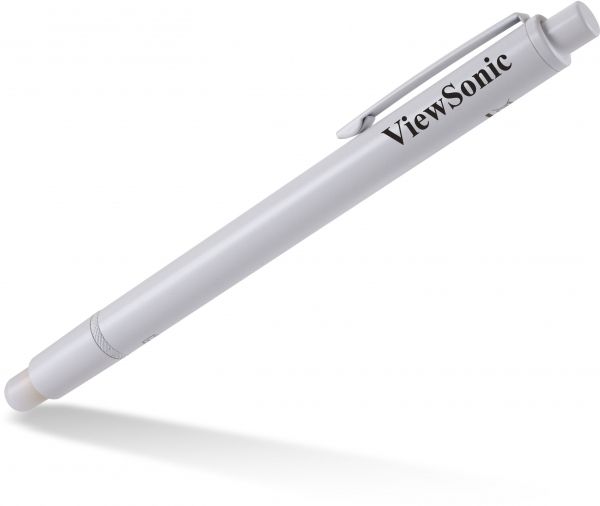

기억: 8M - IR-PenLight source wavelegth: IR(940nm)
Driving current: 110mA(Max)
Power required: AAA Battery (alkaline) x 2
치수: 160mm (L) x 11.5mm (Diameter)
체중: 50g (with Batteries) - OPERATING CONDITIONS온도: 10° ~ 40°C/ 64° ~ 104°F
습도: 10 ~ 85%, Non-Condensation
- DIMENSIONS물리적(WxHxD): 117 x 98 x 46mm
Packaging: 245 X 166 x 63mm - WEIGHT그물: 0.45kg

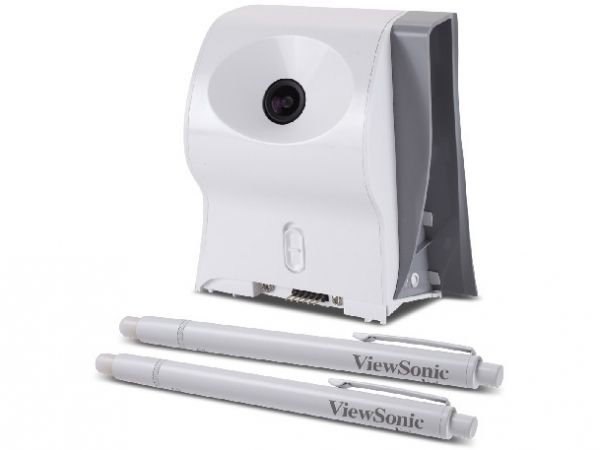

- 패키지 내용물Pen with Battery x 2, IR Camera,Quick Start Guide, Software CD, 4.5M USB Cable
