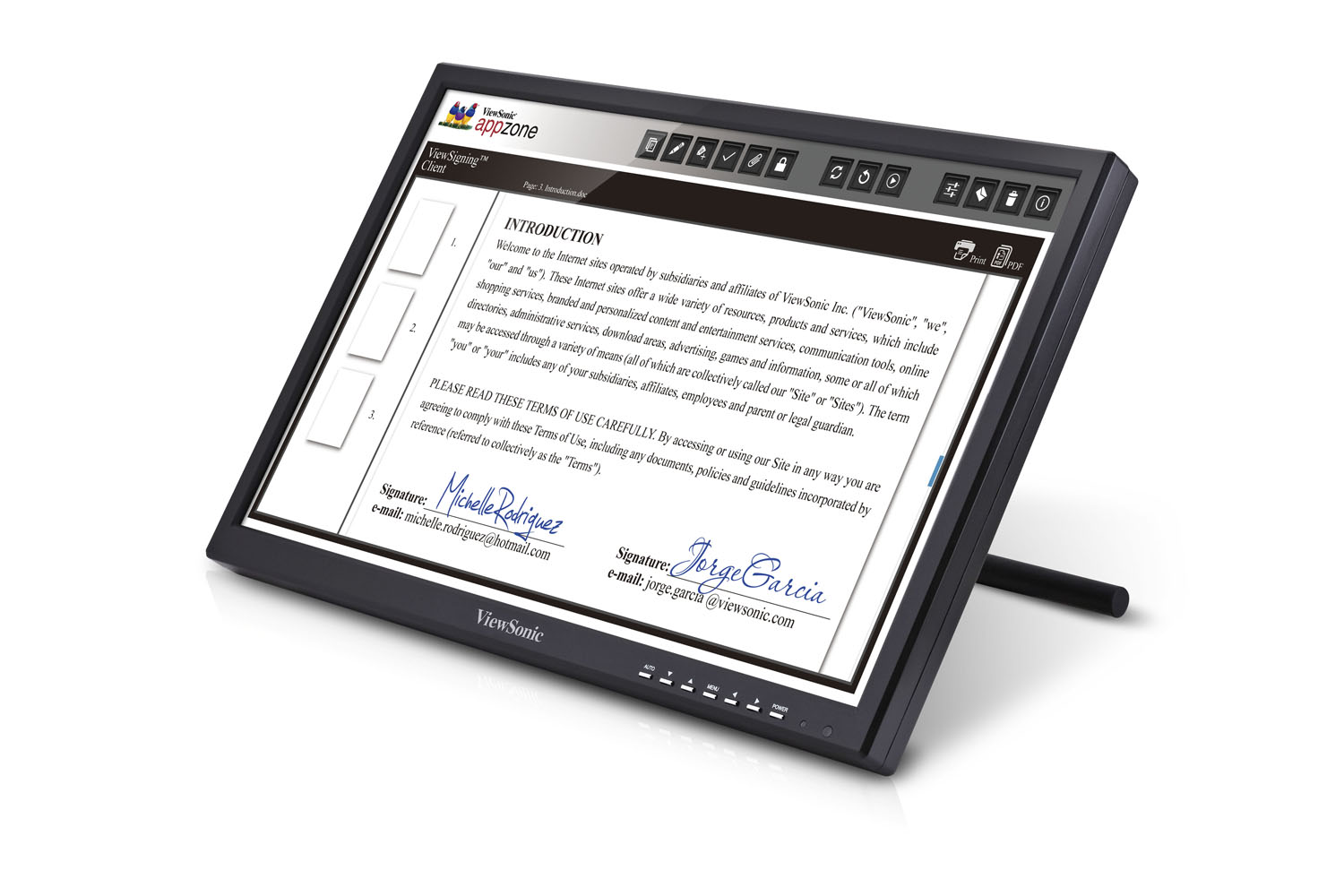

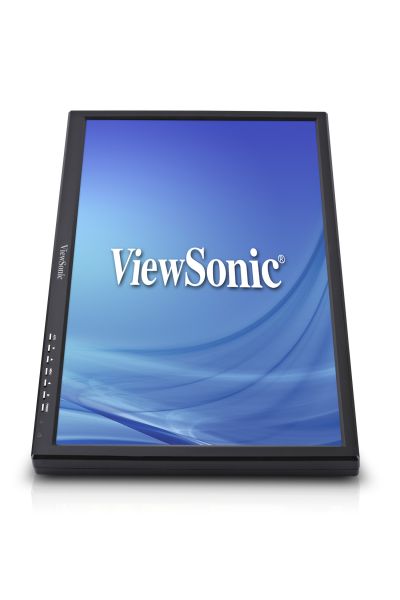

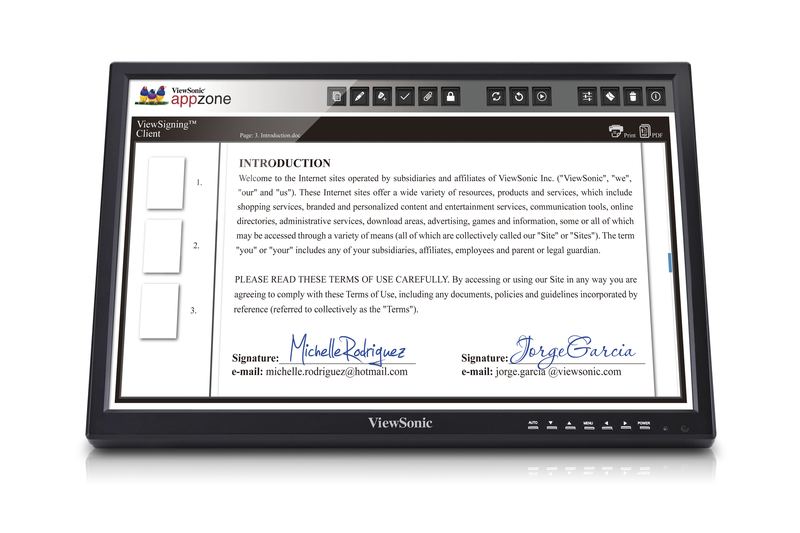

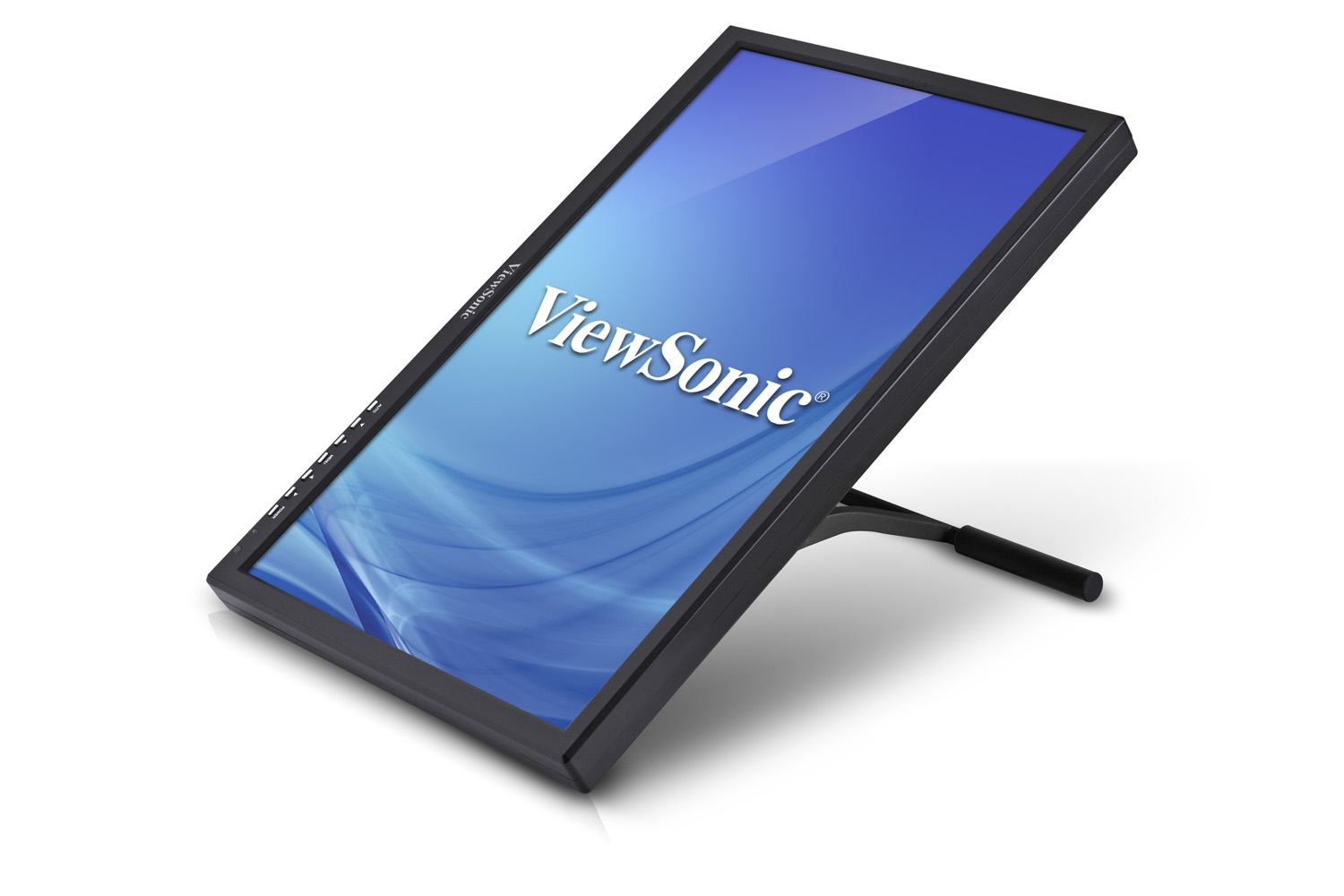

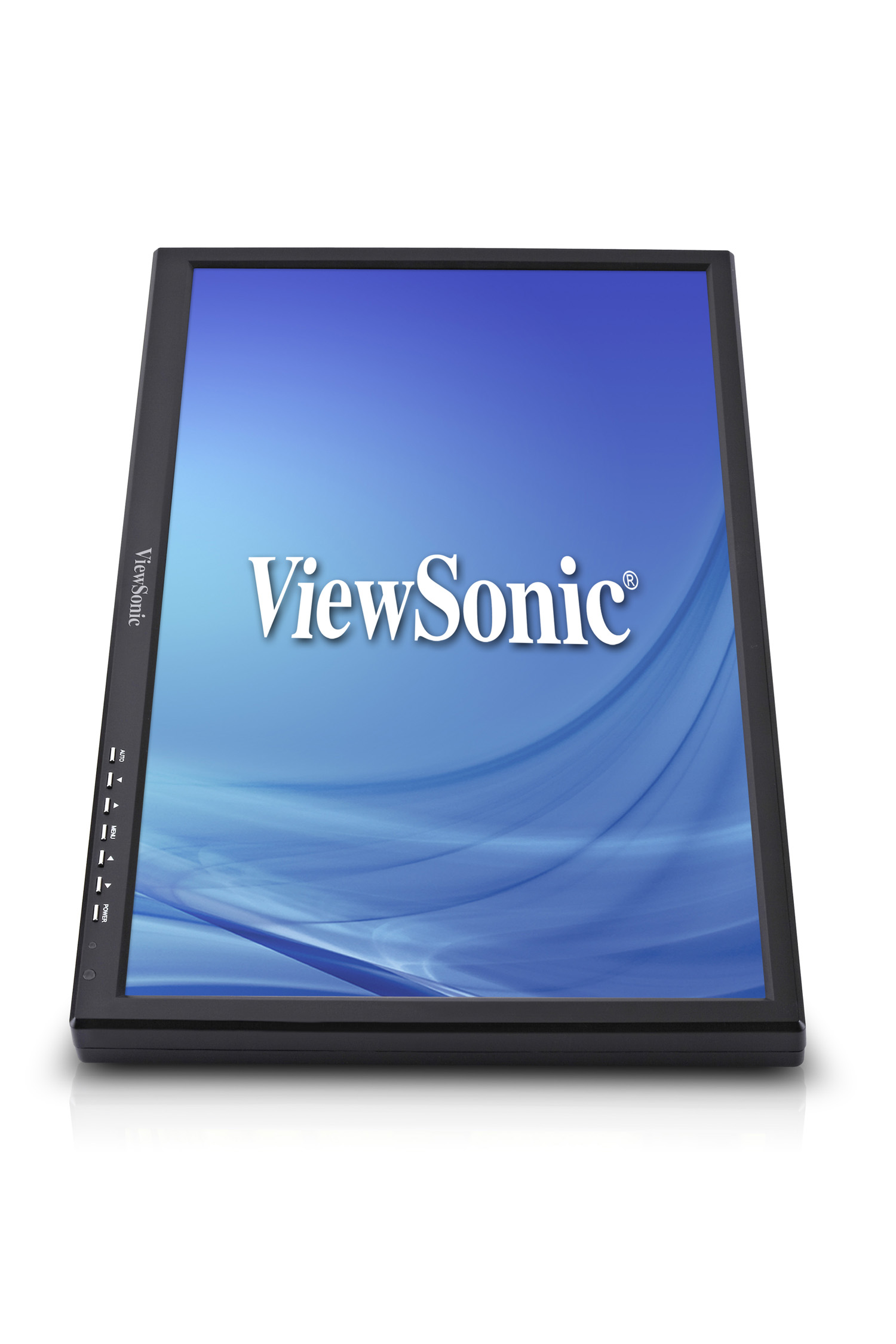

PD1910

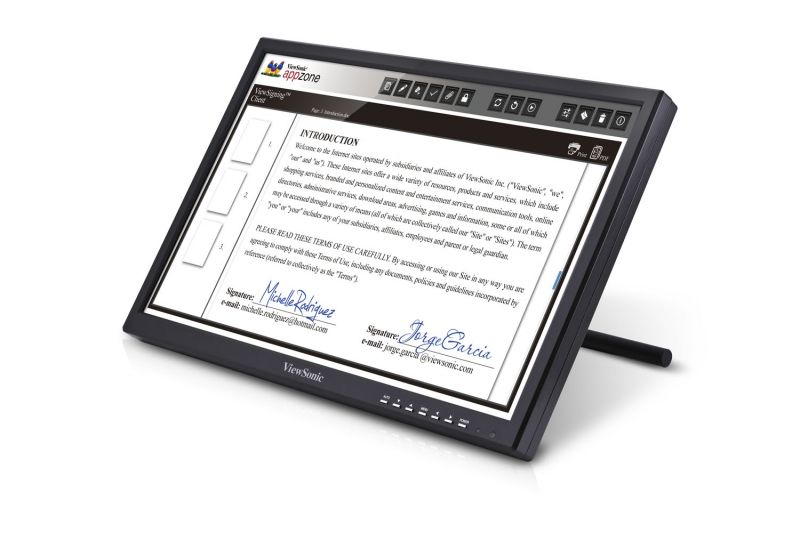

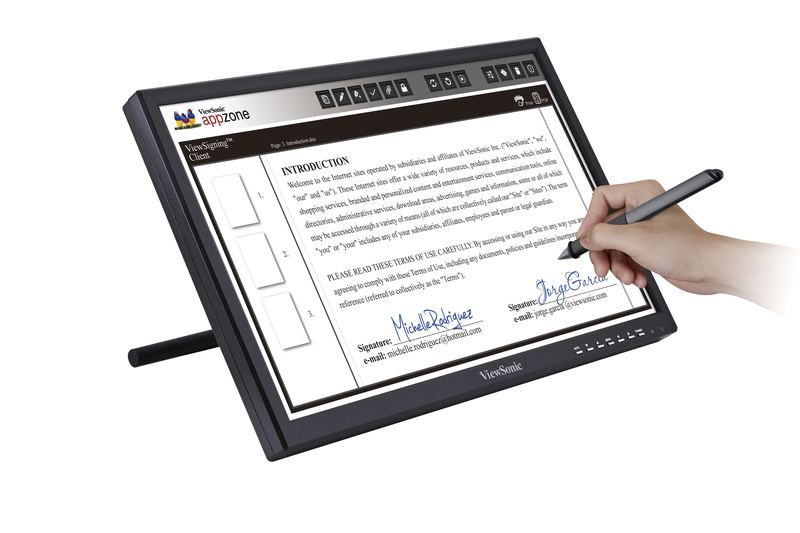

19” digital pen display with advanced battery-free digital V Pen technology
스펙
- LCD PANELDisplay Area: 19'' (18.95'' viewable)
Optimum Resolution: 1440 x 900, 16:10
밝기: 250 cd/m2
대비 비율: 1000:1
보기 각도: 170°/170°
Backlight: LED Light-Bar

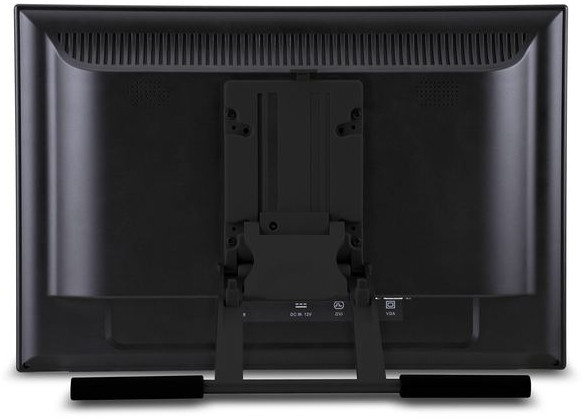

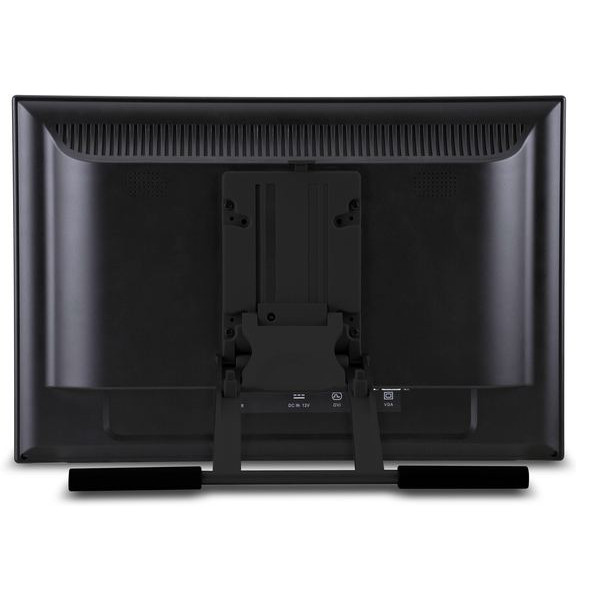

표면 처리: 8H tempered glass - INPUT비디오 입력: D-Sub, DVI
- TOUCHTechnology: Electromagnetic Resonance

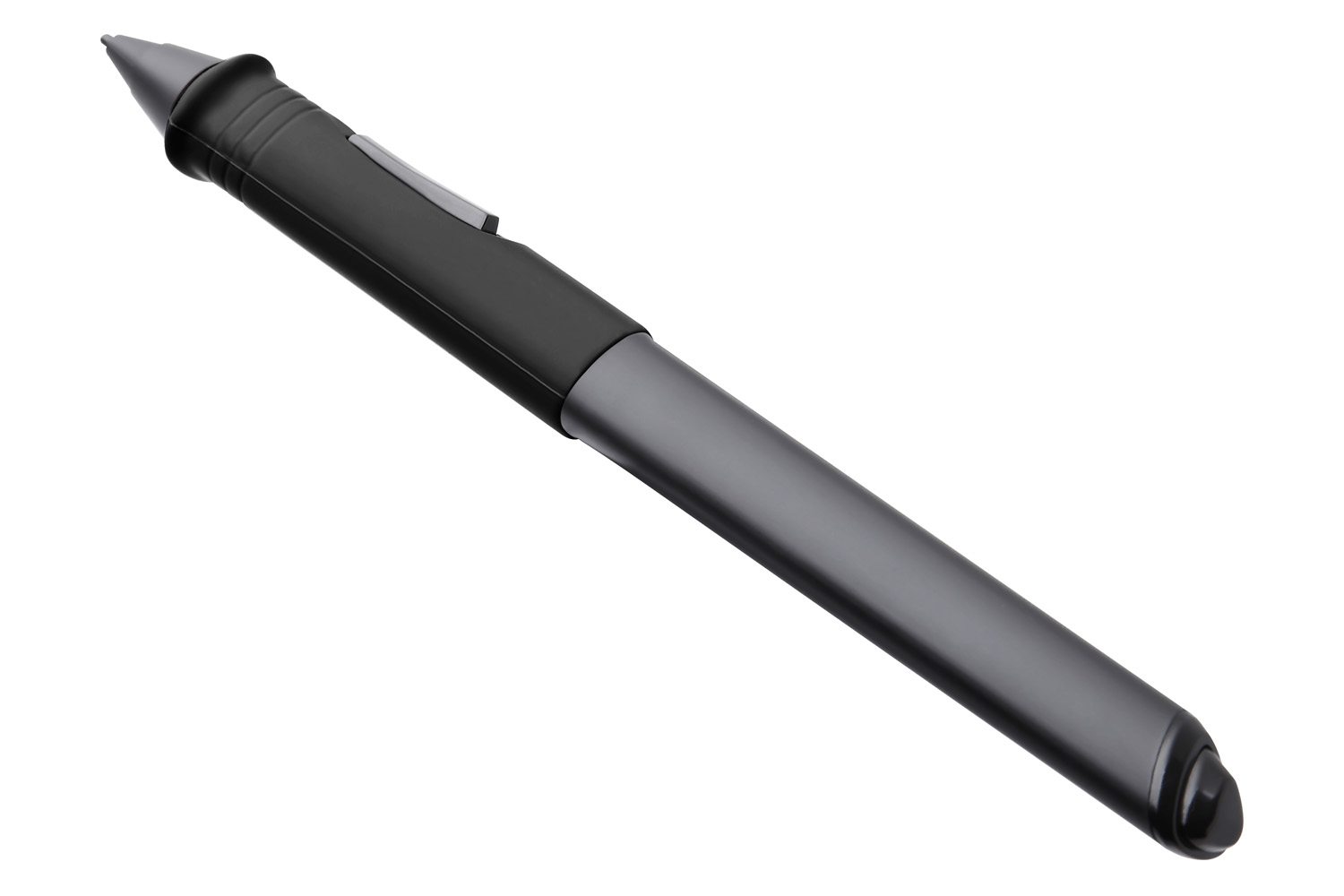

Touch Pen: Battery-Free
Digitizer Resolution: 5080LPI
Writing Response: 220 PPS (point per second)
Accuracy: ± 0.5mm (center), ± 2 mm (edge)
Pressure Level: 2048 levels
Detectable Height: 10mm above glass

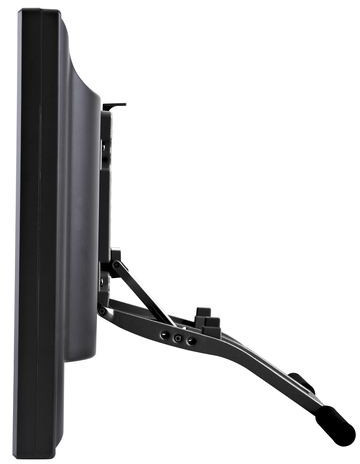

- ERGONOMICs틸트: 35°, 79° ± 5°
- COMPATIBILITYPC: Windows Vista, Windows XP, Windows 7, Windows 8
Mac: 10.5, 10.6, 10.7, 10.8 - POWER전압: 12V / 3A
소비.: 28 W - OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
습도: 20% - 80%(Max), Non-Condensation - DIMENSIONS W x H x D (inches)Physical: 17.4” x 11.6” x 9.87” inch 441.6 x 294 x 250.8 mm
Box: 19.1” x 16.4” x 8.3” inch 484 mm x 417 x 211 mm - WEIGHT순(lb/kg): 8.61 lb 3.9kg
총중량(파운드/kg): 8.61 lb 3.9kg - WHAT'S IN THE BOX1. Pen Display*1 2. Power cord*1 3. Power Adapter *1 4. Quick Star Guide *1 5. Driver CD*1 6. VGA cable*1 7. USB cable*1 8. Pen*1 9. Pen holder*1(including Pen tip*6) 10. Warranty card*1(VSCN only)*1 *Actual content may differ from market to market
