EP5520T

55 inch Touch All-in-one Digital ePoster

  • 10-point touch
  • Embedded media player and 16GB storage
  • USB multimedia playback
  • LAN function to access to web
  • Internal scheduler
구매 문의

개요

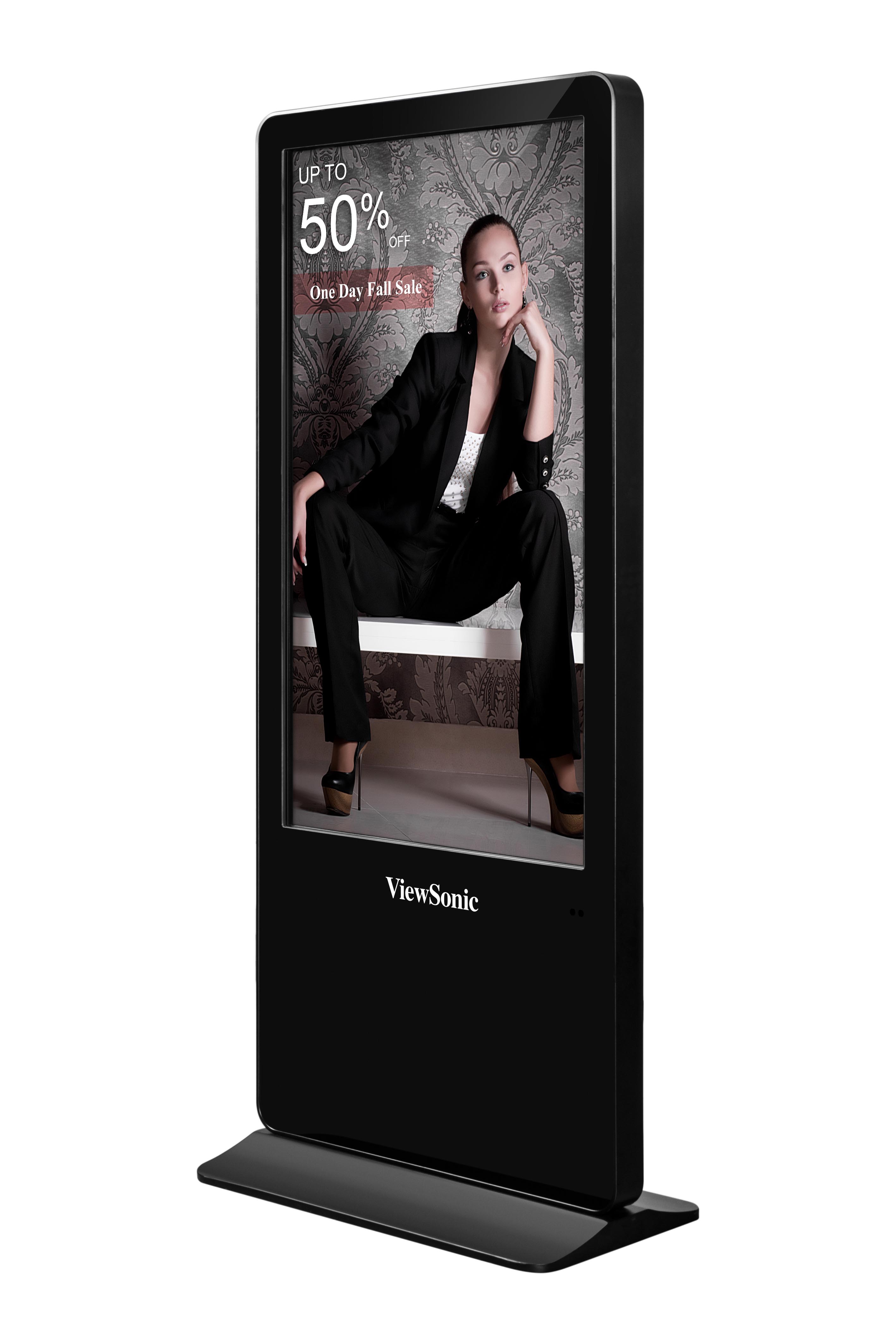

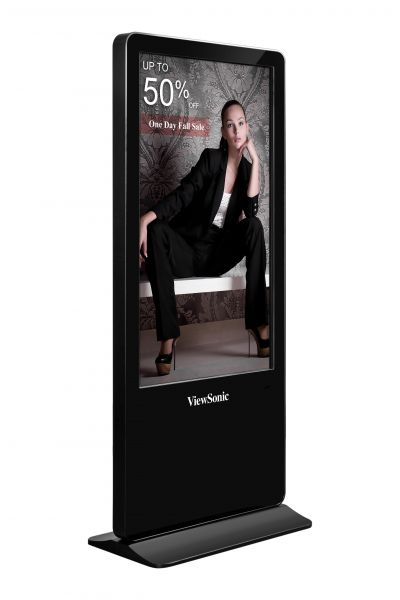

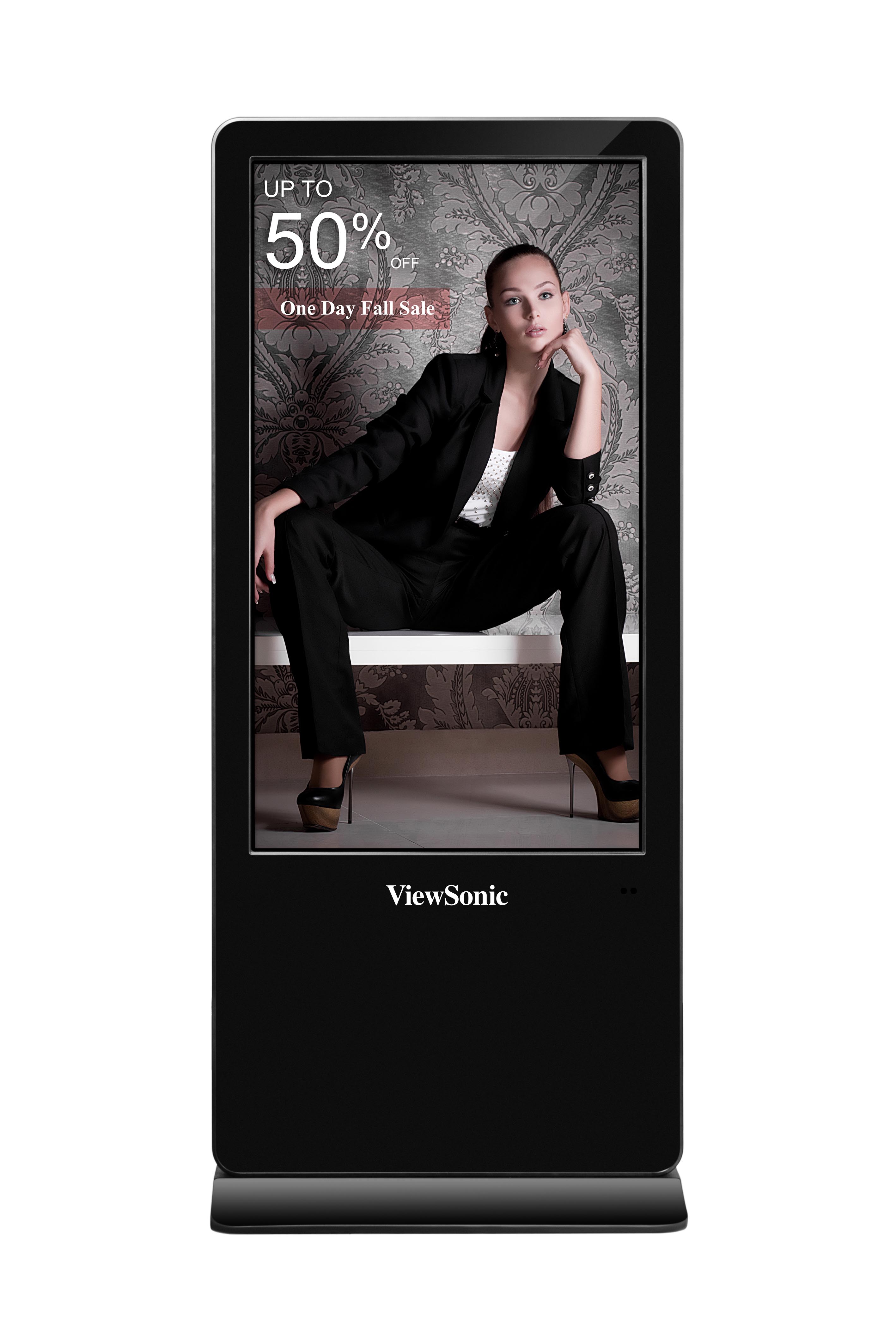

The ViewSonic EP5520T is a 10-point interactive 55” all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5520T comes with a scratch-proof tempered glass faceplate for added durability. Featuring Full HD 1080p resolution, 178°/178° wide-angle viewing, 350-nit brightness, 4,000:1 contrast ratio, and dual 10W stereo speakers, the EP5520T delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door.

Interactive On-Demand Messaging

This display delivers on-demand interactive messaging with 10-point multi-touch capability and is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.

All-in-one with Integrated Media Player

This display features an integrated media player with quad-core processor and 16GB storage, providing smooth and reliable multimedia contents playback – without the need for an external media player or PC.

USB multimedia playback

Customized photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive.

Access to Web Contents

Integrated with RJ45 connectivity, the display offers convenient web browsing functionality. Users can search online and watch videos directly on the display without having to connect to other computing devices.

Internal scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, or videos run smoothly and on time.

Versatile Connectivity

HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.

Easy Multi-device Management

RS232 connectivity enables computers and laptops to be connected to this display, and also allows IT personnel to conveniently manage multiple displays, and configure devices.

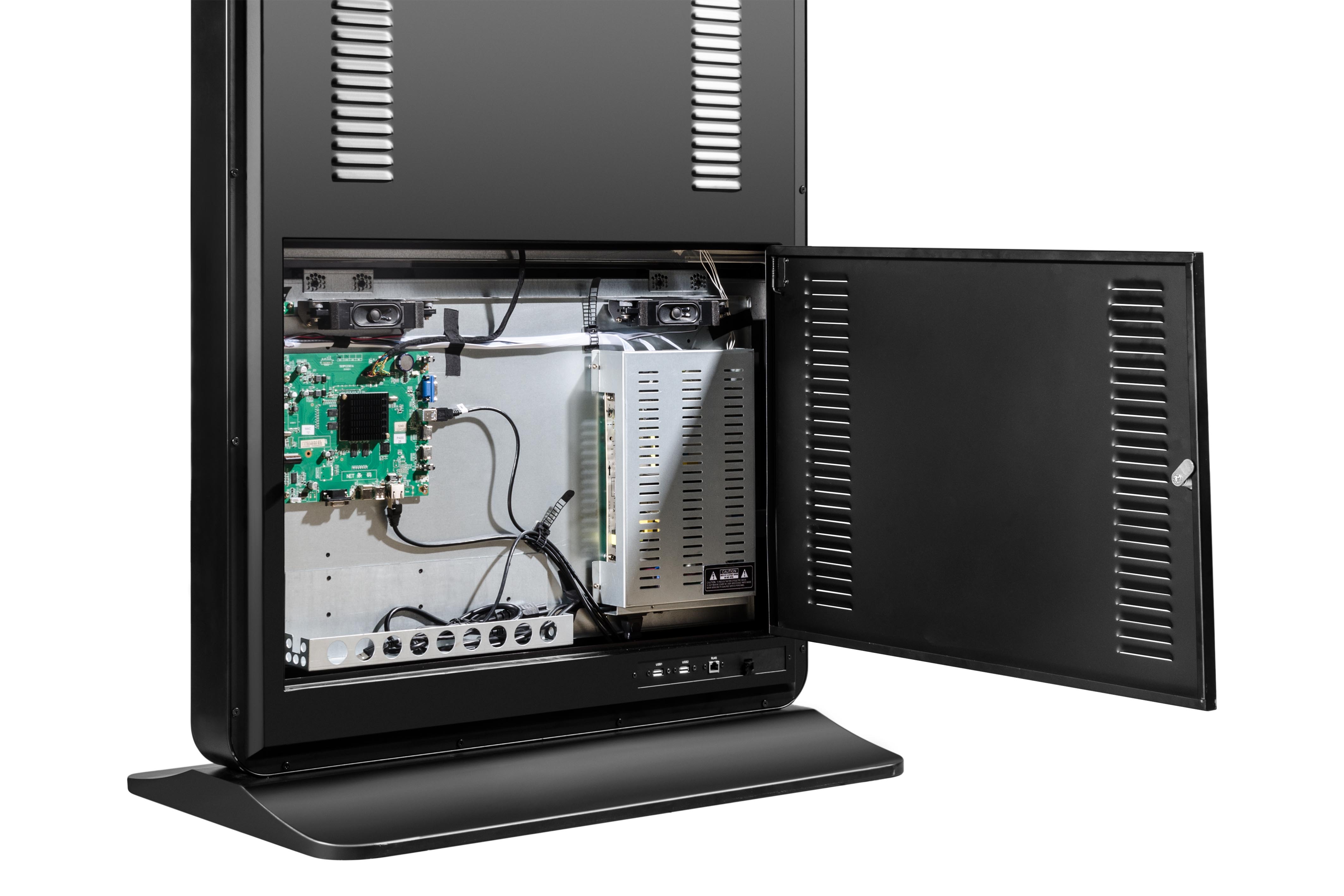

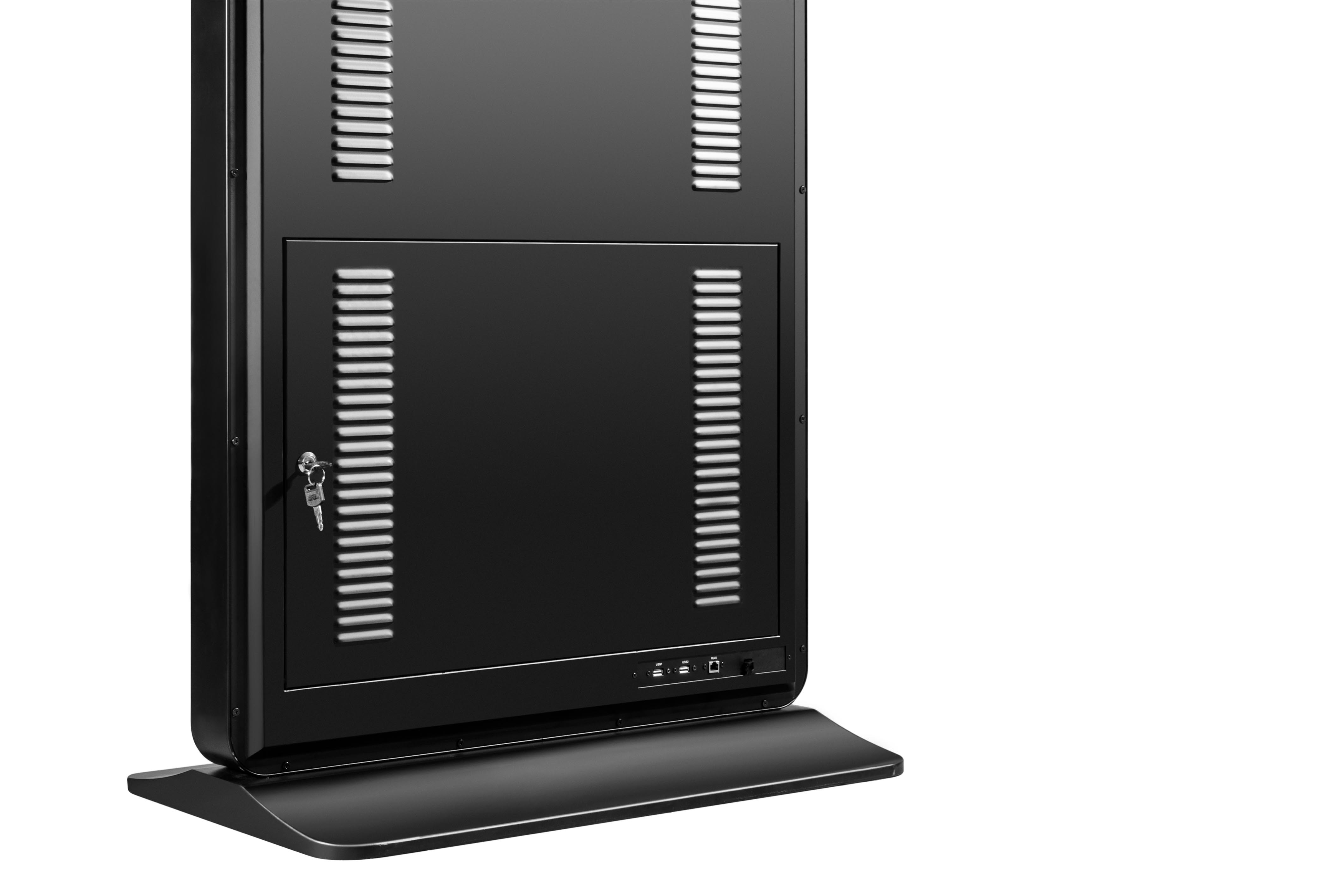

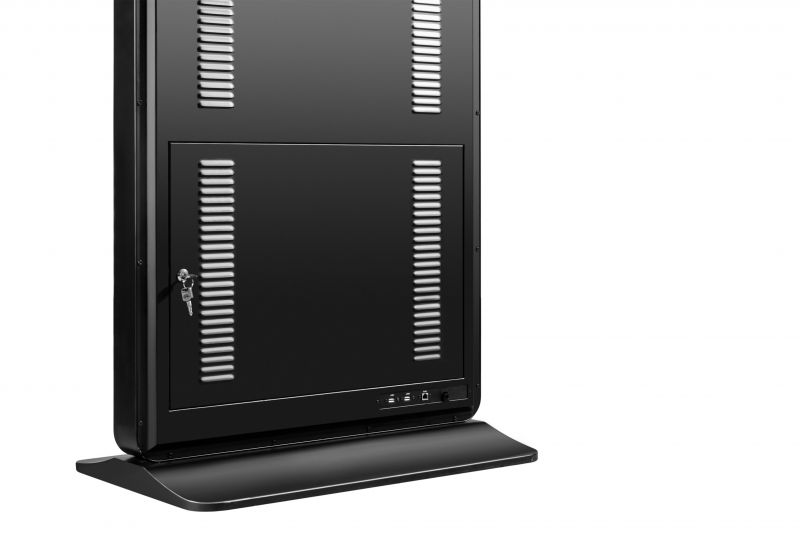

Media player Cradle with Security Door

A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.

Dual Integrated Speakers

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience.

스펙


  • 표시
    패널 크기: 55" (54.6" Diagonal)
    Type/Tech: TFT LCD Module with WLED
    표시면적(mm): 1209.6 (H) x 680.4 (V)
    가로 세로 비율: 9:16
    기본 해상도: 1920 x 1080
    Colors: 16.7M
    밝기: 350 nits (typ.)
    대비 비율: 4000:1 (typ.)
    응답 시간: 8 ms (typ. G to G)
    보기 각도: 178°(H), 178°(V)
    백라이트 라이프: 30,000 Hours Typ.
    표면 처리: Hard coating (7H)
  • Touch
    유형/기술: IR
    터치 해상도: 32768 x 32768
    터치 포인트: 10 points
  • 보관소
    on-board flash: 16GB
