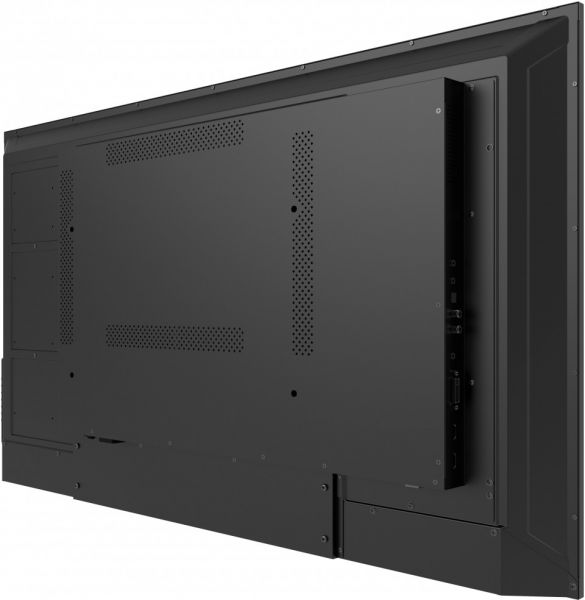

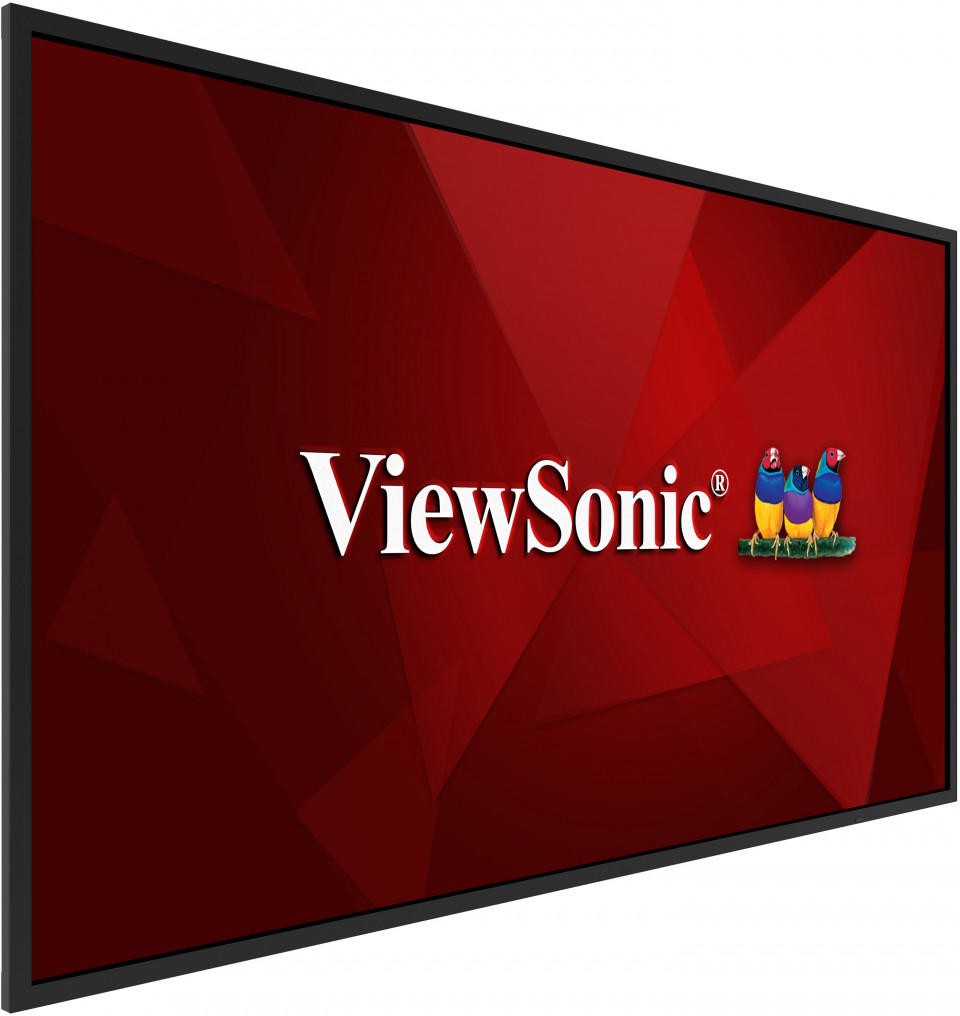

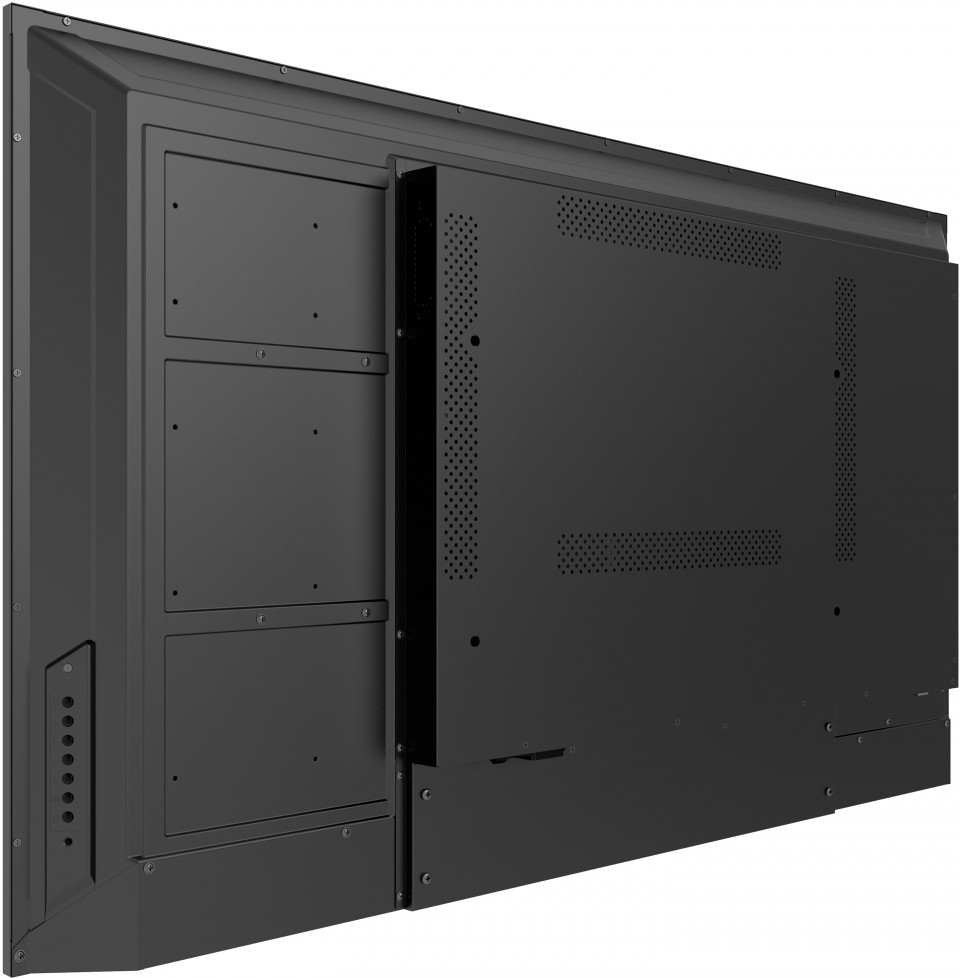

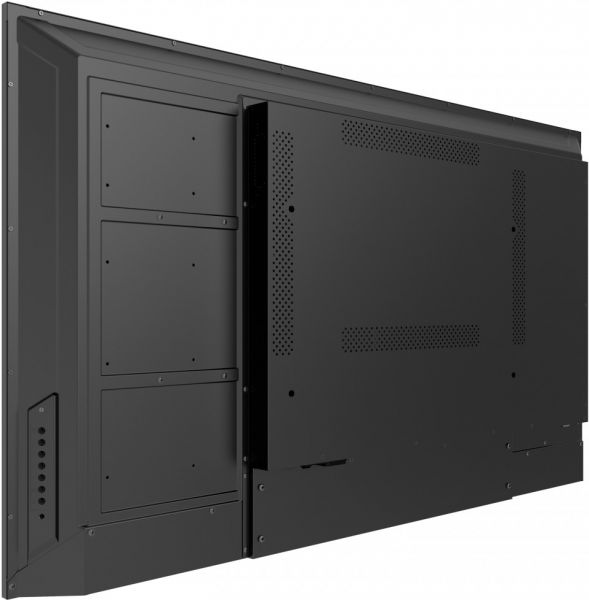

CDE5520

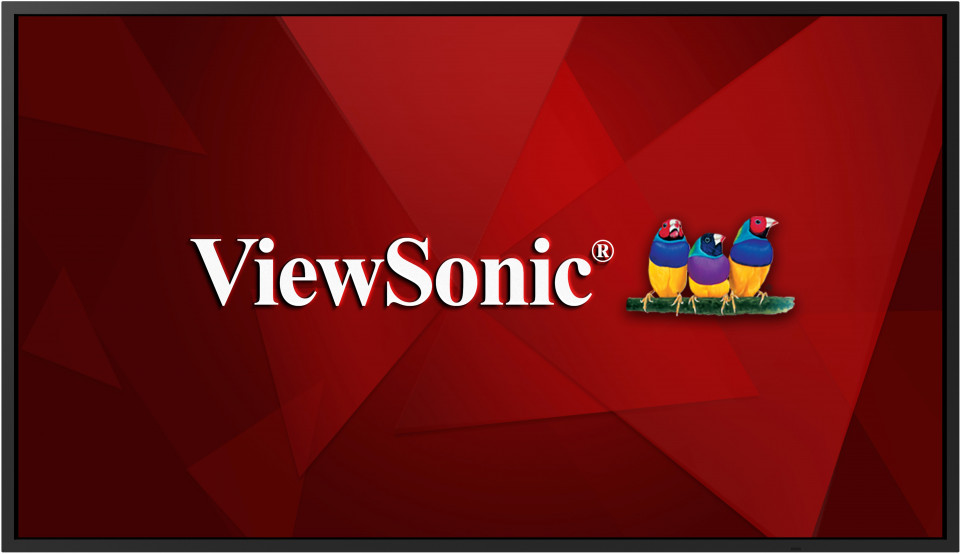

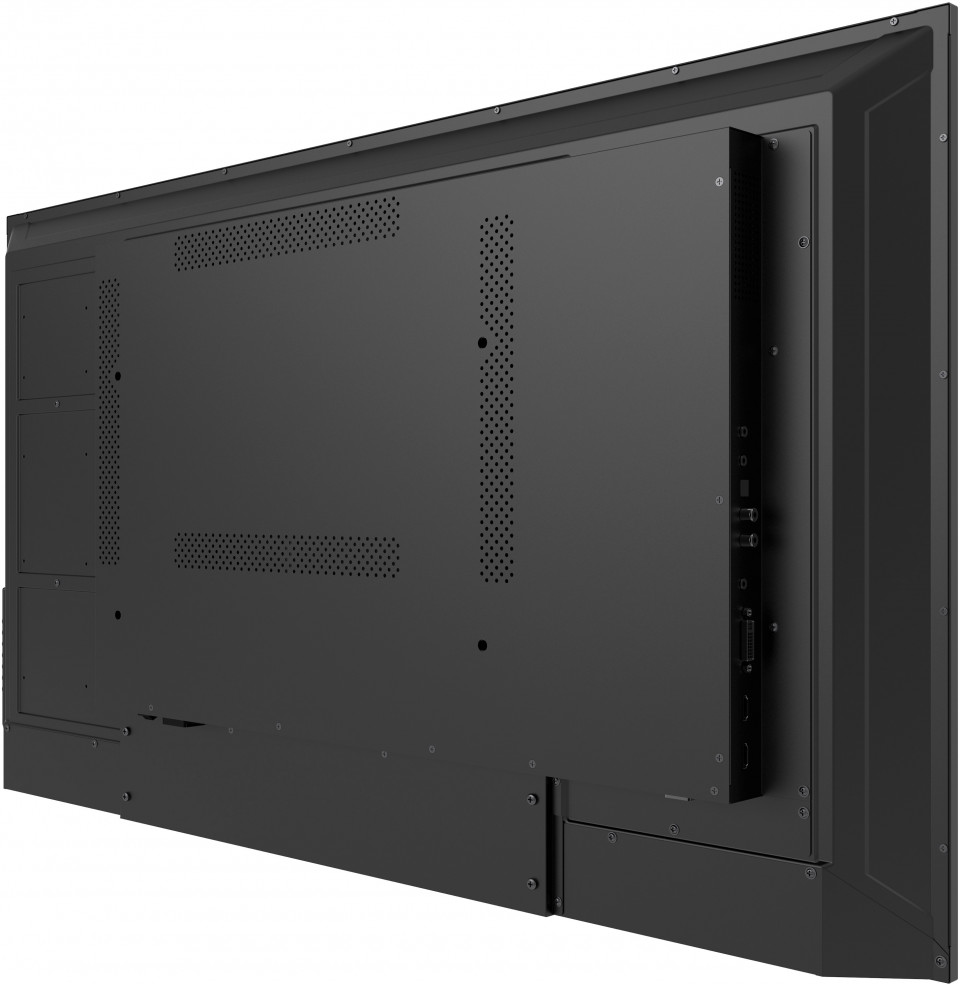

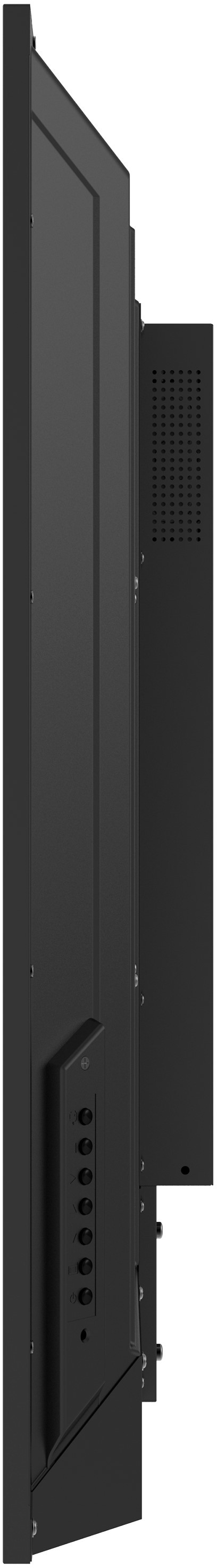

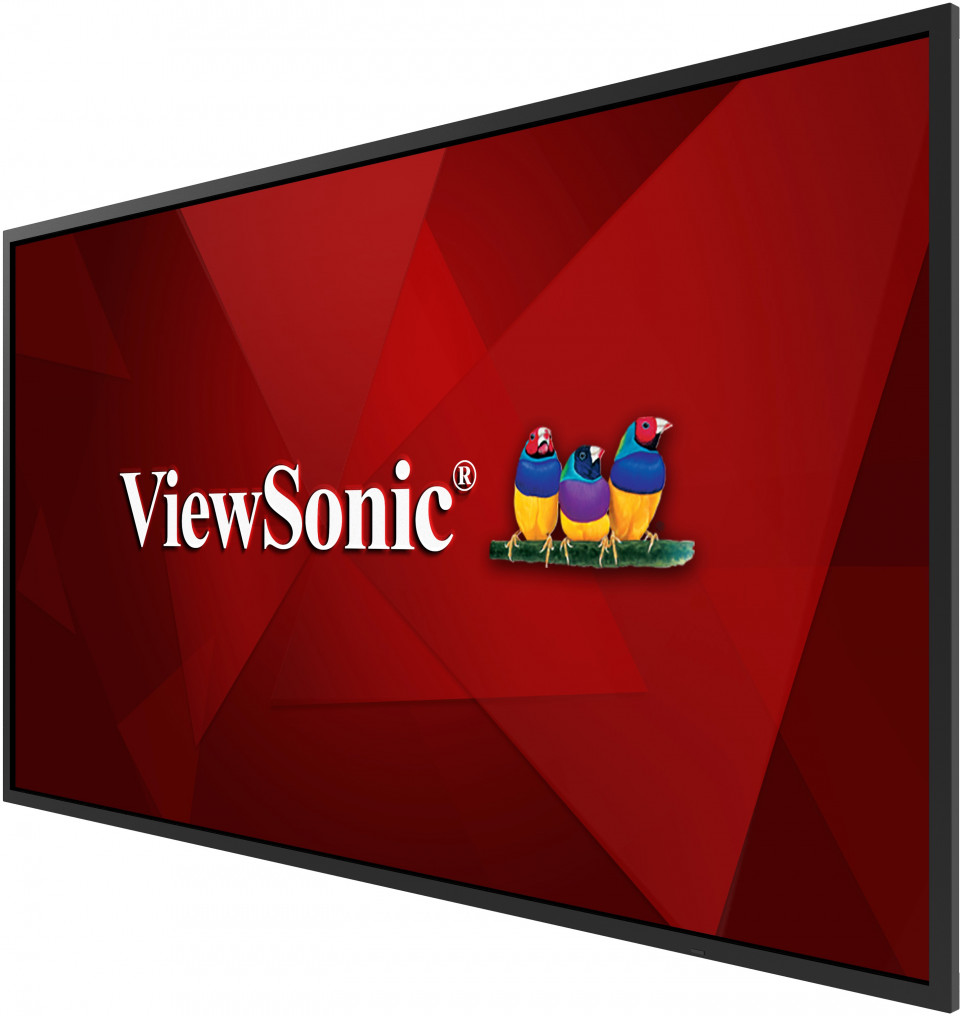

55" 4K Ultra HD Commercial Display
- Slim, even bezel and chassis
- USB playback photos, music & video
- Easy multi-screen setups
- Remote configuration and content management
- Multiple HDMI devices control
- Wireless content sharing across devices
스펙
- 표시패널 크기: 55"
유형/기술: "TFT LCD Module. IPS type, DLED backlight"
표시면적(mm): 1209.6 (H) x 680.4 (V) (55” diagonal)
기본 해상도: 3840 x 2160
가로 세로 비율: 16:9
Colors: 1.07B colors
밝기: 400 nits (typ.)
대비 비율: 1200:1 Typ.
응답 시간: 8 ms
보기 각도: H = 178, V = 178 typ.
백라이트 라이프: 30,000 Hours Min
표면 처리: Anti-Glare, 2H, Haze 3%
베젤: Slim

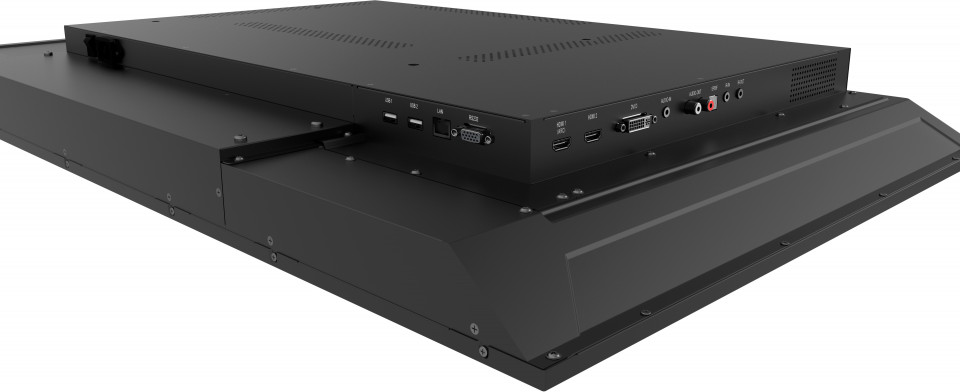

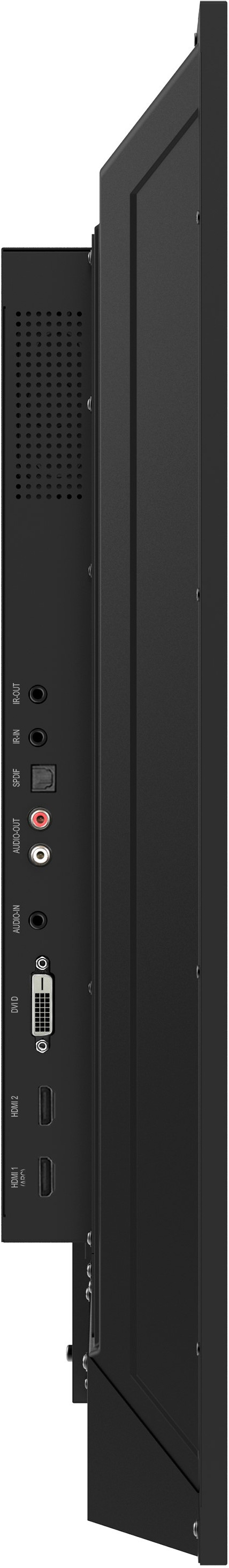

오리엔테이션: Landscape - INPUTHDMI: x2
DVI: x1
오디오: x1 (3.5mm)
RS-232: x1
IR 패스스루: x1 - OUTPUT오디오: x1 (RCA)
SPDIF: x1 (Fiber)
IR 패스스루: x1
- LANRJ45: x1
- USBA형: 2.0 Type A : x2 (USB Playback)
- 스피커스피커: 10Wx2
- COMPATIBILITYRGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
DVI: 480i, 480p,720p,1080i,1080p
안드로이드 버전: Android 8.0 - POWER전압: 100-240 VAC +/- 10% Wide Range

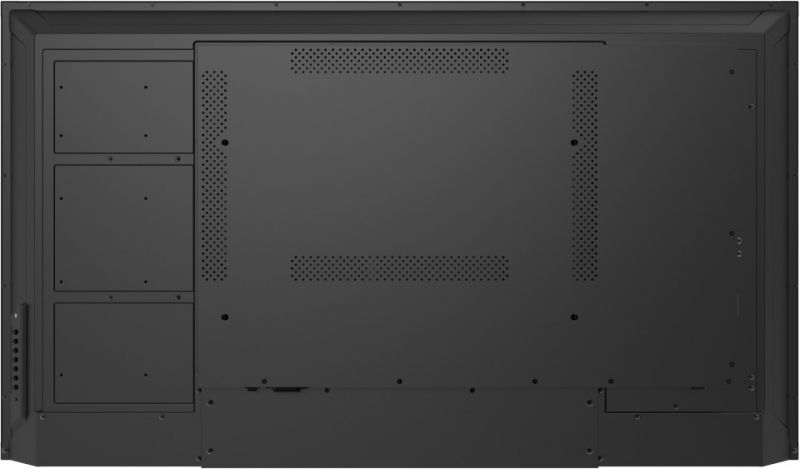

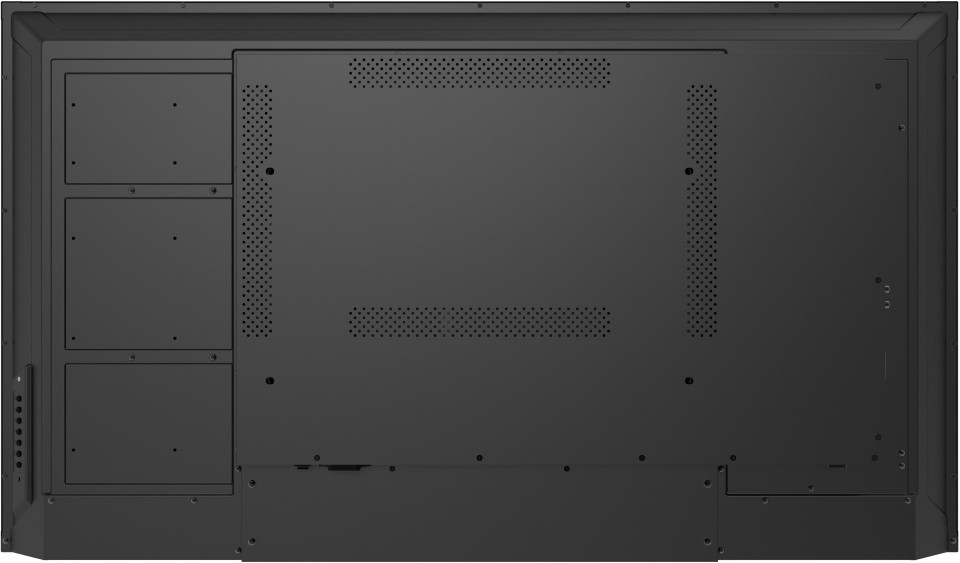

소비.: Normal 100 W, Max 114.5 W - ERGONOMICS벽면 장착(VESA® ): 400x200 mm
- OPERATING CONDITIONS온도(θ C): 0 to 40°C
습도: 20% ~ 80% non-condensing - 치수(가로 x 세로 x 세로)물리적(인치/mm): 48.94 x 28.11 x 2.94 in/1243.2 x 714 x 74.8 mm
포장(inch/mm): 55.90 x 35.83 x 9.65 in/1420 x 910 x 245 mm - WEIGHT순(lb/kg): 16.8 kg / 37.04 lbs
총중량(파운드/kg): 23.95 kg / 52.8 lbs - 패키지 내용물패키지 내용물: 1. CDE5520 commercial display, 2. Remote Control with batteries, 4. Quick Start Guide, 5. Power Cables (1.8M), 6. HDMI cable (1.8M), 7. RS232 cable (1.8M)
