LD-SCB-023

Rack-Mount All-in-One System Control Box

  • Stackable 4U rack-mount design for seamless integration into rack cabinets
  • All-in-One system control box for hassle-free setup and operation
  • Integrated power on/off control for energy-efficient and sustainable operations
  • Centralized control via LAN and RS-232 for streamlined system management
Richiesta alle Vendite  Condividere

PANORAMICA

The LD-SCB-023 is an innovative all-in-one system control box featuring a 4U rack-mount design. Its internationally standardized size ensures effortless integration into any 4U-compatible cabinet. The compact, space-saving design seamlessly fits into existing control room setups. With integrated power and control systems, the LD-SCB-023 allows simultaneous on/off control, simplifying system management, enhancing energy efficiency, and reducing operational costs. Supporting control protocols such as LAN and RS-232, it enables centralized management of ViewSonic Customizable All-in-One LED Displays (LDC Series), making it an ideal solution for professional AV environments.

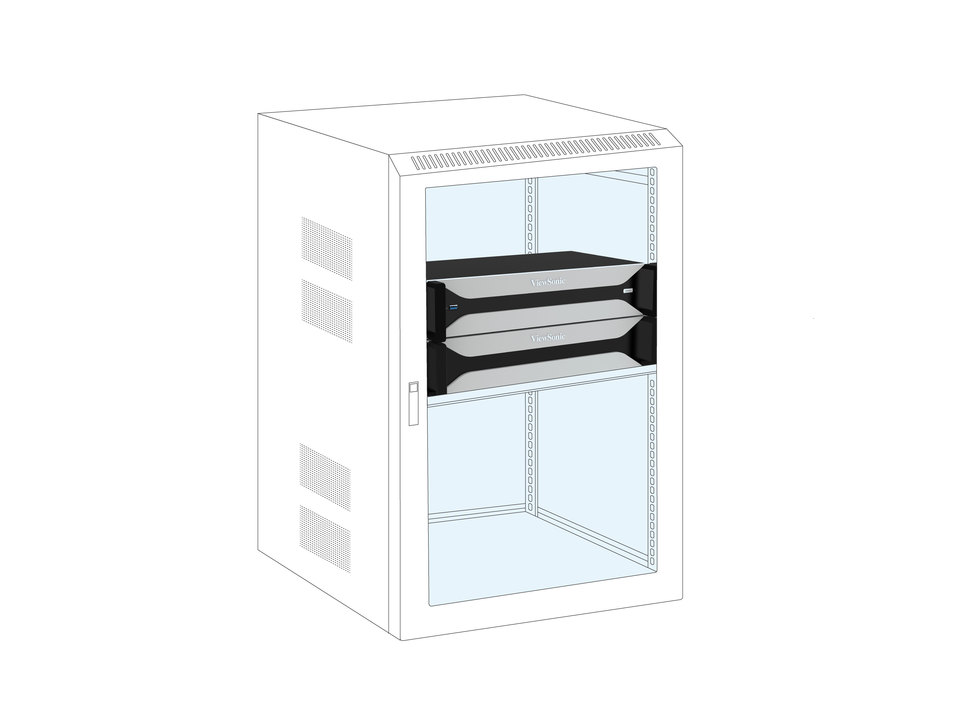

All-in-One Integrated Control Box with Rack-Mountable Design

The LD-SCB-023 is an all-in-one system control box with a 4U rack-mount design, ensuring seamless compatibility with any 4U-standard cabinet. Its compact, space-saving design allows for easy placement, simplifies setup, and improves installation efficiency, making it an excellent choice for professional AV environments.
World’s First Rack-Mount All-in-One Control Box
All-in-One Integrated Control Box with Rack-Mountable Design 1

Efficient Power Management

By integrating power and control systems, users can effortlessly turn multiple systems on and off simultaneously with a single command. This streamlined functionality simplifies system management, enhances efficiency, and offers a more sustainable and cost-effective solution.
Simplified for Efficiency & Sustainability
Efficient Power Management 1

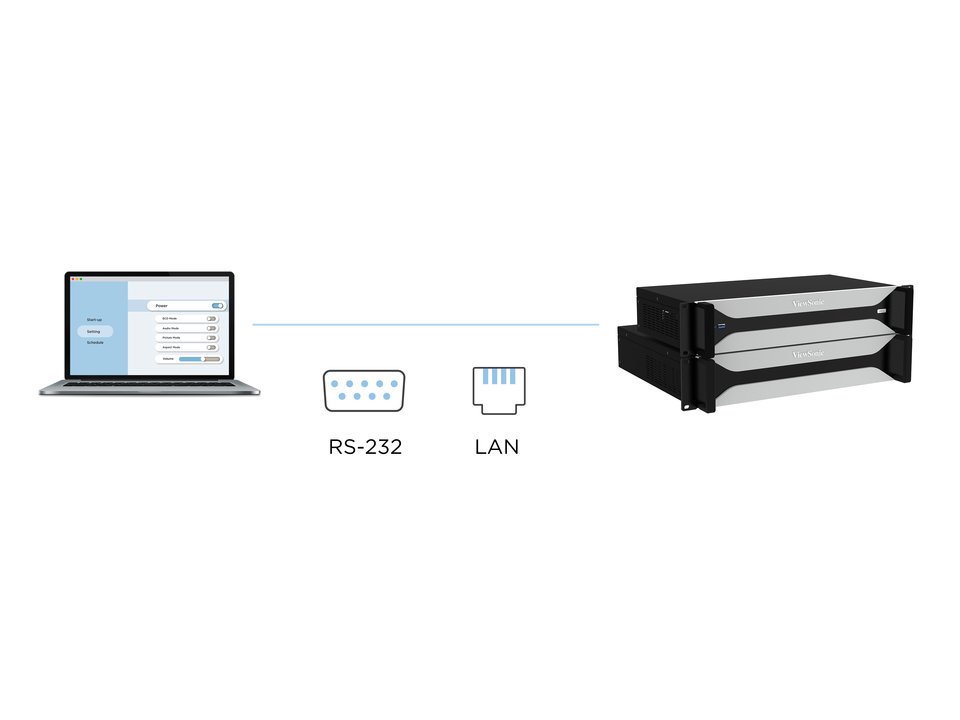

Supports Multiple Control Protocols for Centralized Management

The LD-SCB-023 is compatible with multiple control protocols, including LAN and RS-232, enabling centralized management for seamless integration across diverse devices and environments. This feature enhances operational efficiency, streamlines maintenance, and accelerates troubleshooting processes.
Streamlined Operations
Supports Multiple Control Protocols for Centralized Management 1

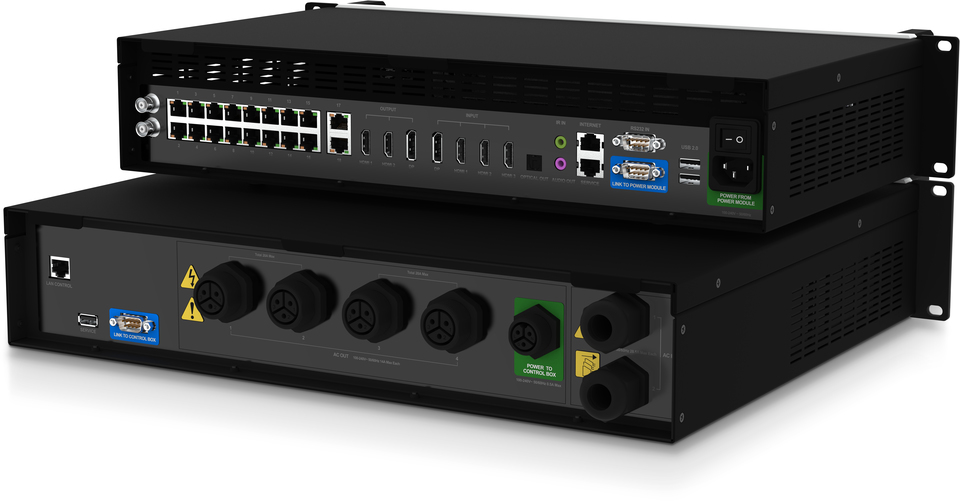

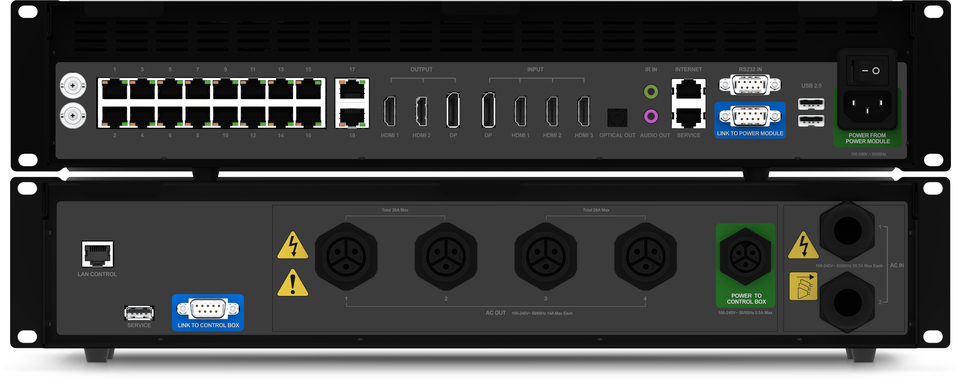

Dimension & I/O Ports

  1. USB 2.0
  2. Power Key + LED Indicator
  3. Cabinet LAN Cable x18
  4. HDMI 2.0 Output x2
  5. DP 1.2 Output
  6. DP 1.2 Input
  7. HDMI 2.0 Input x3
  8. Optical
  9. IR Extended
  10. Audio Out
  11. Internet
  12. Service
  13. RS-232
  14. USB 2.0 x2
  15. Power Switch
  16. LAN Control
  17. Service
  18. AC Out x4
  19. AC In x2

SPECIFICHE


  • Specifiche tecniche
    Pixel count (max.): 9,300,000
    Max widest.: 7,680 pixels
    Max highest: 4,320 pixels
    Dimensions (WxHxD): Power module :
    19x3.66x15.95 inches
    (482.6x93x405.2 mm)
    Control box :
    19x3.66x11.04 inches
    (482.6x93x280.4mm)
    Processore: RK3399
    RAM: DDR4 4GB
    Memoria interna: Total 32GB
    (26GB available storage)
    Sistema Operativo integrato: Android 9.0
    Consumo Energetico: 52W
    Output Power Consumption: 12.32kW@220V
    6.16kW@110V
    Net Weight : Power module：
    19.18 lbs
    (8.7 kg)
    Control box：
    9.04 lbs
    (4.1 kg)
  • Ingressi
    HDMI: 3
    (HDMI 2.0/HDCP 2.2)
    USB Tipo A (alimentazione): 3
    (USB 2.0 x2, USB 3.0 x1)
    RJ45 (Internet): 1
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    DP: 1 (DP1.2)
  • Uscite
    HDMI: 2
    (HDMI 2.0/HDCP 2.2)
    Uscita audio (3.5mm): 1
    Optical: 1
    USB Tipo A (alimentazione): USB 3.0 5V/1A x1
    USB 2.0 5V/0.5A x2
    DP: 1 (DP1.2)
