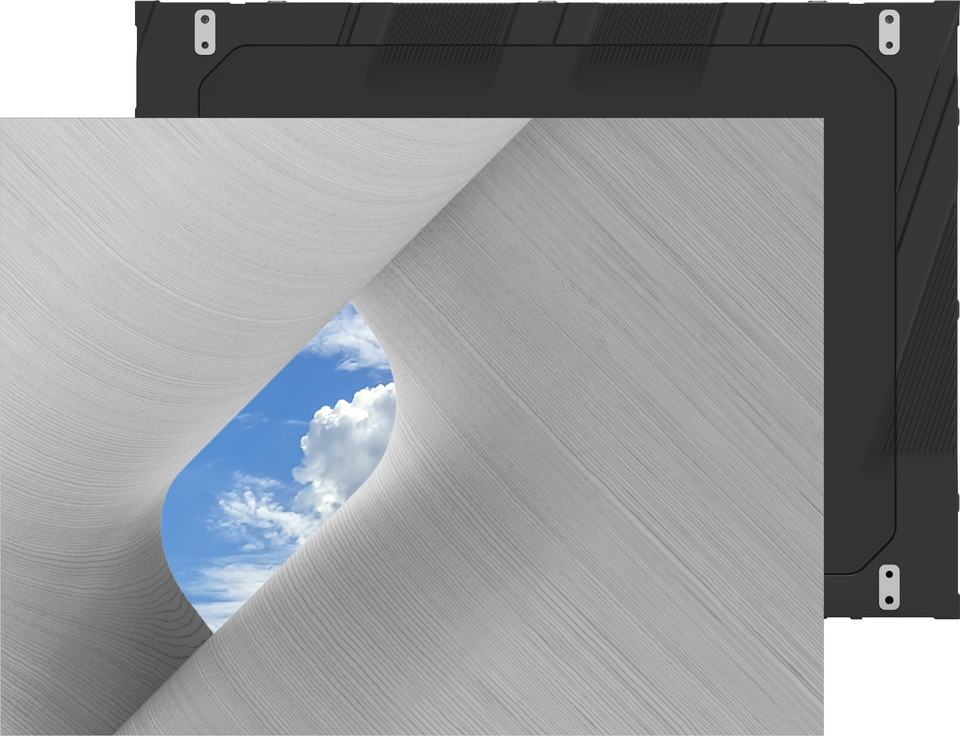

LDC031G-121

P1.2 Customizable All-in-One LED Display

  • Customizable screen shapes and sizes with All-in-One design for hassle-free installation
  • Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabli performance in any space, enabled by GOB surface treatment and an IP54-rated, IK06-certified surface that protects against dust, moisture, and impact
  • Energy-efficient design with advanced driving ICs and integrated system architecture lowers power consumption and supports sustainable operation
  • Centralized and efficient system management via LAN control
Pixel Pitch Options:
P1.2 P1.5 P1.8 P2.5
Sales Enquiry  Display Configurator

OVERVIEW

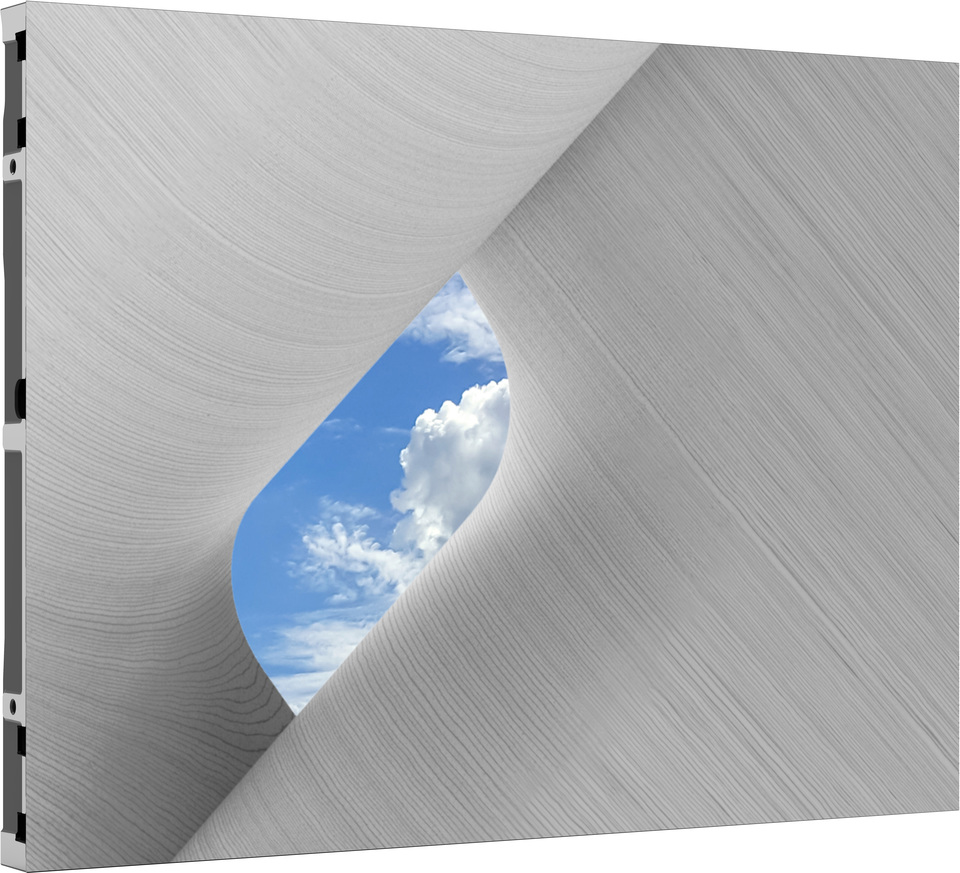

The ViewSonic LDC series is an innovative, customizable all-in-one LED display solution designed to deliver flexible layouts and seamless installation in a single system. The LDC031G-121 combines modular LED cabinets that function as a high-performance LED panel and LED display board, enabling users to build stunning LED walls and immersive LED screen displays in a wide variety of shapes and sizes. This versatile LED display screen solution is perfect for creating impactful digital signage that brings creative concepts to life in corporate, retail, and public environments. Its all-in-one architecture ensures effortless installation and intuitive operation, making it ideal for organizations looking for a professional LED wall panel solution without complex setup. The display features advanced Glue-on-Board (GOB) surface protection, where LED modules are sealed with transparent epoxy resin to enhance durability and safeguard internal components. With IP54-rated dust and moisture resistance and IK06 impact protection, the LED screen is built to perform reliably in high-traffic areas such as shopping malls, hotel lobbies, airports, and transportation hubs. The energy-efficient system architecture, combined with advanced driving IC technology, reduces power consumption by up to 40% compared to traditional LED display systems, helping organizations lower operational costs while improving thermal performance and product lifespan. This efficiency is especially beneficial for businesses evaluating LED screen price and long-term LED wall price considerations, as it significantly lowers total cost of ownership.

Designed for modern installations, the display features a slim 42.2 mm thickness, an installation depth of under 10 cm, and an impressive 99% screen-to-body ratio, delivering a sleek, near-seamless LED wall aesthetic that blends perfectly into contemporary interiors. A compact 1U rack-mount control box fits standard server cabinets, simplifying AV integration, while a discreet rear power box minimizes visible cabling for a clean and professional installation.The display also supports multiple Novastar control systems, enabling flexible integration with existing AV infrastructures. With LAN-based centralized management, users can easily control and monitor their LED display, ensuring smooth operation across large-scale LED screen display deployments.Together, these features make the ViewSonic LDC031G-121 a powerful and reliable LED display screen, LED panel, and LED wall panel solution for organizations seeking premium performance, durability, and competitive LED wall price value.

Customizable
All-in-One

Scenarios

Operation &
Management

Audiovisual
Impression

Shaping Innovation

LDC SeriesCustomizable All-in-One LED Displays

Craft Your Vision Effortlessly

Embrace the Novel
Customizable All-in-One LED Display

Harmonizing All-in-One and traditional LED display technologies, the LDC series innovatively enables custom, large-format LED displays in various shapes and sizes. This ensures effortless installation and ease of operation, delivering vibrant visuals for an enhanced viewing experience in business, commercial, and public spaces.

Display Configurations Tailored to Your Needs​

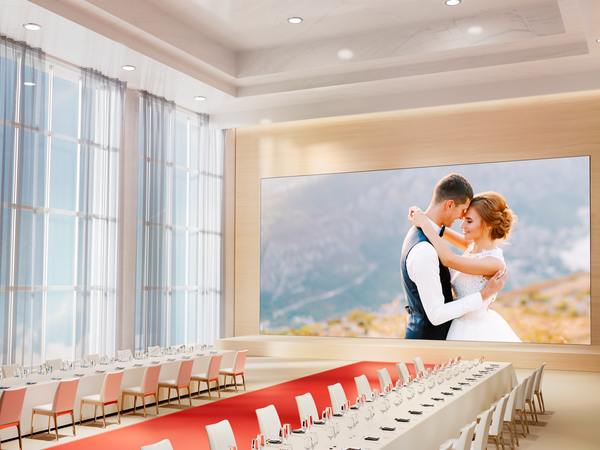

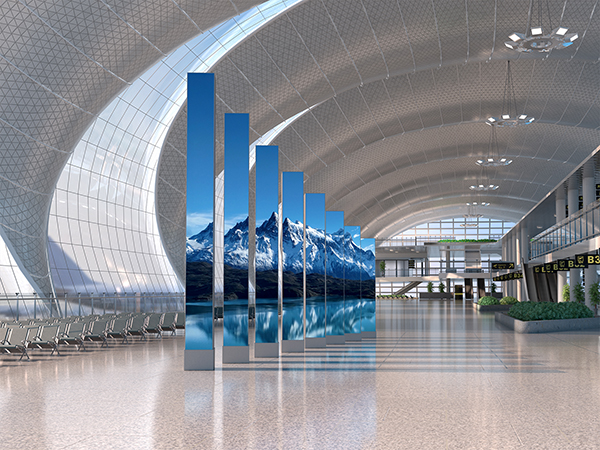

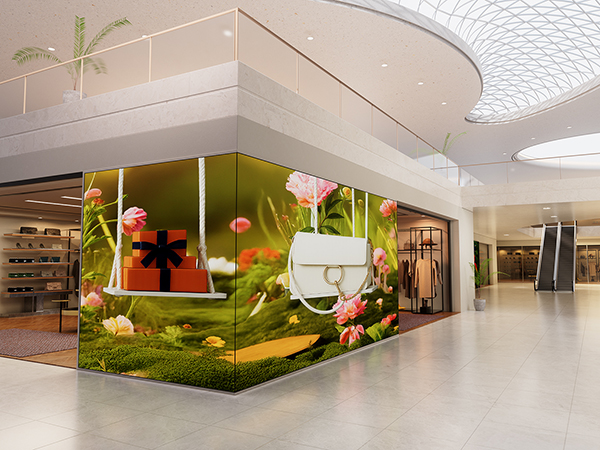

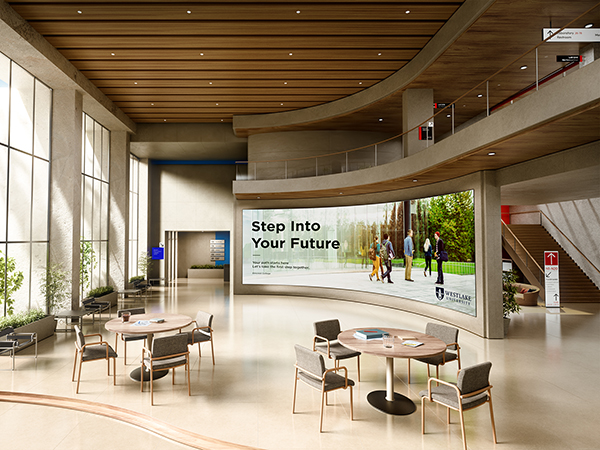

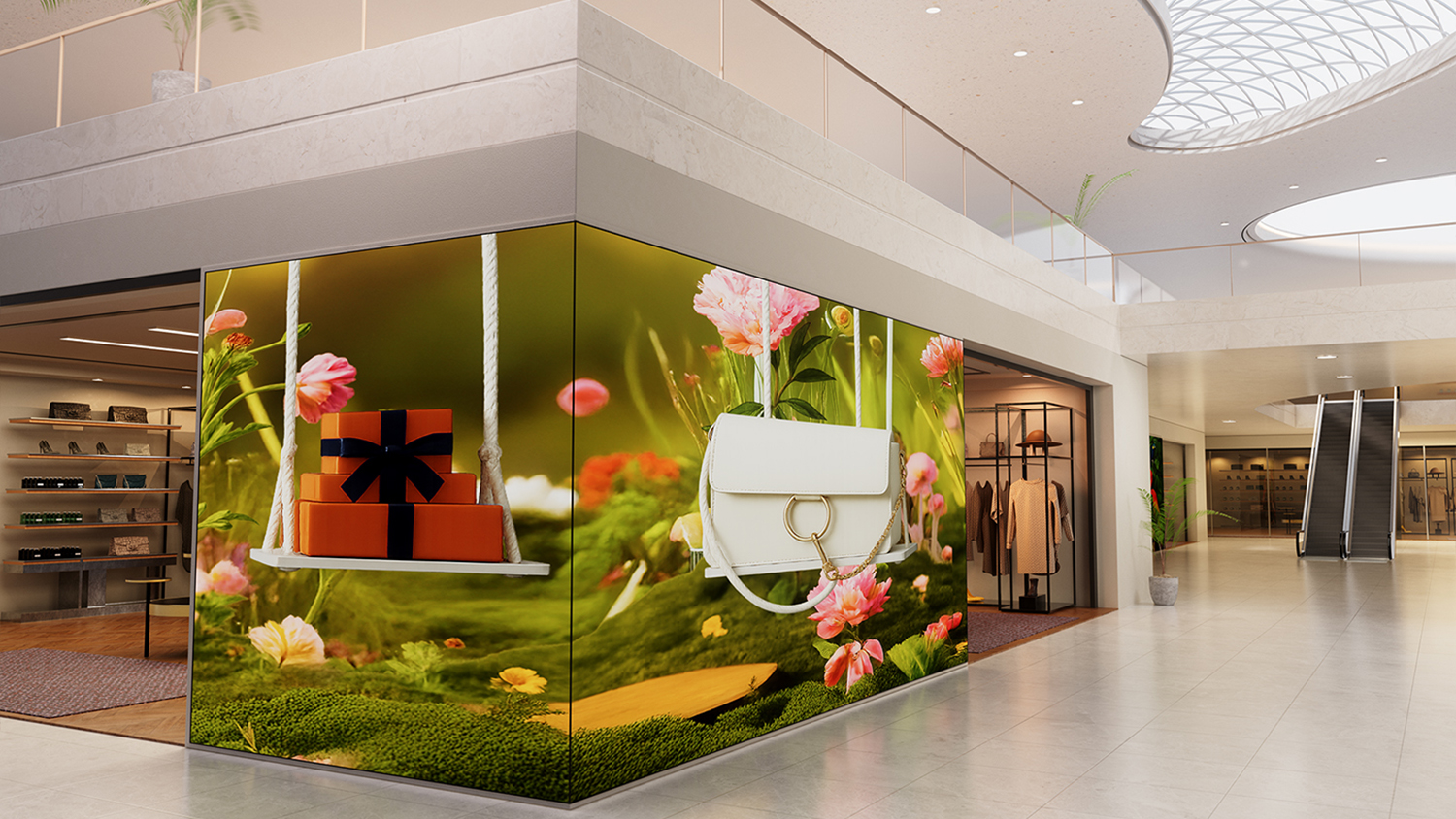

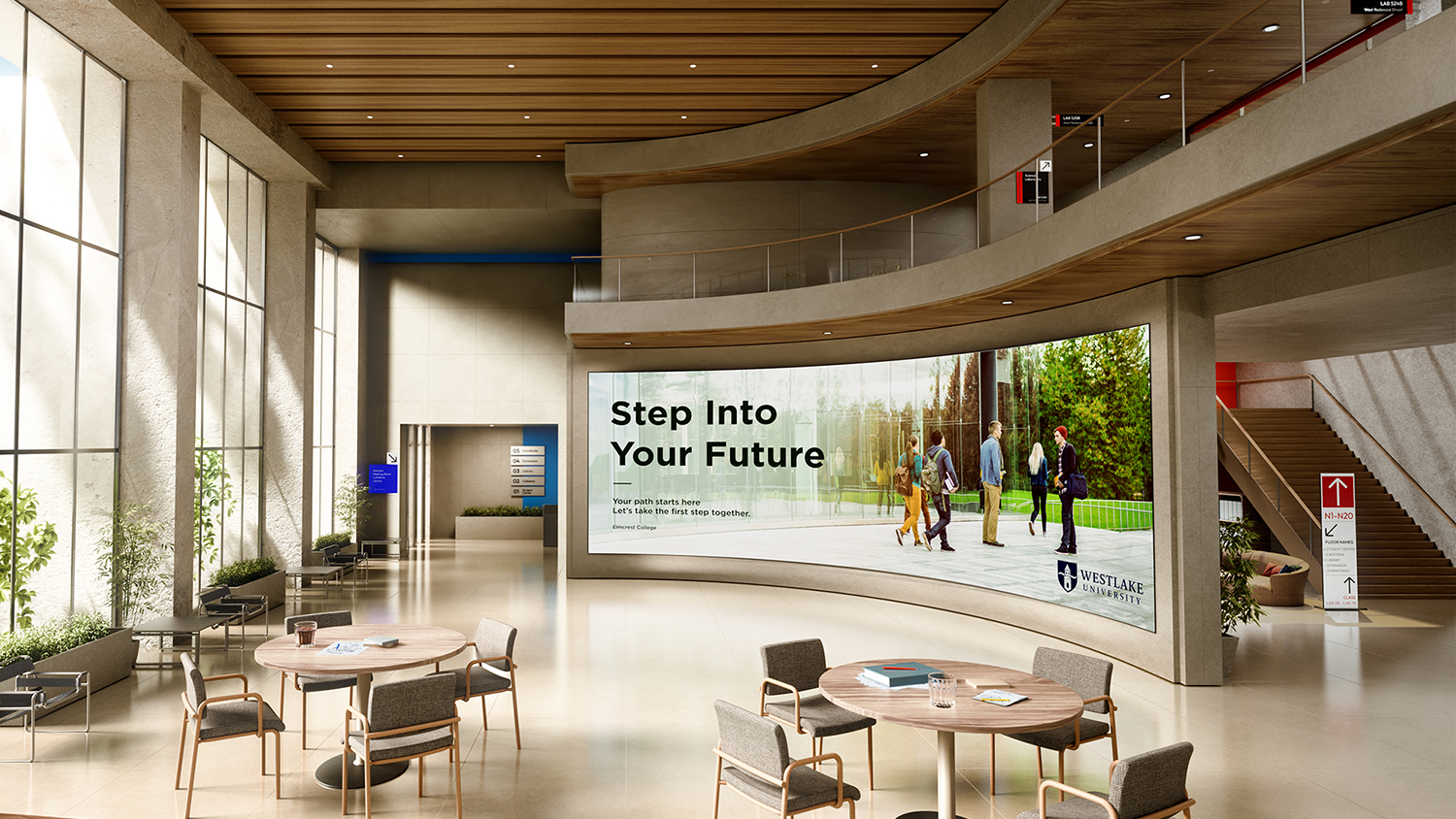

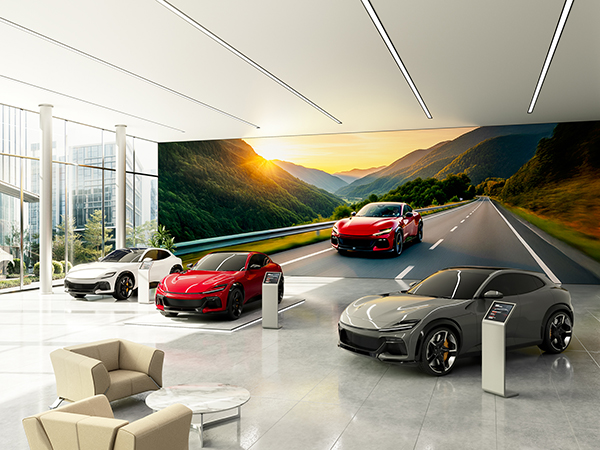

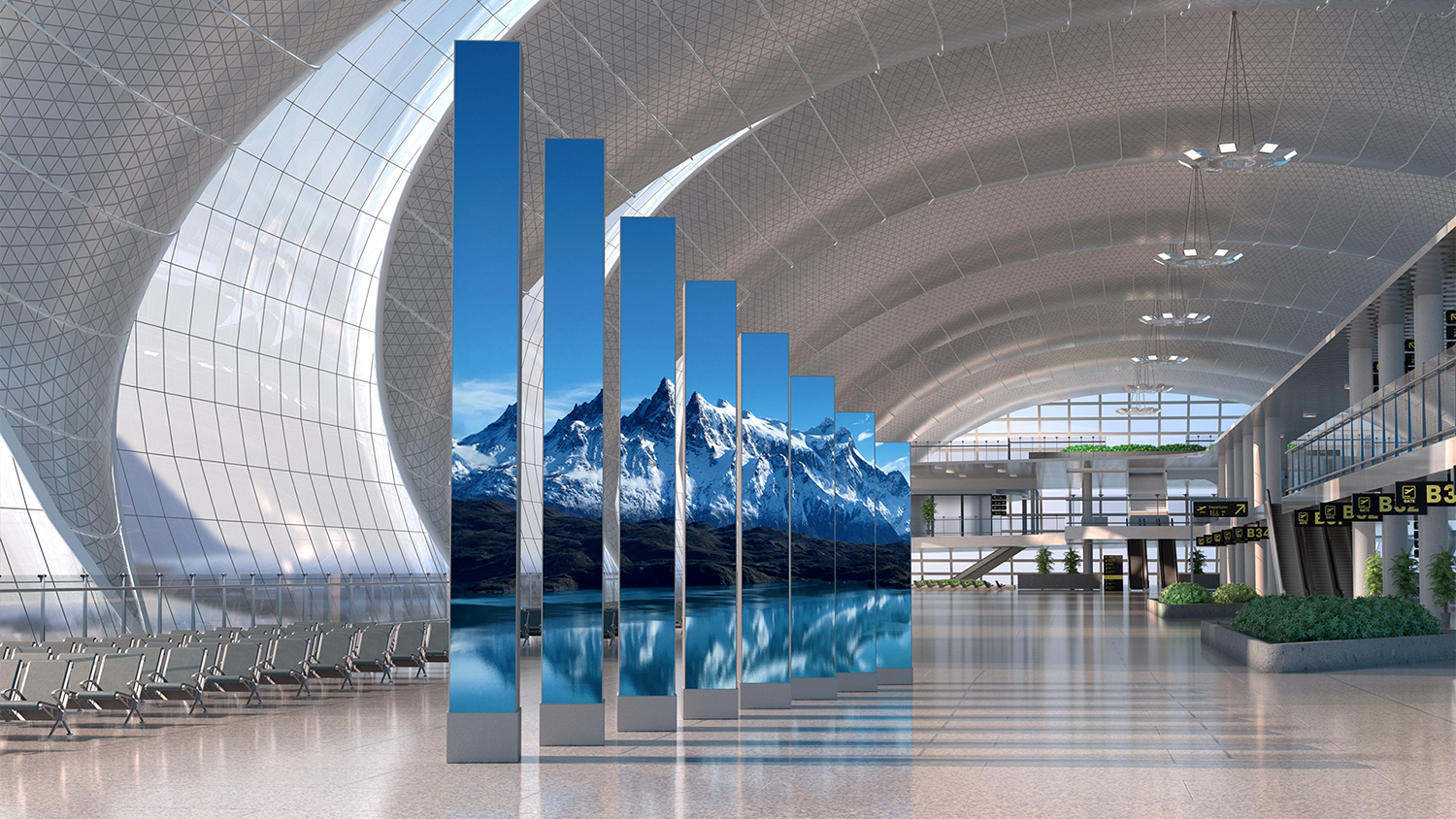

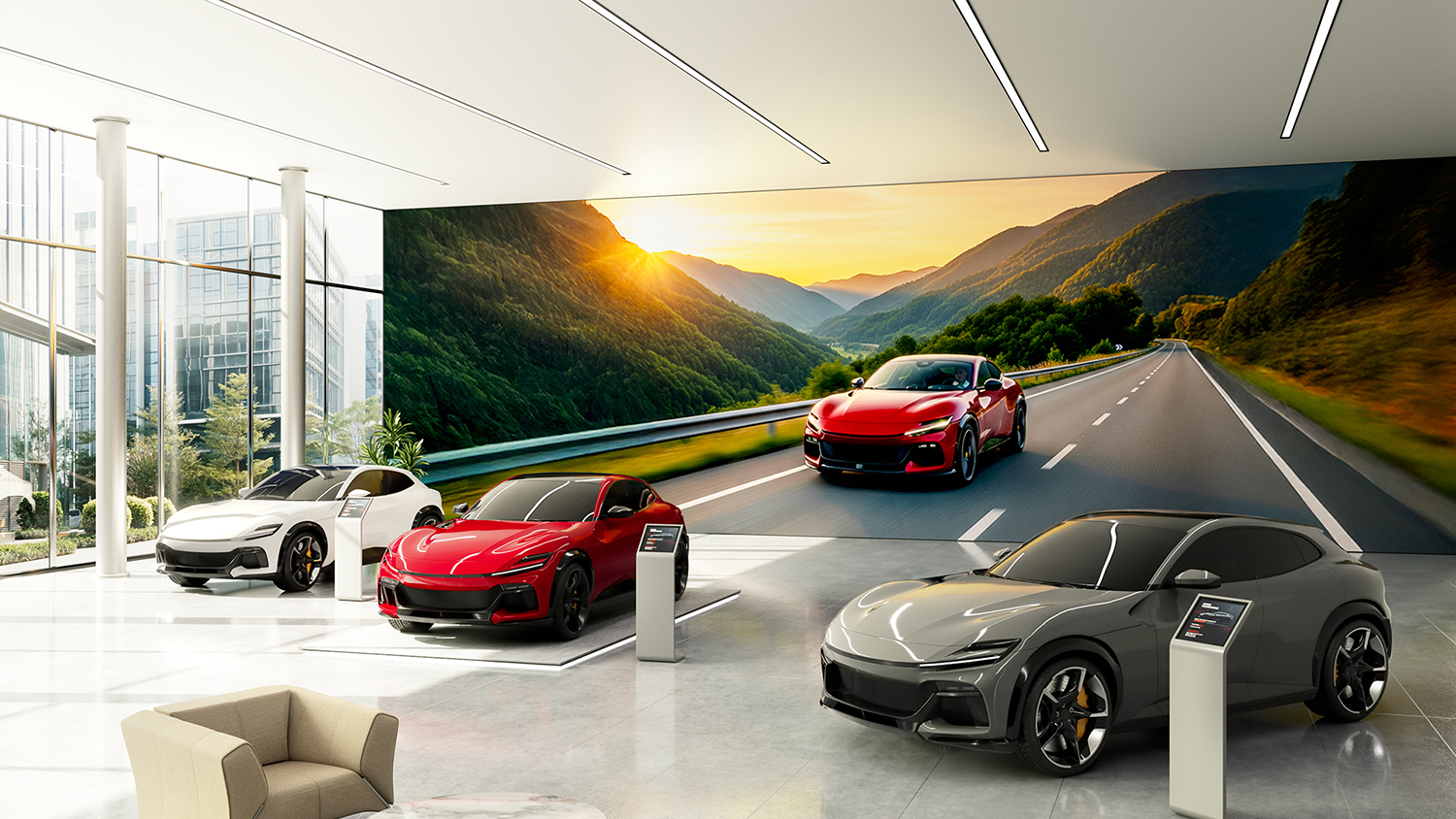

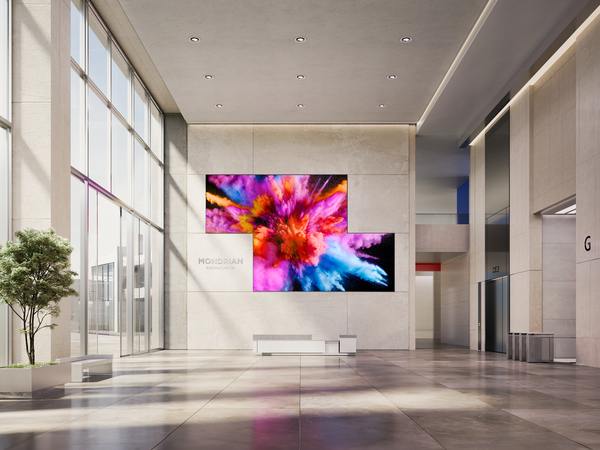

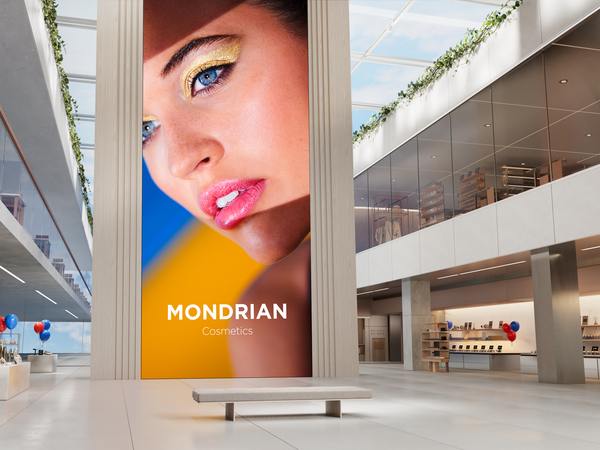

Draw in any audience and make a lasting impression with a display customized to your space and vision. Create striking curved layouts, 90-degree corners, or any other unique configurations, enthralling viewers in settings such as reception halls, malls, transportation hubs, and convention centers.​

Display Sizes Tailored to Your Needs

All-in-One Integration for Effortless Installation

The LDC series enhances traditional LED displays by integrating power supply, control, image stitching, and display systems. This eliminates the complexity of configuring multiple systems and components, saving valuable time and effort. Simply switch on the display, and it' s ready to use.

All-in-One Integration for Effortless Installation

Flexible Control Options for Streamlined Installation​

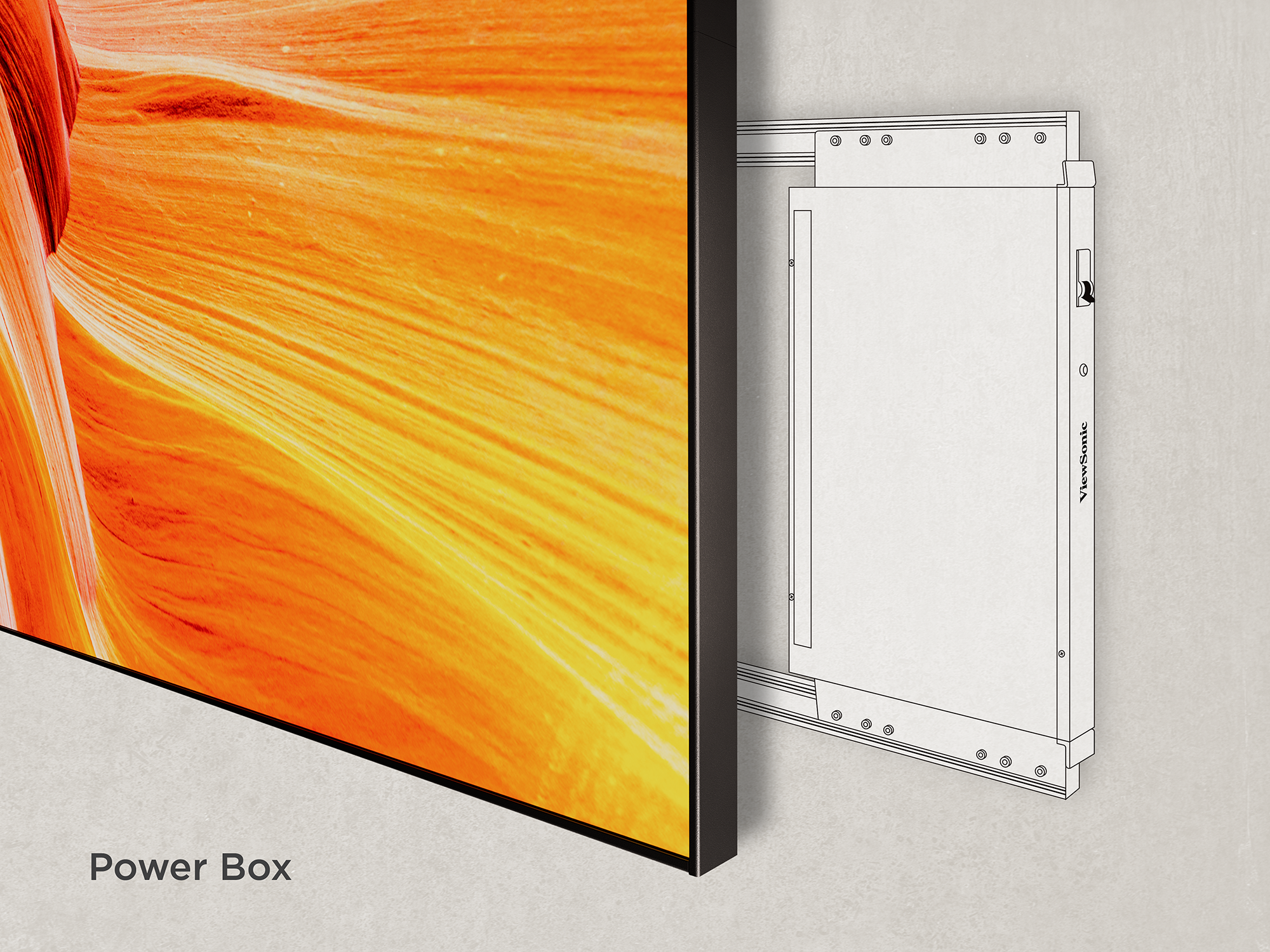

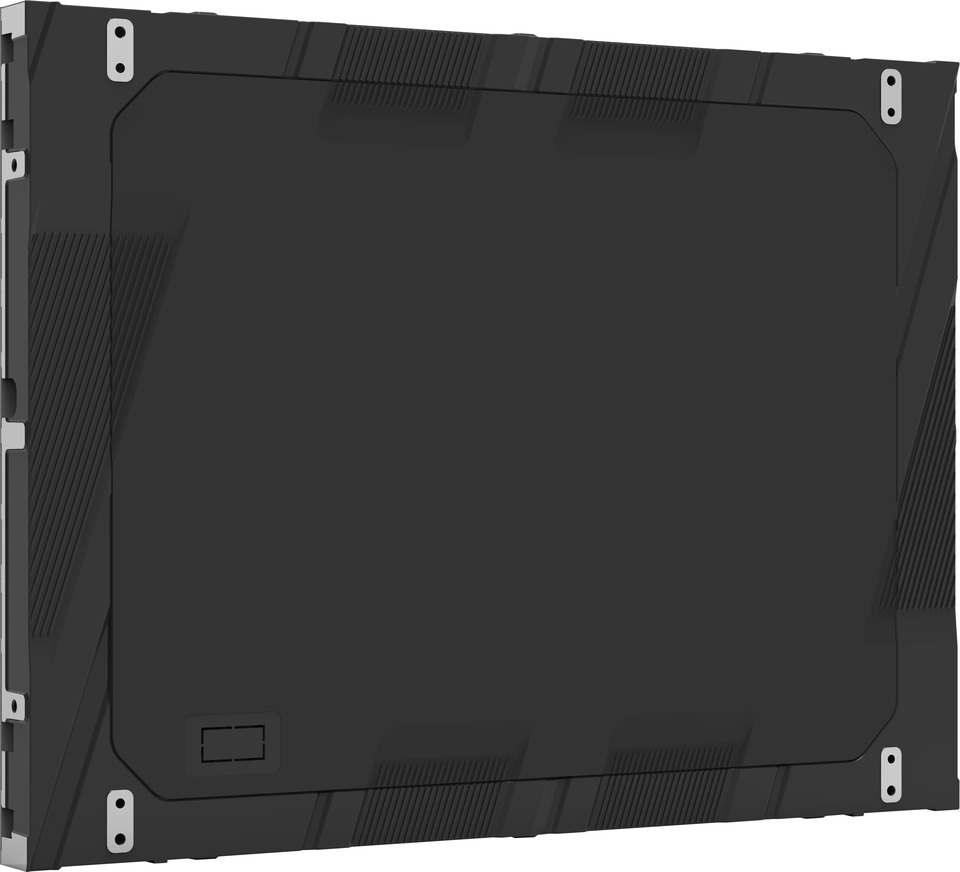

The LDC series simplifies installation with an all-in-one system architecture. A discreet power box mounted behind the screen reduces cable clutter and streamlines setup, while optional 1U or 2U rack-mountable control boxes—or a control-box-free variant—provide flexibility for any environment.​

Mesmerize in Every Space

Reliable Operation & Efficient Management

Reliable Operation &
Efficient Management

Enhanced Durability with Advanced GOB Surface Treatment​

Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 and IK06 rating, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.​

*Only the LED module surface is rated IP54 and IK06.​

Centralized Management via LAN Control

Seamless Collaboration with Split-Screen Modes

Easy Full Front Maintenance

Centralized Management via LAN Control

This LED display supports easy and efficient control of multiple-display configurations through LAN control, enabling centralized management, scheduling, and adjustments from a remote location.

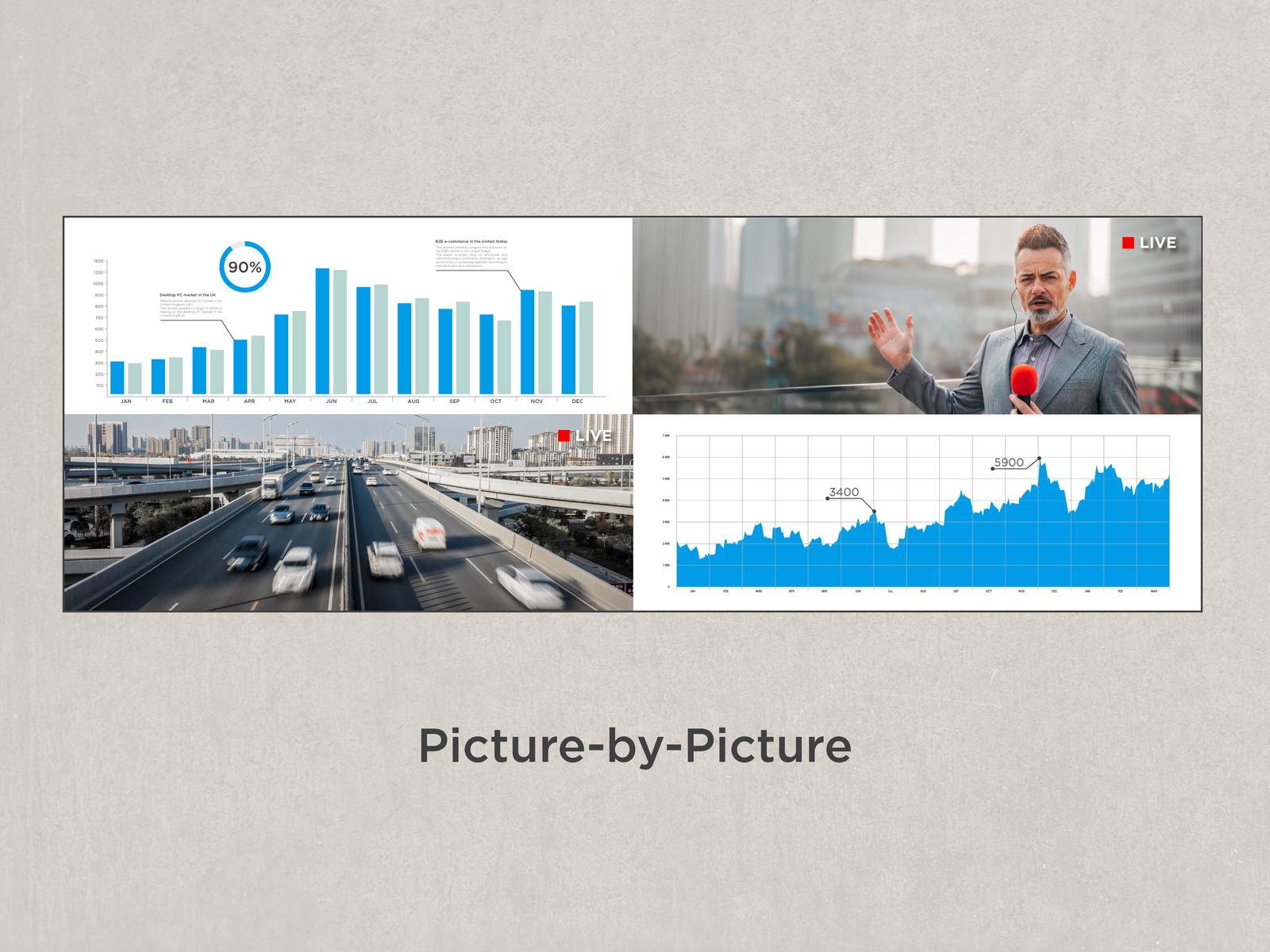

Seamless Collaboration with Split-Screen Modes

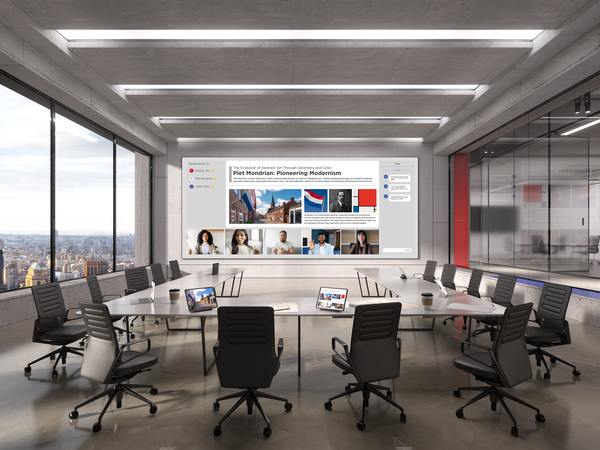

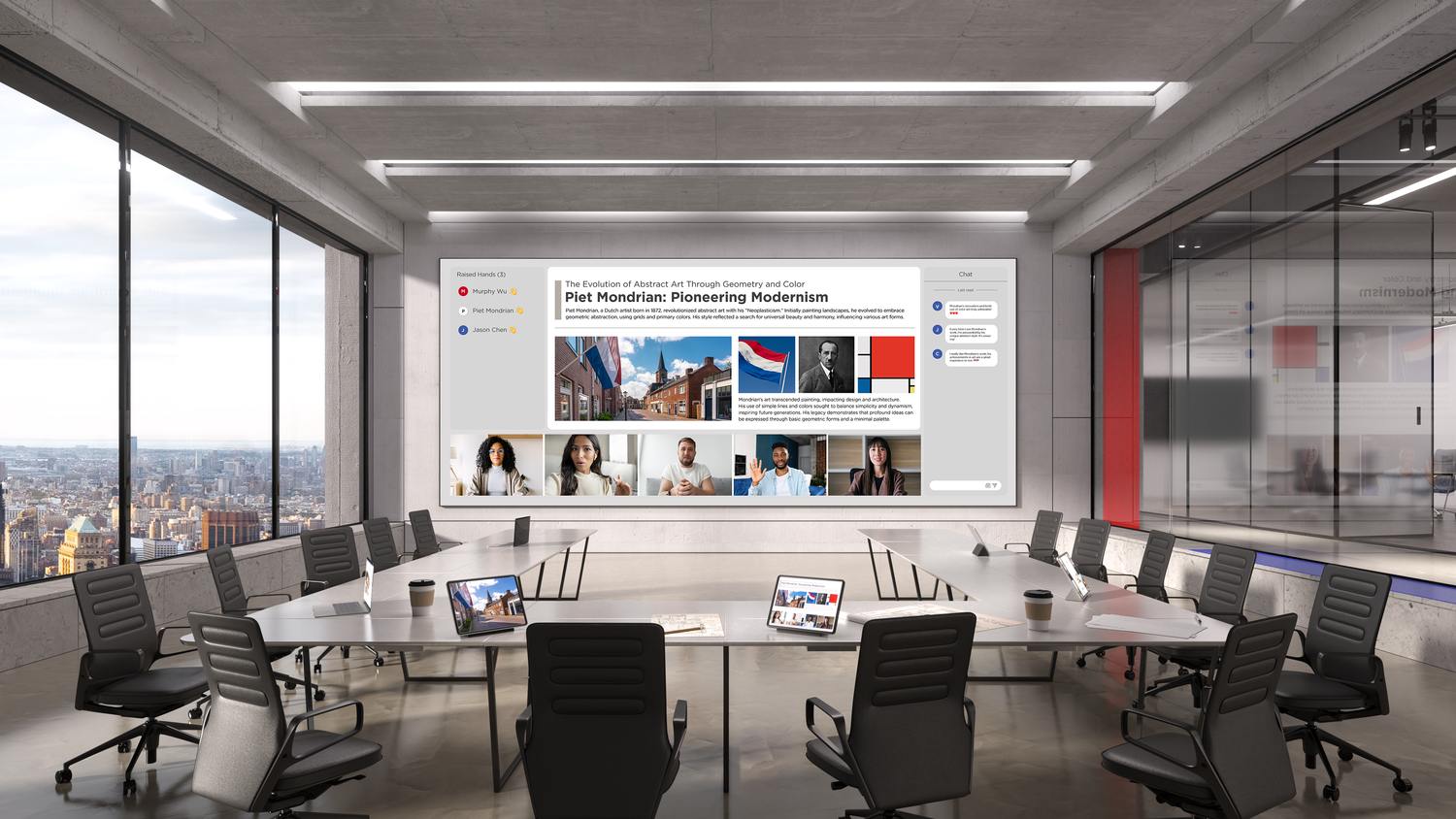

Enhance collaborative content sharing with intuitive split-screen capabilities. This LED display seamlessly supports Picture-by-Picture (up to 4 different inputs) and Picture-in-Picture (a smaller screen within the main display) scenarios in real time, crafting a dynamic and versatile collaboration experience.

*Both scenarios only work with the HDMI input source

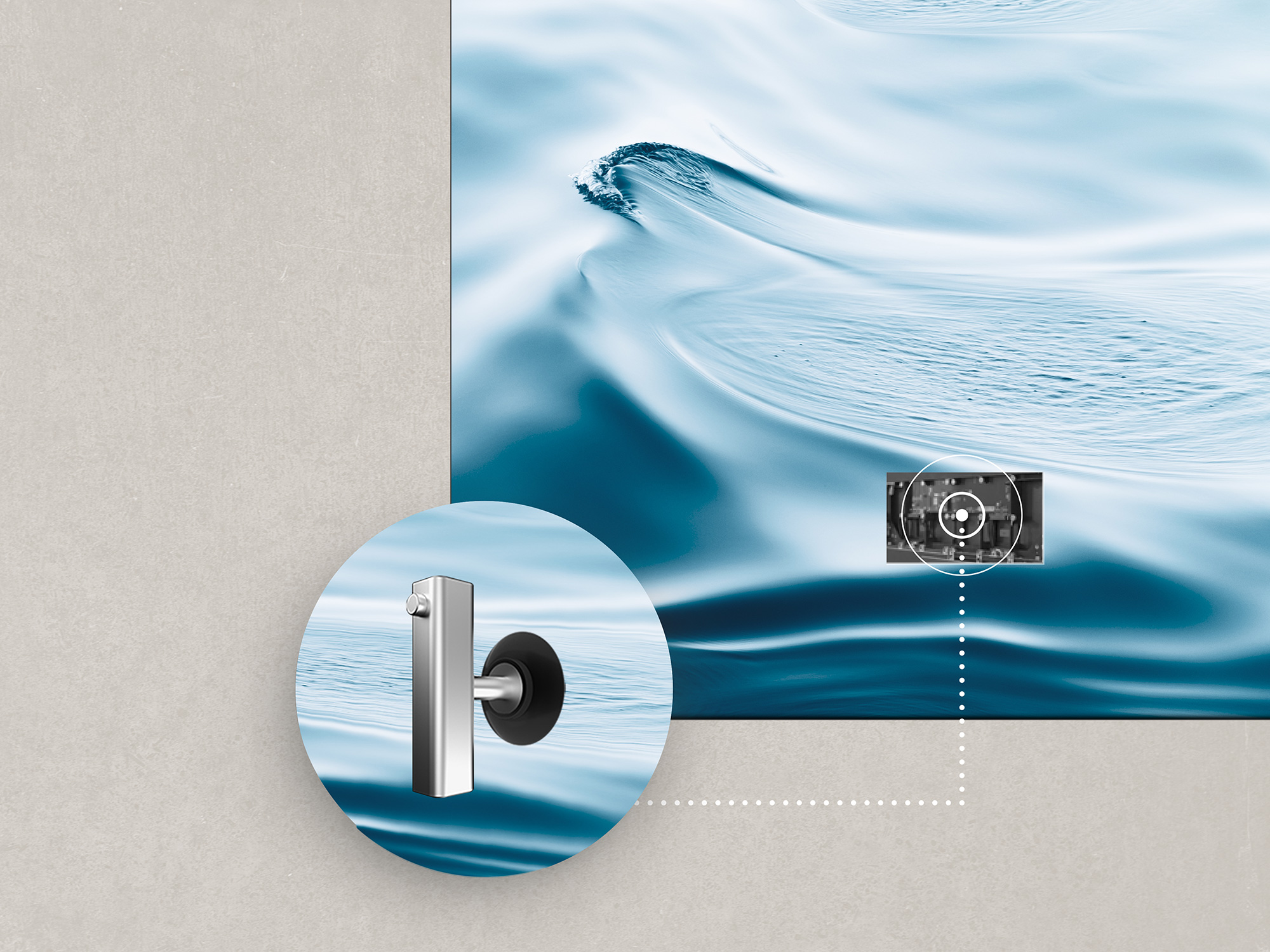

Easy Full Front Maintenance

Enjoy maintenance convenience with hot-swappable front LED modules, enabling effortless replacement of defective parts without relocating the entire display. The user-friendly magnetic suction tool ensures a hassle-free process, accessible to all, regardless of technical expertise.​

Stellar Audiovisual Impression

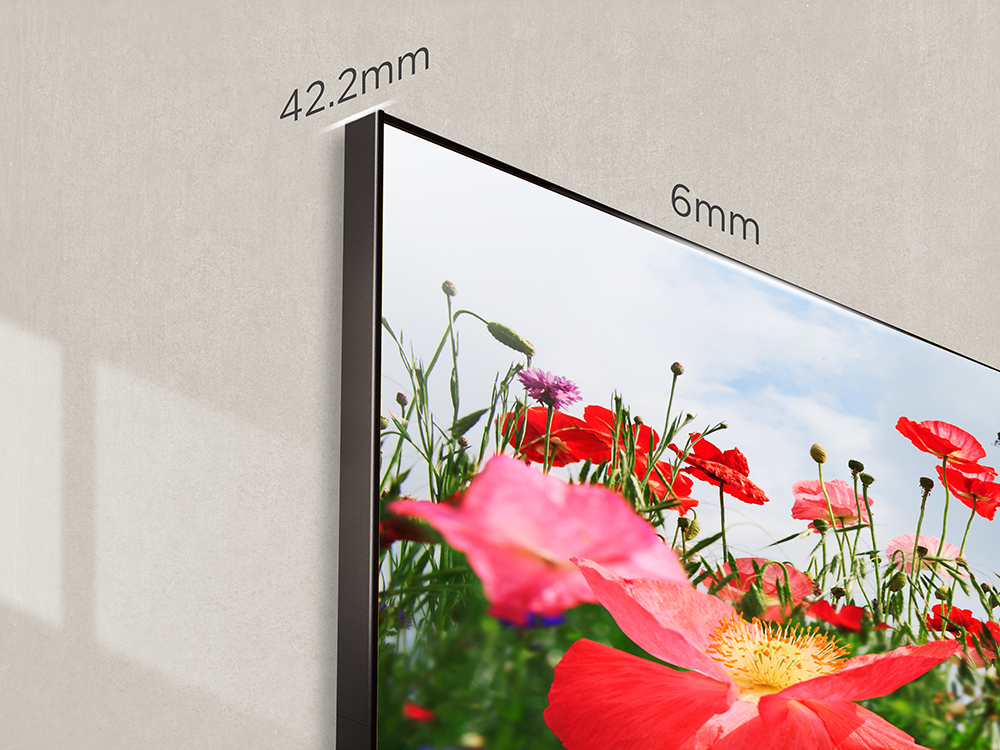

Premium Aesthetics with Ultra-Slim & Bezel-Free Design

Designed with a sleek, frameless look, the LDC series features a 42.2mm ultra-slim profile and 6mm ultra-thin bezels, bringing refined sophistication to any space. Once installed, the display maintains a wall-to-screen depth of under 10cm, enabling a clean, flush fit without the need for extra framing. Ideal for seamless integration in lobbies, flagship stores, and ballrooms.​

Premium Aesthetics with Ultra-Slim & Bezel-Free Design

Captivating Visuals that Shine Bright

Celebrate brilliant clarity with a high brightness of 600 nits along with 100-level adjustments and a remarkable 6, 500:1 contrast ratio. This display guarantees captivating, clear visuals even in large venues with ambient lighting, like shopping malls or hotel ballrooms. Boasting a lightning-fast 3, 840 Hz refresh rate, it effortlessly captures attention and enhances your brand image with superior visual impact.

Captivating Visuals that Shine Bright

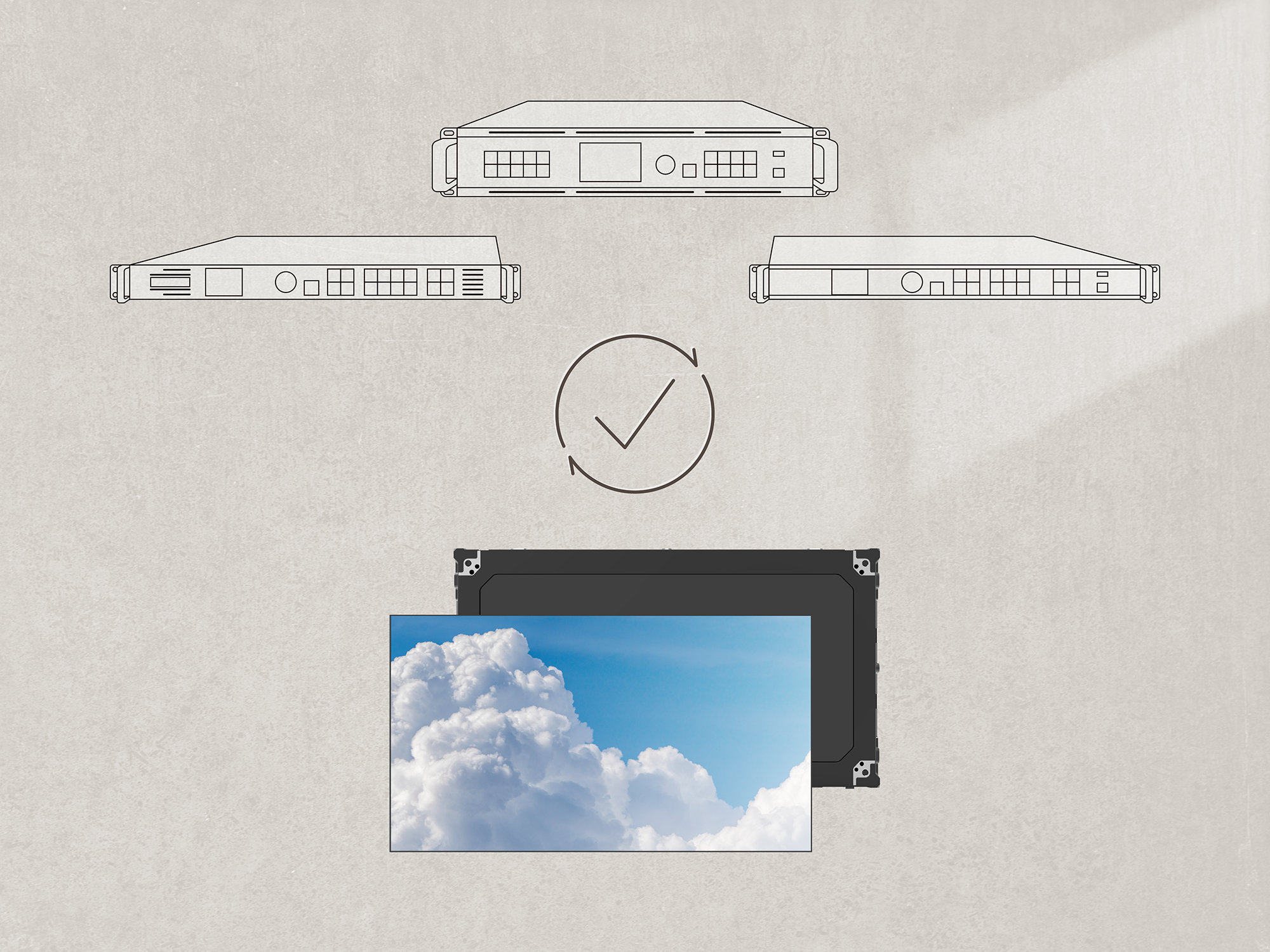

Flexible Integration with Novastar Control Systems​

The LDC Series is compatible with various Novastar control systems, enabling flexible deployment. Whether installing new or upgrading existing setups, it ensures seamless integration with minimal transition costs and a low learning curve.​

*For details on compatible models, please refer to the user guide.​

Engage Your Audience through Powerful Audio

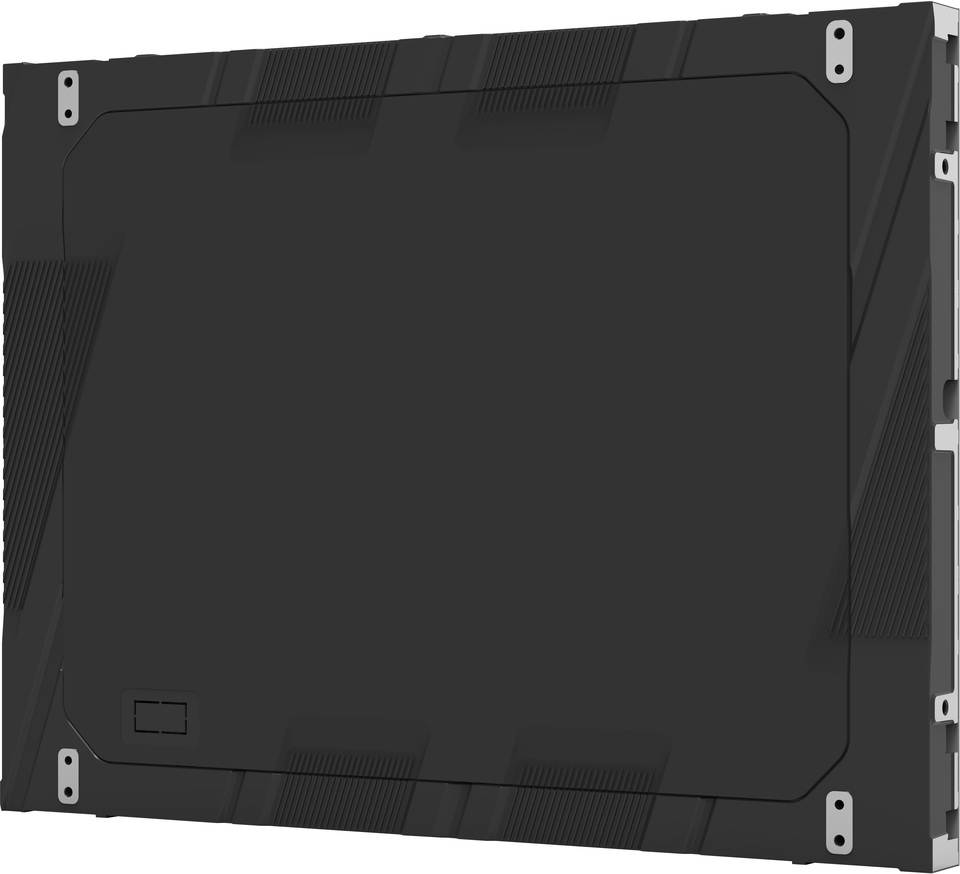

Dimensions & I/O Ports

  1. Indicator Light
  2. Power Button
  3. AC In x2
  4. AC Out x4
  5. RS232
  6. LAN Control In & Out
  1. Display Panel
  2. Control Knob
  3. Back Button
  4. Layer Control Buttons
  5. Input Source Buttons
  6. Function Buttons
  7. USB-A (Front Panel)
  8. USB Control
  9. Ethernet Port x2 (Control)
  10. Light Sensor
  11. Genlock In & Loop
  12. 3G-SDI In & Loop
  13. USB-A (Rear Panel)
  14. RS232 (3-Pin)
  15. Ethernet Port x6 (Output)
  16. Audio In & Out
  17. 3D Out
  18. HDMI 2.0 In & Loop
  19. HDMI 1.3 In x2
  20. Optical Port x2
  21. Monitor Out (HDMI 1.3)
  22. Power Button
  23. AC In

SPECIFICATIONS


  • Specification
    Screen Size: 31.5"
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.25
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K -10000K
    Orientation: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • Input
    HDMI: 3
    (HDMI 2.0/HDCP 2.2 x1, HDMI 1.3/HDCP 1.4 x2)
    USB Type A: 2
    (USB3.0 x1, USB2.0 x1)
    RJ45 Input: 2
    (control)
    Audio-in (3.5mm): 1
  • Output
    HDMI out: 1
    (HDMI 1.3/HDCP 1.4)
    Audio out (3.5mm): 1
    USB Type A (Power): Shared with USB A input
    (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1)
