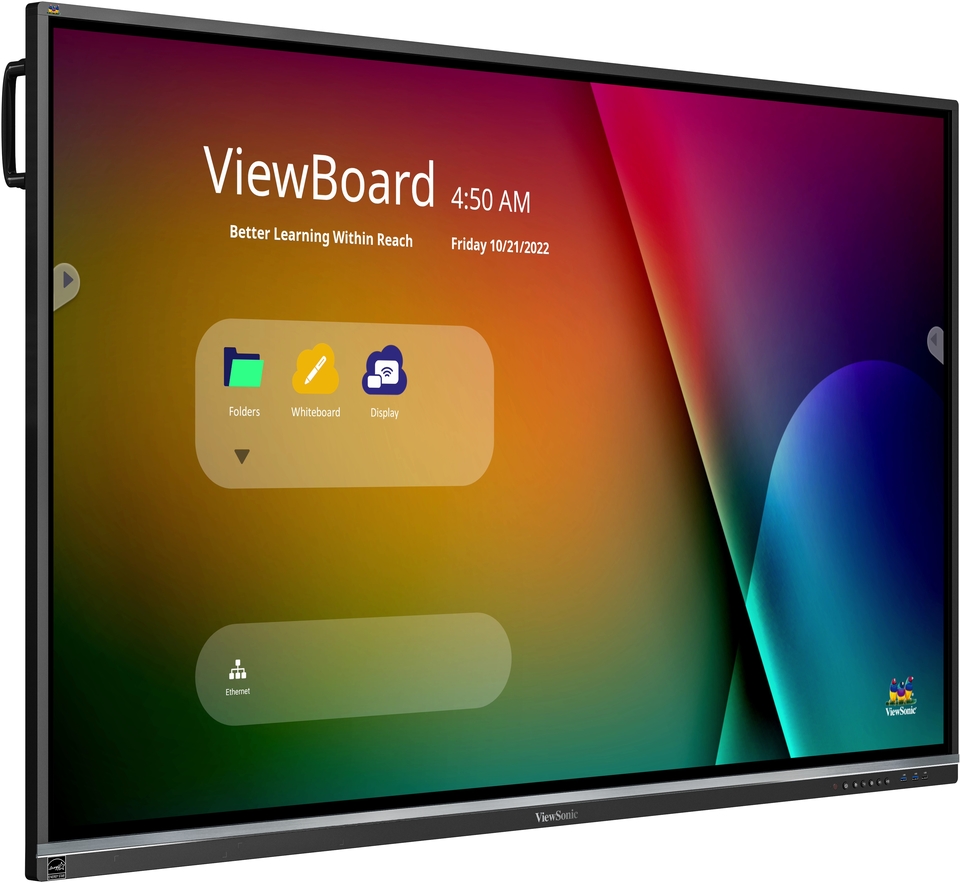

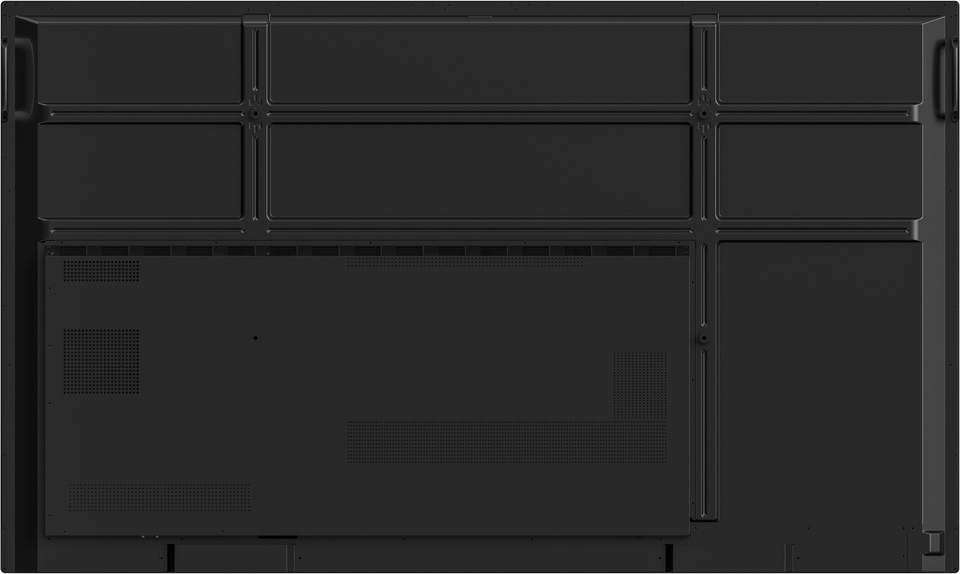

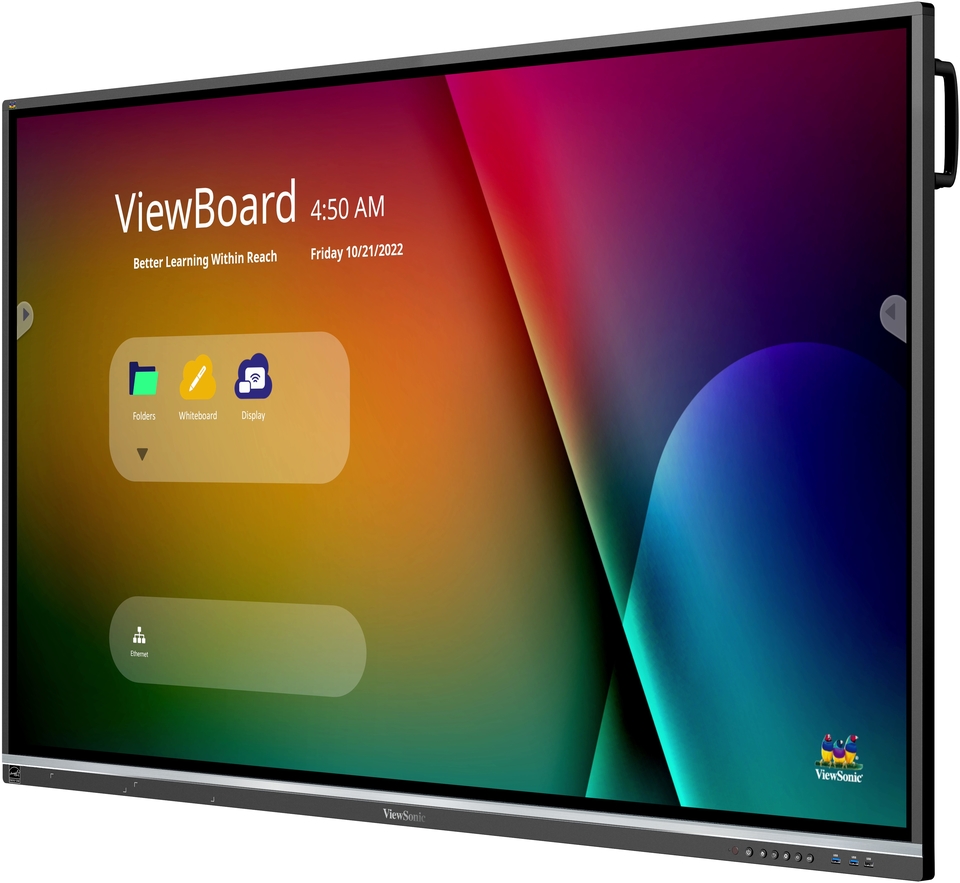

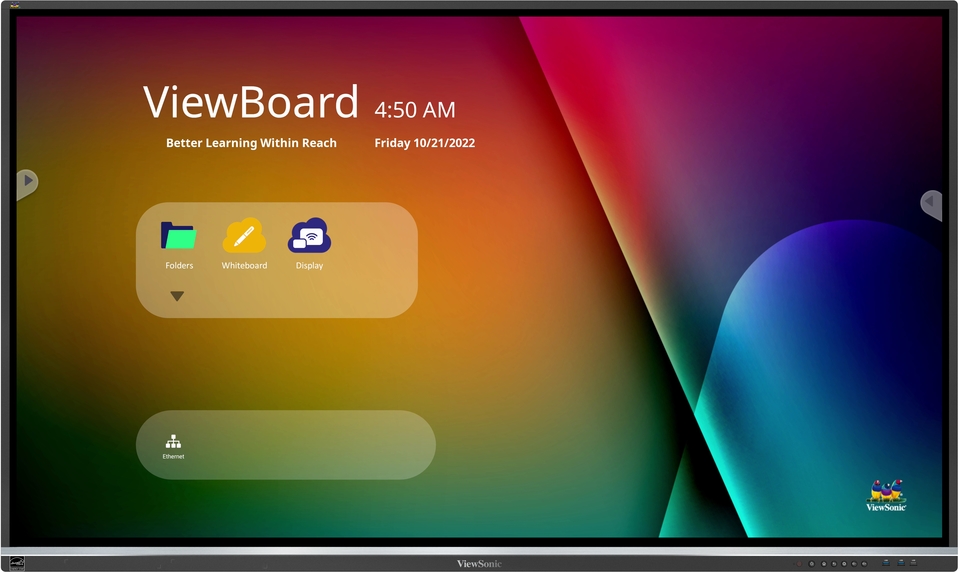

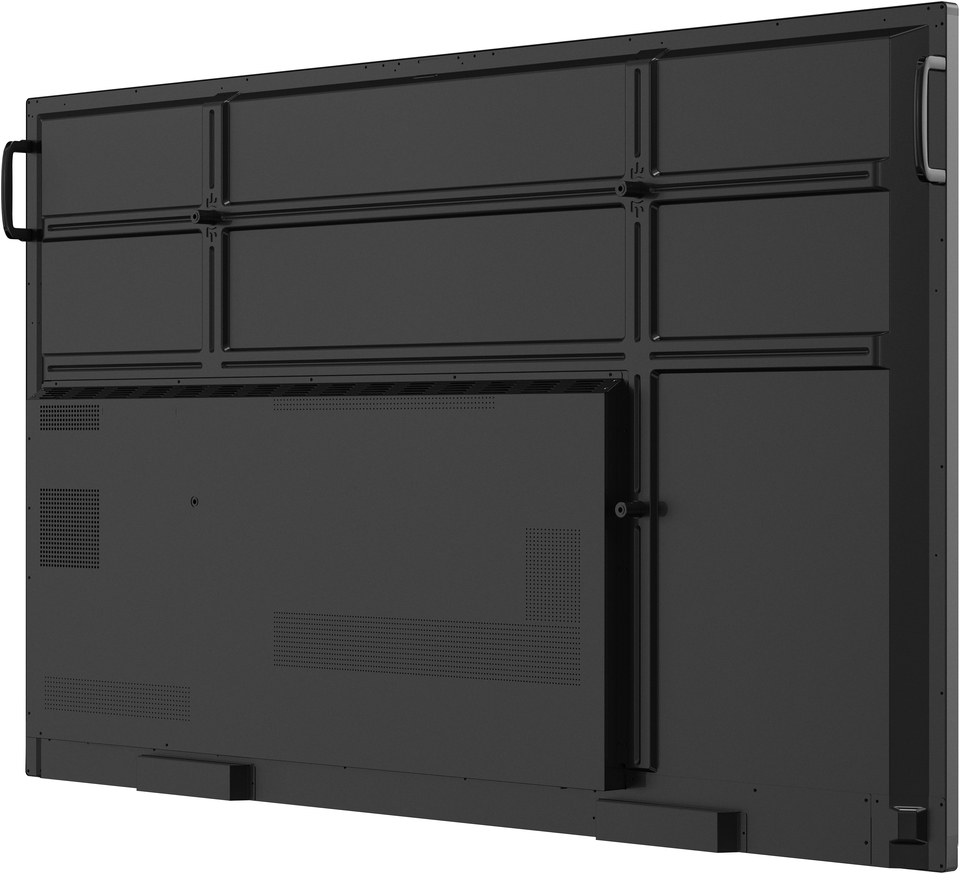

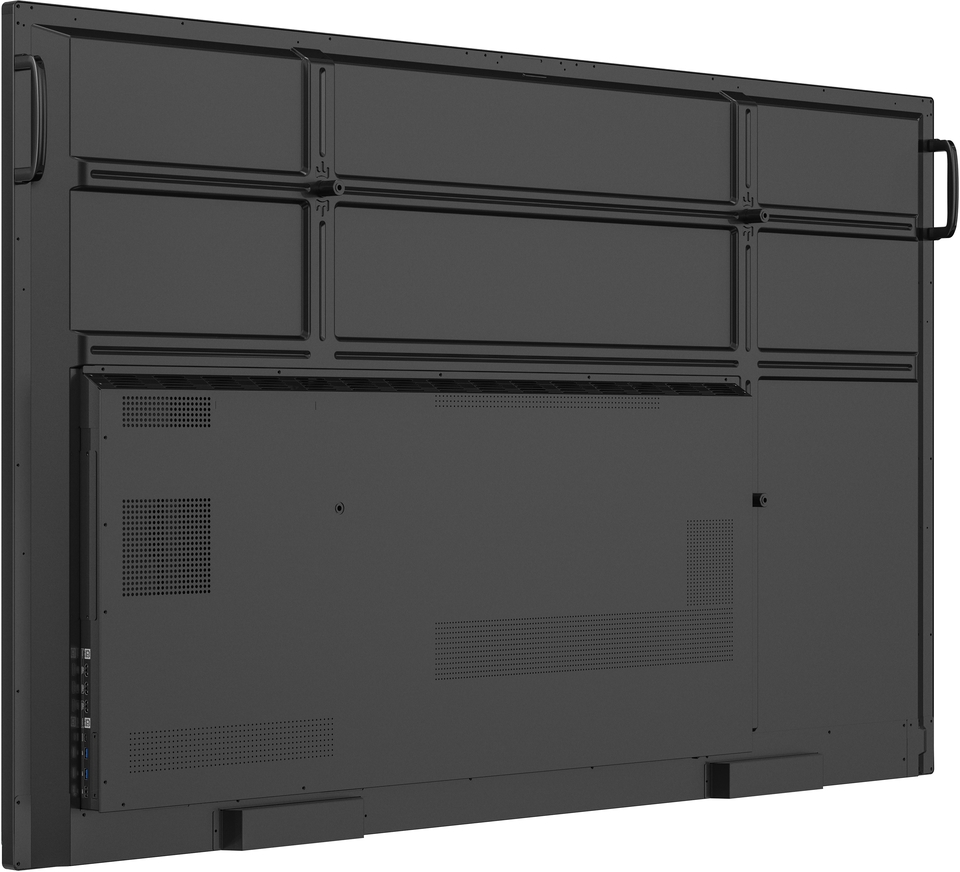

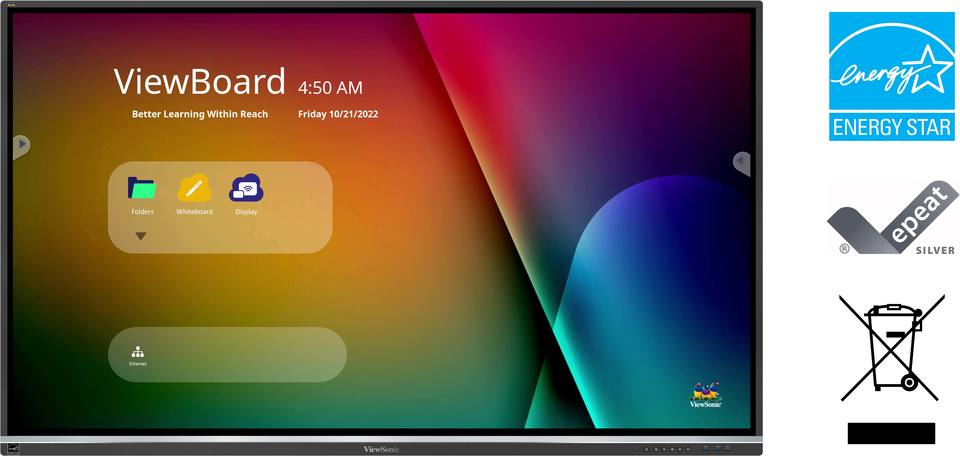

ViewBoard IFP7550-5
ViewBoard® 75” 4K Interactive Display
- Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience
- myViewBoard Whiteboard software with engaging classroom tools
- Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
- Intuitive remote device control and multimedia broadcast with myViewBoard Manager
- Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradable to Android 13)
SPECIFIKÁCIÓK
- MegjelenítésPanel mérete: 75"
Panel típus: TFT LCD Module with DLED Backlight. IPS
Megjelenített terület (mm): 1650.24(H) × 928.26(V)
Képarány: 16:9
Felbontás: UHD 3840x2160
Colors: 1.07B colors (10bit)
Fényerő: 450 nits (typ.)
Kontrasztarány: 1200:1 (typ.) 5000:1 (DCR)
Válaszidő: 8ms
Betekintési szögek: H = 178, V = 178 typ.
Háttérvilágítás élettartama: 50,000 hours(Min)
Felületkezelés: Hardness: 7H, Anti-glare coating
Keret: Slim
Orientáció: Landscape - PlatformProcesszor: ARM Cortex-A73*4 + Cortex-A53*4
RAM: 4GB
Tárolás: 32GB - TouchTípus/ Technika: Ultra Fine Touch Techology (IR Recognition)
Érintés felbontás: 32768 ×32768
Touch Point: Windows: 40 points of touch, Android : 20 points of touch
- INPUTHDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot - OUTPUTHDMI: x1 (4K@60Hz)
Audió: x1 (Earphone out)
SPDIF: x1 (optical) - LANRJ45: x2
- USBA típus: 2.0 x 2
3.0 x 4
B típus: x2, for touch
C típus: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M) - HANGSZÓRÓK12W x 2 + 16W x 1 subwoofers
- Top Camera PlateYes
- Beágyazott operációs rendszerAndroid 13
- mellékelt szoftverAlap annotációs szoftver: myViewBoard
Pro Annotation szoftver: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Vezeték nélküli prezentáció: vCast/myViewBoard Display App/AirSync*
*myViewBoard Display will be replaced by AirSync in Q1 2025. - Különleges jellemzőkAll-in-one USB port: “SmartPort™ USB” to all channels.
Egyszerű LAN-megosztás az IFP és a slot-in eszköz között: Yes
Light Sensor: Yes - TeljesítményFeszültség: 100-240VAC +/- 10% Wide Range
Fogyasztás: 135W(typ.), 0.5W (off) - ERGONOMICSFalra szerelhető (VESA® ): 800 mm x 400 mm
- OPERATING CONDITIONSHőmérséklet (ºC): 0°C to 40°C
Páratartalom: 10% ~ 90% RH non-condensing - MÉRETEK (Sz x H x M)Fizikai (inch / mm): 67.28 x 40.16 x 3.39 in / 1709 x 1020 x 86 mm
Csomagolás (inch / mm): 73.35 x 44.88 x 8.86 in / 1863x 1140 x 225 mm - WEIGHTNettó (font / kg): 117.73lb/53.4kg
Bruttó (font / kg): 151.9lb/68.9kg - CSOMAG TARTALMA1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable - Kompatibilis Slot-in PC• VPC2-O series
• VPC2-O-B series
• VPC25-W33-O1-1B
• VPC27-W53-O1-1B
• VPC12-WPO-17
• VPC12-WPO-18
