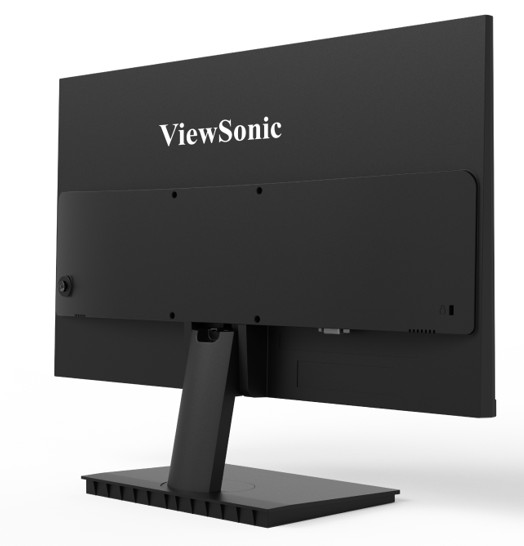

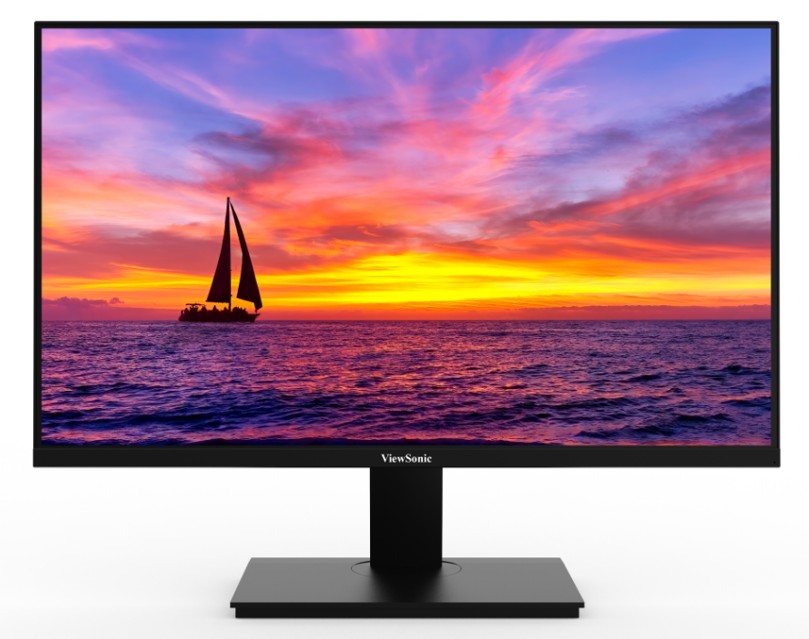

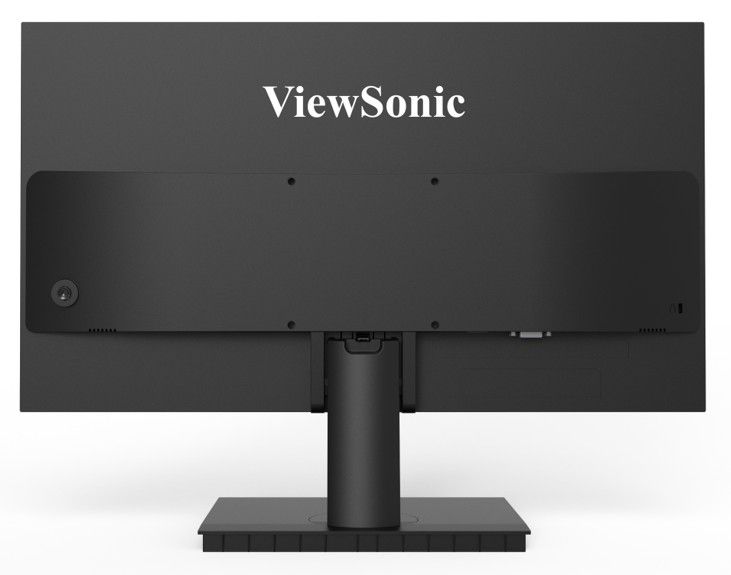

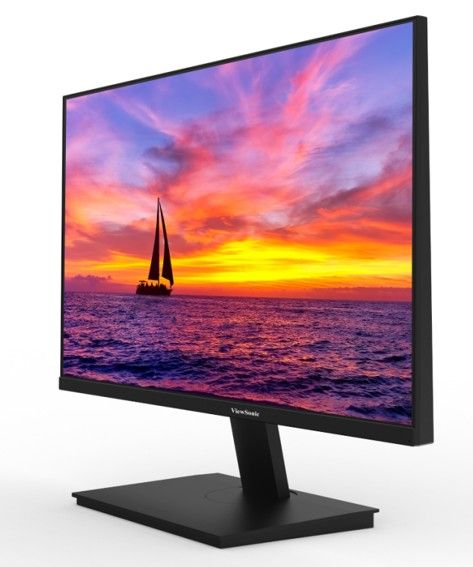

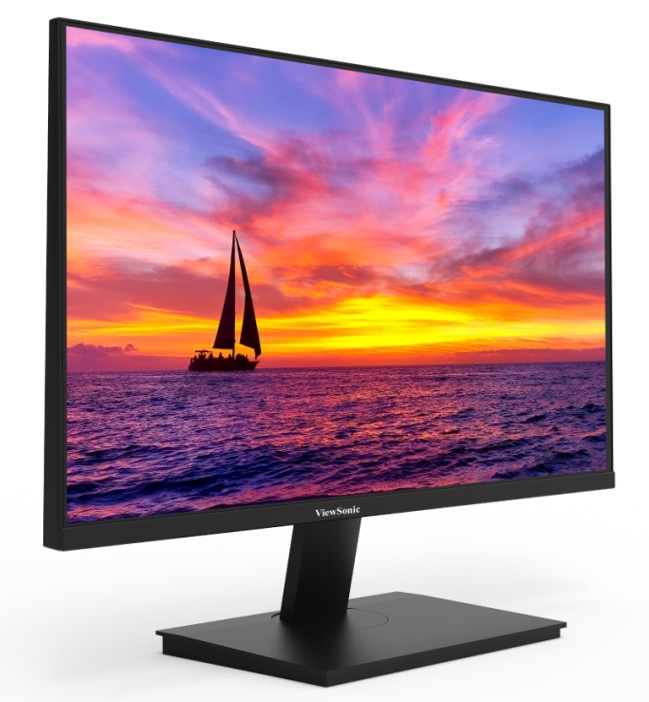

VA2272-H

21.5” FHD ,standard wall-mountable, blue light filtering, flicker-free, energy-saving VGA/HDMI monitor

LCD Panel
Panel Type: VA
Size: 21.5
Curvature: Flat
Display Area: 478.656mm (H) x 260.28mm (V)
Best Resolution: 1920×1080
Refresh Rate: 100Hz
Screen Ratio: 16:9
Contrast Ratio (Typical): 3000:1 (Typ) (DCR: 50M:1)
Brightness: 250 cd/m2 (min) 300 cd/m2 (Typ)
Viewing Angle (Typical): H: 178°, V: 178° (CR≥10)
Pixel Pitch: 0.2493mm (H) x 0.241mm (V)
Response Time (Typical): 5ms (Fastest), 14ms (Typ)
Surface Coating: Anti-glare, 3H, Haze 25%
Color Depth: 16.7M colors, 8bit (6bit+FRC)
Color Gamut (Typical): 72% NTSC (Typ.)
*Slight deviations may occur due to different testing environments and equipment.
The above color gamut data comes from the ViewSonic laboratory.
Low Blue Light: Low Blue Light, Flicker-Free
HDR: None
Refresh Rate
VGA: 1920x1080@75Hz 8bit RGB
HDMI: 1920x1080@100Hz 8bit RGB

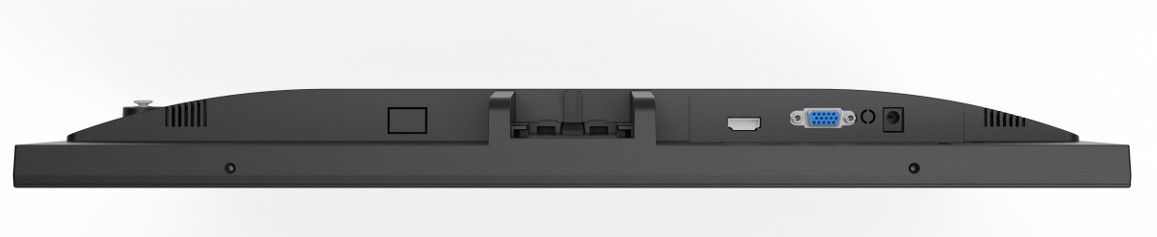

Connectors
Signal Input: VGA (Analog), HDMI 1.4
Power: Wall-mount external power supply 12V/2A
HDCP: HDCP 1.4

Compatibility
PC: Windows 10/11 Tested
Mac: macOS Tested
Ergonomics

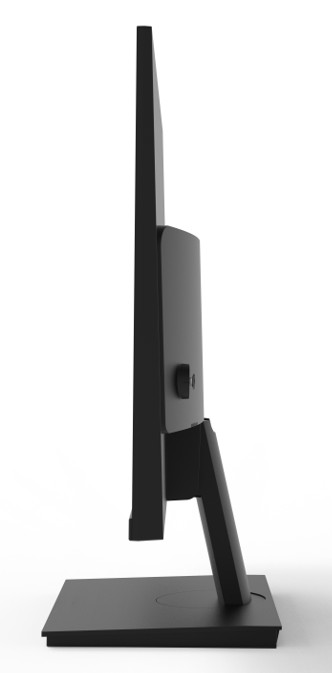

Tilt: -5°±2° ~ 20°±2°
Power
Rated Voltage: AC 100-240V / 50-60Hz
Working Power Consumption: ≤22W (Typ)
Max Power Consumption: ≤0.3W
Standby Power Consumption: ≤0.4W
Operating Environment
Temperature: 0 ~ 40°C (32 ~ 104°F)
Humidity: 20 ~ 90% (Non-condensing state)
Storage Environment
Temperature: -20 ~ 60°C (-4 ~ 140°F)
Humidity: 5 ~ 90% (Non-condensing state)
Dimensions
With Stand/Base: 492 mm(W) x 357.6mm(H) x 185mm (D)
Without Stand/Base: 492 mm(W) x 281mm(H) x 40.8mm (D)
Package Dimensions: 555mm (W) x 410mm (H) x 100mm (D)
Wall Mount: 100mm×100mm & Recommended wall mount screws M4*10mm
Buttons / Keys: Joystick
Weight
Net Weight (With Stand/Base): 2.1 kg
Net Weight (Without Stand/Base): 1.9 kg
Gross Weight (With Packaging): 3.1 kg
Regulatory Compliance
CCC, CE, CEL, CECP, China RoHS
Accessories
HDMI (v1.4) (1.5m) ; Power adapter (1.5m)
Regulatory Model
VS20710
