Coming Soon
IFP7551

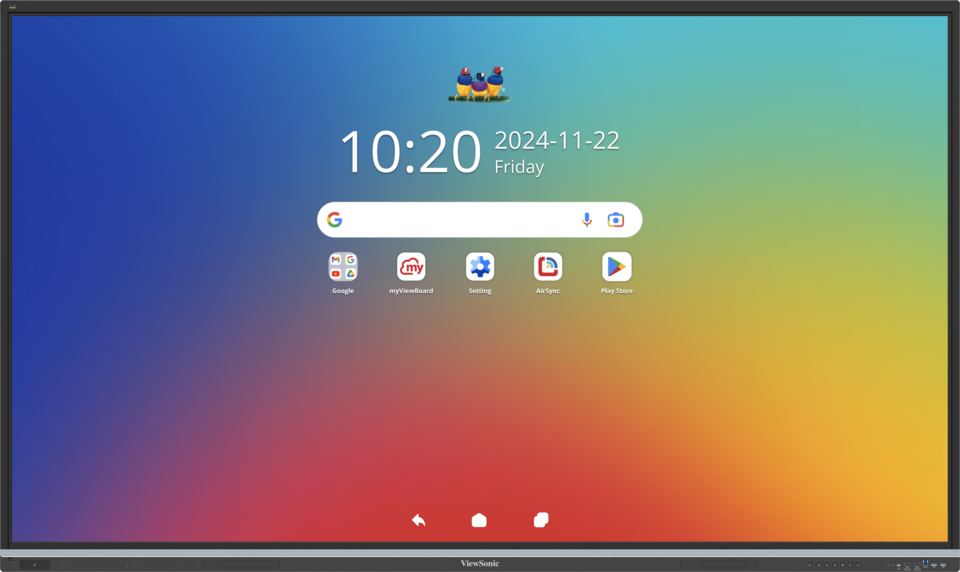

ViewBoard Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard® 75” 4K Interactive Display
- EPEAT Silver Certification, and delivering 20% improved power efficiency compared to the previous generation.
- Quick-start annotation and sketching, featuring 50-point touch precision and palm rejection for instant interactivity.
- AI-powered visuals with vibrant colors and exceptional clarity for enhanced learning engagement.
- Front-facing 25W speakers with a built-in 8-microphone array for an immersive audio experience.
- EDLA Android 14 with integrated ViewSonic Education Software for seamless functionality.
OVERVIEW
Begin your journey with the ViewBoard IFP51 Series, featuring AI-enhanced image quality for sharper, more vibrant teaching visuals, 20% greater energy efficiency compared to previous models, and instant writing with up to 50-point touch precision. Powered by EDLA-certified Android 14, it ensures secure and seamless access to a wide range of apps on the Google Play Store. The series integrates ViewSonic Education Software for digital whiteboarding, wireless casting, and centralised device management—empowering educators and presenters to create interactive and efficient environments.[Disclaimer: The specifications provided below are subject to change and may be updated before the release of the ViewBoard IFP51 series.]
SPECIFICATIONS
- DisplayPanel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1650.24mm(H) x 928.26mm(V) (74.5” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 6.5 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Min)
Surface Treatment: Hardness:9H, Anti-glare coating
Orientation: Landscape - PlatformProcessor: Octa-Core CPU
RAM: 16GB
Storage: 128GB - TouchType/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767 x 32767
Touch Point: EDLA/Android/Windows: 50 points of touch
Palm Rejection: Yes
- INPUTHDMI: x4 (Frontx1:HDMI2.1 with CEC, HDCP ; Rearx3:HDMI2.1 with CEC, HDCP)
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (PC audio in)
RS232: x1
SD/SDHC: TF Card Slot(Micro SD)
OPS: x1 PC Slot - OUTPUTHDMI: x1 (HDMI 2.1, HDCP 1.x)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
RS232: x1 - LANRJ45: x2
- USBType A: x5 [Front x2 with USB3.2 Gen 1 (all support Smart ; Rear x 2 with USB 3.2 Gen 1 (all support Smart) ; Rear x 1 with USB2.0 (for system update)]
Type B: x2 (Front x 1: USB3.2, Gen 1 ; Rear x 1:USB 2.0)
Type C: x3 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W; Topx1 with USB3.2 Gen 1, PD 15W for camera mounting) - SPEAKERS25W x 2 front soundbar + 25W x 1 subwoofer
- MICROPHONEBuilt-in 8-array microphone
- Top Camera PlateYes
- COMPATIBILITYRGB PC/HDMI PC: 1920x1080 @ 60Hz
HDMI: 3840x2160
DisplayPort: 3840x2160 - Embedded OSAndroid 14 EDLA
- Bundled SoftwareBasic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes
Zoom: Yes - Special FeaturesAll-in-one USB port: USB 3.0 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor: Yes - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: TBD (Typ.) ;
< 0.5 W ("Off") - ERGONOMICSWall Mount (VESA® ): 800 x 400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 67.29 x 40.85 x 3.36 in / 1709.1 x 1037.5 x 85.5 mm
Packaging (inch / mm): 73.35 x 45.79 x 8.86 in / 1863 x 1163 x 225 mm - WEIGHTNet (lb / kg): 101.54 lb / 46.06 kg
Gross (lb / kg): 126.88 lb / 57.55 kg - REGULATIONScTUVus, FCC ID/IC ID, FCC SDoC, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT Silver, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA
- PACKAGE CONTENTS1. Power Cord x1 3 meters,
by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)
2. USB Type-C cable x1 1.8 meters
, USB-IF certified
3. USB Touch cable x1 3 meters
4. Touch pen (Passive pen) x 2 (VB-PEN-002)
5. Quick Start Guide
6. RS232 adapter x1
7. Clamp x 5
8. Camera Plate x1
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable x1 3meters,
(HDMI LA certified)
11. Remote controller x1
12 AAA battery x2
13. Compliance statement
- Compatible Slot-in PCVPCF5-W33-G1
VPC37-W53-G1
VPC35-W53-G1
VPC-A31-O1
