Activation de la fonction RVB de votre moniteur

1.) Branchez le cordon USB 3.0 sur le moniteur et le PC.

Le type A (rectangle) se branche sur le PC.
Type-B (square) plugs into the monitor.') !!}

2.) À l'aide du bouton de contrôle OSD du moniteur, accédez au menu de configuration et activez “ELITE RGB&rdquo ;. Si vous n'avez pas encore téléchargé le logiciel, cliquez sur ici.

Configuration de base du mode d'éclairage

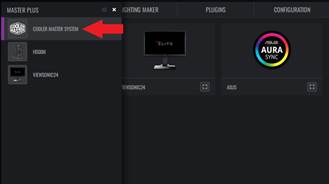

1.) Cliquez sur le logo Cooler Master dans le coin supérieur gauche du programme et cliquez

COOLER MASTER SYSTEM pour afficher tout le matériel synchronisé.

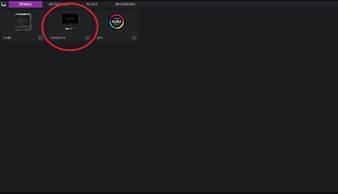

2.) Cliquez sur l'image de votre moniteur gaming ViewSonic Elite.

3.) Dans la partie gauche du programme, sous PORTS RVB, parcourez la liste des effets RVB pour choisir votre mode d'éclairage préféré.

4.) dans la partie droite du programme, sous RGB PORTS dans LIGHTING EFFECT

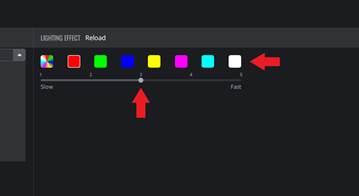

Choisissez la couleur de l'effet en cliquant sur le carré de couleur et réglez la vitesse de l'effet en cliquant sur un chiffre de 1 à 5. (1 = le plus lent, 5 = le plus rapide)

Personnalisation individuelle de la couleur des LED (mode d'éclairage de base suite)

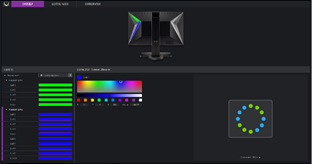

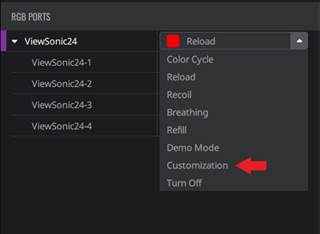

1.) Sous RGB PORTS, déposer la liste des effets RVB. Au bas de la liste des effets RVB, cliquez sur Customization

de choisir les couleurs des unités LED à partir d'une palette de couleurs plus large.

2) Sous PORTS RGB

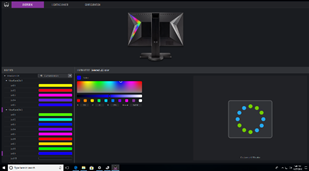

you will see the name of your monitor. Underneath the monitor name, click the ViewSonic LED port to add one color to every LED unit in the designated port. (ex. )

3.) To change the color of an individual LED unit in the LED port, click the LED #.

(ex.)

Mode créateur d'éclairage

1.) Click LIGHTING MAKER at the top of the program.

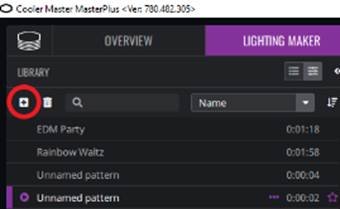

2.) On the top left, under LIBRARY, click the plus sign to create a new pattern.

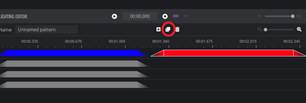

3.) Under LIGHTING EDITOR in the middle of the program, click the plus sign to add a new pattern element in your lighting sequence.

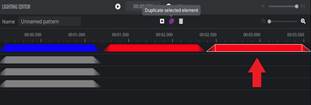

4.) Next to the plus sign, click the overlapping boxes to duplicate the selected element in the same channel.

5.) Next to the overlapping boxes, click the garbage bin to delete the selected element.

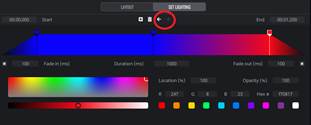

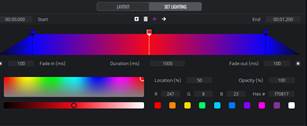

6.) At the top middle of the program, click the SET LIGHTING buttonto display editing features for colors, duration, and the element’s fade in/out.

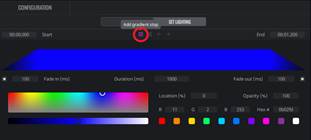

7.) To add gradient stops to your pattern element, click the plus button under SET LIGHTING.

Gradient stops will allow you to add multiple colors in one element. Click the gradient stop and add a new color to the designated area by clicking the desired color in the color palette. The more stops you add, the more colors you can add, but the shorter the colors will become.

8.) Swap the position of a gradient stop in your pattern element by clicking the stop and then clicking the arrow in the direction you want the gradient to move.

9.) Once you have created a sequence, press the triangle PLAY button in the middle of the program to preview your creation. View the length of your creation in the playback timer next to the PLAY button.

10.) Next to the playback timer, click the infinity sign to loop on/off the playback of your created lighting sequence.

Screen Follower

1.) Under LIBRARY in the LIGHTING MAKER section, click the Lighting Application button.

2.) Click the triangle PLAY button next to Screen Follower to activate the Screen Follower mode.

3.) Once you hit the PLAY button, the RGB will react to the dominant colors displayed on the screen. For the best results, put your game or entertainment in Full Screen.

Synchronisation de votre moniteur avec votre configuration RVB

1.) Cliquez sur le logo Cooler Master en haut à gauche, puis cliquez sur COOLER MASTER SYSTEM au début de la liste.

2.) Click LIGHTING MAKER at the top of the program.

3.) In the middle-left side of the program under PORTS,

you will see the devices synced in the COOLER MASTER SYSTEM. Next to PORTS you will see CHANNELS. Click and drag a channel to the preferred port to activate the RGB in that single port. Assign a lighting channel to each port under your devices you want the RGB sequence to be activated.

4.) To assign all ports in one device a single channel,

click and drag the channel over-top of the device name. E.g. If you drag channel 1 into device H500M then all ports under H500M will activate the Channel 1 RGB sequence.

5.) Click the triangle PLAY button to activate the RGB assigned to your devices.
