IN8601-3

  • Built-in 48-Megapixel camera
  • 8-array microphone delivers exceptional audio clarity and voice pickup
  • Hardware low blue light, DC dimming, and light-sensing brightness
  • USB-C port enables fast data transfer
  • NFC function for swift access to the intuitive launcher and personal settings
Sales Enquiry

OVERVIEW

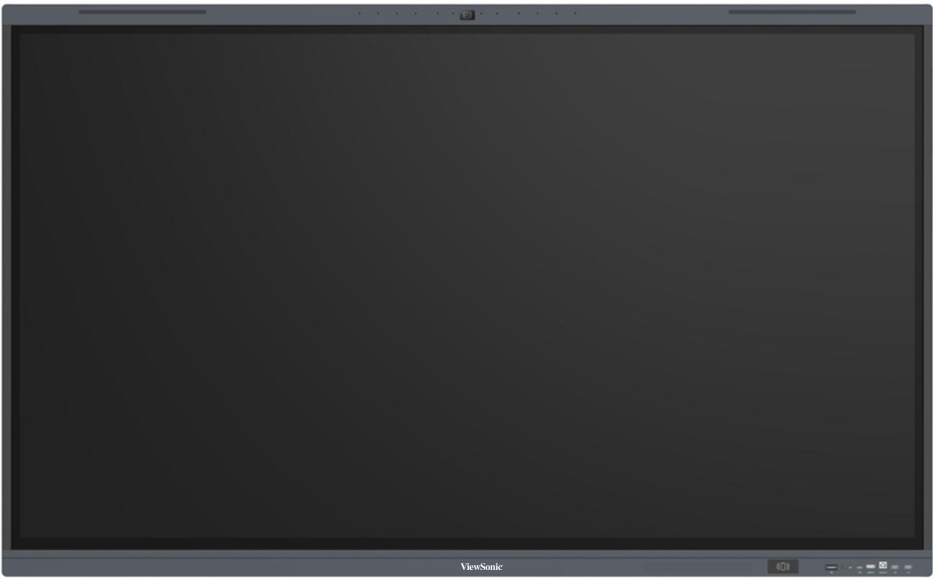

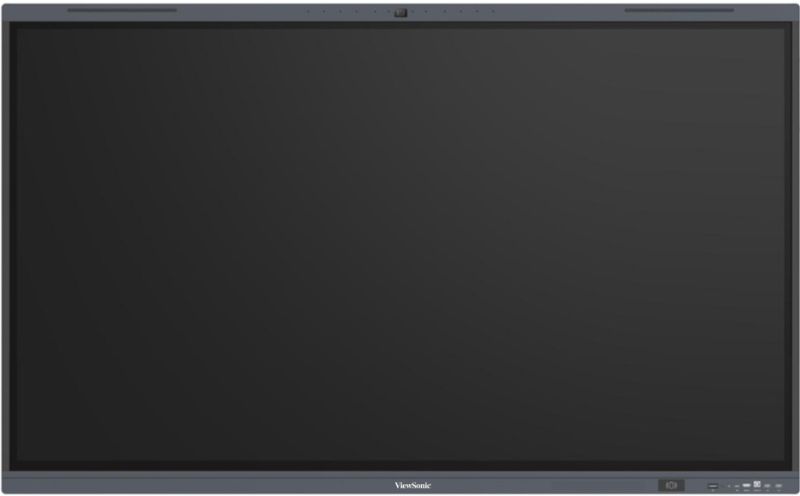

The ViewBoard IN8601-3 is a premium interactive flat panel designed to redefine collaborative environments through superior hardware integration and high-fidelity visuals. Featuring a 4K UHD display with all-channel 4K UI support, the panel delivers vibrant, true-to-life colors with a 90% NTSC gamut and precise white balance. Its advanced zero bonding construction and 3.2 mm anti-glare glass minimize the gap between the touch surface and the LCD, ensuring nearly zero parallax and a seamless writing experience.

SPECIFICATIONS


  • Display
    Panel Size: 86"
    Panel Type: IPS
    Display Area (mm): 1895.04(H)×1065.96(V)mm
    Aspect Ratio: 16:9
    Resolution: 3840(H)×2160(V)
    Display Colors: 1.07B (10bit)
    Brightness: 450 nits
    Contrast Ratio: 5000:1
    Response Time: 8ms
    Viewing Angles: H=178, V=178
    Backlight Unit: DLED
    NTSC: 90%
    Refreshing Frequency: 60Hz
    Operation Time: 7 days×16 hours
    Life Time: 50000 Hours
  • Operating System
    System Version: Android 15
    RAM: 16G
    ROM: 256G
    CPU: A76×4+A55×4
    GPU: Mali-G610 MP4
  • Touch System
    Sensing Type: Infrared recognition
    Touch Tool: Passive infrared pen, Active infrared pen
    Accuracy: ±1mm
    Touch Point: 50 points touch
    Minimum Object Size: 2mm
    Writing Height: 1mm
    Interpolation Resolution: 32768(W)×32768(D)
    Response Time: ≤2.5ms
    System: Windows10/Windows8/Windows7/Android/Linux/ Mac OS X/Chrome

SUPPORT & DOWNLOADS


Datasheets

IN8601-3 Datasheet
