Archiviert

VPC25-W33-O1-1B

OPS-PC für ViewBoard®

Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business) *
Ideale integrierte Lösung für ViewBoard® Interactive Displays und Präsentation Displays
Leistungsstarke Intel® 10th Core Prozessoren
Verbesserte Systemstabilität, Sicherheit und thermische Kontrolle

Software
Betriebssystem: Windows 10 Pro - Viewsonic recommends Windows 11 Pro for business, Free Upgrade to Windows 11 *(when available, see below)
Kern
CPU: Intel Core i5-10400T 2.0GHz Turbo boost 3.6GHz
Grafik: Integrated Intel® UHD graphic 630 Intel H510 chipset
Arbeitsspeicher
Kapazität: 8GB DDR4

Storage
Abmessungen: M.2 2280 (22 x 80 mm)
Kapazität: 256GB SSD
Interface: M.2 2280 NVMe PCIe Gen3 SSD

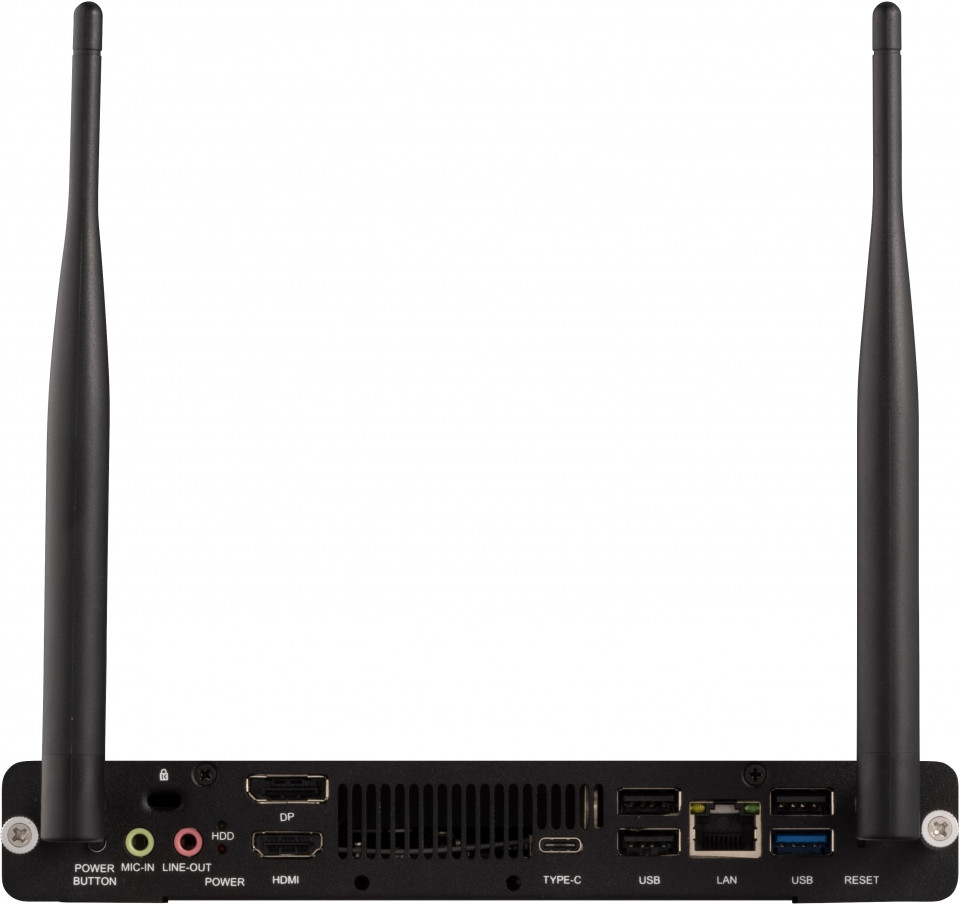

INPUT
MIC (Microfon): x1
OUTPUT
DisplayPort: x 1 (1.4, resolution 4096x2160@60Hz)
HDMI: x 1 (1.4, resolution 4096x2160@30Hz)
Audio: x 1 Line out
LAN
RJ45: GbE LAN Port
WLAN / Bluetooth
Intel AX200 WiFi 6 + BT5.2 Module dual band
USB
Typ A: USB x 4 (USB 3.2 x 1, USB 2.0 x 3)
Typ C: x 1 (data only)
Vorinstallierte Software
Adobe Reader /
myViewBoard WhiteBoard /
WatchDog /
Winflash
Energie
Eingangsspannung: DC in +12V~+19V @ 3.42A
Verbrauch: 65 W (Typical)
OPERATING CONDITIONS
Temperatur (º C): -5~45°C
Luftfeuchtigkeit: 20% ~ 80% R.H. Non-Condensing
ABMESSUNGEN (B x H x T)
Physikalisch (inch / mm): 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm
Verpackung (inch / mm): 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm
WEIGHT
Netto (lb / kg): 2.205 lb/1 kg
Brutto (lb / kg): 2.646 lb/1.2 kg
VERPACKUNGSINHALT
1. VPC OPS
2. Quick Start Guide
3. Screw x 2
Disclaimer
*The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing varies by device. Certain features require specific hardware. (see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1)
