IFP6570

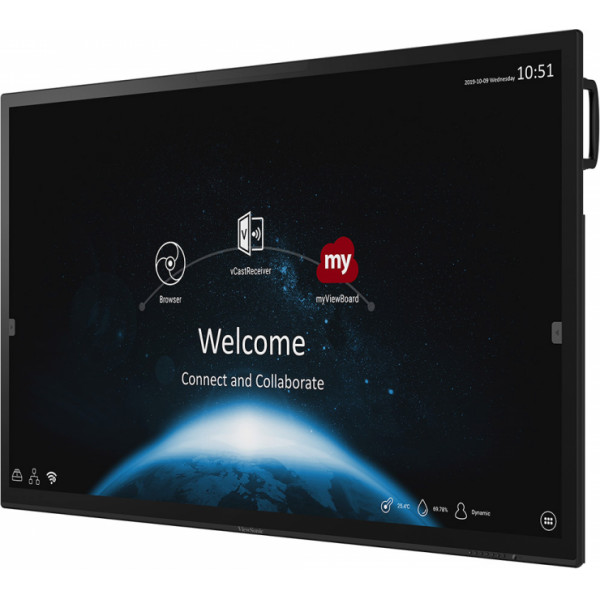

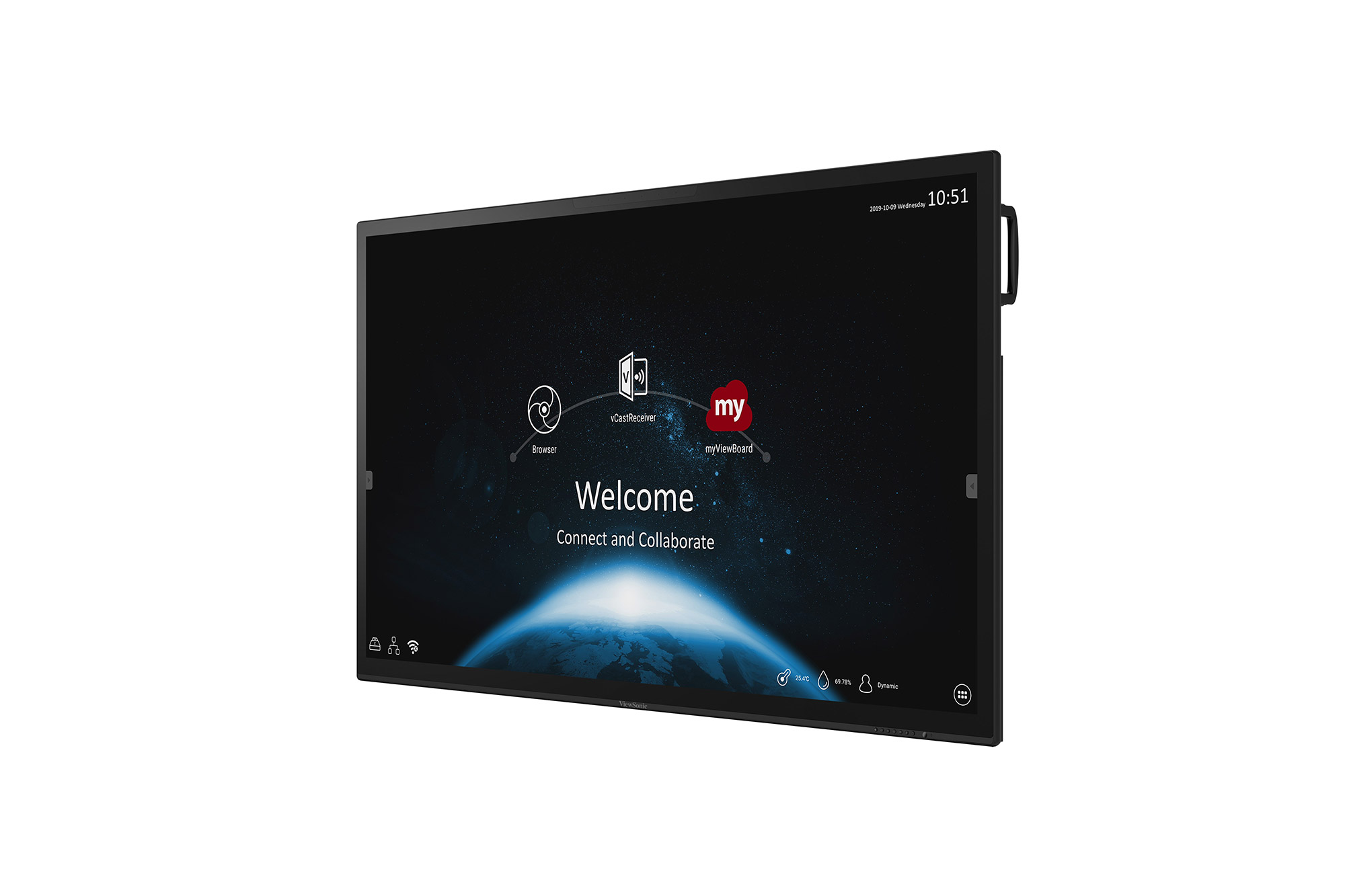

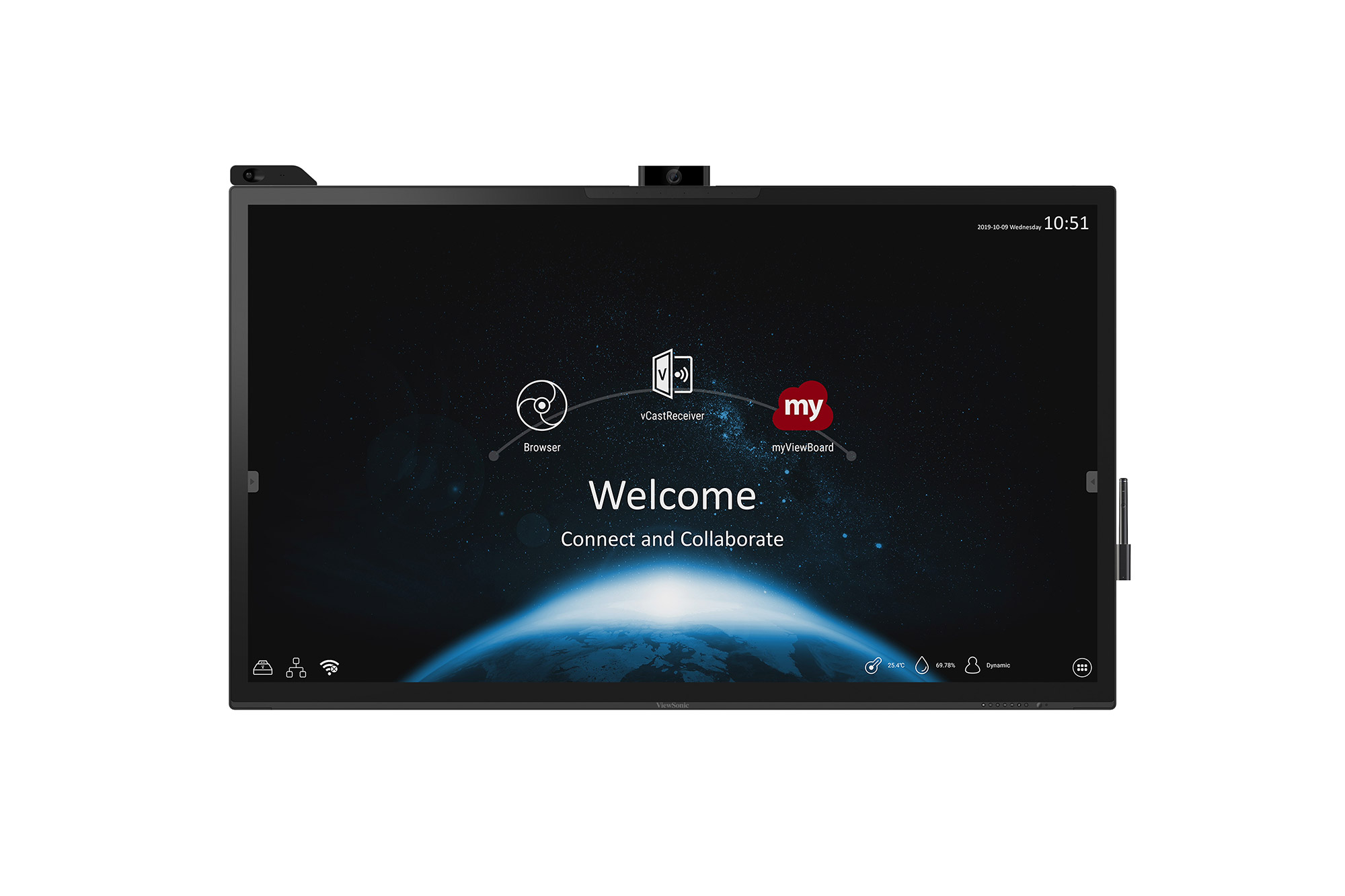

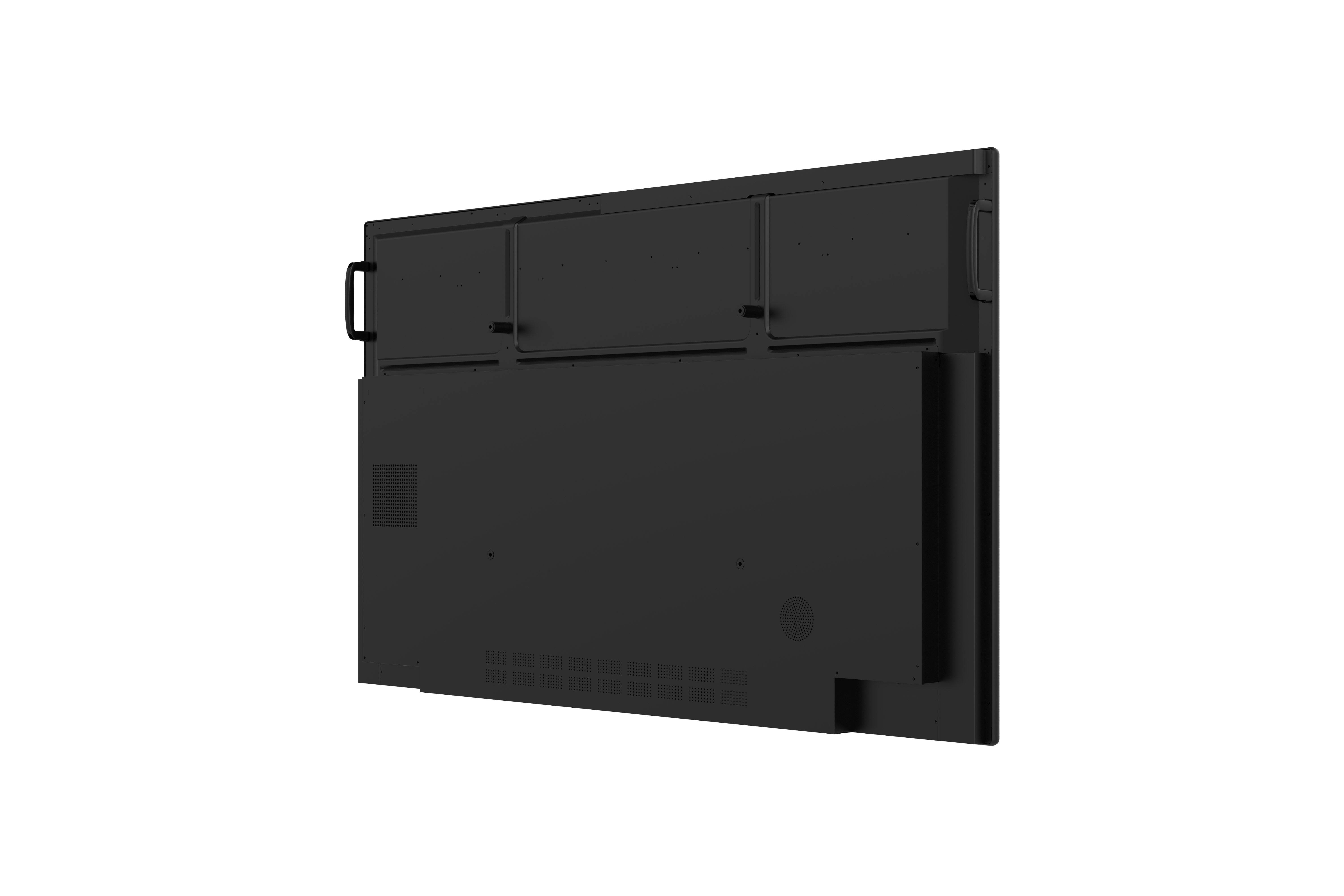

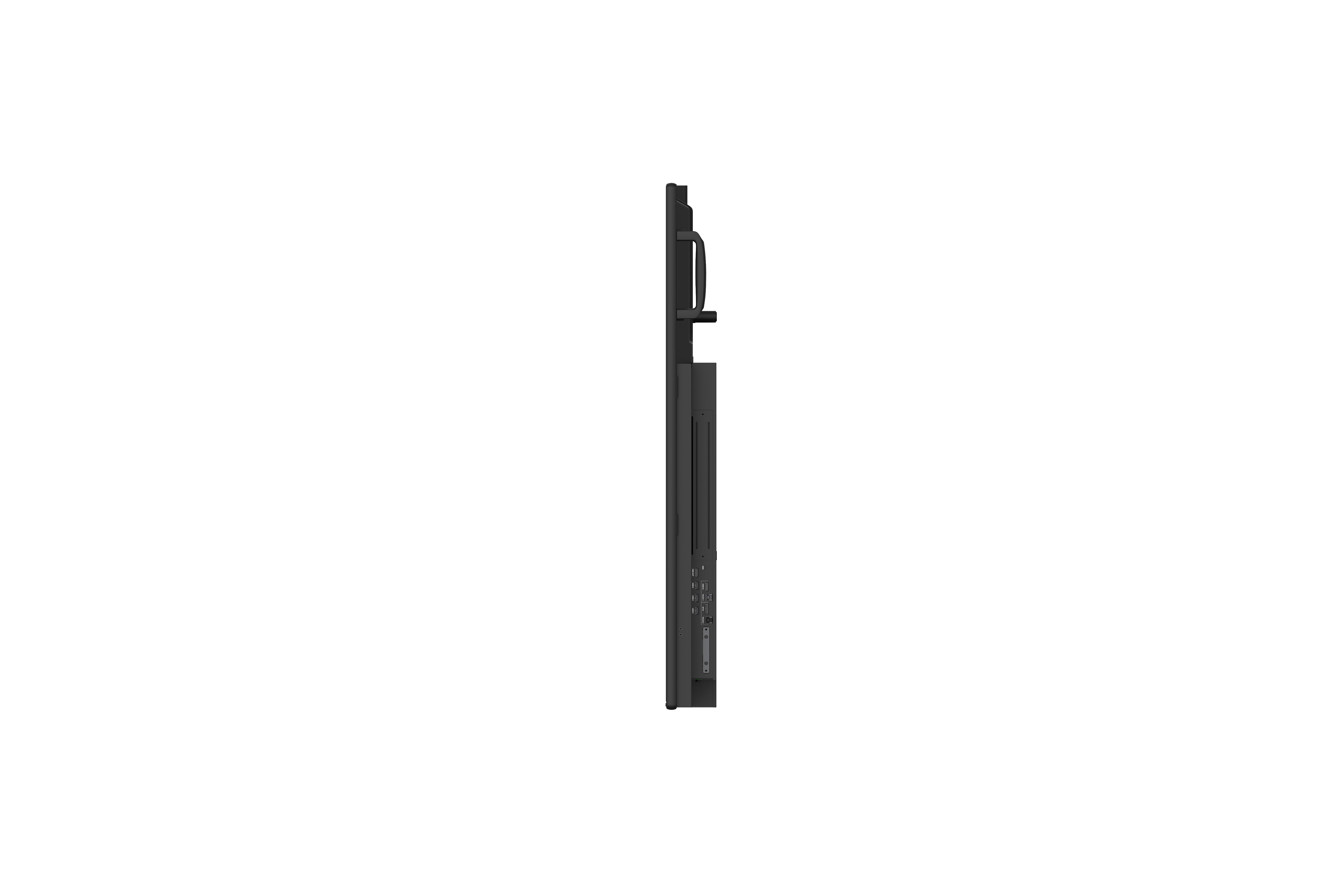

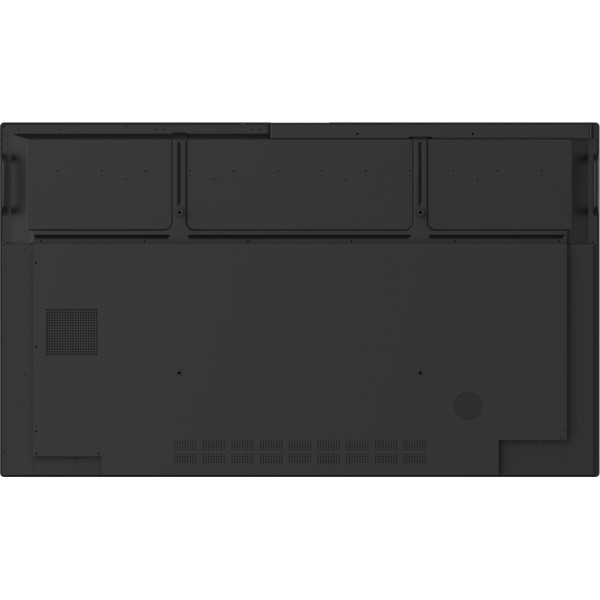

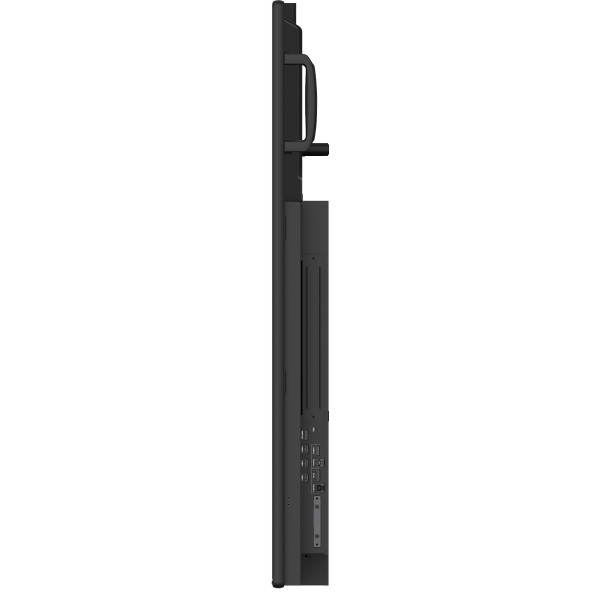

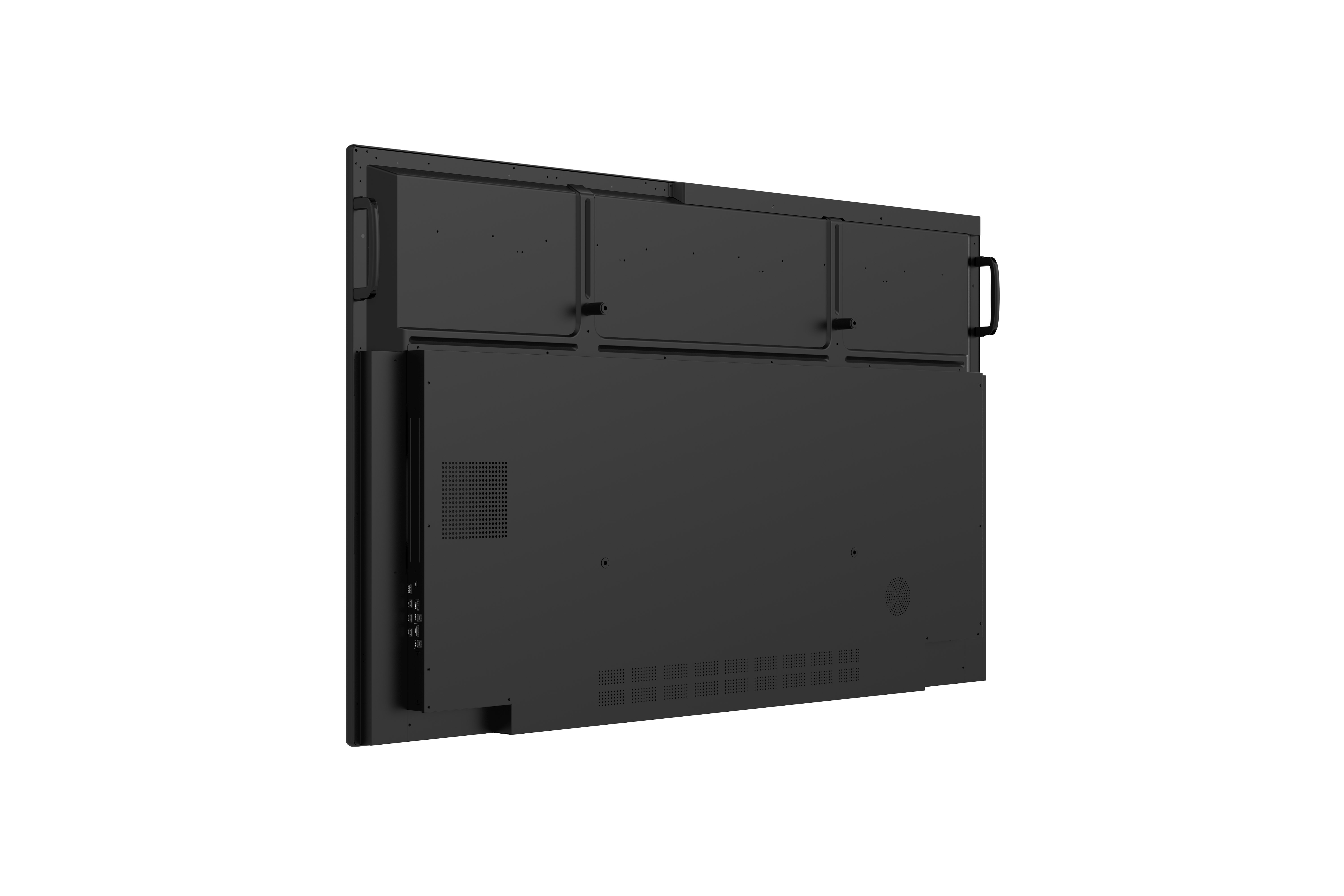

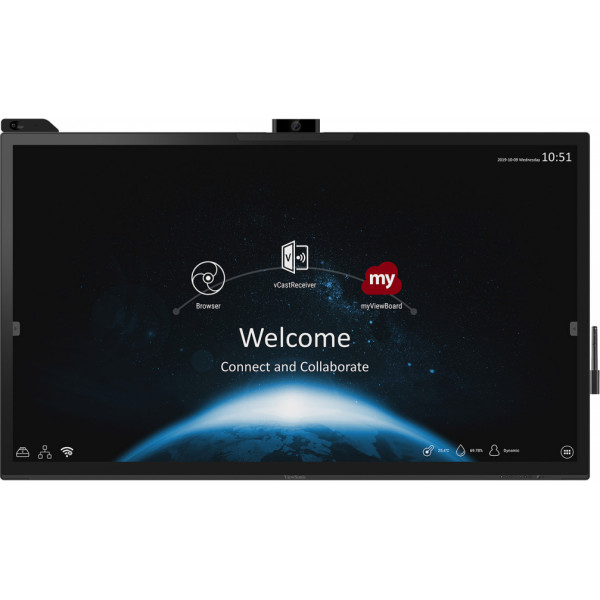

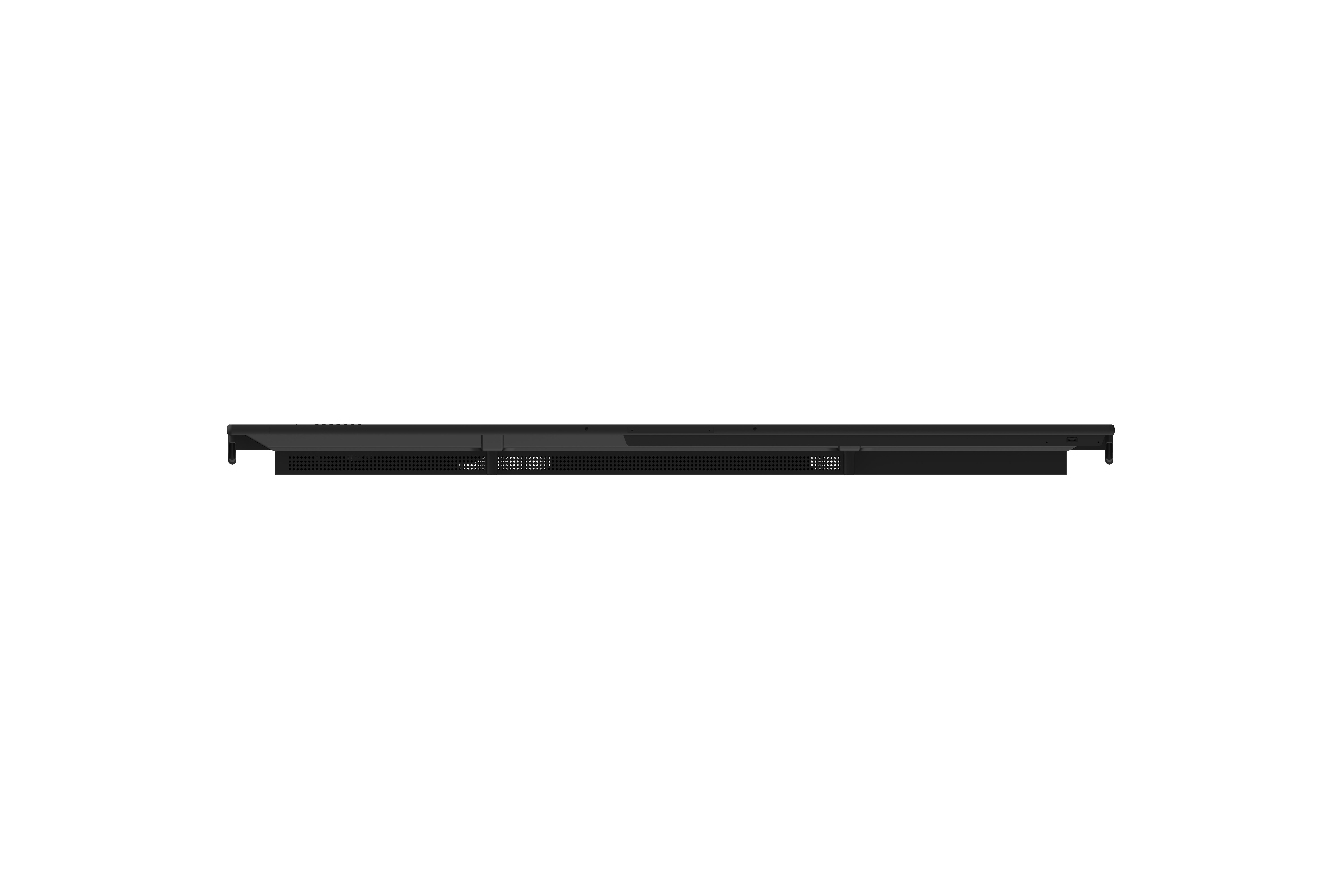

ViewBoard® 65'' 4K Flagship Interactive Display
- Advanced Projected Capacitive (PCAP) touch technology
- Write Naturally and Accurately with Smart Active Pen
- Azure certified IoT sensor hub for workplace management
- High Quality Video Conferencing Solution
- Single cable content sharing through USB Type C
SPECIFICATIONS
- DisplayPanel Size: 65"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 7H (9H pencil), Anti-flare coating
Bezel: Slim
Orientation: Landscape - PlatformProcessor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB - TouchType/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x1 (3840x2160 @60Hz)
DisplayPort: X1 1.4
RS232: x1
OPS: Proprietary PC slot x 1 - OUTPUTHDMI: X1(4K2K@60Hz)
Audio: x1 (Earphone out)
SPDIF: 1(optical) - LANRJ45: x1
- USBType A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W - SPEAKERSSPEAKERS: 10W x 2 + 15W x 1 subwoofer
- Camera plate on top for screw-in webcam installationCamera plate on top for screw-in webcam installation: Yes
- Bundle SoftwareBasic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast - PowerVoltage: 100-240VAC +/- 10% Wide Range
Consumption: On:99(Typ.)
Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 800 x 600
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1493X883X84(mm)
58.77x34.76x3.3(inch)
Packaging (inch / mm): 1669X1010X223(mm)
65.7X39.7X8.7(inch) - WEIGHTNet (lb / kg): 94.79 lb/43Kg
Gross (lb / kg): 110.23 /51Kg - Energy Star versionEnergy Star version: ES8.0
- EEI ratingEEI rating: A+
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. Power cable (3 metres) x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C (1.5 metres pass logo)
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7
10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable (3 metres)
13. Sensor hub
14 .Touch USB cable (3 metres)
15. Micro USB cable for camera (2 metres) - Compatible Slot-in PCCompatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
