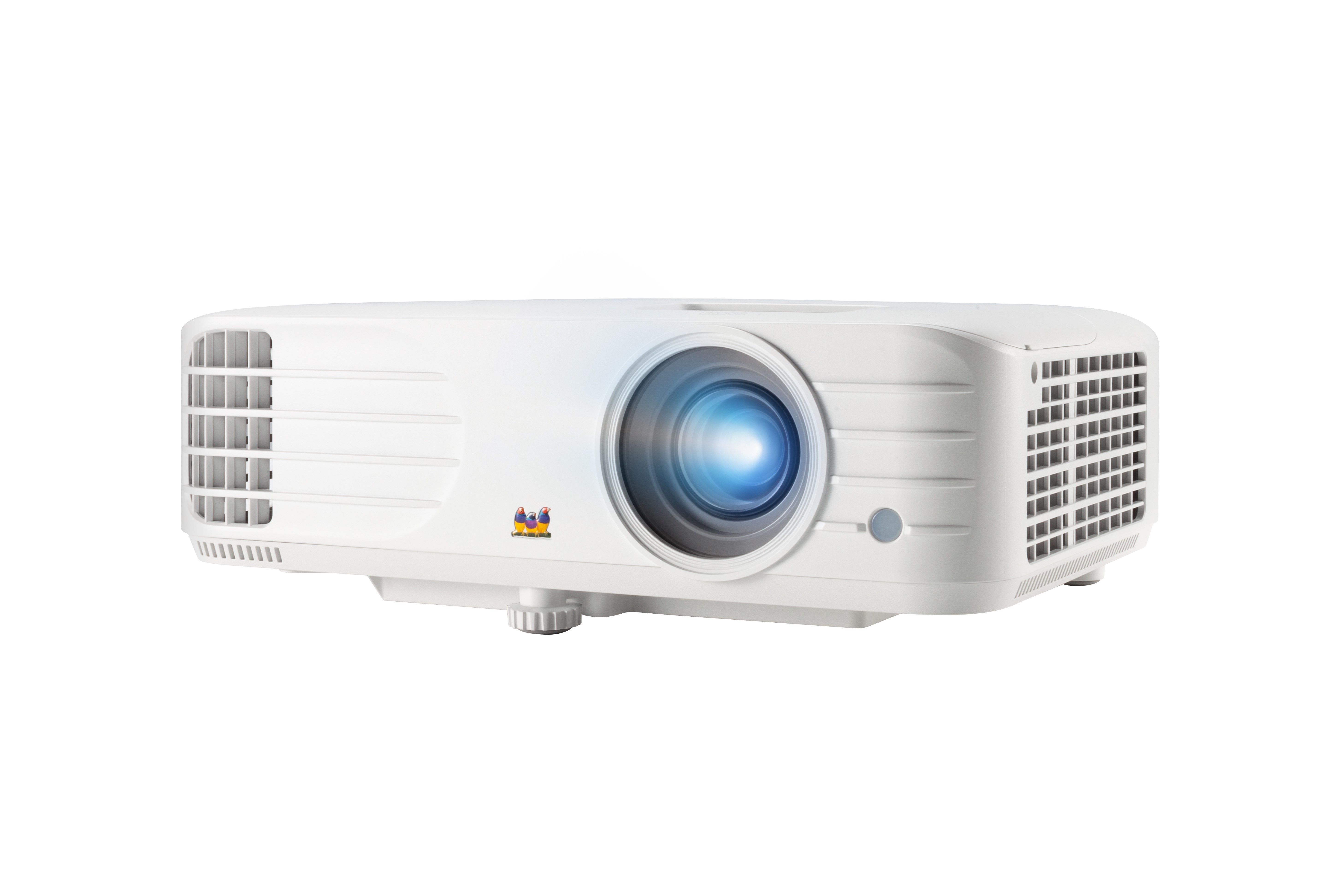

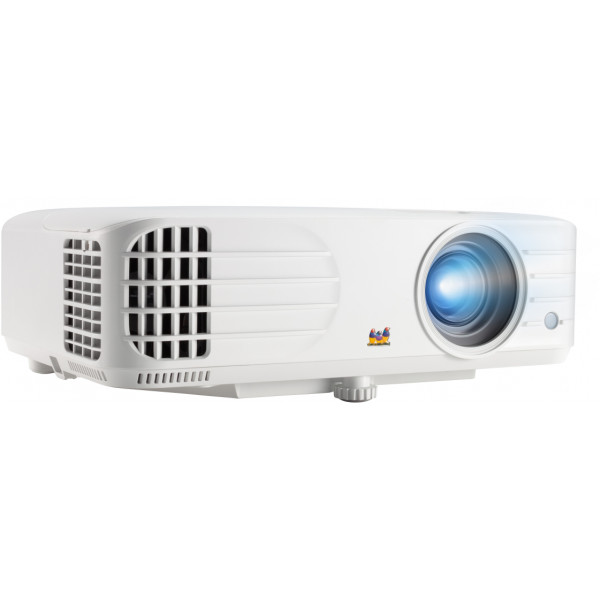

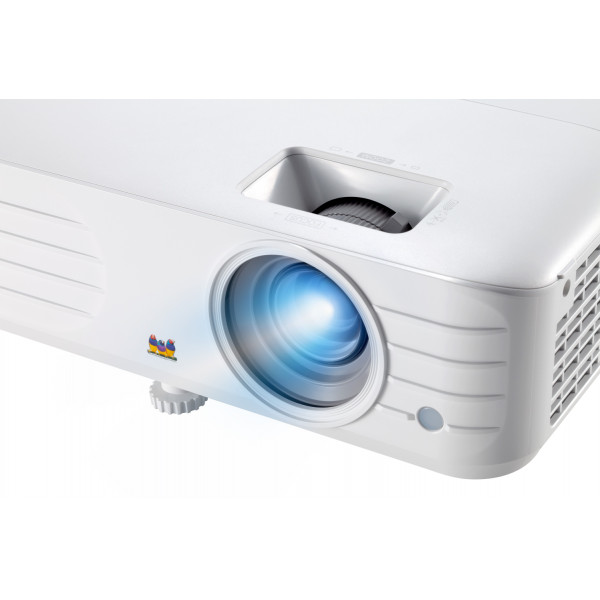

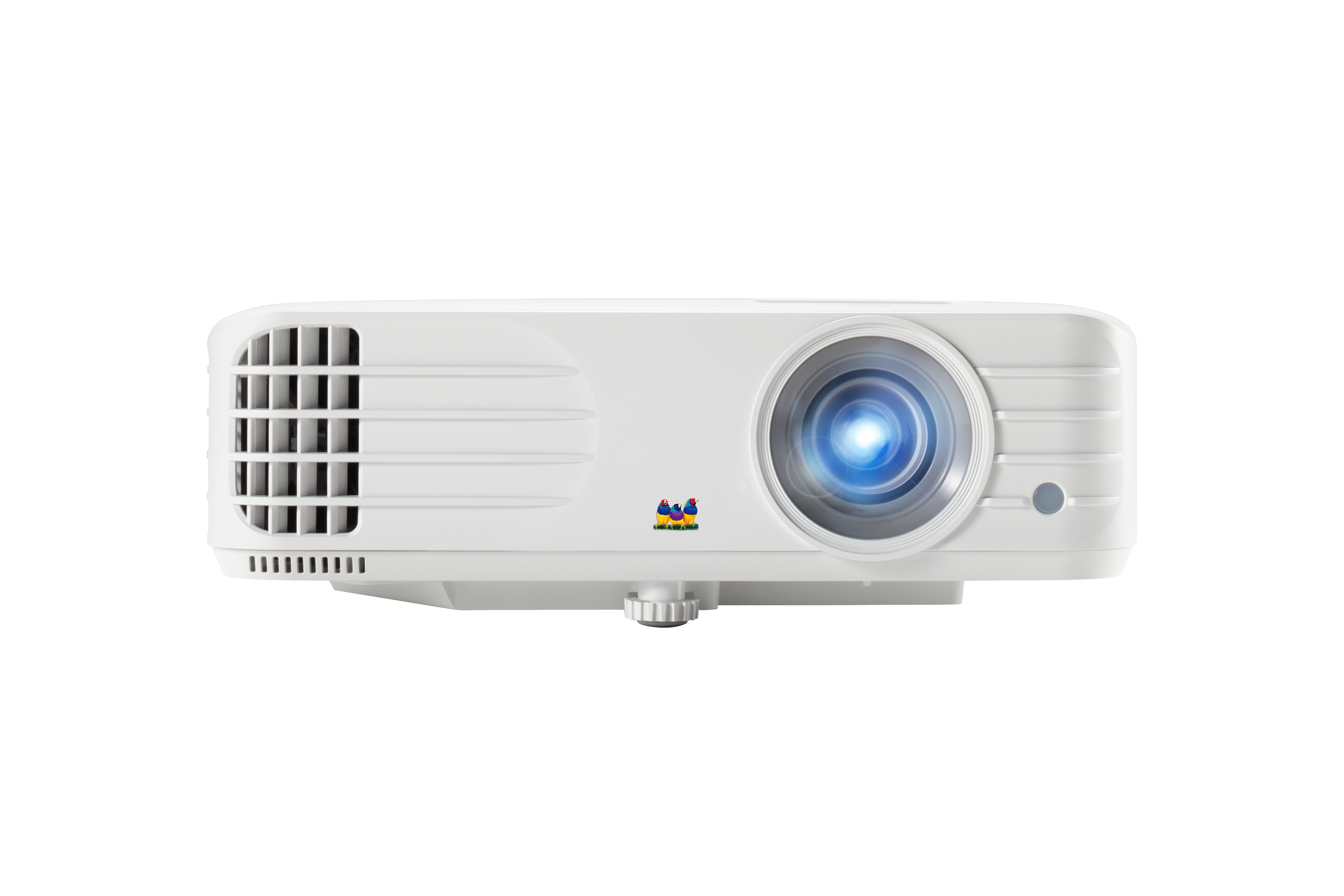

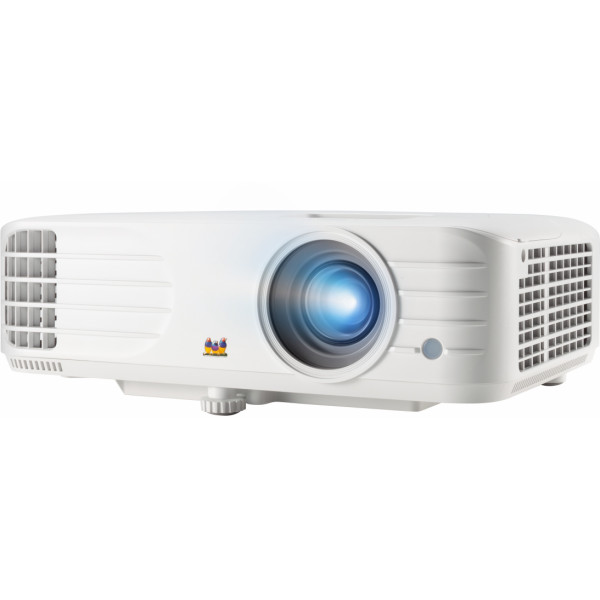

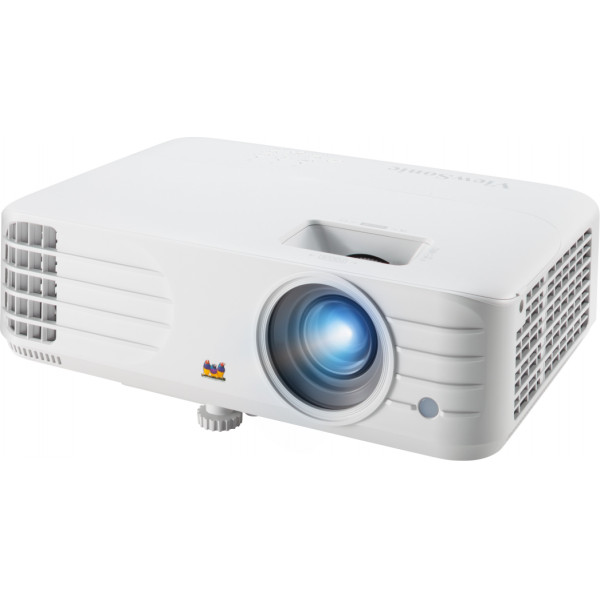

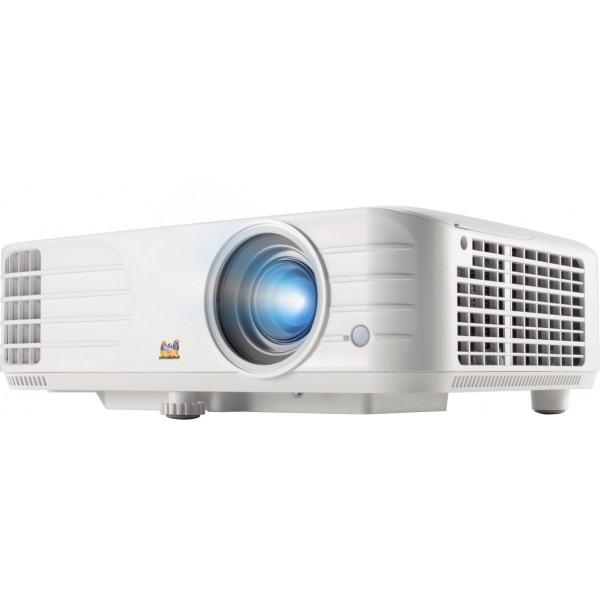

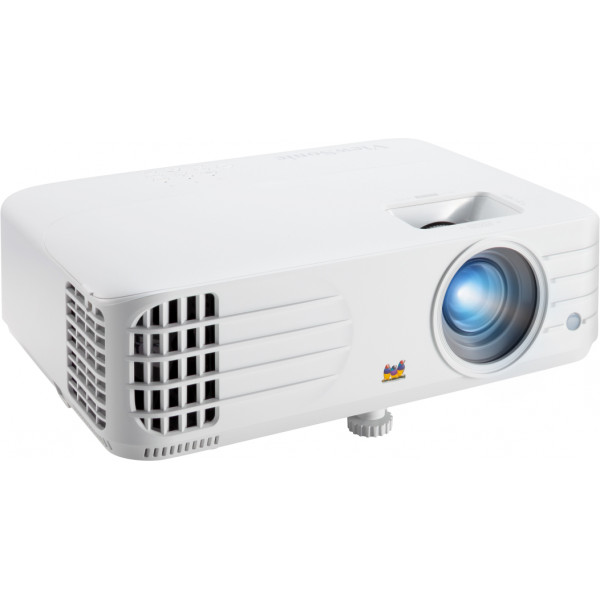

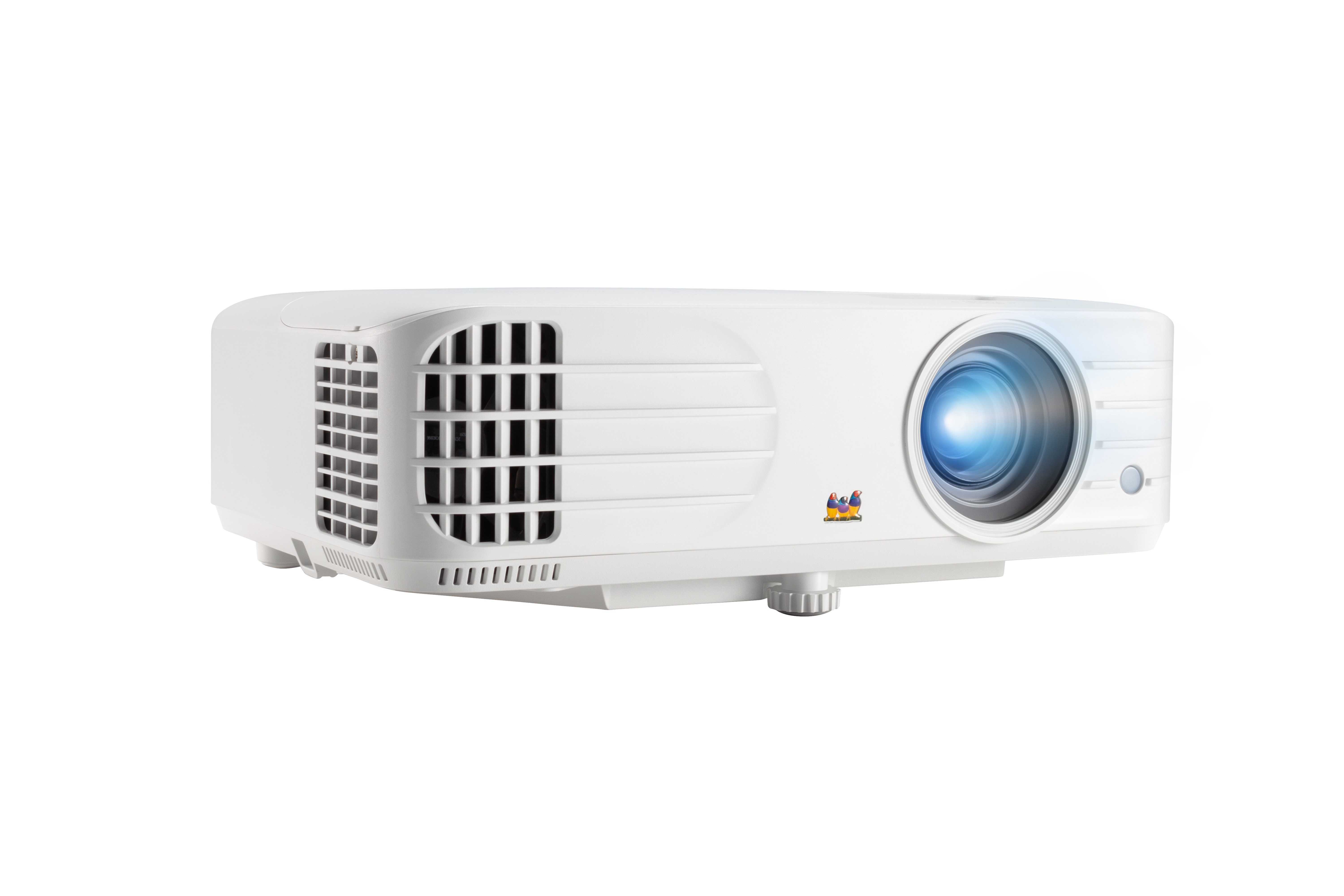

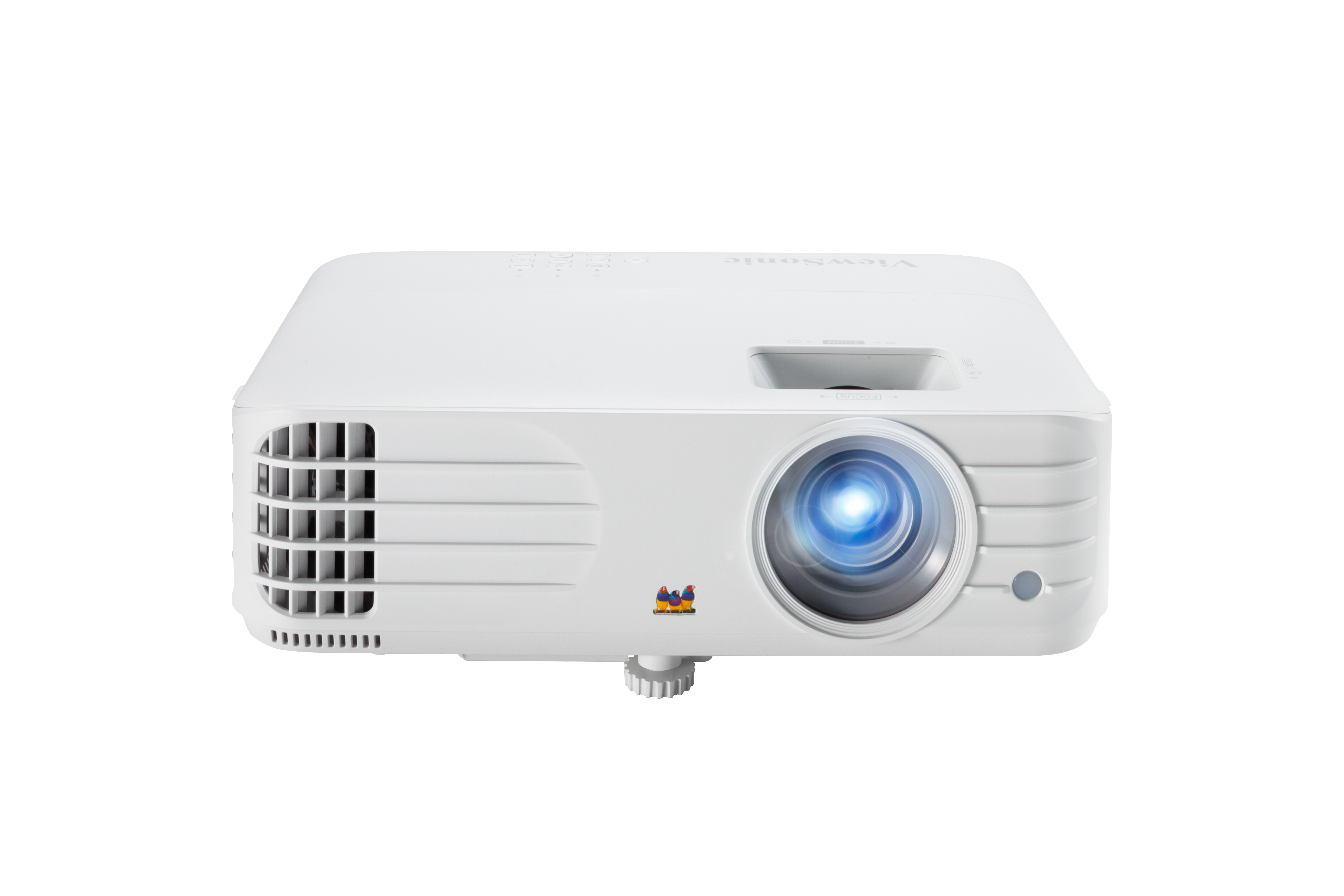

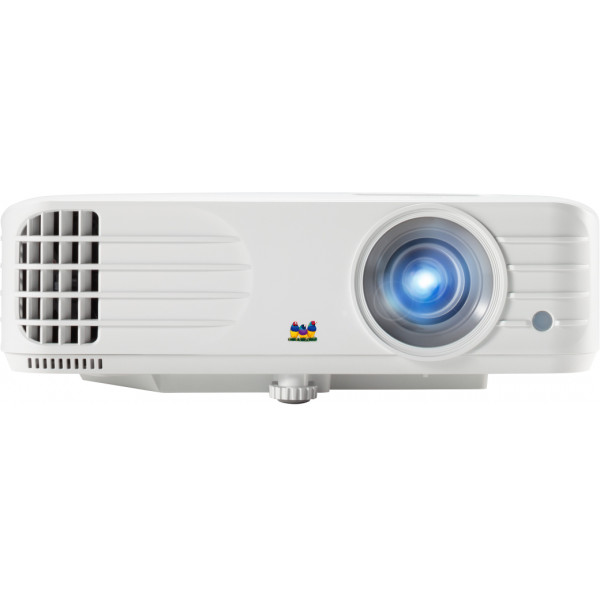

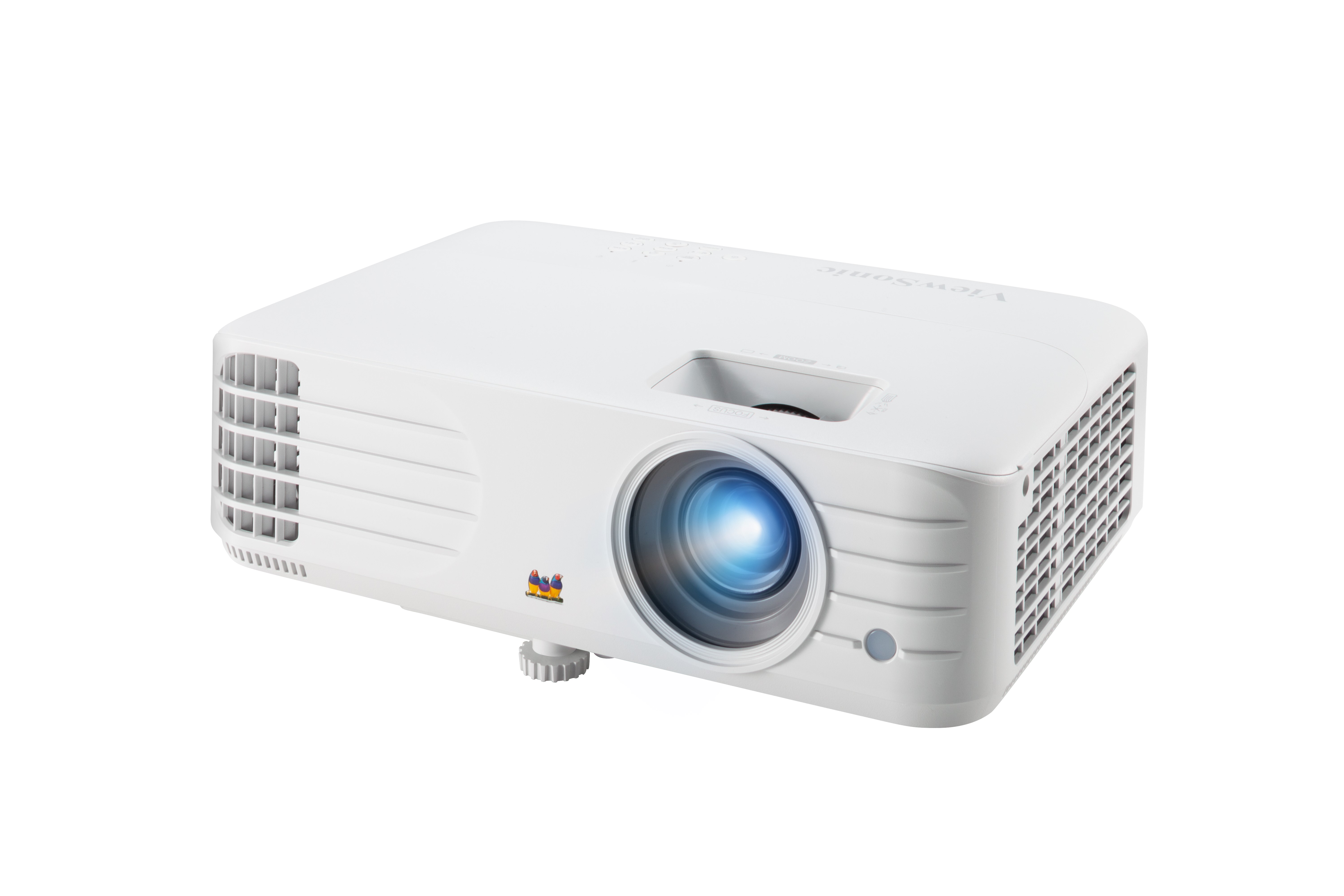

PG701WU

3,500 ANSI Lumens WUXGA Projector

  • 3,500 ANSI lumens
  • 1920 x 1200 WUXGA resolution
  • SuperEco+ Mode
  • USB software update
  • Customised user modes
  • 5V/1.5A USB power for wireless dongle
  • Dual HDMI inputs
  • SuperColor™ technology
  • Presentation timer
  • Auto power off

SPECIFICATIONS


  • Specification
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.0~2.05, f=15.843-17.445mm
    Projection Offset: 100%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.97m-10.67m
    (100"@3.23m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz

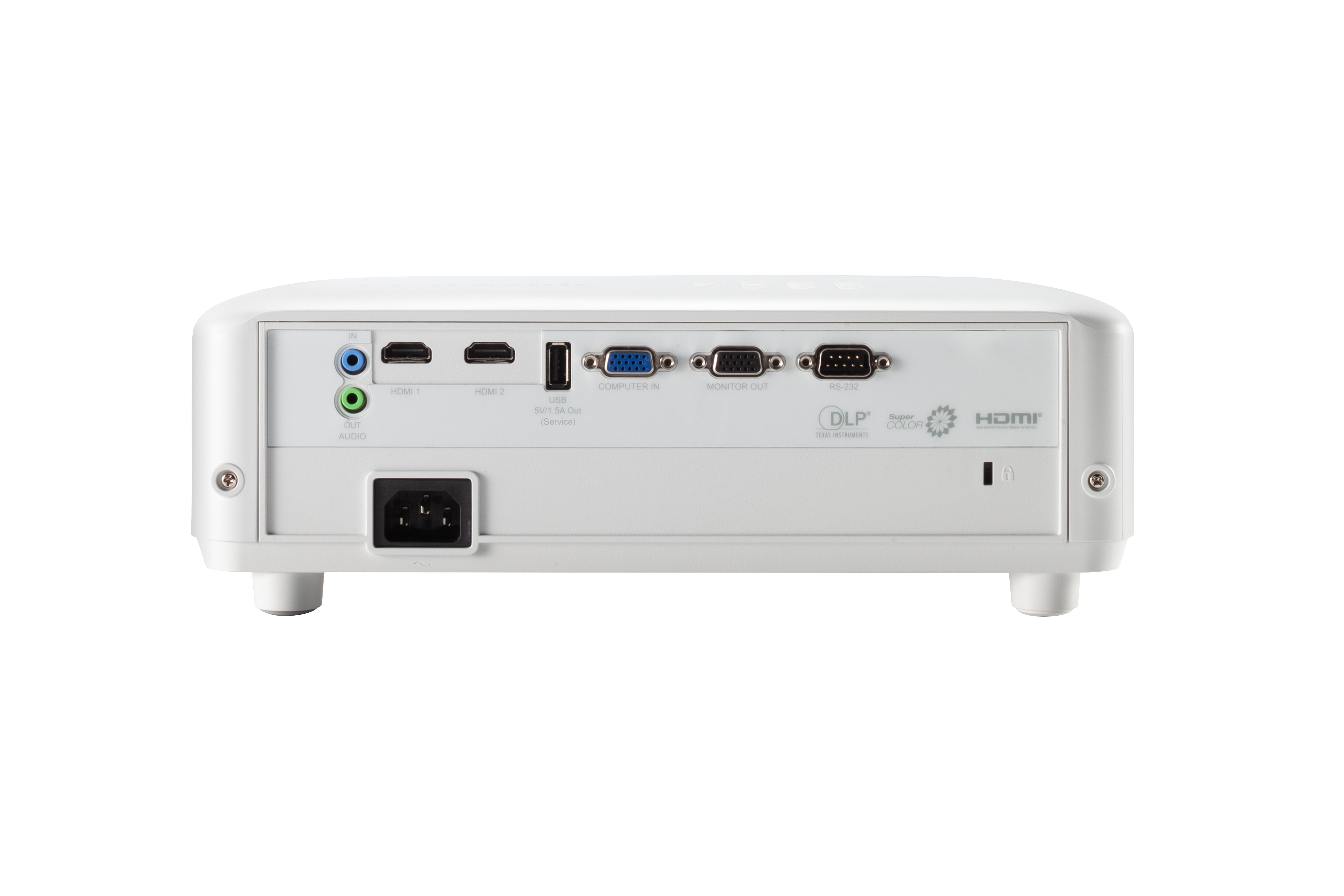

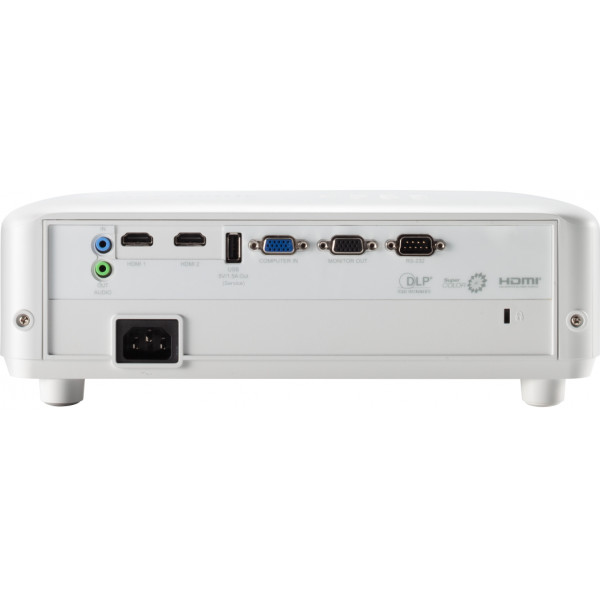

  • Input
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1.5A)
