SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Light Source: LED
Brightness: 400 cd/m² (typ)
Colours: 16.7M
Colour Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Variable Refresh Rate Technology: 240
Blue Light Filter: Yes
Flicker-Free: Yes
Colour Gamut: NTSC: 78% size (Typ)
sRGB: 110% size / 99% coverage (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
Display Port: 1
Power in: External power adapter
USB 3.1 Type A: 3
USB 3.1 Type B: 1
- AudioInternal Speakers: 3Watts x2
- PowerEco Mode (Conserve): 32W
Eco Mode (optimised): 38W
Consumption (typical): 41W
Consumption (max): 46W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External - Additional HardwareKensington Lock Slot: 1
Cable Organisation: Yes - ControlsPhysical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
On Screen Display: Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall MountVESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 15 ~ 255KHz
Frequency Vertical: 48 ~ 241Hz - Video InputDigital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)
- ErgonomicsHeight Adjust (mm): 120
Swivel: 60º
Tilt (Forward/Back): -5º / 20º

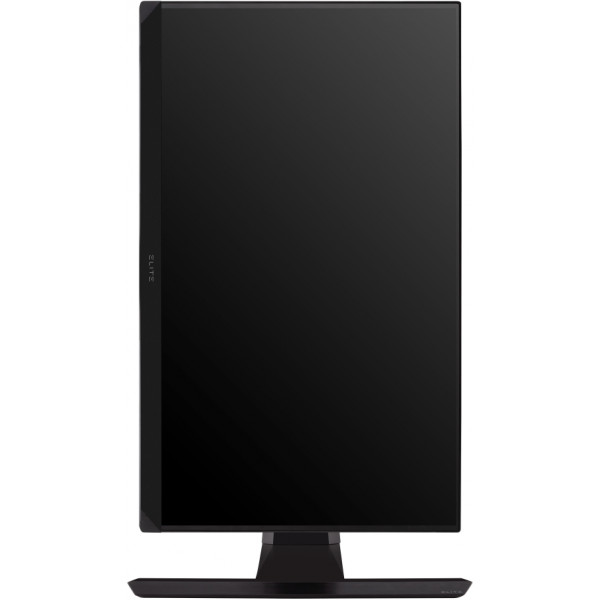

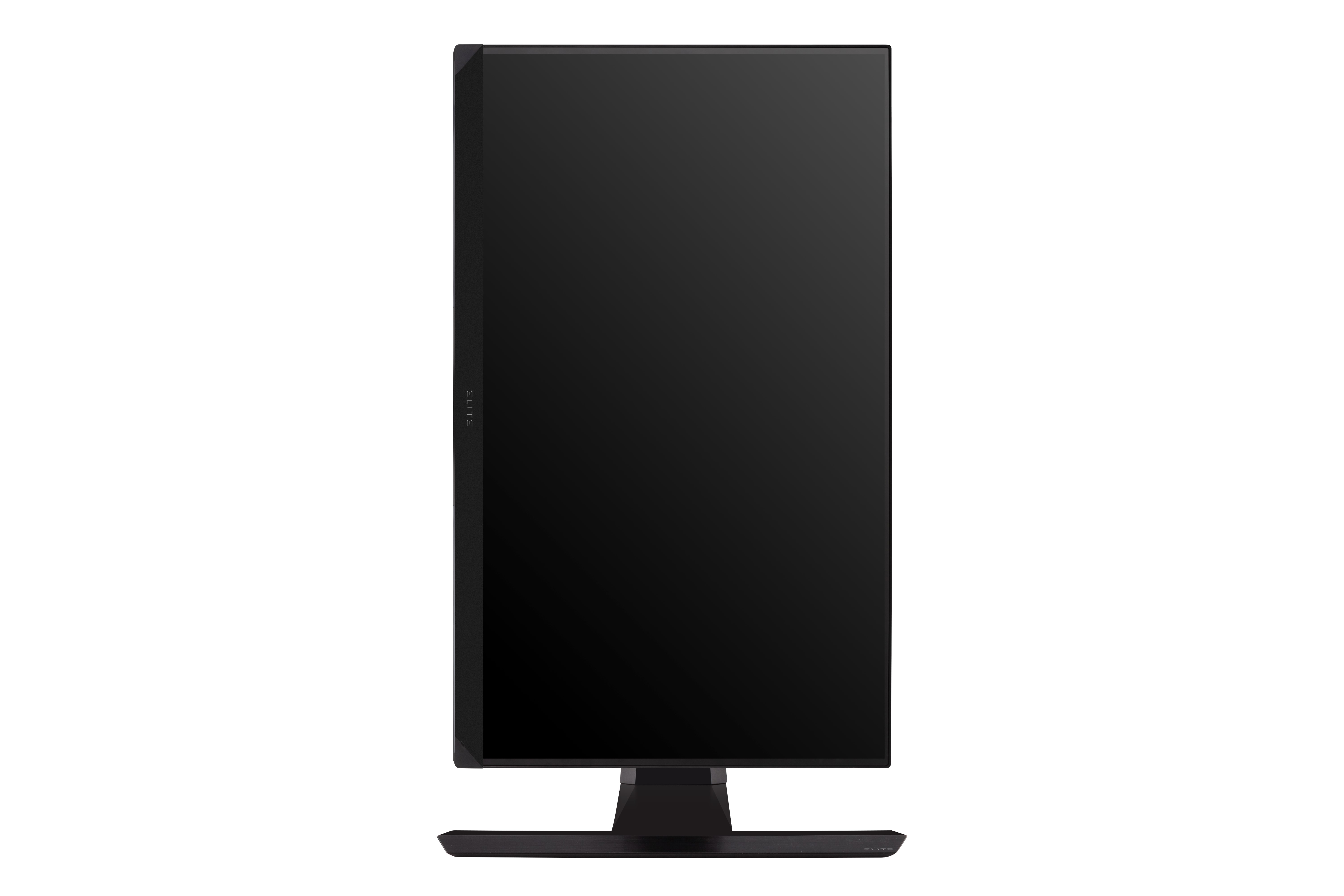

Pivot (Right/Left): 90º / 90º - Weight (metric)Net (kg): 7.5
Net Without Stand (kg): 4.5
Gross (kg): 11.6 - Dimensions (metric) (wxhxd)Packaging (mm): 698 x 525 x 282
Physical (mm): 614 x 458.7~571.6 x 265
Physical Without Stand (mm): 614 x 370 x 68 - GeneralPACKAGE CONTENTS: XG270 x1, 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Elite Hood x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
