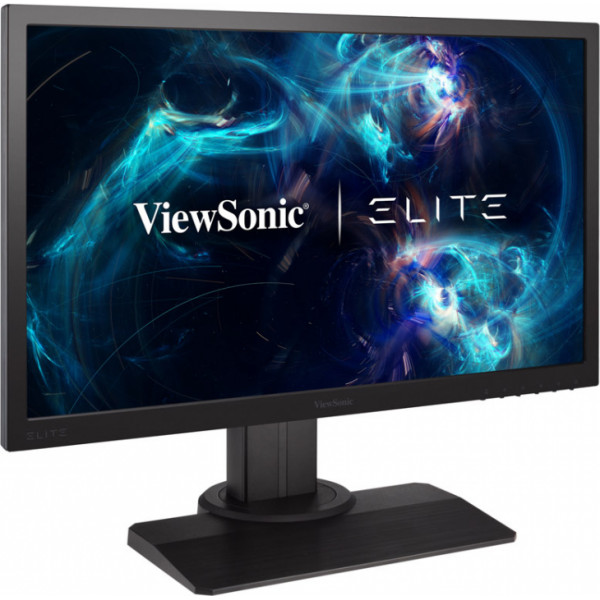

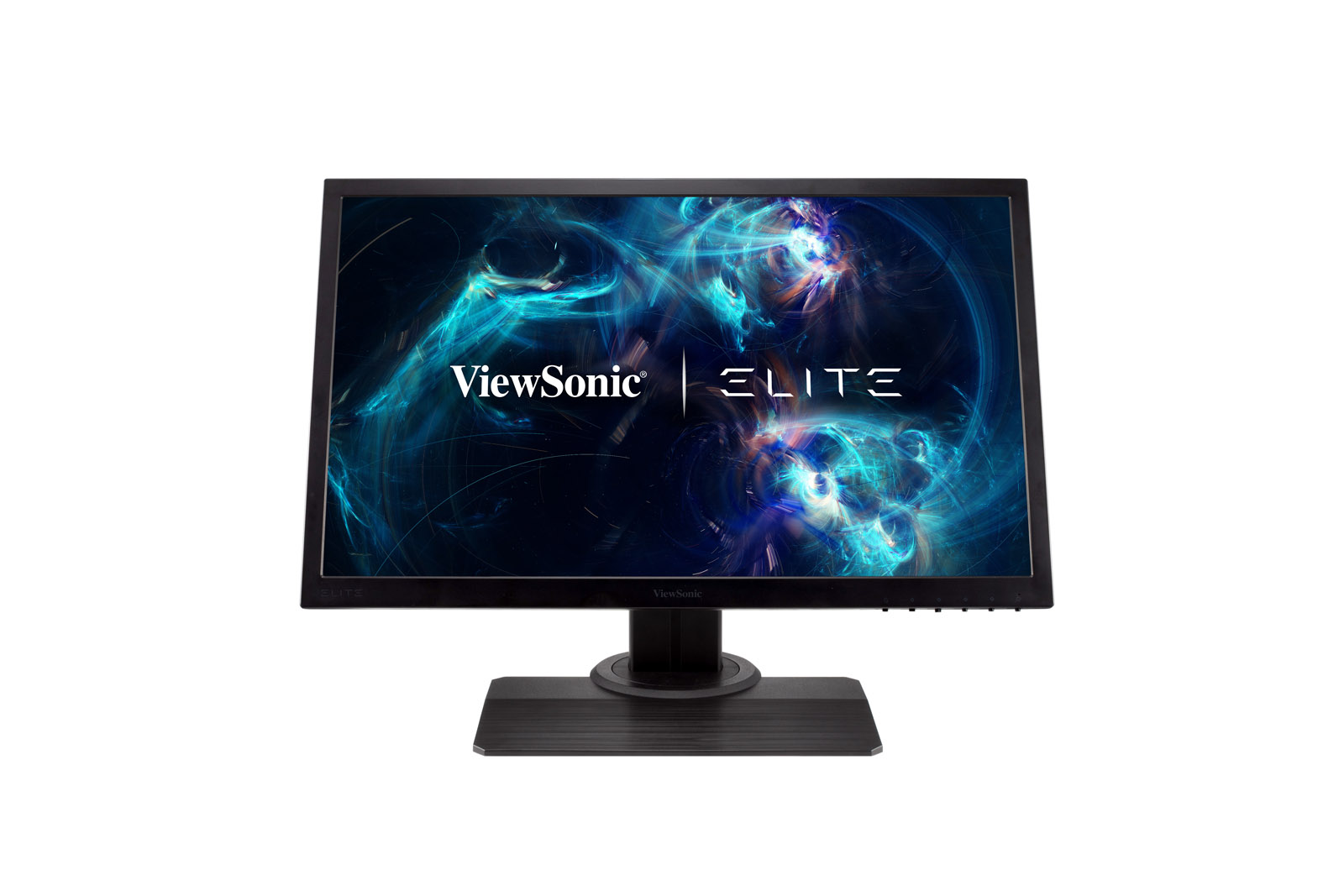

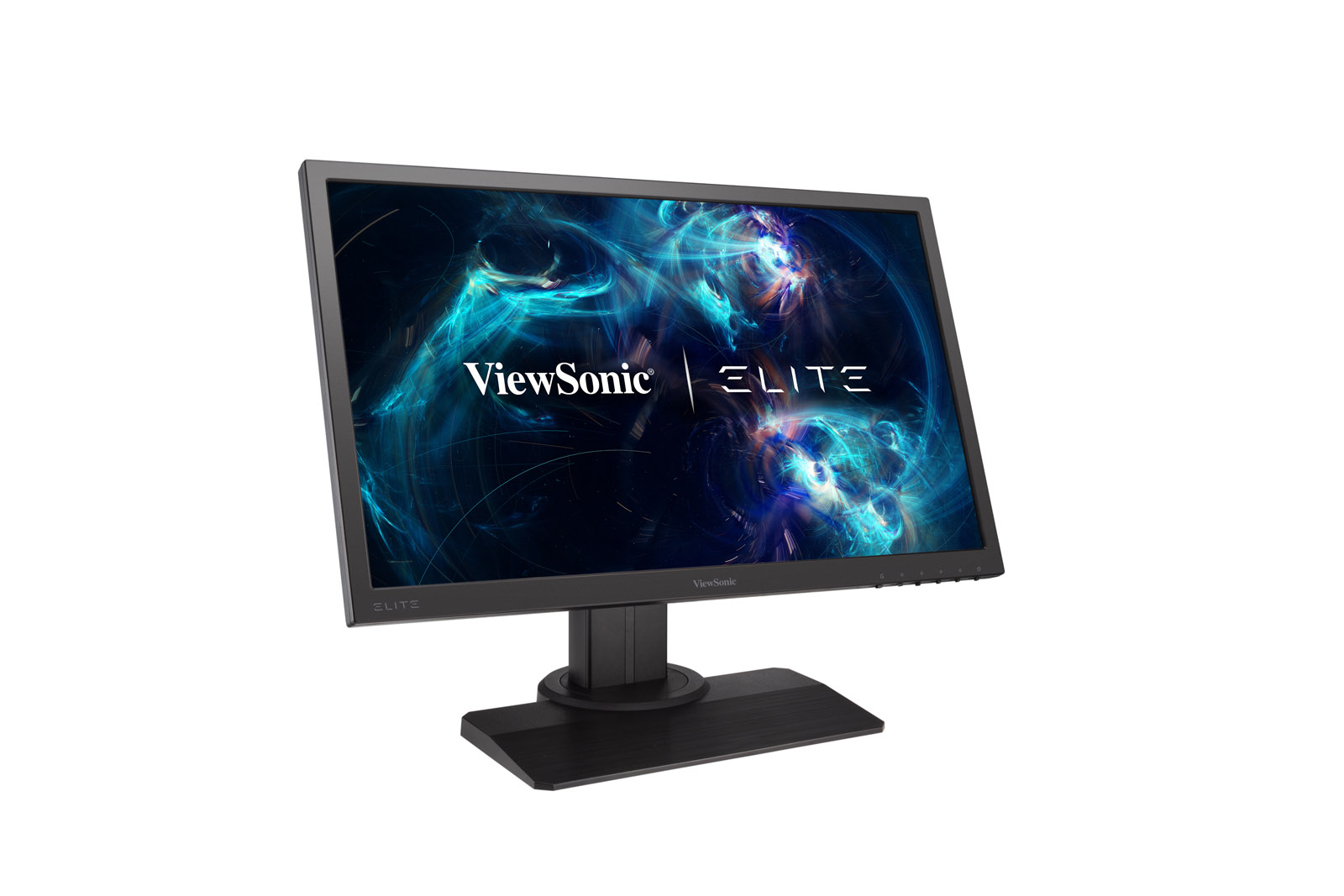

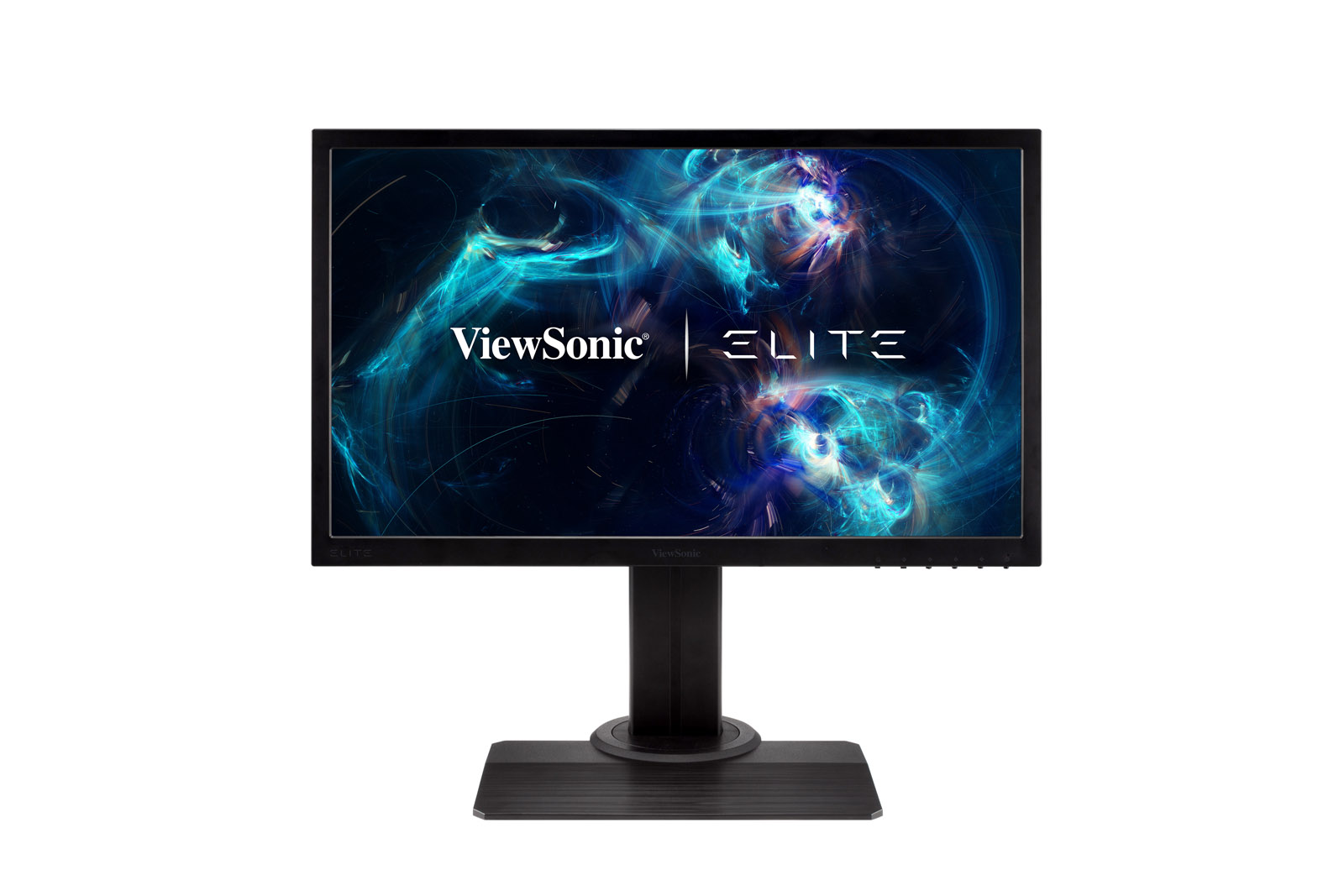

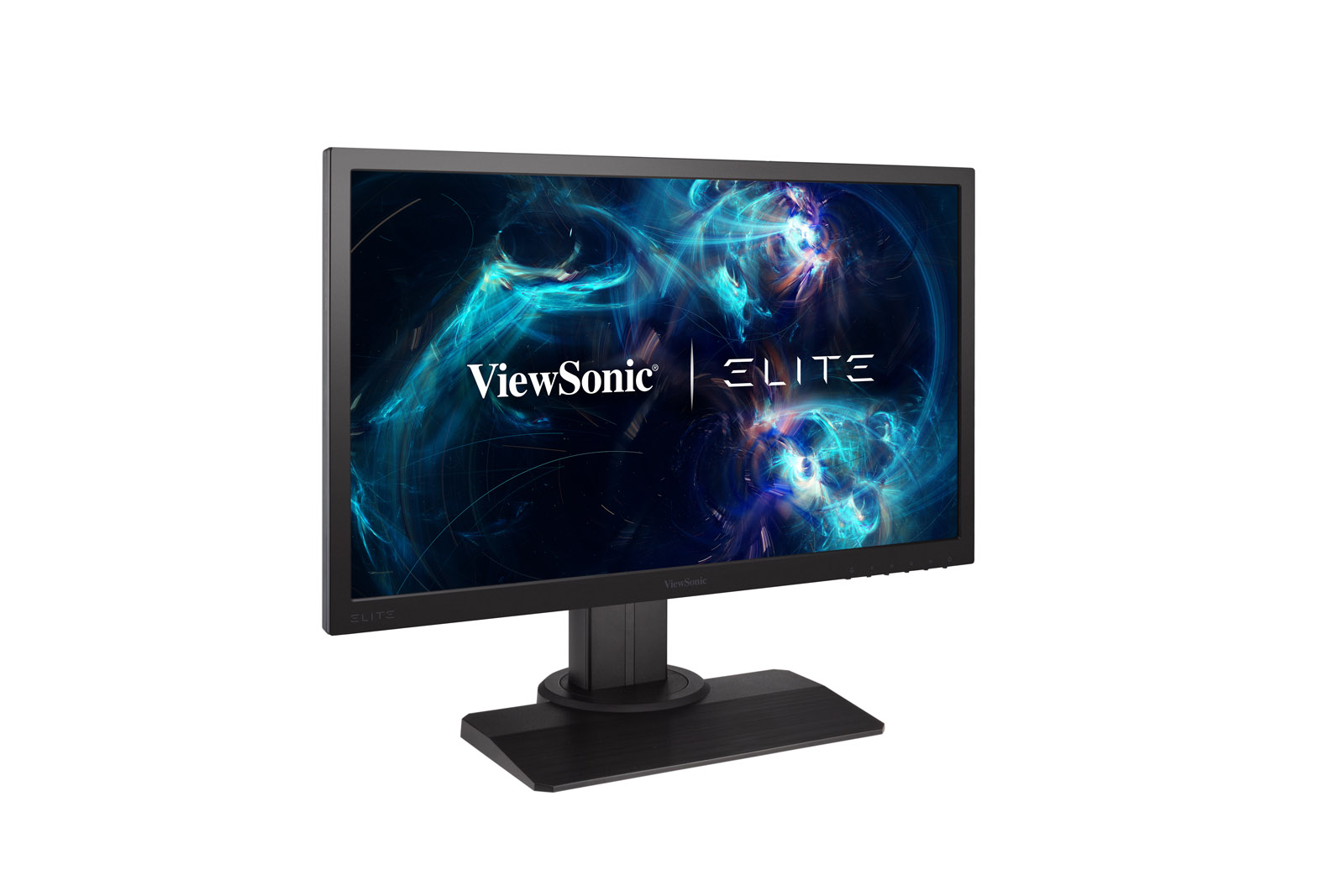

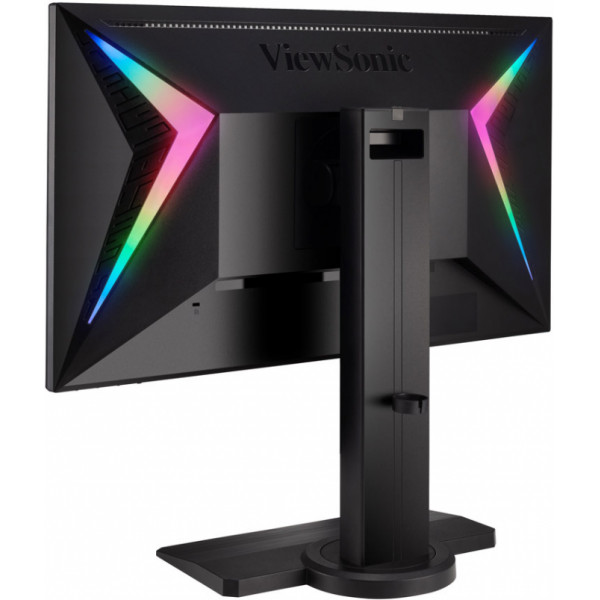

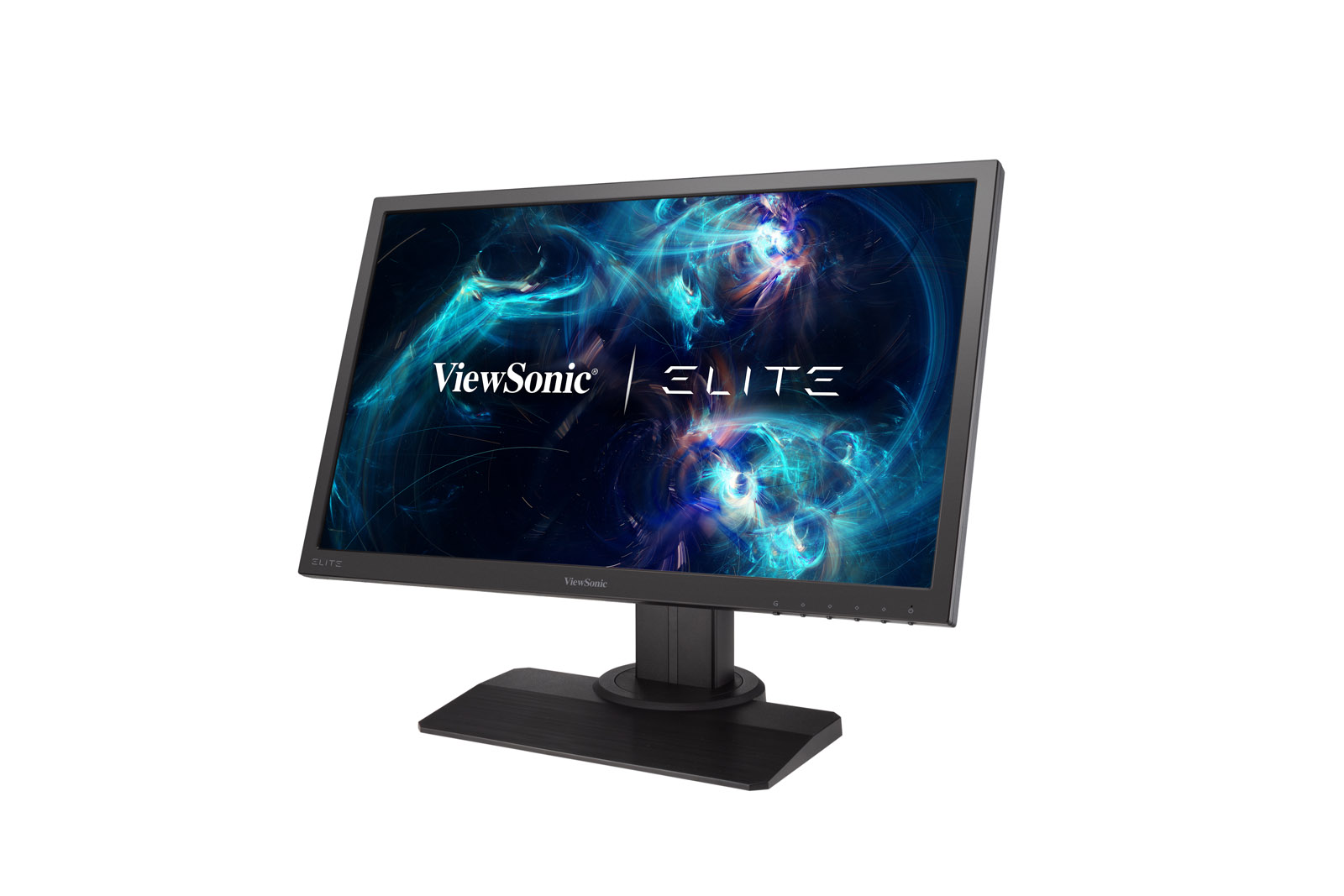

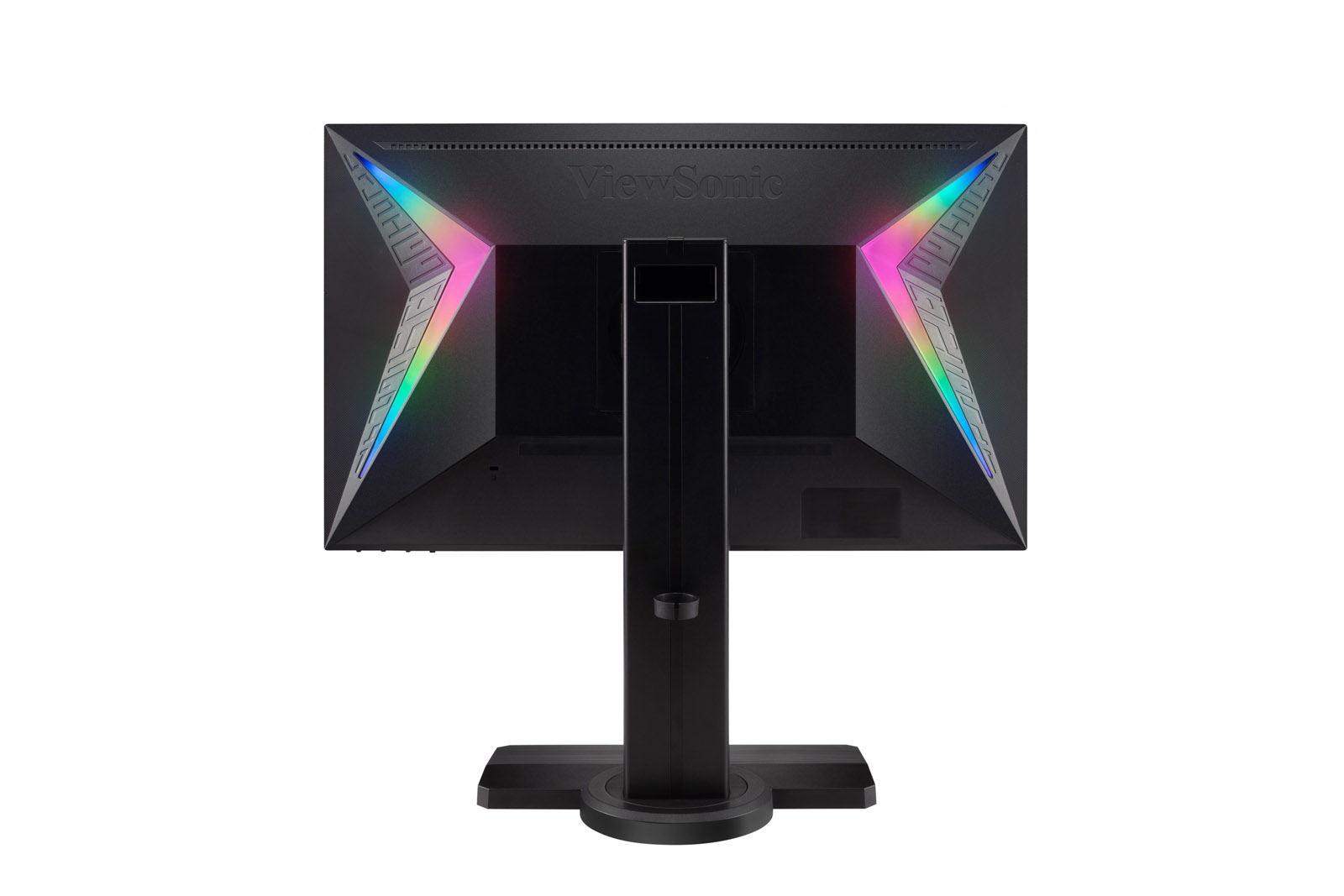

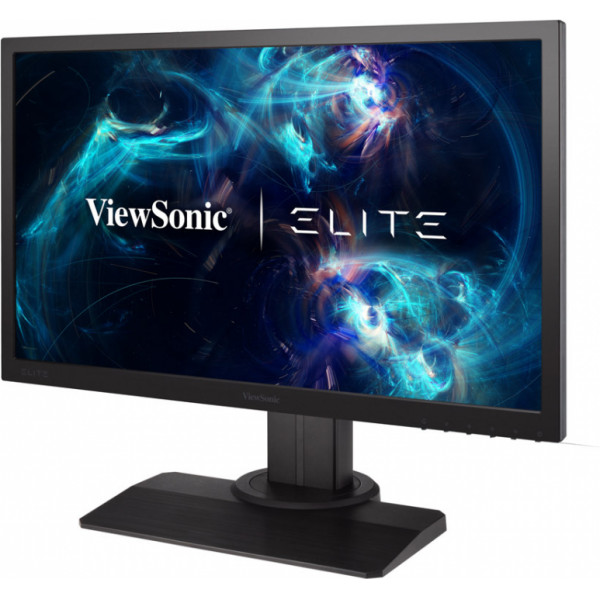

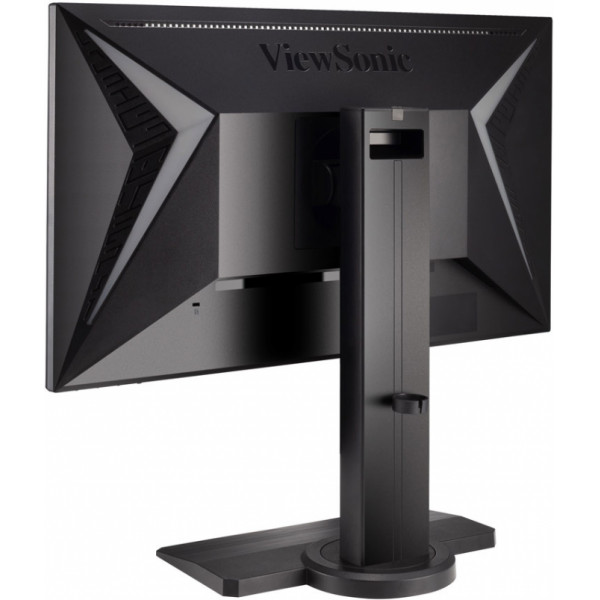

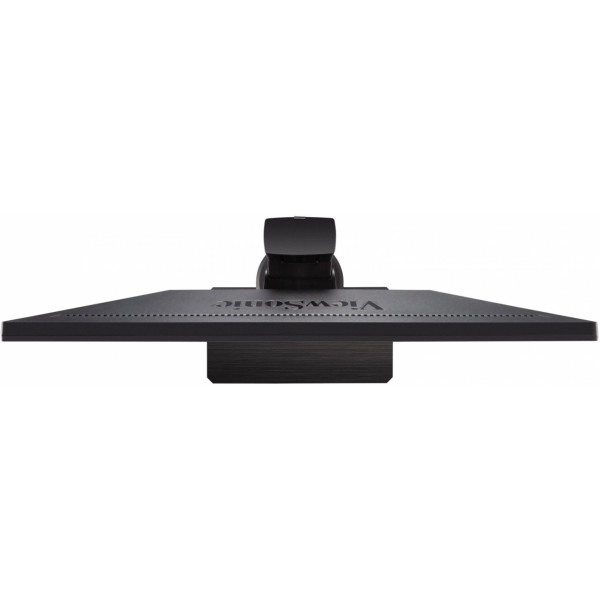

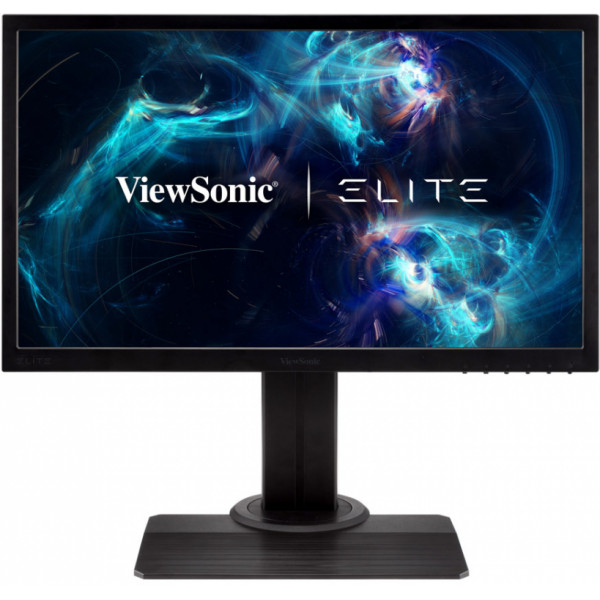

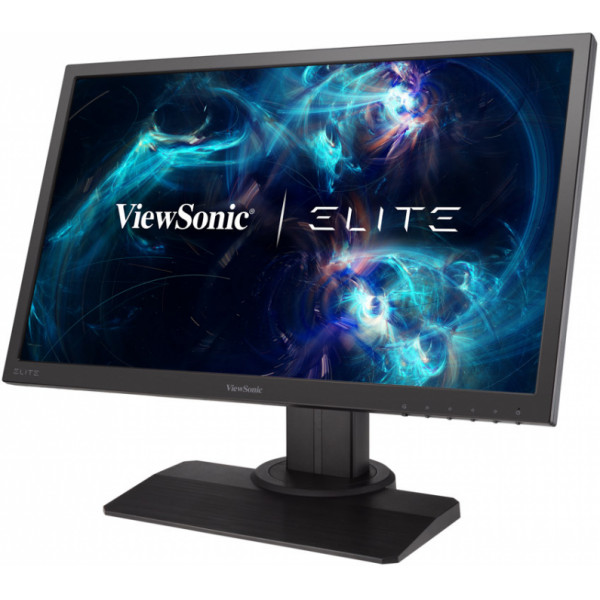

XG240R
24” RGB Gaming Monitor

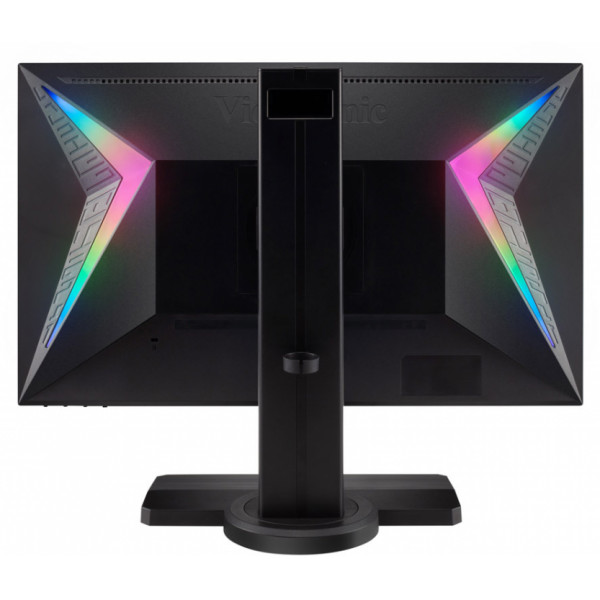

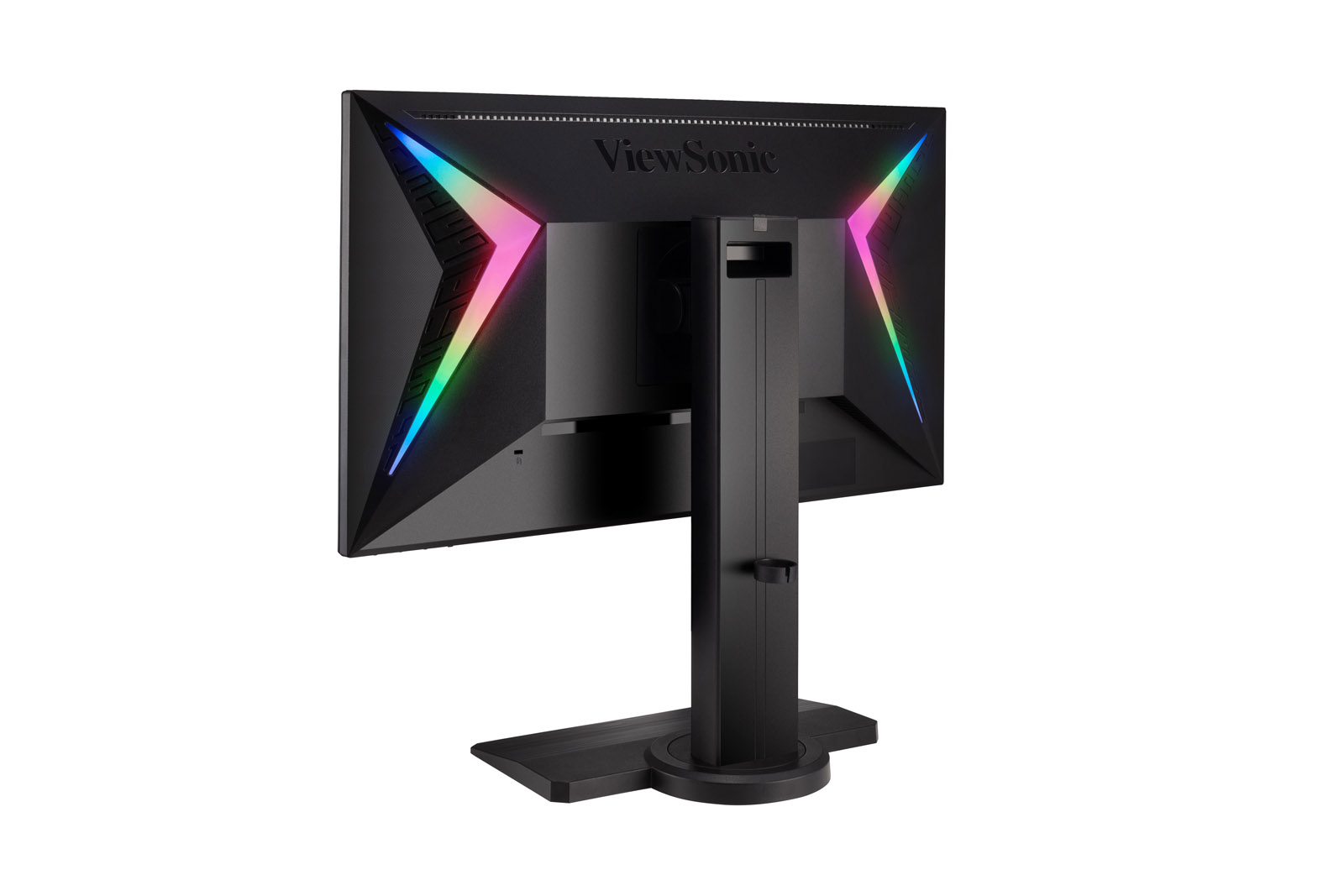

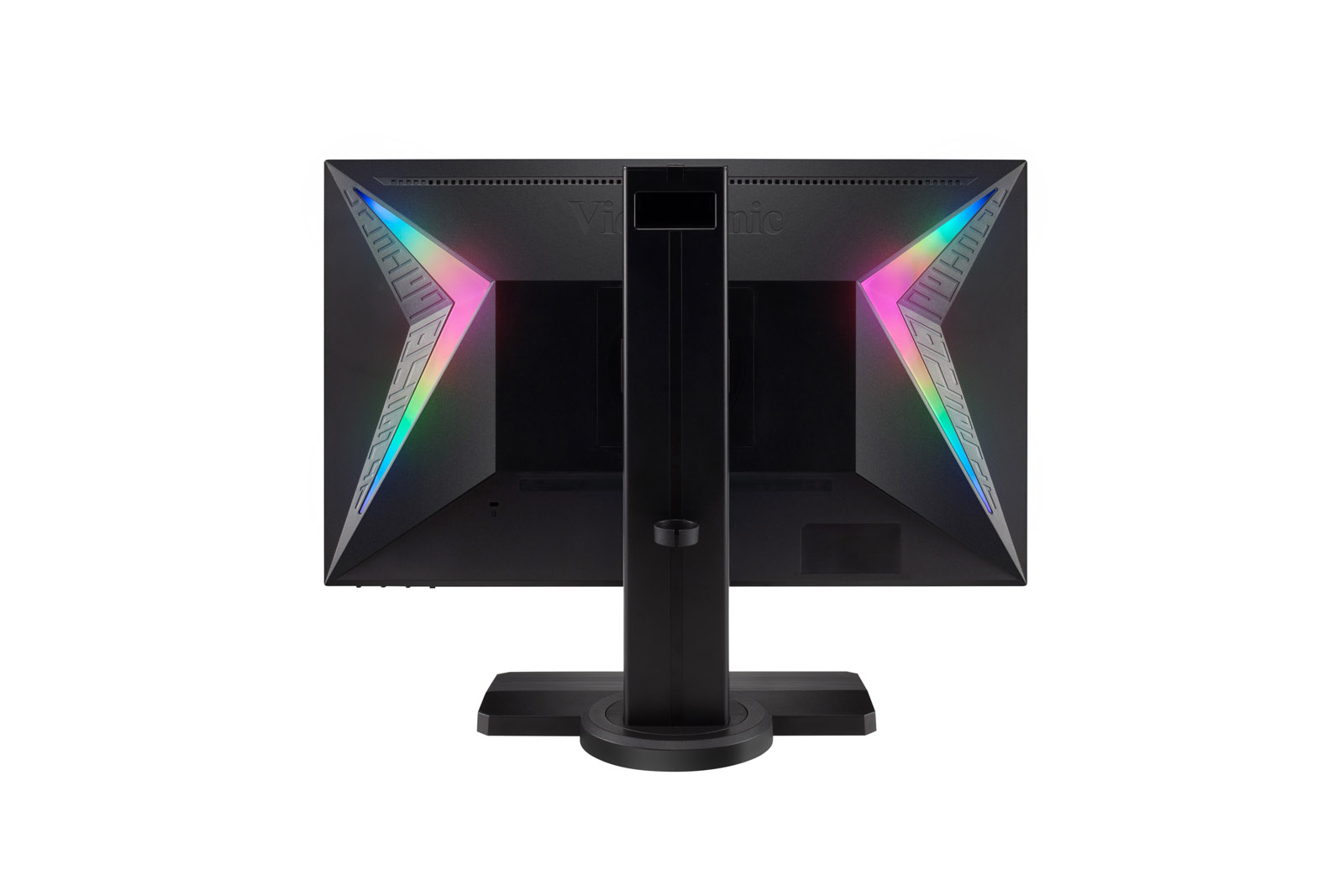

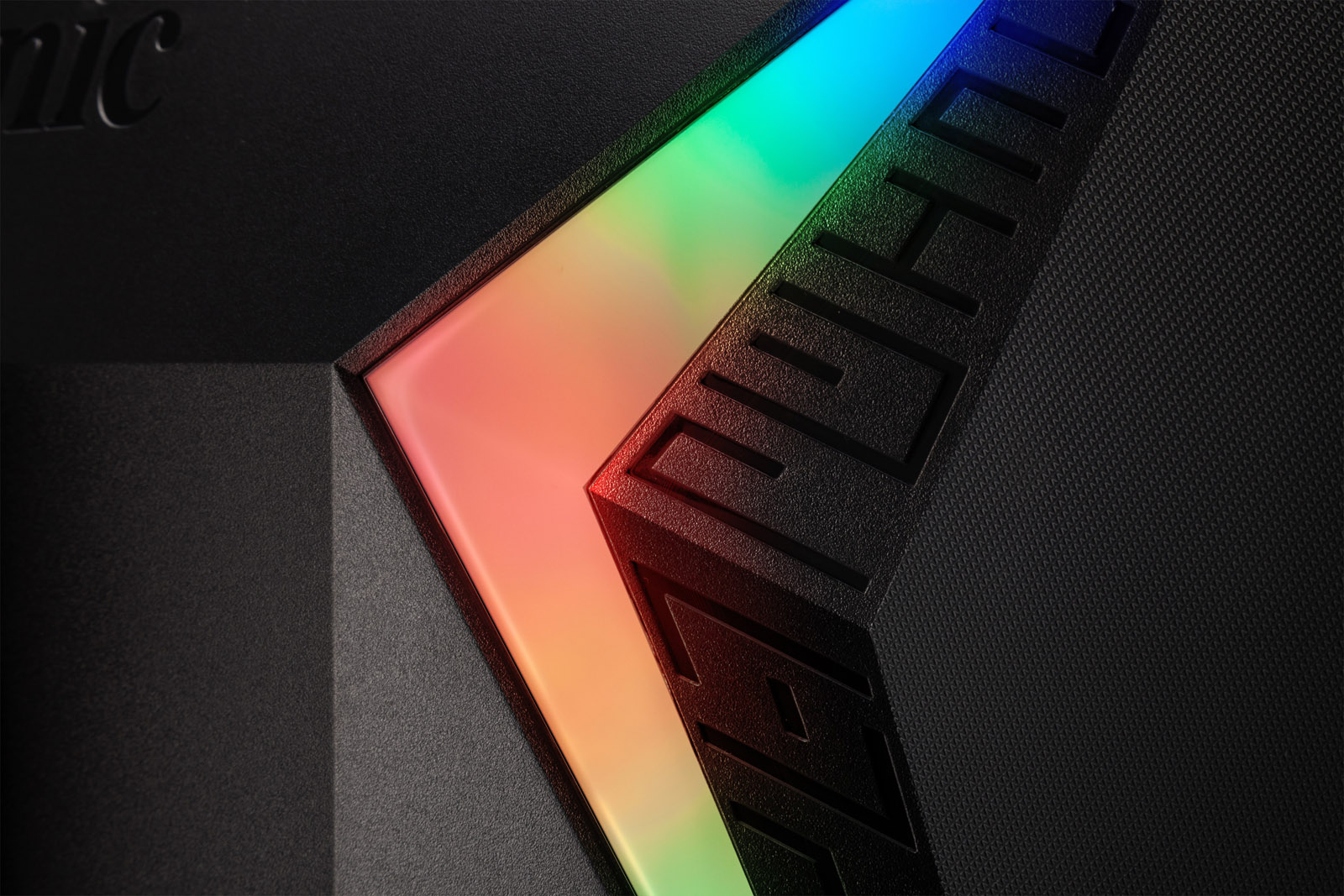

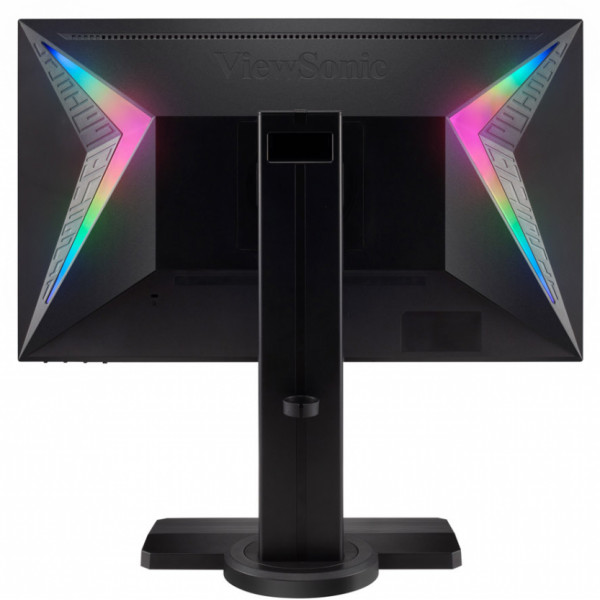

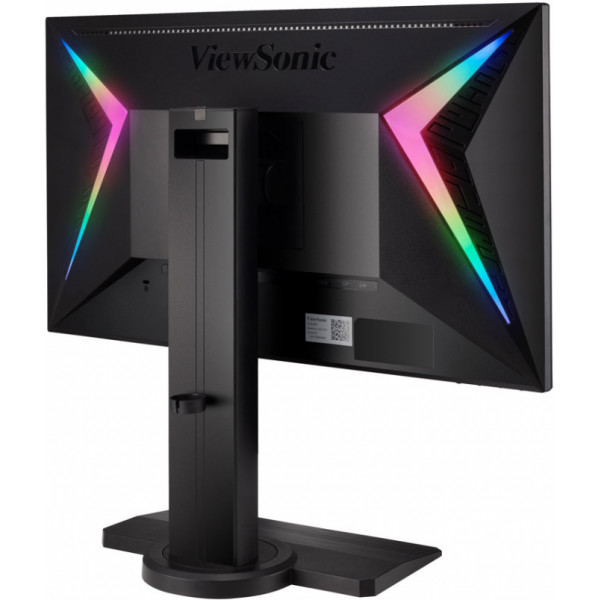

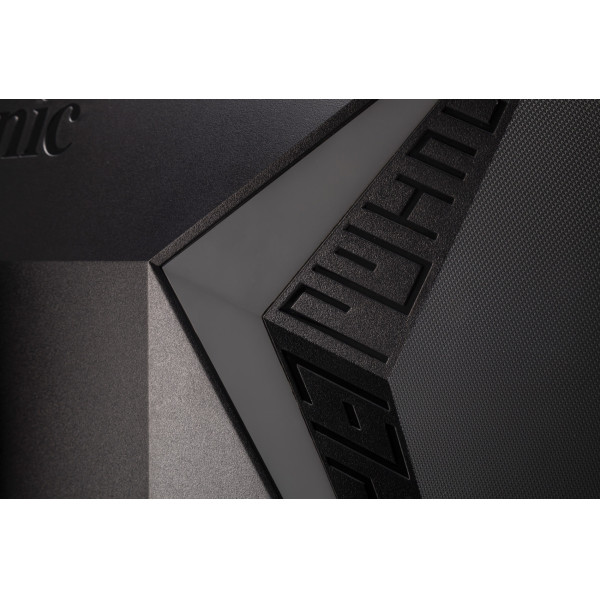

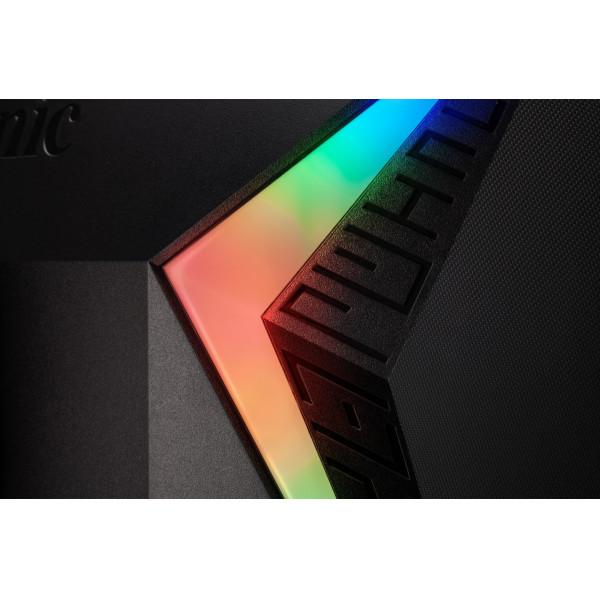

- ELITE RGB Alliance
- 144Hz refresh rate
- 1ms response time
- Game Mode
- AMD FreeSync™ Premium technology
SPECIFICATIONS
- DISPLAYMonitor Size: 24"W
Panel Technology: TN TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 531.4 mm (H) x 0.277 mm (V)
Aspect Ratio: 16:9
Brightness: 350 cd/m²
Contrast Ratio: 1000:1 (typ)
Dynamic Contrast Ratio: 120M:1
Viewing Angles: 170 degree / 160 degree (Typ)
Refresh Rate: 144Hz
Response Time: GTG : 1ms
Backlight: 1 LED light bar
Backlight Life: 30000 Hrs (Min)
Colours: 16.7M colors
Pixel Size: 0.277 mm (H) x 0.277 mm (V) - INPUT SIGNALFrequency: Fh = 15 ~ 160 KHz; Fv = 24 ~ 144 Hz
Sync: TMDS,PCI-E - COMPATIBILITYPC: Windows 10 certified
Mac®: Mac OS Tested

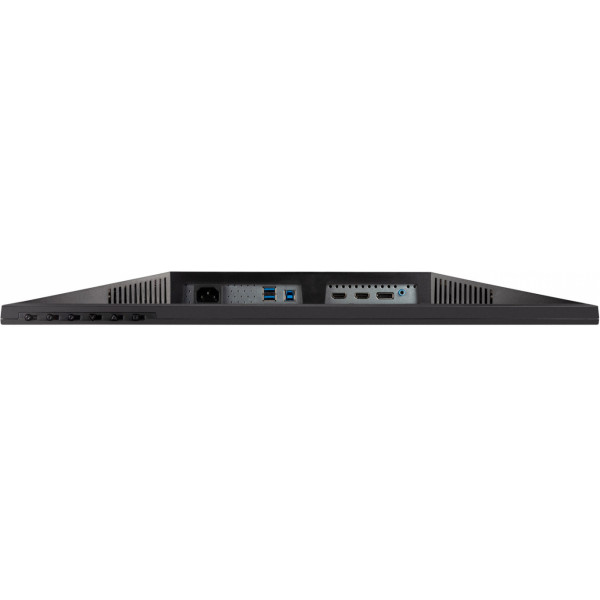

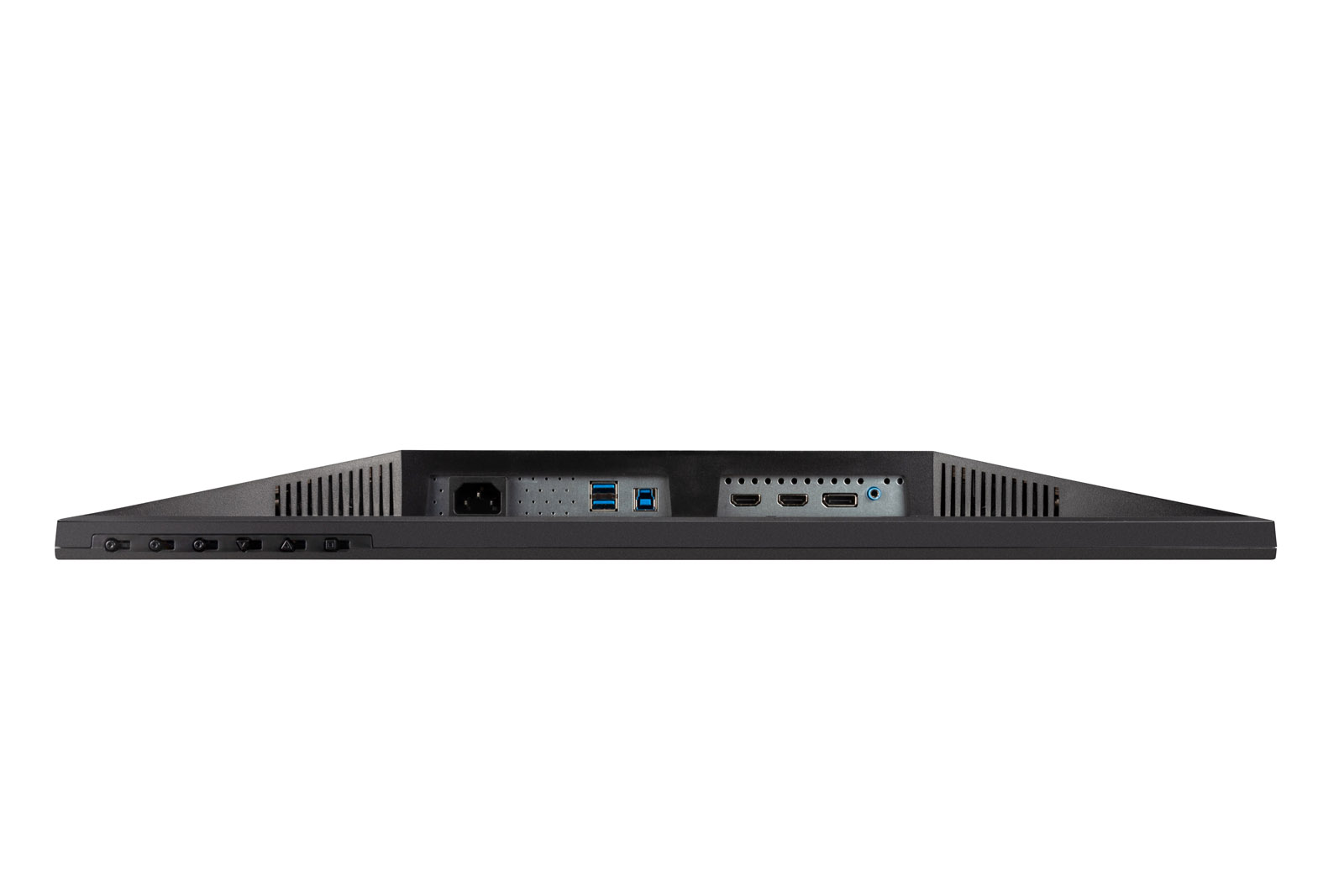

- CONNECTORInput: HDMI 1.4 x 2
DisplayPort 1.2 x 1
Output: Earphone Out x 1 (3.5mm plug) - AUDIOSpeaker: 2W x 2
- USBUpstream: USB 3.0 Type B x 1
Downstream: USB 3.0 Type A x 2 - POWERPower: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 45W (Typ) 50W (Max)
Optimize: 36W
Conserve: 31W - MODEL COLOURBlack

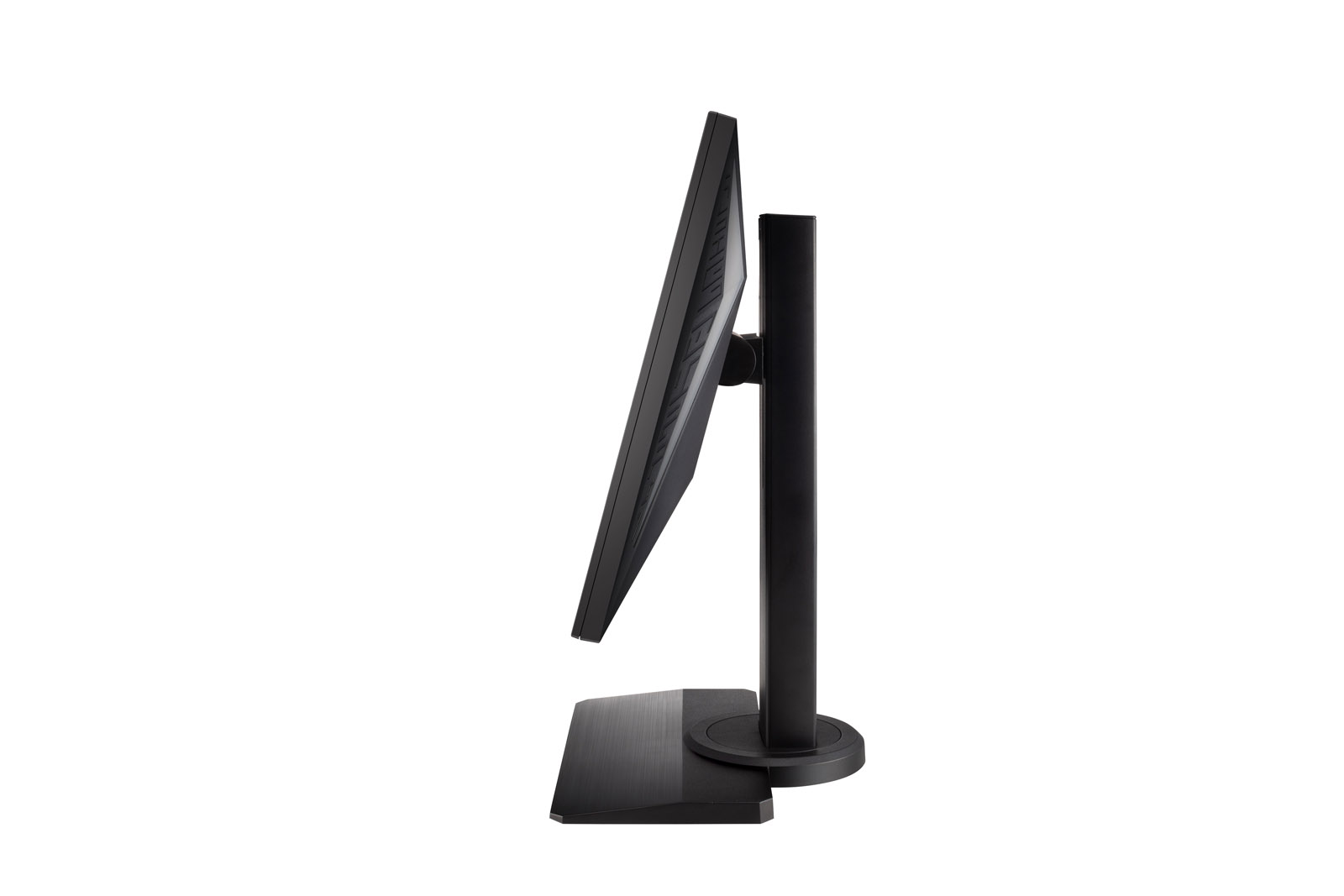

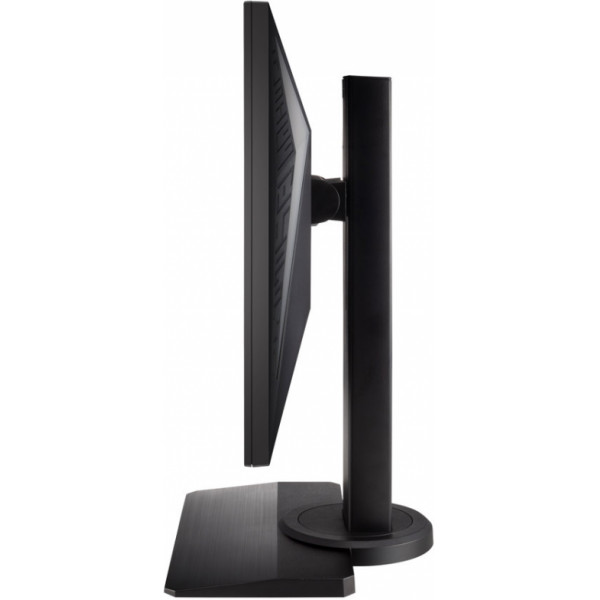

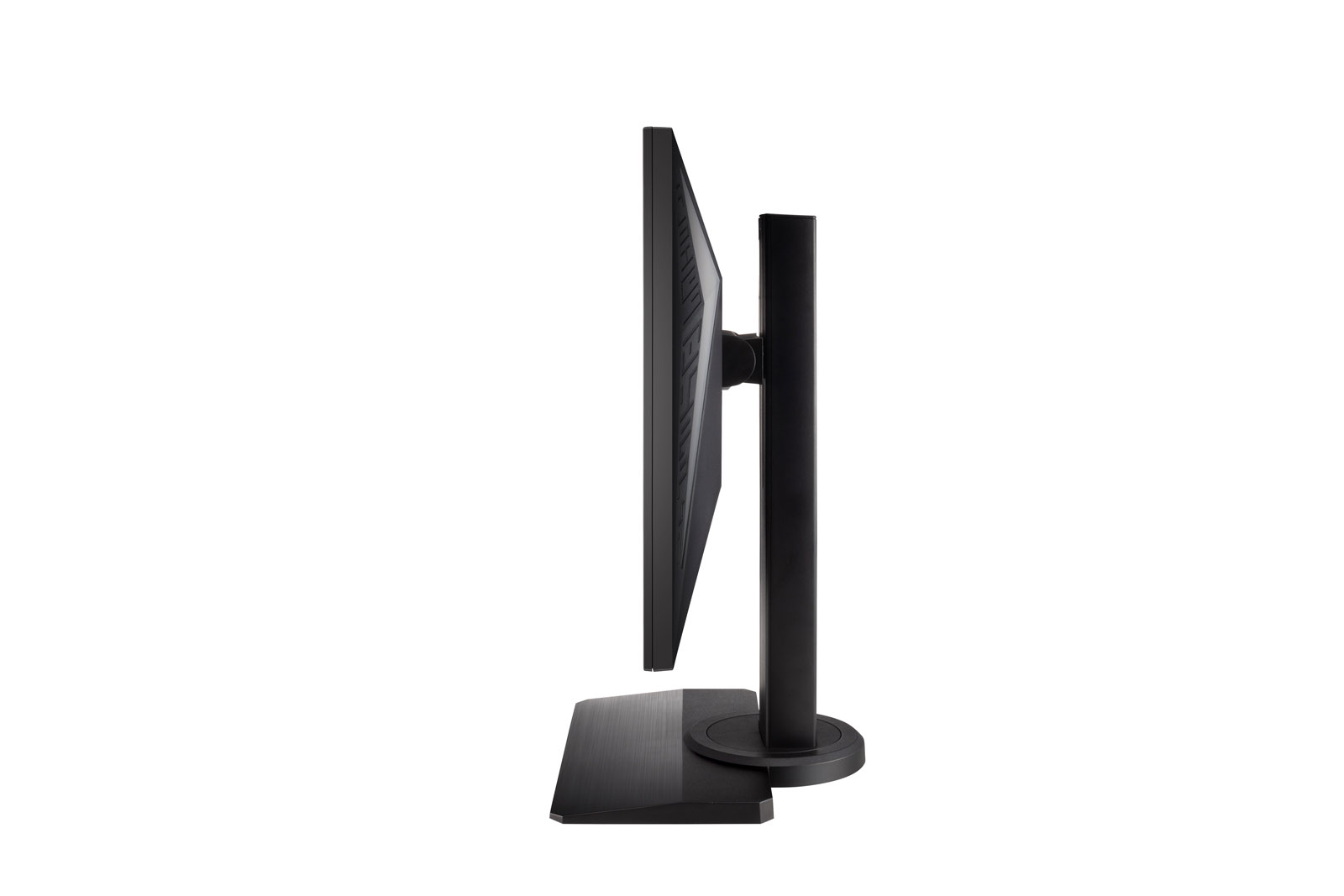

- ERGONOMICSTilt: -5 ~ 20
Swivel: -45 ~ 45

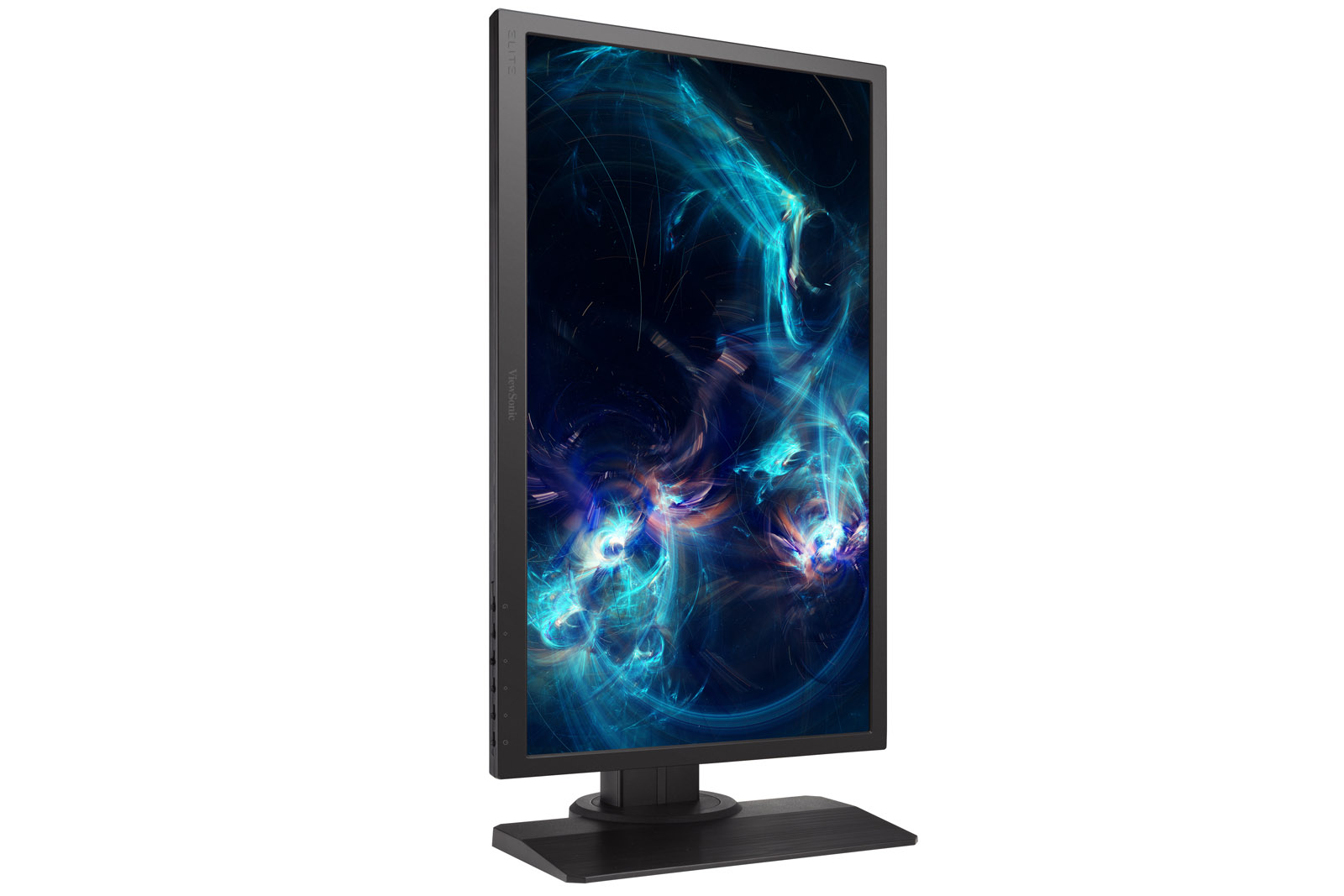

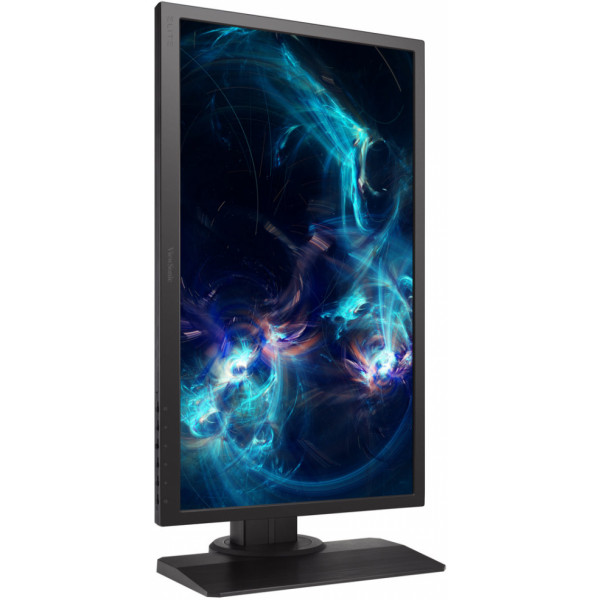

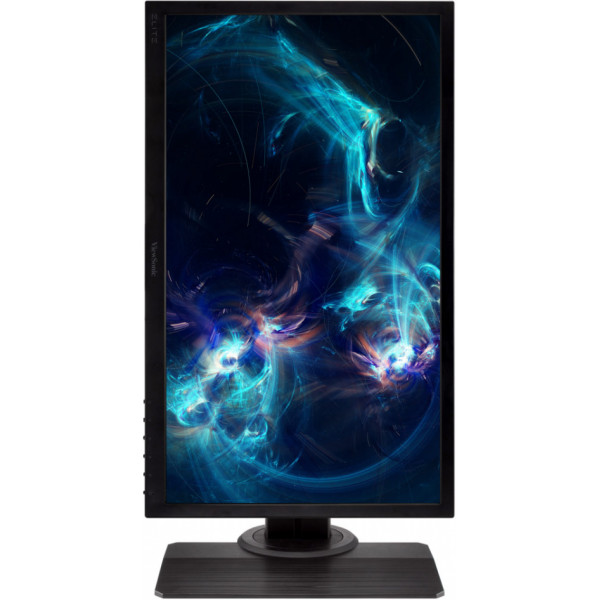

Pivot: 0 ~ 90
Height Adjustment: 120 - WALL MOUNTVESA®: 100 x 100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 566 mm (W) x 433.9~530.18 mm (H) x 239 mm (D)
Physical without stand (mm): 566 mm (W) x 341 mm (H) x 60 mm (D)
Packaging (mm): 640 mm (W) x 396 mm (H) x 207 mm (D) - WEIGHTNet with stand: 6.7 Kg
Net without stand: 3.4 Kg
Gross: 8.5 Kg - WARRANTY*Warranty offered may differ from market to market
- PACKAGE CONTENTSLCD Display
Power Cable (1.5m)
DisplayPort Cable (1.8m)
USB3.0 Cable (1.5m)
Quick Start Guide
