Archived

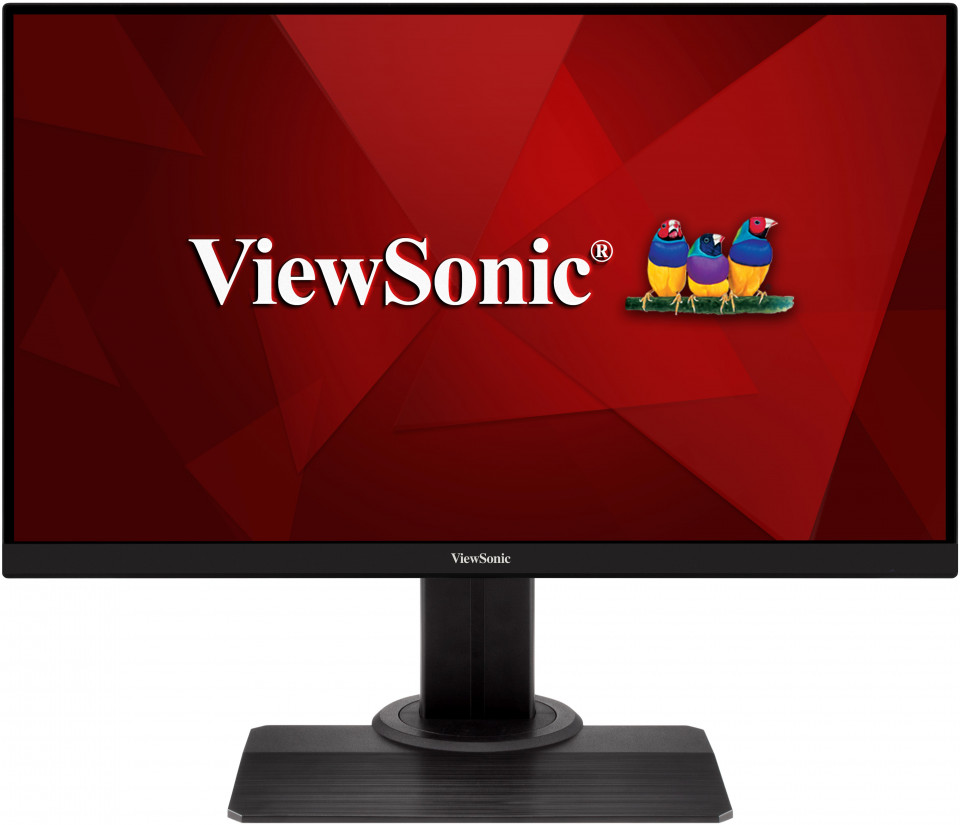

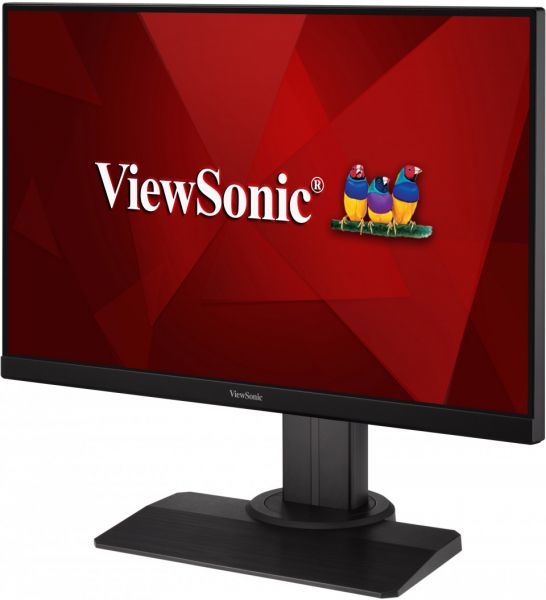

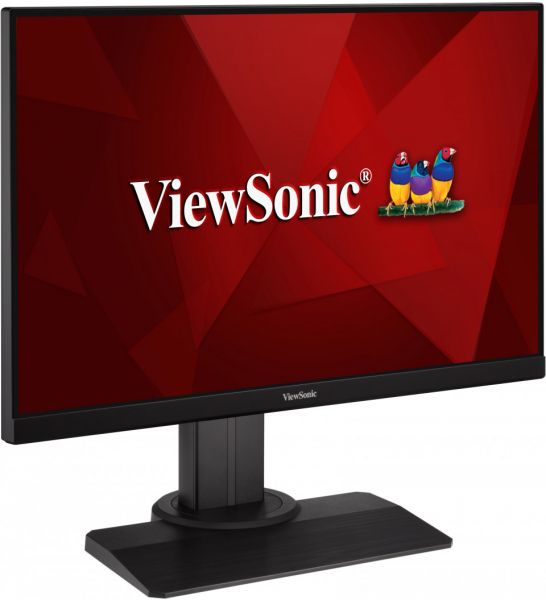

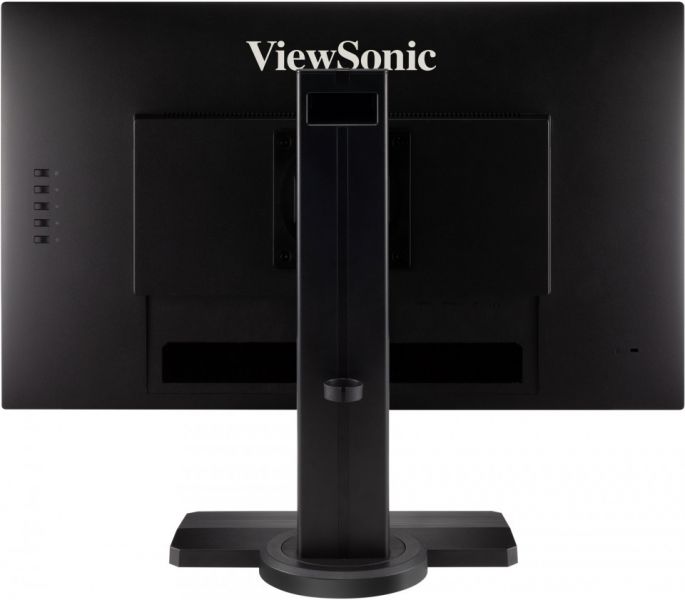

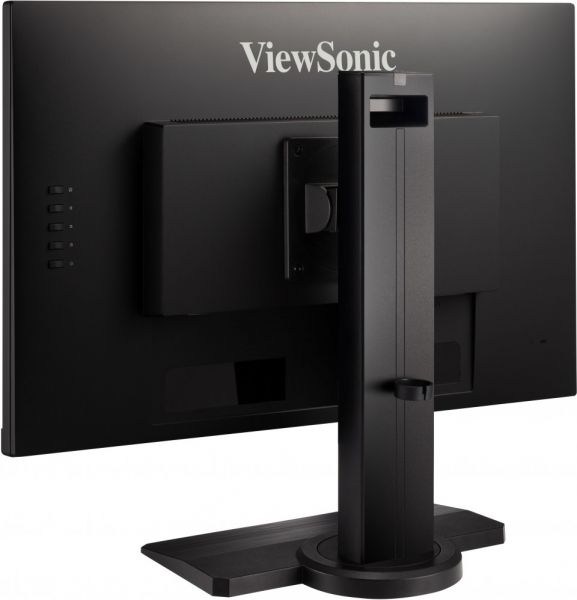

XG2405-2

24" 144Hz Gaming Monitor

24-inch 3-side Borderless Display
144Hz Refresh Rate
1ms (GtG) Response Time
AMD FreeSync™ Premium
SuperClear® IPS technology

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 85% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 12W
Eco Mode (optimized): 14W
Consumption (typical): 21W
Consumption (max): 33W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1

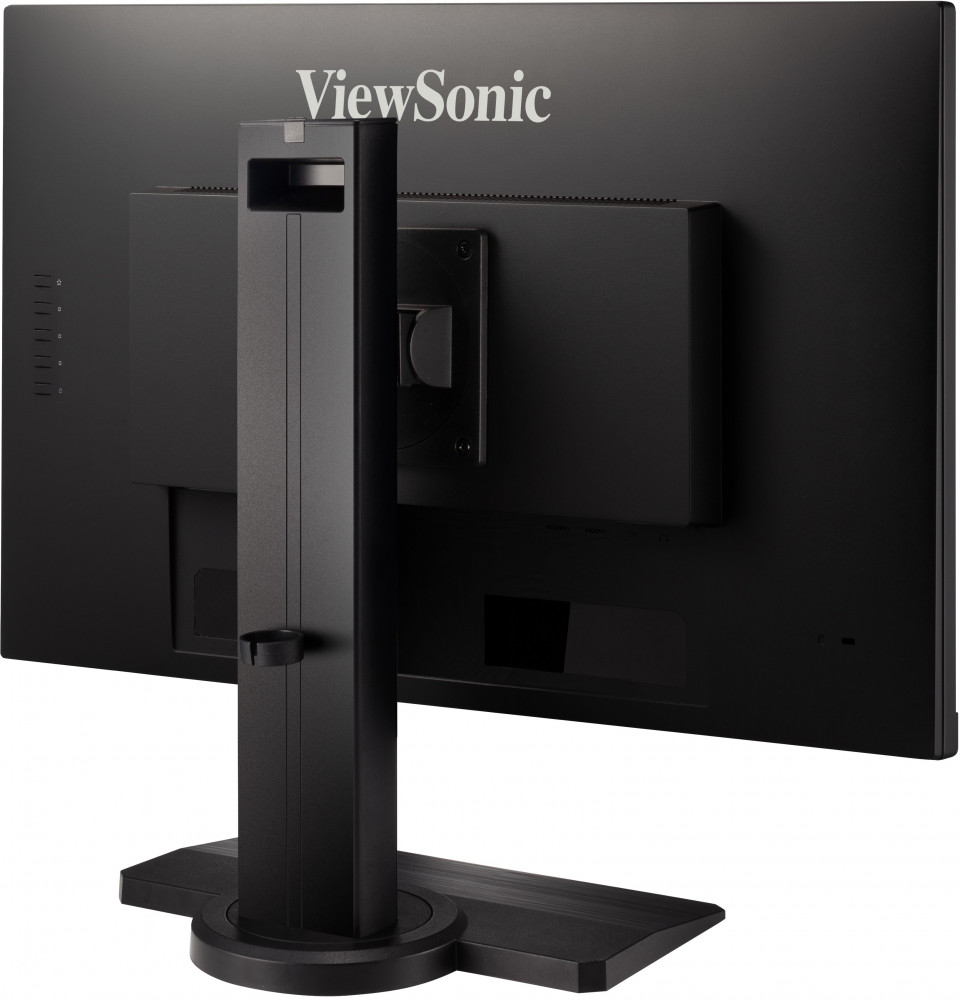

Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 180KHz
Frequency Vertical: 48 ~ 144Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

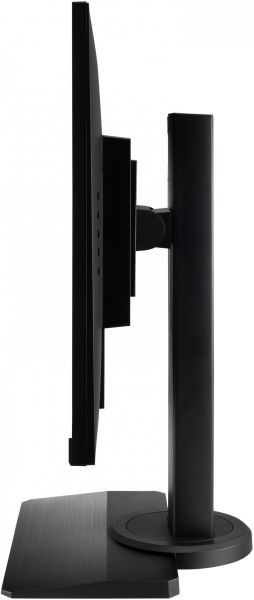

Ergonomics
Height Adjust (mm): 120
Swivel: 90º

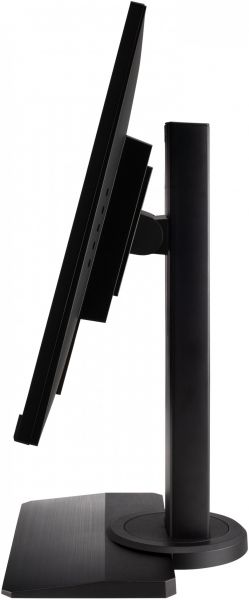

Tilt (Forward/Back): -5º / 15º
Pivot (Right/Left): 90º / 0º
Weight (imperial)
Net (lbs): 13.9
Net Without Stand (lbs): 6.8
Gross (lbs): 17.4
Weight (metric)
Net (kg): 6.3
Net Without Stand (kg): 3.1
Gross (kg): 7.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.5 x 15.7 x 7.3
Physical (in.): 21.2 x 17.08~20.49 x 9.4
Physical Without Stand (in.): 21.2 x 12.7 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 698 x 400 x 186
Physical (mm): 540 x 433.9~520.55 x 239
Physical Without Stand (mm): 540 x 323 x 48
General
PACKAGE CONTENTS: XG2405-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
