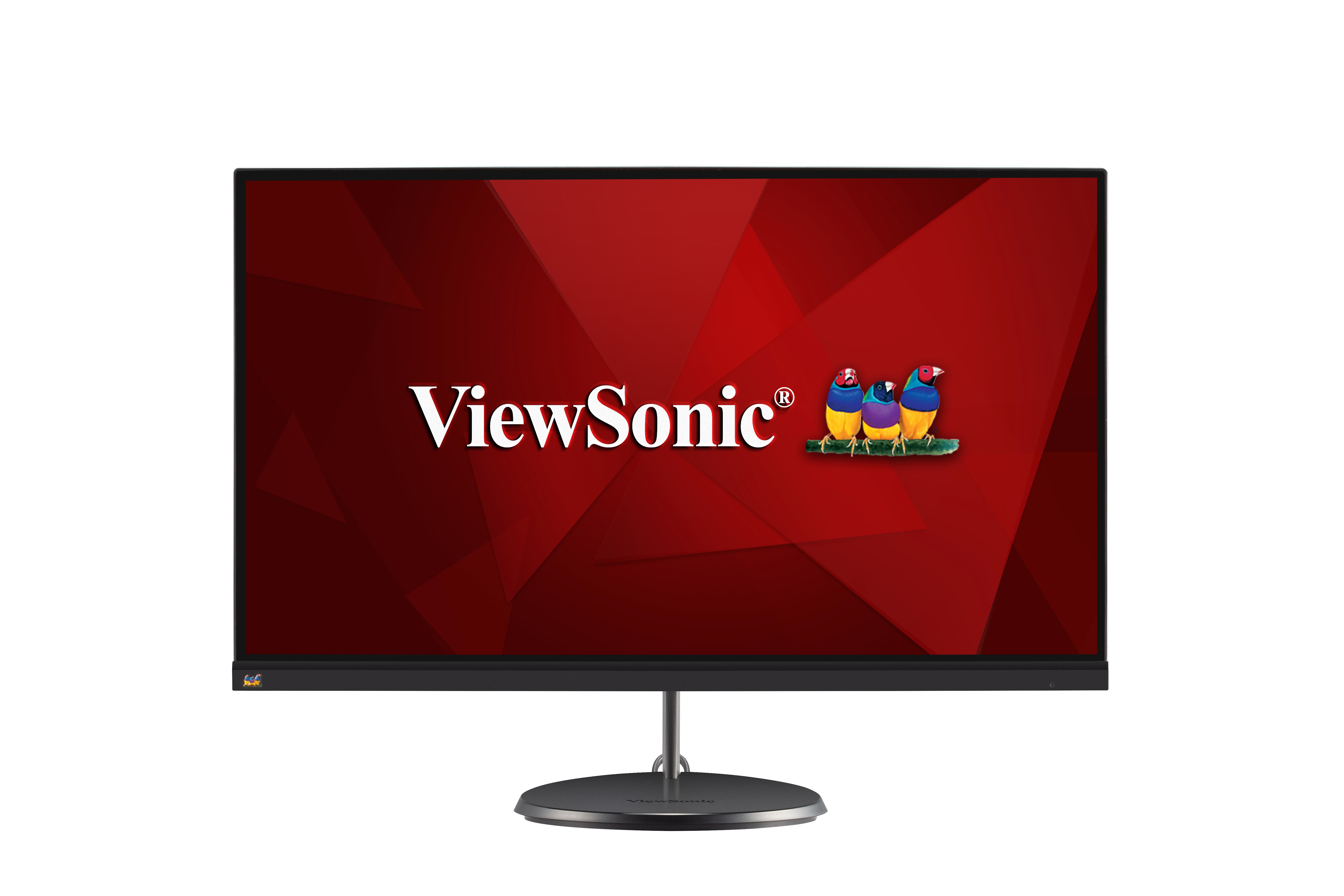

VX2485-MHU

24’’ iF Award Winning Monitor with USB Type-C inputs

iF award winning design
Connection flexibility with USB Type-C, HDMI, and VGA
SuperClear® IPS technology
AMD FreeSync technology
TUV certificated Flicker-Free and Blue Light Filter

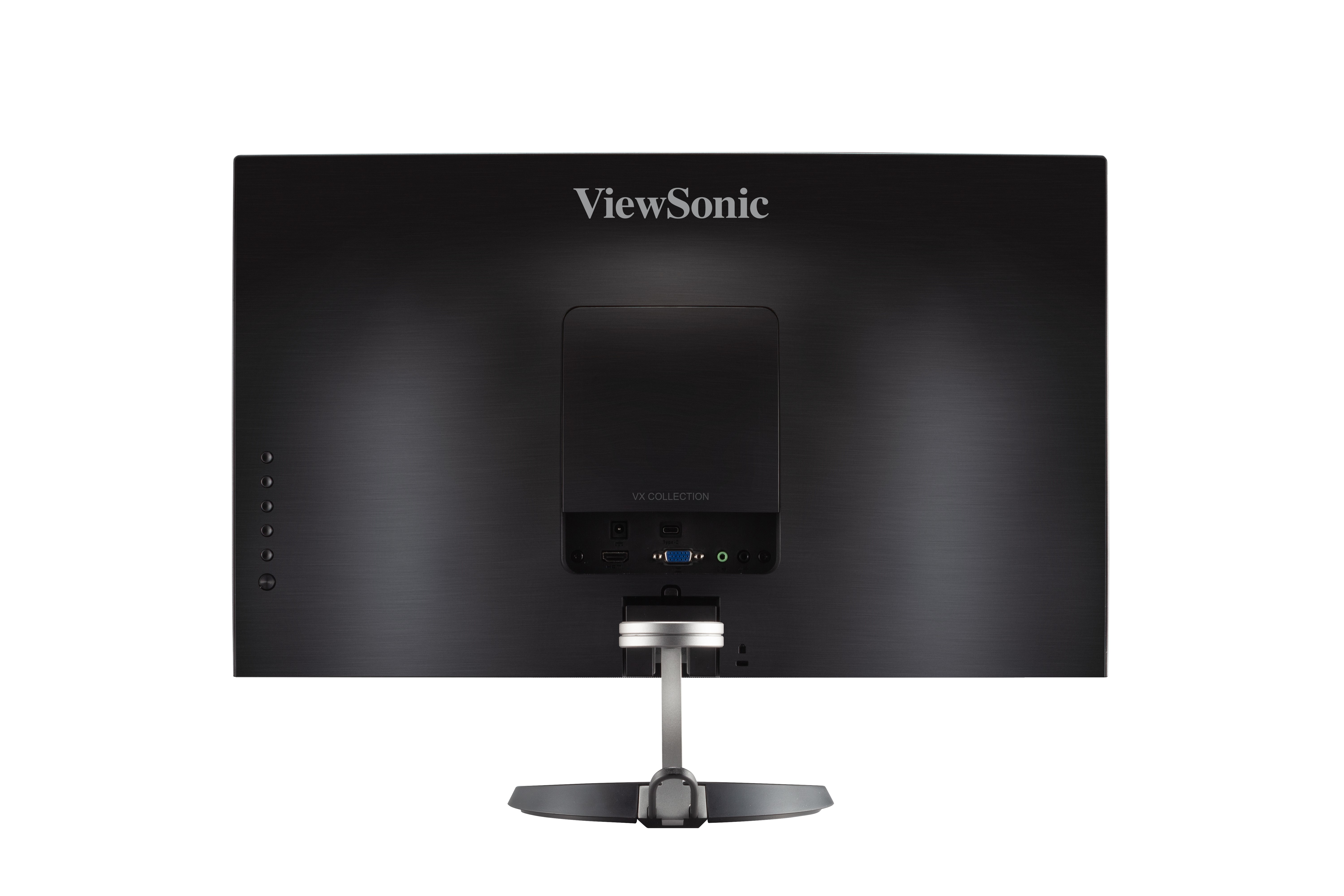

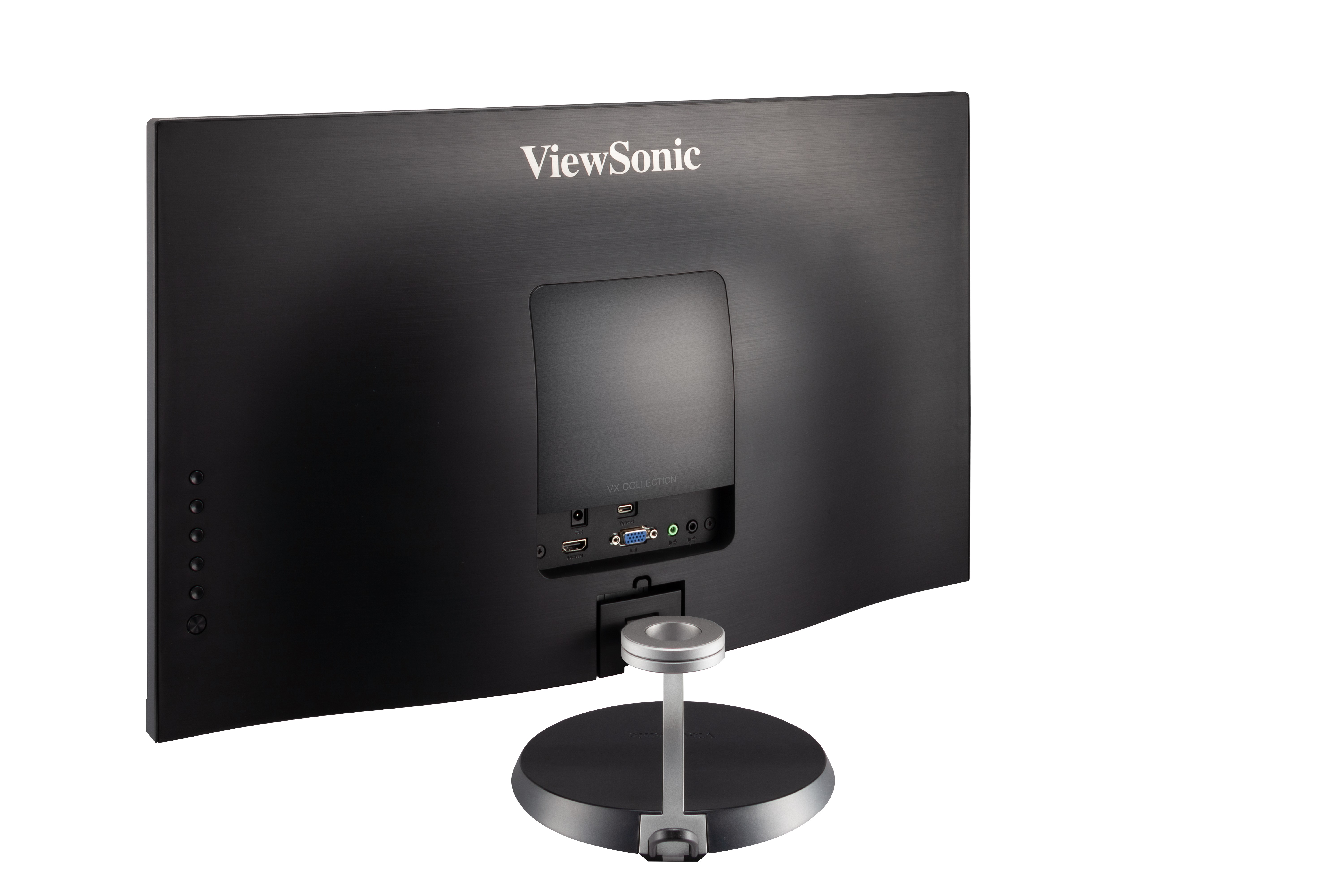

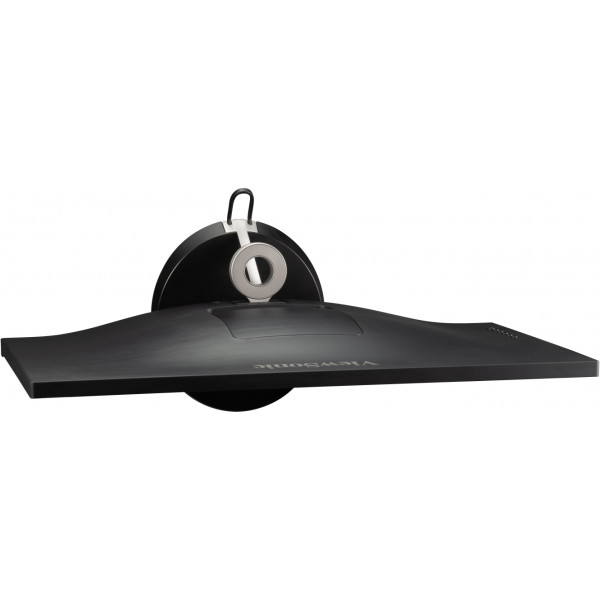

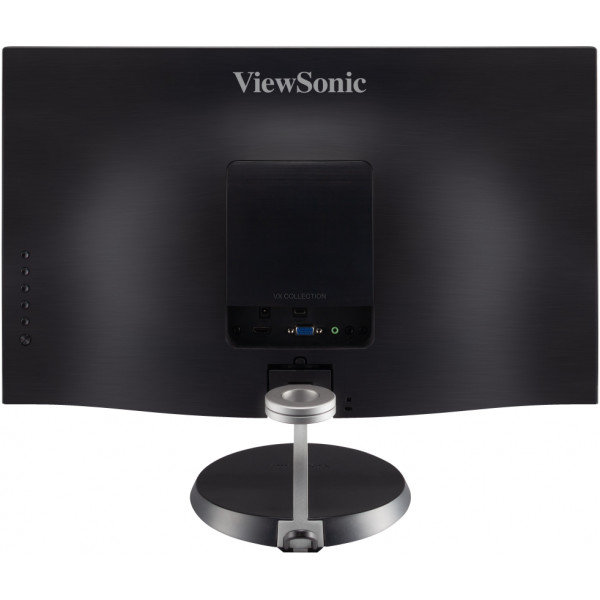

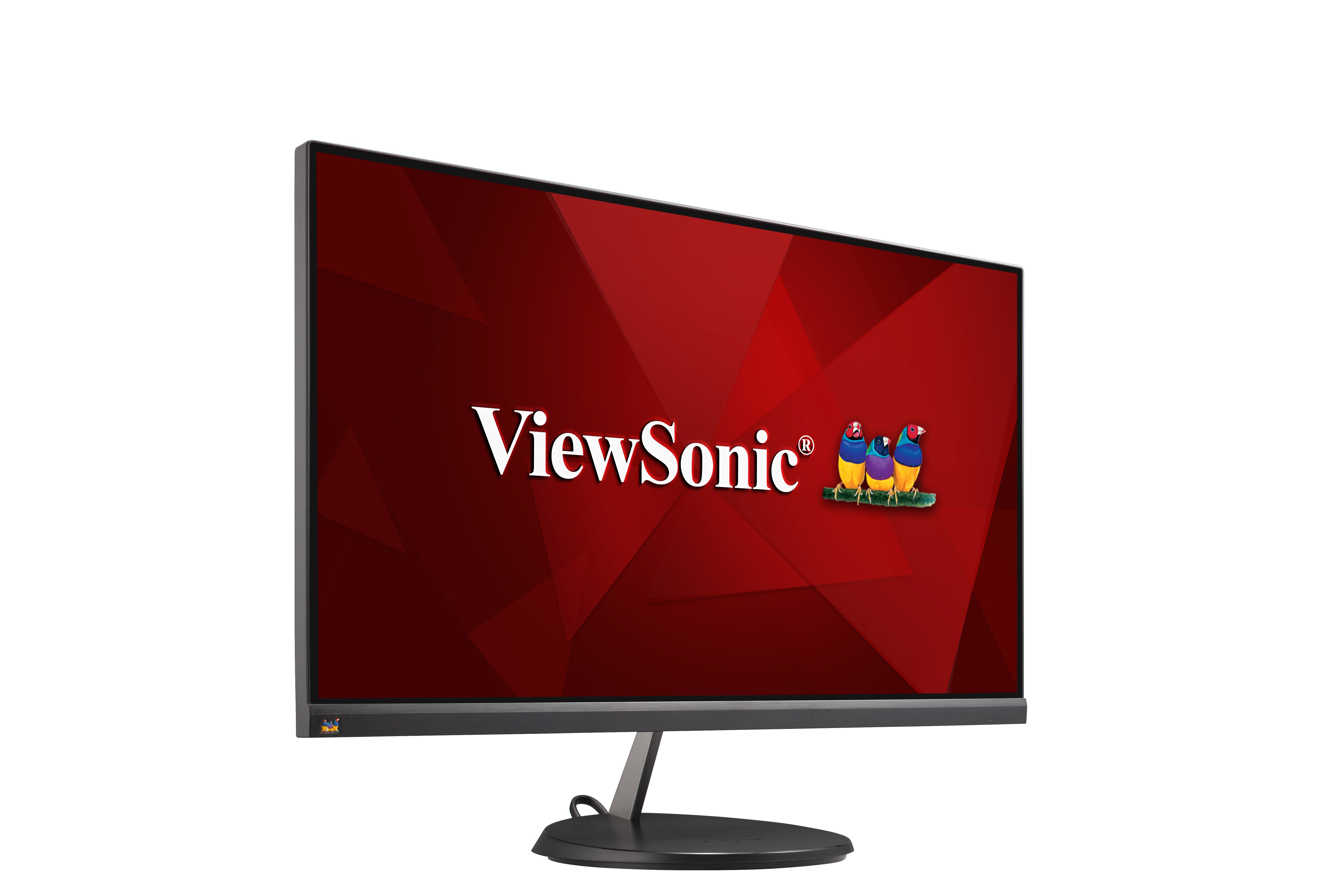

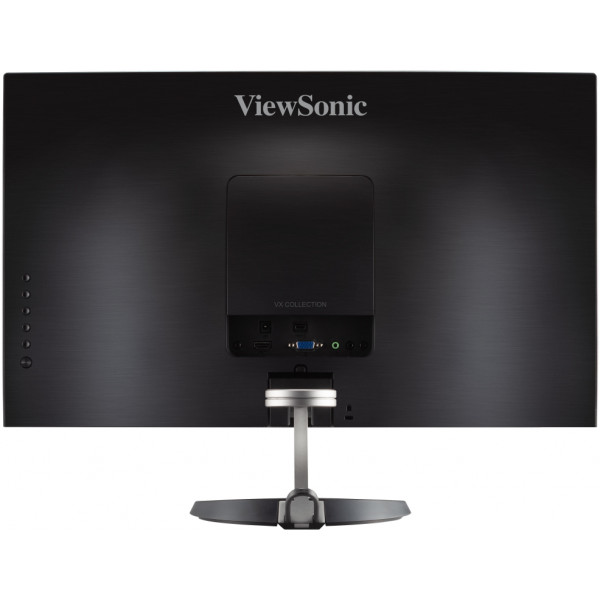

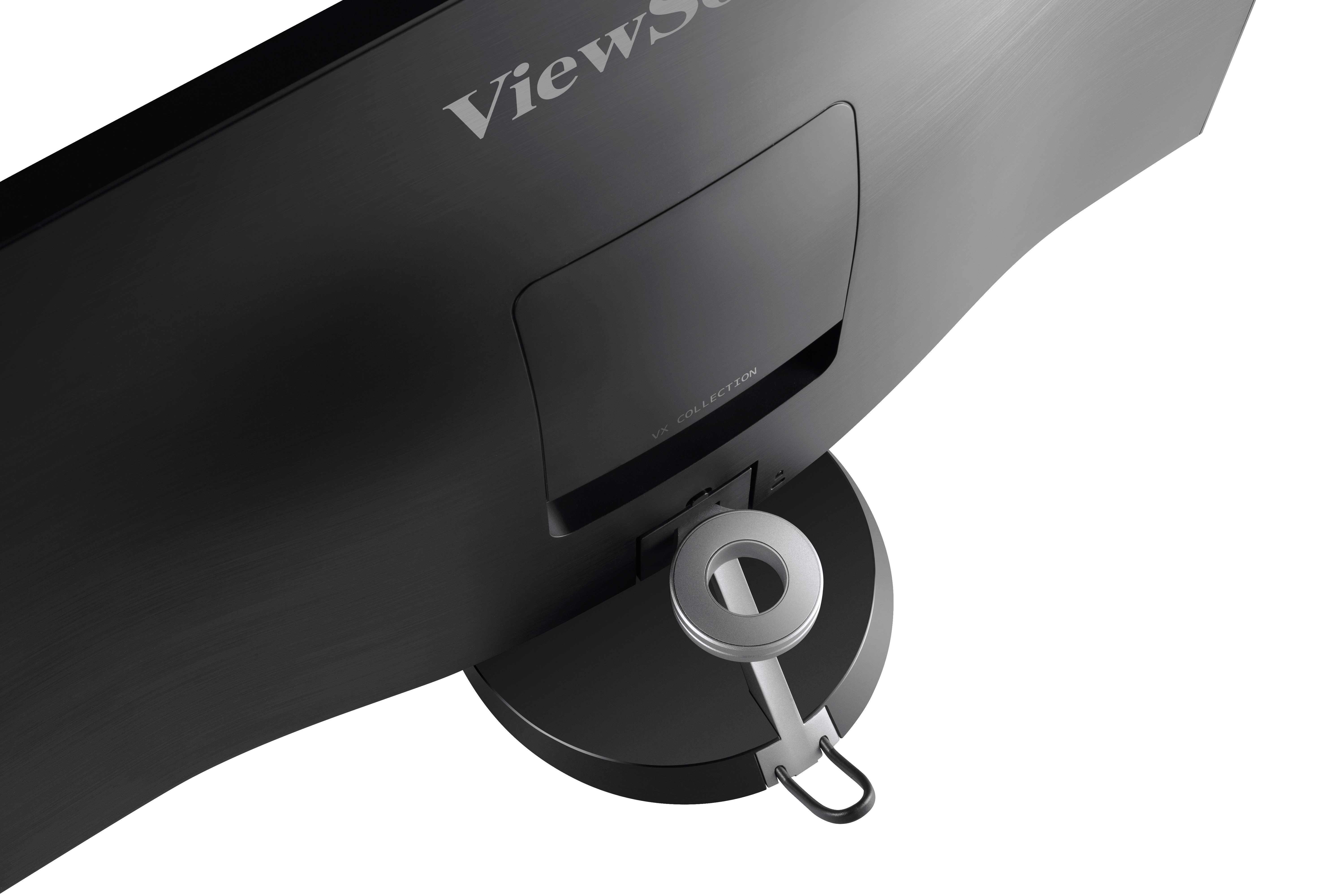

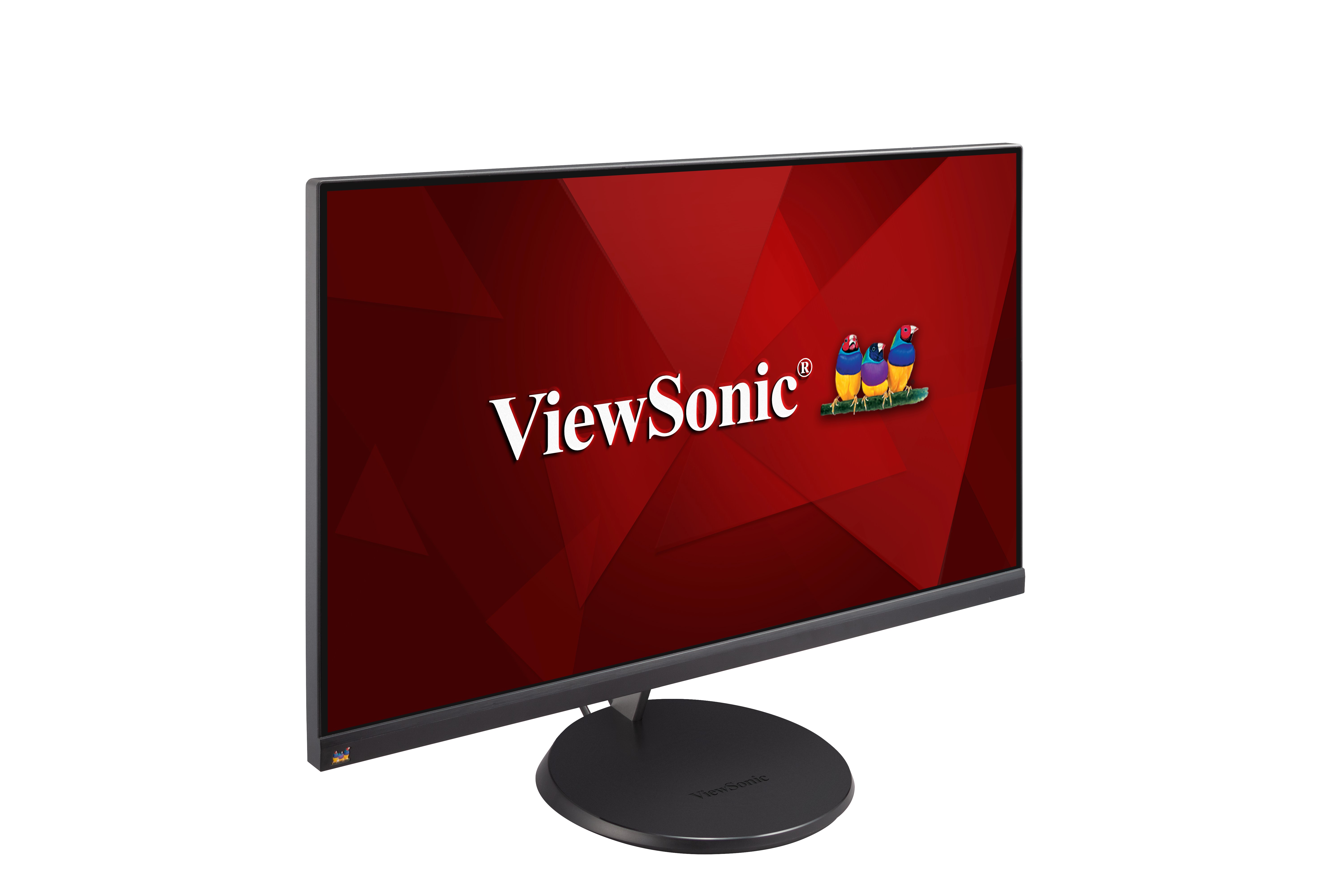

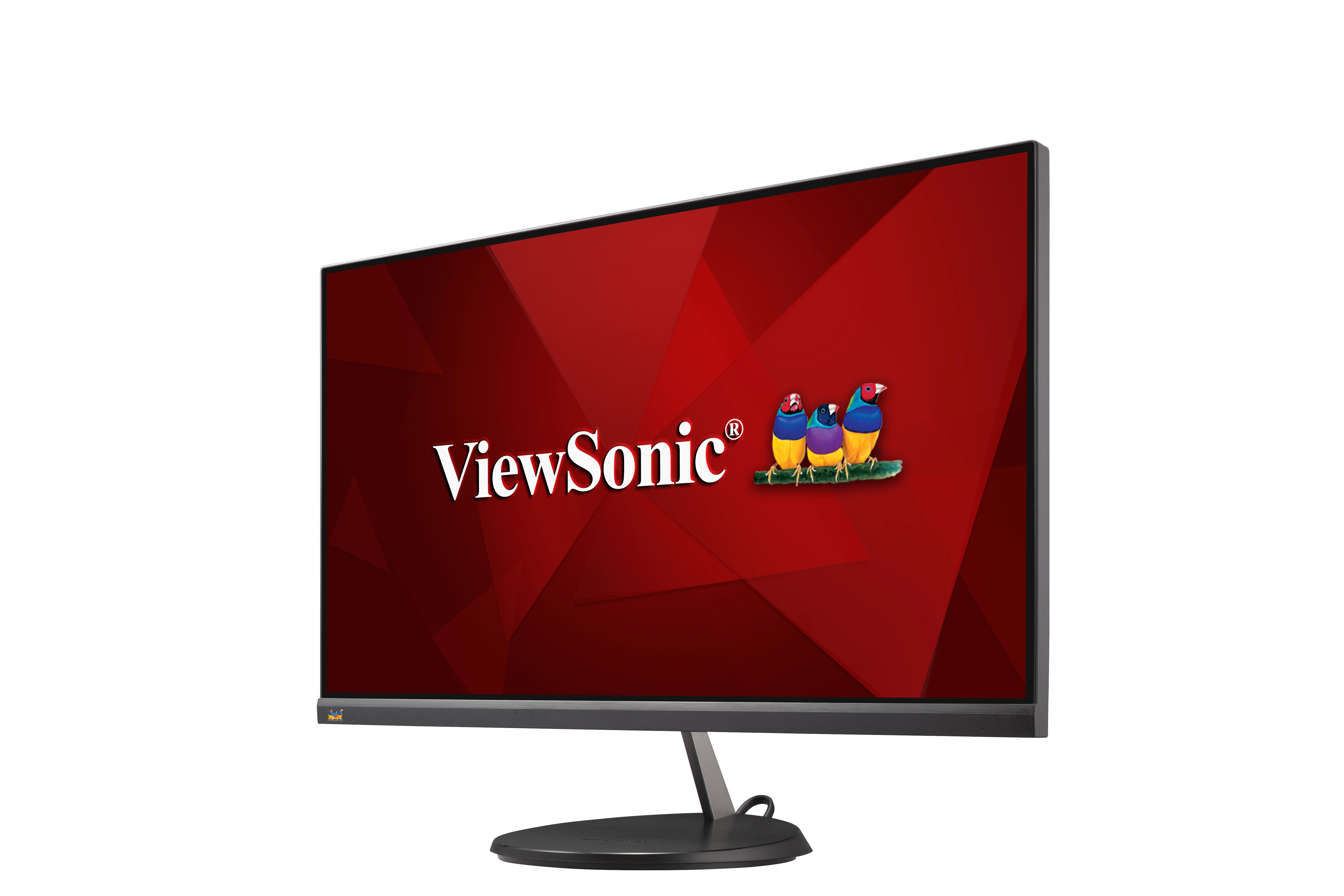

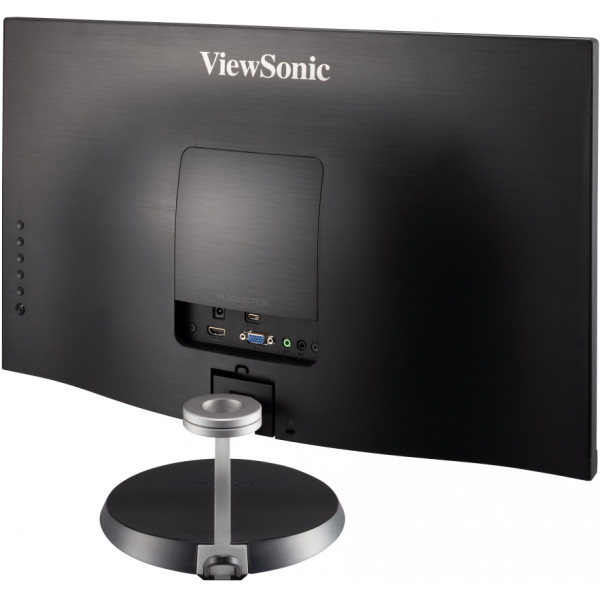

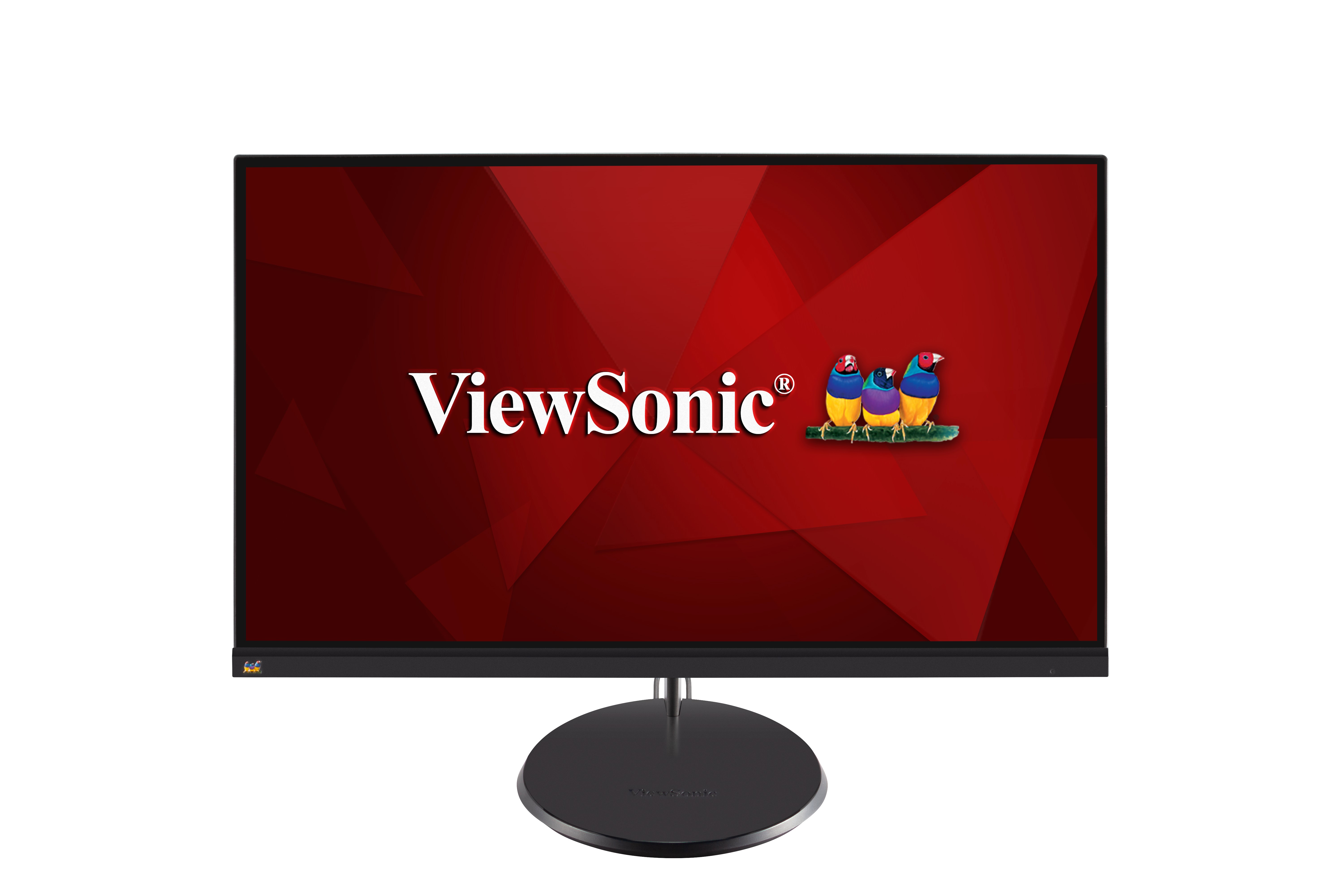

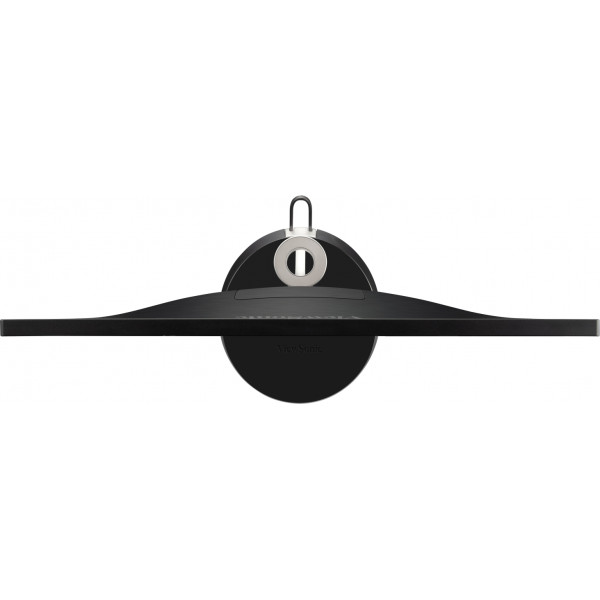

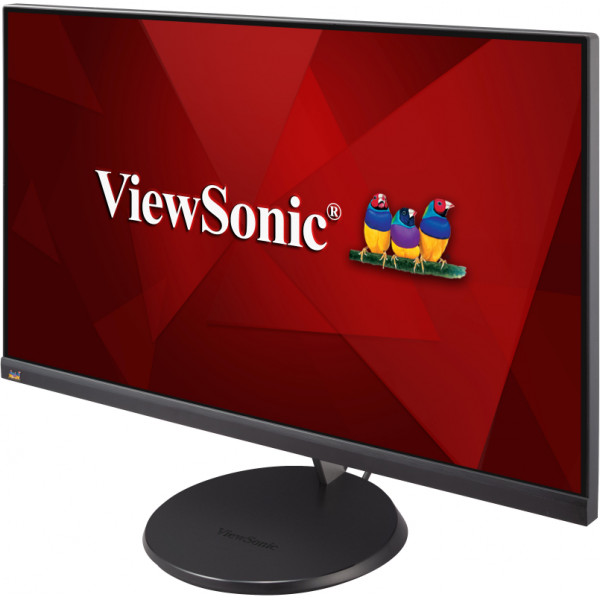

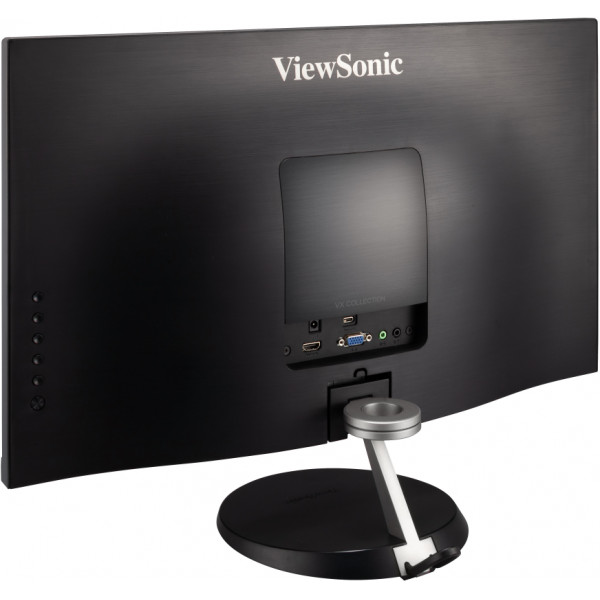

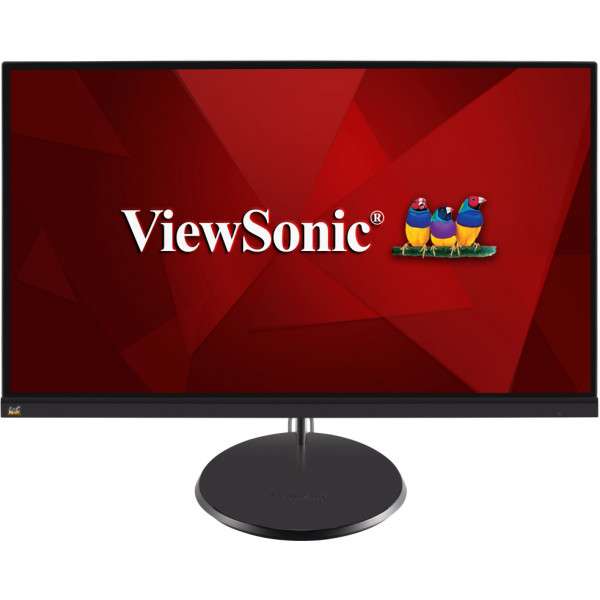

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 76 (Max)^[1]
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080

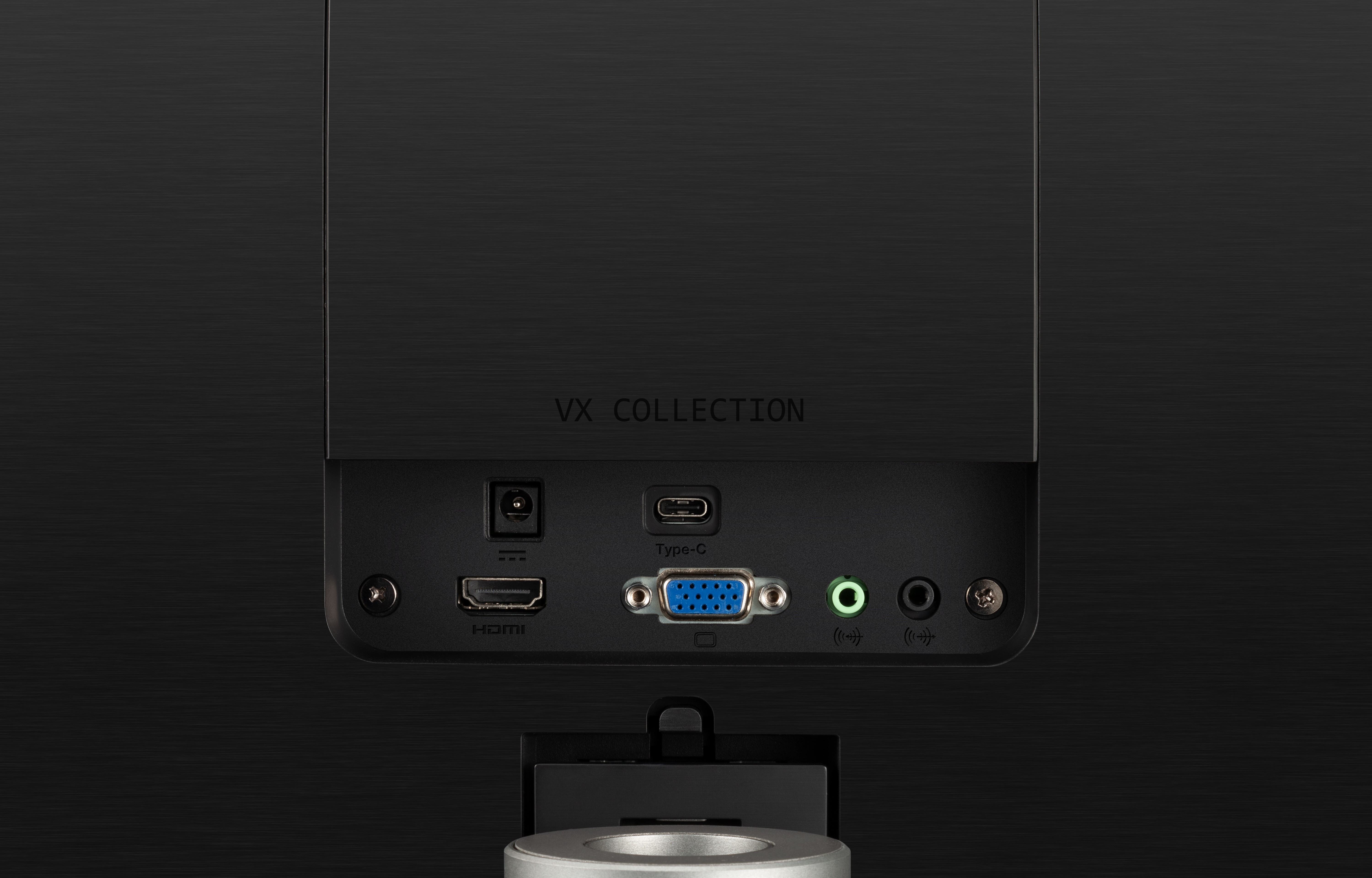

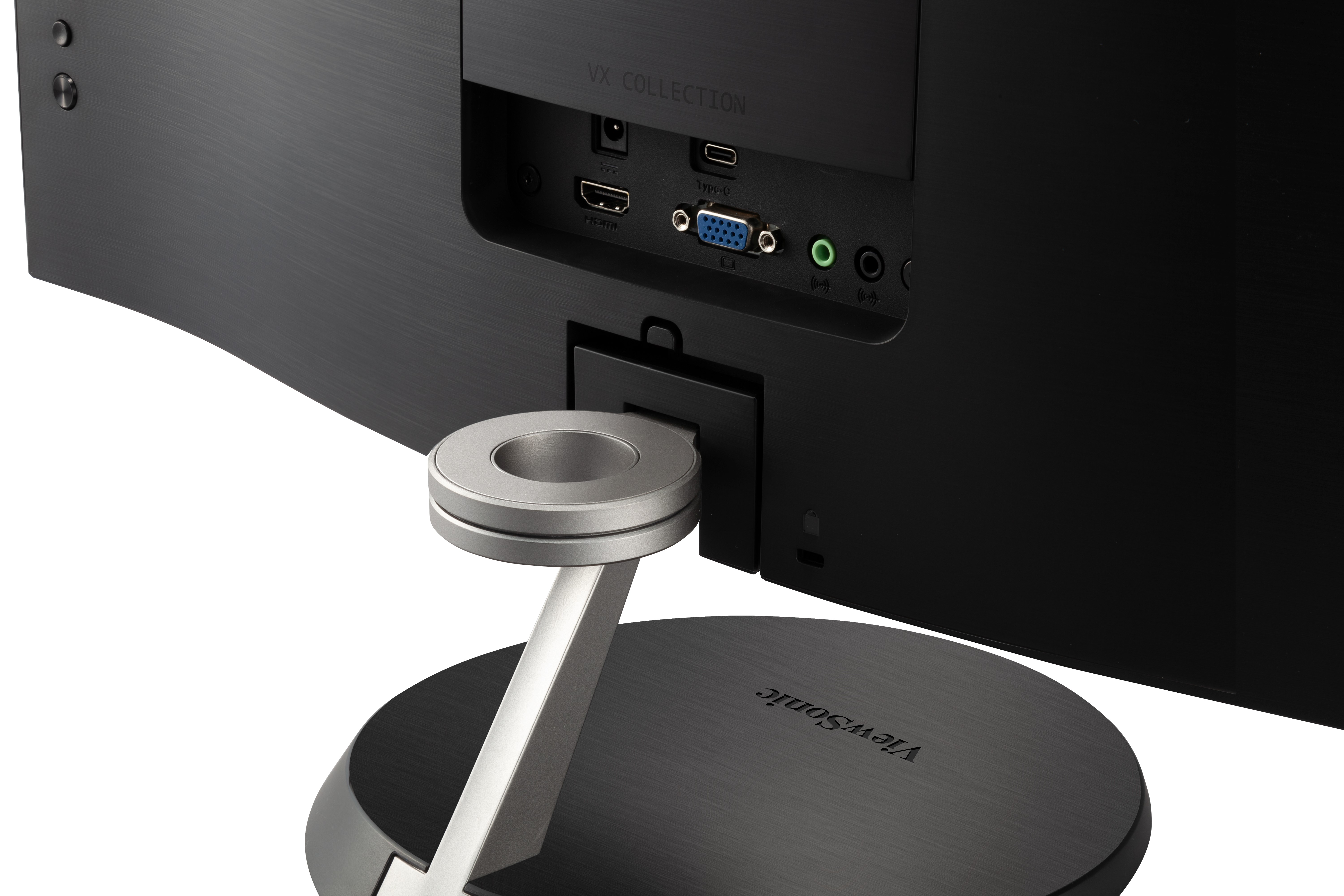

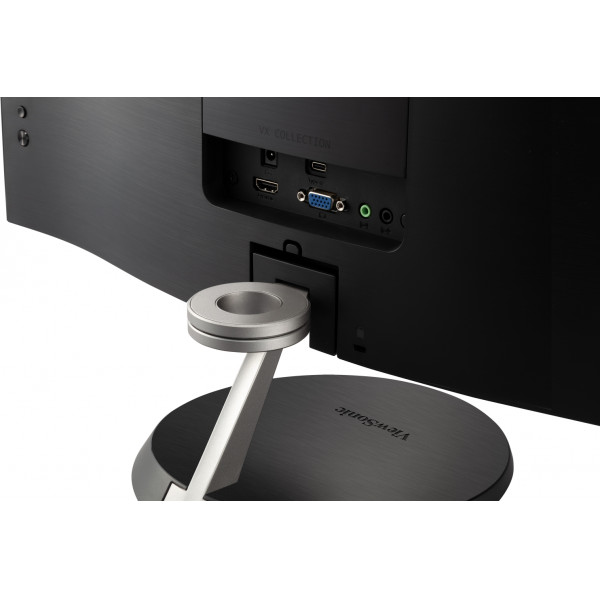

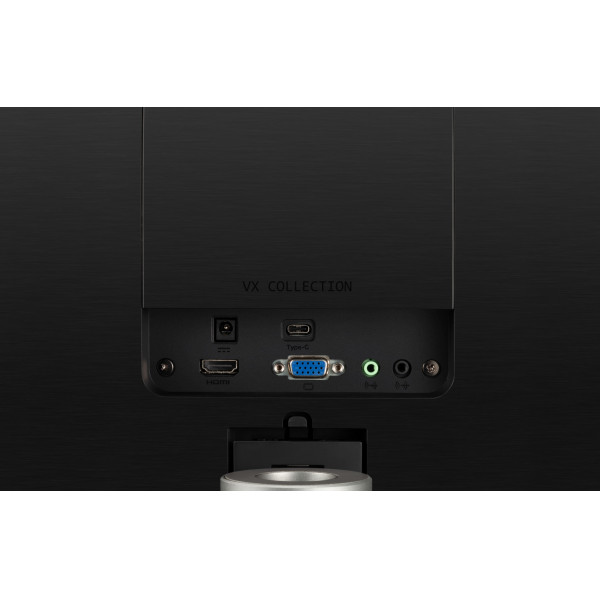

Connector
VGA: 1
USB 3.1 Type C: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: External power adapter

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 11W
Eco Mode (optimized): 13W
Consumption (typical): 15.5W
Consumption (max): 16W
Voltage: AC 100-240V, 50/60 Hz
Stand-by: 0.5W
Power Supply: External
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 16 ~ 84KHz
Frequency Vertical: 48 ~ 76Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics

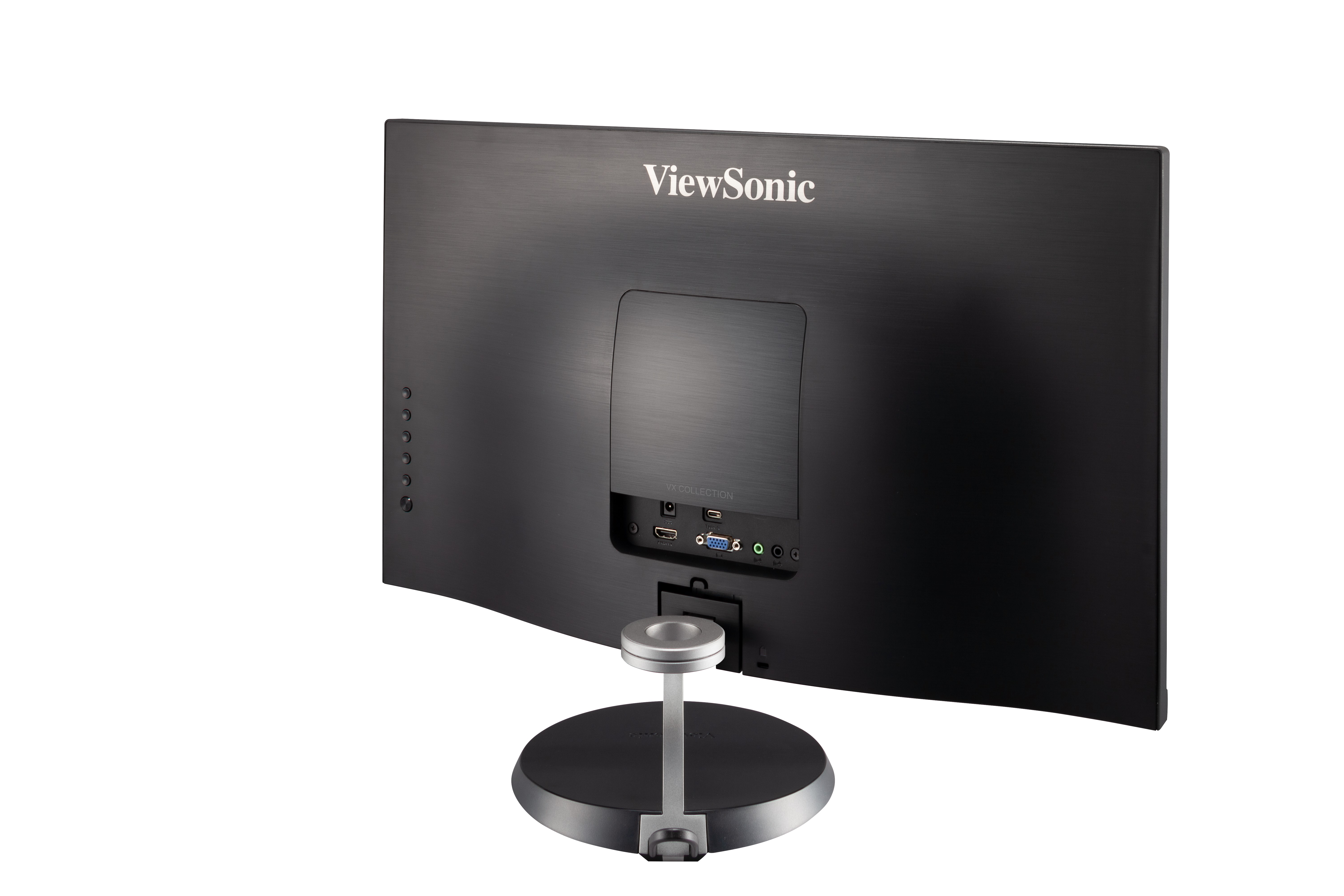

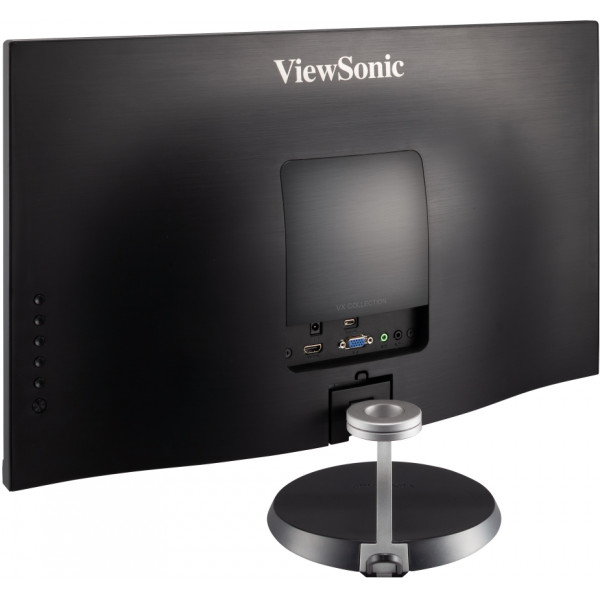

Swivel: 60º

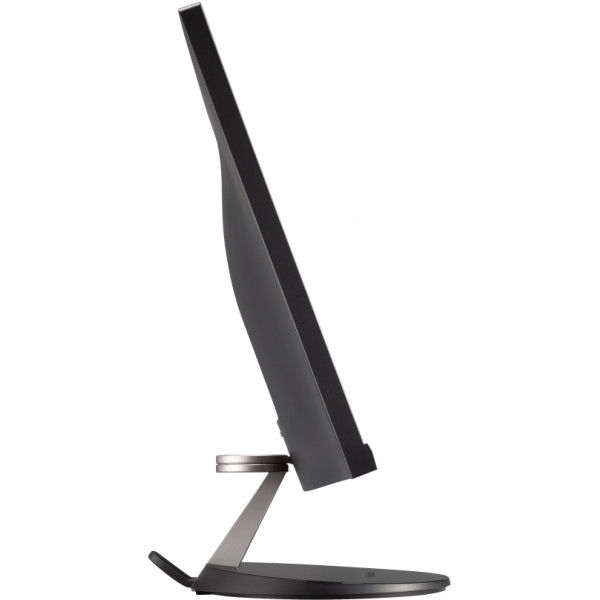

Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 9.3
Net Without Stand (lbs): 5.9
Gross (lbs): 12.8
Weight (metric)
Net (kg): 4.2
Net Without Stand (kg): 2.7
Gross (kg): 5.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.6 x 16.1 x 4.9
Physical (in.): 21.2 x 15.9 x 9.8
Physical Without Stand (in.): 21.2 x 12.7 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 624 x 410 x 125
Physical (mm): 540 x 404 x 250
Physical Without Stand (mm): 540 x 322 x 50
General
PACKAGE CONTENTS: VX2485-MHU x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market

The Max. refresh rate may vary by I/O port, resolution, user environment and settings. For additional information please check the the “Specifications” section in the user guide.
