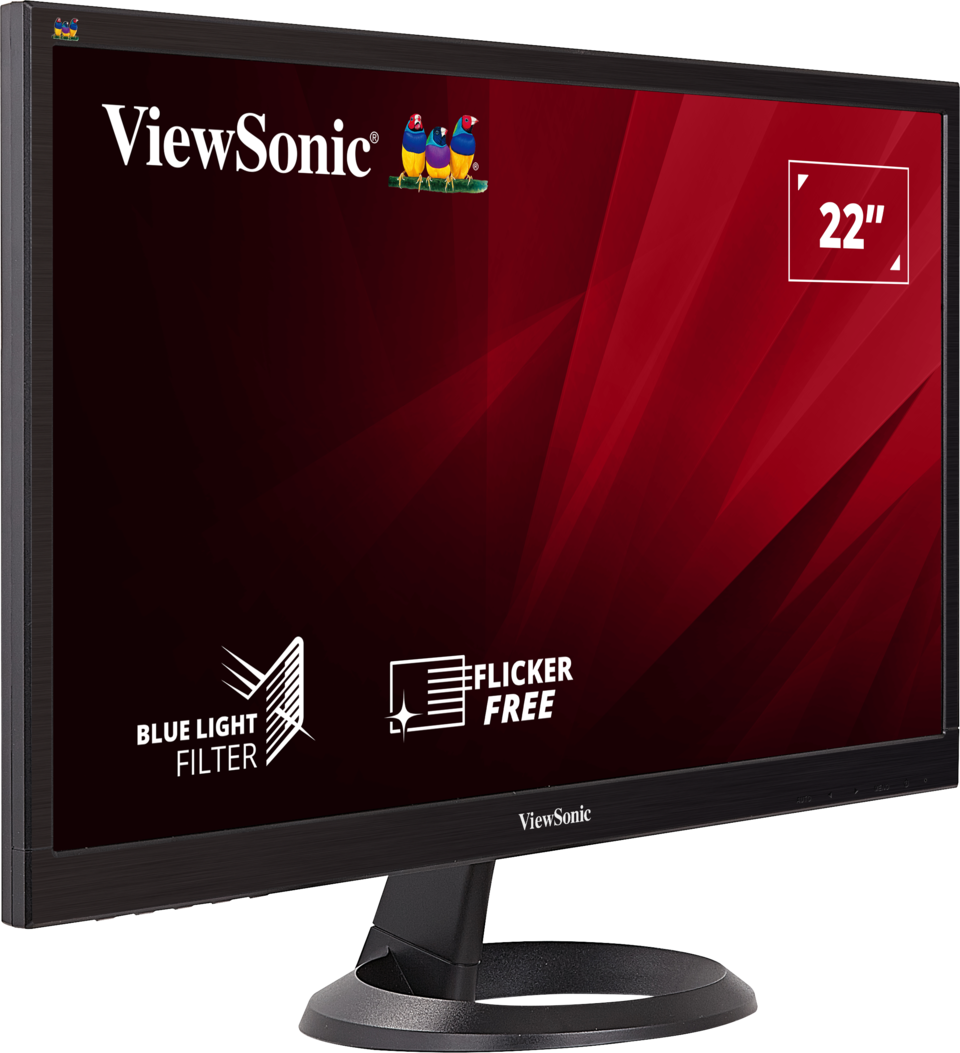

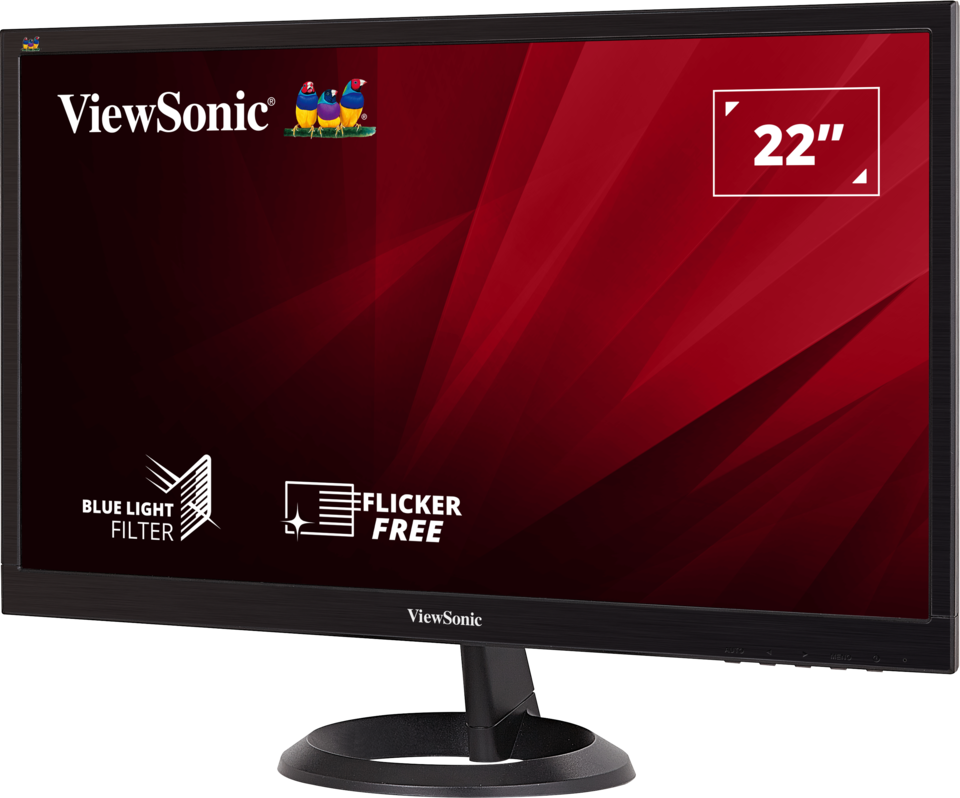

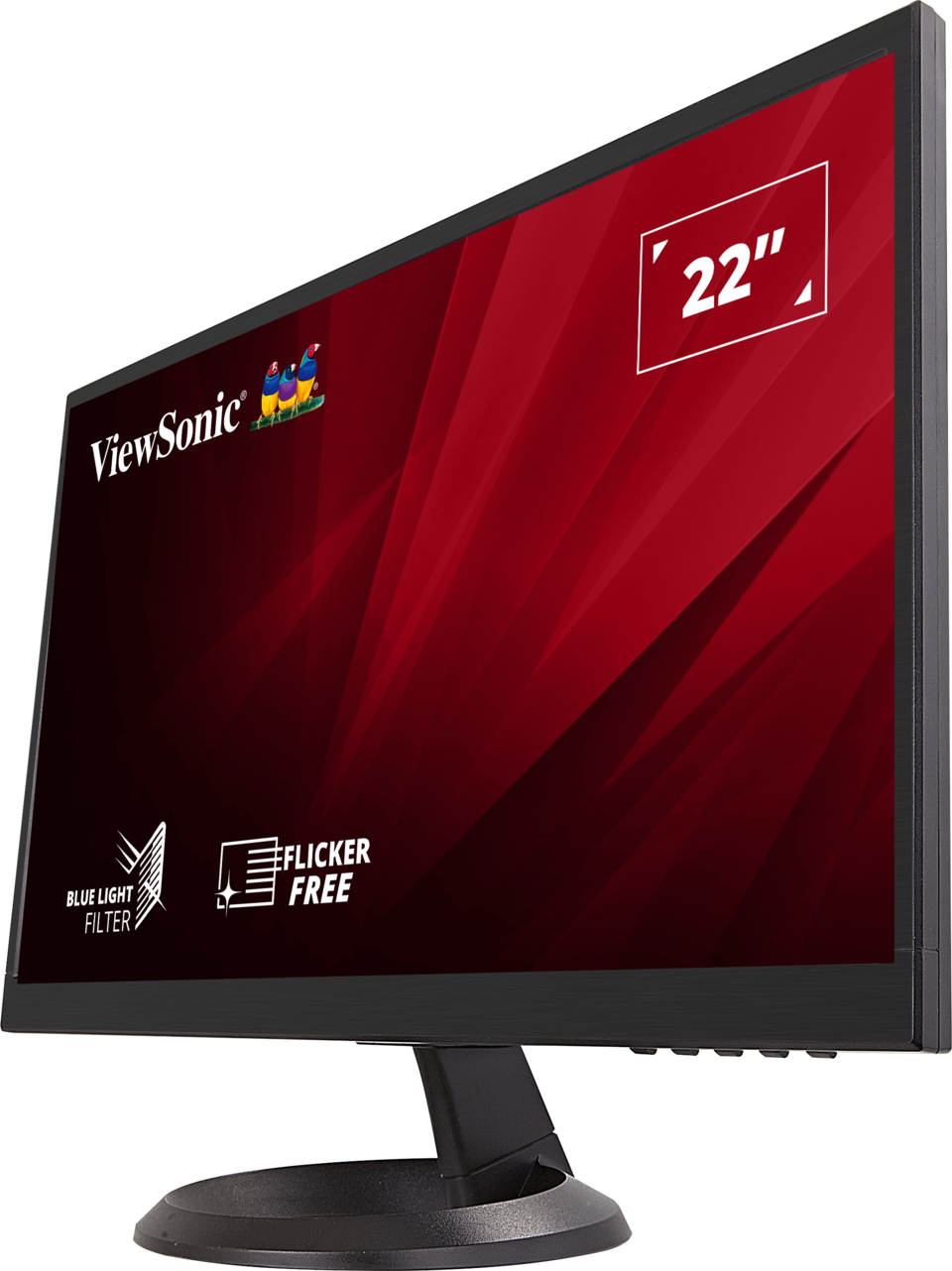

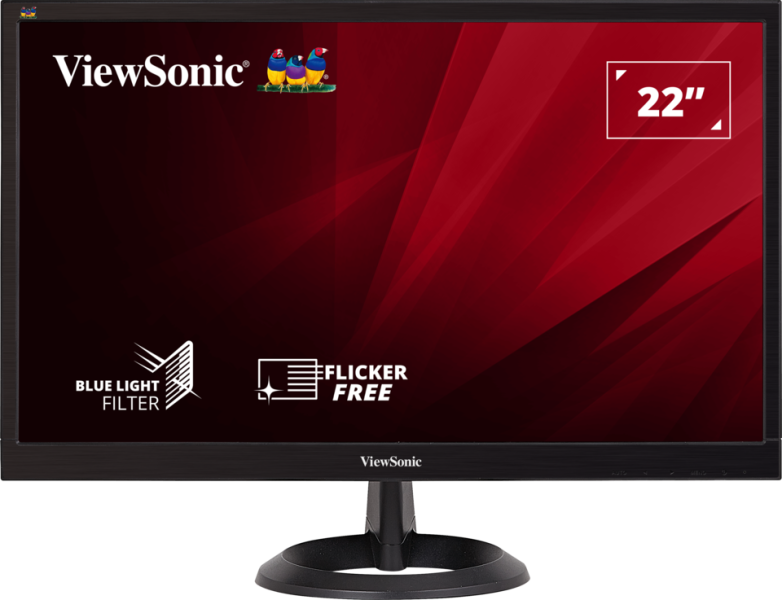

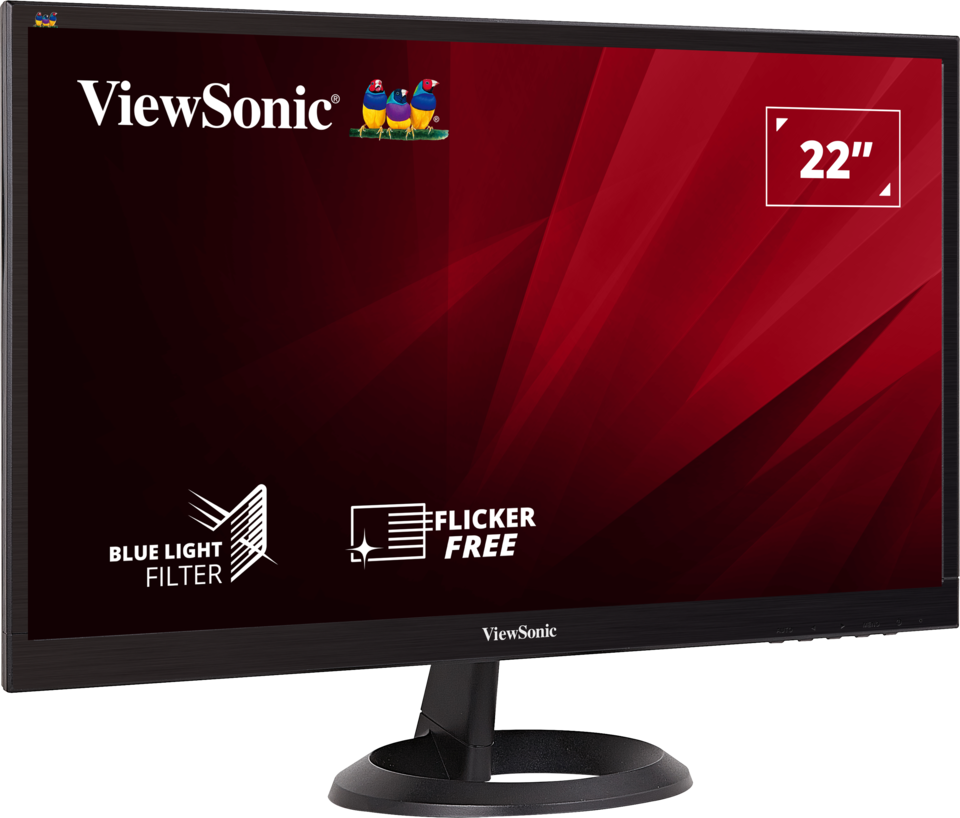

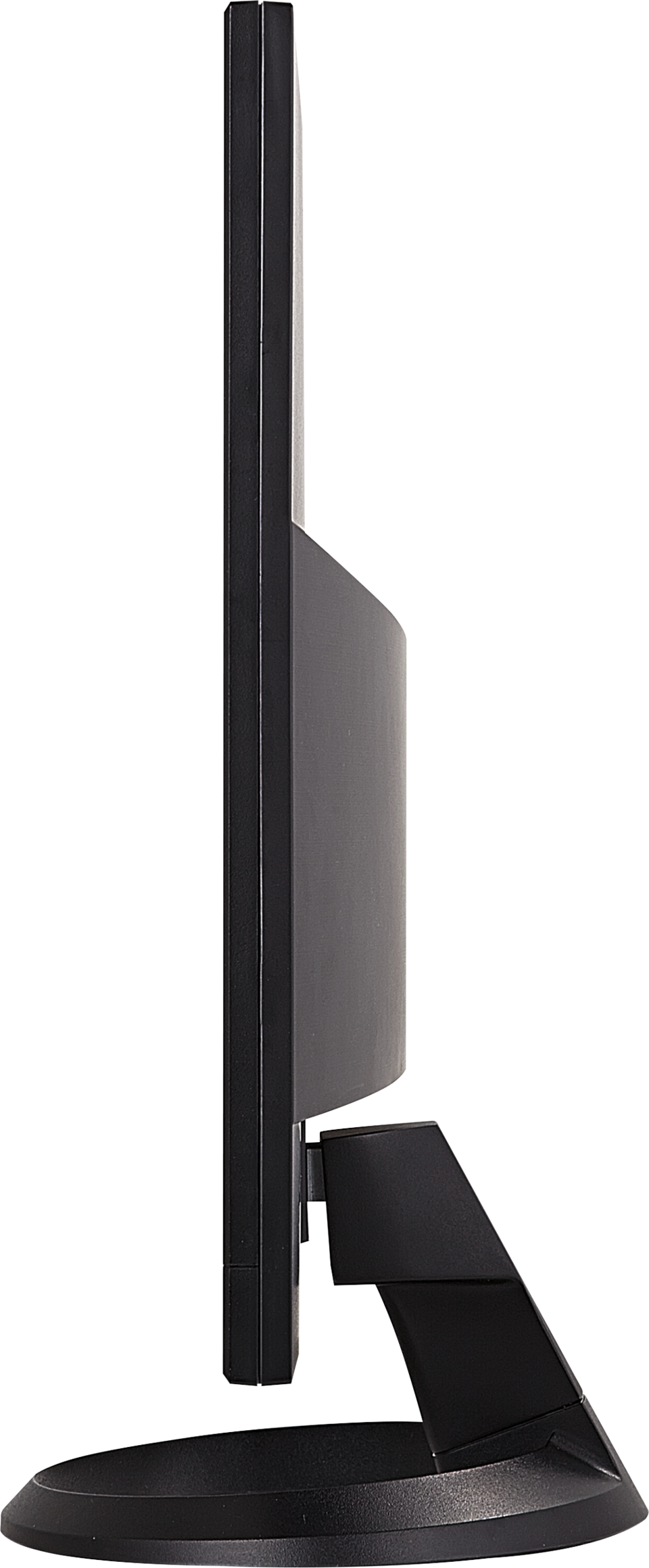

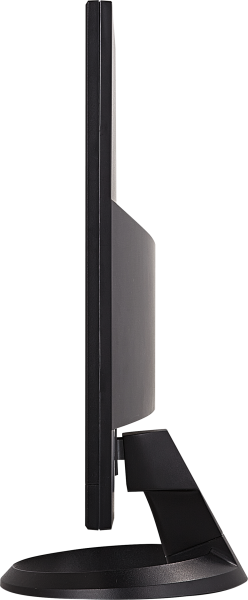

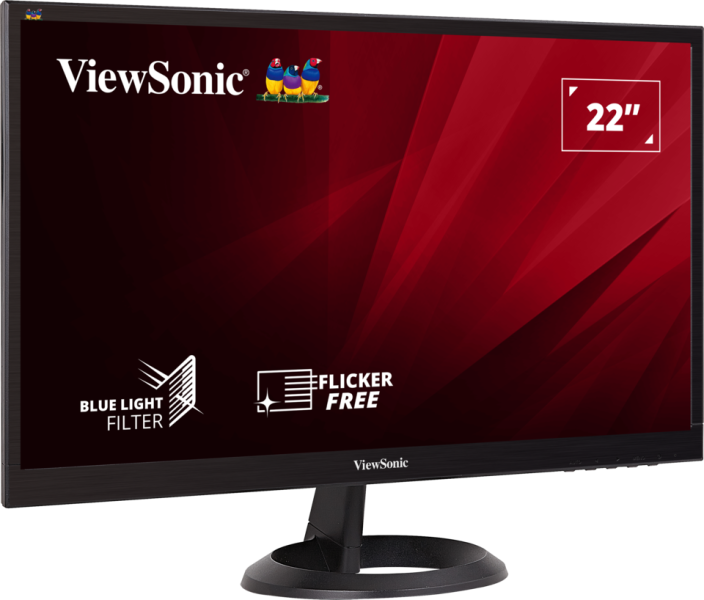

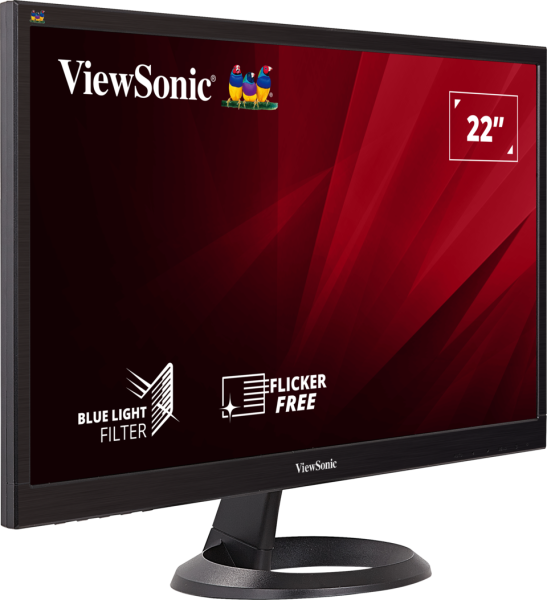

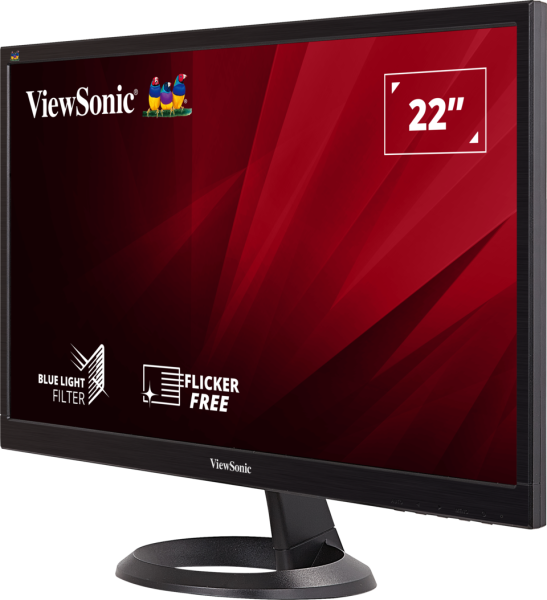

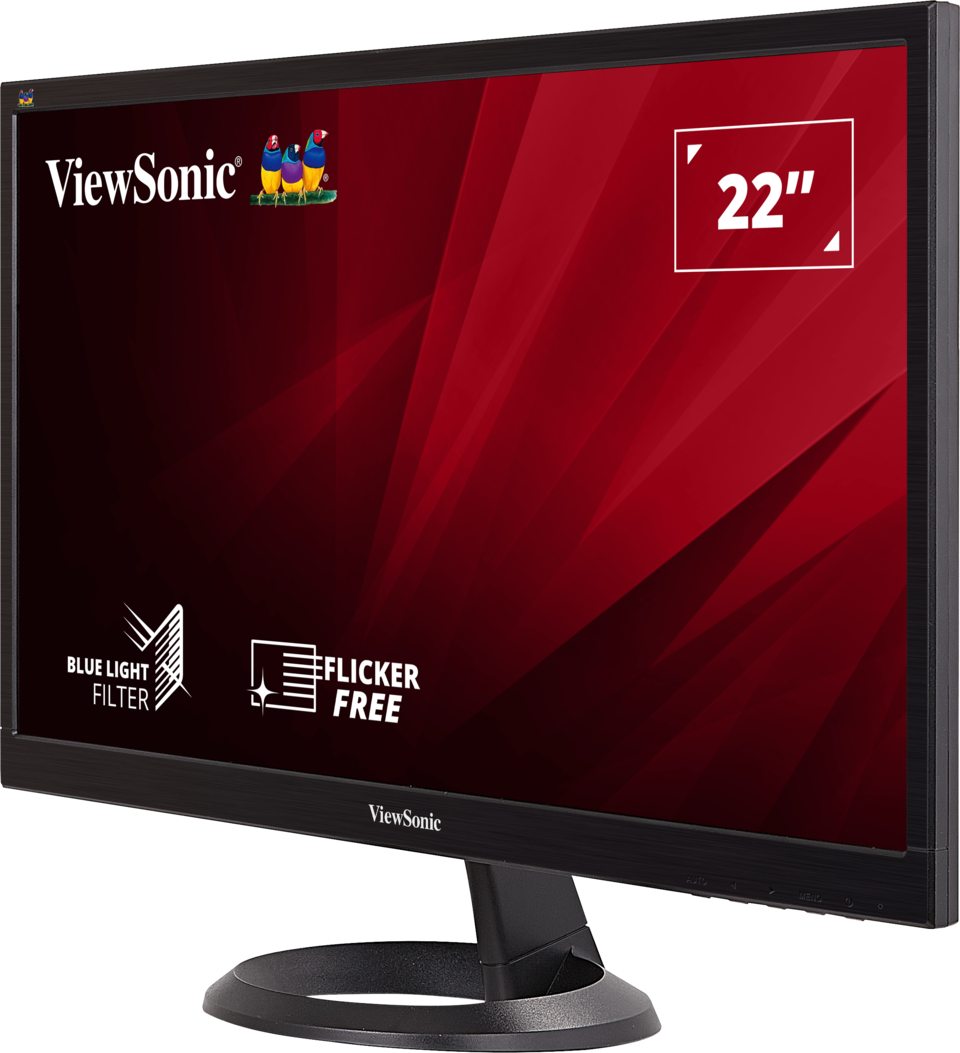

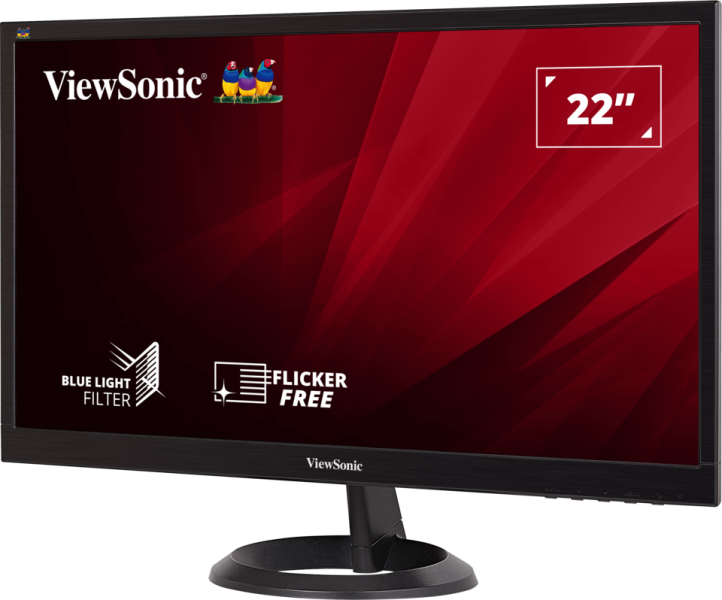

VA2261H-8
22" 1080p Home and Office Monitor
- ViewMode technology
- HDMI and VGA inputs
- Flicker-Free and Blue Light Filter
- Eco-mode
- VESA mountable
SPECIFICATIONS
- DISPLAYMonitor Size: 22”W (21.5” Viewable)
Panel Technology: TN TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 476.64mm (H) x 268.11mm (V)
Aspect Ratio: 16:9
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angle: 170 degrees / 160 degrees
Response Time: 5ms (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V) - INPUT SIGNALFrequency: Fh = 24 ~ 82KHz ;Fv = 50 ~ 75Hz
Sync: Separate Sync,TMDS - COMPATIBILITYPC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested
- CONNECTORDigital: HDMI 1.4 x 1
Analog: VGA x 1 - POWERPower: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 21.5W
Optimize: 14.5W
Conserve: 12.5W - ERGONOMICSTilt: 20 ~ -6 degrees

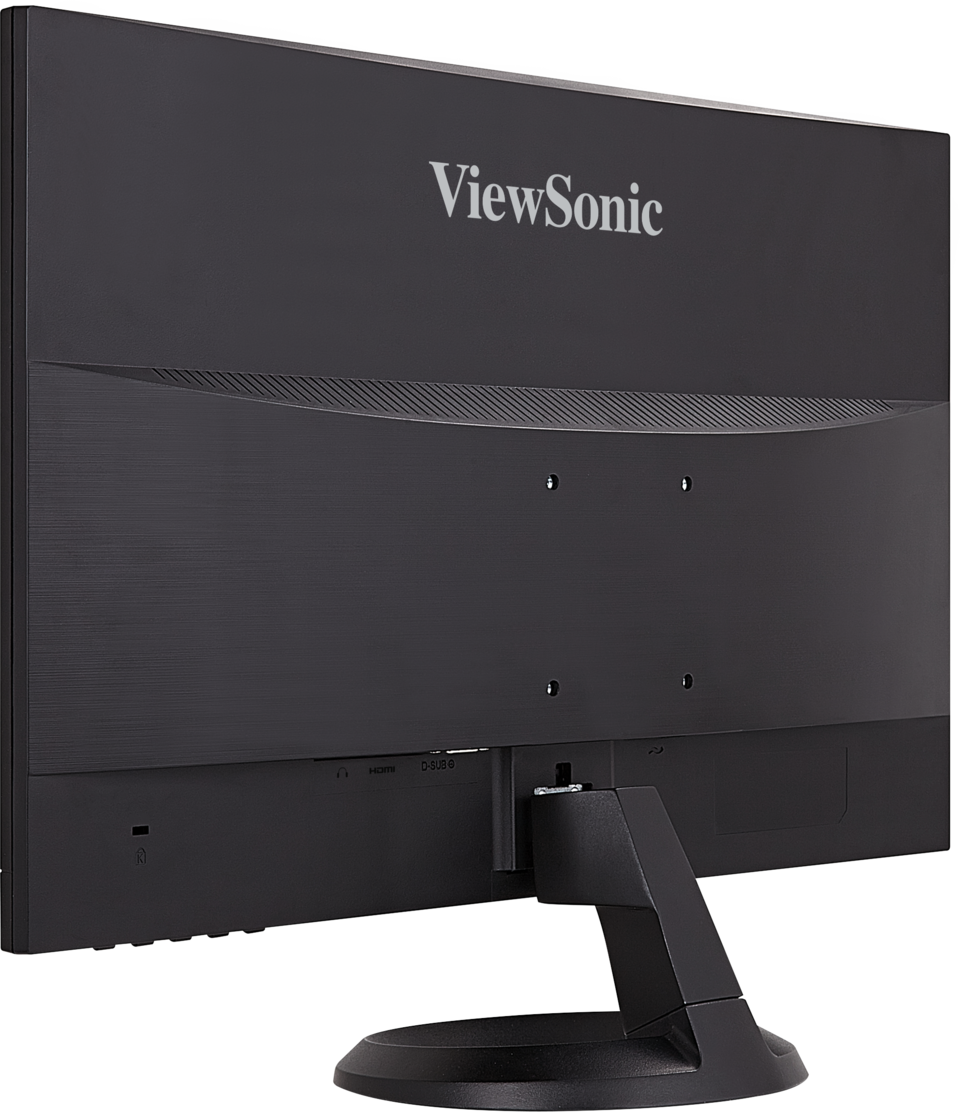

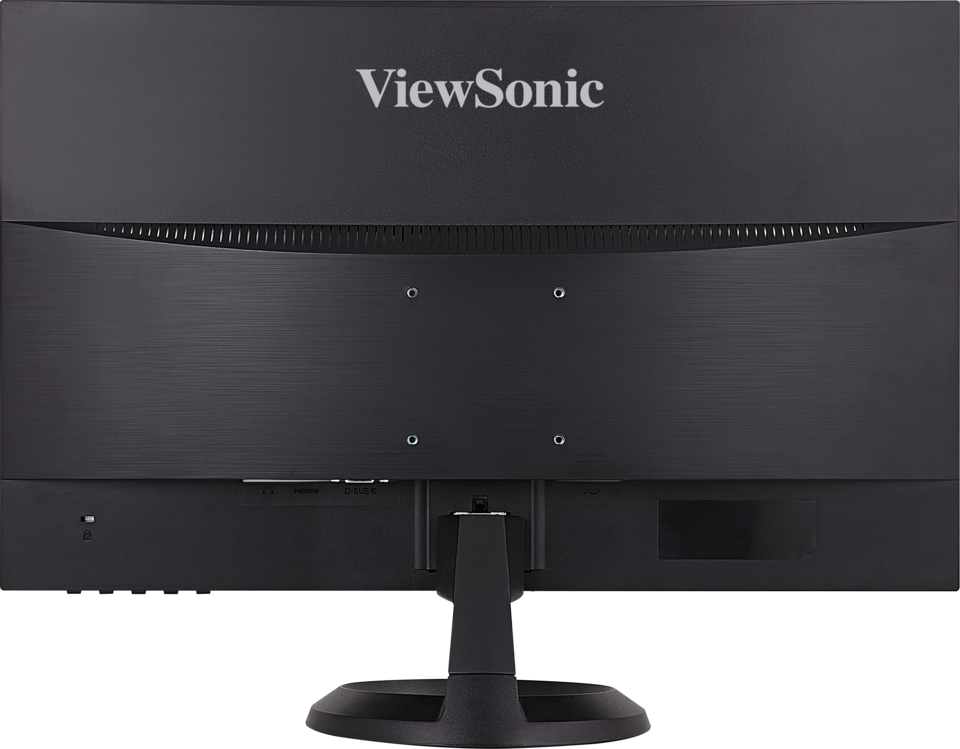

- WALL MOUNTVESA®: 75 mm x 75mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 504 mm(W) x 381 mm(H) x 180 mm(D)
Physical without stand (mm): 504 mm (W)x 311 mm (H) x 48 mm (D)
Packaging (mm): 565mm (W) x 390mm (H) x 115mm (D) - WEIGHTNet with stand (kg): 2.64kg
Net without stand (kg): 2.18kg
Gross (kg): 3.58kg - PACKAGE CONTENTSLCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
