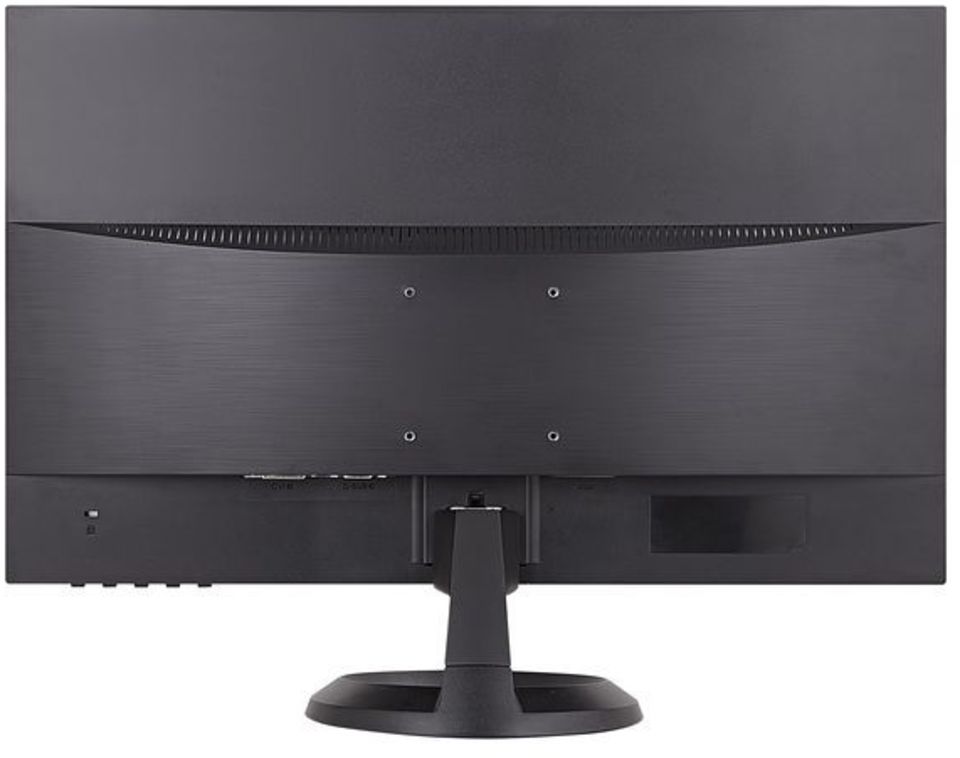

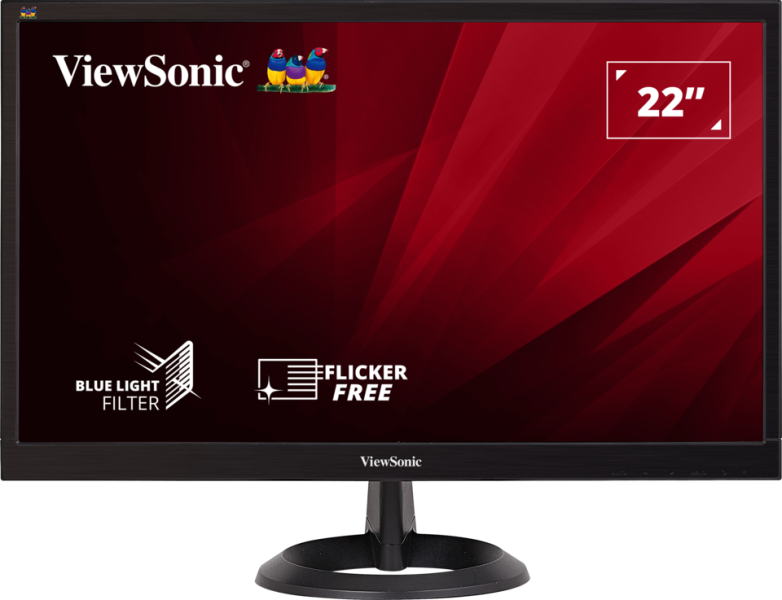

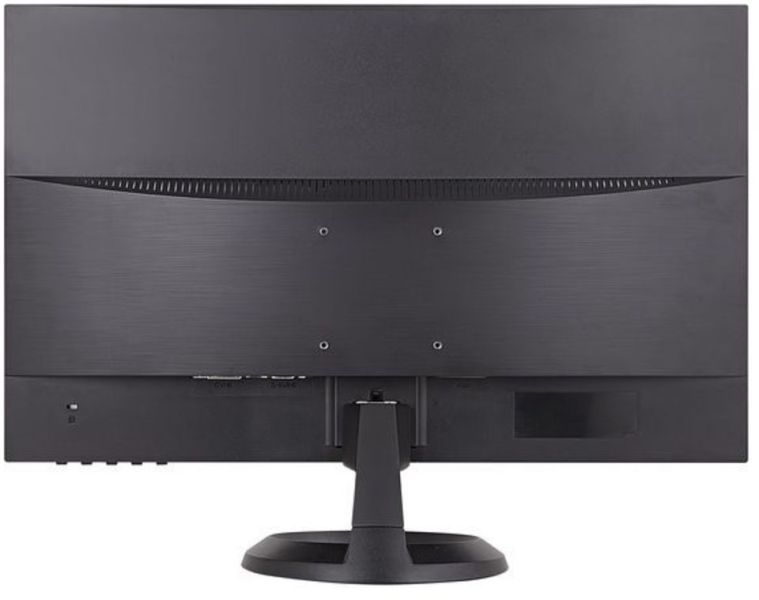

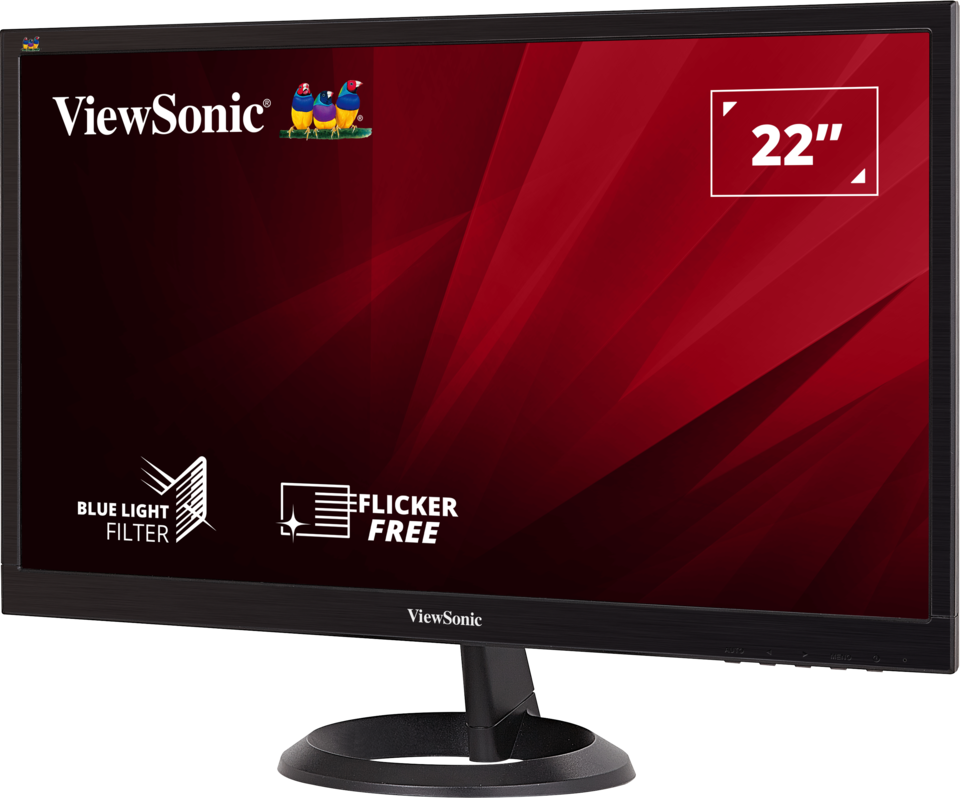

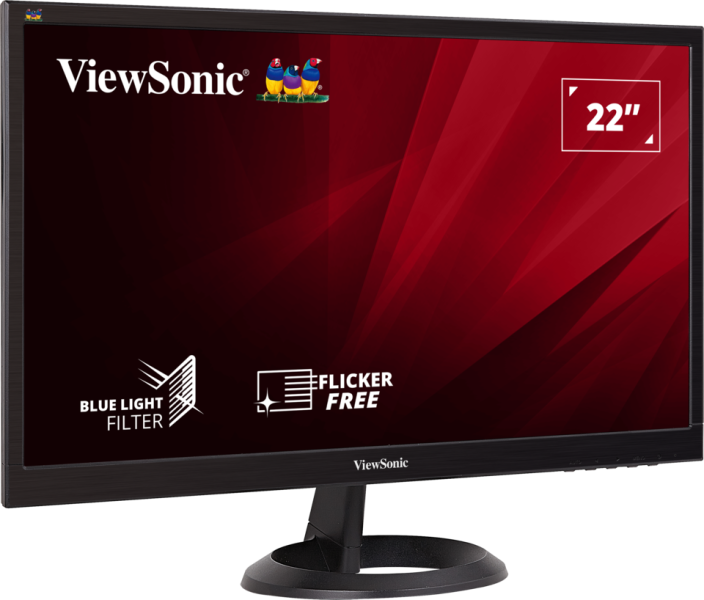

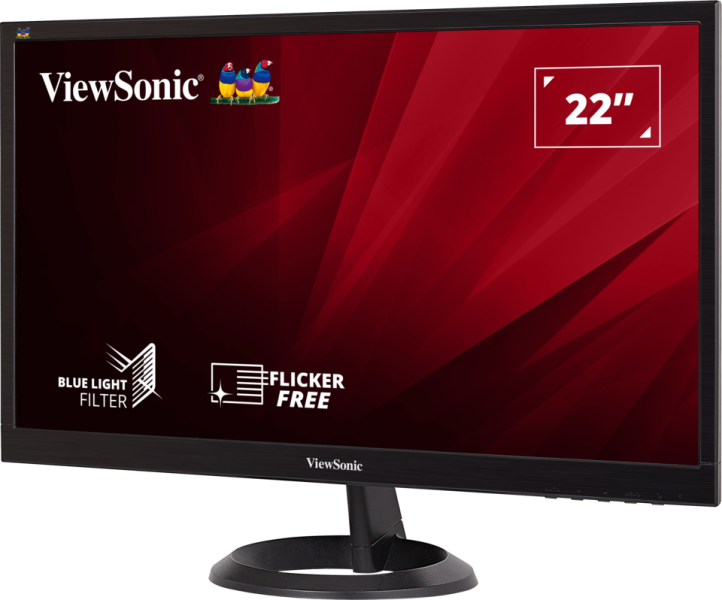

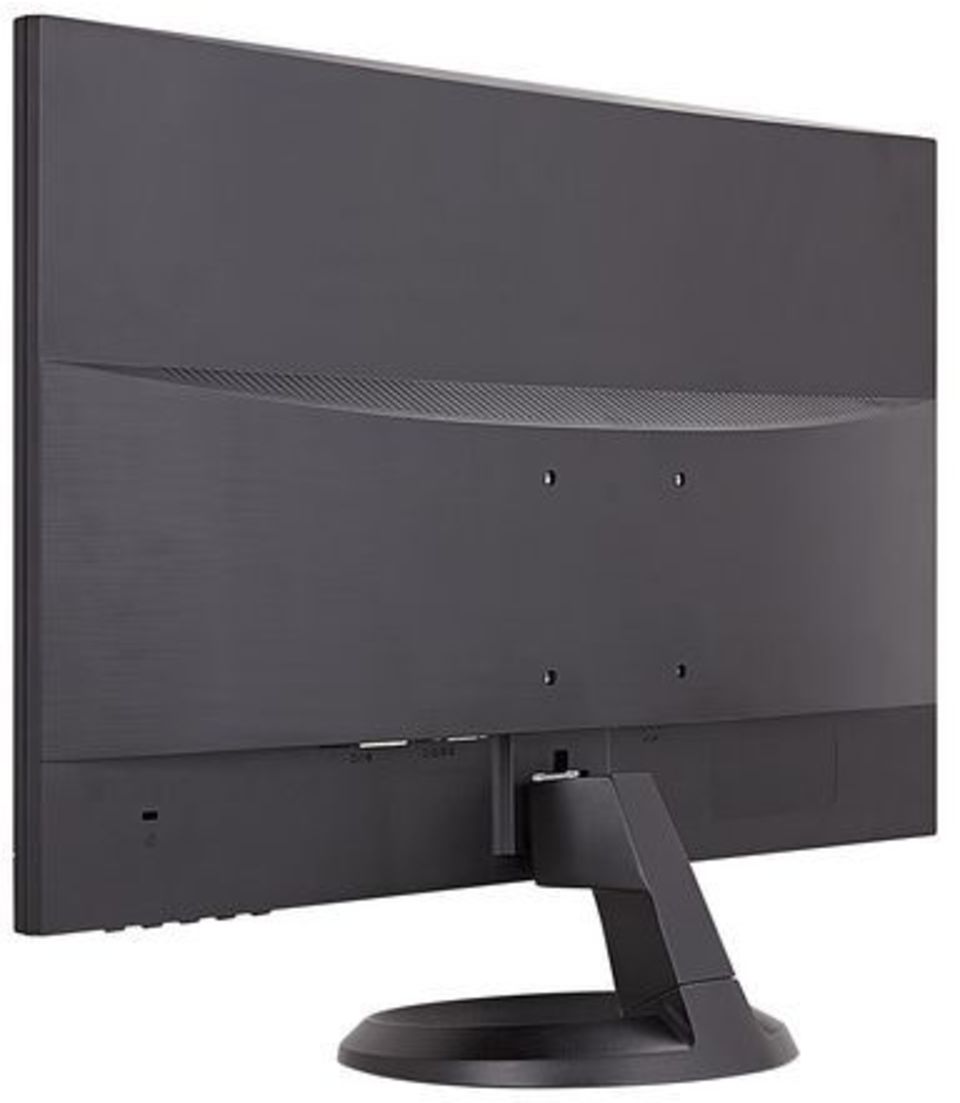

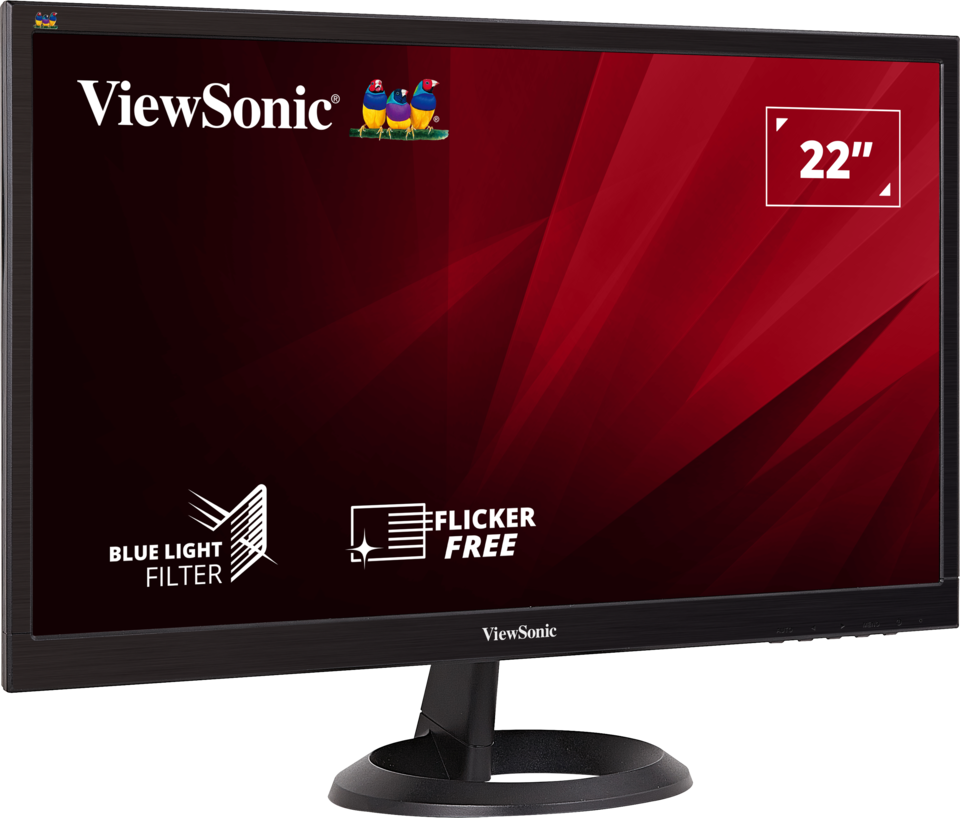

VA2261-2

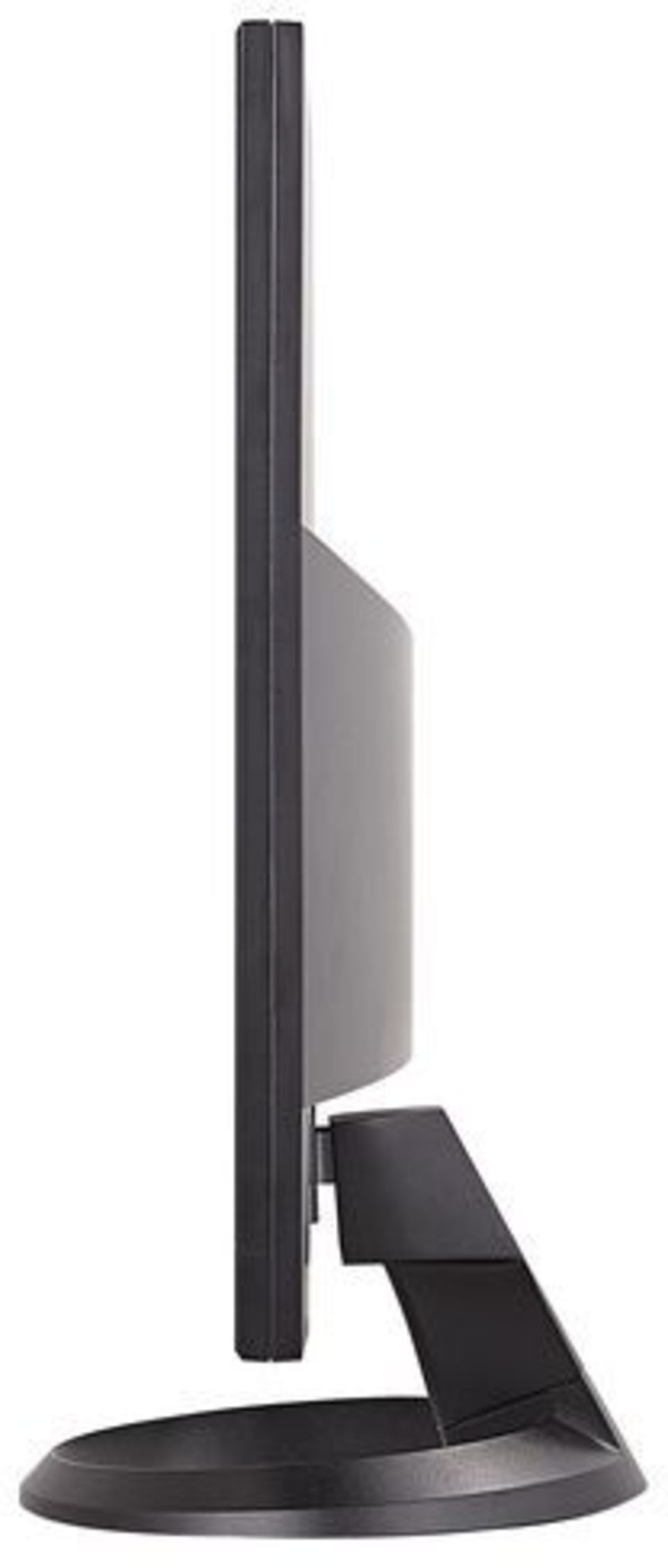

22" 1080p Home and Office Monitor

LCD
Type: 21.5" TFT LED
Display Area (inch): 476.64 x 268.11 mm
Optimum Resolution: 1920x1080
Contrast Ratio: 600:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness (nits): 200 cd/m²
Viewing Angles: 90° / 65°
Response Time: 5 ms (typ)
Panel Surface: Anti-Glare type, Hardness 3H
Colors: 16.7M
Backlight: 1 WLED light bar
Backlight Life: 30,000 Hrs (Min)
INPUT SIGNAL
Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital: DVI (TMDS, 100 ohms)
Frequency: Fh = 24 ~82 kHz ; Fv = 50 ~75 Hz
Sync: Separate Sync
POWER
Voltage: AC 100-240V (Universal); 50/60 Hz
Typical consumption: 22 W (typ)

ERGONOMICS
Tilt: 22° ~ -5°
Compatibility
PC: PC Compatibles (VGA up to 1920x1080 Non Interlaced)
Mac: Power Mac (up to 1920x1080 )
Connector
Power: Internal Power Board , 3-pin plug (CEE22) x1
VIdeo: VGA x1, DVI-D x1
Wall Mount
VESA®: 75 x 75mm
OPERATING CONDITIONS
Humidity: 10% to 90% (no condensation)
Temperature (ºC): 0°C to 40°C
DIMENSIONS (W x H x D) (inch / mm)
Packaging (mm): 570 x 390 x 115 mm
Physical with stand (mm): 504 x 381 x 180 mm
Physical without stand (mm): 504 x 311 x 48 mm
WEIGHT
Gross (kg): 3.6 kg
Net with stand (kg): 2.6 kg
Net without stand (kg): 2.2 kg
PACKAGE CONTENTS
LCD Display Power Cable Video Cable Quick Start Guide Base Instruction Guide
*Actual content may differ from market to market
