VA1903a

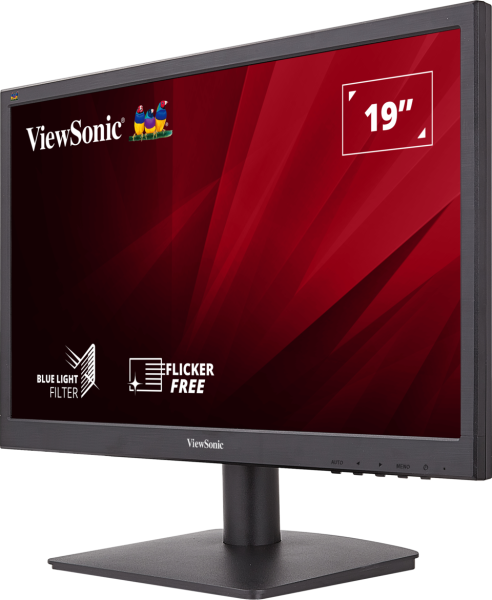

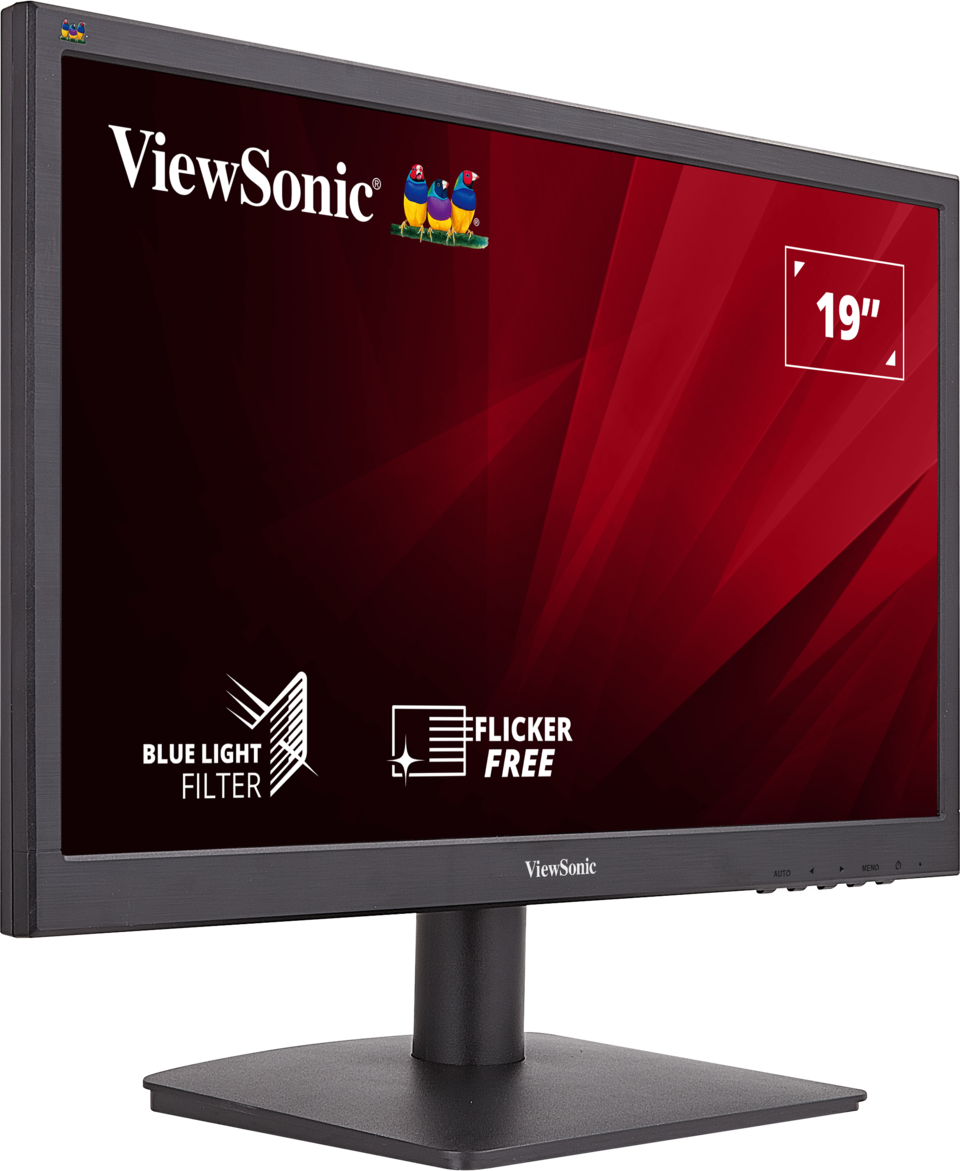

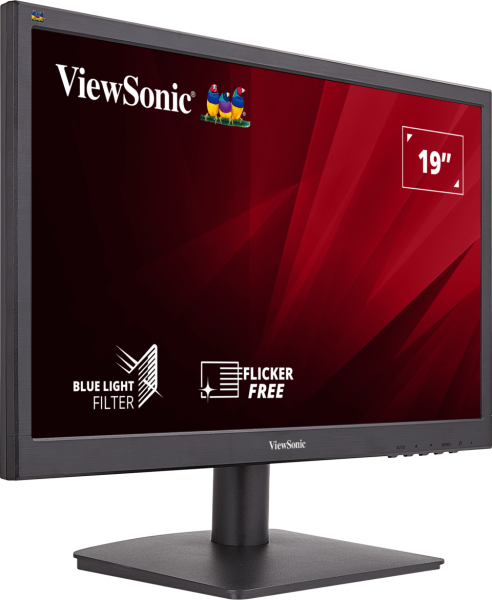

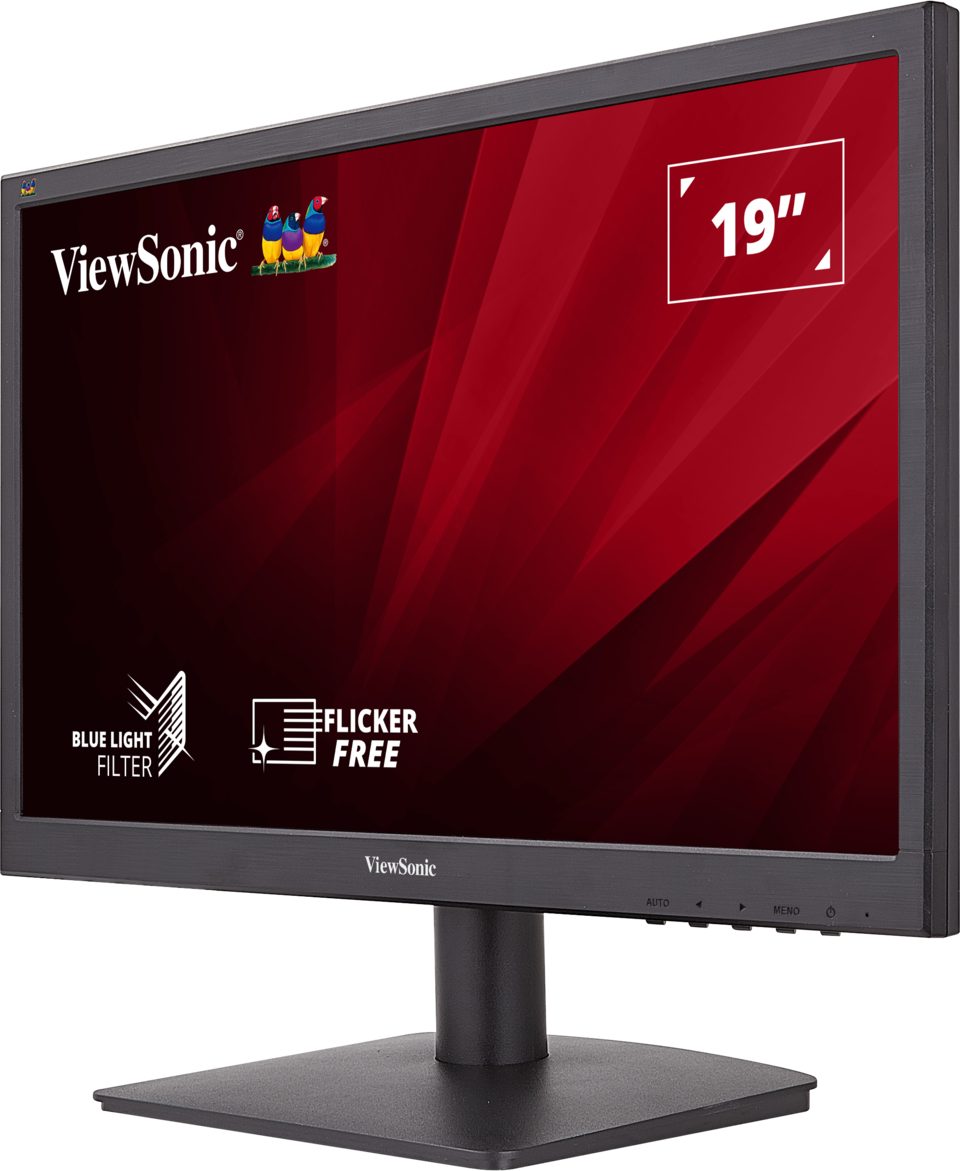

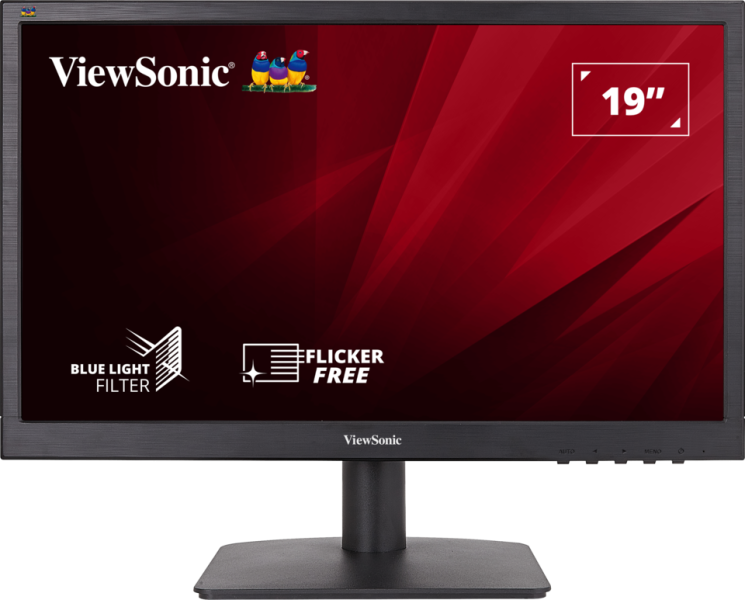

19" 1366x768 Home and Office Monitor

LCD
Type: 18.5" Wide colour a-Si TFT Active Matrix LCD
Display Area (inch): 409.8 x 230.4 mm
Optimum Resolution: 1366 x 768
Brightness (nits): 200 cd/m²
Contrast Ratio: 600:1 (typ)
Viewing Angles: 90° / 65°
Response Time: Tr+Tf: 5 ms (typ)
Panel Surface: Anti-Glare type, Hardness 3H
Colours: 16.7M
Backlight: WLED light bar
Backlight Life: 30,000 hrs
Compatibility
PC: VGA up to 1366 x 768 Non Interlaced
Mac: Power Mac up to 1366 x 768
Connector
Power: Internal Power Board , 3-pin plug (CEE22) x1
Video: VGA x1

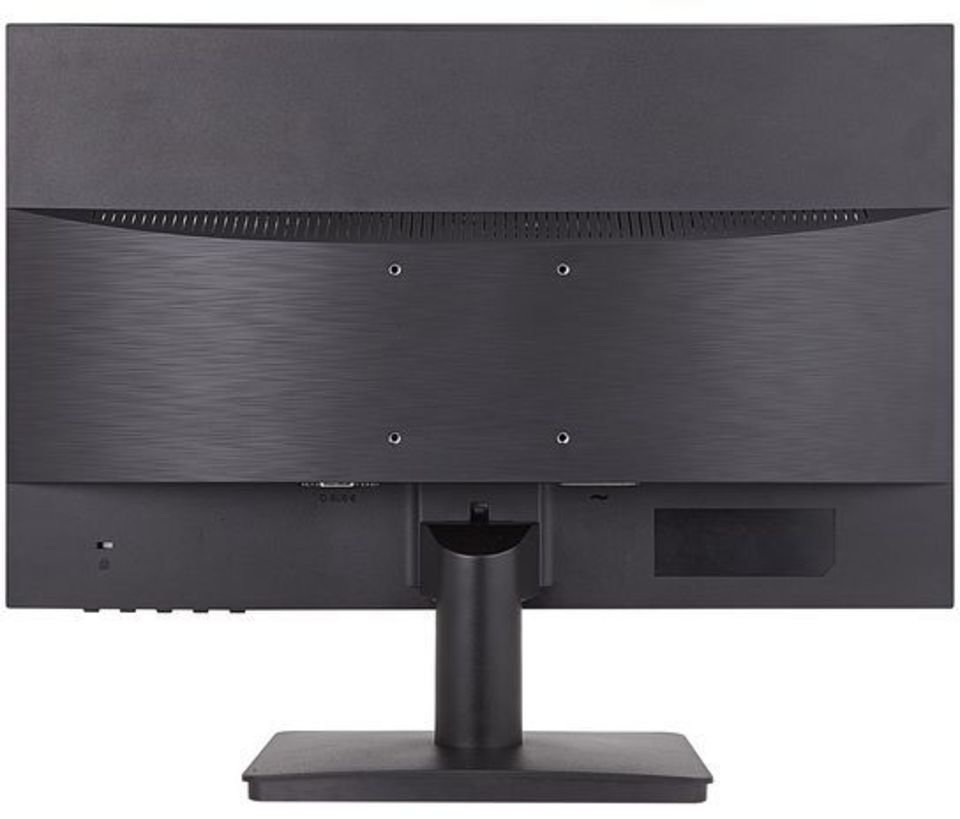

Wall Mount
VESA®: 75 x 75mm
INPUT SIGNAL
Sync: Separate Sync
Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh = 24 ~82 kHz ; Fv = 50 ~75 Hz
POWER
Consumption: 15W (typ)
Optimize: 13W (typ)
Conserve: 10W (typ)
Voltage: AC 100-240V (Universal); 50/60 Hz
ERGONOMICS
Tilt: 18˚ ~ -3˚
OPERATING CONDITIONS
Temperature (ºC): 0°C to 40°C
Humidity: 10% to 90% (no condensation)
DIMENSIONS
Packaging (mm): 502 x 349 x 105 mm
Physical with stand (mm): 438 x 344 x 170 mm
Physical without stand (mm): 438 x 271 x 48 mm
WEIGHT
Gross (kg): 2.9 kg
Net with stand (kg): 2.0 kg
Net without stand (kg): 1.8 kg
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws
WARRANTY
*Warranty offered may differ from market to market
PACKAGE CONTENTS
LCD Display Power Cable D-Sub Video Cable Quick Start Guide
*Actual content may differ from market to market
