TD2421

24" 2-point Touch Screen Monitor

Where to Buy

DISPLAY
Type: 24”W (23.6” Viewable) VA Type LED
Display Area: 521.28mm x 293.22mm
Resolution: Full HD 1920 x 1080
Brightness: 200 cd/m² with touch module
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees
Response Time: GTG (AVG): 5ms
COMPATIBILITY
PC: Dual-touch for Windows 7/8/10
Single touch for Windows XP
Windows Vista/2000 and earlier versions do not support touch
Mac®: Display: Power Mac tested
Touch function: iOS does not support touch

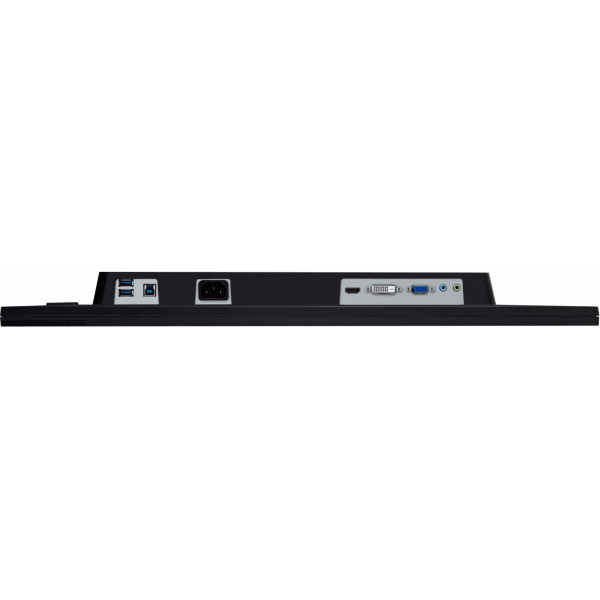

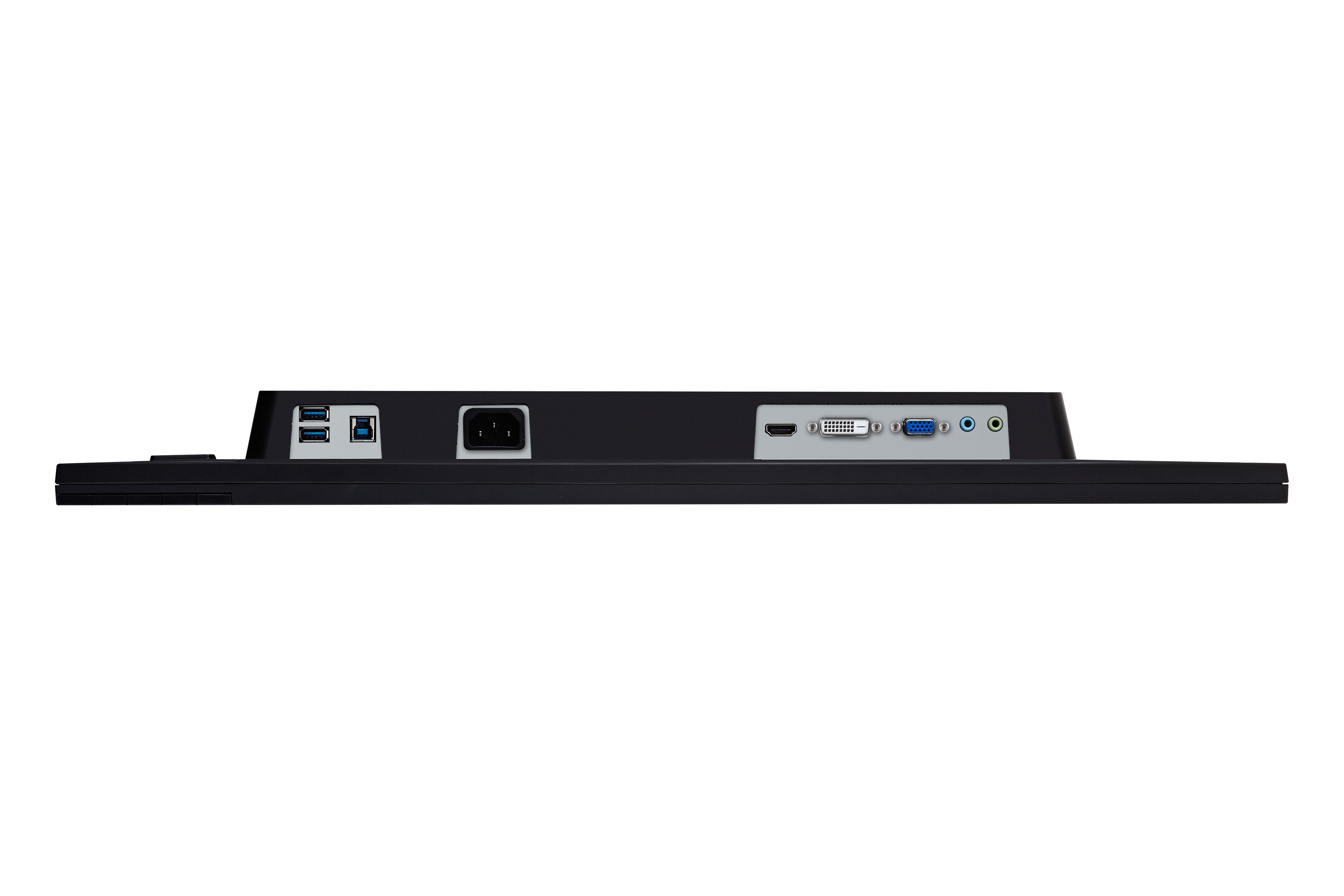

CONNECTOR
Digital: DVI x1
HDMI x 1
Analog: VGA x 1
Audio In: Audio in x 1

SPEAKERS
SPEAKERS: 2W x 2
USB
Up Stream x 1
Down Stream x 2
POWER
Power: Internal Power Board 3-pin plug (CEE22) x1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 16.5W
Optimize: 13.5W
Conserve: 11.5W
ERGONOMICS

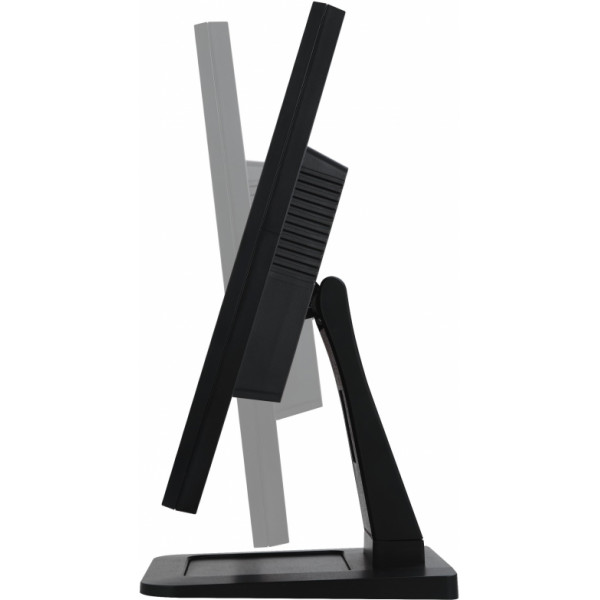

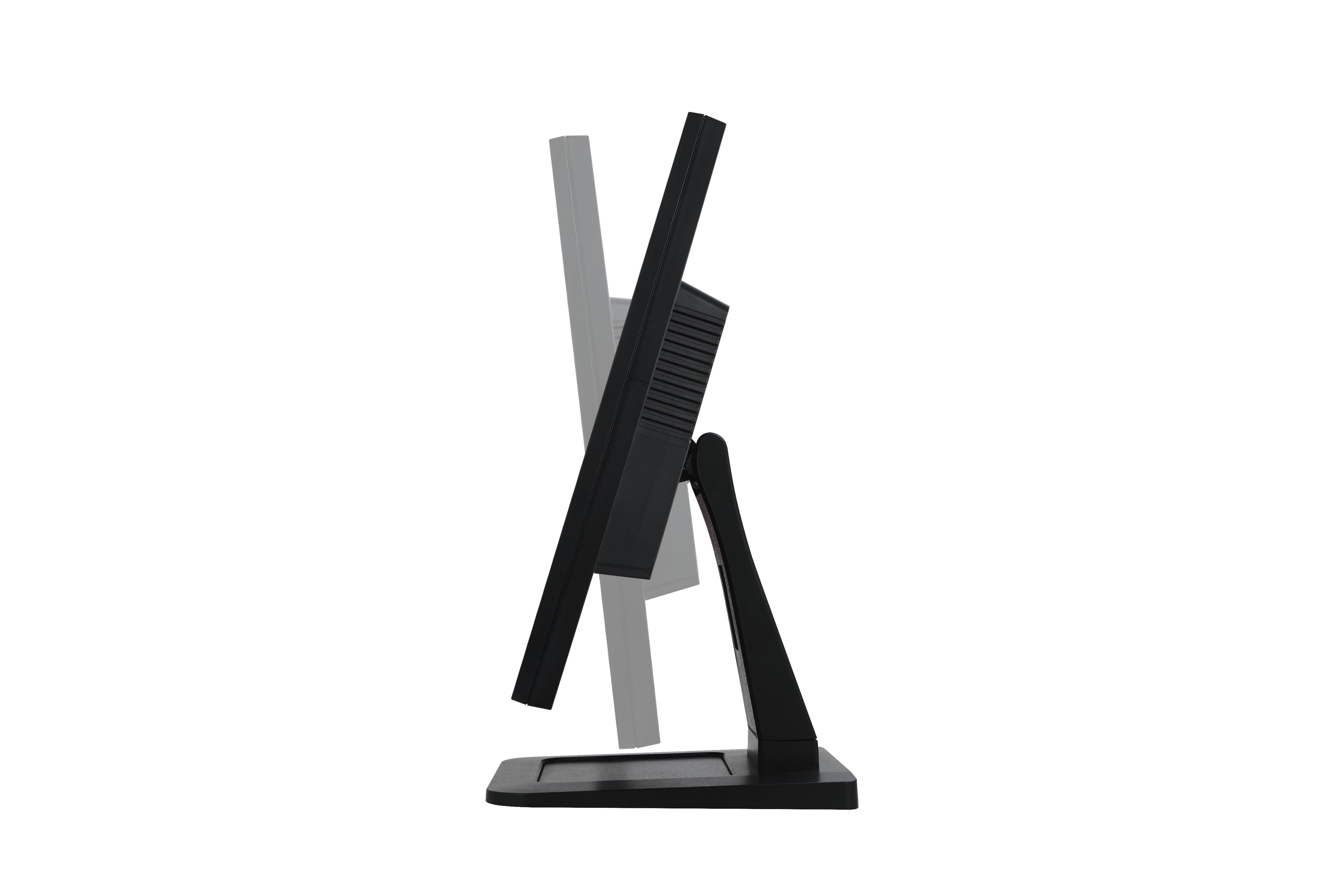

Tilt:22 ~ -6 degrees
SPECIAL FEATURES
KENSINGTON MicroSaver Security Compatible, 12 OSD Languages, Eco mode

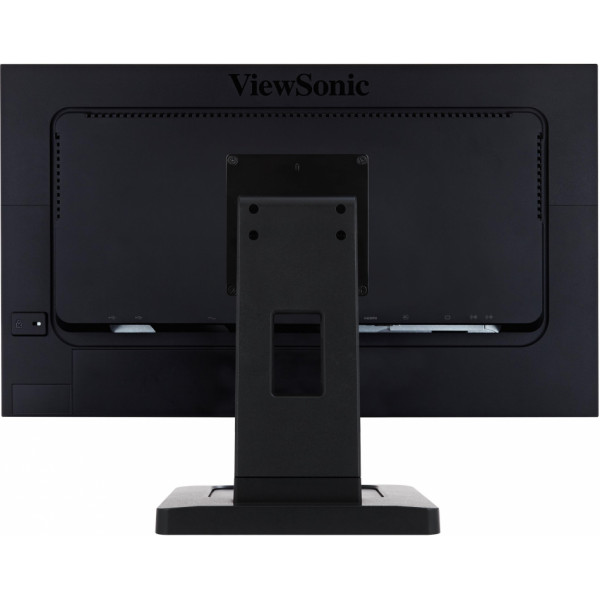

WALL MOUNT
VESA®: 100mm x 100mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 571.08mm (W) x 392.2mm (H) x 240mm (D)
Physical without stand (mm): 571.08mm (W) x 339.8mm (H) x 57.71mm (D)
Packaging (mm): 640mm (W) x 460mm (H) x 200mm (D)
WEIGHT
Net with stand (kg): 5.16kg
Net without stand (kg): 4.32kg
Gross (kg): 7.29kg
PACKAGE CONTENTS
LCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
DVI Cable (1.5m)
USB2.0 Upstream Cable (1.5m)
Audio Cable (1.5m)
Quick Start Guide

*Actual content may differ from market to market
