Archived
ViewBoard IFP6532

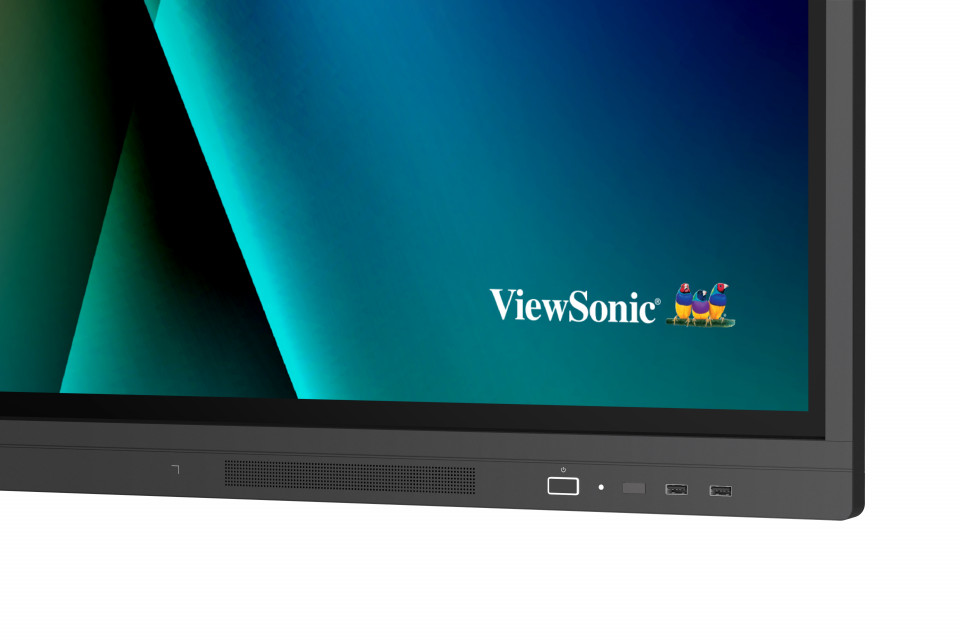

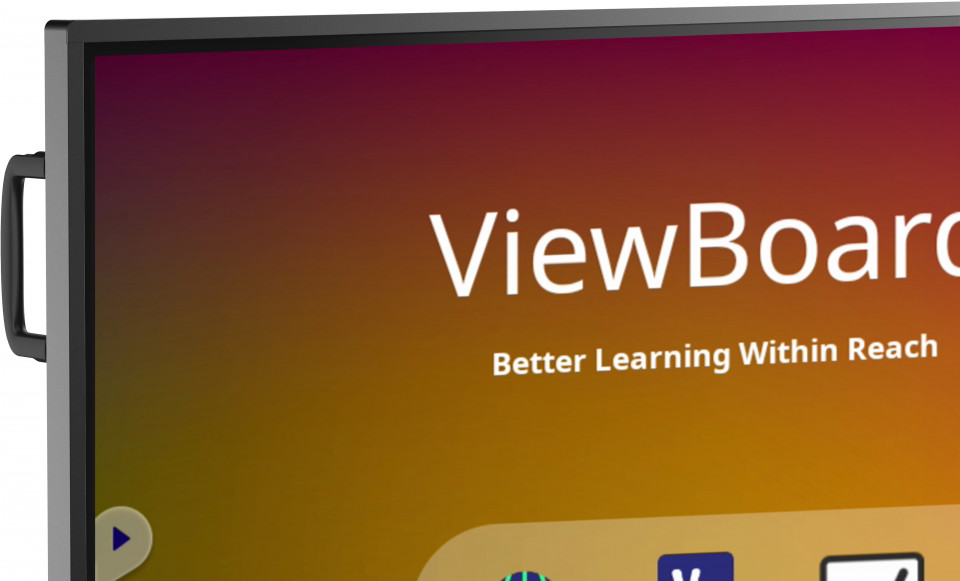

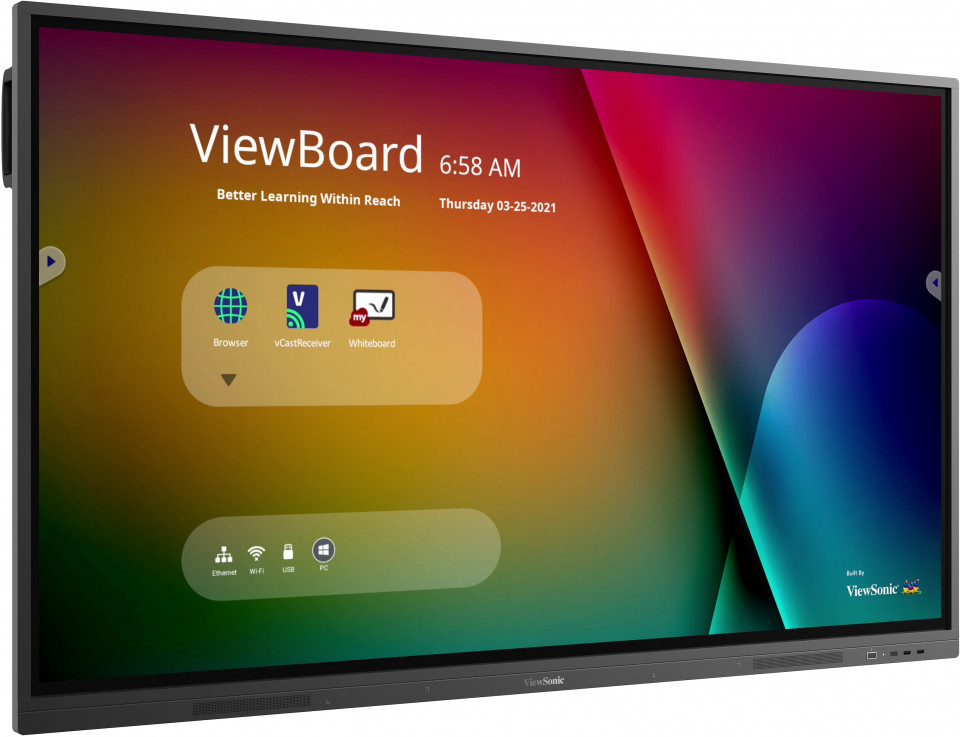

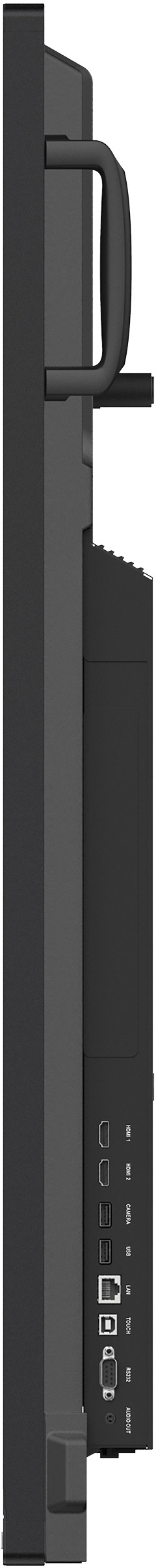

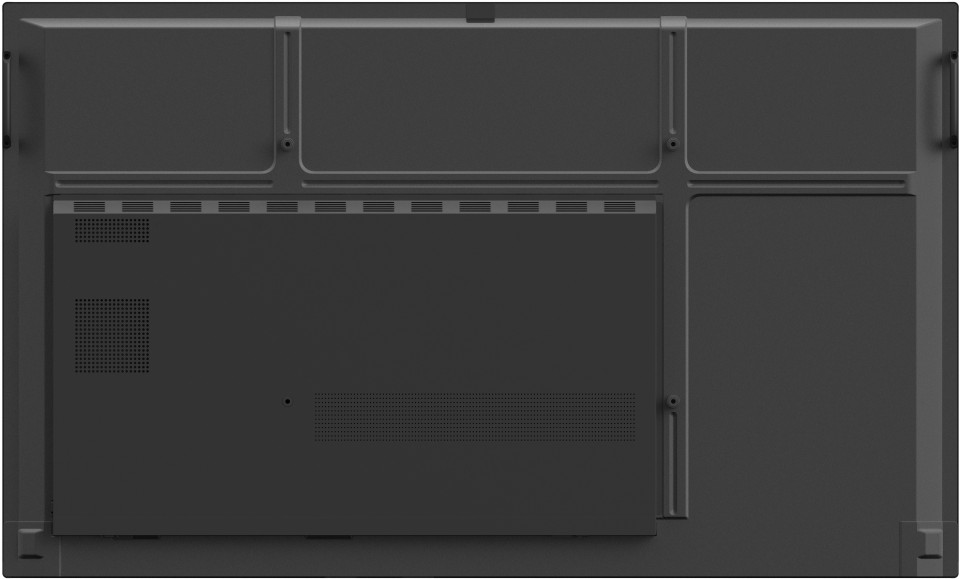

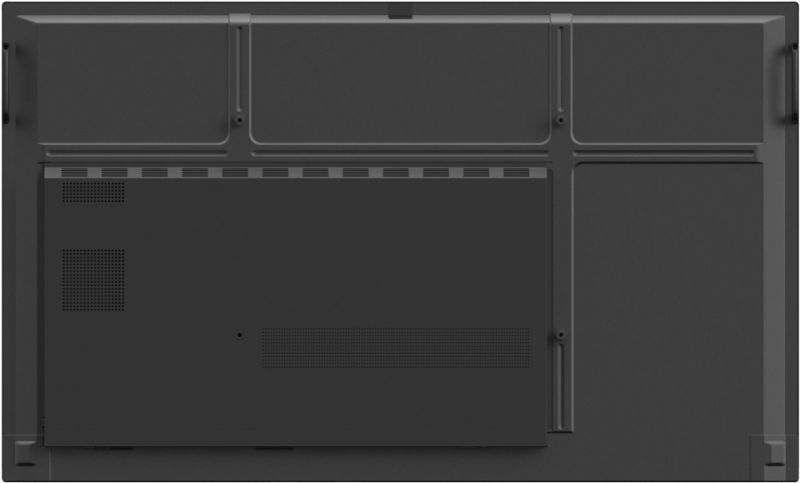

ViewBoard® 65" 4K Interactive Display
- myViewBoard™ suite with whiteboard, wireless casting and remote device management
- Front-facing dual speakers for better engagement
- Pen-on-paper writing experience with Ultra Fine Touch Technology
- Quad Core CPU powered by Android 9.0 OS
- Low blue light certified
SPECIFICATIONS
- DisplayPanel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1428.48(H) x 803.52 (V) (64.5” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1
Response Time: 6.5ms
Viewing Angles: H = 178, V = 178 typ.
Surface Treatment: Hardness: 7H (9H pencil), Anti-flare coating.
Orientation: Landscape - PlatformProcessor: ARM quad-core Cortex-A55
RAM: 2GB DDR4
Storage: 16GB - TouchType/ Tech: Ultra Fine Touch Technology
Touch Point: 20 points touch, 2 points writing
- INPUTHDMI: 2.0 x2 (3840x2160 @60Hz)
(HDMI2 port support ARC function)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-Wifi-002) - OUTPUTAudio: x1 (Earphone out)
- LANRJ45: x1
- USBType A: USB2.0 Front x2 (SmartPort™ USB);
Rear x2
Type B: x1 for HDMI/VGA touch - SPEAKERS10W x 2
- Top Camera PlateYes
- Embedded OSAndroid 9
- Bundle SoftwareBasic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard Whiteboard for Windows
(Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display - Special FeaturesAll-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes - POWERVoltage: 162-240VAC +/- 10%
Consumption: Off: <0.5W
Wall Mount (VESA® ): 600x400 - OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1489×897×87 mm / 58.6x35.3x3.4 in
Packaging (inch / mm): 1628×208×1005 mm / 64x8.2x39.5 in - WEIGHTNet (lb / kg): 38.3kg/84.4lb
Gross (lb / kg): 46.0kg/101.4lb - PACKAGE CONTENTS1. Power cable (3 meters) / 2. Remote control / 3. USB cable (3 meters) / 4. Touch pen x 2 / 5. Quick start guide / 6. RS232 adapter / 7. Clamp x 5 / 8. Webcam plate / 9. Screw x 8 / 10. HDMI cable (3 meters)
- Compatible Slot-in PCVPC12-WPO
