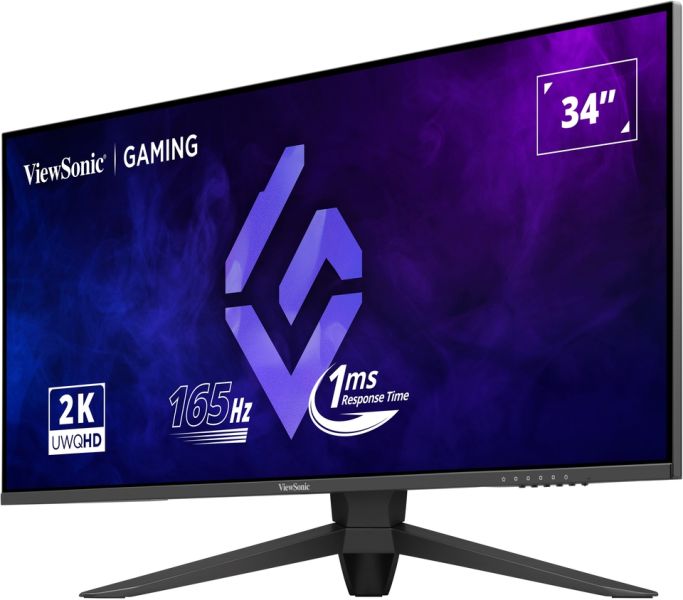

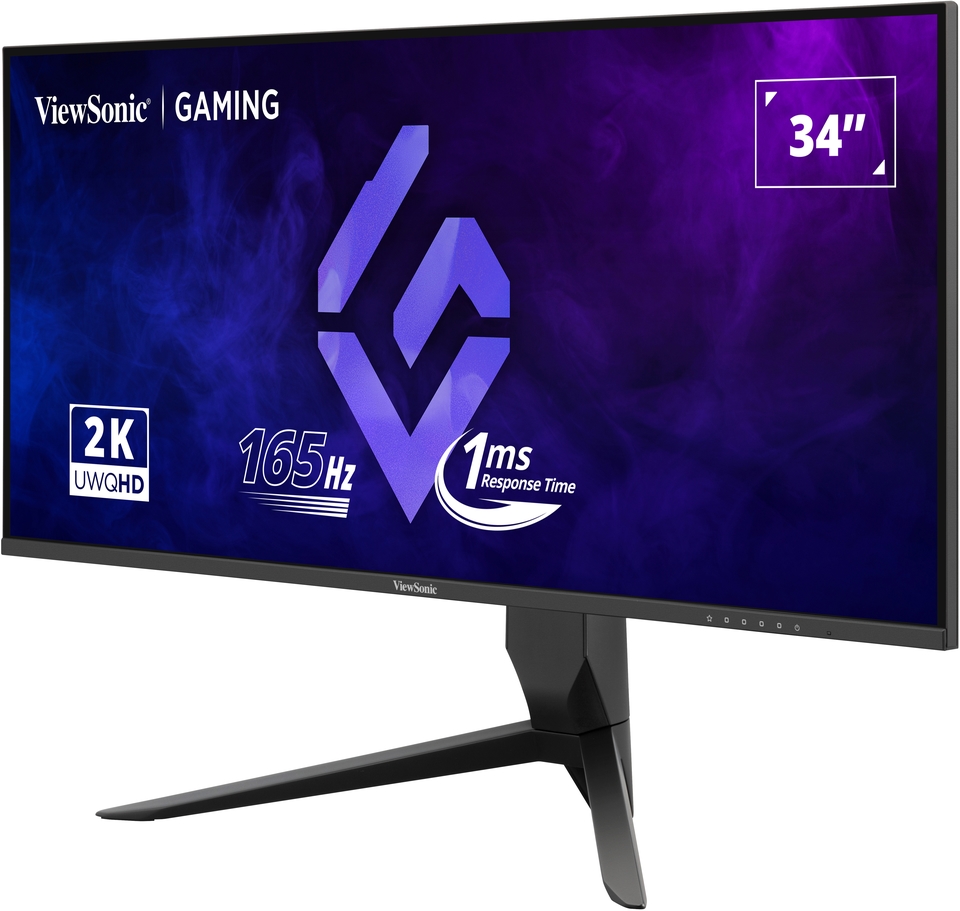

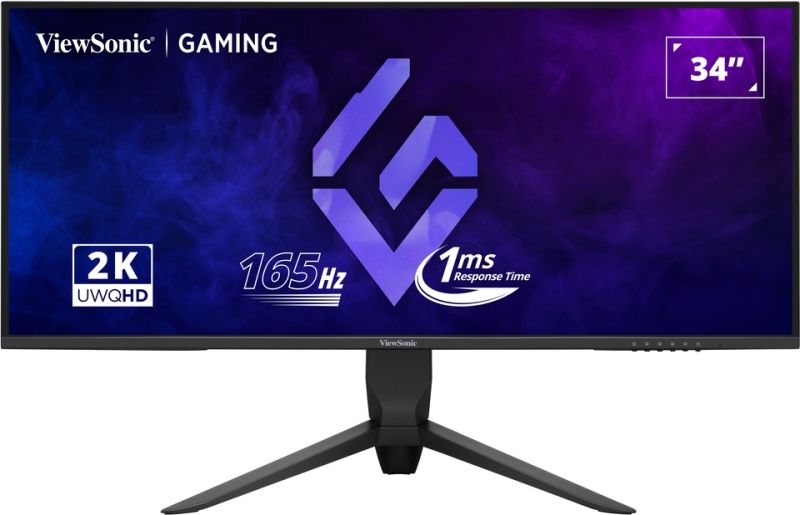

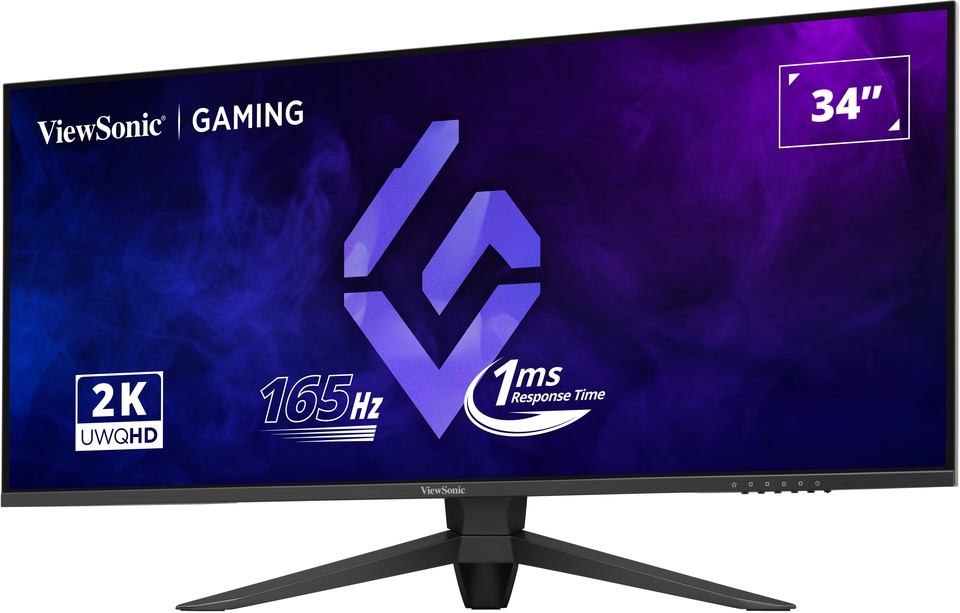

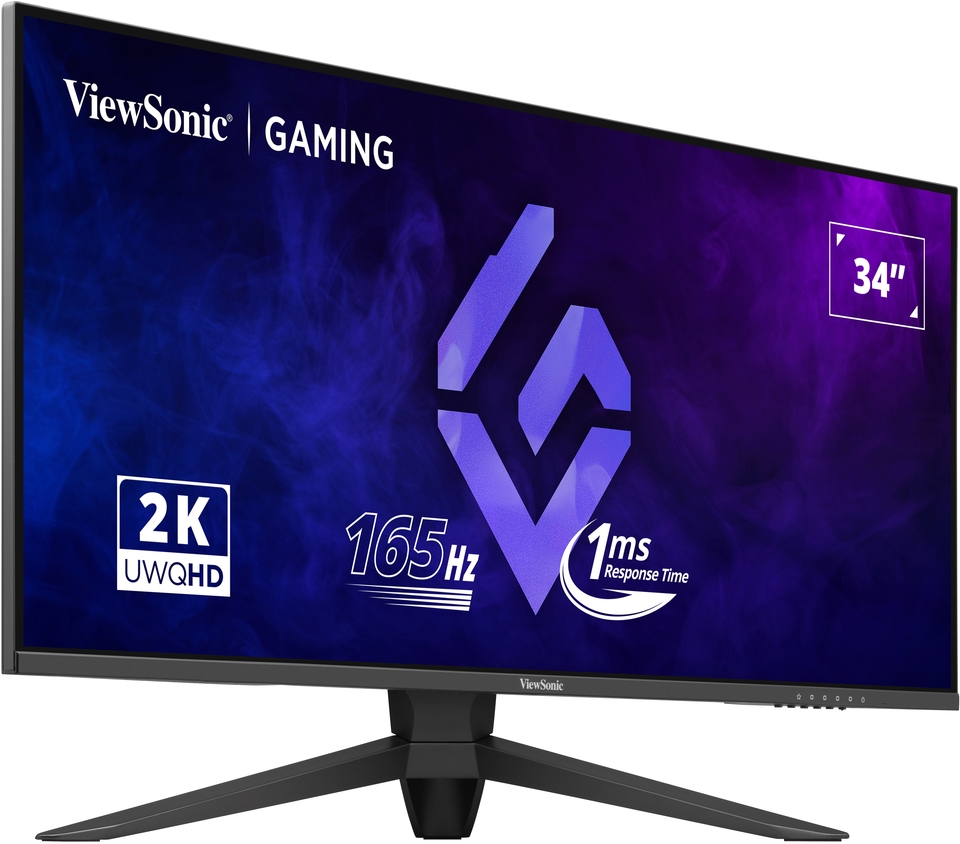

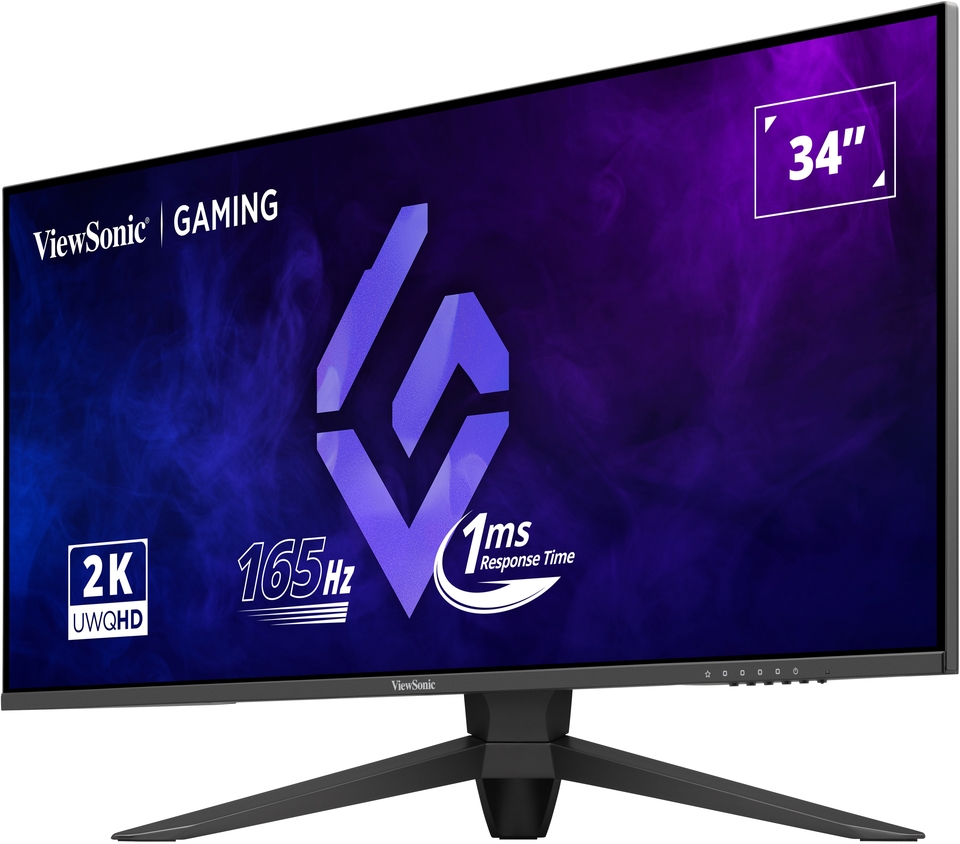

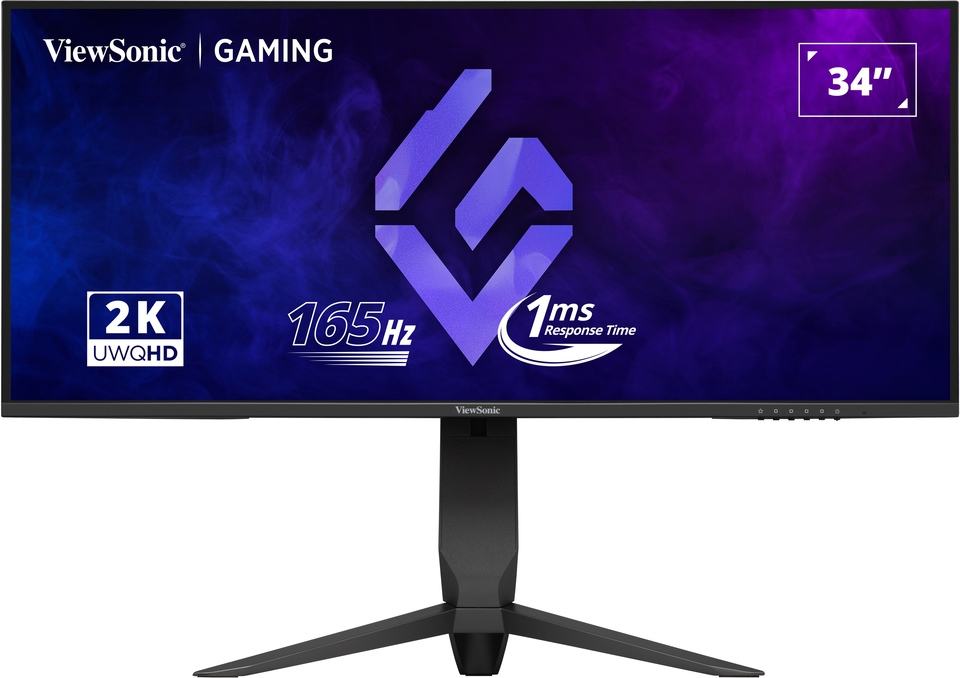

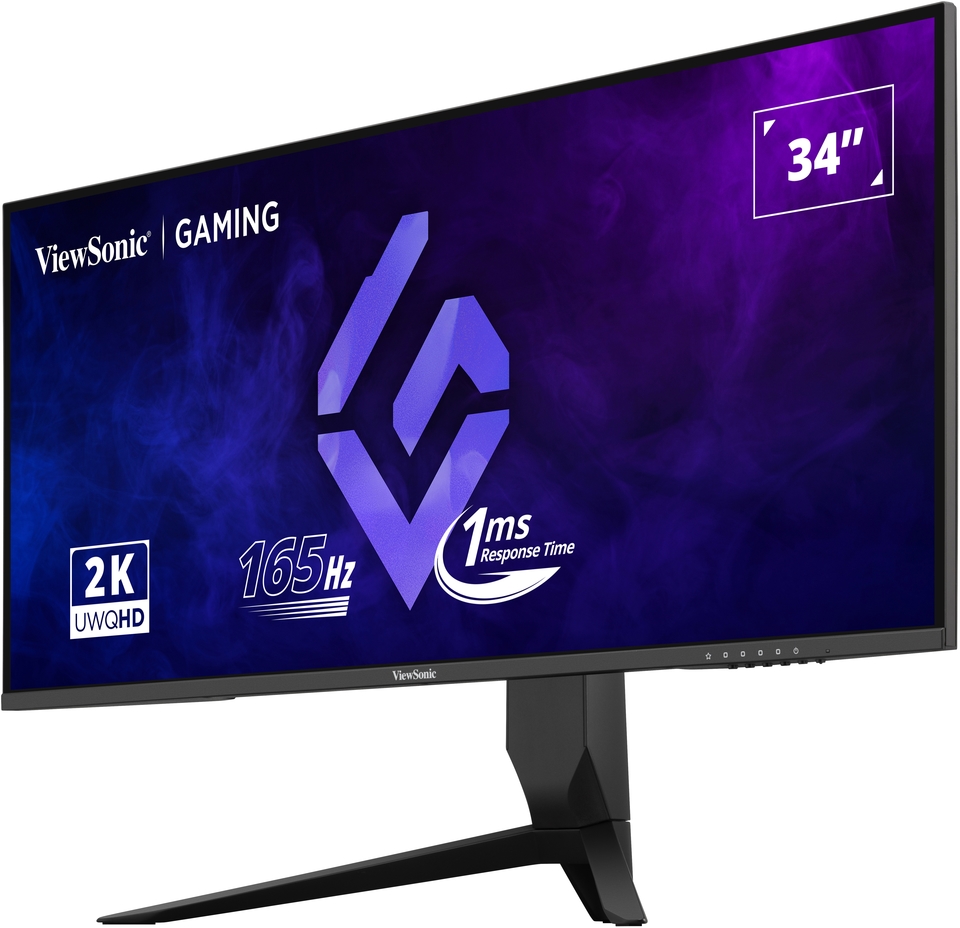

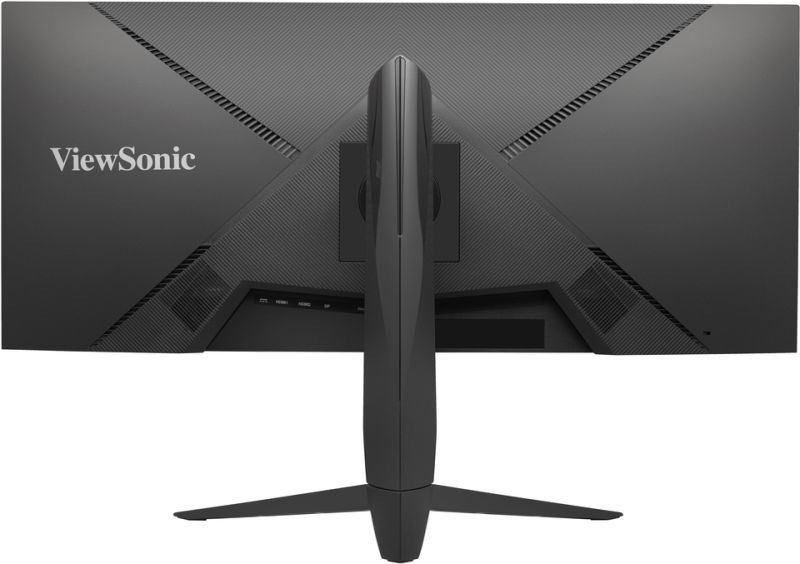

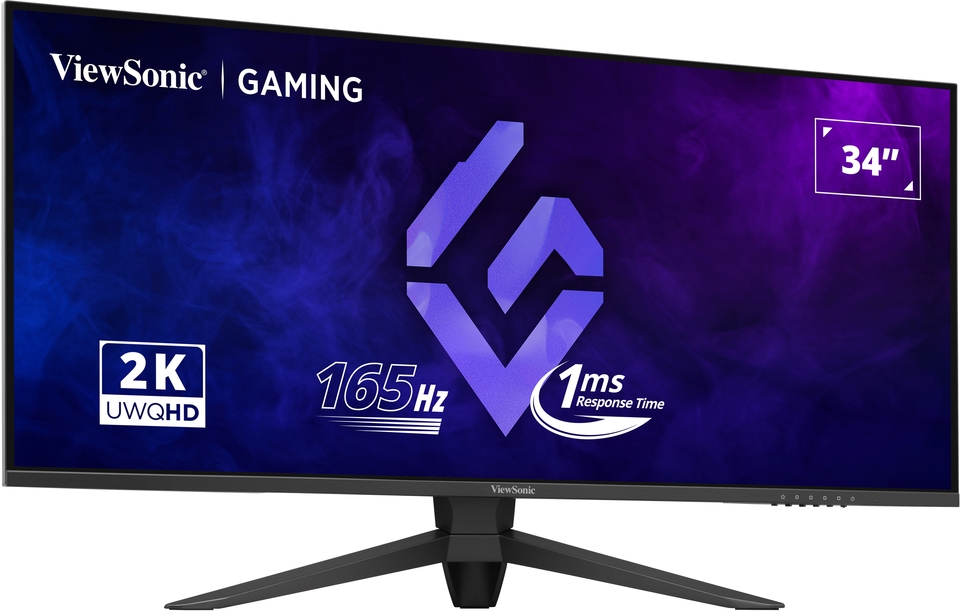

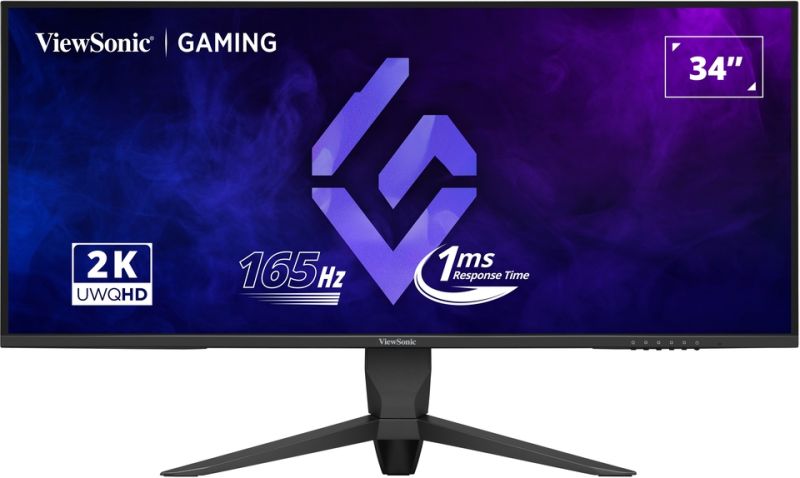

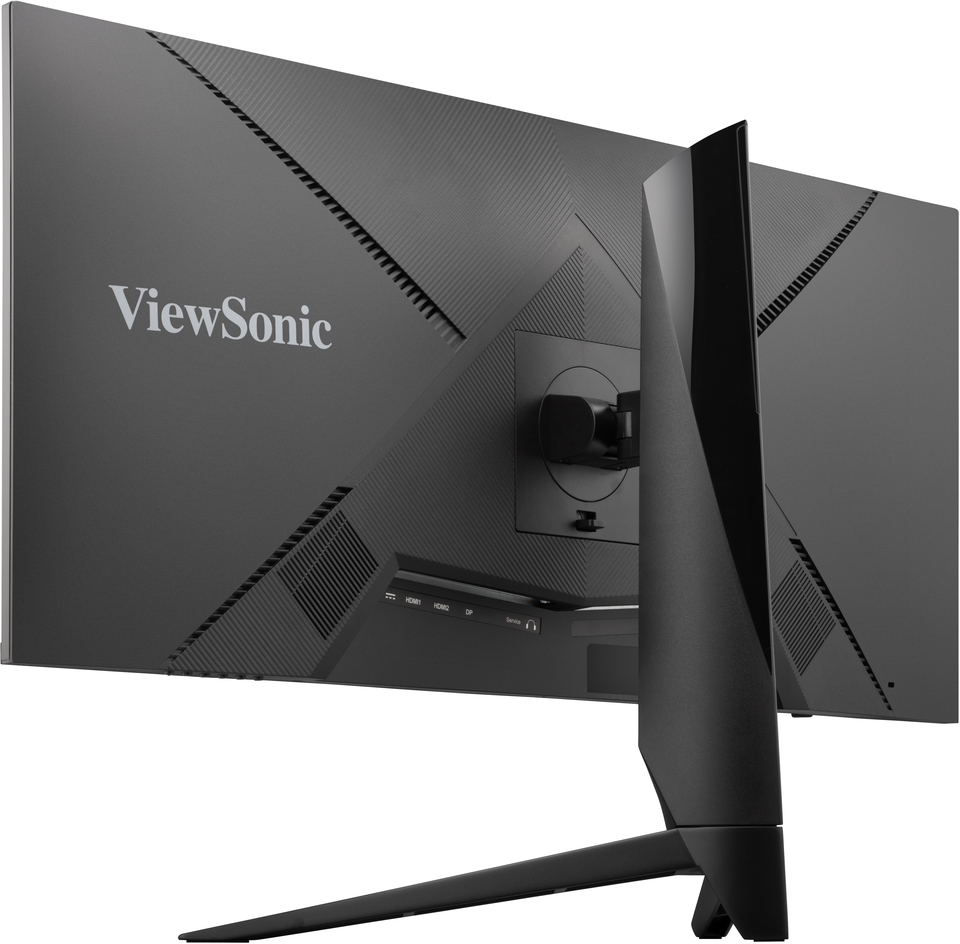

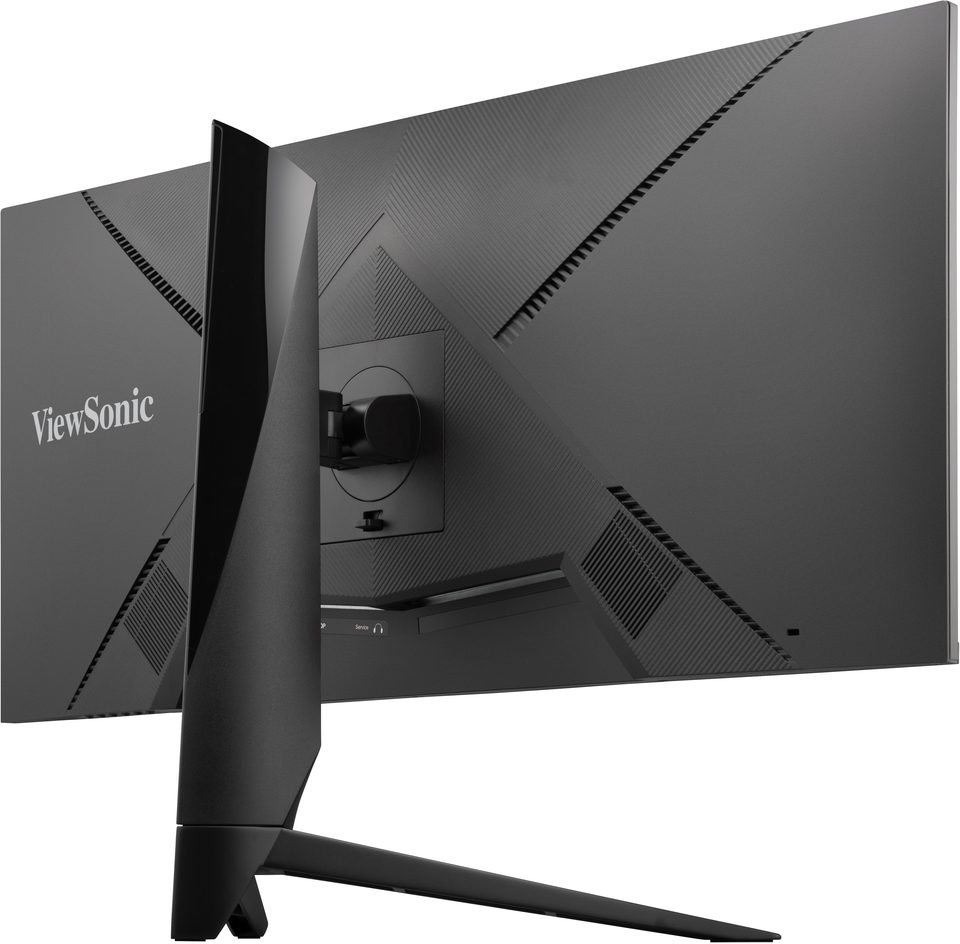

VX3480-2K-PRO

34” 165Hz UWQHD Gaming Monitor

Ultrawide expansive display
Experience fluid gameplay with the blazing-fast 165Hz refresh rate
Swift 1ms MPRT ensures razor-sharp visuals in fast-paced gaming
AMD FreeSync™ Premium technology eliminates screen tearing and reduces stuttering
HDR10 delivers stellar contrast and colour accuracy
Enjoy hassle-free connectivity with HDMI and DisplayPort inputs

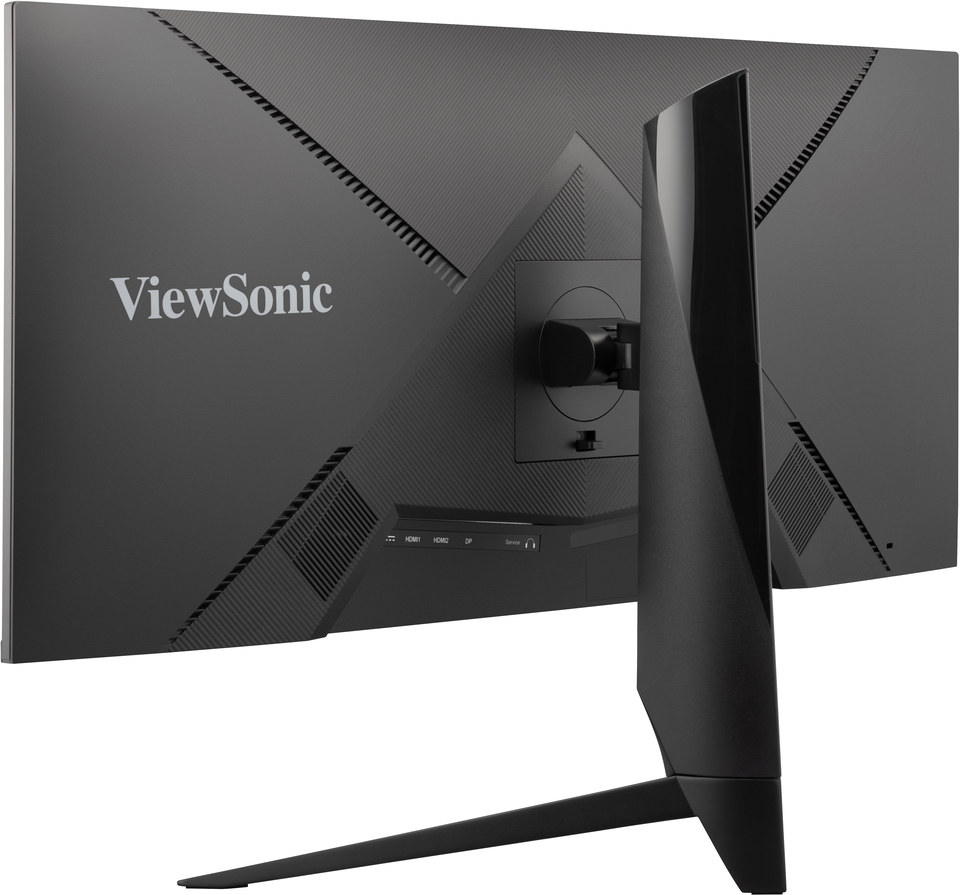

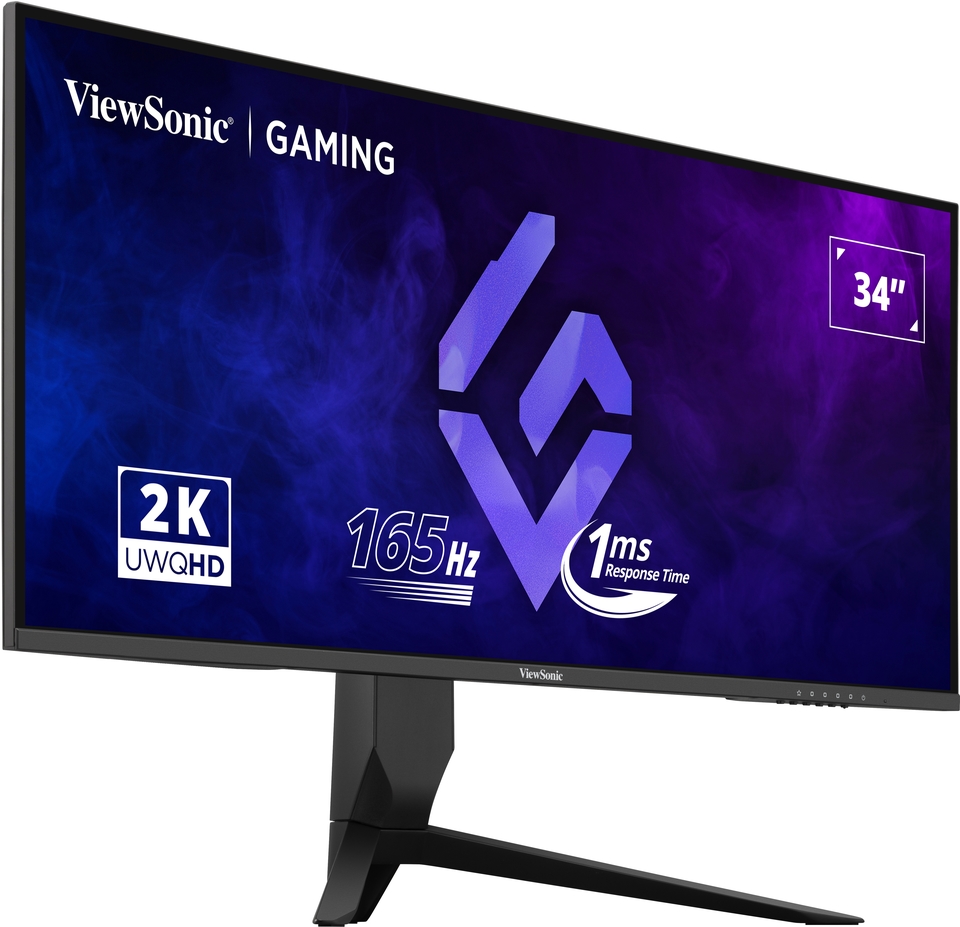

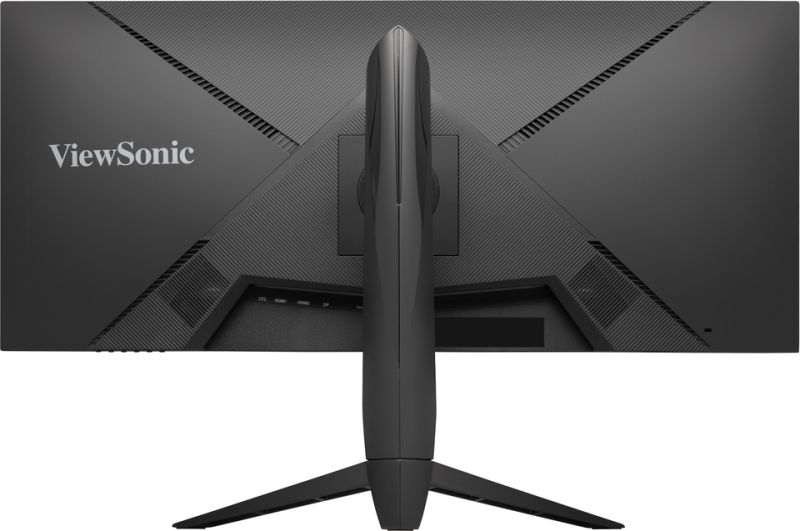

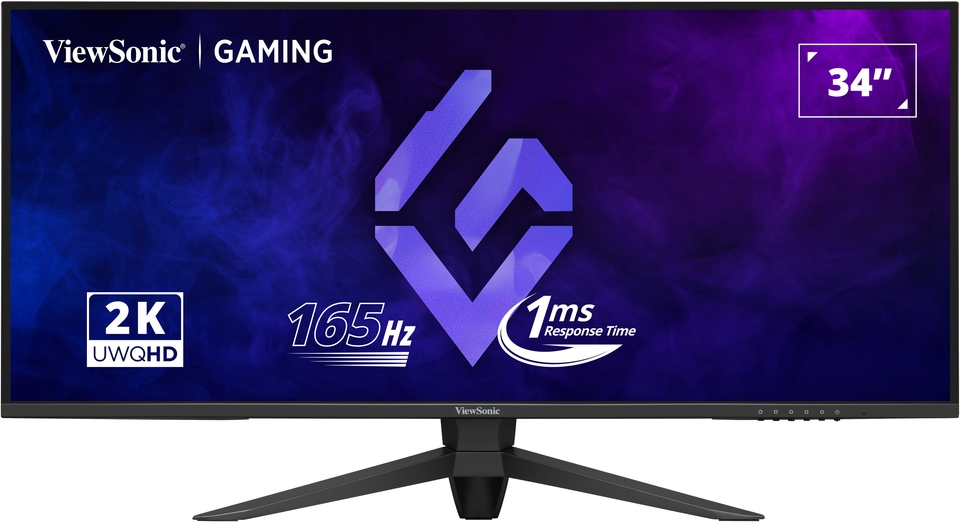

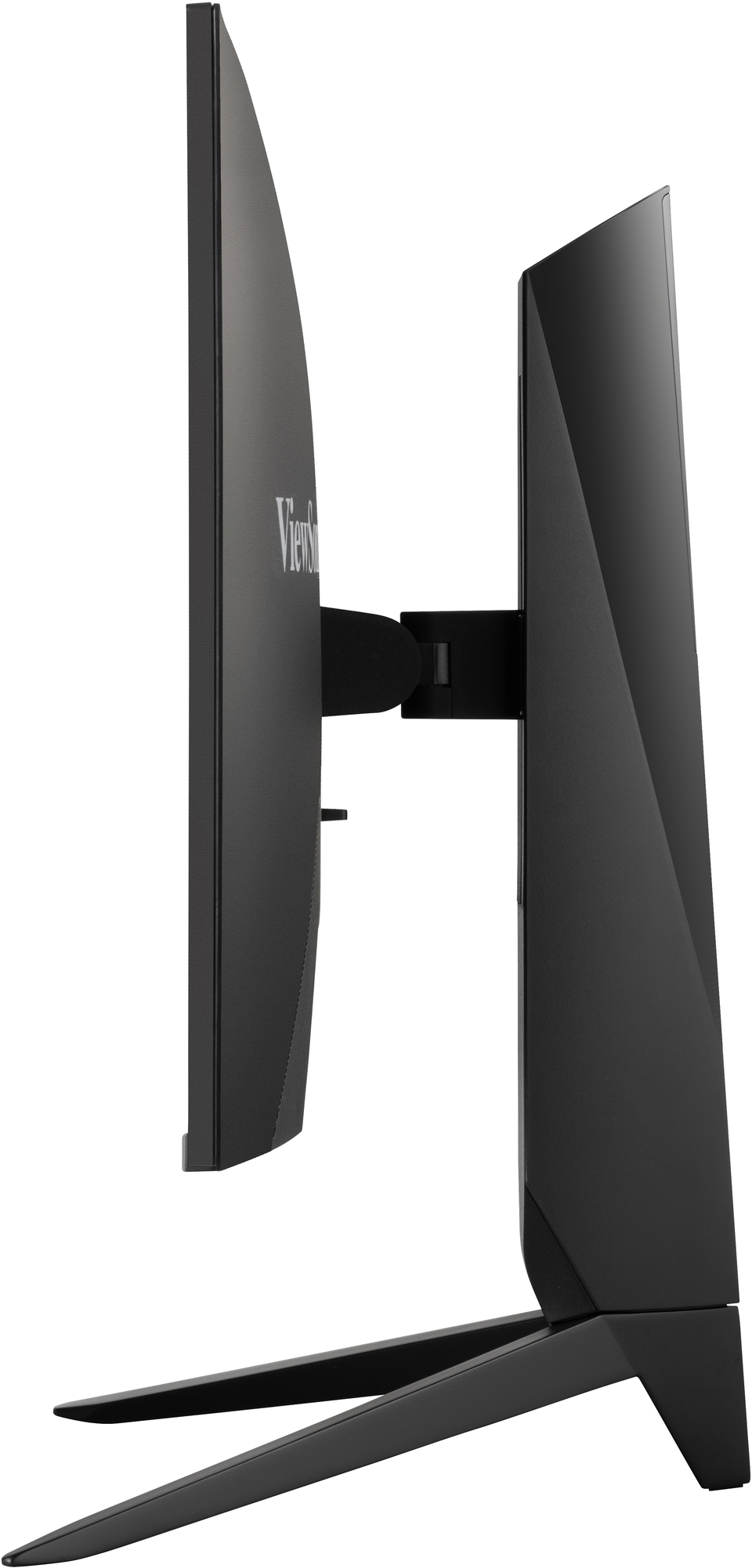

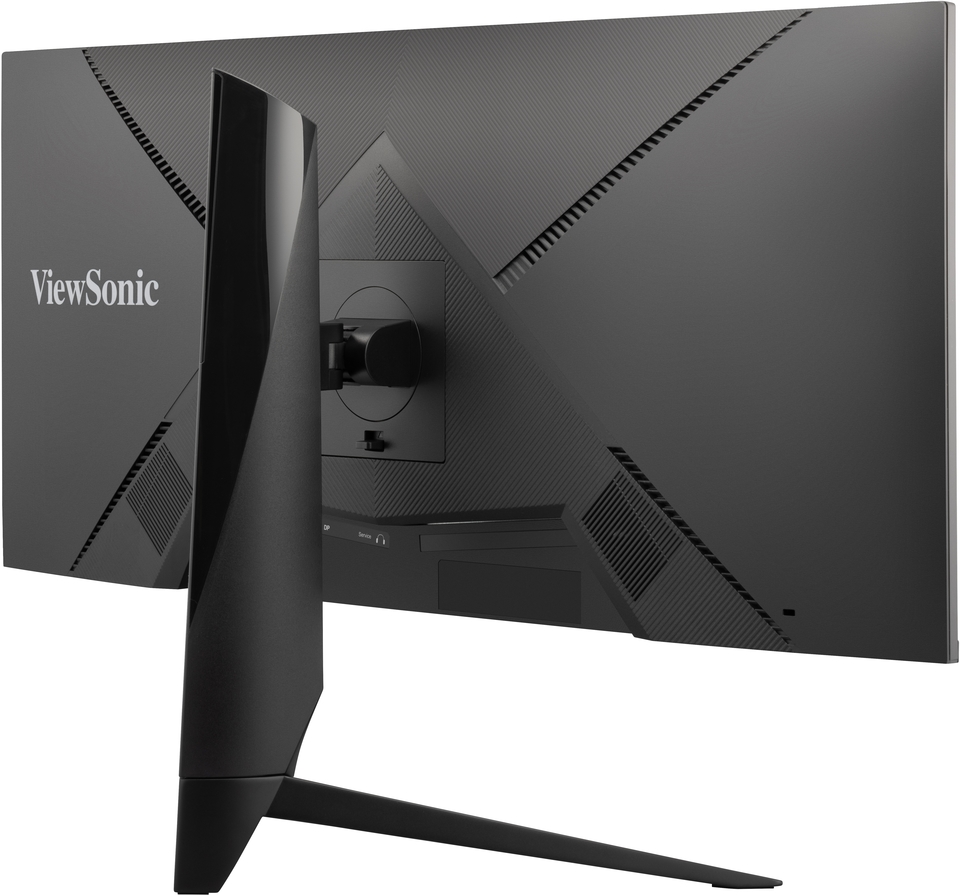

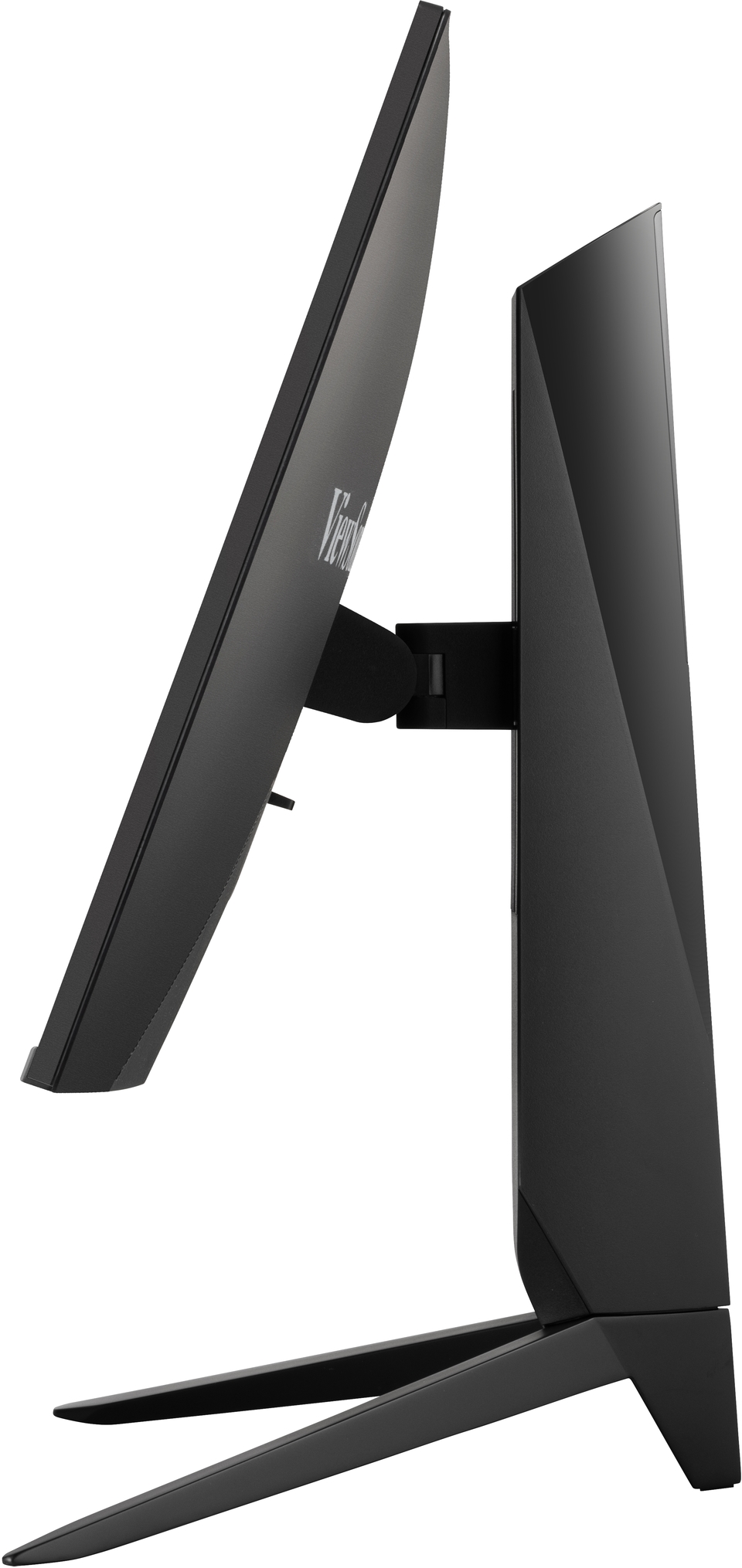

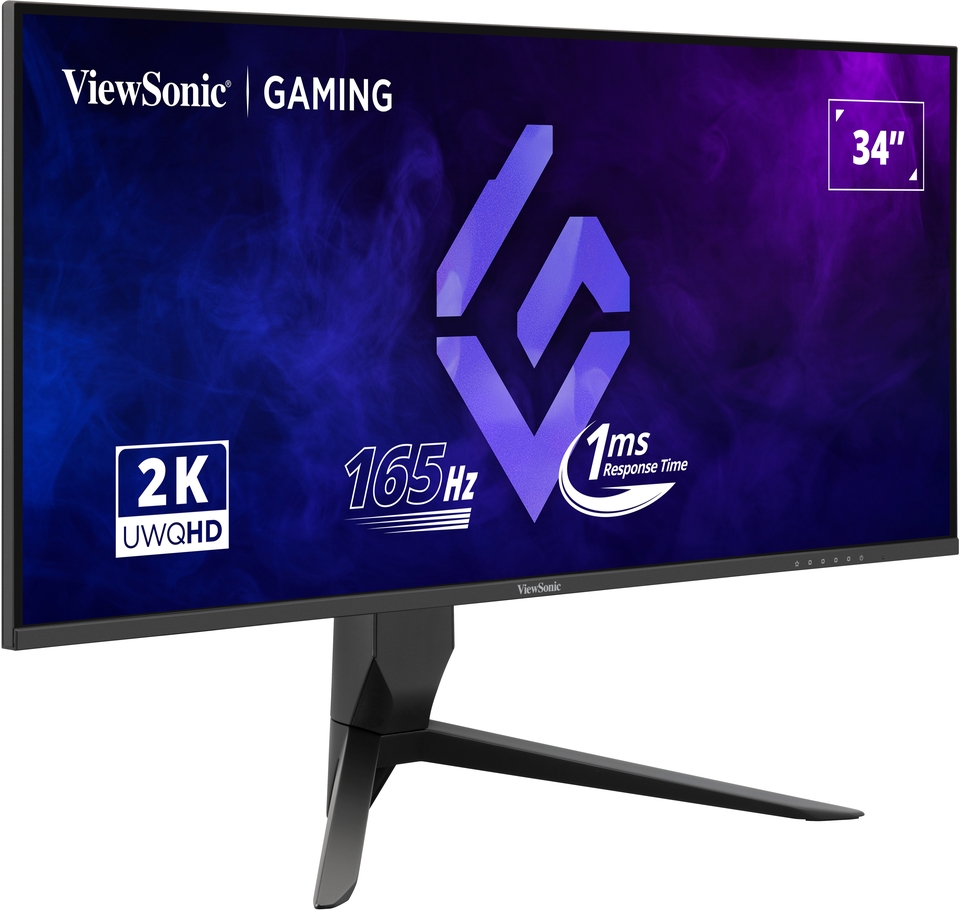

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 34
Viewable Area (in.): 34
Panel Type: VA Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 4,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 300 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 21:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 90% size (Typ)
sRGB: 128% size (Typ)
Pixel Size: 0.232 mm (H) x 0.232 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 3440x1440
Connector
USB 2.0 Type A: 1
3.5mm Audio Out: 1
HDMI 2.0: 2
DisplayPort: 1
Power in: DC Socket (Center Positive)

Power
Eco Mode (Conserve): 24W
Eco Mode (optimized): 32W
Consumption (typical): 43W
Consumption (max): 45W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v2.0): 24 ~ 150KHz, DisplayPort (v1.4): 30 ~ 254KHz
Frequency Vertical: HDMI (v2.0): 48 ~ 100Hz, DisplayPort (v1.4): 48 ~ 165Hz
Video Input
Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)

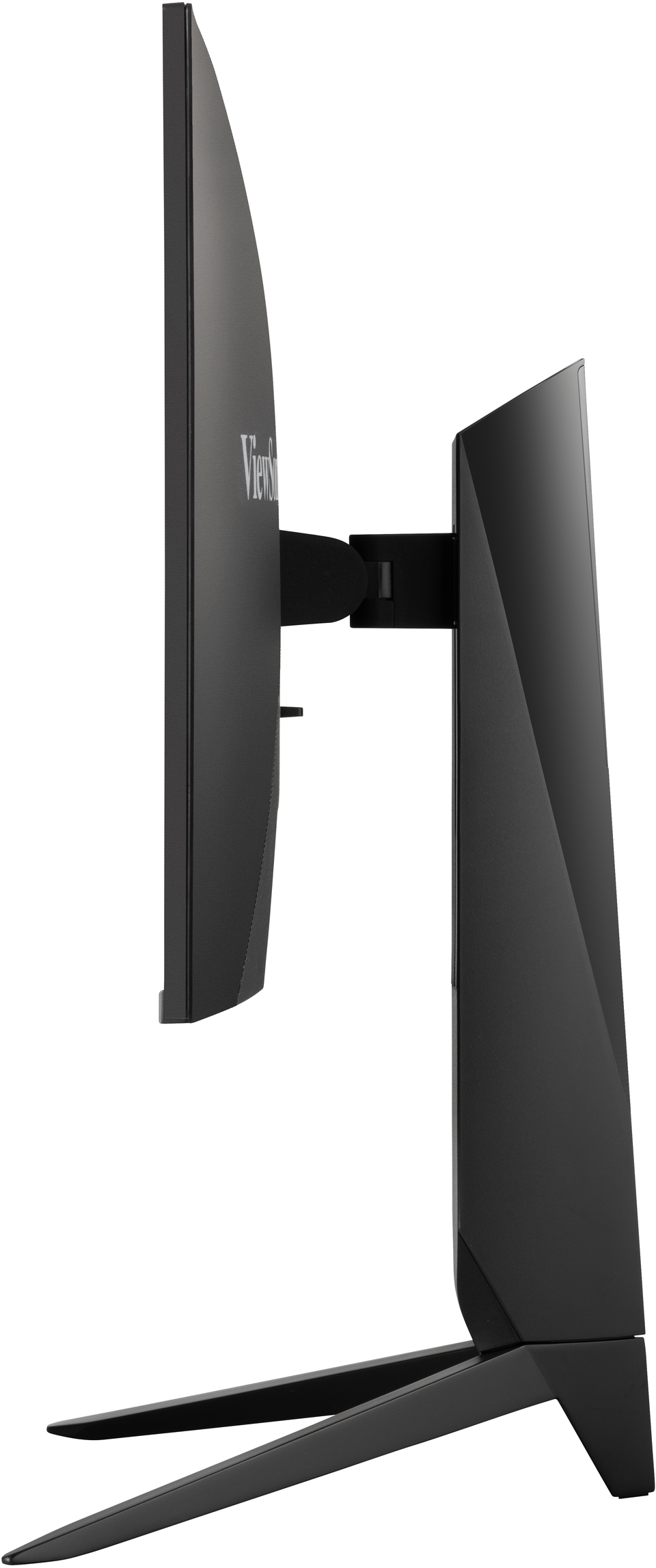

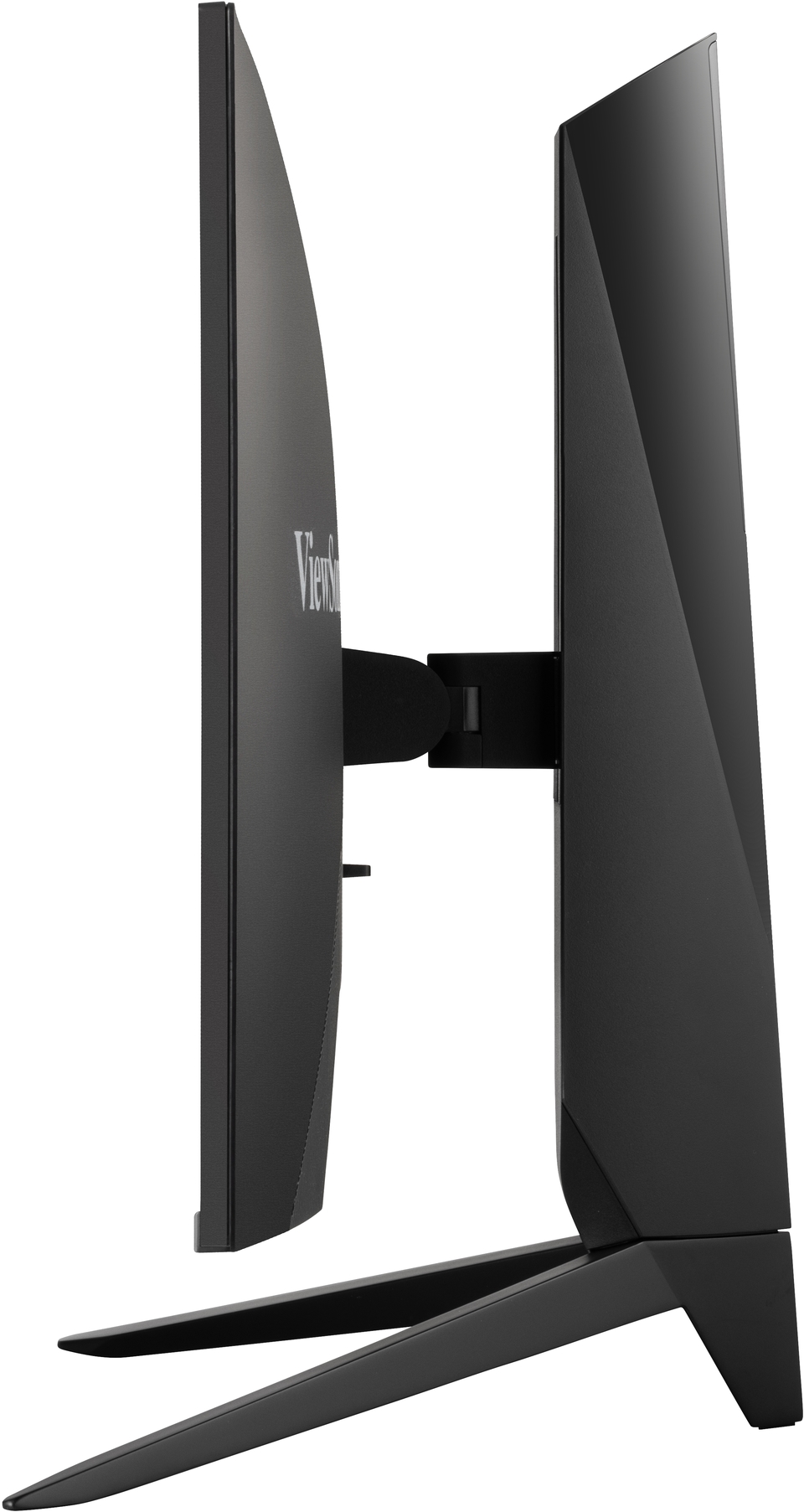

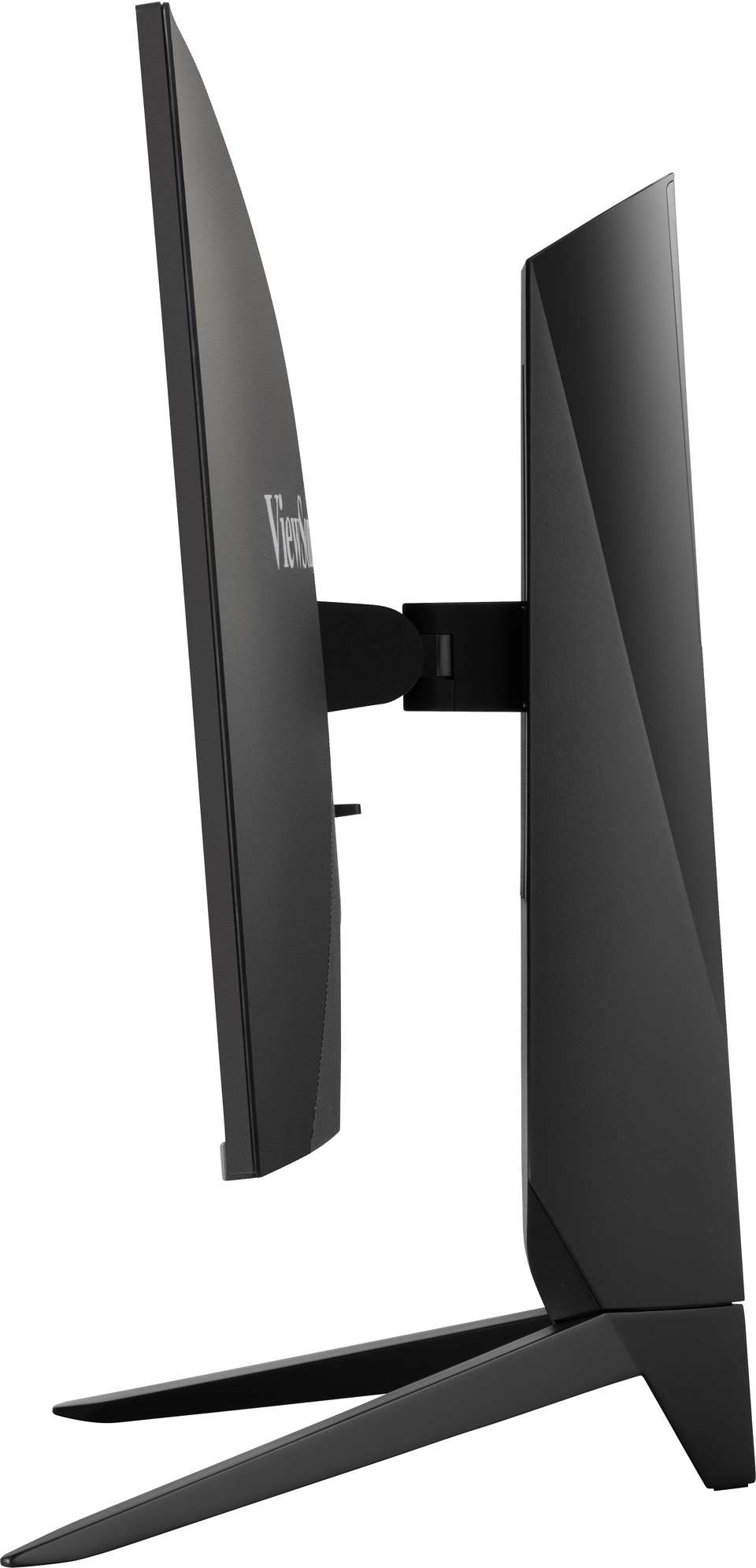

Ergonomics
Height Adjust (mm): 140
Swivel: 90º
Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 15.6
Net Without Stand (lbs): 11.3
Gross (lbs): 21.5
Weight (metric)
Net (kg): 7.1
Net Without Stand (kg): 5.1
Gross (kg): 9.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 36.7 x 19.6 x 8.4
Physical (in.): 32.06 x 18.82~22.99 x 10.41
Physical Without Stand (in.): 32.06 x 14.02 x 1.64
Dimensions (metric) (wxhxd)
Packaging (mm): 933 x 498 x 213
Physical (mm): 814.2 x 478.11~584.02 x 264.33
Physical Without Stand (mm): 814.2 x 356.01 x 41.72
General
PACKAGE CONTENTS: VX3480-2K-PRO x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
