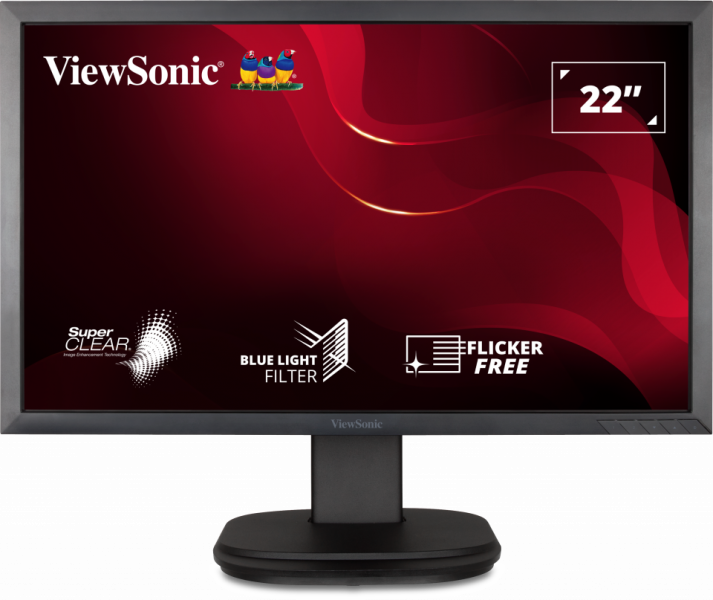

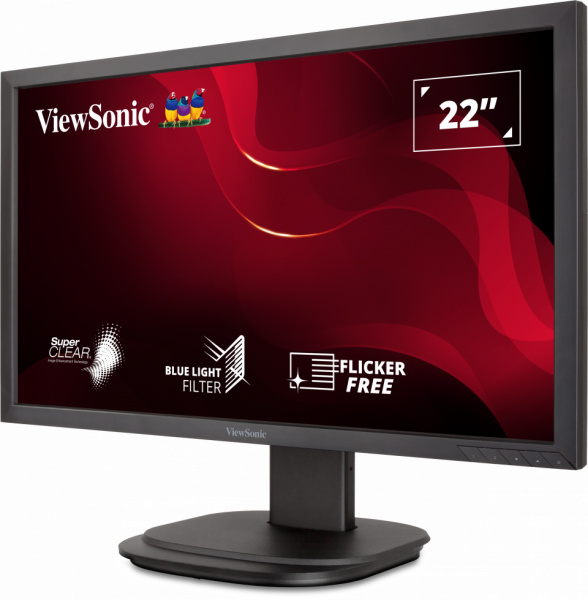

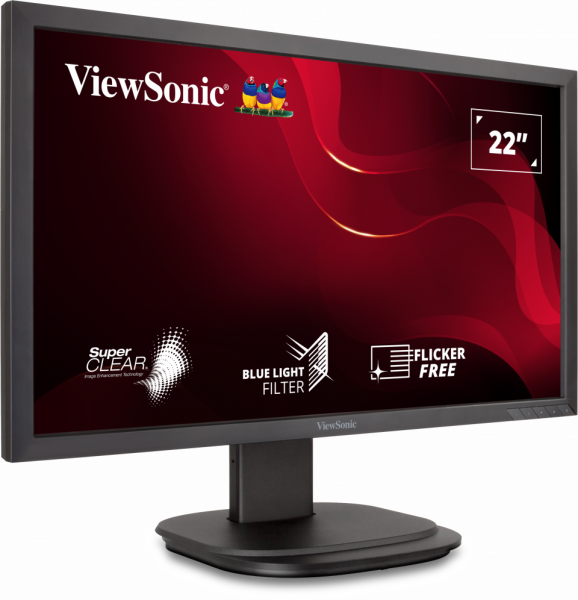

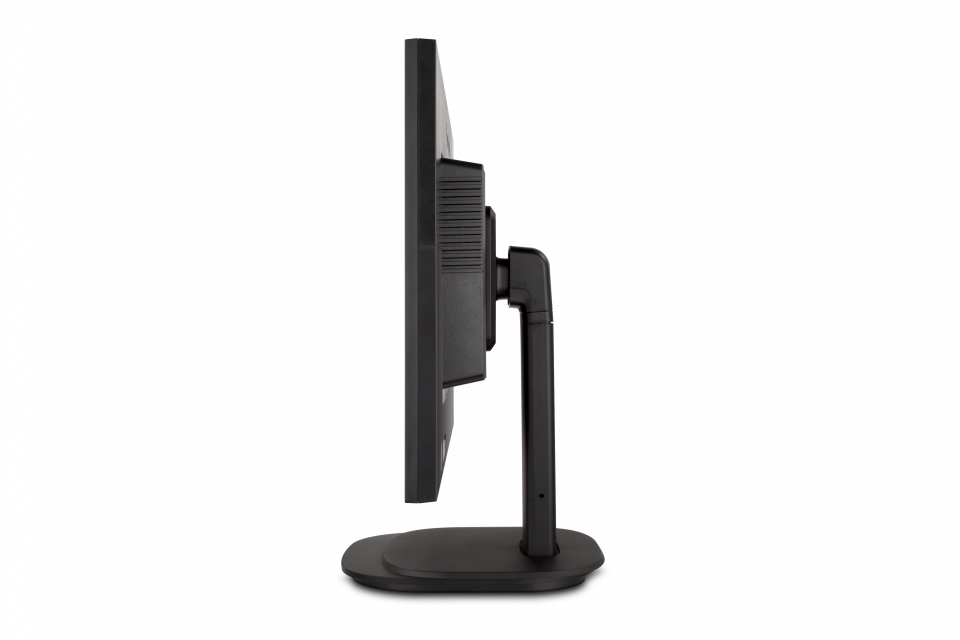

VG2239Smh-2

22" (21.5" Viewable) Full HD Ergonomic LED Monitor with flexible connectivity

DISPLAY
Monitor Size: 22”W (21.5” Viewable)
Panel Technology: VA Technology TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 476.064mm (H) x 267.786mm (V)
Aspect Ratio: 16:9
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 3000:1 (Typ)
Dynamic Contrast Ratio: 20,000,000:1
Viewing Angles: 178 degrees / 178 degrees (Typ)
Response Time: 5ms (GtG)
INPUT SIGNAL
Frequency: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz
Sync: Separate Sync / Composite Sync / Sync on Green, TMDS, PCI-E
COMPATIBILITY
PC: Windows 8 & Windows 10 certified
Mac®: Power Mac tested

CONNECTOR
Input: VGA x 1, HDMI x 1 (v1.4 compatible), DisplayPort x 1 (v1.2a compatible)
Audio in x 1 (3.5mm plug)
Output: Earphone out x 1 (3.5mm plug)
AUDIO
Speaker: 2W x 2
USB
Upstream: Type B x 1
Downstream: Type A x 2
POWER
Power: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 17.2W
Optimize: 13.8W
Conserve: 10.7W
ERGONOMICS
Tilt: 20 ~ -5 degrees
Swivel: 360 degrees
Pivot: 90 degrees
Height Adjustment: 0 ~ 135mm
SPECIAL FEATURES
Eye Care: Blue light filter, Flicker Free
WALL MOUNT
VESA®: 100mm x 100mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 512.4mm (W) x 418mm~553mm (H) x 239.6mm (D)
Physical without stand (mm): 512.4mm (W) x 304.4mm (H) x 56.4mm (D)
Packaging (mm): 592mm (W) x 378mm (H) x 189mm (D)
WEIGHT
Net with stand: 4.34kg
Net without stand: 2.89kg
Gross: 5.57kg
PACKAGE CONTENTS
LCD Display
Power Cable (1.8m)
DP Cable (1.8m)
Audio Cable (1.8m)
USB2.0 Cable (1.8m)
Quick Start Guide
